2008 HONDA ODYSSEY Owners Manual

Playing the XMSatellite Radio (U.S. EX and all EX-L models without navigation system)
238

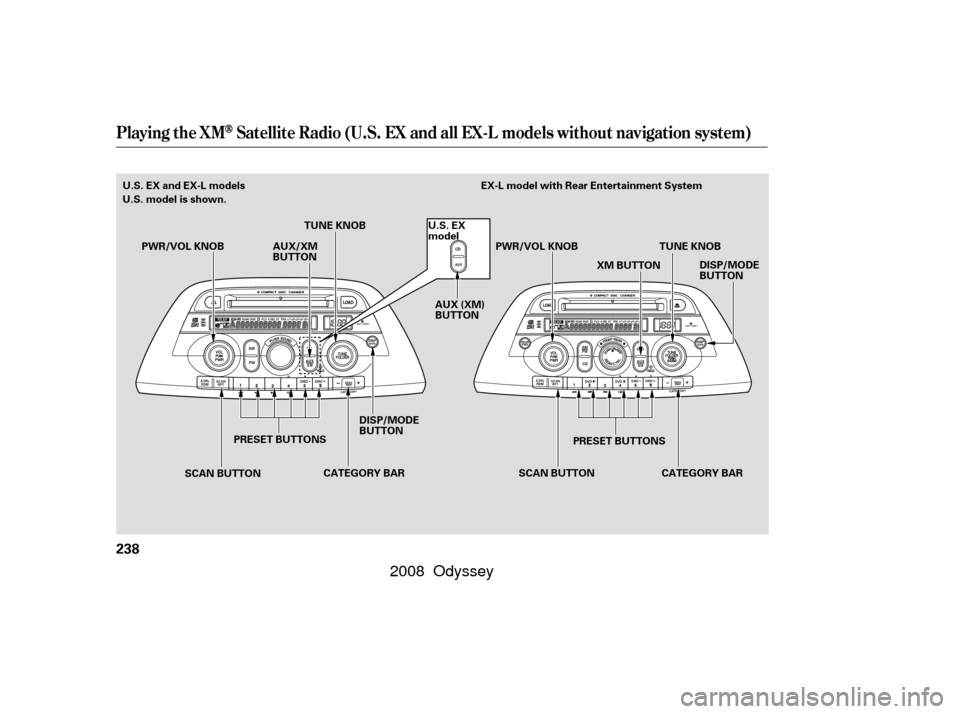

PRESET BUTTONS
PRESET BUTTONS TUNE KNOB
PWR/VOL KNOB
TUNE KNOB
U.S. EX and EX-L models
U.S. model is shown. EX-L model with Rear Entertainment System
CATEGORY BAR DISP/MODE
BUTTON
CATEGORY BARDISP/MODE
BUTTON
PWR/VOL KNOB
SCAN BUTTON XM BUTTON
SCAN BUTTON
AUX/XM
BUTTON
U.S. EX
model
AUX (XM)
BUTTON
——yy
(yy
2008 Odyssey

µ
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the AUX/XM
button. Adjust the volume by turning
the PWR/VOL knob. The last
channel you listened to will show in
the display.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category. Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
channel name, channel number,
category, artist name, and music title.
On the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, and Canada, except
Hawaii and Alaska. XM
is a
registered trademark of XM Satellite
Radio, Inc.
XM satellite radio receives signals
f rom two satellites to produce clear,
high-quality digital reception. It
of f ers many channels in several
categories. Along with a large
selection of dif f erent types of music,
XM satellite radio allows you to view
channel and category selections in
the display.
Though it is not equipped with an
XM satellite radio system, your
vehicle is ‘‘XM Ready.’’ If you
purchase an XM radio receiver, you
can connect it to your vehicle’s audio
system to receive XM broadcasts.
CONT INUED
U.S. EX models
Playing the XMSatellite Radio (U.S. EX and all EX-L models without navigation system)
Operating the XM Radio
MODE
Features
239
——y
y
(yy
2008 Odyssey

µµ
µ´ µµ
On models with a rear entertainment
system, you cannot listen to XM
Radio and a disc at the same time.
For example, when XM Radio is
playing on the f ront speakers, you
cannot listen to a disc on the rear
speakers, or vice versa.
Turn the tune knob lef t or
right to select channels. In the
category mode, you can only select
channels within that category.
Press either side of
the bar ( or ) to select another
category. The SCAN f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel: Press the AUX/XM button. Either
XM1 or XM2 will show in the
display.
Use the selector knob, or the
CATEGORYbarorSCANbutton
to tune to a desired channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected. Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
1.
2.
3.
Playing the XMSatellite Radio (U.S. EX and all EX-L models without navigation system)
TUNE
CATEGORY
SCA N
Preset
240
——yy
(yy
2008 Odyssey

µ
µ
µ µ
µ µ
µ
Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Once a channel is stored, simply
press and release the proper preset
button to tune to it. XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally. The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected channel
number does not exist or is not part
of your subscription.
The selected
channel has no artist or title
inf ormation at this time.
There is a problem
with the XM antenna. Please consult
your dealer.
4.
5.
CONT INUED
Playing the XMSatellite Radio (U.S. EX and all EX-L models without navigation system)
XM Radio Display Messages
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
‘‘NO SIGNA L ’’
‘‘----’’
‘‘NO INFO’’
‘‘CHECK
A NT ENNA ’’
Features
241
——yy
(yy
2008 Odyssey

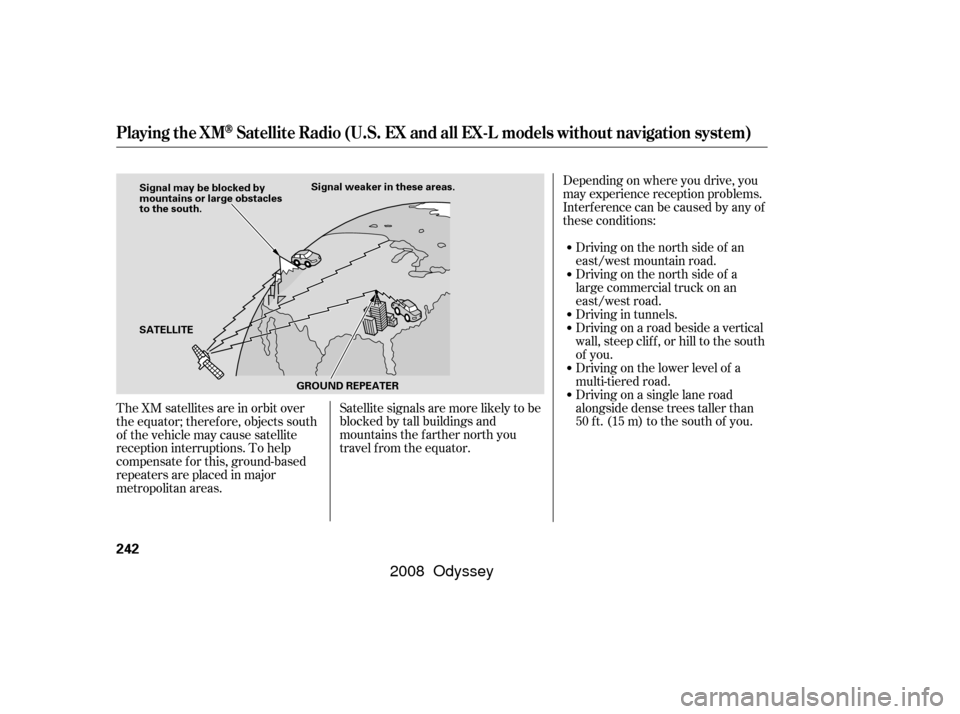

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator.Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:
Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Playing the XMSatellite Radio (U.S. EX and all EX-L models without navigation system)
242
SATELLITE
GROUND REPEATER
Signal weaker in these areas.
Signal may be blocked by
mountains or large obstacles
to the south.
——y
y
(yy
2008 Odyssey

There may be other geographic
situations that could af f ect XM radio
reception.After you’ve registered with XM
Radio, keep your audio system in the
Satellite Radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CH’’ will appear in
the display, and you’ll be able to
listen to XM Radio broadcasts. XM
Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio.
If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM satellite radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the AUX/XM
button. A variety of music types and
styles will play.
If you decide to purchase XM
satellite radio service, contact XM
Radio at
, or at
1-800-852-9696. In Canada, contact
XM Canada at , or at
1-877-438-9677. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE
knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.comwww.xmradio.ca
Playing the XMSatellite Radio (U.S. EX and all EX-L models without navigation system)
Receiving Satellite Radio Service
Features
243
——yy
(yy
2008 Odyssey

´
µ ´
µ
Playing Discs (EX and EX-L models without navigation system)
244

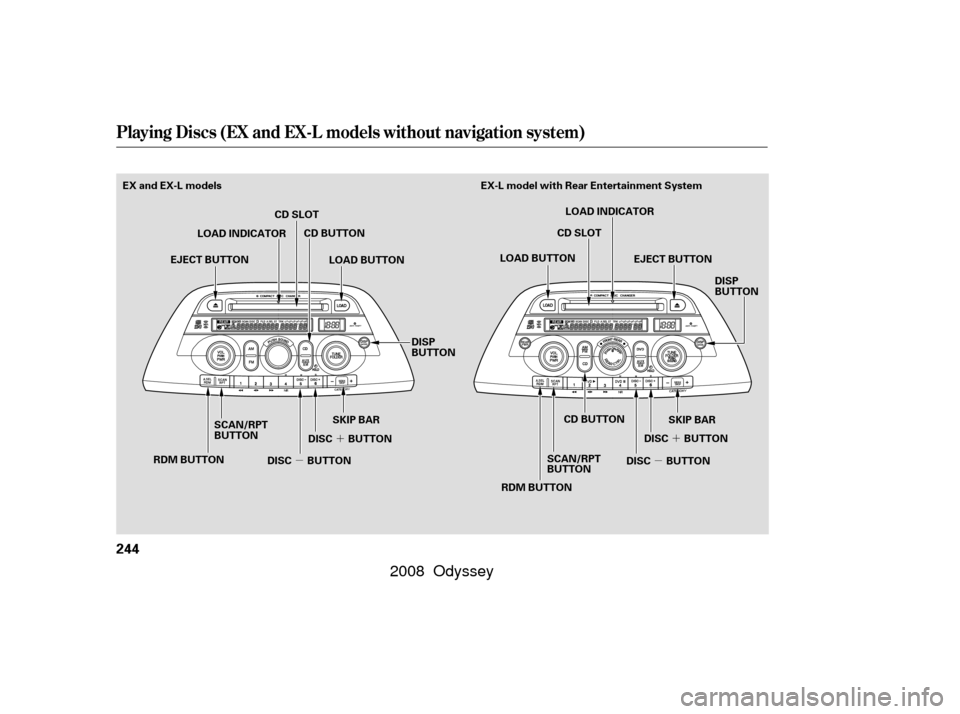

EX-L model with Rear Entertainment System
EX and EX-L models
CD SLOTCD BUTTON
SCAN/RPT
BUTTON
RDM BUTTON LOAD INDICATOR
DISP
BUTTON
SKIP BAR SKIP BAR
CD SLOT
CD BUTTON
SCAN/RPT
BUTTON DISP
BUTTON
LOAD BUTTON LOAD INDICATOR
EJECT BUTTON
EJECT BUTTON
RDM BUTTON
LOAD BUTTON
DISC BUTTON
DISC BUTTON DISC BUTTON
DISC BUTTON
—

—
yy
(yy
2008 Odyssey

µ
µ
µ
µµ µ
µ
Your vehicle’s audio system has an
in-dash disc changer that holds up to
six discs. You operate this disc
changer with the same controls used
f or the radio. To operate the disc
changer, the ignition switch must be
in the ACCESSORY (I) or ON (II)
position.
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99
f olders, or up to 255 tracks/f iles. NOTE:
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED FORMAT,
andthenskipstothenextfile.
Video CDs and DVD discs do not
work in this unit.
The specif ications of the compatible
MP3 f ile are:
Compatible with variable bit rate
and multi-session
Maximum layers
(including ROOT): 8 layers Sampling f requency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
Bit rate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2) The specif ications of the compatible
WMA f ile are:
Sampling f requency:
32/44.1/48 kHz
Compatible with variable bit rate
and multi-session
Maximum layers
(including ROOT): 8 layers Bit rate:
48/64/80/96/128/160/192 kbps
To load multiple discs in one
operation: On the upper right side of the
display, the disc number f or an
empty position will begin blinking,
and the green CD load indicator
will come on. Press and hold the LOAD button
beside the CD slot until you see
‘‘LOAD’’ in the display, then
release the button.
1.
2.
CONT INUED
Playing Discs (EX and EX-L models without navigation system)
Operating the CD Changer
L oading CDs in t he Changer
Features
245
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——y
y
(yy
2008 Odyssey
