2008 HONDA ODYSSEY Owners Manual

µµ
Î
Î ÎÎ
Î
Î Î
No.
No. Amps. Amps.
Circuits Protected Circuits Protected
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 7.5 A
15 A
10 A
15 A
10 A
7.5 A
7.5 A
15 A
7.5 A 30 A
15 A
20 A
20 A
20 A
20 A
20 A 15 A
15 A
10 A
7.5 A 10 A
7.5 A 20 A
20 A
20 A
20 A
20 A
10 A
15 A
10 A
7.5 A
TPMS
IG Coil
Daytime Running Light
LAF
Radio
Interior Lights
Back Up
Not Used
Front Accessory Socket
OPDS
IG Wiper
Rear Accessory Socket
Left Power Sliding Door
Closer
Driver Power Seat Slide
Pedal Position Adjustment
Dr Power Seat Recline
Power Tailgate Closer IG ACG
IG Fuel Pump
IG Washer
IG Meter
IG SRS
IGP
Left Rear Power Window
Right Rear Power Window
Passenger’s Power Window
Driver’s Power Window
Moonroof
Not Used
IG HAC
IG SOL
ACC
HAC OP
For some types
:
Fuse Locations
478
Front
INTERIOR FUSE BOX
Driver’s Side
——y
y
(yy
2008 Odyssey

Î
Î
µ
µ
µ
Î
No. Circuits Protected No.
Circuits Protected
Amps. Amps.
1S
TS 1
2
3
4
5
6
7
8
9
Rear Blower
Not Used
DBW
Door Lock
Not Used
Heated Seat
Instrument Panel
Right Power Sliding Door
Closer
Not Used
7.5 A 30 A
15 A
20 A
15 A
7.5 A 20 A
: For some types
Fuse Locations
T aking Care of t he Unexpect ed
479
INTERIOR FUSE BOX UPPER AREA
Driver’s Side INTERIOR FUSE BOX
Passenger’s Side
——y
y
(yy
2008 Odyssey

µµ
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
Therearetwowaystotowyour
vehicle:
With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
The operator
loads your vehicle on the back of a
truck. The tow
truck uses two pivoting arms that go
under the tires and lif t them of f the
ground. The f lat tire side (f ront or
rear)shouldbeliftedbythewheel-
lift equipment. The other two tires
remain on the ground.
If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
Start the engine.
Press on the brake pedal. Move
the shif t lever through all its
positions.
Shif t to D position f or 5 seconds,
then to N.
Turn of f the engine.
Release the parking brake.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.Flat -bed Equipment Wheel-lif t Equipment
T his is the best way to
transport your vehicle. T his is an
acceptable way to tow your
vehicle.
Emergency Towing
480
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine, your vehicle must be
transported with the f ront wheels of f
the ground.
——y
y
(yy
2008 Odyssey

Emergency Towing
T aking Care of t he Unexpect ed
481
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
——y
y
(yy
2008 Odyssey

482
——y
y
(yy
2008 Odyssey

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers . 484
................................
Specif ications .486
DOT Tire Quality Grading .......................
(U.S Vehicles) .488
Unif orm Tire Quality ..................................
Grading .488
.................................
Treadwear .488
......................................
Traction .488
.............................
Temperature .489
.................................
Tire Labeling .490
Tire Pressure Monitoring System (TPMS) Required Federal ............................
Explanation .492
.......................
Emissions Controls .495
.....................
The Clean Air Act .495
Crankcase Emissions Control ....................................
System .495
Evaporative Emissions Control ....................................
System .495
Onboard Ref ueling Vapor ................................
Recovery .495
...
Exhaust Emissions Controls . 496
....................
PGM-FI System .496
Ignition Timing Control ................................
System .496 Exhaust Gas Recirculation
...................
(EGR) System . 496
Three Way Catalytic ...........................
Converter .496
....................
Replacement Parts . 496
..
Three Way Catalytic Converter . 497
........................
Emissions Testing .498
....
Testing of Readiness Codes . 498
T echnical Inf ormation
Technical Inf ormation
483
——y
y
(yy
2008 Odyssey

Your vehicle has several identif ying
numbers in various places.

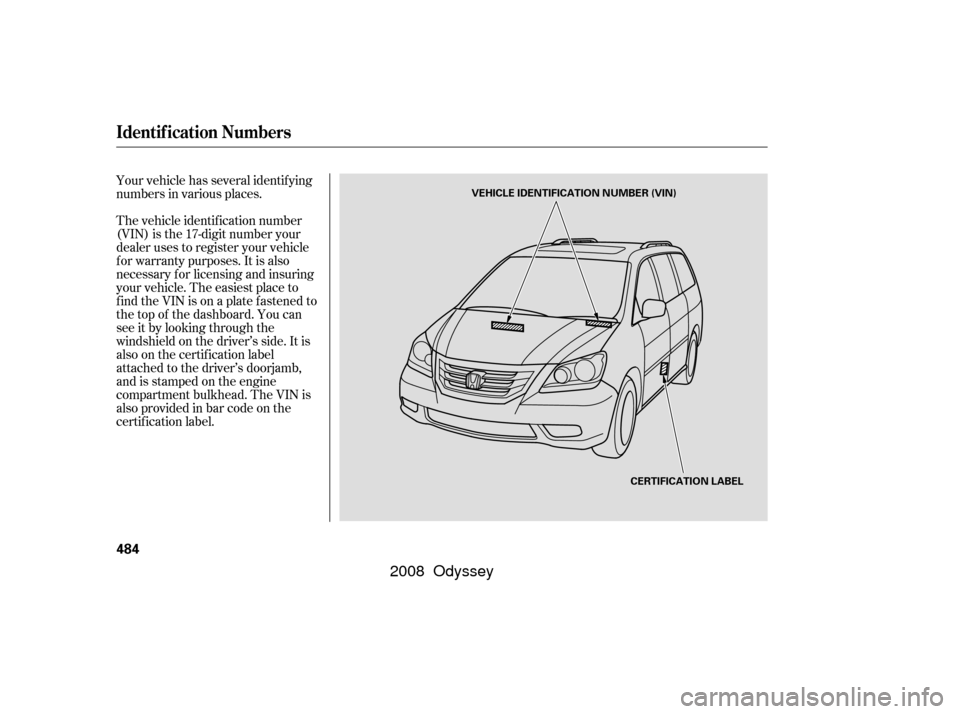

The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
484
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
——y

y
(yy
2008 Odyssey

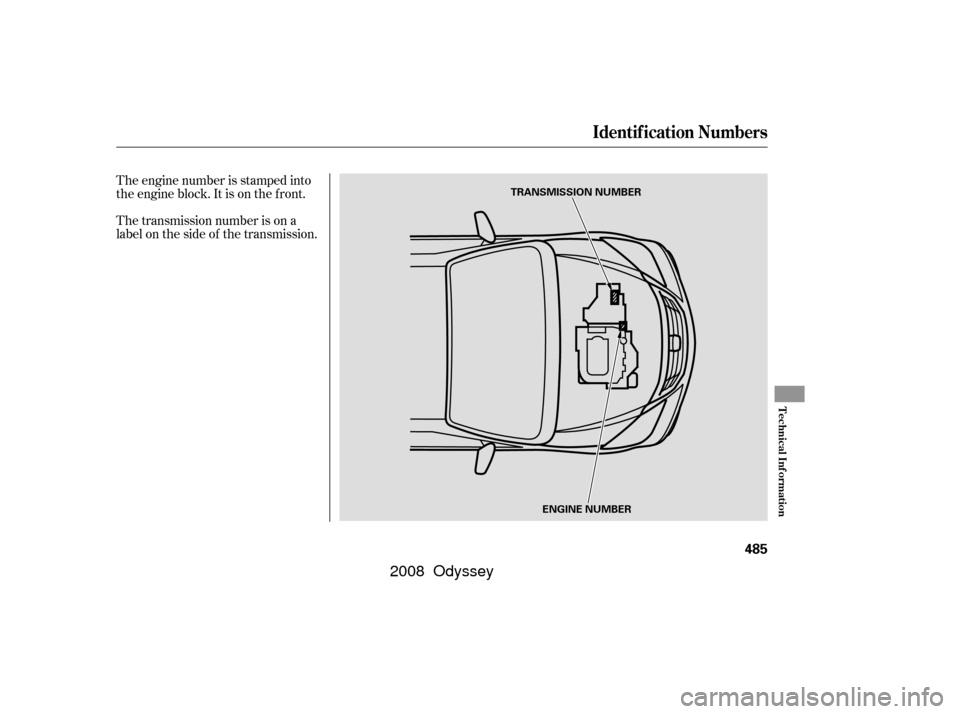

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on the side of the transmission.
Identif ication Numbers
Technical Inf ormation
485
TRANSMISSION NUMBERENGINE NUMBER
