2007 SUZUKI XL7 Owners Manual

5-41 SERVICE AND APPEARANCE CARE
78J00-03E
5) Put the compact spare tire near the flat
tire.
988777
6) Raise the vehicle by turning the jack
handle clockwise. Raise the vehicle far
enough off the ground so there is
enough room for the road tire to clear
the ground.
806071
7) Remove all of the wheel nuts.
8) Remove the flat tire.
WARNING
Getting under a vehicle when it is
jacked up is dangerous. If the vehicle
slips off the jack you could be badly
injured or killed. Never get under a
vehicle when it is supported only by
a jack.
WARNING
Raising your vehicle with the jack
improperly positioned can damage
the vehicle and even make the vehi-
cle fall. To help avoid personal injury
and vehicle damage, be sure to fit the
jack lift head into the proper location
before raising the vehicle.
WARNING
Lifting a vehicle and getting under it
to do maintenance or repairs is dan-
gerous without the appropriate safety
equipment and training. The jack pro-
vided with your vehicle is designed
only for changing a flat tire. If it is
used for anything else, you or others
could be badly injured or killed if the
vehicle slips off the jack. Use the jack
provided with your vehicle only for
changing a flat tire.
WARNING
Rust or dirt on the wheel, or on the
parts to which it is fastened, can
make the wheel nuts become loose
after time. The wheel could come off
and cause an accident. When you
change a wheel, remove any rust or
dirt from the places where the wheel
attaches to the vehicle. In an emer-
gency, you can use a cloth or a paper
towel to do this; but be sure to use a
scraper or wire brush later, if needed,
to get all the rust or dirt off.

5-42 SERVICE AND APPEARANCE CARE
78J00-03E
811105
9) Remove any rust or dirt from the wheel
bolts, mounting surfaces, and spare
wheel.
10)Place the compact spare tire on the
wheel-mounting surface.
11)Reinstall the wheel nuts. Tighten each
nut by hand until the wheel is held
against the hub.
1152288
12)Lower the vehicle by turning the jack
handle counterclockwise.
808642
13)Tighten the wheel nuts firmly in a criss-
cross sequence, as shown.
14)Lower the jack all the way and remove
the jack from under the vehicle.
15)Tighten the wheel nuts firmly with the
wheel wrench.
WARNING
Never use oil or grease on studs or
nuts. If you do, the nuts might come
loose. Your wheel could fall off, caus-
ing a serious accident.
WARNING
Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to come loose and even come
off. This could lead to an accident. Be
sure to use the correct wheel nuts. If
you have to replace them, be sure to
get new SUZUKI original equipment
wheel nuts. Stop somewhere as soon
as you can and have the nuts tight-
ened with a torque wrench to the
proper torque specification. Refer to
“Capacities and Specifications” in
this section for wheel nut torque
specification.
CAUTION
Improperly tightened wheel nuts can
lead to brake pulsation and rotor
damage. To avoid expensive brake
repairs, evenly tighten the wheel nuts
in the proper sequence and to the
proper torque specification. Refer to
“Capacities and Specifications” in
this section for the wheel nut torque
specification.

5-43 SERVICE AND APPEARANCE CARE
78J00-03E
Secondary Latch System
Your vehicle has an underbody mounted
tire hoist assembly equipped with a sec-
ondary latch system. It is designed to stop
the compact spare tire from suddenly fall-
ing off your vehicle if the cable holding the
spare tire is damaged. For the secondary
latch to work, the tire must be stowed with
the valve stem pointing down. Refer to
“Storing a Flat or Spare Tire and Tools” in
this section for instructions on storing the
spare tire correctly.To release the spare tire from the second-
ary latch, do the following:
1) If the cable is not visible, start this pro-
cedure at Step 3.
806961
2) If the cable is visible, place the wrench
on the hoist drive nut and turn the
wrench counterclockwise until approxi-
mately 6 inches (15 cm) of cable is
exposed.
3) Attach the wheel wrench to the jack and
raise the jack at least 10 turns.
4) Place the jack under the vehicle, ahead
of the rear bumper. Position the center
lift point of the jack under the center of
the spare tire.
806546
5) Turn the wheel wrench clockwise to
raise the jack until it lifts the secondary
latch spring.
6) Keep raising the jack until the spare tire
stops moving upward and is held firmly
in place, this lets you know that the sec-
ondary latch has released.
7) Lower the jack by turning the wheel
wrench counterclockwise. Keep lower-
ing the jack until the spare tire is resting
on the wheel wrench.
WARNING
Before beginning this procedure read
all the instructions. Failure to read
and follow the instructions could
damage the hoist assembly and you
and others could get hurt. Read and
follow the instructions listed next.
WARNING
Someone standing too close during
the procedure could be injured by the
jack. If the spare tire does not slide
off the jack completely, make sure no
one is behind you or on either side of
you as you pull the jack out from the
under spare.

5-44 SERVICE AND APPEARANCE CARE
78J00-03E

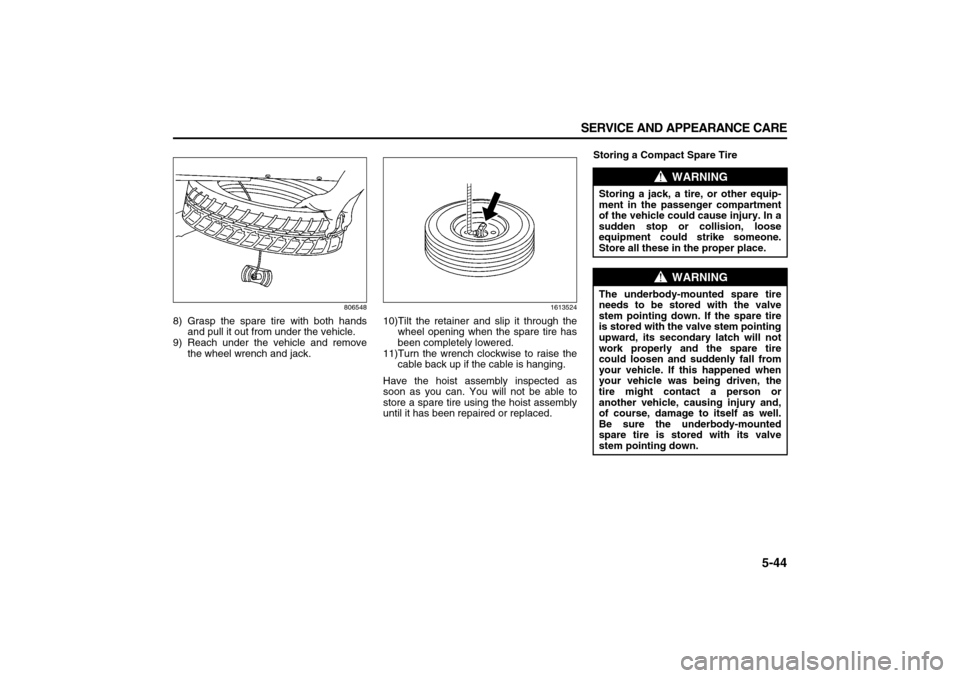

806548
8) Grasp the spare tire with both hands
and pull it out from under the vehicle.
9) Reach under the vehicle and remove
the wheel wrench and jack.
1613524
10)Tilt the retainer and slip it through the
wheel opening when the spare tire has
been completely lowered.
11)Turn the wrench clockwise to raise the
cable back up if the cable is hanging.
Have the hoist assembly inspected as
soon as you can. You will not be able to
store a spare tire using the hoist assembly
until it has been repaired or replaced.Storing a Compact Spare Tire
WARNING
Storing a jack, a tire, or other equip-
ment in the passenger compartment
of the vehicle could cause injury. In a
sudden stop or collision, loose
equipment could strike someone.
Store all these in the proper place.
WARNING
The underbody-mounted spare tire
needs to be stored with the valve
stem pointing down. If the spare tire
is stored with the valve stem pointing
upward, its secondary latch will not
work properly and the spare tire
could loosen and suddenly fall from
your vehicle. If this happened when
your vehicle was being driven, the
tire might contact a person or
another vehicle, causing injury and,
of course, damage to itself as well.
Be sure the underbody-mounted
spare tire is stored with its valve
stem pointing down.

5-45 SERVICE AND APPEARANCE CARE
78J00-03E
Follow this diagram to store the under-
body-mounted spare tire.
1218662
A. Wheel Wrench
B. Hoist Shaft
C. Secondary Retainer
D. Spare Tire
(Valve Stem Pointed Down)1) Put the tire (D) on the ground at the
rear of the vehicle.
2) Ensure the valve stem is pointed down
and to the rear. Then pull the retainer
(C) through the wheel.
3) Pull the secondary retainer (C) through
the wheel. The secondary retainer is
located under the secondary latch
spring and is smaller than the spare tire
retainer to allow it to fit through the road
wheel center cap hole.
4) Place the wheel wrench (A) onto the
hoist drive nut.
5) Raise the tire fully against the under-
side of the vehicle by turning the wheel
wrench clockwise. Continue turning it
clockwise until you hear two clicks or
feel it skip twice. This indicates that the
tire is secure and the cable is tight. The
spare tire hoist cannot be overtight-
ened.
811589
6) Make sure the tire is stored securely.
Push, pull (A), and then try to turn (B)
the tire. If the tire moves, use the wheel
wrench and socket end of the extension
to tighten the cable.
7) Return the equipment to the proper
location in the vehicle as shown next.

5-46 SERVICE AND APPEARANCE CARE
78J00-03E
To store the tools, do the following:
1) Place the wheel wrench into the bag.
2) Use the hook and loop fastener straps
to secure the bag to the fully collapsed
jack.
1399885
3) Install the jack in the right side panel of
cargo area and secure with the wing
bolt.
4) Reinstall the access door.
Storing a Full-Sized Flat TireTo store a full-sized flat tire do the follow-
ing:
1) Remove the tire storage bag and cable
package from the jack storage area.
2) If your vehicle has aluminum wheels,
remove the center cap by tapping the
back of the cap with the wheel wrench.
3) If your vehicle has Third Row Seating,
fold down the seat backs. Refer to
“Third Row Seat” in “Rear Seats” in the
“Seats and Restraint Systems” section.
4) Put the flat tire in the tire storage bag
and place it the rear storage area. If
your vehicle has Third Row Seating,
place the tire with the valve stem point-
ing toward the front of the vehicle. If
your vehicle does not have Third Row
Seating, place the tire with the valve
stem pointing toward the rear of the
vehicle.
1829965
5) Pull the cable (A) through the door
striker (C) and the center of the wheel.
812750
6) Hook the cable (A) onto the outside of
the liftgate hinges (B).

5-47 SERVICE AND APPEARANCE CARE
78J00-03E
7) Pull on the cable to make sure it is
secure.
1829968
8) Make sure the metal tube is center at
the striker. Push the tube towards the
front of the vehicle.
9) Close the liftgate.
10)If your vehicle has Third Row Seating,
return the third row seat to their upright
position. Refer to “Third Row Seat” in
“Rear Seats” in the “Seats and
Restraint Systems” section.Compact Spare TireAlthough the compact spare tire was fully
inflated when the vehicle was new, it can
lose air after a time. Check the inflation
pressure regularly. It should be 60 psi (420
kPa).
After installing the compact spare on the
vehicle, you should stop as soon as possi-ble and make sure the spare tire is cor-
rectly inflated. The compact spare is made
to perform well at speeds up to 65 mph
(105 km/h) for distances up to 3000 miles
(5000 km), so you can finish your trip and
have the full-size tire repaired or replaced
where you want. You must calibrate the
tire inflation monitor system, if your vehicle
has this feature, after installing or remov-
ing the compact spare. Refer to “Tire Pres-
sure Monitor System” in this section. The
system may not work correctly when the
compact spare is installed on the vehicle.
Of course, it’s best to replace the spare
with a full-size tire as soon as you can. The
spare will last longer and be in good shape
in case you need it again.
Do not use the compact spare on other
vehicles. And do not mix the compact
spare tire or wheel with other wheels or
tires. They will not fit. Keep the spare tire
and its wheel together.
CAUTION
When the compact spare is installed,
do not take your vehicle through an
automatic car wash with guide rails.
The compact spare can get caught on
the rails. That can damage the tire
and wheel, and maybe other parts of
your vehicle.
CAUTION
Tire chains will not fit your compact
spare. Using them can damage your
vehicle and can damage the chains
too. Do not use tire chains on your
compact spare.

5-48 SERVICE AND APPEARANCE CARE
78J00-03E
Appearance CareCleaning the Inside of Your VehicleYour vehicle’s interior will continue to look
its best if it is cleaned often. Although not
always visible, dust and dirt can accumu-
late on your upholstery. Dirt can damage
carpet, fabric, leather, and plastic sur-
faces. Regular vacuuming is recom-
mended to remove particles from your
upholstery. It is important to keep your
upholstery from becoming and remaining
heavily soiled. Soils should be removed as
quickly as possible. Your vehicle’s interior
may experience extremes of heat that
could cause stains to set rapidly.
Lighter colored interiors may require more
frequent cleaning. Use care because
newspapers and garments that transfer
color to your home furnishings may also
transfer color to your vehicle’s interior.
When cleaning your vehicle’s interior, only
use cleaners specifically designed for the
surfaces being cleaned. Permanent dam-
age may result from using cleaners on sur-
faces for which they were not intended.
Use glass cleaner only on glass. Remove
any accidental over-spray from other sur-
faces immediately. To prevent over-spray,
apply cleaner directly to the cleaning cloth.Many cleaners contain solvents that may
become concentrated in your vehicle’s
breathing space. Before using cleaners,
read and adhere to all safety instructions
on the label. While cleaning your vehicle’s
interior, maintain adequate ventilation by
opening your vehicle’s doors and windows.
Dust may be removed from small buttons
and knobs using a small brush with soft
bristles.
Your SUZUKI dealer has a product for
cleaning your vehicle’s glass. Should it
become necessary, you can also obtain a
product from your SUZUKI dealer to
remove odors from your vehicle’s uphol-
stery.
Do not clean your vehicle using the follow-
ing cleaners or techniques:
 Never use a knife or any other sharp
object to remove a soil from any interior
surface. Never use a stiff brush. It can cause
damage to your vehicle’s interior sur-
faces.
 Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use
of heavy pressure can damage your
interior and does not improve the effec-
tiveness of soil removal.
 Use only mild, neutral-pH soaps. Avoid
laundry detergents or dishwashing
soaps with degreasers. Using too much
soap will leave a residue that leaves
streaks and attracts dirt. For liquid clean-
ers, about 20 drops per gallon (3.78 L) of
water is a good guide.
 Do not heavily saturate your upholstery
while cleaning.
 Damage to your vehicle’s interior may
result from the use of many organic sol-
vents such as naptha, alcohol, etc.
Fabric/CarpetUse a vacuum cleaner with a soft brush
attachment frequently to remove dust and
loose dirt. A canister vacuum with a beater
bar in the nozzle may only be used on floor
carpet and carpeted floor mats. For soils,
always try to remove them first with plain
water or club soda. Before cleaning, gently
remove as much of the soil as possible
using one of the following techniques:
 For liquids: gently blot the remaining soil
with a paper towel. Allow the soil to
absorb into the paper towel until no more
can be removed.
CAUTION
If you use abrasive cleaners when
cleaning glass surfaces on your vehi-
cle, you could scratch the glass and/
or cause damage to the rear window
defogger. When cleaning the glass
on your vehicle, use only a soft cloth
and glass cleaner.
