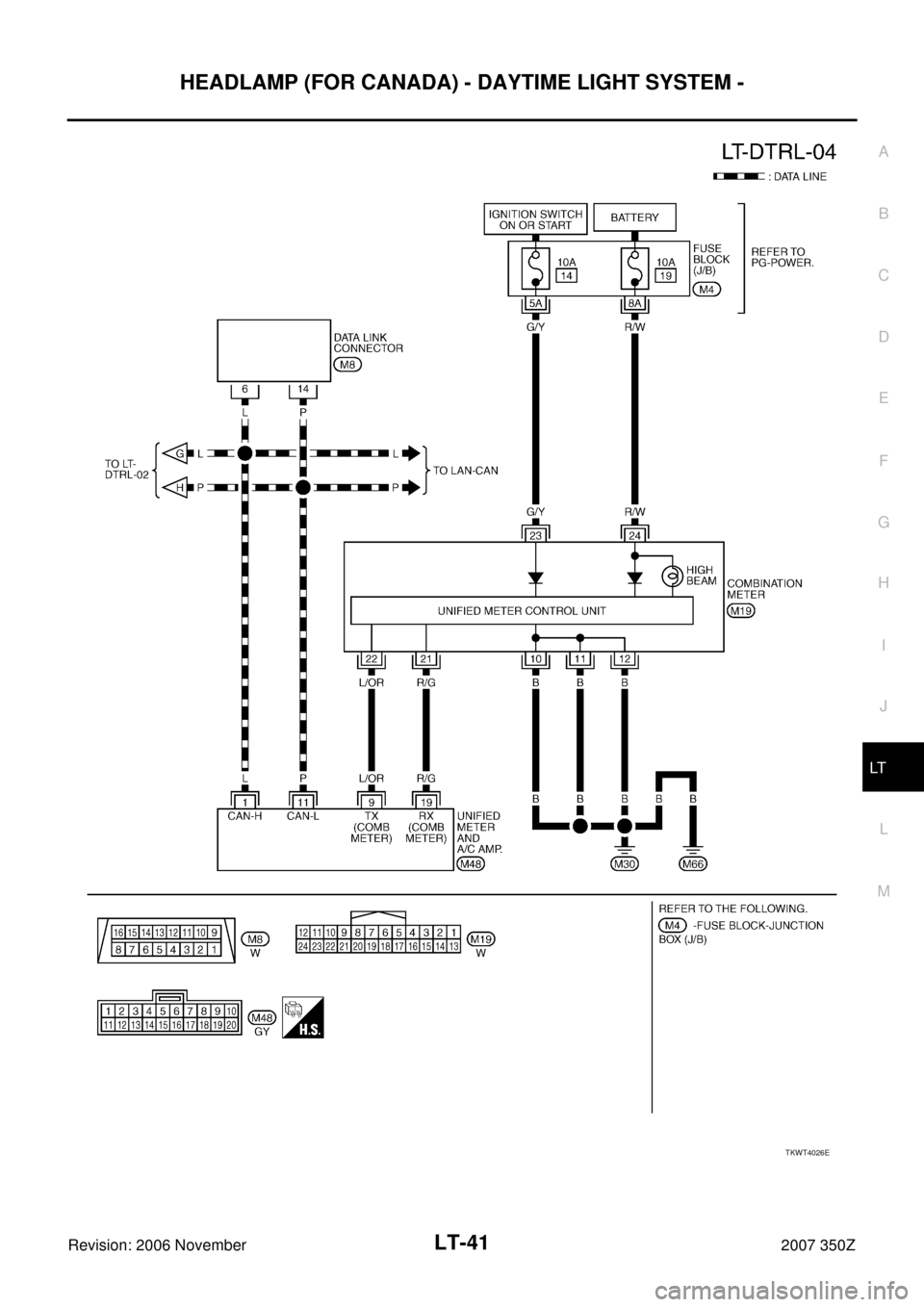

2007 NISSAN 350Z Lighting System Workshop Manual

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-41
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
TKWT4026E

LT-42

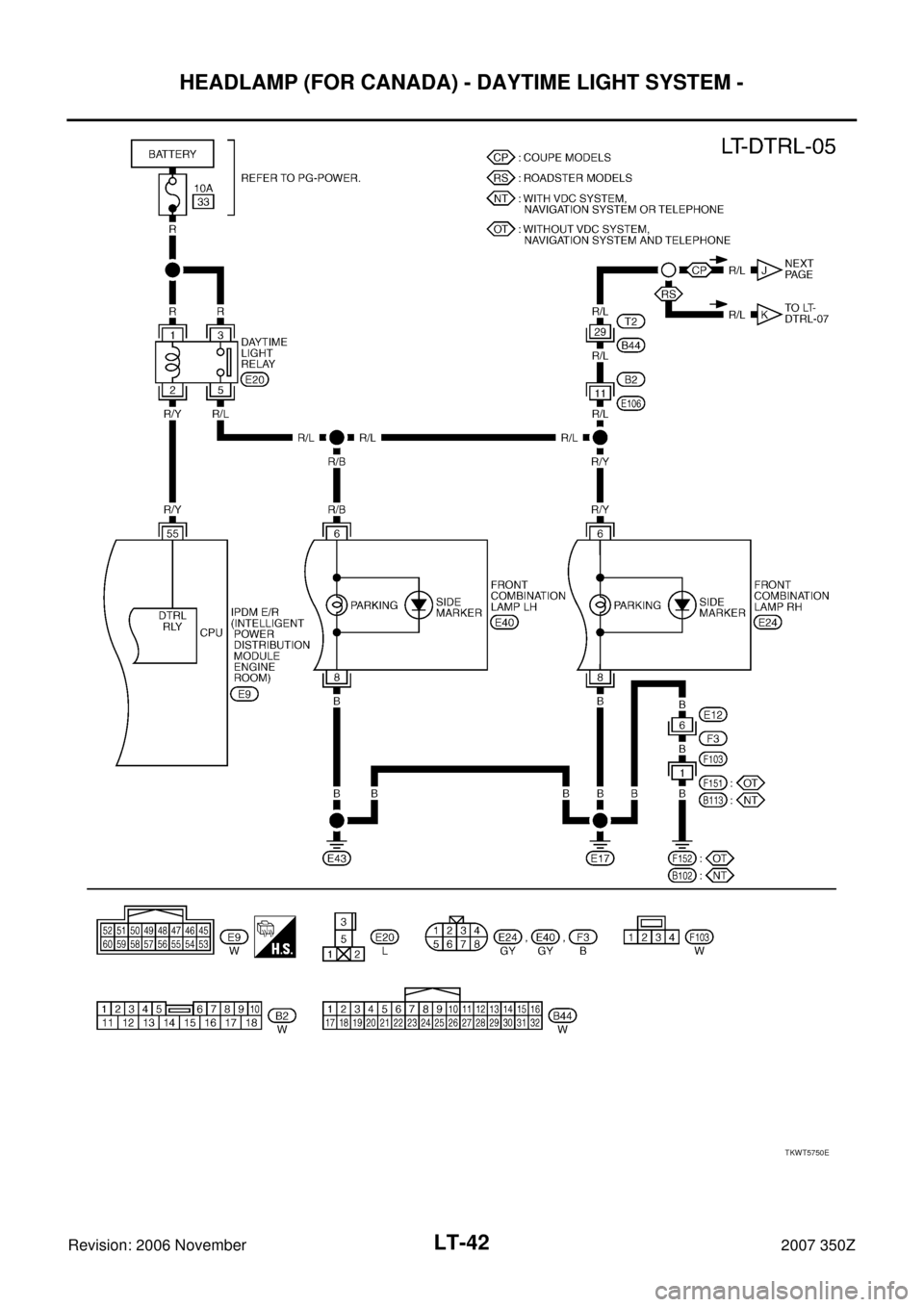

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
TKWT5750E

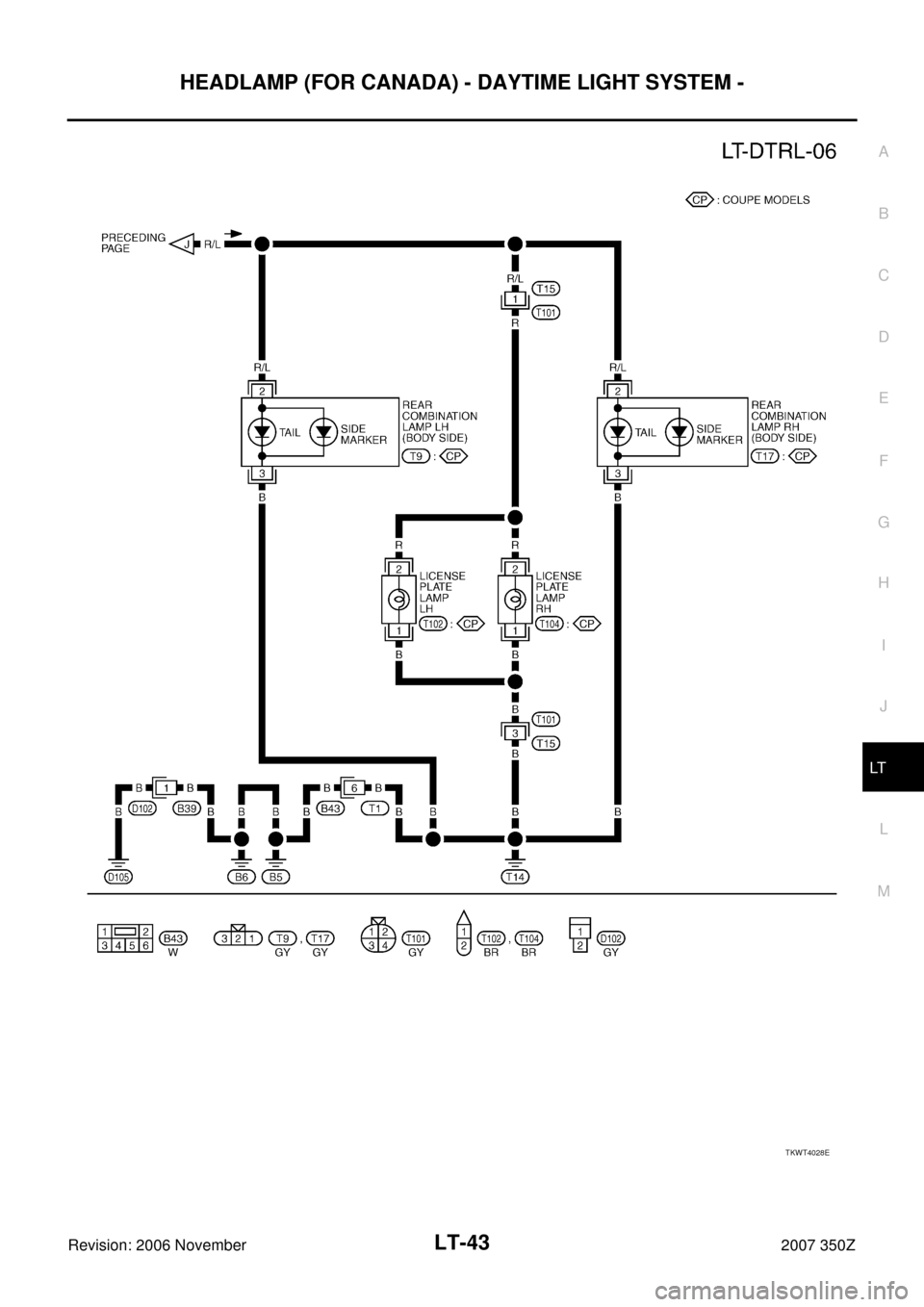

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-43
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
TKWT4028E

LT-44

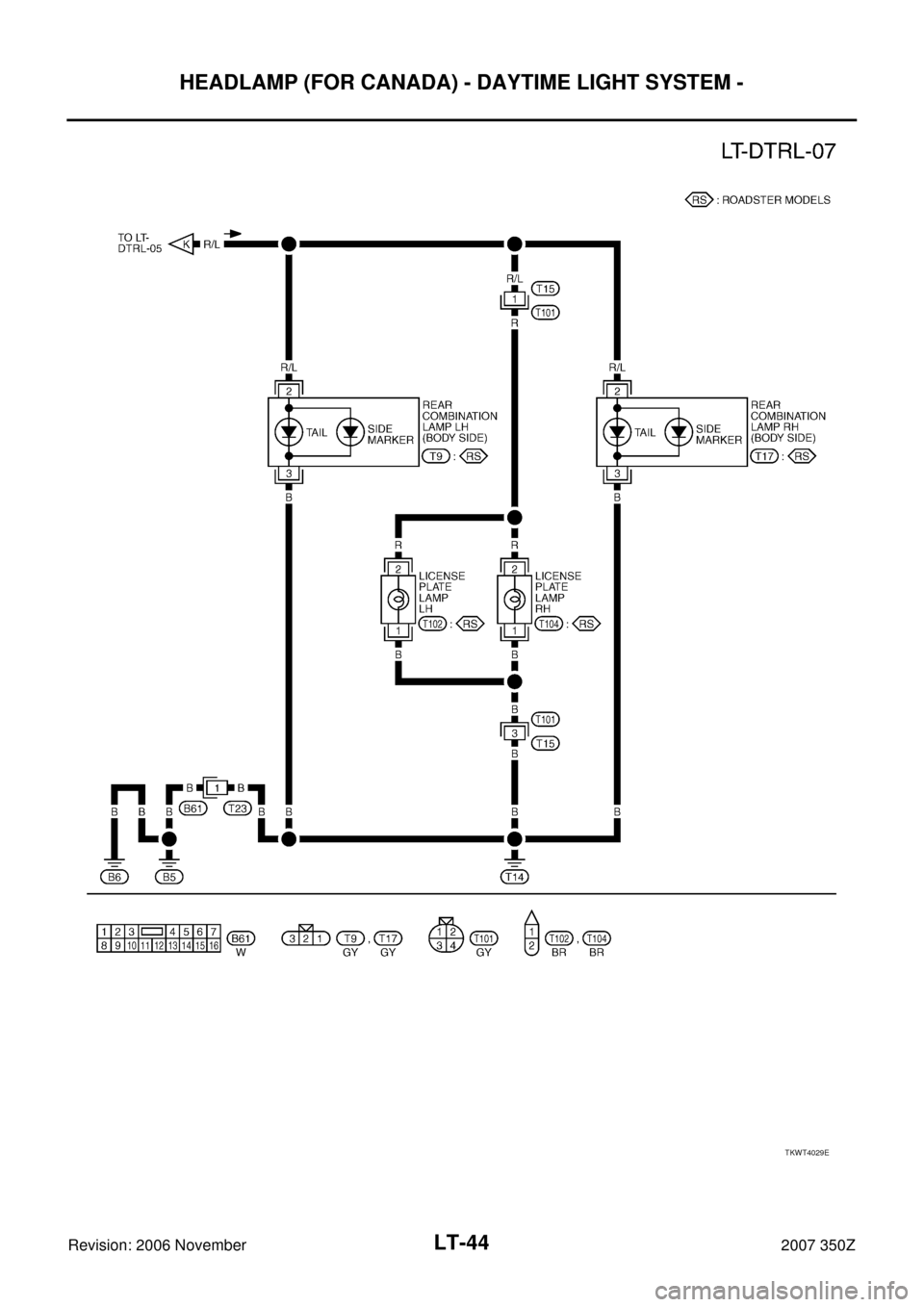

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
TKWT4029E

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-45
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
Terminals and Reference Values for BCMNKS004XI
CAUTION:

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-III. Refer to LT- 9 1 , "
DATA MONITOR" .
Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2GYCombination
switch input 5ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF Approx. 0 V
Any of the conditions below

Lighting switch 1ST

Lighting switch HIGH beam
(Operates only HIGH beam
switch)
Approx. 1.0 V
Lighting switch 2ND
Approx. 2.0 V
3L/WCombination
switch input 4ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF Approx. 0 V
Any of the conditions below

Lighting switch 2ND

Lighting switch PASSING
(Operates only PASSING switch)
Approx. 1.0 V
11 L GIgnition switch
(ACC)ACC — Battery voltage
PKIB4959J
PKIB4953J
PKIB4959J

LT-46
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
33 GCombination
switch output 4ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Lighting switch 1ST (The same
result with lighting switch 2ND)
Approx. 1.2 V
34 W/LCombination
switch output 3ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND

Lighting switch HI beam
(Operates only HI beam switch)
Approx. 1.2 V
35 W/GCombination
switch output 2ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND

Lighting switch PASSING
(Operates only PASSING switch)
Approx. 1.2 V
38 W/LIgnition switch
(ON) ON — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-47
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
Terminals and Reference Values for IPDM E/RNKS004XJ
How to Proceed With Trouble DiagnosisNKS004XK
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 3 2 , "
System Description" .
3. Perform the preliminary check. Refer to LT- 4 7 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does headlamp operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckNKS004XL
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
39 L CAN − H— — —
40 P CAN − L— — —
42 GYBattery power
supplyOFF — Battery voltage
52 B Ground ON — Approx. 0 V
55 RBattery power
supplyOFF — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
20 R/L Headlamp low (RH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
27 BR Headlamp high (RH) ON Lighting switch HIGH or PASS positionOFF Approx. 0 V
ON Battery voltage
28 R/Y Headlamp high (LH) ON Lighting switch HIGH or PASS positionOFF Approx. 0 V
ON Battery voltage
30 R/W Headlamp low (LH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN − H— — —
49 P CAN − L— — —
55 R/Y Daytime light relay signal ON Lighting switch 1ST positionOFF Approx. 0 V
ON Battery voltage
60 B Ground ON — Approx. 0 V
UNIT POWER SOURCE Fuse and fusible link No.
BCMBatteryF
18
Ignition switch ON or START position 1
Ignition switch ACC or ON position 6

LT-48
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
Refer to LT- 3 8 , "Wiring Diagram — DTRL —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
IPDM E/R Battery33
72
74
76
86 UNIT POWER SOURCE Fuse and fusible link No.
Terminals Ignition switch position
(+)
(-) OFF ACC ON
BCM
connectorTerminal
M9011
GroundApprox. 0 VBattery
voltageBattery
voltage
38 Approx. 0 V Approx. 0 VBattery
voltage
M9142Battery
voltageBattery
voltageBattery
voltage
55Battery
voltageBattery
voltageBattery
voltage
PKIB5197E
BCM connector Terminal
GroundContinuity
M91 52 Yes
PKIB5198E
