to BCM terminal 42,

through 10A fuse [No. 71, located in IPDM E/R]

to CPU located in IPDM E/R,

through 10A fuse [No.19, located in fuse block (J/B)]

to combination meter terminal 24,

through 10A fuse [No.33, located in the fuse, fusible link and relay box]

to daytime light relay terminals 1 and 3.
With ignition switch in ON or START position, power is supplied

to CPU located in IPDM E/R,

through 10A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No.14, located in fuse block (J/B)]

to combination meter terminal 23.
With ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to IPDM E/R terminals 38 and 60

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone),

to BCM terminal 52

through grounds M30 and M66,

to combination meter terminals 10, 11 and 12

through grounds M30 and M66.
HEADLAMP OPERATION
Low Beam Operation
With the lighting switch in 2ND position, the BCM receives input signal requesting the headlamps to illuminate.
This input signal is communicated to the IPDM E/R through CAN communication. The CPU located in the
IPDM E/R controls the headlamp low relay turned ON, which when energized, supplies power,

through 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to front combination lamp RH terminal 7,

through 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to front combination lamp LH terminal 7.
Ground is supplied

to front combination lamp RH terminal 4, and

to front combination lamp LH terminal 4

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone).
With power and ground supplied, headlamp bulbs illuminate.
High Beam Operation /Flash-to-Pass Operation
With the lighting switch in 2ND position and placed in HIGH or PASS position, the BCM receives input signal
requesting headlamp high beams to illuminate. High beam request signal and low beam request signal is com-
municated to the IPDM E/R through CAN communication. The CPU located in the IPDM E/R controls head-
lamp high relay and headlamp low relay turned ON, which when energized, supplies power,

through 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to front combination lamp RH terminal 7,

LT-34
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z

through 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to front combination lamp LH terminal 7,

through 10A fuse [No.72, located in IPDM E/R]

through IPDM E/R terminal 27

to front combination lamp RH terminal 3,

through 10A fuse [No.74, located in IPDM E/R]

through IPDM E/R terminal 28

to front combination lamp LH terminal 3.
Ground is supplied

to front combination lamp RH terminal 4, and

to front combination lamp LH terminal 4

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone).
With the power and ground supplied, headlamp bulbs illuminate. High beam solenoids move the bulb shades
in the front combination lamps, and the bulb shades change to high beam position.
Unified meter and A/C amp. receives signal from BCM through CAN communication, and then combination
meter indicator illuminates high beam,
DAYTIME LIGHT OPERATION
Once the parking brake is turned OFF after ignition switch ON, if the lighting switch is turned OFF while engine
is running, the BCM outputs the signal requesting parking, license plate, side marker, tail lamps and headlamp
low beam to illuminate. This output signal is communicated to the IPDM E/R through CAN communication.
The CPU located in the IPDM E/R controls headlamp low relay and daytime light relay turned ON, which when
energized, supplies power,

through 15A fuse [No.76, located in the IPDM E/R]

through IPDM E/R terminal 20

to front combination lamp RH terminal 7,

through 15A fuse [No.86, located in the IPDM E/R]

through IPDM E/R terminal 30

to front combination lamp LH terminal 7,

through 10A fuse [No.33, located in the fuse, fusible link and relay box]

through daytime light relay terminal 2

to IPDM E/R terminal 55,

through daytime light relay terminal 5

to front combination lamp RH terminal 6

to front combination lamp LH terminal 6

to rear combination lamp RH terminal 2

to rear combination lamp LH terminal 2

to license plate lamp RH terminal 2

to license plate lamp LH terminal 2.
Ground is supplied

to front combination lamp RH terminal 4

to front combination lamp LH terminal 4

to front combination lamp RH terminal 8

to front combination lamp LH terminal 8

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone),

to rear combination lamp RH terminal 3

to rear combination lamp LH terminal 3

to license plate lamp RH terminal 1

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-35
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

to license plate lamp LH terminal 1

through grounds B5, B6, D105 and T14 (Coupe models)

through grounds B5, B6 and T14 (Roadster models).
With power and ground supplied, the headlamp low, parking, license plate and tail lamps illuminate.
OPERATION

T: “TAIL LAMP” position

Hi: “HIGH BEAM” position

Lo: “LOW BEAM” position

P: “FLASH TO PASS” position

×: Lamp “ON”

–: Lamp “OFF”

*: Once the parking brake is turned OFF after ignition switch ON, parking, license plate, side marker, tail lamps and headlamp low are
turned ON.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), and the ignition switch is turned
from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the headlamps remain illuminated for 5 minutes, then the headlamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-III.
INTERLOCKED OPERATION WITH REMOTE KEYLESS ENTRY SYSTEM
Refer to BL-59, "REMOTE KEYLESS ENTRY SYSTEM" .
INTERLOCKED OPERATION WITH VEHICLE SECURITY SYSTEM
Refer to BL-125, "VEHICLE SECURITY (THEFT WARNING) SYSTEM" .
XENON HEADLAMP
Xenon type lamps are used for headlamps. Xenon bulbs do not use a filament. Instead, they produce light
when a high voltage current is passed between two tungsten electrodes through a mixture of xenon (an inert
gas) and certain other metal halides. In addition to strong lighting power, electronic control of the power supply
gives the headlamps stable quality and tone color.
Followings are some advantages of the xenon type headlamp.

The light produced by the headlamps is white color similar to sunlight that is easy to the eyes.

Light output is nearly double that of halogen headlamps, affording increased area of illumination.

Counter-reflected luminance increases and the contrast enhances on the wet road in the rain. That makes
visibility go up more than the increase of the light volume.

Power consumption is approximately 25 percent less than halogen headlamps, reducing battery load.
Engine With engine stopped With engine running
Lighting switch OFF 1ST 2ND OFF 1ST 2ND
OFF Hi P T Hi P Lo Hi P OFF Hi P T Hi P Lo Hi P
Headlamp High
beams–––––×–××––×––×–××
Low
beams– –––––×––×*×*–×*×*–×––
Parking, license
plate, side marker
and tail lamps–––×–×××××*×*–××××××
Illumination – – –×–××××–––××××××

LT-36
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
CAN Communication System DescriptionNKS004XE
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS004XF
Refer to LAN-48, "CAN System Specification Chart" .

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-37
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
SchematicNKS004XG
TKWT4022E

LT-38
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z

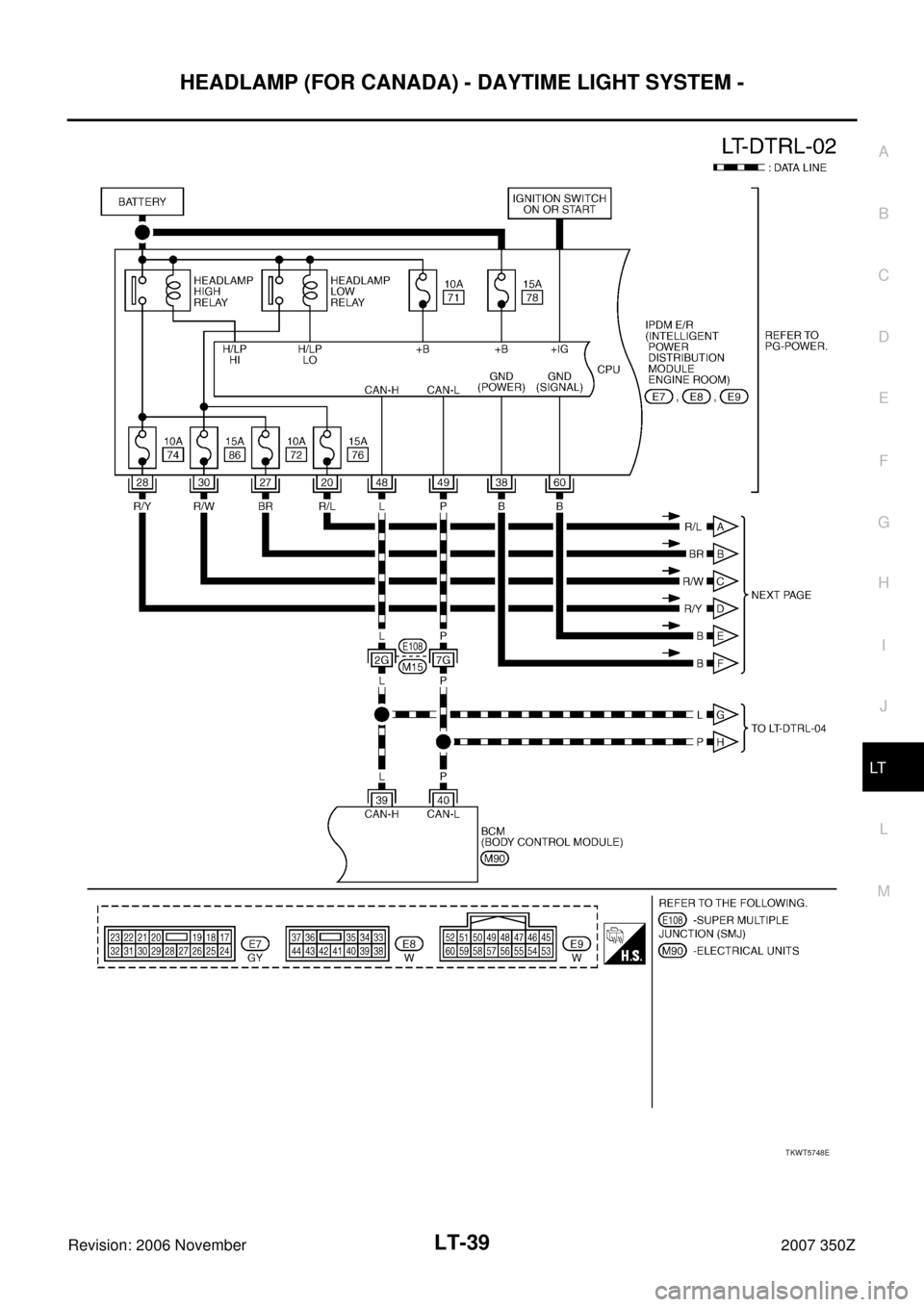

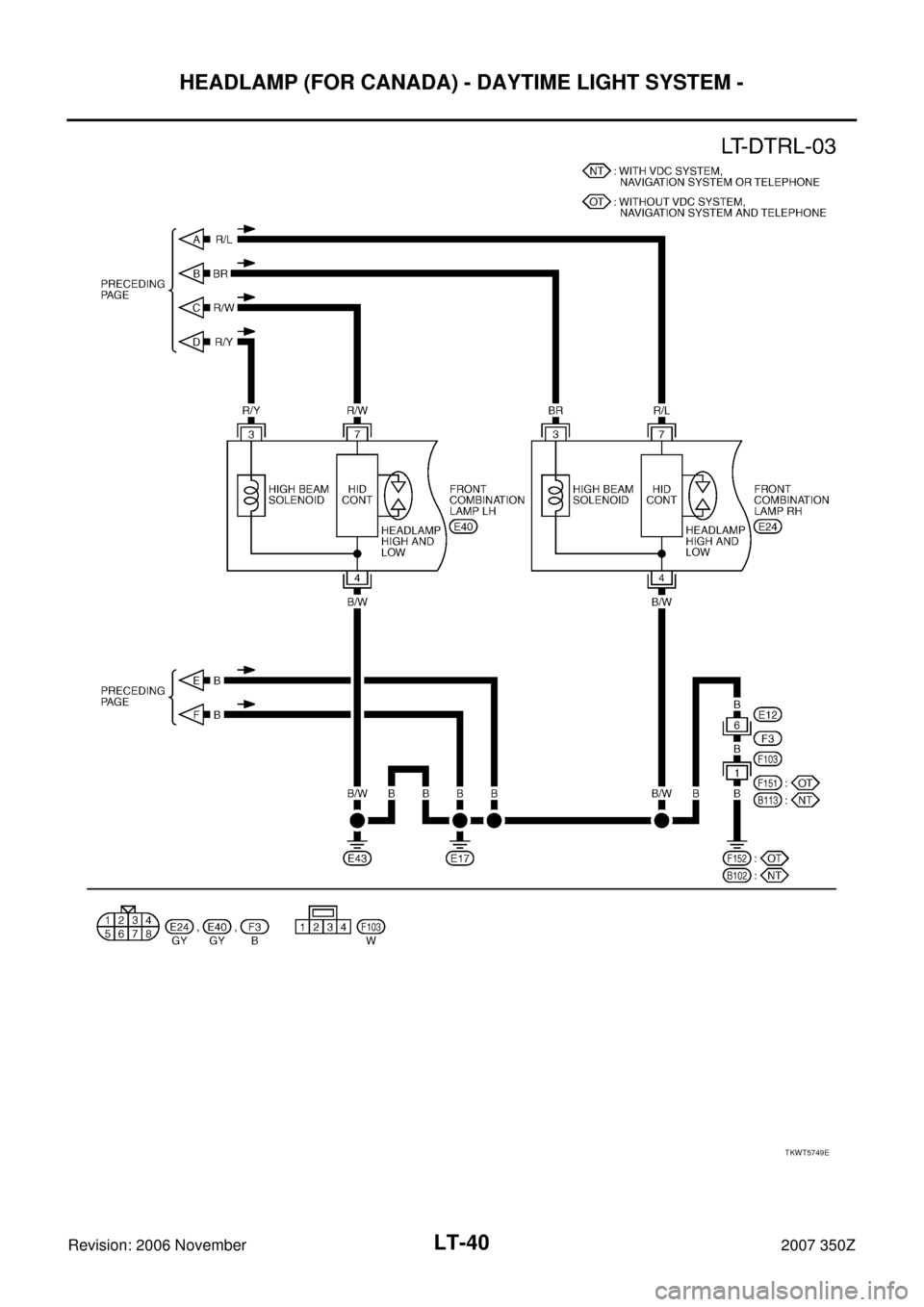

Wiring Diagram — DTRL —NKS004XH
