2007 NISSAN 350Z Lighting System Workshop Manual

INTERIOR ROOM LAMP
LT-129
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
POWER SUPPLY AND GROUND
Power is supplied at all times

through 10A fuse [No.21, located in fuse block (J/B)]

to key switch terminal 2,

through 10A fuse [No.18, located in fuse block (J/B)]

to BCM terminal 42,

through 40A fusible link (letter F, located in fuse, fusible link and relay box)

to BCM terminal 55.
When key is removed from ignition key cylinder, power is interrupted

through key switch terminal 1

to BCM terminal 37.
With ignition switch in ON or START position, power is supplied

through 10A fuse [No.1, located in fuse block (J/B)]

to BCM terminal 38.
When map lamp and vanity mirror lamp power is supplied at times

through BCM terminal 41

to ignition key hole illumination terminal1

to map lamp terminal 3 (Coupe models)

to map lamp terminal 2 (Roadster models)

to luggage room lamp terminal 1 (Coupe models)

to trunk room lamp terminal 1 (Roadster models) and

to vanity mirror lamp LH and RH terminals 1.
Ground is supplied

to BCM terminal 52

through grounds M30 and M66.
When driver side door is opened, ground is supplied

through case ground of driver side door switch

to BCM terminal 62.
When passenger side door is opened, ground is supplied

through case ground of passenger side door switch

to BCM terminal 12.
When back door is opened, ground is supplied (Coupe models)

through grounds B5, B6, D105 and T14

to back door switch terminal 3

through back door switch terminal 1

to BCM terminal 58.
When trunk lid is opened, ground is supplied (Roadster models)

through grounds B5, B6 and T14

to trunk lid lock assembly (trunk room lamp switch) terminal 1

through trunk lid lock assembly (trunk room lamp switch) terminal 3

to BCM terminal 57.
When the driver side door or passenger side door is unlocked by door lock and unlock switch, The BCM
receives unlock signal with power window serial link

through grounds M30 and M66

to power window main switch (door lock and unlock switch) terminal 15 or power window sub switch (door
lock and unlock switch) terminal 11

through power window main switch (door lock and unlock switch) terminal 12 and power window sub
switch (door lock and unlock switch) terminal 16

to BCM terminal 22.

LT-130
INTERIOR ROOM LAMP
Revision: 2006 November2007 350Z
When the driver side door is unlocked by door key cylinder switch, The BCM receives information by commu-
nicating with power window main switch

through grounds M30 and M66

to door key cylinder switch terminal 2

through door key cylinder switch terminal 1

to power window main (door lock and unlock switch) switch terminal 7

through power window main switch (door lock and unlock switch) terminal 12

to BCM terminal 22.
When a signal, or combination of signals is received by BCM, ground is supplied

through BCM terminal 48

to map lamp terminal 2 (Coupe models)

to map lamp terminal 3 (Roadster models).
With power and ground are supplied, map lamp illuminates.
SWITCH OPERATION
When map lamp switch is ON, ground is supplied

to map lamp terminal 1 (Coupe models)

to map lamp terminal 1 (Roadster models)

through grounds M30 and M66.
And power is supplied

through BCM terminal 41

to ignition key hole illumination terminal 1

to map lamp terminal 3 (Coupe models)

to map lamp terminal 2 (Roadster models).
When vanity mirror lamp LH and RH is ON, ground is supplied

to vanity mirror lamp LH and RH terminals 2

through grounds M30 and M66.
And power is supplied

through BCM terminal 41

to vanity mirror lamp terminal 1.
MAP LAMP TIMER OPERATION
When the map lamp switch is in the DOOR position, and when all conditions below are met, BCM performs
timer control (maximum 30 seconds) for map lamp ON/OFF.
In addition, when map lamp turns ON or OFF there is gradual brightening or dimming over 1 second.
Power is supplied at all times

to 10A fuse [No. 21 located in fuse block (J/B)]

through key switch terminal 2.
When all doors are closed (all door switches OFF) and key is removed from key cylinder (key switch OFF),
power will not be supplied to BCM terminal 37.
Ground is supplied

through BCM terminal 22

to power window main switch (door lock and unlock switch) terminal 12.
At this time, BCM detects that driver door is unlocked. It determines that map lamp timer operation conditions
are met, and turns map lamp ON for 30 seconds.
When all doors are closed (all door switches OFF) and key is in key cylinder (key switch ON),
Power is supplied

through key switch terminal 1

to BCM terminal 37.
When the key is removed from key switch (key switch OFF), power supply to BCM terminal 37 is terminated.
BCM detects that key has been removed. It determines that map lamp timer conditions are met, and turns
map lamp ON for 30 seconds.

INTERIOR ROOM LAMP
LT-131
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
When driver door opens → closes, and key is not inserted in key switch (key switch OFF), BCM terminal 62
changes between 0V (door open) → 5V (door closed). BCM determines that conditions for spot lamp opera-
tion are met and turns interior lamp ON for 30 seconds.
Timer control is canceled under the following conditions.

Driver door is locked (When locked key fob or power window main switch (door lock and unlock switch,
door key cylinder switch).

Driver door is opened (driver door switch turns ON).

Ignition switch ON.
INTERIOR LAMP BATTERY SAVER CONTROL
If the room lamp remains illuminated by door switch open signal, or if room lamp switch is in the ON position
for more than 30 minutes after the ignition switch is turned to the OFF position, BCM will automatically turn off
map lamp, luggage room lamp (Coupe models), trunk room lamp (Roadster models) and vanity mirror lamp.
After lamps turn OFF by battery saver system, the lamps illuminate again when

signal from key fob, door lock and unlock switch, or key cylinder is locked or unlocked,

door is opened or closed,

key is removed from ignition key cylinder or inserted in ignition key cylinder.
Interior lamp battery saver control period can be changed by the function setting of CONSULT-III.

LT-132
INTERIOR ROOM LAMP
Revision: 2006 November2007 350Z
SchematicNKS004ZL
TKWT5763E

INTERIOR ROOM LAMP
LT-133
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

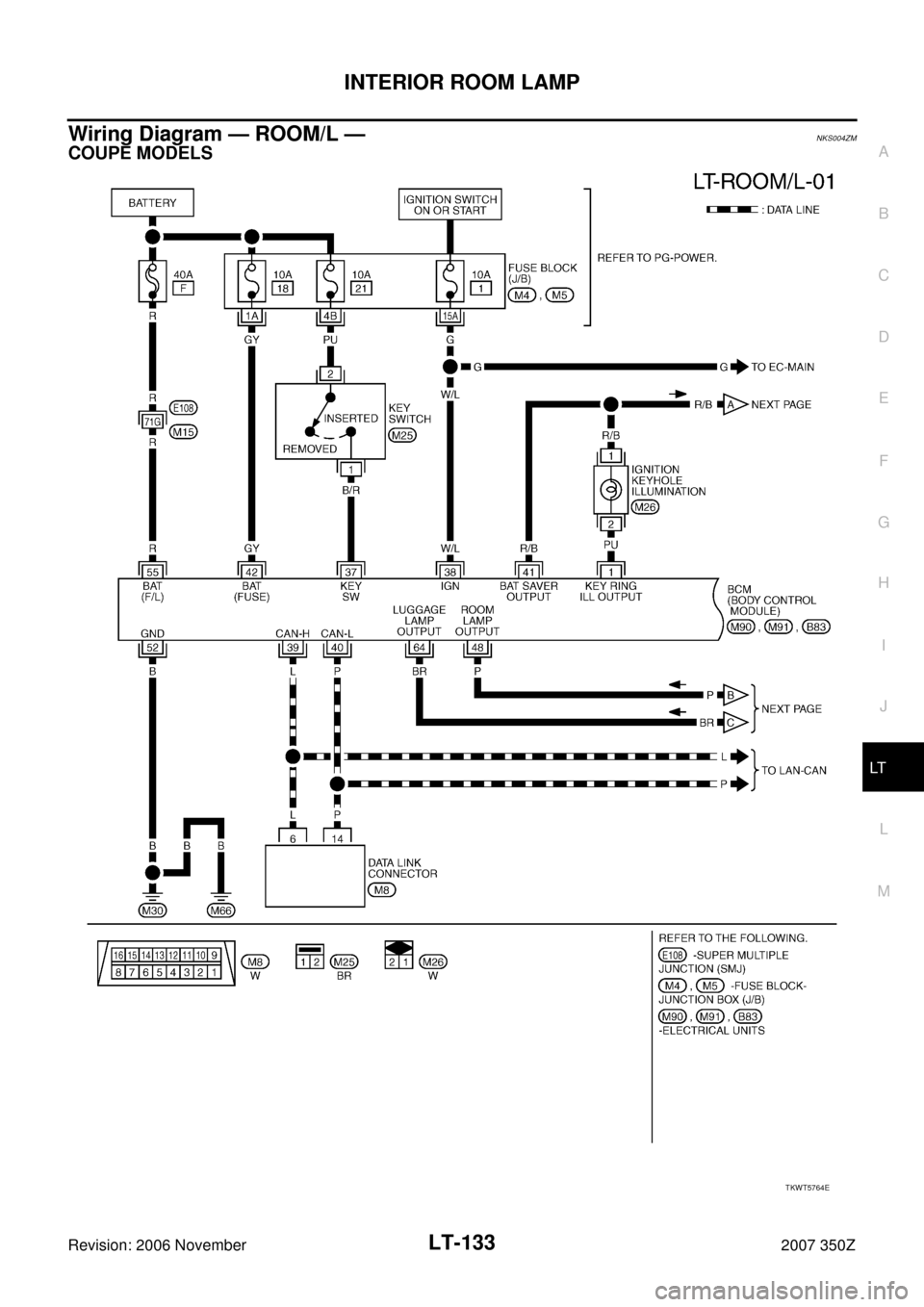

Wiring Diagram — ROOM/L —NKS004ZM
COUPE MODELS
TKWT5764E

LT-134
INTERIOR ROOM LAMP
Revision: 2006 November2007 350Z

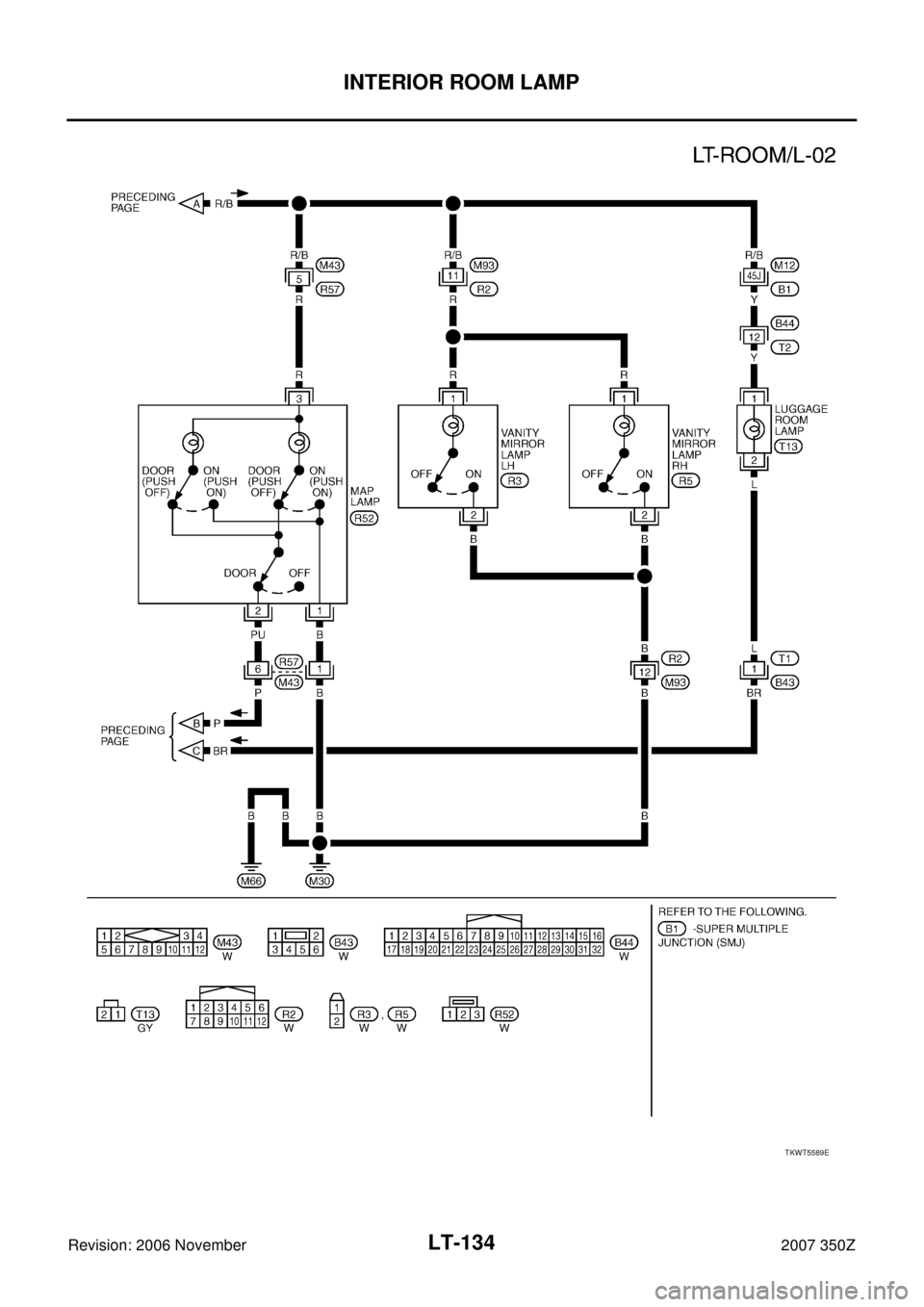

TKWT5589E

INTERIOR ROOM LAMP
LT-135
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

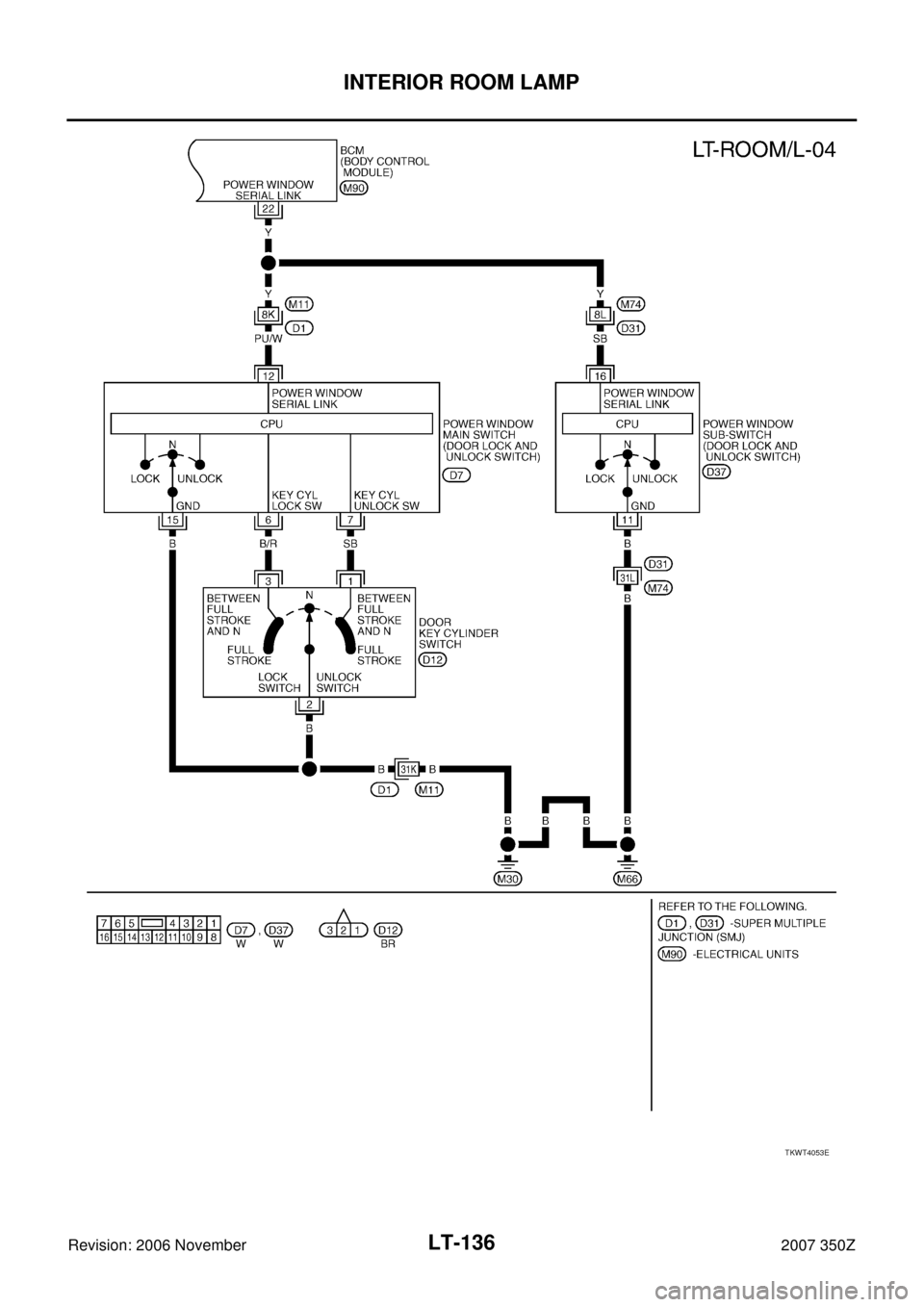

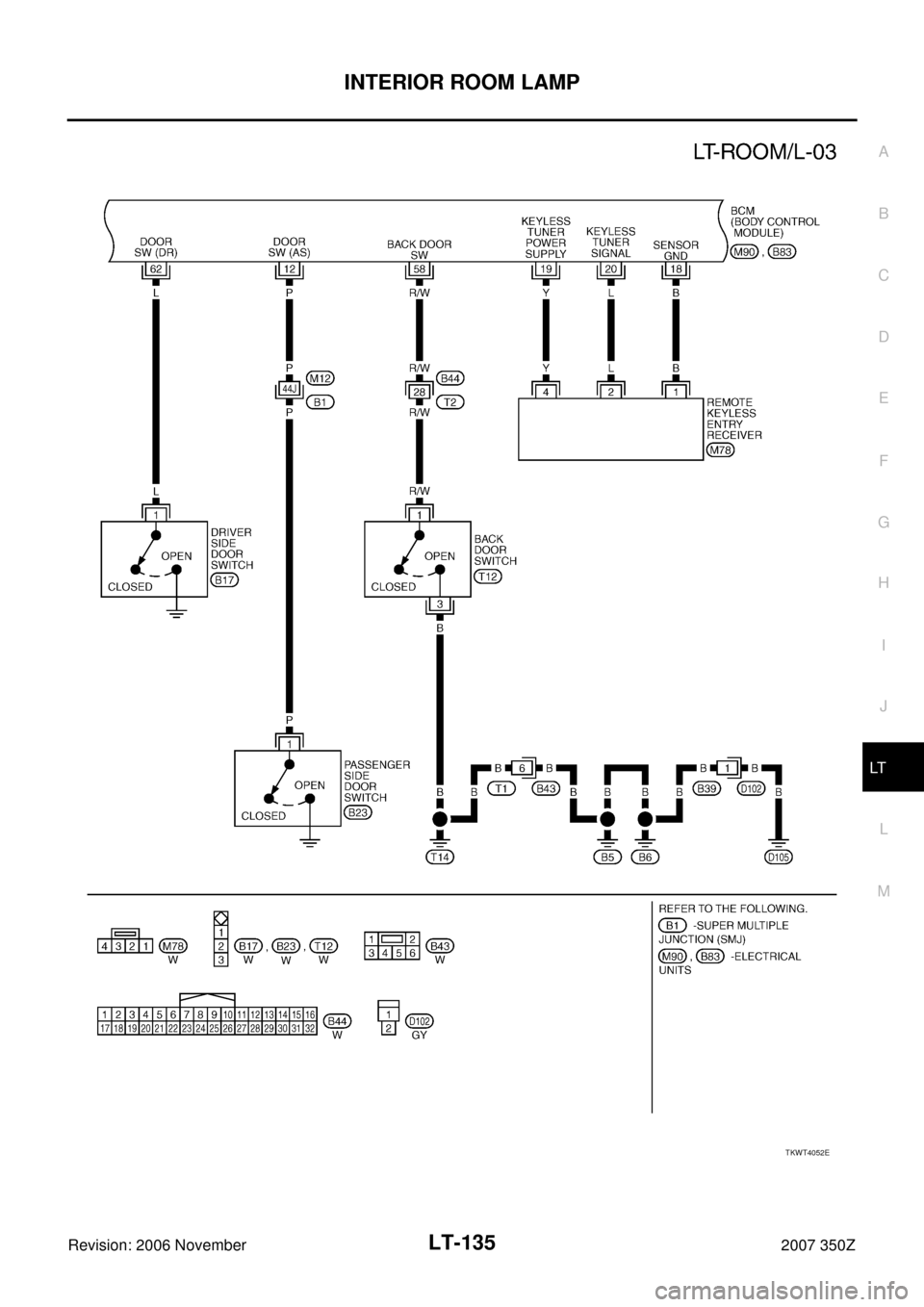

TKWT4052E

LT-136
INTERIOR ROOM LAMP
Revision: 2006 November2007 350Z
TKWT4053E
