2007 NISSAN 350Z Lighting System Workshop Manual

COMBINATION SWITCH
LT-89
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
32 G/BCombination
switch output 5ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Wiper intermittent dial position 1

Wiper intermittent dial position 2

Wiper intermittent dial position 6

Wiper intermittent dial position 7
Approx. 1.0 V
33 GCombination
switch output 4ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Lighting switch 1ST (The same
result with lighting switch 2ND)

Rear wiper switch INT

Wiper intermittent dial position 1

Wiper intermittent dial position 5

Wiper intermittent dial position 6
Approx. 1.2 V
34 W/LCombination
switch output 3ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND

Lighting switch HI beam
(Operates only HI beam switch)

Rear washer switch

Wiper intermittent dial position 1

Wiper intermittent dial position 2

Wiper intermittent dial position 3Approx. 1.2 V Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4956J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J

LT-90
COMBINATION SWITCH
Revision: 2006 November2007 350Z
35 W/GCombination
switch output 2ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND

Lighting switch PASSING
(Operates only PASSING
switch)

Front wiper switch INT

Front wiper switch HI
Approx. 1.2 V
36 W/RCombination
switch output 1ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below

Turn signal switch to right

Turn signal switch to left

Front wiper switch MIST

Front wiper switch LO

Front washer switch
Approx. 1.2 V
38 W/LIgnition switch
(ON) ON — Battery voltage
39 L CAN − H— — —
40 P CAN − L— — —
42 GYBattery power
supplyOFF — Battery voltage
52 B Ground ON — Approx. 0V
55 RBattery power
supplyOFF — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J

COMBINATION SWITCH
LT-91
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
CONSULT-III Function (BCM)NKS004YP
CONSULT-III can display each diagnostic item using the diagnostic test mode shown following.
DATA MONITOR
Display Item List
NOTE:
This item is displayed, but cannot be monitored.BCM diagnosis part Diagnosis mode Description
COMB SW DATA MONITOR Displays BCM input data in real time.
Monitor item name
“OPERATION OR UNIT”Contents
TURN SIGNAL R “ON/OFF” Displays “Turn Right (ON)/Other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “Turn Left (ON)/Other (OFF)” status, determined from lighting switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 1 judged from lighting
switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.
LIGHT SW 1ST “ON/OFF”Displays status (lighting switch 1ST or 2ND position: ON/Others: OFF) of lighting switch judged
from lighting switch signal.
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from lighting
switch signal.
FR FOG SW
NOTE“ON/OFF” —
FR WIPER HI “ON/OFF” Displays “Front Wiper HI (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER LOW “ON/OFF” Displays “Front Wiper LOW (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER INT “ON/OFF” Displays “Front Wiper INT (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WASHER SW “ON/OFF” Displays “Front Washer Switch (ON)/Other (OFF)” status, determined from wiper switch signal.
INT VOLUME [1 - 7] Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.
RR WIPER ON “ON/OFF” Displays “rear Wiper (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WIPER INT “ON/OFF” Displays “rear Wiper INT (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WASHER SW “ON/OFF” Displays “rear Washer Switch (ON)/Other (OFF)” status as judged from wiper switch signal.

LT-92
COMBINATION SWITCH
Revision: 2006 November2007 350Z
Combination Switch InspectionNKS004YQ
1. SYSTEM CHECK
Referring to table below, check which system malfunctioning switch belongs to.
>> Check the system to which malfunctioning switch belongs, and GO TO 2.
2. SYSTEM CHECK
With CONSULT-III
1. Select "COMBI SW" of BCM data monitor item.
2. Confirm that other switches in malfunctioning system operate normally.
Example: When the HI BEAM switch is malfunctioning, confirm that “TURN RH”, “HEAD LAMP 1” and
“LIGHT SW 1 ST” in System 5, to which the HI BEAM switch belongs, turn ON-OFF normally.
Without CONSULT-III
Operating combination switch, and confirm that other switches in malfunctioning system operate normally.
Example: When the HI BEAM switch is malfunctioning, confirm that “TURN RH”, “HEAD LAMP 1” and “LIGHT
SW 1 ST” in System 5, to which HI BEAM switch belongs, turn ON-OFF normally.
Check results
Other switches in malfunctioning system operate normally.>>Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>>GO TO 3.
System 1 System 2 System 3 System 4 System 5
— FR WASHER FR WIPER LO TURN LH TURN RH
FR WIPER HI — FR WIPER INT PASSING HEAD LAMP 1
INT VOLUME 1 RR WASHER — HEAD LAMP 2 HI BEAM
RR WIPER INT INT VOLUME 3 — — LIGHT SW 1ST
INT VOLUME 2 RR WIPER ON — — —

COMBINATION SWITCH
LT-93
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

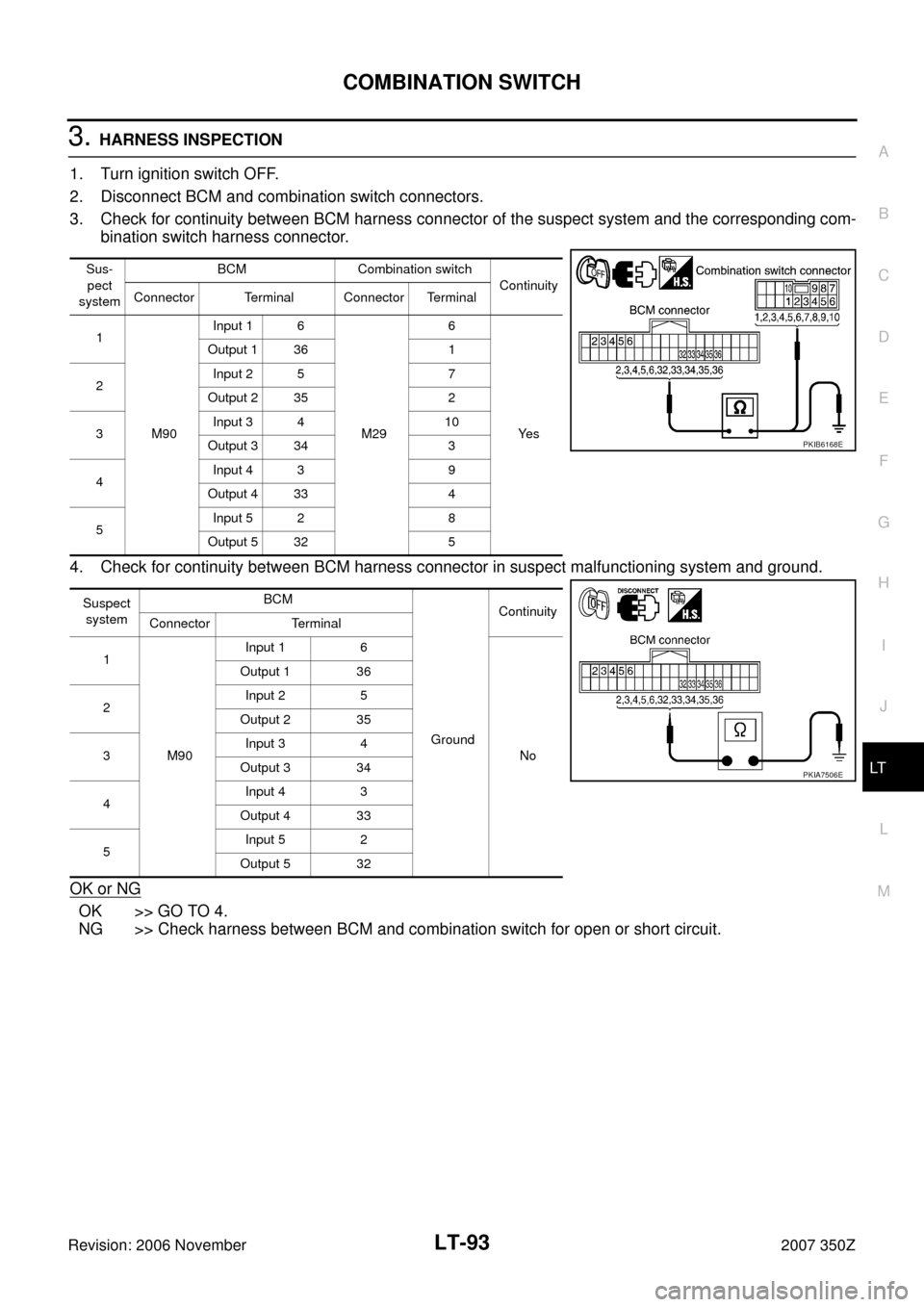

3. HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check for continuity between BCM harness connector of the suspect system and the corresponding com-
bination switch harness connector.
4. Check for continuity between BCM harness connector in suspect malfunctioning system and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
Sus-
pect
systemBCM Combination switch
Continuity
Connector Terminal Connector Terminal
1
M90Input 1 6
M296
Ye s Output 1 36 1
2Input 2 5 7
Output 2 35 2
3Input 3 4 10
Output 3 34 3
4Input 4 3 9
Output 4 33 4
5Input 5 2 8
Output 5 32 5
Suspect
systemBCM
GroundContinuity
Connector Terminal
1
M90Input 1 6
No Output 1 36
2Input 2 5
Output 2 35
3Input 3 4
Output 3 34
4Input 4 3
Output 4 33
5Input 5 2
Output 5 32
PKIB6168E
PKIA7506E

LT-94
COMBINATION SWITCH
Revision: 2006 November2007 350Z

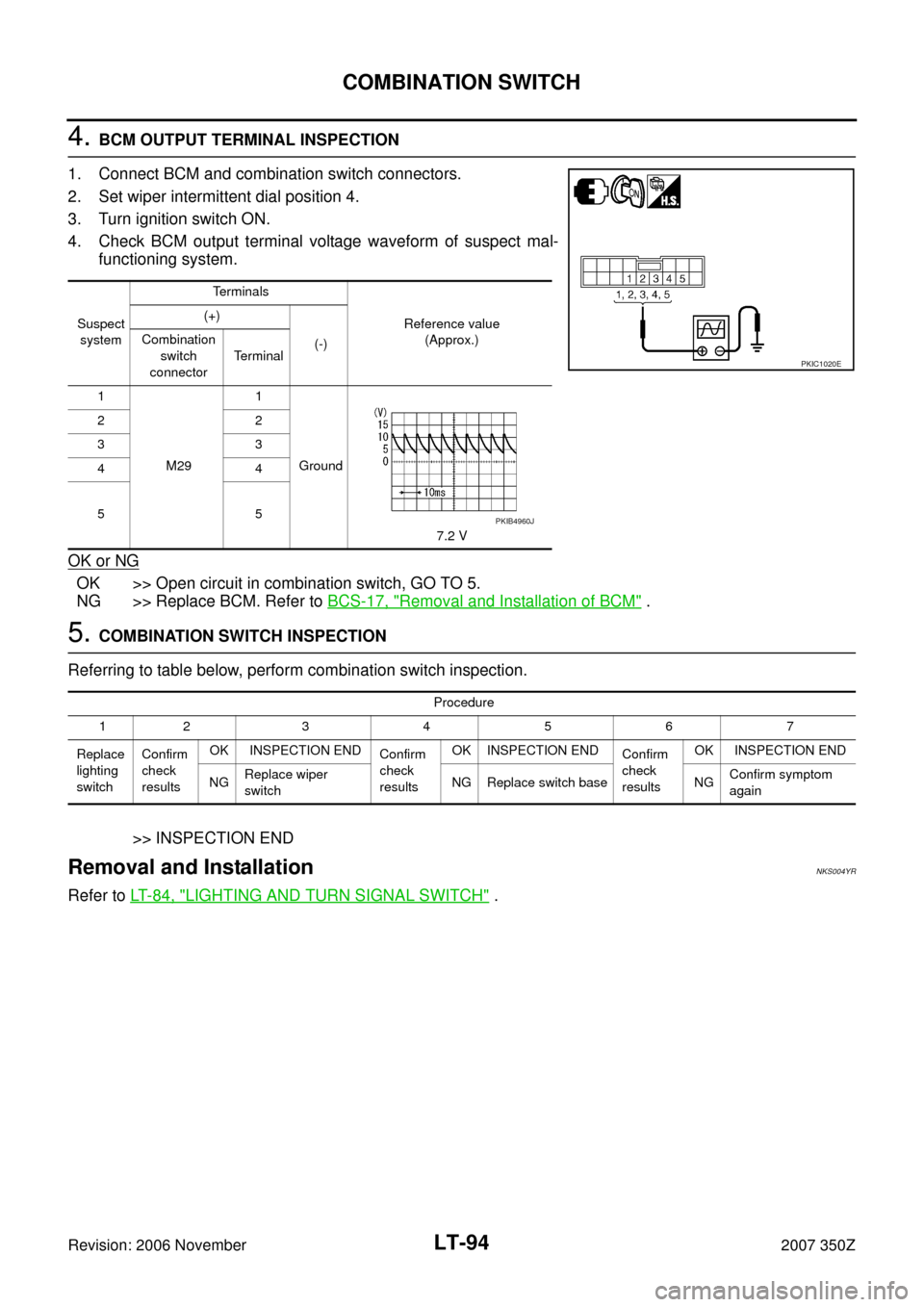

4. BCM OUTPUT TERMINAL INSPECTION
1. Connect BCM and combination switch connectors.
2. Set wiper intermittent dial position 4.
3. Turn ignition switch ON.
4. Check BCM output terminal voltage waveform of suspect mal-
functioning system.
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM. Refer to BCS-17, "
Removal and Installation of BCM" .
5. COMBINATION SWITCH INSPECTION
Referring to table below, perform combination switch inspection.
>> INSPECTION END
Removal and InstallationNKS004YR
Refer to LT- 8 4 , "LIGHTING AND TURN SIGNAL SWITCH" .
Suspect
systemTerminals
Reference value
(Approx.) (+)
(-) Combination
switch
connectorTerminal
1
M291
Ground
7.2 V 22
33
44
55
PKIC1020E
PKIB4960J
Procedure
1234567
Replace
lighting
switchConfirm
check
resultsOK INSPECTION END
Confirm
check
resultsOK INSPECTION END
Confirm
check
resultsOK INSPECTION END
NGReplace wiper
switchNG Replace switch base NGConfirm symptom
again

STOP LAMP
LT-95
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
STOP LAMPPFP:26550

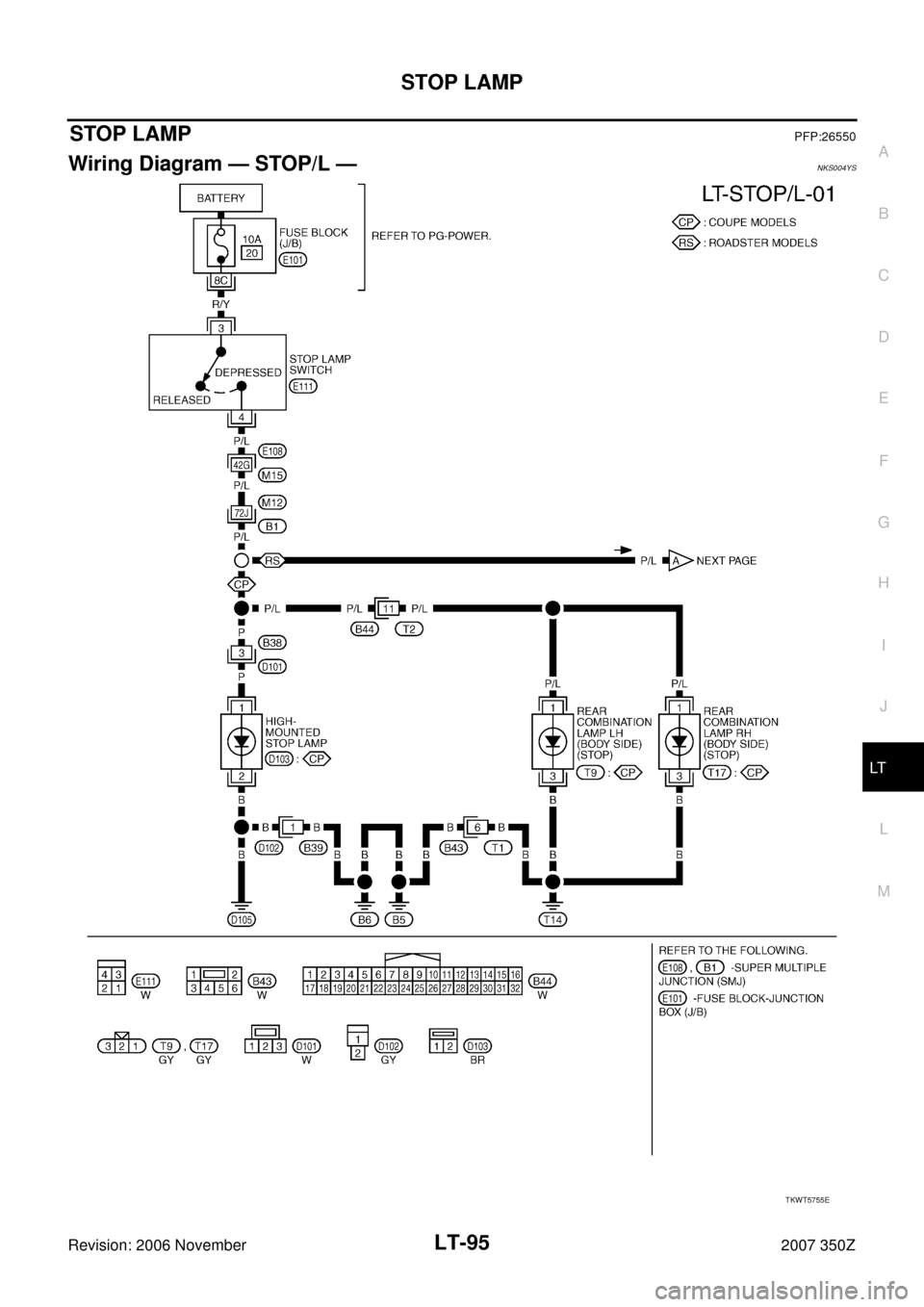

Wiring Diagram — STOP/L —NKS004YS
TKWT5755E

LT-96
STOP LAMP
Revision: 2006 November2007 350Z

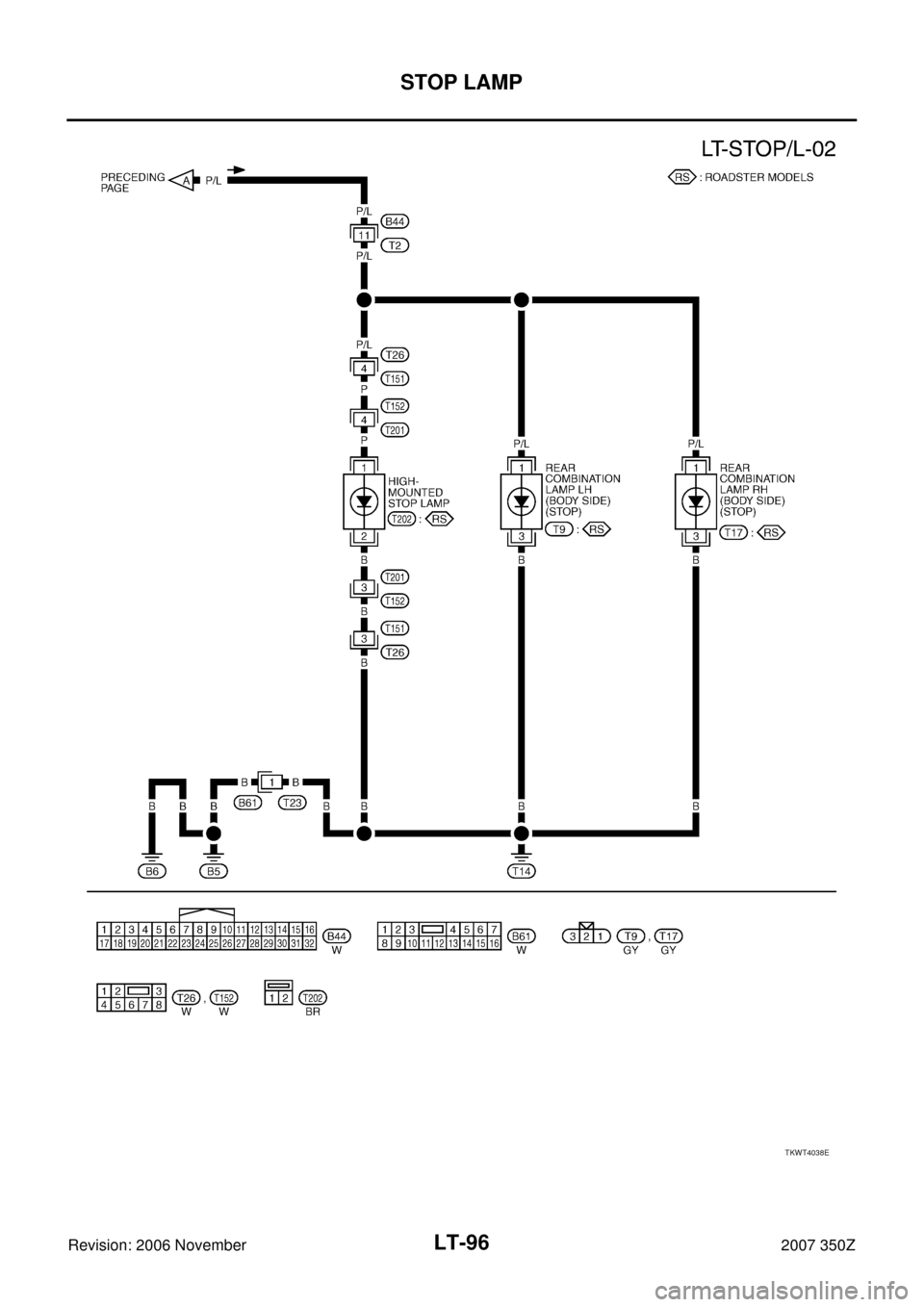

TKWT4038E
