2007 NISSAN 350Z Lighting System Workshop Manual

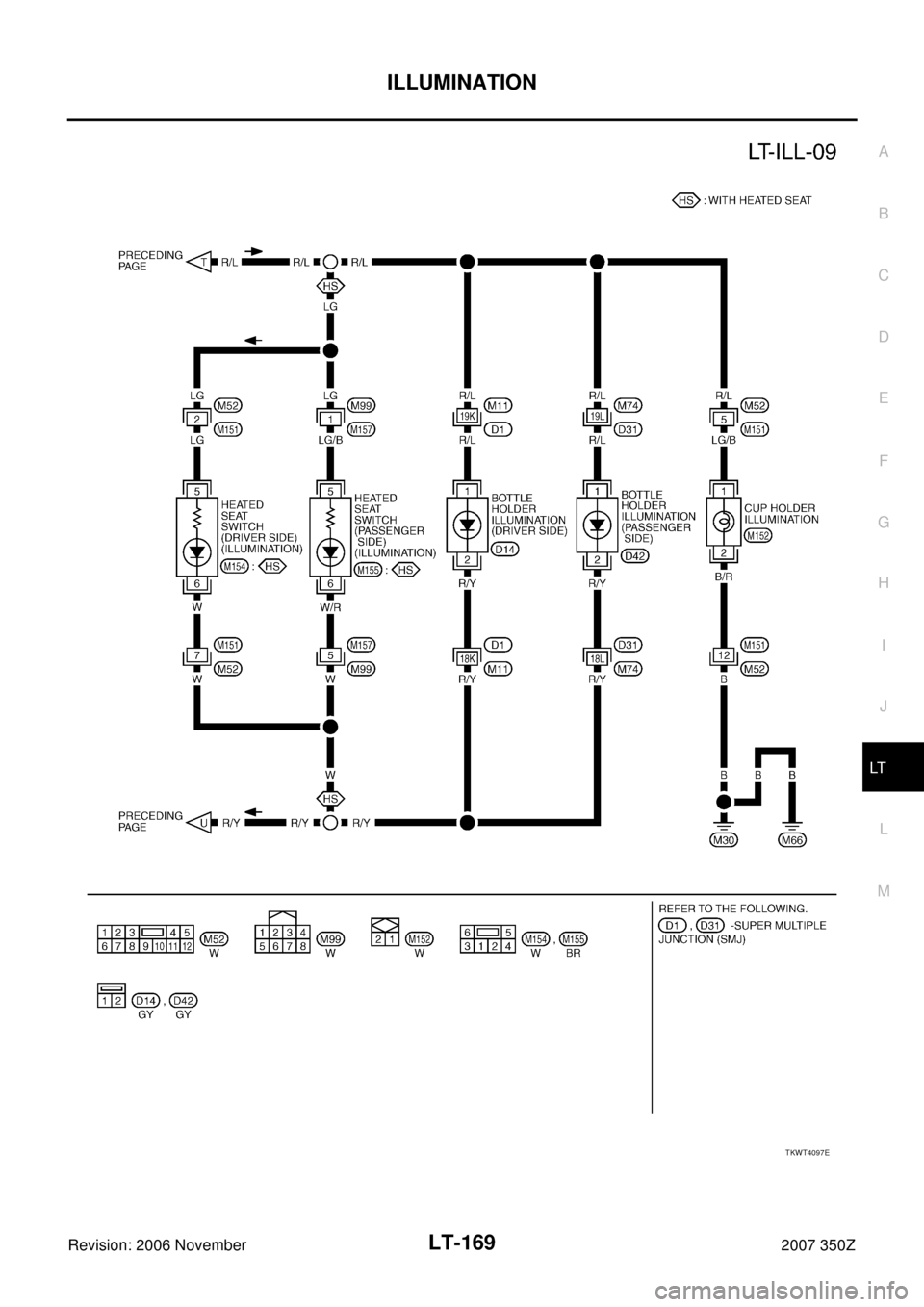

ILLUMINATION
LT-169
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
TKWT4097E

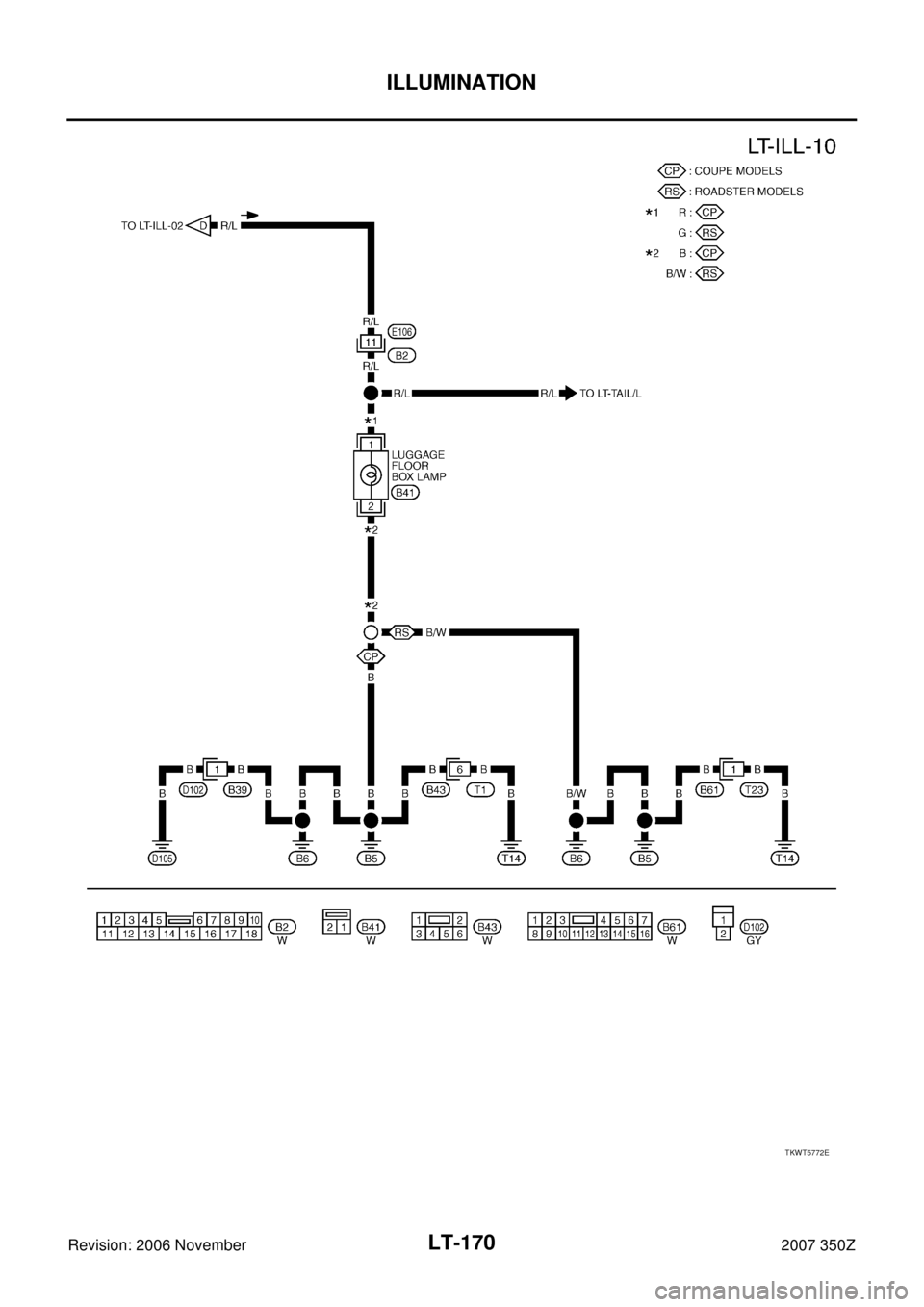

LT-170
ILLUMINATION
Revision: 2006 November2007 350Z
TKWT5772E

ILLUMINATION
LT-171
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

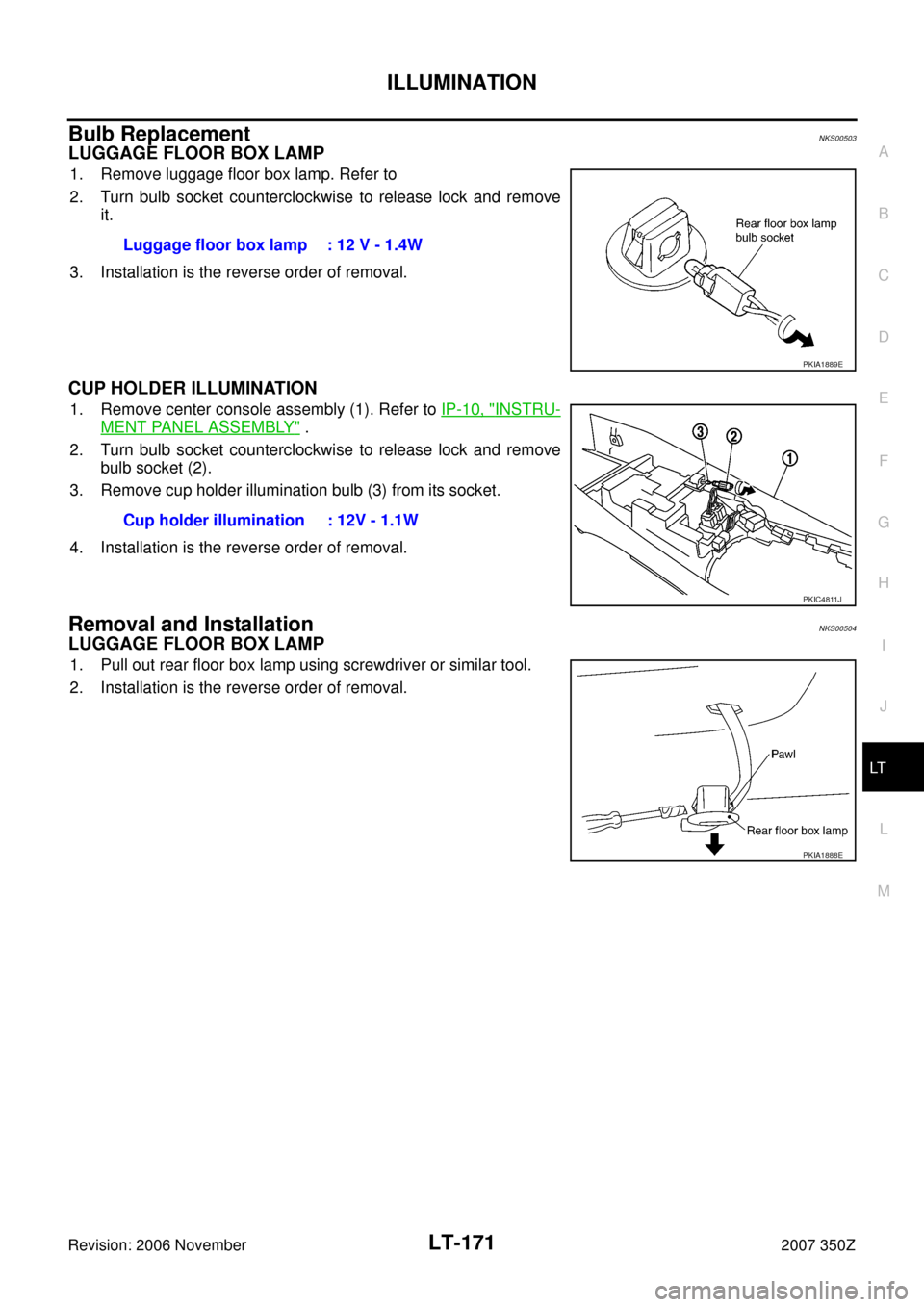

Bulb ReplacementNKS00503
LUGGAGE FLOOR BOX LAMP
1. Remove luggage floor box lamp. Refer to
2. Turn bulb socket counterclockwise to release lock and remove
it.
3. Installation is the reverse order of removal.
CUP HOLDER ILLUMINATION
1. Remove center console assembly (1). Refer to IP-10, "INSTRU-
MENT PANEL ASSEMBLY" .
2. Turn bulb socket counterclockwise to release lock and remove
bulb socket (2).
3. Remove cup holder illumination bulb (3) from its socket.
4. Installation is the reverse order of removal.
Removal and InstallationNKS00504
LUGGAGE FLOOR BOX LAMP
1. Pull out rear floor box lamp using screwdriver or similar tool.
2. Installation is the reverse order of removal.Luggage floor box lamp : 12 V - 1.4W
PKIA1889E
Cup holder illumination : 12V - 1.1W
PKIC4811J
PKIA1888E

LT-172
BULB SPECIFICATIONS
Revision: 2006 November2007 350Z
BULB SPECIFICATIONSPFP:26297
HeadlampNKS00505
Exterior LampNKS00506
Interior Lamp/IlluminationNKS00507
Item Wattage (W)
High / Low35 (D2R)
Item Wattage (W)
Front combination lampFront turn signal lamp/— 28/8 (amber)
Parking lamp 5
Front side marker lamp LED
Rear combination lampStop/Tail lamp LED
Rear turn signal lamp 21 (amber)
Back-up lamp 21
Rear side marker lamp LED
License plate lamp5
High-mounted stop lampLED
Item Wattage (W)
Luggage floor box lamp1.4
Cup holder illumination lamp1.1
Bottle holder illumination lampLED
Map lamp8
Luggage room lamp5
Trunk room lamp3.4
Vanity mirror lamp1.32
Ignition key hole illumination lamp1.4
