2007 NISSAN 350Z Lighting System Workshop Manual

STOP LAMP
LT-97
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
High-Mounted Stop Lamp (Coupe Models)NKS004YT
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove back door finisher upper. Refer to EI-48, "BACK DOOR
FINISHER" .
2. Disconnect high-mounted stop lamp connector.
3. Remove nuts and remove high-mounted stop lamp with cover
from back door. Be sure to pull toward the arrow in the figure.
4. Remove screws and remove high-mounted stop lamp assembly
from cover.
5. Installation is the reverse order of removal.
High-Mounted Stop Lamp (Roadster Models)NKS004YU
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Turn ignition switch ON, and turn soft-top OPEN/CLOSE switch
ON.
2. When the storage lid is fully opened, soft-top OPEN/CLOSE
switch to OFF.
3. Remove battery negative cable.
4. Disconnect high-mounted stop lamp connector.
5. Remove high-mounted stop lamp.
6. Remove high-mounted stop lamp assembly from storage lid.
7. Installation is the reverse order of removal.
Stop LampNKS004YV
BULB REPLACEMENT
Refer to LT- 1 2 6 , "Bulb Replacement" .
REMOVAL AND INSTALLATION
Refer to LT- 1 2 7 , "Removal and Installation" . High-mounted stop lamp : LED
PKIA1873E
High-mounted stop lamp : LEDPKIA3697E

LT-98
BACK-UP LAMP
Revision: 2006 November2007 350Z
BACK-UP LAMPPFP:26550

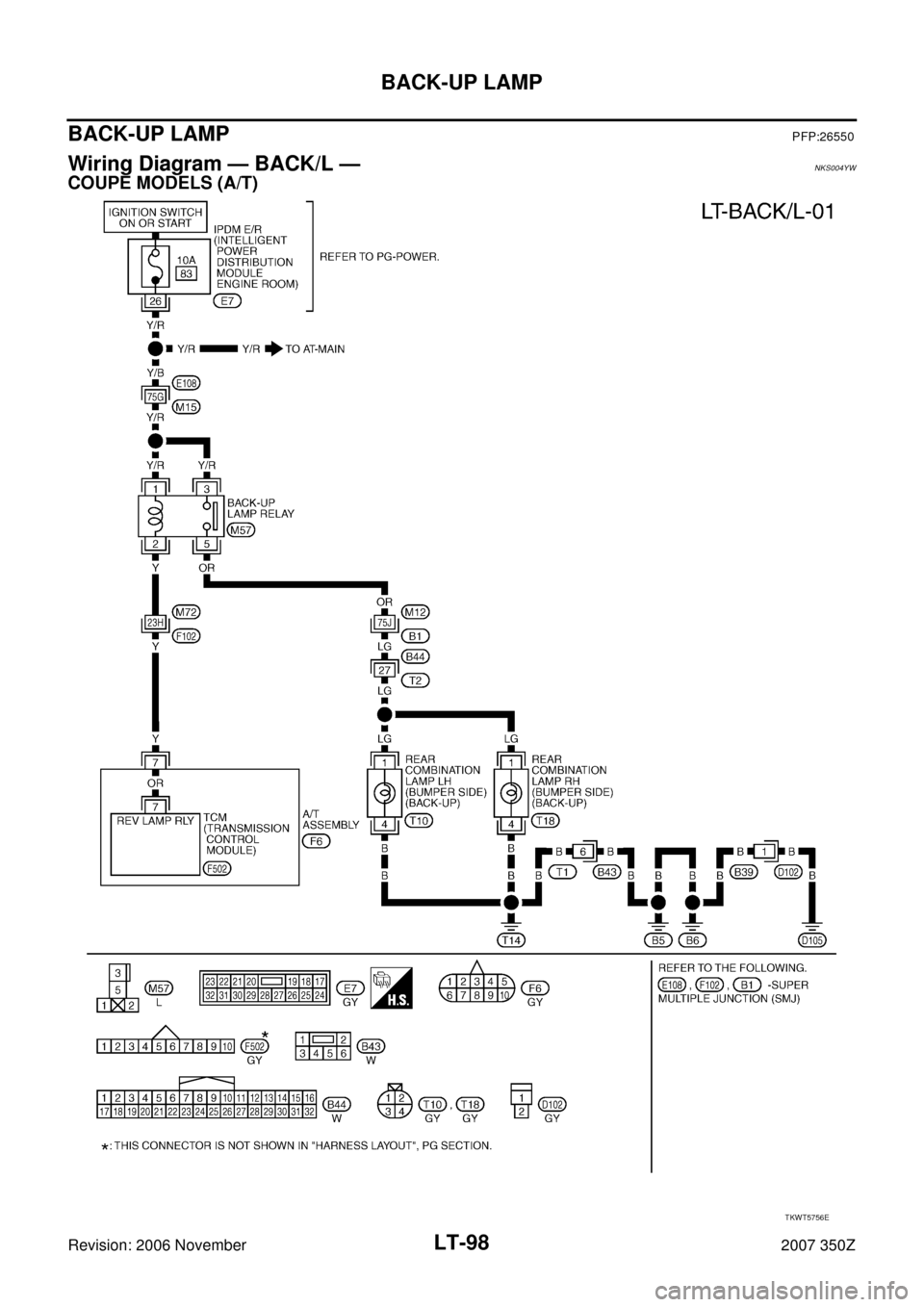

Wiring Diagram — BACK/L — NKS004YW
COUPE MODELS (A/T)
TKWT5756E

BACK-UP LAMP
LT-99
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

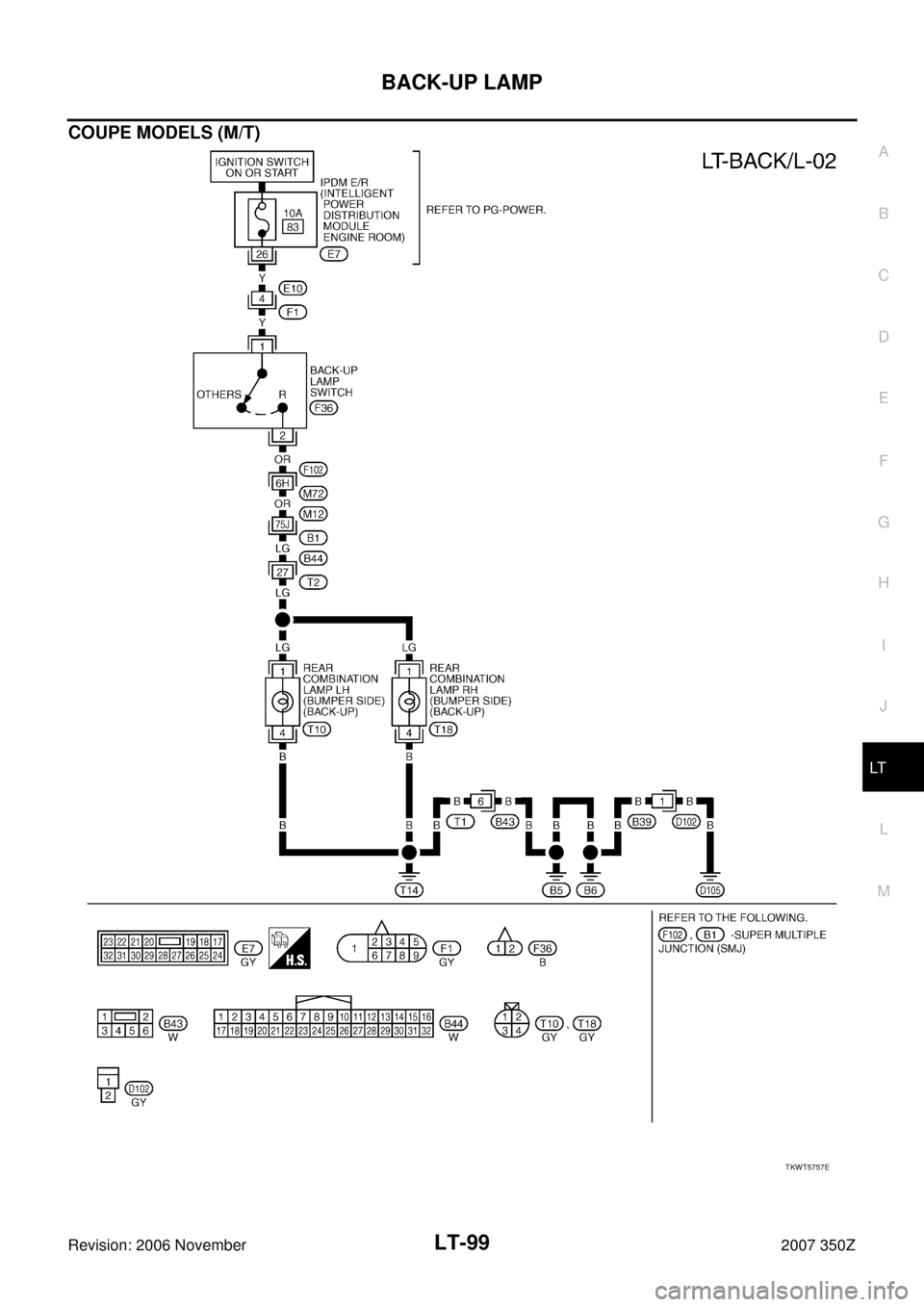

COUPE MODELS (M/T)
TKWT5757E

LT-100
BACK-UP LAMP
Revision: 2006 November2007 350Z

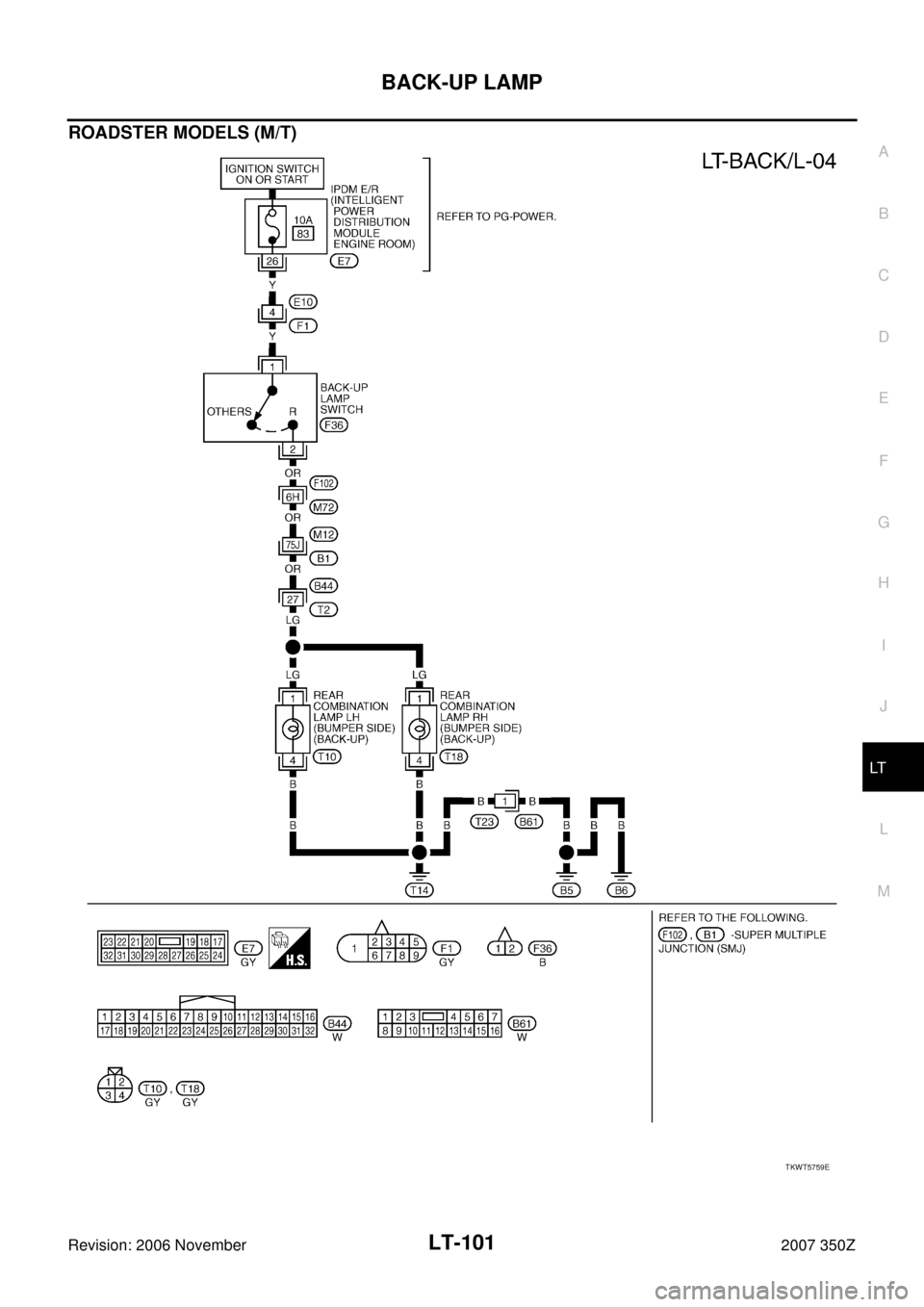

ROADSTER MODELS (A/T)
TKWT5758E

BACK-UP LAMP
LT-101
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

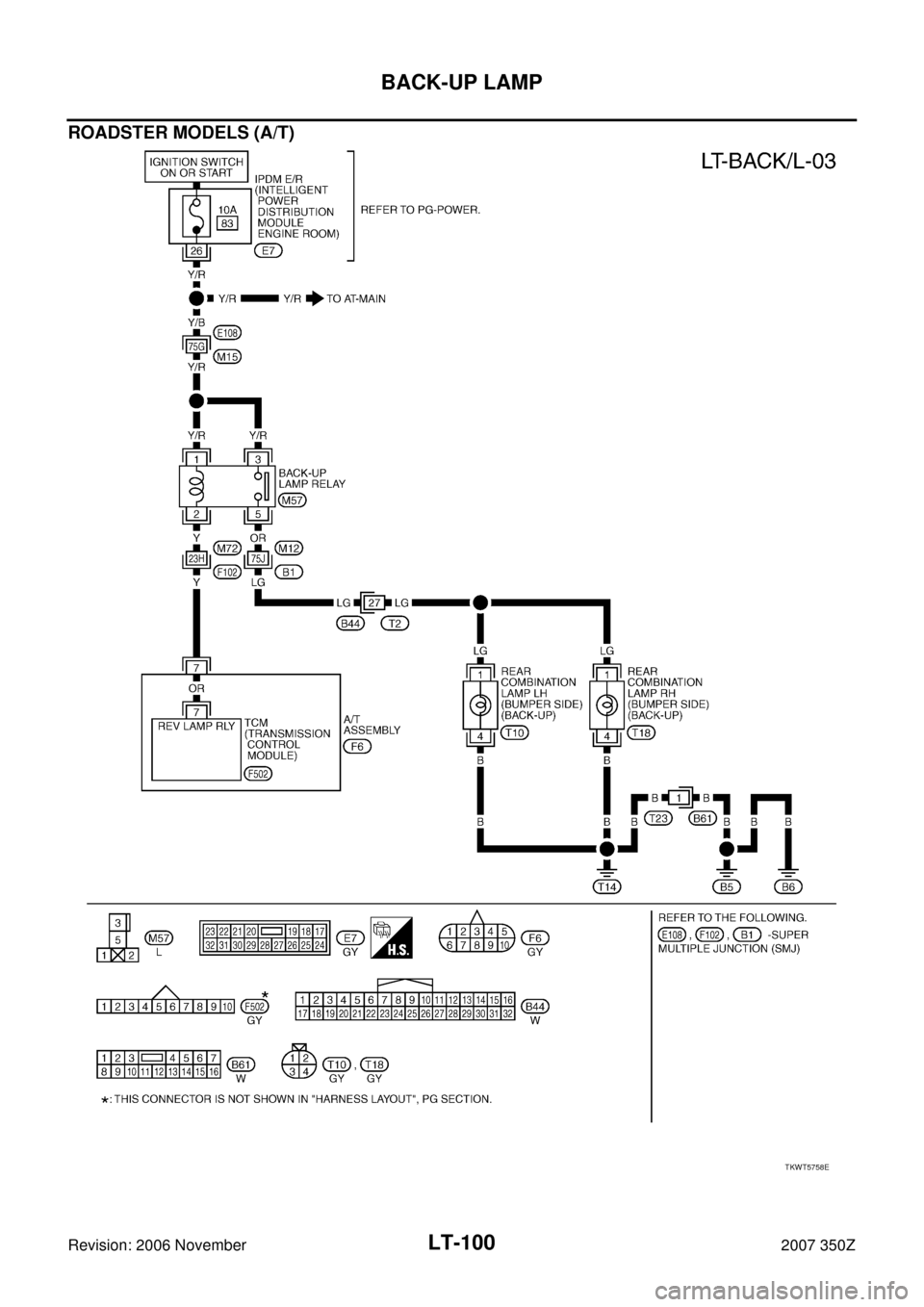

ROADSTER MODELS (M/T)
TKWT5759E

LT-102
BACK-UP LAMP
Revision: 2006 November2007 350Z
Bulb ReplacementNKS004YX
Refer to LT- 1 2 6 , "Bulb Replacement" .
Removal and InstallationNKS004YY
Refer to LT- 1 2 7 , "Removal and Installation" .

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-103
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550
Component Parts and Harness Connector LocationNKS004YZ
System DescriptionNKS004Z0
Control of parking, license plate, side maker and tail lamps operation is dependent upon the position of lighting
switch (combination switch). When the lighting switch is in the 1ST position, the BCM (body control module)
receives input signal requesting the parking, license plate, side marker and tail lamps to illuminate. This input
signal is communicated to the IPDM E/R (intelligent power distribution module engine room) through CAN
communication. The CPU (central processing unit) located in the IPDM E/R controls the tail lamp relay coil
and daytime light relay
* coil. These relay, when energized, directs power to parking, license plate, side marker
and tail lamps, which then illuminate.
NOTE:
Daytime light relay*: Canada models
OUTLINE
Power is supplied at all times

through 10A fuse (No.71, located in IPDM E/R)

to tail lamp relay, located in IPDM E/R, and

to CPU located in IPDM E/R,

through 15A fuse (No.78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 40A fusible link (letter F, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 10A fuse [No.18, located in fuse block (J/B)]
PKIC4855E

LT-104
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2006 November2007 350Z

to BCM terminal 42.
With ignition switch in ON or START position, power is supplied

to CPU located in IPDM E/R,

through 10A fuse [No.1, located in fuse block (J/B)]

to BCM terminal 38.
With ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through grounds M30 and M66,

to IPDM E/R terminals 38 and 60

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone).
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position, the BCM receives input signal requesting the parking,
license plate, side marker and tail lamps to illuminate. This input is communicated to the IPDM E/R through
the CAN communication lines. The CPU located in the IPDM E/R controls the tail lamp relay coil and daytime
light relay
* coil. These relay, when energized, directs power to parking, license plate, side marker and tail
lamps, which when energized, directs power

through IPDM E/R terminal 22 (USA models)

through daytime light relay terminal 5 (Canada models)

to front combination lamp LH terminals 6

to front combination lamp RH terminals 6

to rear combination lamp LH terminals 2

to rear combination lamp RH terminals 2

to license plate lamp LH terminal 2, and

to license plate lamp RH terminal 2.
Ground is supplied at all times

to front combination lamp LH terminal 8, and

to front combination lamp RH terminal 8

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone),

to rear combination lamp LH terminals 3

to rear combination lamp RH terminals 3

to license plate lamp LH terminal 1, and

to license plate lamp RH terminal 1

through grounds B5, B6, D105 and T14 (Coupe models)

through grounds B5, B6 and T14 (Roadster models).
With power and ground supplied, parking, license plate side marker and tail lamps illuminate.
NOTE:
Daytime light relay*: Canada models
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), and the ignition switch is turned
from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the parking, license, side marker and tail lamps remain illuminated for 5 minutes, then the
headlamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-III.
