2007 NISSAN 350Z clock

LT-28
HEADLAMP (FOR USA)
Revision: 2006 November2007 350Z
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.
LOW BEAM AND HIGH BEAM
1. Turn headlamp low beam ON.
2. Use adjusting screws to perform aiming adjustment.
ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming.
Use the aiming chart shown in the figure.

Basic illumination area for adjustment should be within the range shown on the aiming chart.
Adjust headlamp accordingly.
Bulb ReplacementNKS004X8
HEADLAMP HIGH/LOW BEAM
1. Turn lighting switch OFF.
2. Open the driver and front passenger window, and then discon-
nect the battery cable from the negative terminal or remove
power fuse.
CAUTION:
After the battery cables are disconnected, never open/close
the driver and/or front passenger door with the window in
the full up position. The automatic window adjusting func-
tion will not work and the side roof panel may be damaged.
3. Remove headlamp. Refer to LT- 2 9 , "
Removal and Installation" .
4. Turn plastic cap counterclockwise and unlock it.
5. Turn bulb socket counterclockwise and unlock it.
6. Unlock retaining spring and remove bulb from headlamp.
7. Installation is reverse order of removal.
PKIB5186E
PKIC4918E

HEADLAMP (FOR USA)
LT-29
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
NOTE:
After installation, perform aiming adjustment. Refer to LT- 2 7 , "
Aiming Adjustment" .
PARKING LAMP
1. Turn lighting switch OFF.
2. Remove fender protector (front). Refer to EI-21, "
FENDER PROTECTOR" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
5. Installation is reverse order of removal.
FRONT TURN SIGNAL LAMP
1. Turn lighting switch OFF.
2. Remove fender protector (front). Refer to EI-21, "
FENDER PROTECTOR" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
5. Installation is reverse order of removal.
FRONT SIDE MARKER LAMP
1. Remove headlamp. Refer to LT- 2 9 , "Removal and Installation" .
2. Replacement integral with headlamp housing assembly.
3. Installation is reverse order of removal.
CAUTION:
After installing bulb, be sure to install plastic cap and bulb socket securely to insure watertightness.
Removal and InstallationNKS004X9
REMOVAL
1. Open the driver and front passenger window, and then disconnect the battery cable from the negative ter-
minal or remove power fuse.
CAUTION:
After battery cables are disconnected, never open/close the driver and/or front passenger door
with the window in the full up position. The automatic window adjusting function will not work and
the side roof panel may be damaged.
2. Remove front bumper fascia. Refer to EI-14, "
FRONT
BUMPER" .
3. Remove headlamp mounting bolts.
4. Pull head lamp toward vehicle front, disconnect connector, and
remove headlamp.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to LT- 2 7 , "
Aiming Adjustment" . Headlamp high/low beam (Xenon) : 12V - 35W (D2R)
Parking lamp : 12V - 5W
Front turn signal lamp/— : 12V - 28/8W (amber)
Front side marker lamp : LED
PKIA1865E
Headlamp mounting bolt : 6.1 N·m (0.62 kg-m, 54 in-lb)

LT-30
HEADLAMP (FOR USA)
Revision: 2006 November2007 350Z

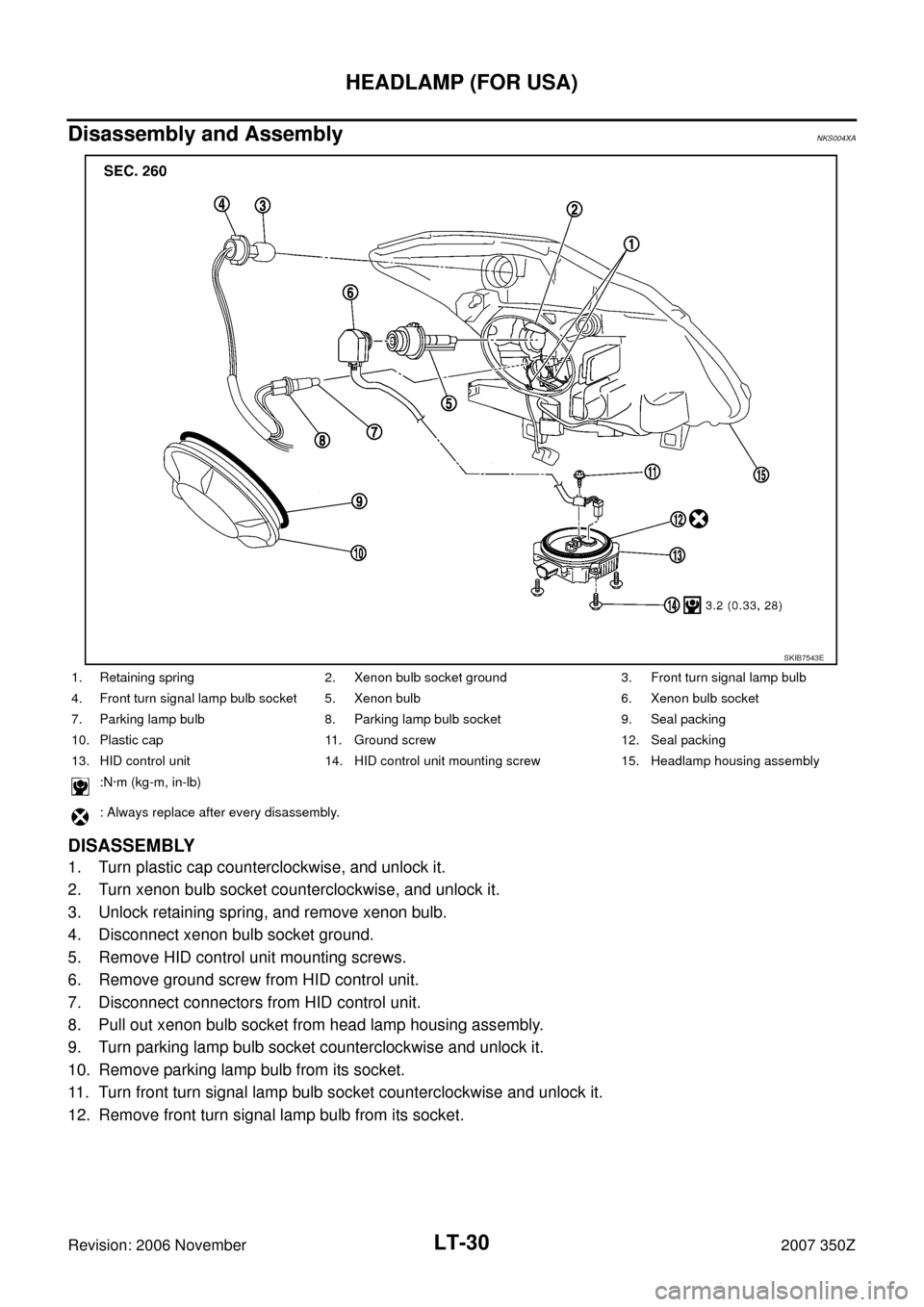

Disassembly and Assembly NKS004XA
DISASSEMBLY
1. Turn plastic cap counterclockwise, and unlock it.
2. Turn xenon bulb socket counterclockwise, and unlock it.
3. Unlock retaining spring, and remove xenon bulb.
4. Disconnect xenon bulb socket ground.
5. Remove HID control unit mounting screws.
6. Remove ground screw from HID control unit.
7. Disconnect connectors from HID control unit.
8. Pull out xenon bulb socket from head lamp housing assembly.
9. Turn parking lamp bulb socket counterclockwise and unlock it.
10. Remove parking lamp bulb from its socket.
11. Turn front turn signal lamp bulb socket counterclockwise and unlock it.
12. Remove front turn signal lamp bulb from its socket.
SKIB7543E
1. Retaining spring 2. Xenon bulb socket ground 3. Front turn signal lamp bulb
4. Front turn signal lamp bulb socket 5. Xenon bulb 6. Xenon bulb socket
7. Parking lamp bulb 8. Parking lamp bulb socket 9. Seal packing
10. Plastic cap 11. Ground screw 12. Seal packing
13. HID control unit 14. HID control unit mounting screw 15. Headlamp housing assembly
:N·m (kg-m, in-lb)
: Always replace after every disassembly.

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-61
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.
LOW BEAM AND HIGH BEAM
1. Turn headlamp low beam ON.
2. Use adjusting screws to perform aiming adjustment.
ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming.
Use the aiming chart shown in the figure.

Basic illumination area for adjustment should be within the range shown on the aiming chart.
Adjust headlamp accordingly.
Bulb ReplacementNKS004XZ
HEADLAMP HIGH/LOW BEAM
1. Turn lighting switch OFF.
2. Open the driver and front passenger window, and then discon-
nect the battery cable from the negative terminal or remove
power fuse.
CAUTION:
After the battery cables are disconnected, never open/close
the driver and/or front passenger door with the window in
the full up position. The automatic window adjusting func-
tion will not work and the side roof panel may be damaged.
3. Remove headlamp. Refer to LT- 6 2 , "
Removal and Installation" .
4. Turn plastic cap counterclockwise and unlock it.
5. Turn bulb socket counterclockwise and unlock it.
6. Unlock retaining spring and remove bulb from headlamp.
7. Installation is the reverse order of removal.
PKIB5186E
PKIC4918E

LT-62
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
NOTE:
After installation, perform aiming adjustment. Refer to LT- 6 0 , "
Aiming Adjustment" .
PARKING LAMP
1. Turn lighting switch OFF.
2. Remove fender protector (front). Refer to EI-21, "
FENDER PROTECTOR" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
5. Installation is the reverse order of removal.
FRONT TURN SIGNAL LAMP
1. Turn lighting switch OFF.
2. Remove fender protector (front). Refer to EI-21, "
FENDER PROTECTOR" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
5. Installation is the reverse order of removal.
FRONT SIDE MARKER LAMP
1. Remove headlamp. Refer to LT- 6 2 , "Removal and Installation" .
2. Replacement integral with headlamp housing assembly.
3. Installation is reverse order of removal.
CAUTION:
After installing bulb, be sure to install plastic cap and bulb socket securely to insure watertightness.
Removal and InstallationNKS004Y0
REMOVAL
1. Open the driver and front passenger window, and then disconnect the battery cable from the negative ter-
minal or remove power fuse.
CAUTION:
After the battery cables are disconnected, never open/close the driver and/or front passenger door
with the window in the full up position. The automatic window adjusting function will not work and
the side roof panel may be damaged.
2. Remove front bumper fascia. Refer to EI-14, "
FRONT
BUMPER" .
3. Remove headlamp mounting bolts.
4. Pull head lamp toward vehicle front, disconnect connector, and
remove headlamp.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to LT- 6 0 , "
Aiming Adjustment" . Headlamp high/low beam (Xenon) : 12V - 35W (D2R)
Parking lamp : 12V - 5W
Front turn signal lamp/— : 12V - 28/8W (amber)
Front side marker lamp : LED
PKIA1865E
Headlamp mounting bolt : 6.1N·m (0.62 kg-m, 54 in lb)

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-63
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

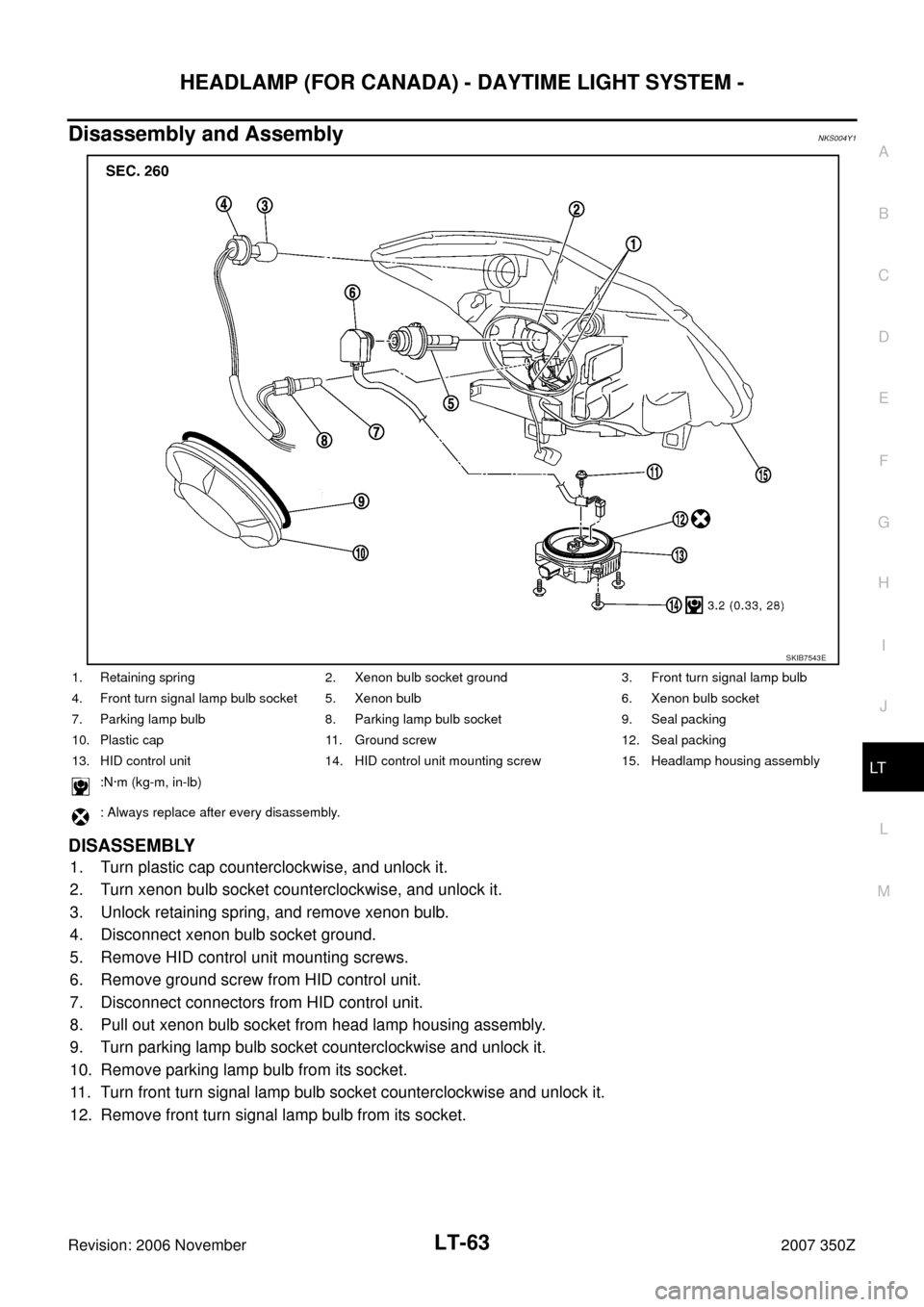

Disassembly and Assembly NKS004Y1
DISASSEMBLY
1. Turn plastic cap counterclockwise, and unlock it.
2. Turn xenon bulb socket counterclockwise, and unlock it.
3. Unlock retaining spring, and remove xenon bulb.
4. Disconnect xenon bulb socket ground.
5. Remove HID control unit mounting screws.
6. Remove ground screw from HID control unit.
7. Disconnect connectors from HID control unit.
8. Pull out xenon bulb socket from head lamp housing assembly.
9. Turn parking lamp bulb socket counterclockwise and unlock it.
10. Remove parking lamp bulb from its socket.
11. Turn front turn signal lamp bulb socket counterclockwise and unlock it.
12. Remove front turn signal lamp bulb from its socket.
SKIB7543E
1. Retaining spring 2. Xenon bulb socket ground 3. Front turn signal lamp bulb
4. Front turn signal lamp bulb socket 5. Xenon bulb 6. Xenon bulb socket
7. Parking lamp bulb 8. Parking lamp bulb socket 9. Seal packing
10. Plastic cap 11. Ground screw 12. Seal packing
13. HID control unit 14. HID control unit mounting screw 15. Headlamp housing assembly
:N·m (kg-m, in-lb)
: Always replace after every disassembly.

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-125
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

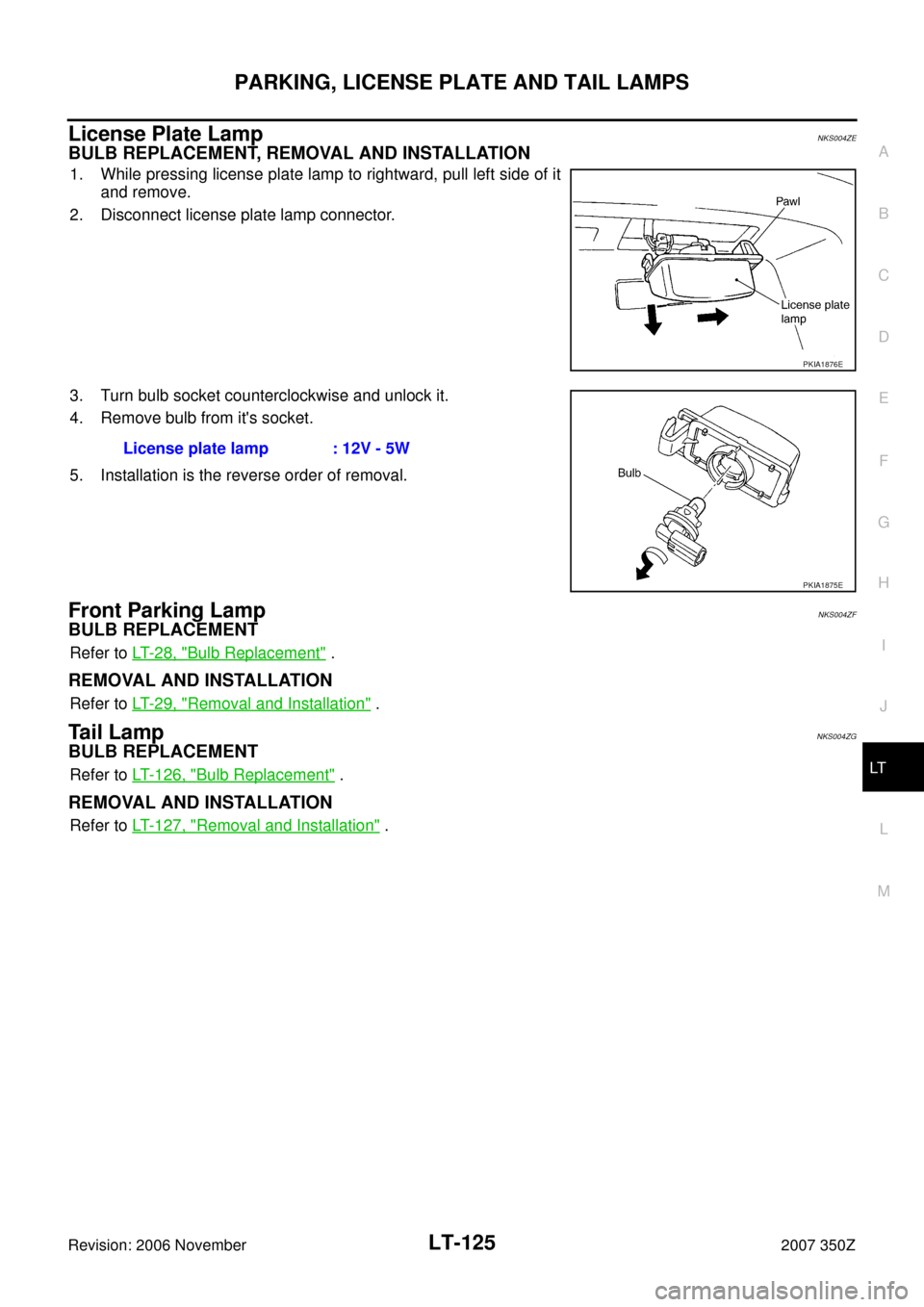

License Plate LampNKS004ZE
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. While pressing license plate lamp to rightward, pull left side of it
and remove.
2. Disconnect license plate lamp connector.
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from it's socket.
5. Installation is the reverse order of removal.
Front Parking LampNKS004ZF
BULB REPLACEMENT
Refer to LT- 2 8 , "Bulb Replacement" .
REMOVAL AND INSTALLATION
Refer to LT- 2 9 , "Removal and Installation" .
Ta i l L a m pNKS004ZG
BULB REPLACEMENT
Refer to LT- 1 2 6 , "Bulb Replacement" .
REMOVAL AND INSTALLATION
Refer to LT- 1 2 7 , "Removal and Installation" .
PKIA1876E
License plate lamp : 12V - 5W
PKIA1875E

LT-126
REAR COMBINATION LAMP
Revision: 2006 November2007 350Z
REAR COMBINATION LAMPPFP:26554
Bulb ReplacementNKS004ZH
REAR FENDER SIDE (STOP & TAIL LAMP, REAR SIDE MARKER LAMP)
1. Remove rear combination lamp. Refer to LT- 1 2 7 , "Removal and Installation" .
2. Replacement integral with rear combination lamp (rear fender side).
REAR BUMPER SIDE (BACK-UP LAMP BULB, REAR TURN SIGNAL LAMP BULB)
1. Remove rear combination lamp. Refer to LT- 1 2 7 , "Removal and
Installation"
2. Turn bulb socket counterclockwise and unlock it through bumper
fascia crevice.
3. Remove bulb.
4. Installation is the reverse order of removal.Stop/tail lamp : LED
Rear side marker lamp : LED
PKIA1878E
Rear turn signal lamp
(rear bumper side): 12 V - 21 W (amber)
Back-up lamp
(rear bumper side): 12 V - 21 W
PKIA1886E
