2007 NISSAN 350Z ESP

HEADLAMP (FOR USA)
LT-5
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
HEADLAMP (FOR USA)PFP:26010
Component Parts and Harness Connector LocationNKS004WM
System DescriptionNKS004WN
Control of the headlamp system operation is dependent upon the position of the combination switch (lighting
switch). When the lighting switch is placed in the 2ND position, the BCM (body control module) receives input
signal requesting the headlamps (and tail lamps) illuminate. This input signal is communicated to the IPDM E/
R (intelligent power distribution module engine room) through the CAN communication lines. The CPU (central
processing unit) of the IPDM E/R controls the headlamp high and headlamp low relay coils. These relays,
when energized, direct power to the respective headlamps, which then illuminate.
OUTLINE
Power is supplied at all times

to headlamp high relay, located in IPDM E/R and

to headlamp low relay, located in IPDM E/R, from battery directly,

through 40A fusible link [letter F, located in fuse, fusible link and relay box]

to BCM terminal 55,

through 10A fuse [No.18, located in fuse block (J/B)]

to BCM terminal 42,

through 15A fuse [No.78 located in IPDM E/R]

to CPU located in IPDM E/R,

through 10A fuse [No.71,located in IPDM E/R]

to CPU located in IPDM E/R,

through 10A fuse [No.19, located in fuse block (J/B)]
SKIB7542E

HEADLAMP (FOR USA)
LT-27
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
Xenon Headlamp Trouble DiagnosisNKS004X6
1. CHECK 1: XENON HEADLAMP LIGHTING
Install normal xenon bulb to corresponding xenon bulb headlamp, and check if lamp lights up.
OK or NG
OK >> Replace xenon bulb.
NG >> GO TO 2.
2. CHECK 2: XENON HEADLAMP LIGHTING
Install normal HID control unit to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Replace HID control unit.
NG >> GO TO 3.
3. CHECK 3: XENON HEADLAMP LIGHTING
Install normal xenon lamp housing assembly to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Replace xenon headlamp housing assembly. [Malfunction in starter (boosting circuit) in xenon
headlamp housing]
NG >> INSPECTION END

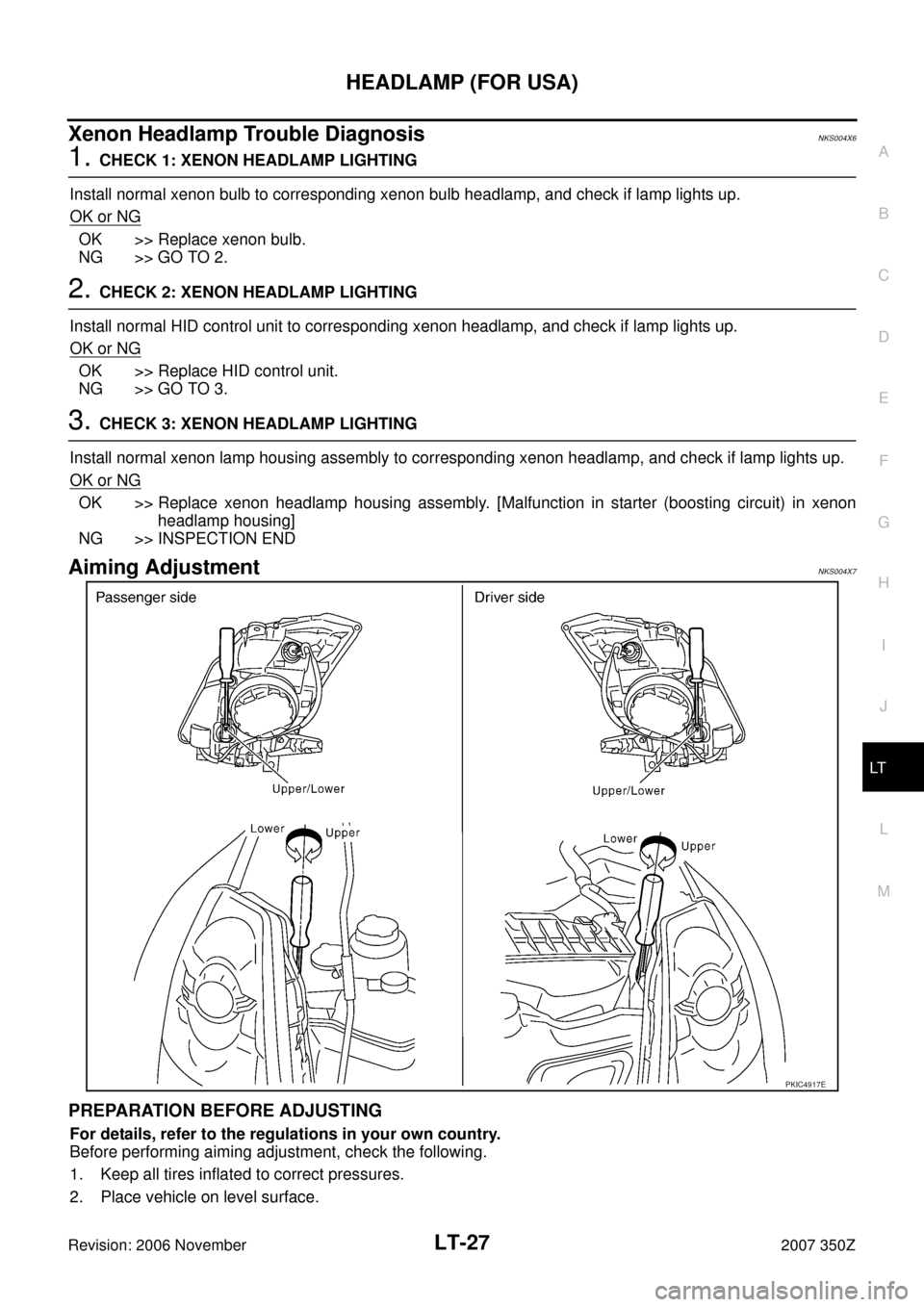

Aiming AdjustmentNKS004X7
PREPARATION BEFORE ADJUSTING
For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on level surface.
PKIC4917E

LT-60
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
Xenon Headlamp Trouble DiagnosisNKS004XX
1. CHECK 1: XENON HEADLAMP LIGHTING
Install normal xenon bulb to corresponding xenon bulb headlamp, and check if lamp lights up.
OK or NG
OK >> Replace xenon bulb.
NG >> GO TO 2.
2. CHECK 2: XENON HEADLAMP LIGHTING
Install normal HID control unit to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Replace HID control unit.
NG >> GO TO 3.
3. CHECK 3: XENON HEADLAMP LIGHTING
Install normal xenon lamp housing assembly to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Replace xenon headlamp housing assembly. [Malfunction in starter (boosting circuit) in xenon
headlamp housing]
NG >> INSPECTION END
Aiming AdjustmentNKS004XY
PREPARATION BEFORE ADJUSTING
For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on level surface.
PKIC4917E

COMBINATION SWITCH
LT-93
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
3. HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check for continuity between BCM harness connector of the suspect system and the corresponding com-
bination switch harness connector.
4. Check for continuity between BCM harness connector in suspect malfunctioning system and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
Sus-
pect
systemBCM Combination switch
Continuity
Connector Terminal Connector Terminal
1
M90Input 1 6
M296
Ye s Output 1 36 1
2Input 2 5 7
Output 2 35 2
3Input 3 4 10
Output 3 34 3
4Input 4 3 9
Output 4 33 4
5Input 5 2 8
Output 5 32 5
Suspect
systemBCM
GroundContinuity
Connector Terminal
1
M90Input 1 6
No Output 1 36
2Input 2 5
Output 2 35
3Input 3 4
Output 3 34
4Input 4 3
Output 4 33
5Input 5 2
Output 5 32
PKIB6168E
PKIA7506E
