2007 ISUZU KB P190 CIRCUIT DIAGRAM

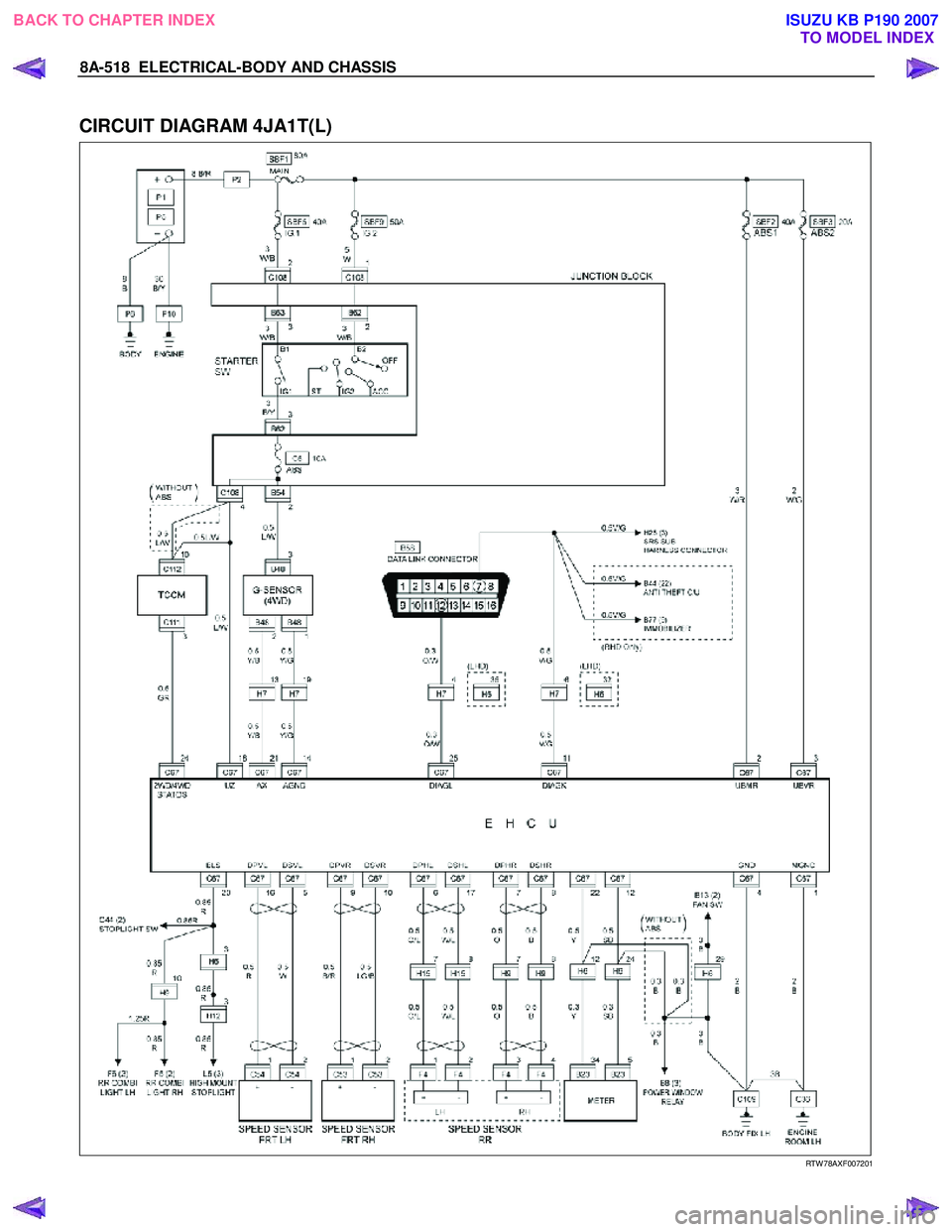

8A-518 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T(L)


RTW 78AXF007201

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

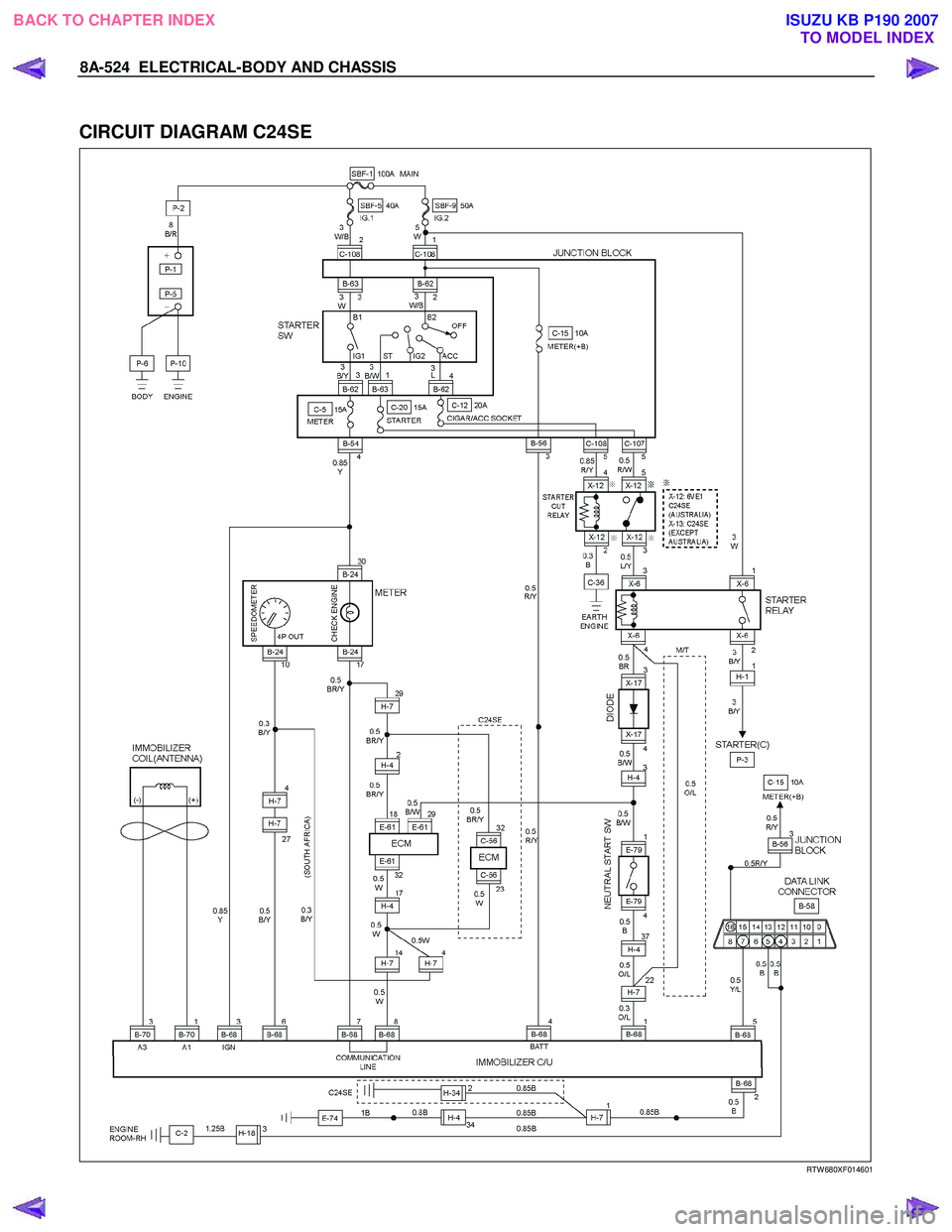

8A-524 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE


RTW 680XF014601

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

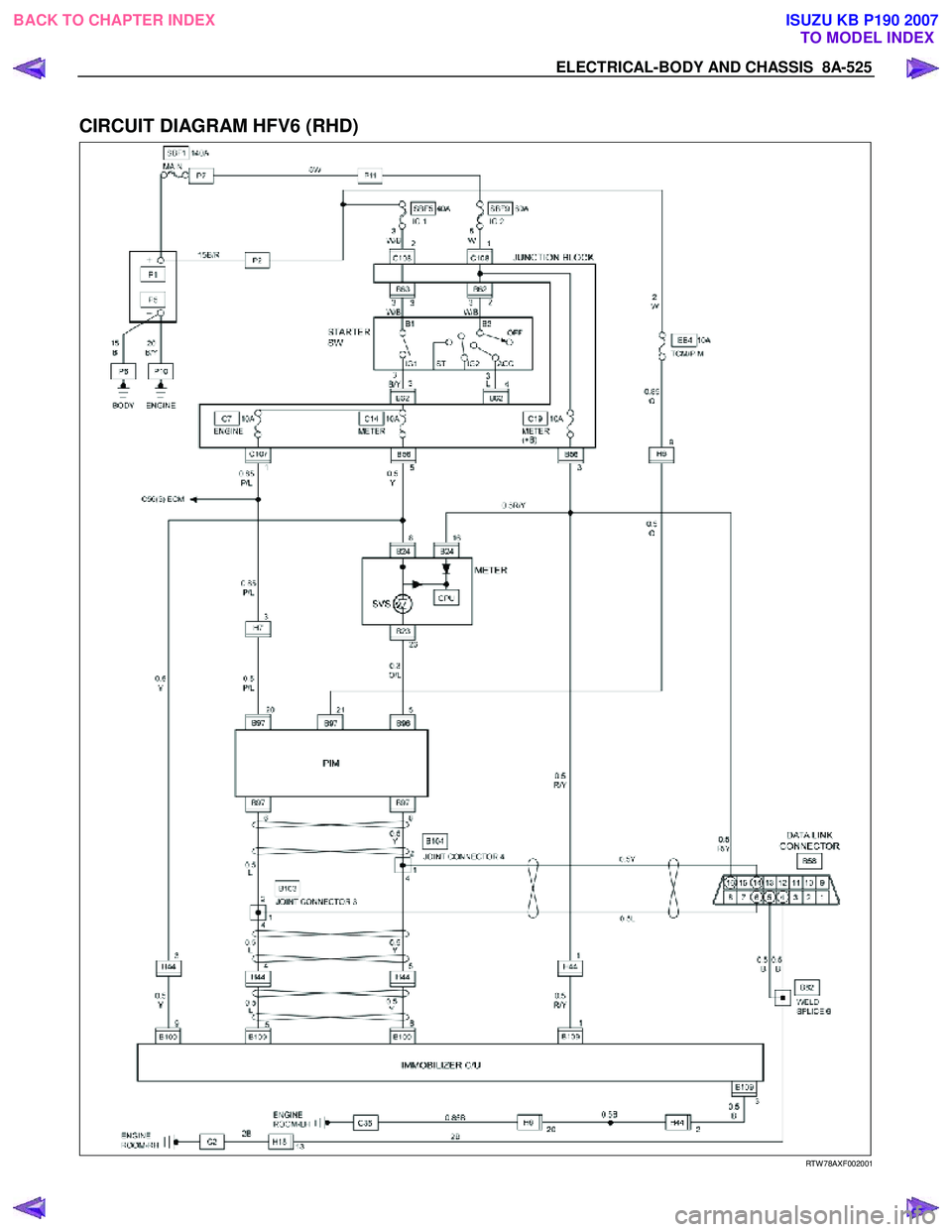

ELECTRICAL-BODY AND CHASSIS 8A-525

CIRCUIT DIAGRAM HFV6 (RHD)

RTW 78AXF002001

BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

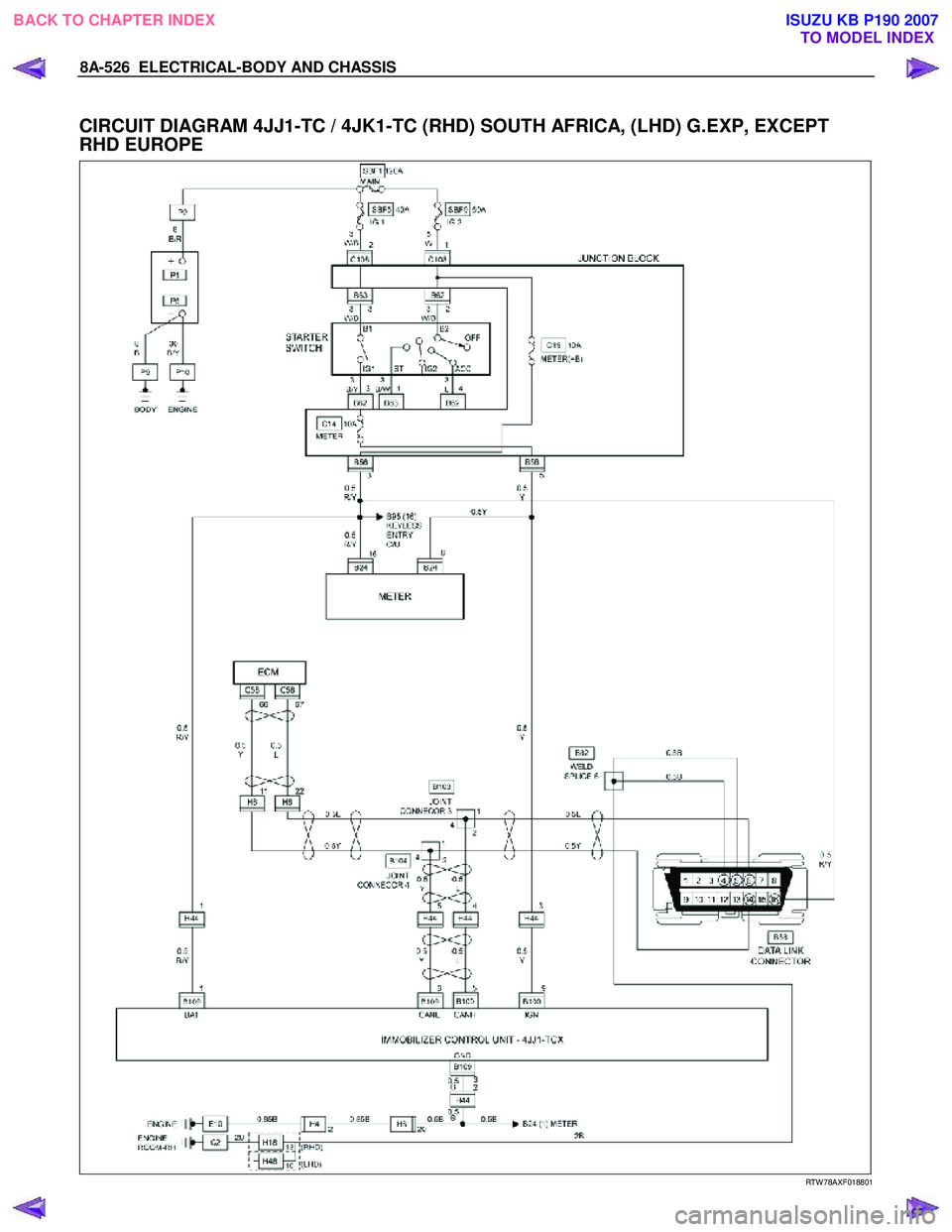

8A-526 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) SOUTH AFRICA, (LHD) G.EXP, EXCEPT
RHD EUROPE

RTW 78AXF018801

BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

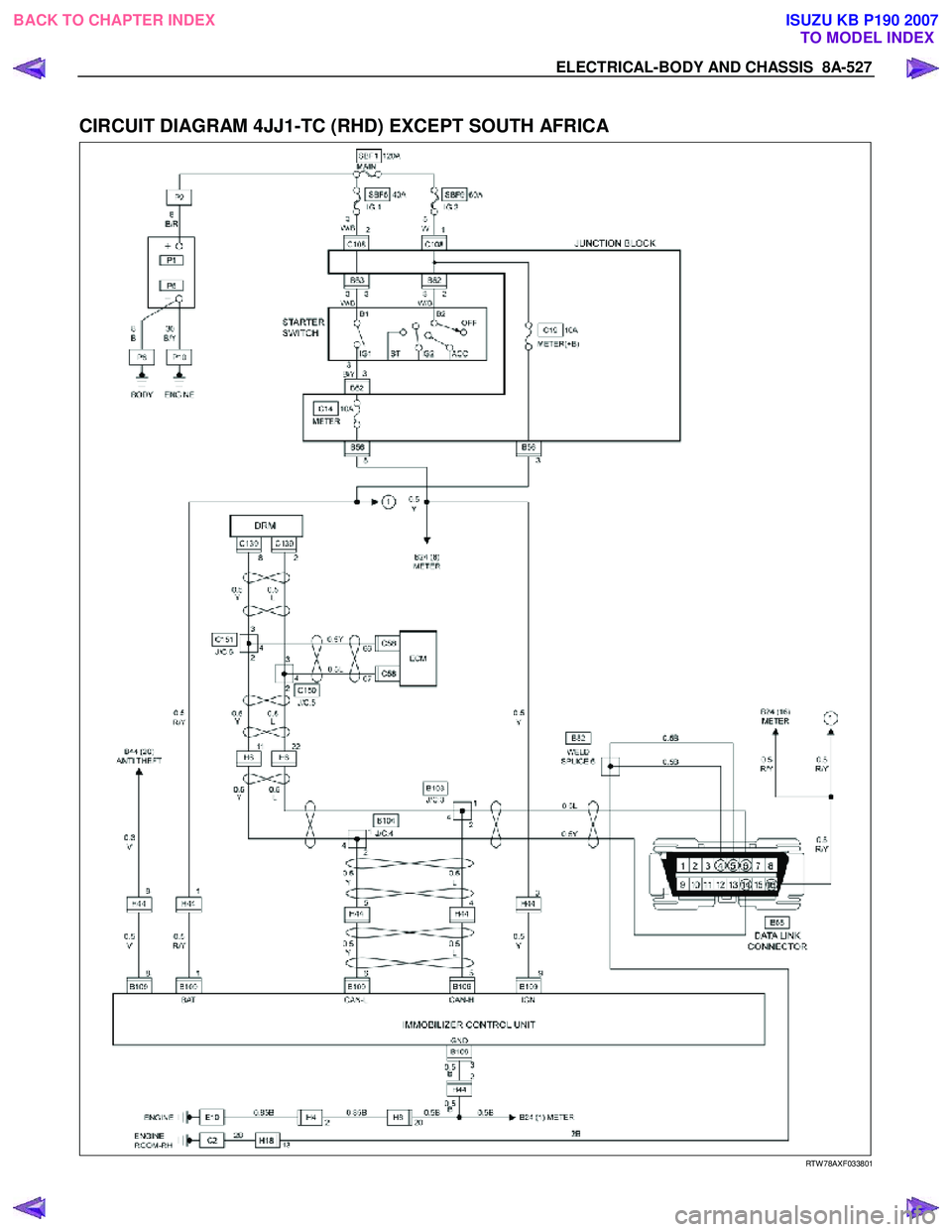

ELECTRICAL-BODY AND CHASSIS 8A-527

CIRCUIT DIAGRAM 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA


RTW 78AXF033801

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

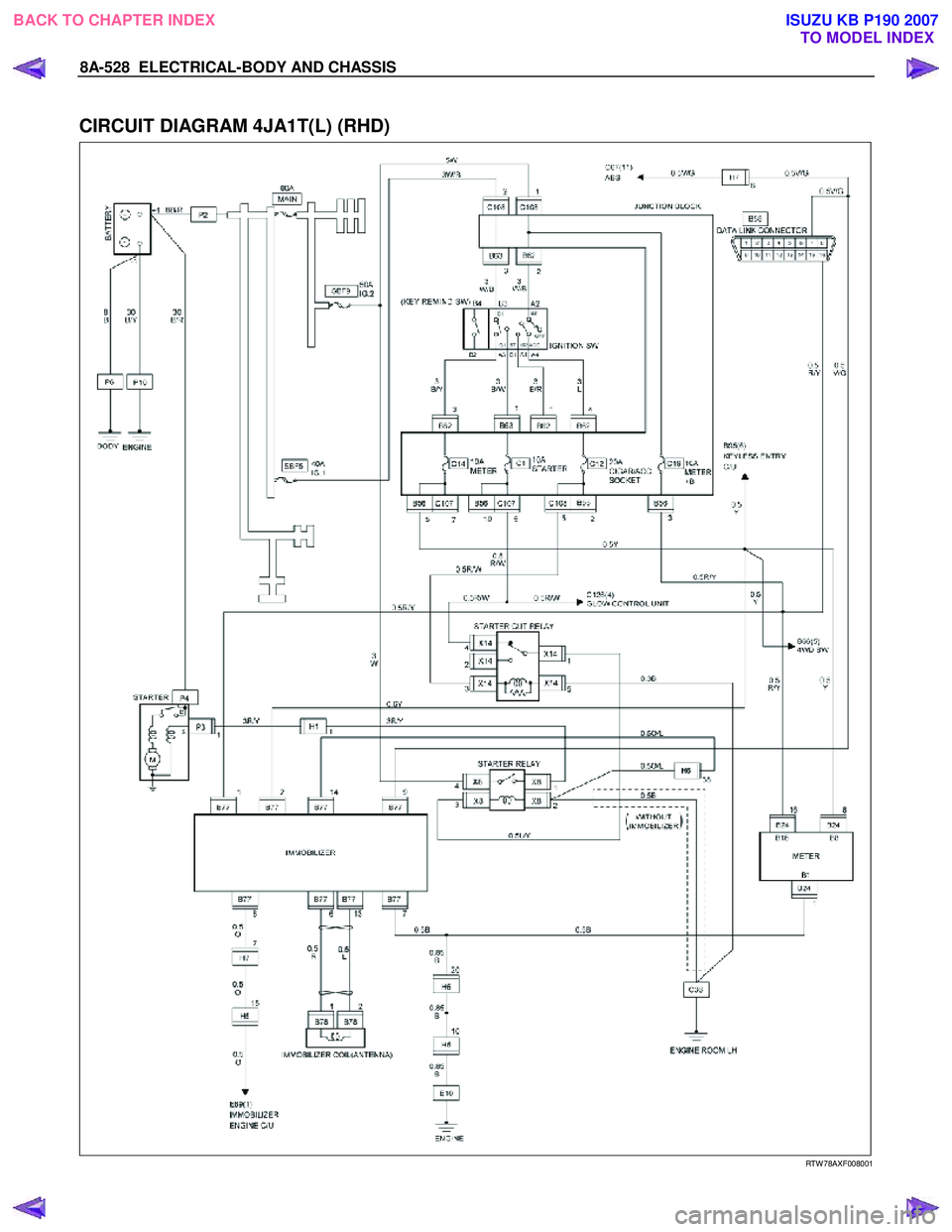

8A-528 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T(L) (RHD)


RTW 78AXF008001


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

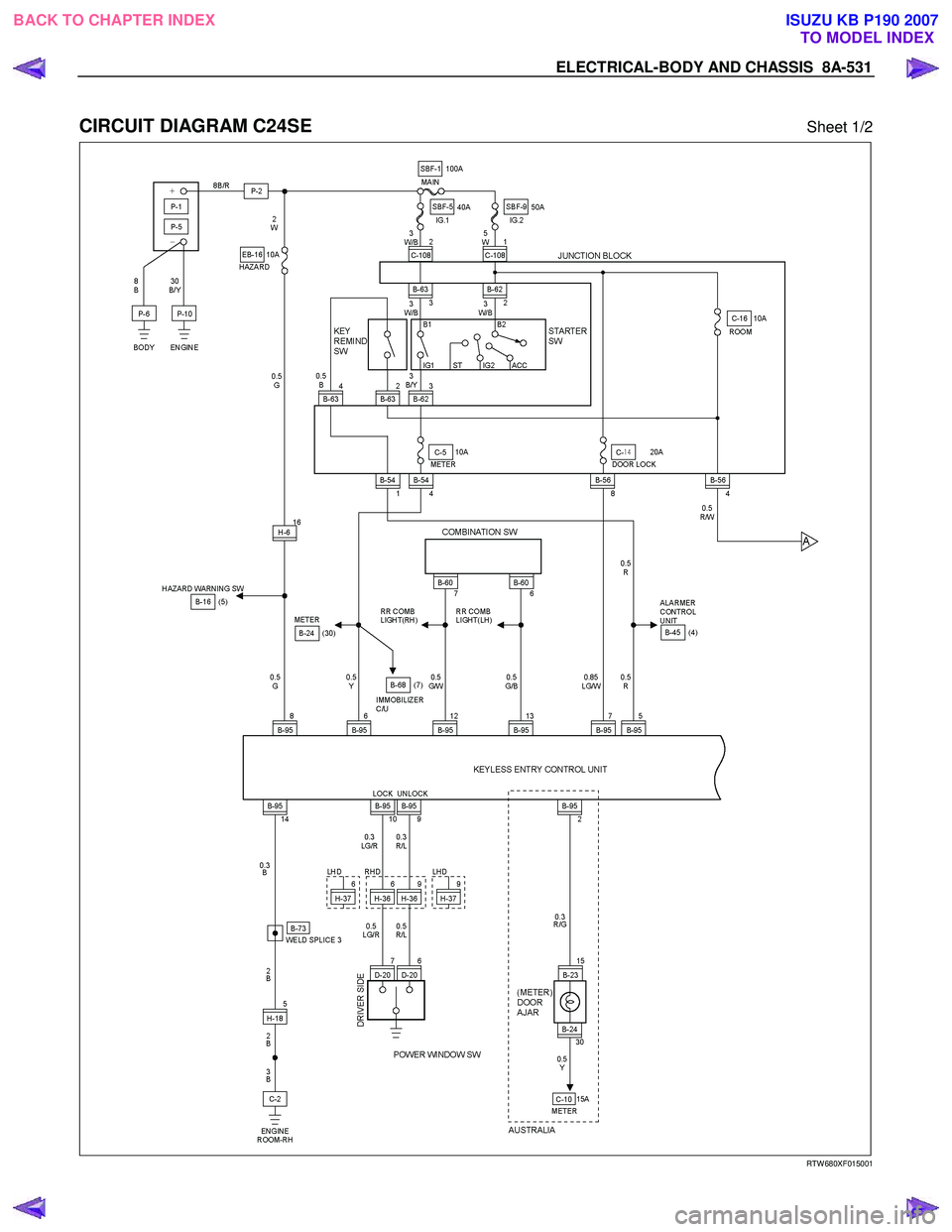

ELECTRICAL-BODY AND CHASSIS 8A-531

CIRCUIT DIAGRAM C24SE Sheet 1/2


RTW 680XF015001

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

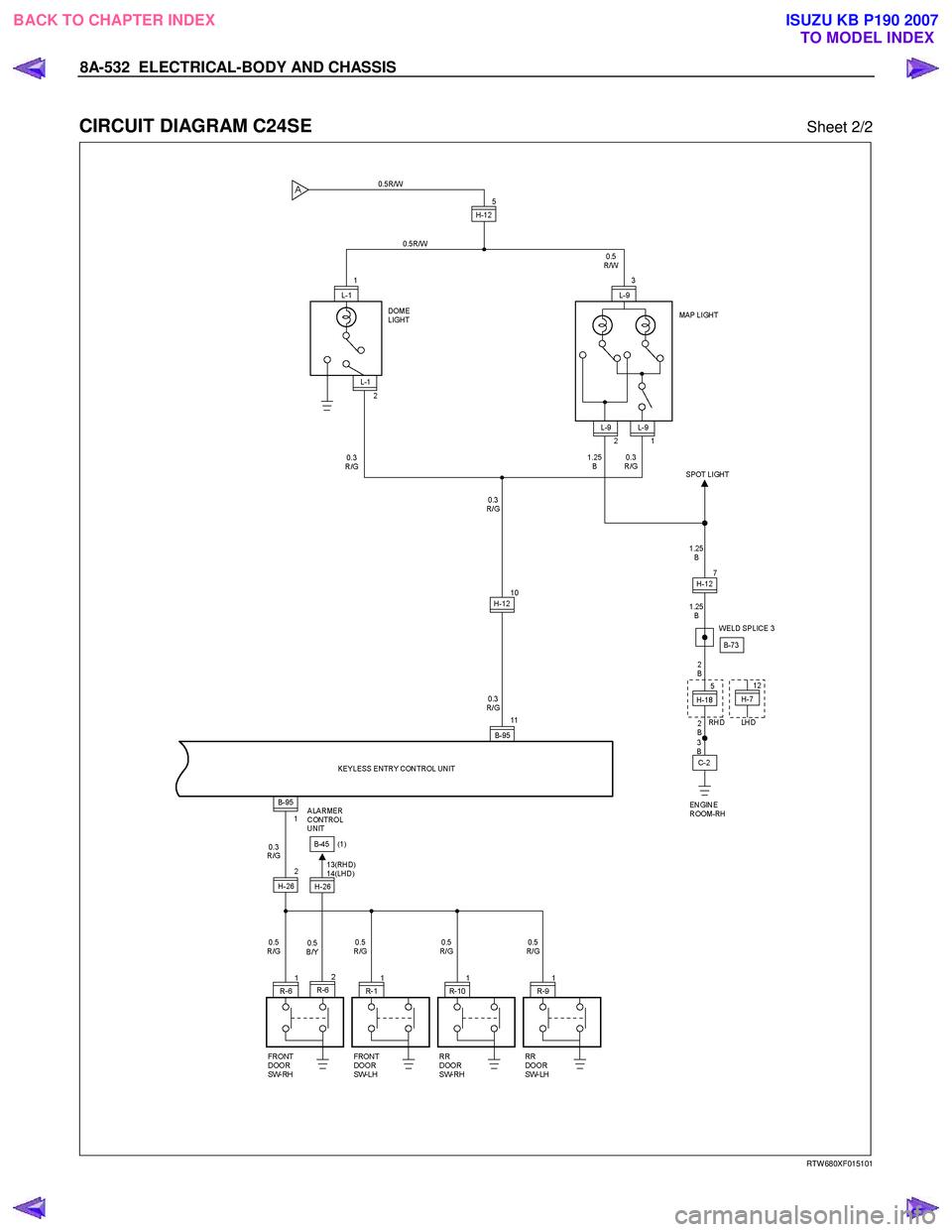

8A-532 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE Sheet 2/2




RTW 680XF015101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
