Page 5514 of 6020
8A-576 ELECTRICAL-BODY AND CHASSIS

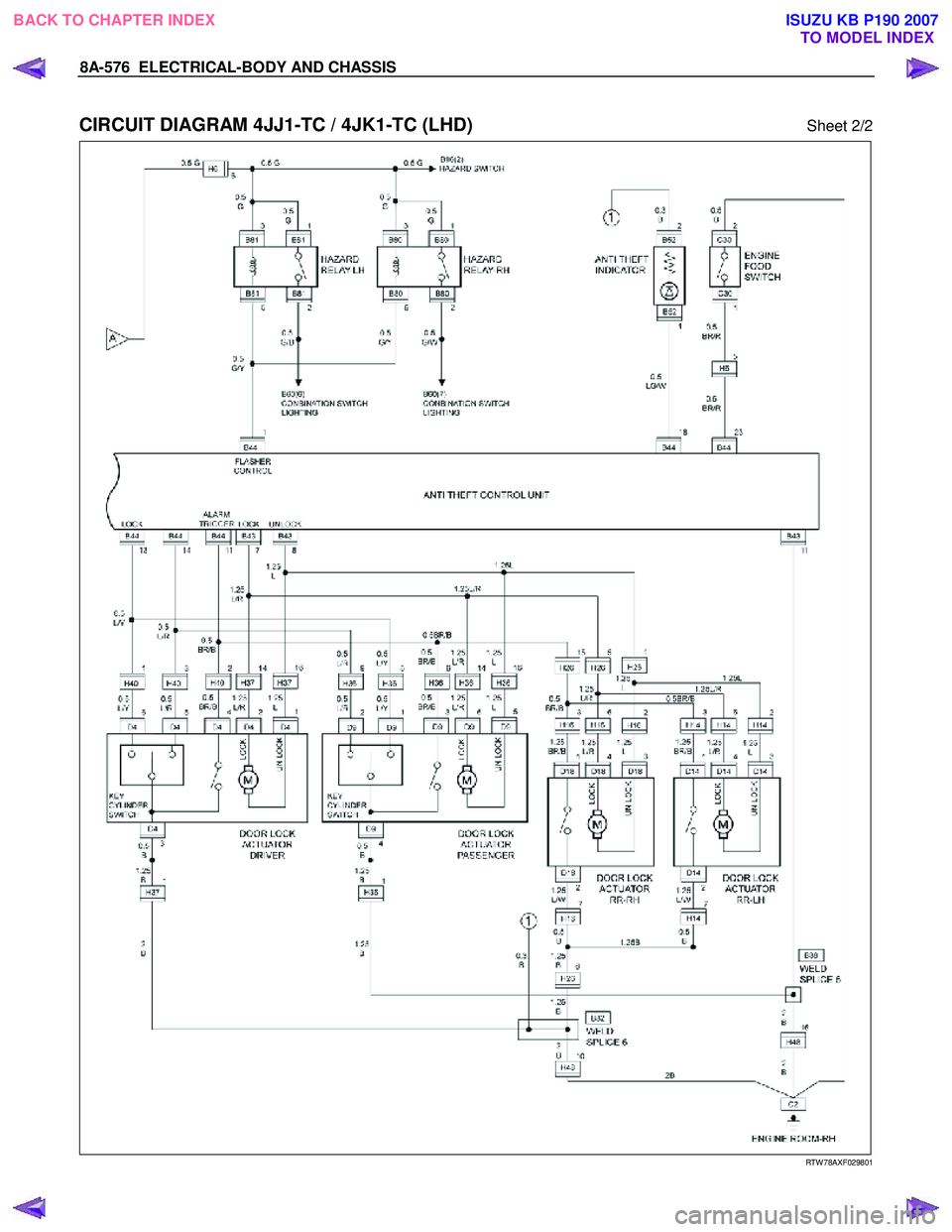

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD) Sheet 2/2
RTW 78AXF029801
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5528 of 6020
8A-590 ELECTRICAL-BODY AND CHASSIS

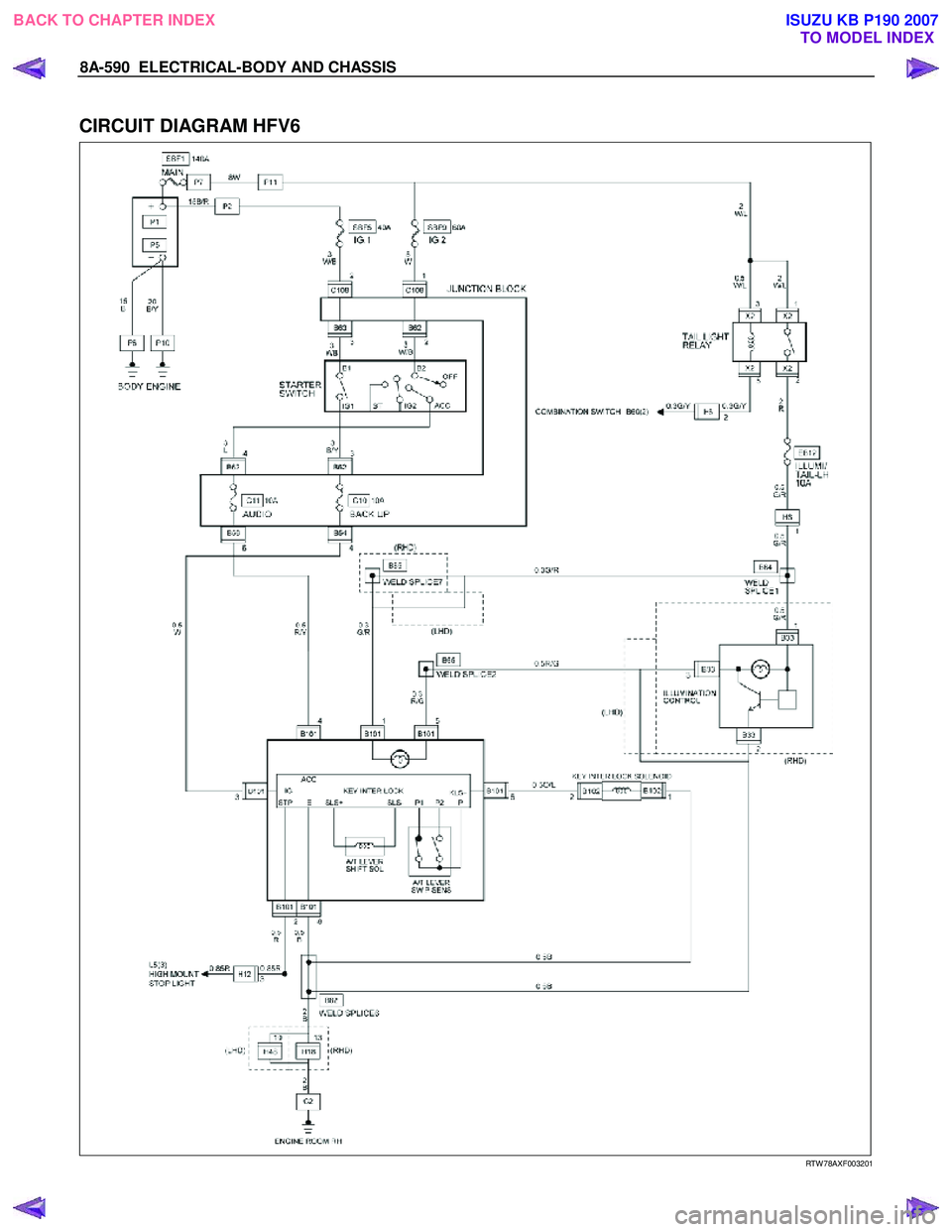

CIRCUIT DIAGRAM HFV6
RTW 78AXF003201
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5529 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-591

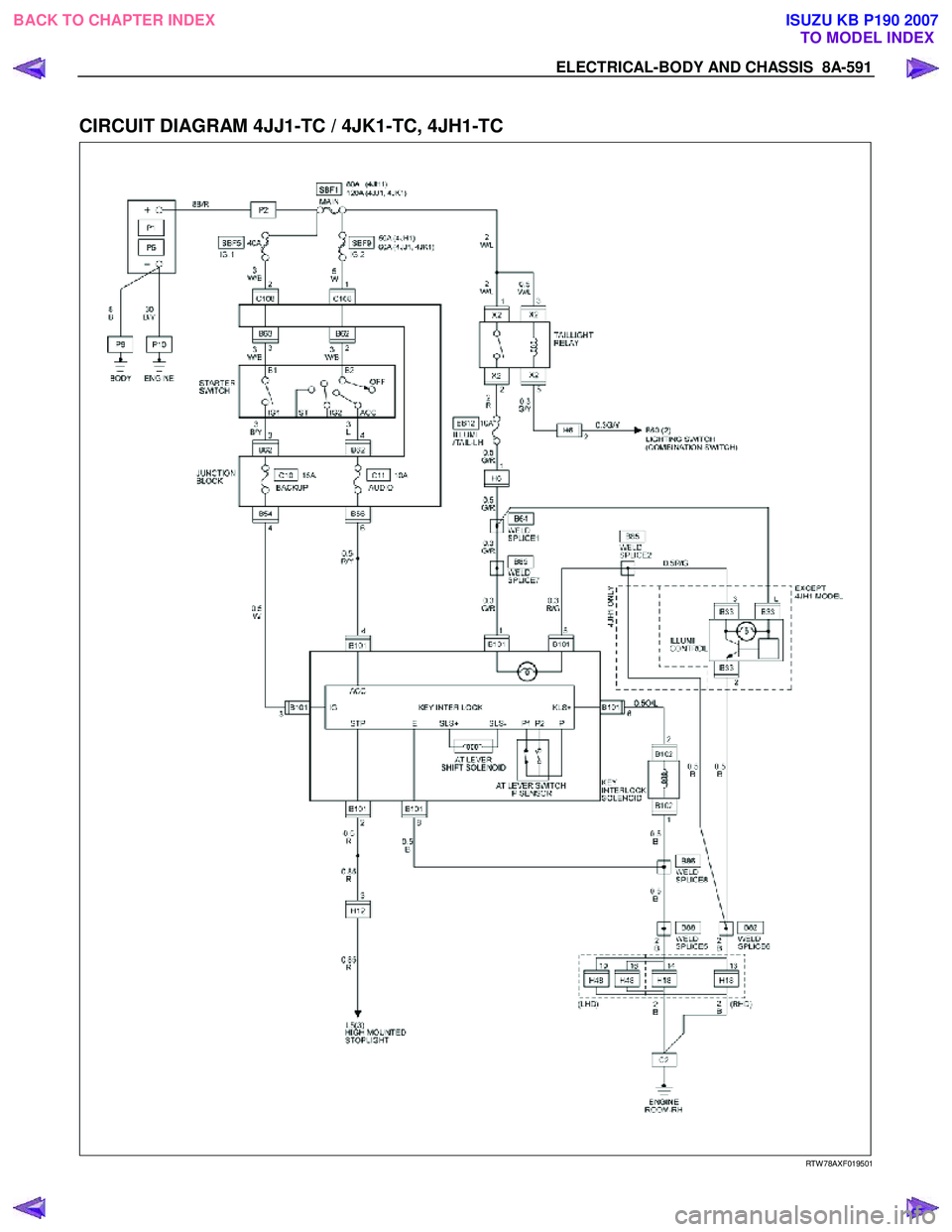

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC, 4JH1-TC
RTW 78AXF019501
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5532 of 6020
8A-594 ELECTRICAL-BODY AND CHASSIS

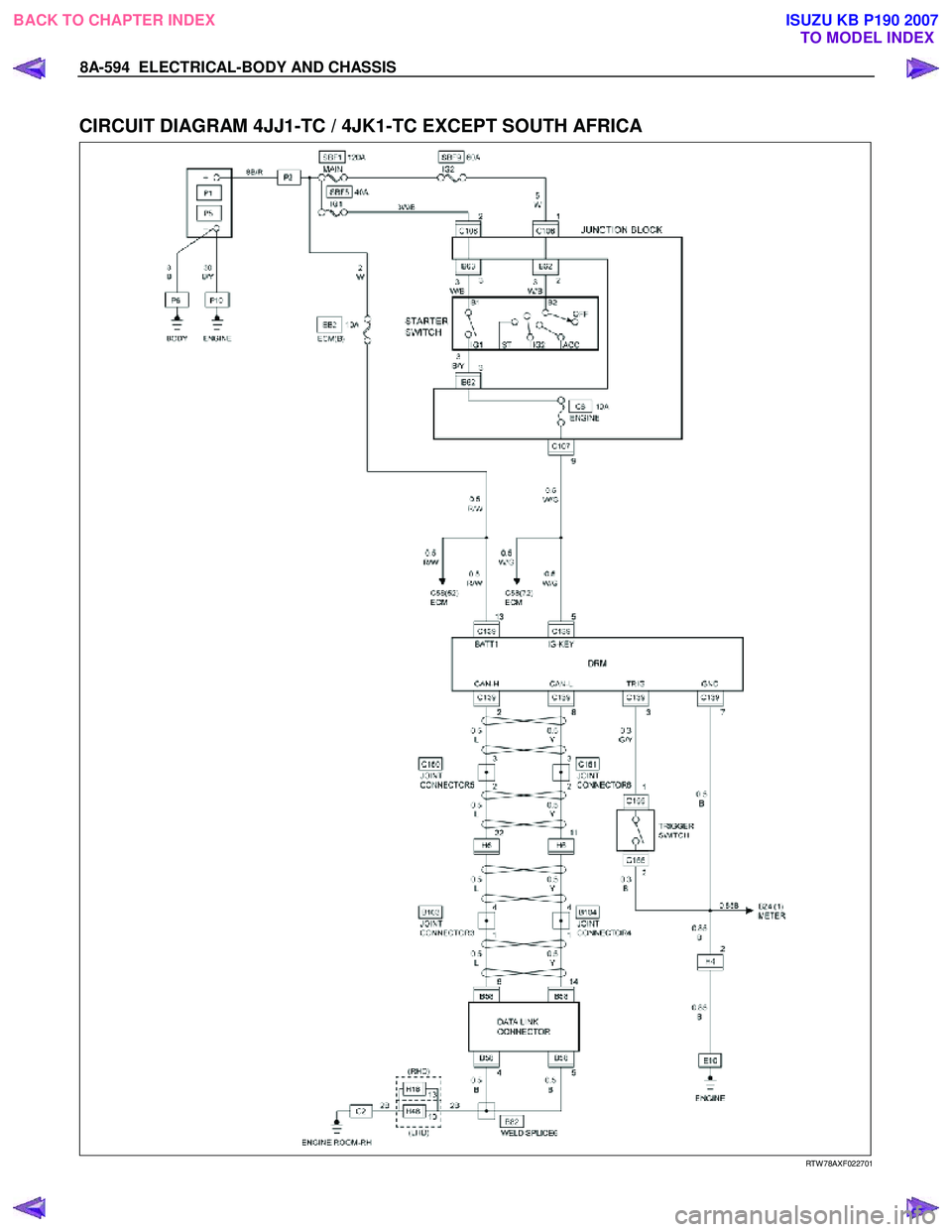

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC EXCEPT SOUTH AFRICA
RTW 78AXF022701
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5535 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-597
CIRCUIT DIAGRAM C24SE AUSTRALIA
RTW 780XF015601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5536 of 6020
8A-598 ELECTRICAL-BODY AND CHASSIS

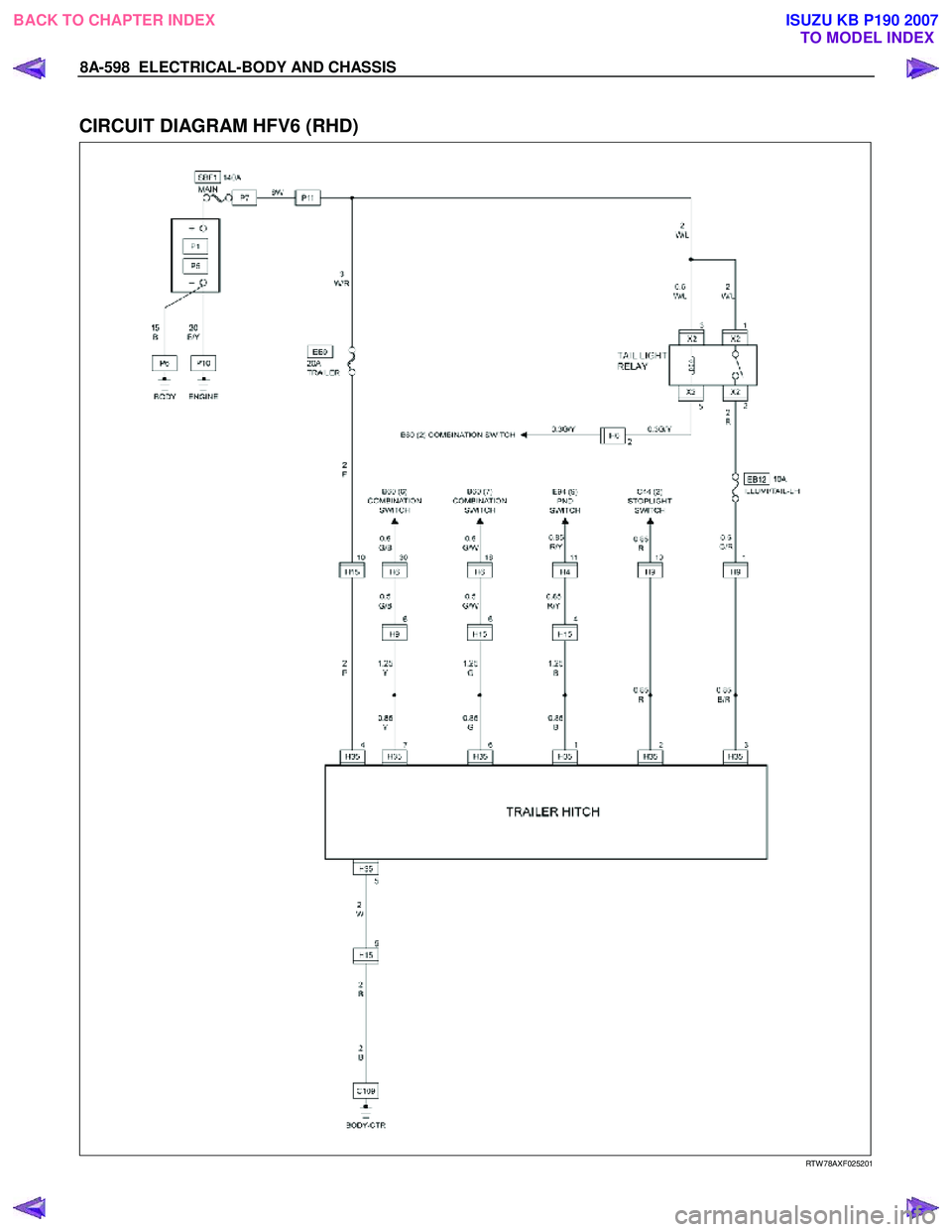

CIRCUIT DIAGRAM HFV6 (RHD)
RTW 78AXF025201
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5537 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-599

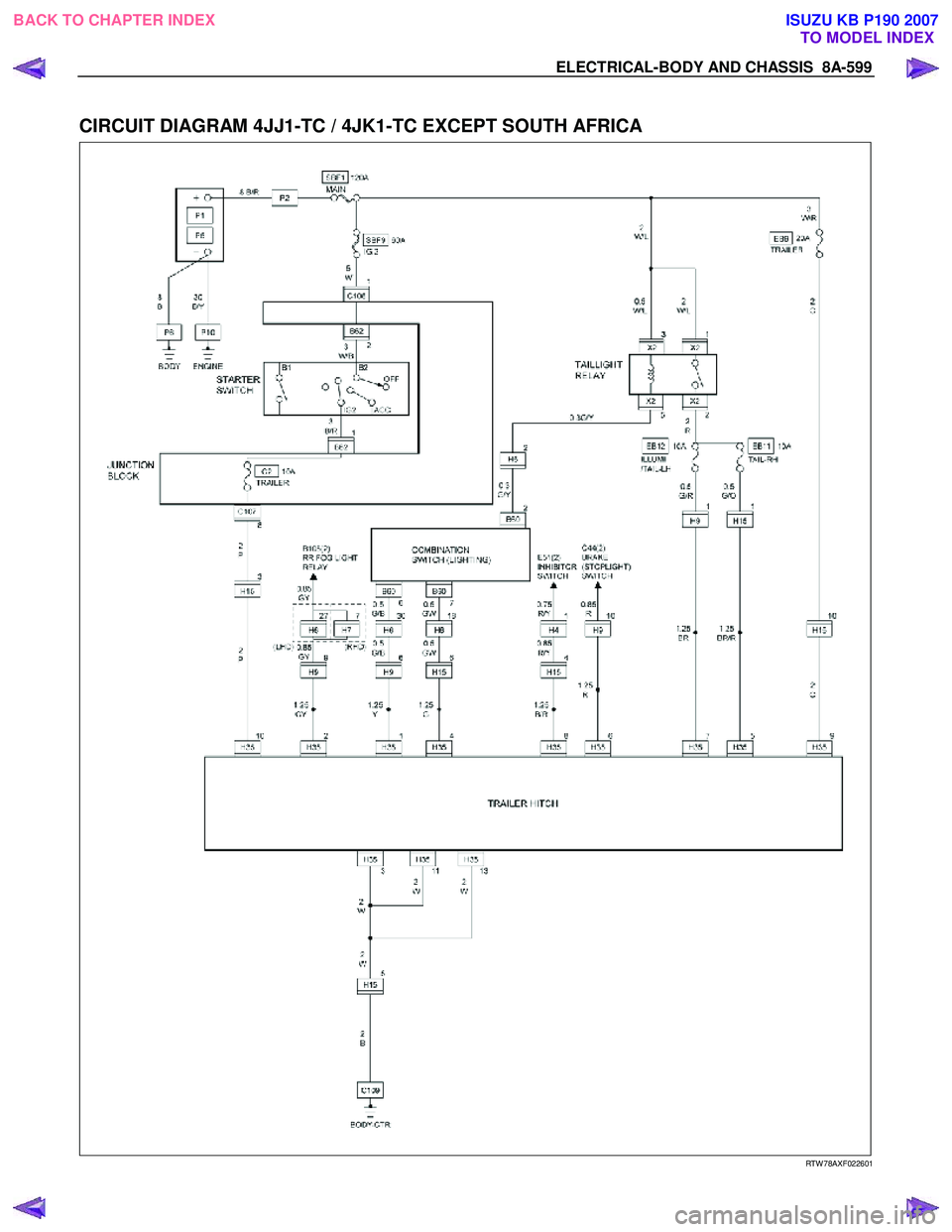

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC EXCEPT SOUTH AFRICA
RTW 78AXF022601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5540 of 6020
8A-602 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM HFV6 (RHD) Sheet 1/2
RTW 78AXF000501
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
