8A-558 ELECTRICAL-BODY AND CHASSIS

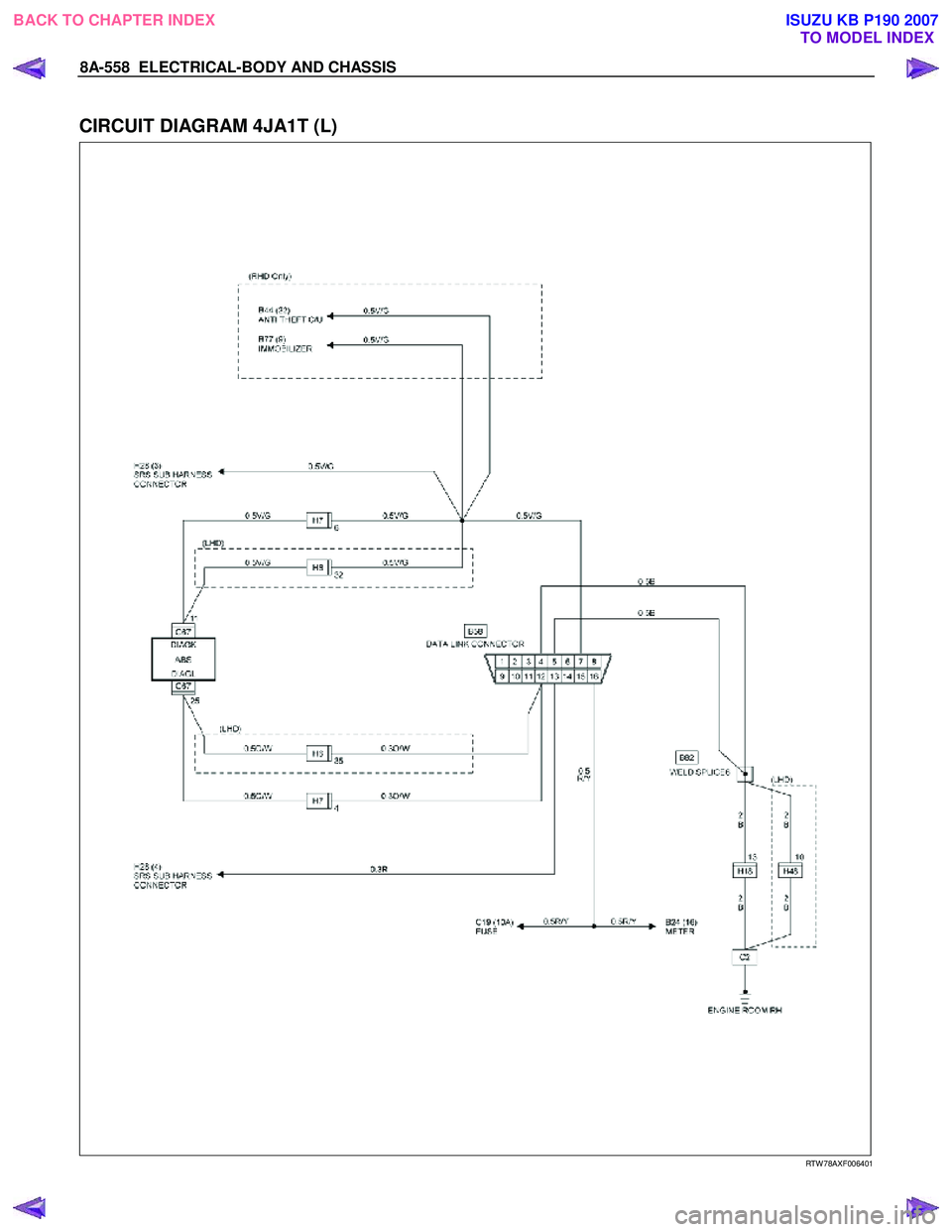

CIRCUIT DIAGRAM 4JA1T (L)
RTW 78AXF006401
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5497 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-559

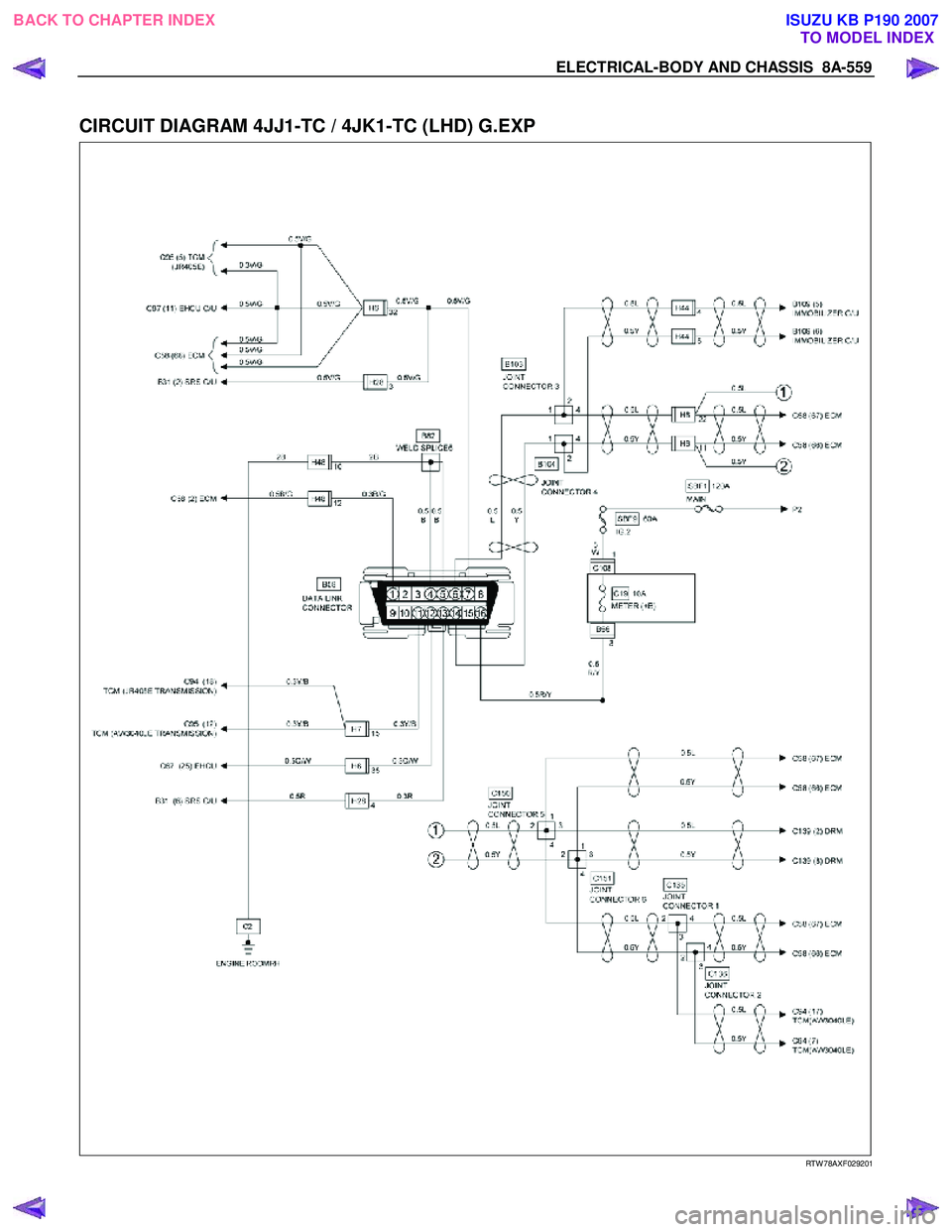

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD) G.EXP
RTW 78AXF029201
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5498 of 6020
8A-560 ELECTRICAL-BODY AND CHASSIS

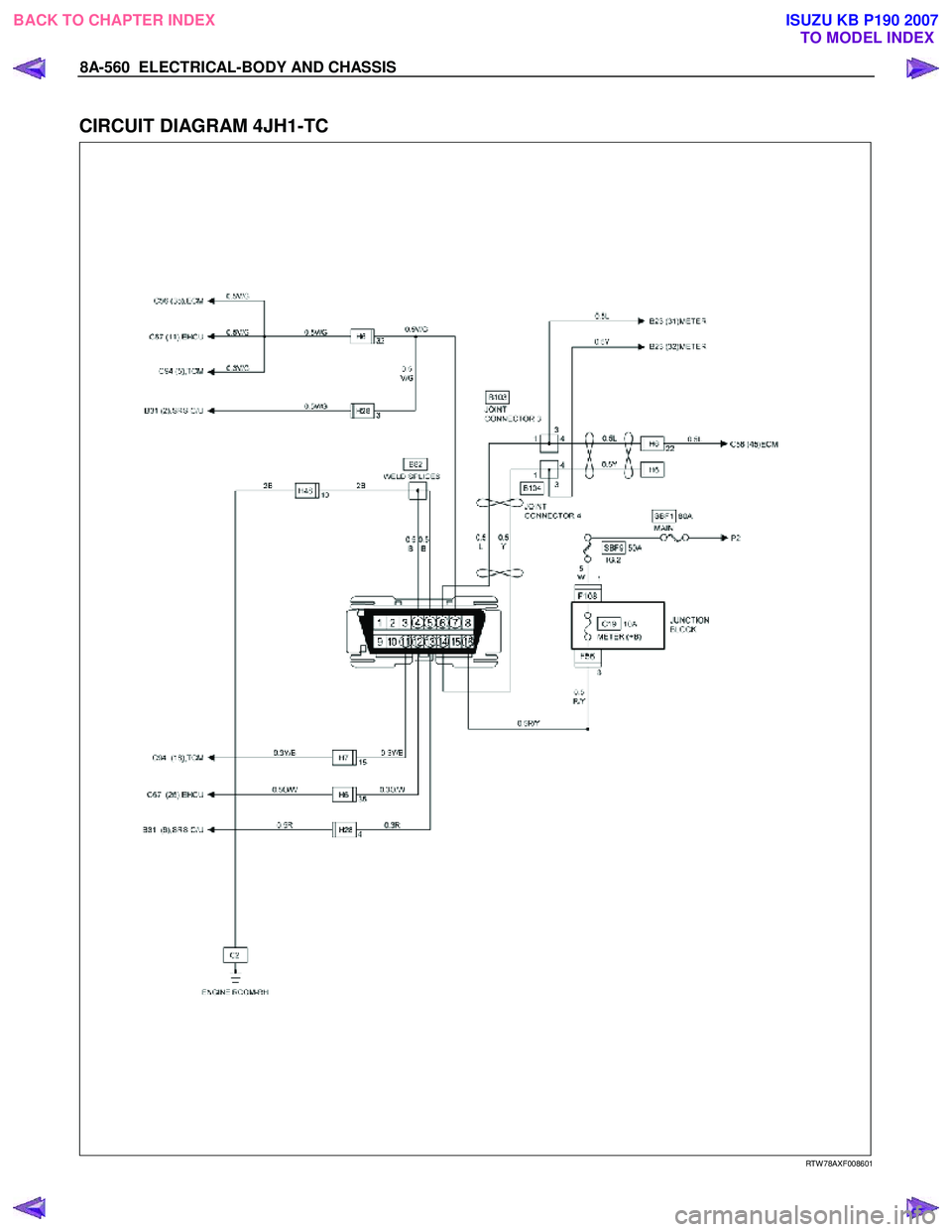

CIRCUIT DIAGRAM 4JH1-TC
RTW 78AXF008601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5501 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-563

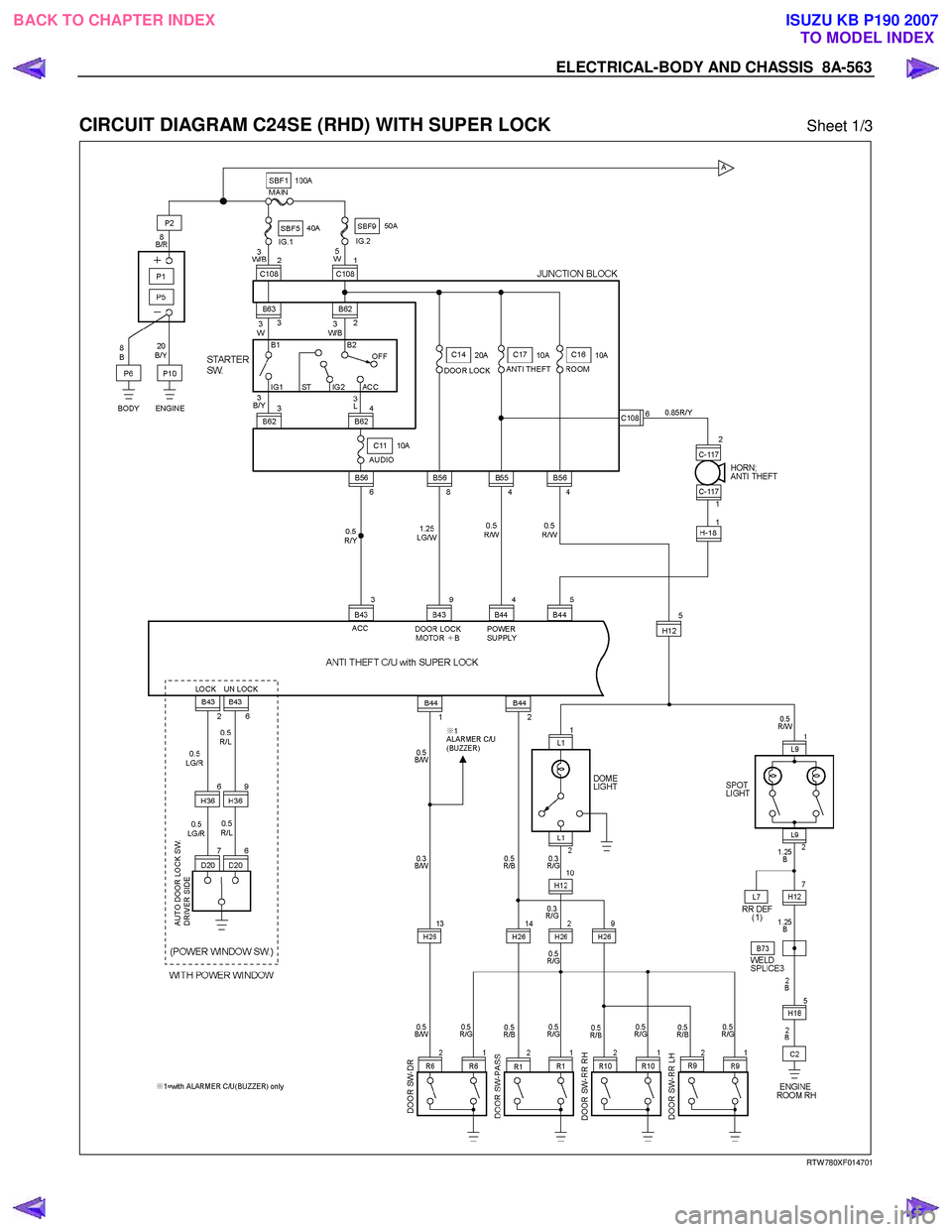

CIRCUIT DIAGRAM C24SE (RHD) WITH SUPER LOCK Sheet 1/3
RTW 780XF014701
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5502 of 6020
8A-564 ELECTRICAL-BODY AND CHASSIS

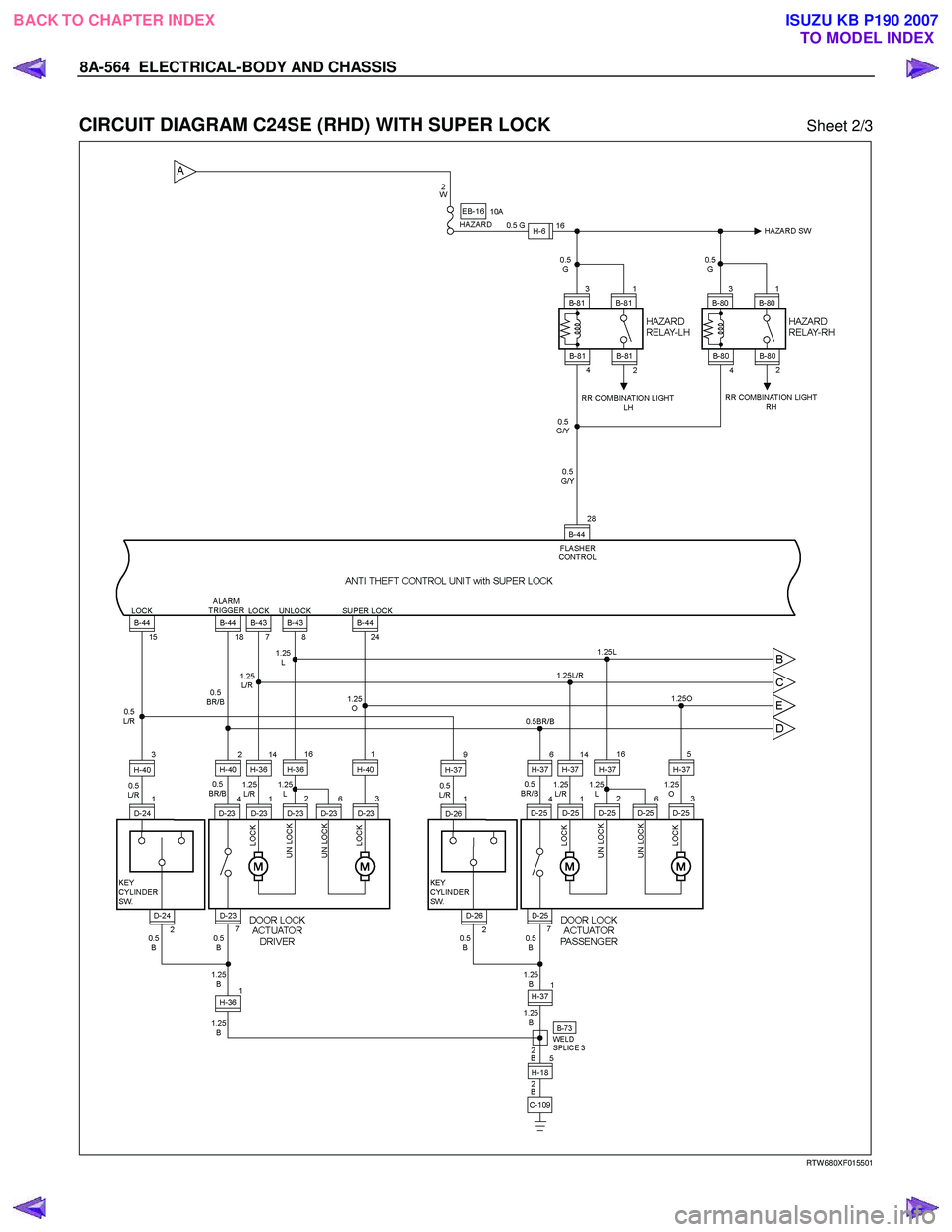

CIRCUIT DIAGRAM C24SE (RHD) WITH SUPER LOCK Sheet 2/3
RTW 680XF015501
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5503 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-565

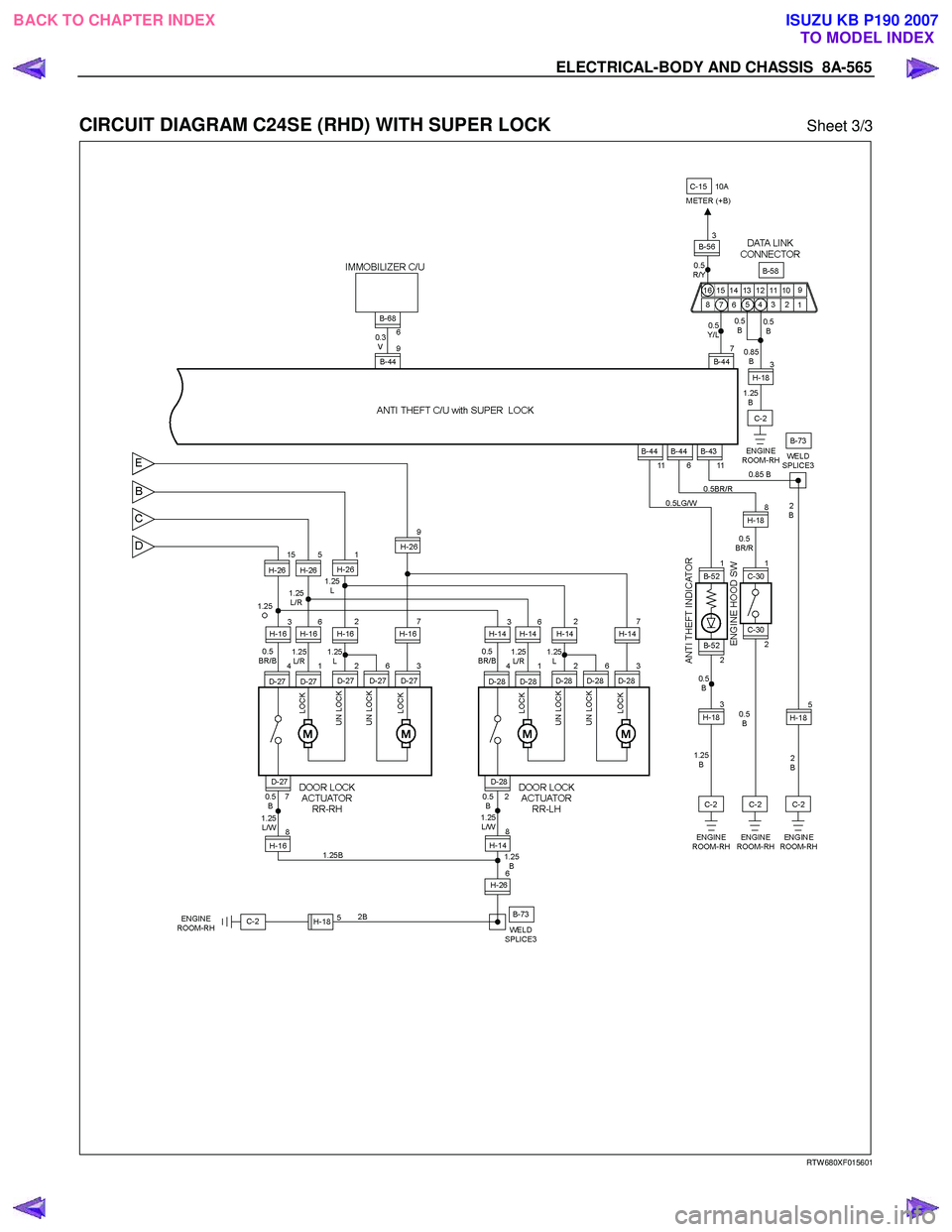

CIRCUIT DIAGRAM C24SE (RHD) WITH SUPER LOCK Sheet 3/3
RTW 680XF015601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5504 of 6020
8A-566 ELECTRICAL-BODY AND CHASSIS

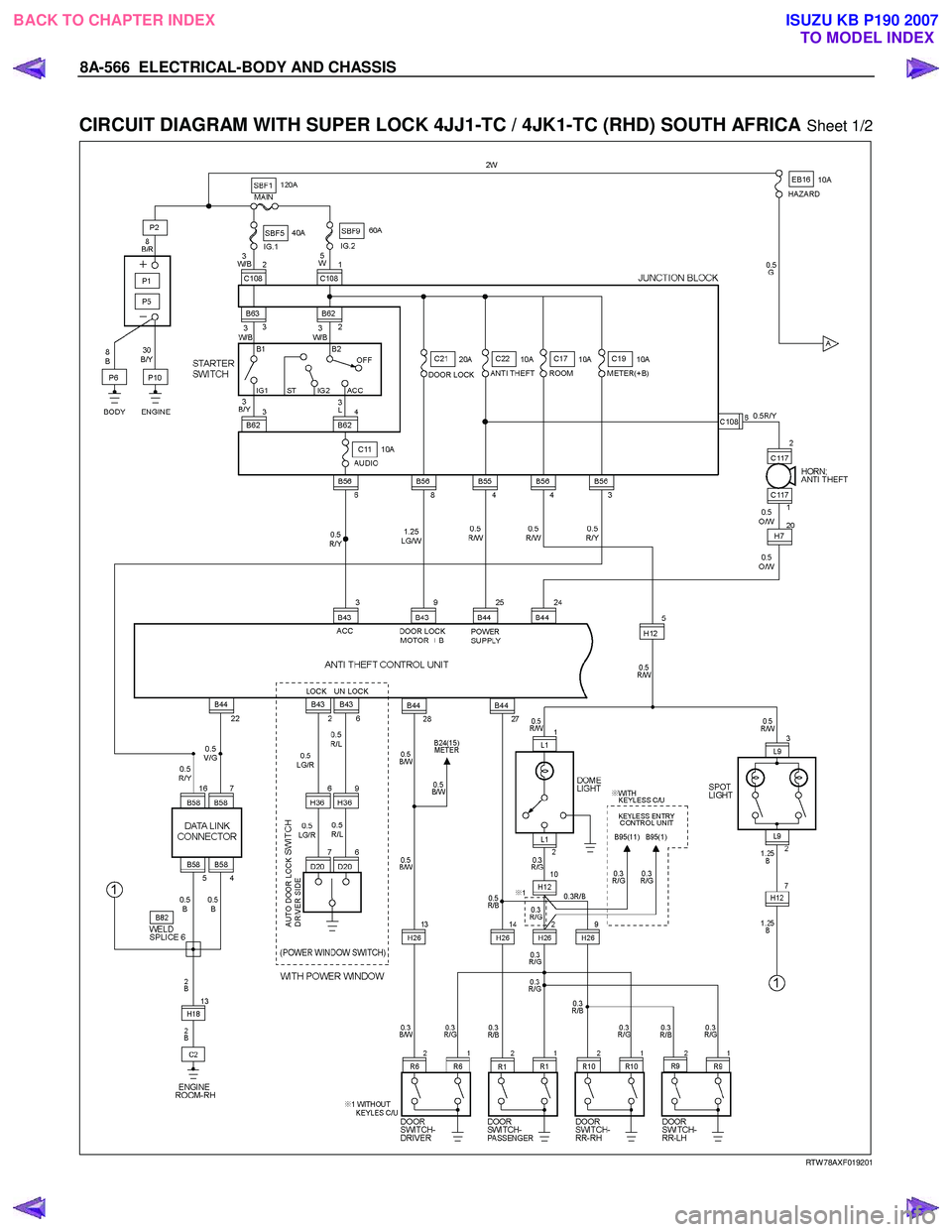

CIRCUIT DIAGRAM WITH SUPER LOCK 4JJ1-TC / 4JK1-TC (RHD) SOUTH AFRICA Sheet 1/2
RTW 78AXF019201
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5505 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-567

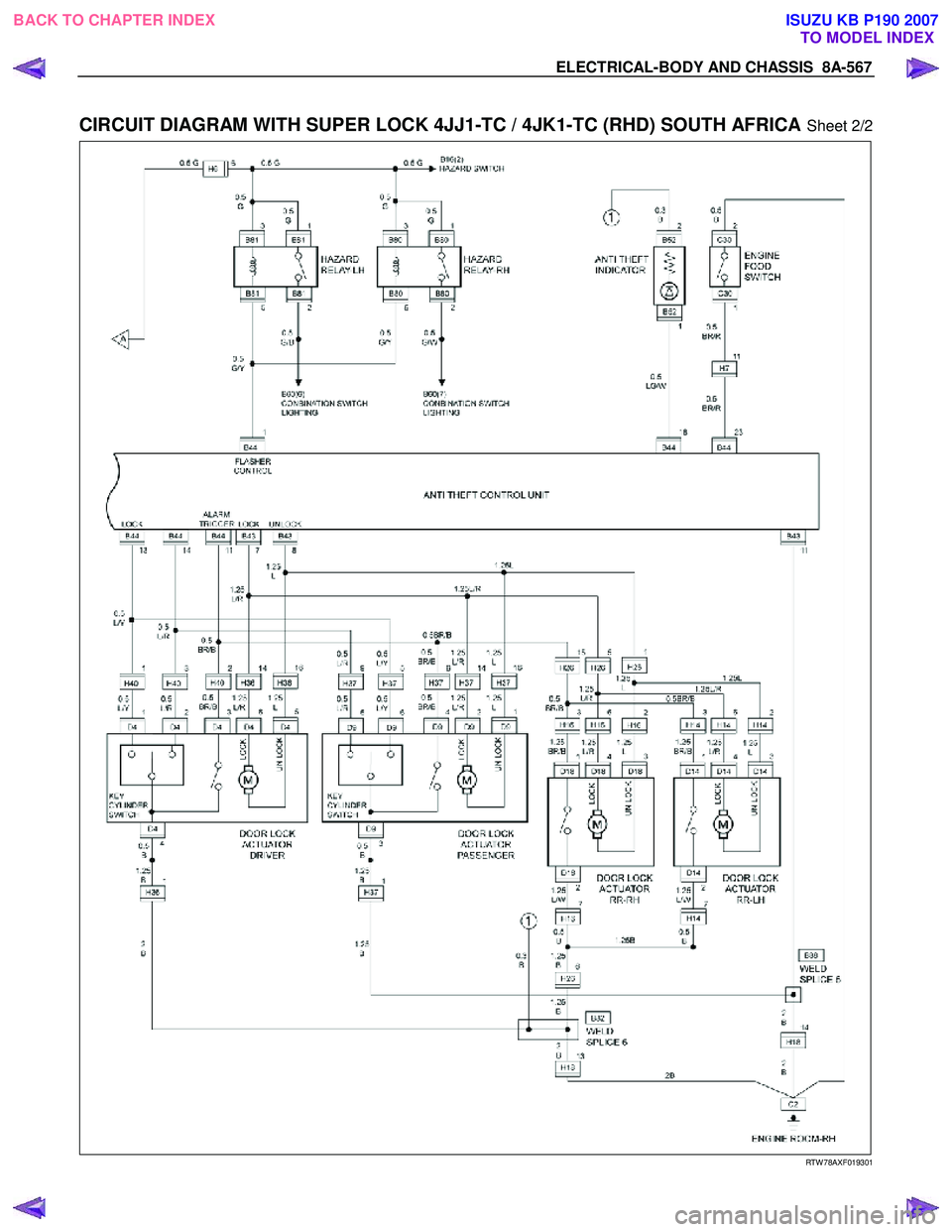

CIRCUIT DIAGRAM WITH SUPER LOCK 4JJ1-TC / 4JK1-TC (RHD) SOUTH AFRICA Sheet 2/2
RTW 78AXF019301
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
