2007 ISUZU KB P190 CIRCUIT DIAGRAM

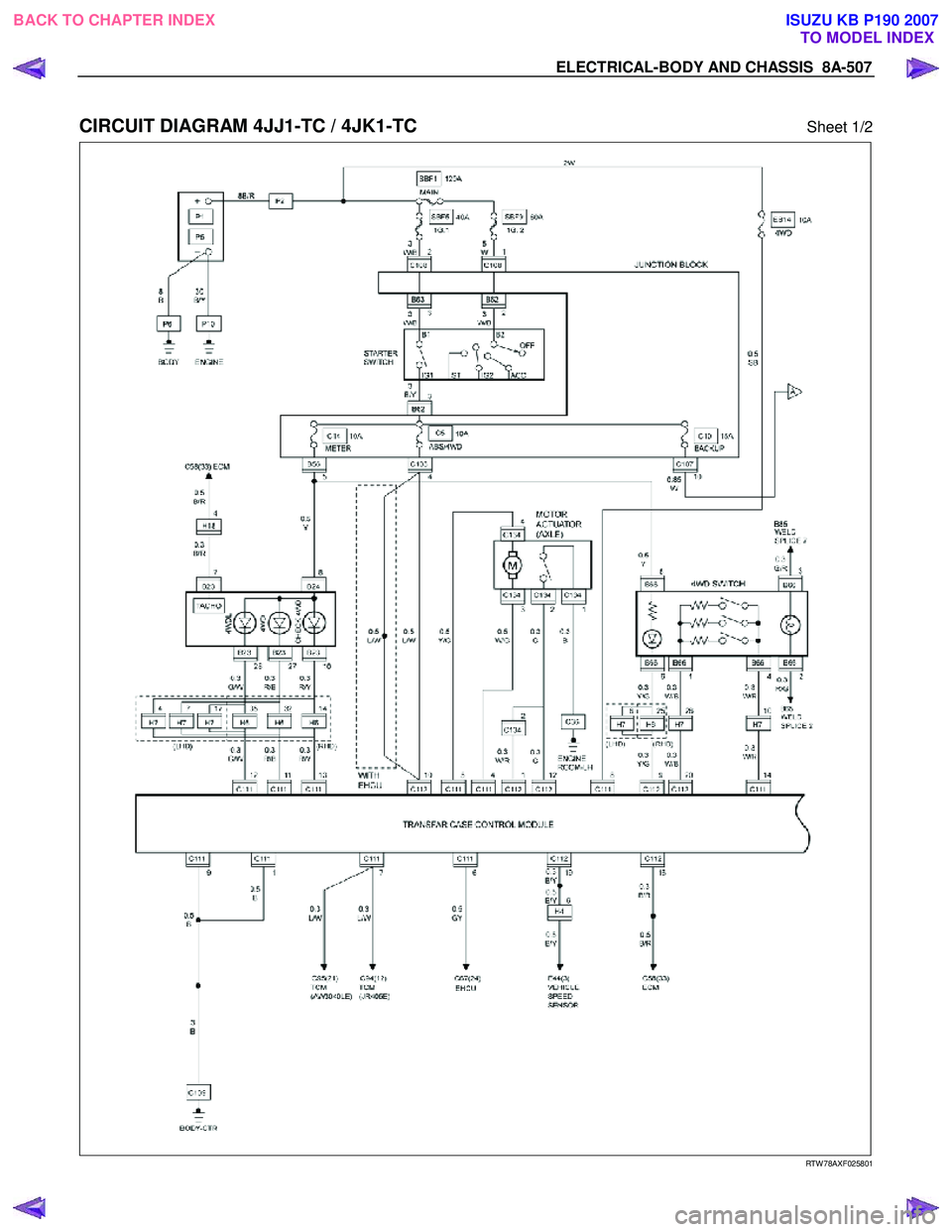

ELECTRICAL-BODY AND CHASSIS 8A-507

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC Sheet 1/2


RTW 78AXF025801

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

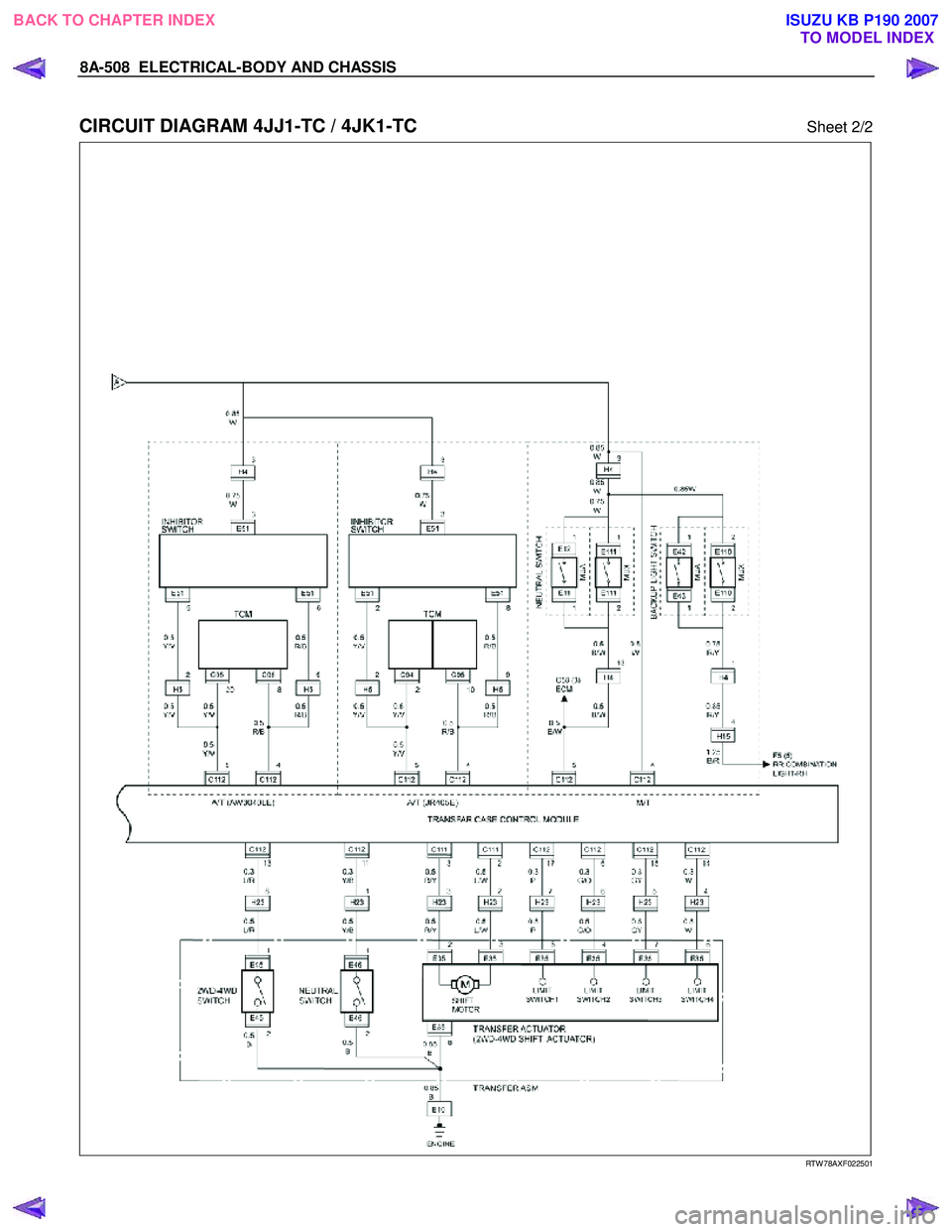

8A-508 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC Sheet 2/2






















RTW 78AXF022501

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

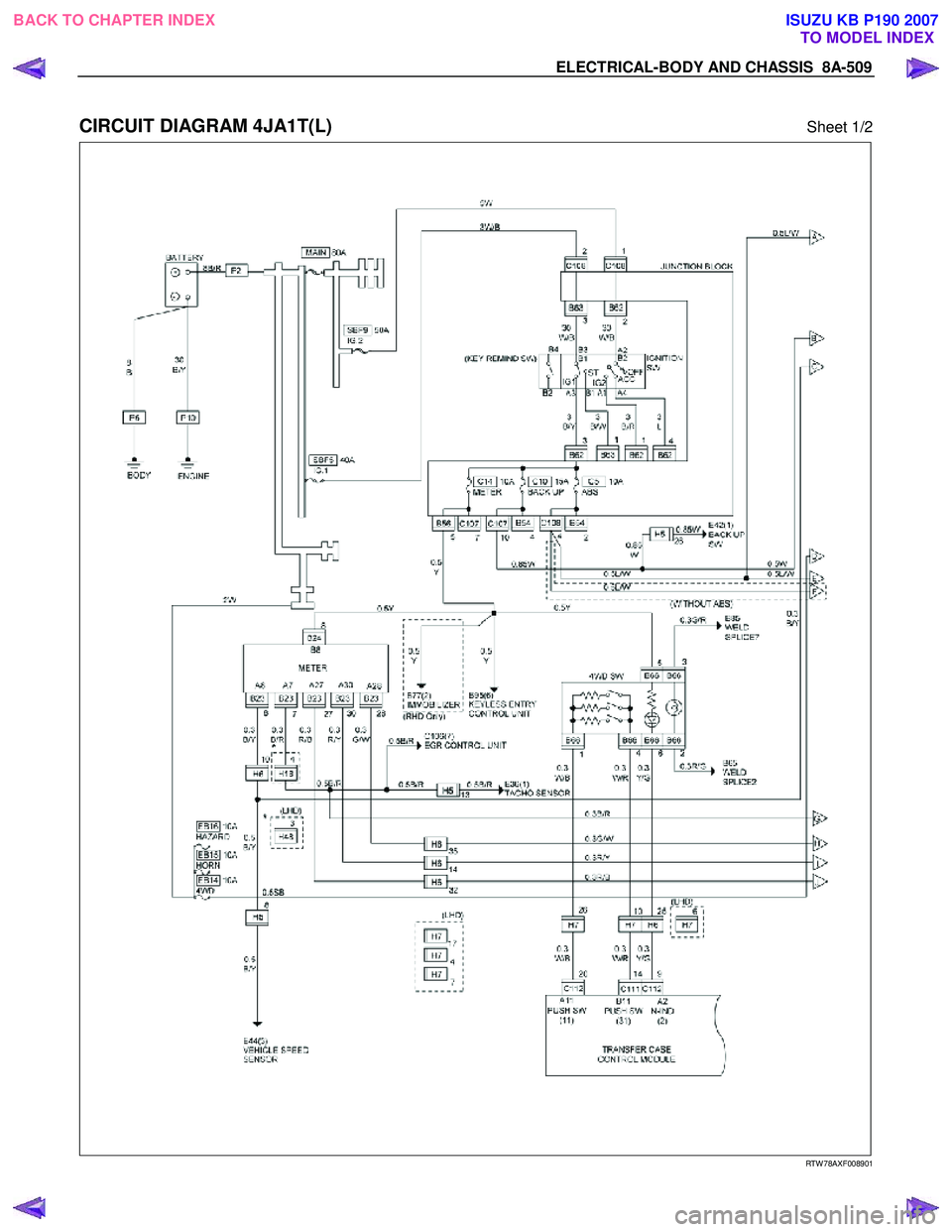

ELECTRICAL-BODY AND CHASSIS 8A-509

CIRCUIT DIAGRAM 4JA1T(L) Sheet 1/2







RTW 78AXF008901

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

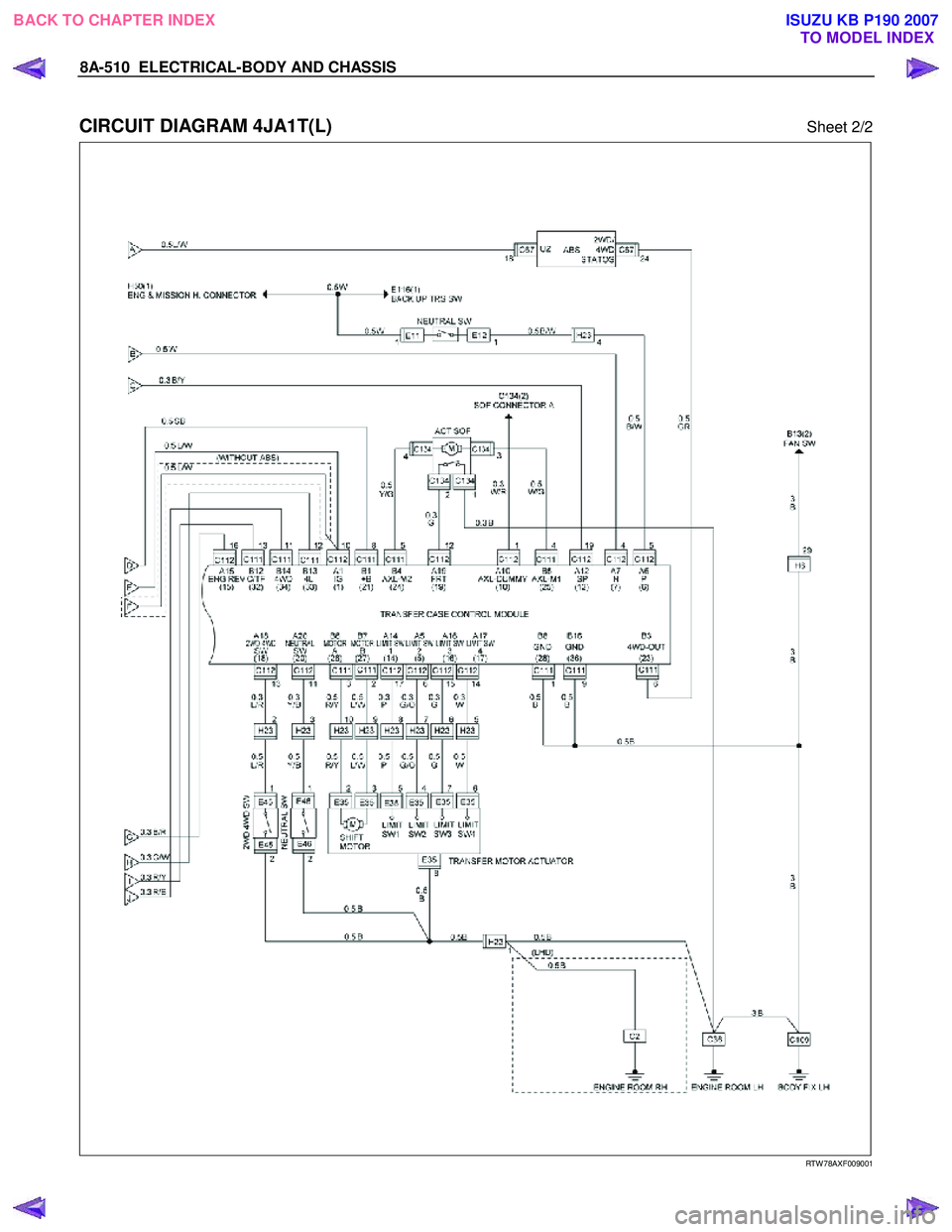

8A-510 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T(L) Sheet 2/2










RTW 78AXF009001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

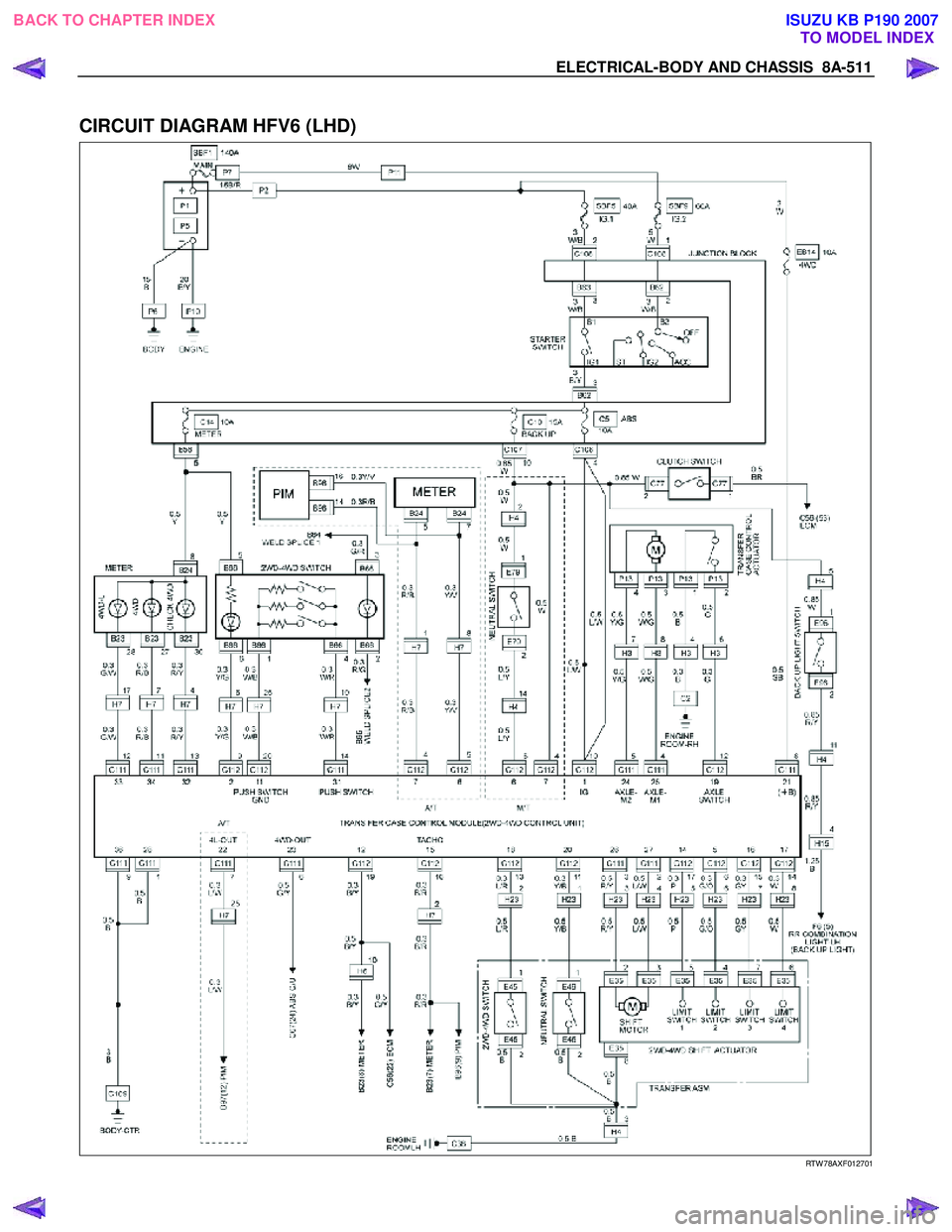

ELECTRICAL-BODY AND CHASSIS 8A-511

CIRCUIT DIAGRAM HFV6 (LHD)

RTW 78AXF012701

BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

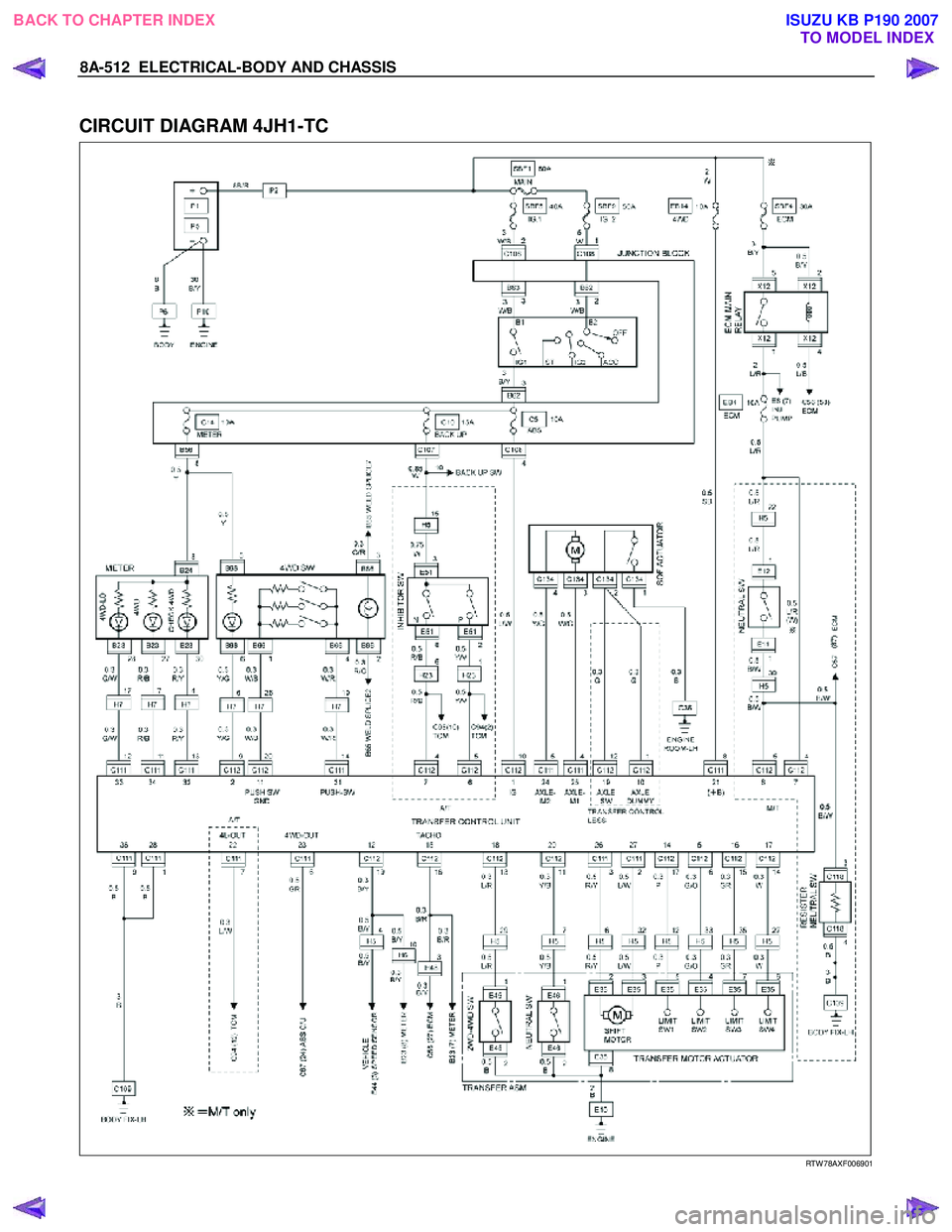

8A-512 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JH1-TC

RTW 78AXF006901


BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

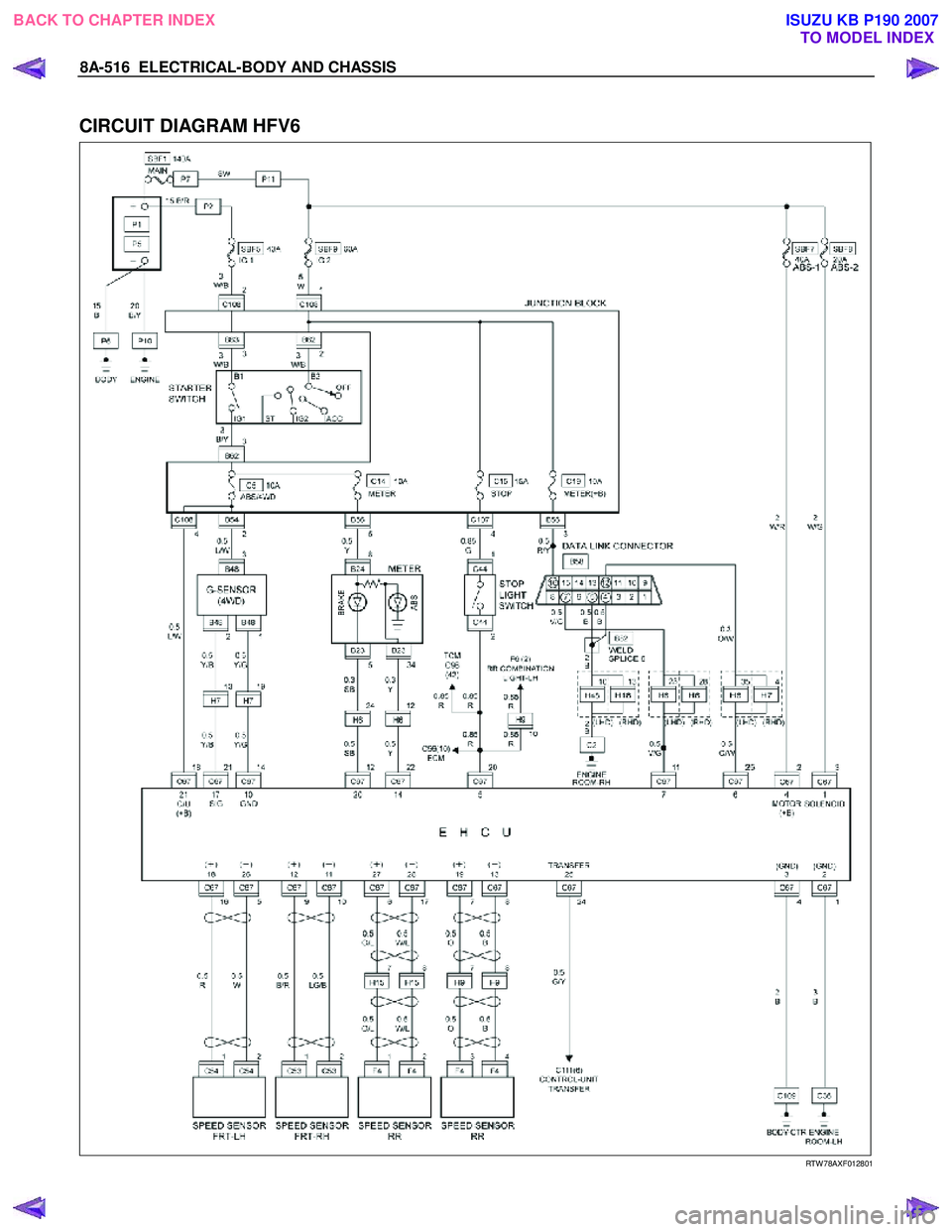

8A-516 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6

RTW 78AXF012801

BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

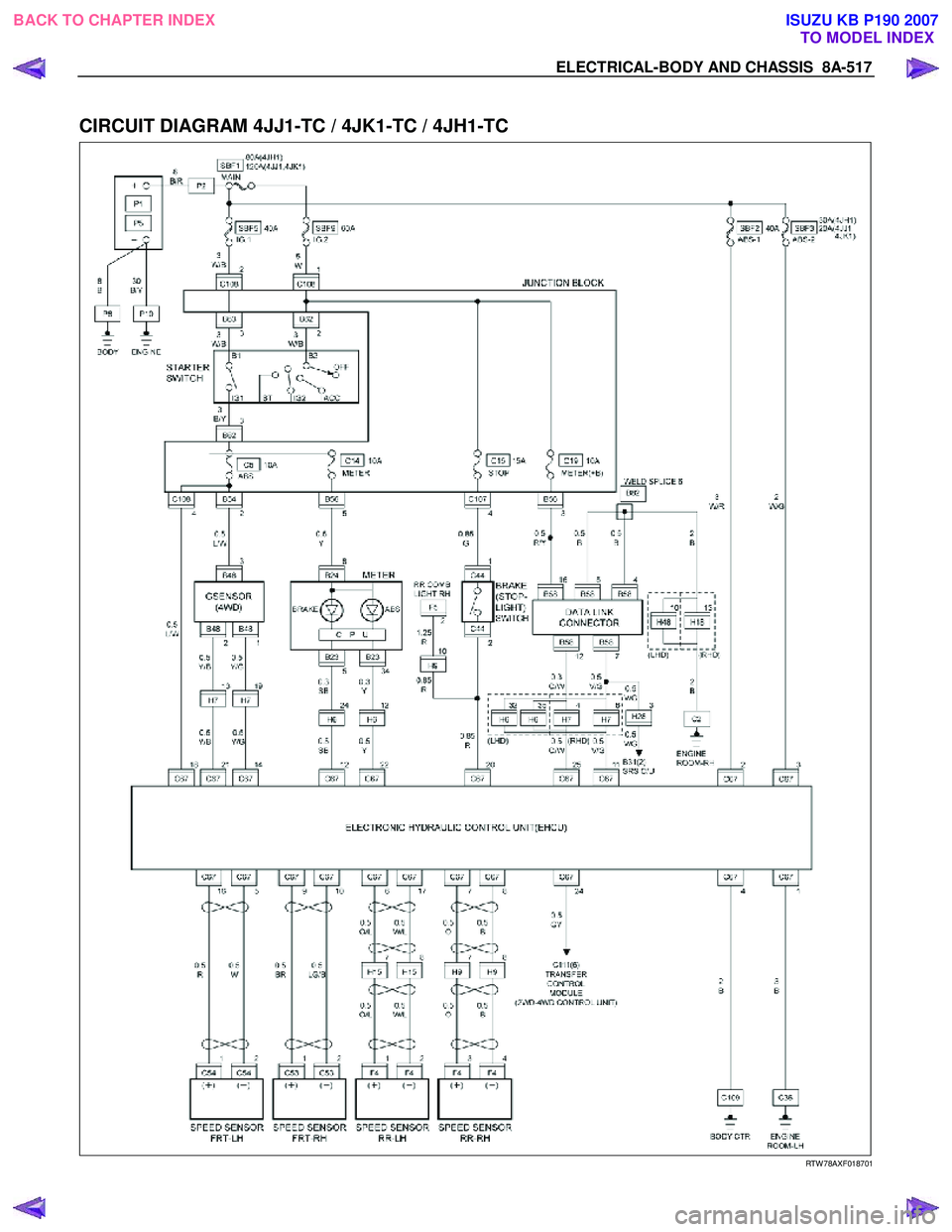

ELECTRICAL-BODY AND CHASSIS 8A-517

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC / 4JH1-TC

RTW 78AXF018701

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
