Page 5393 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-455
CIRCUIT DIAGRAM HFV6 (LHD) Sheet 2/2
RTW 78AXF015601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5394 of 6020
8A-456 ELECTRICAL-BODY AND CHASSIS

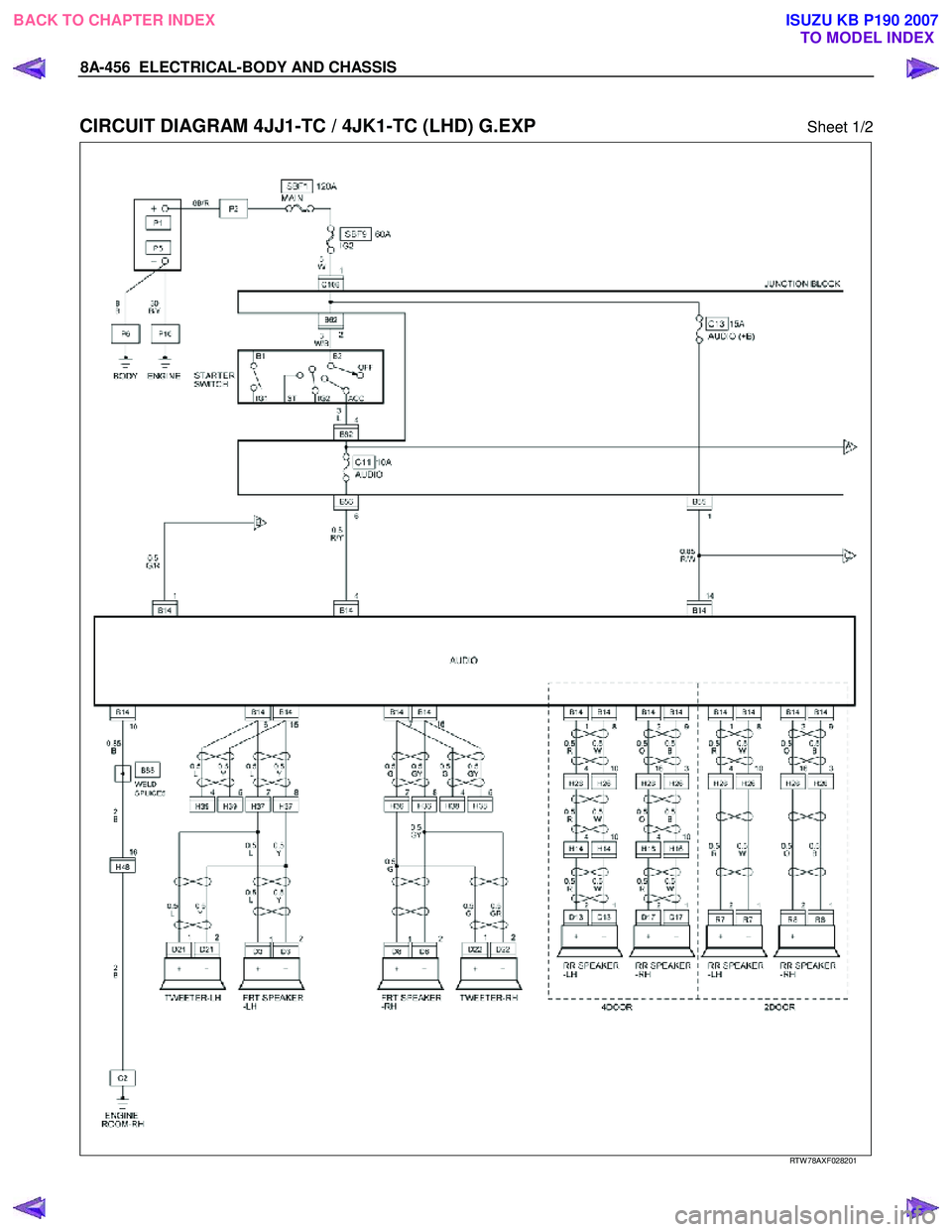

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD) G.EXP Sheet 1/2
RTW 78AXF028201
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5395 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-457

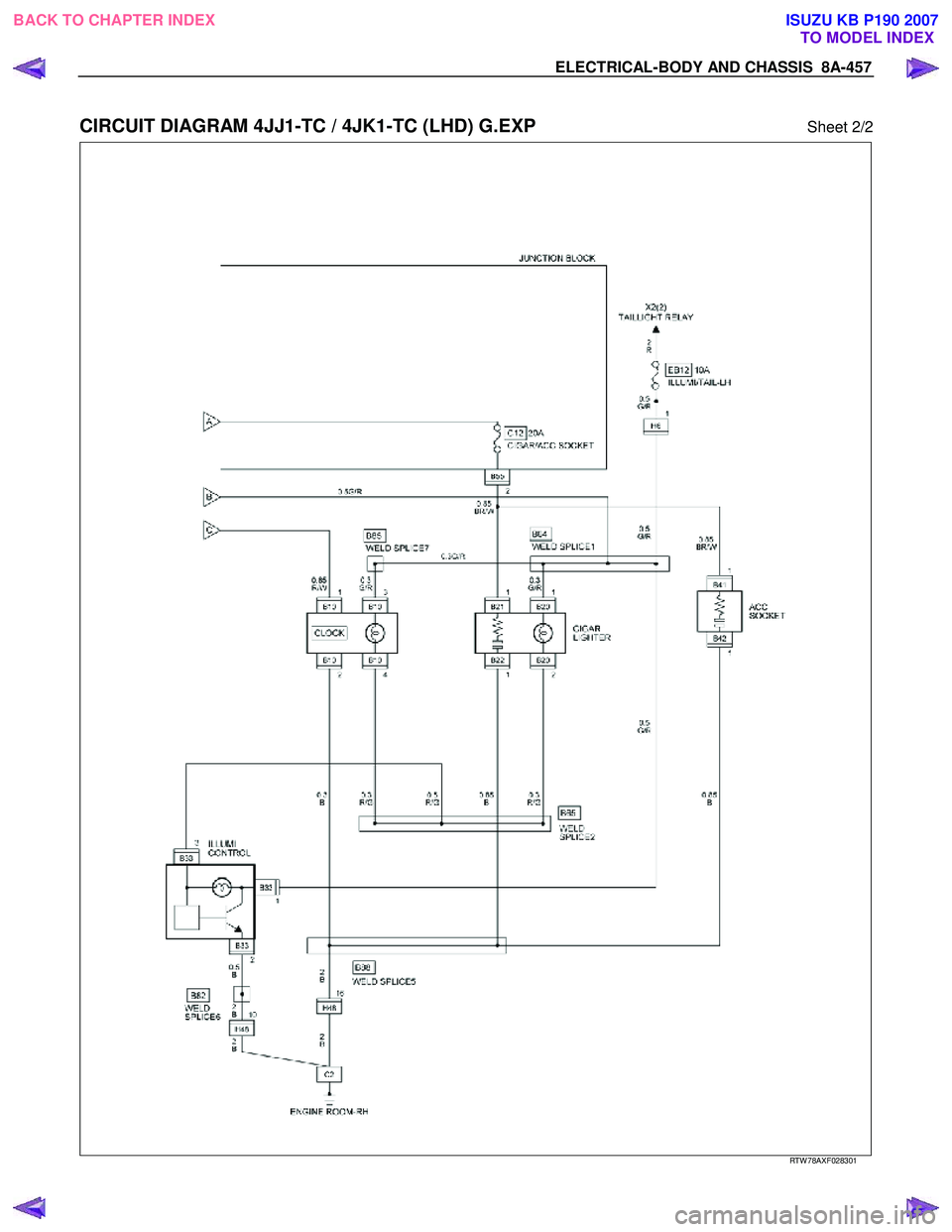

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD) G.EXP Sheet 2/2
RTW 78AXF028301
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5396 of 6020
8A-458 ELECTRICAL-BODY AND CHASSIS

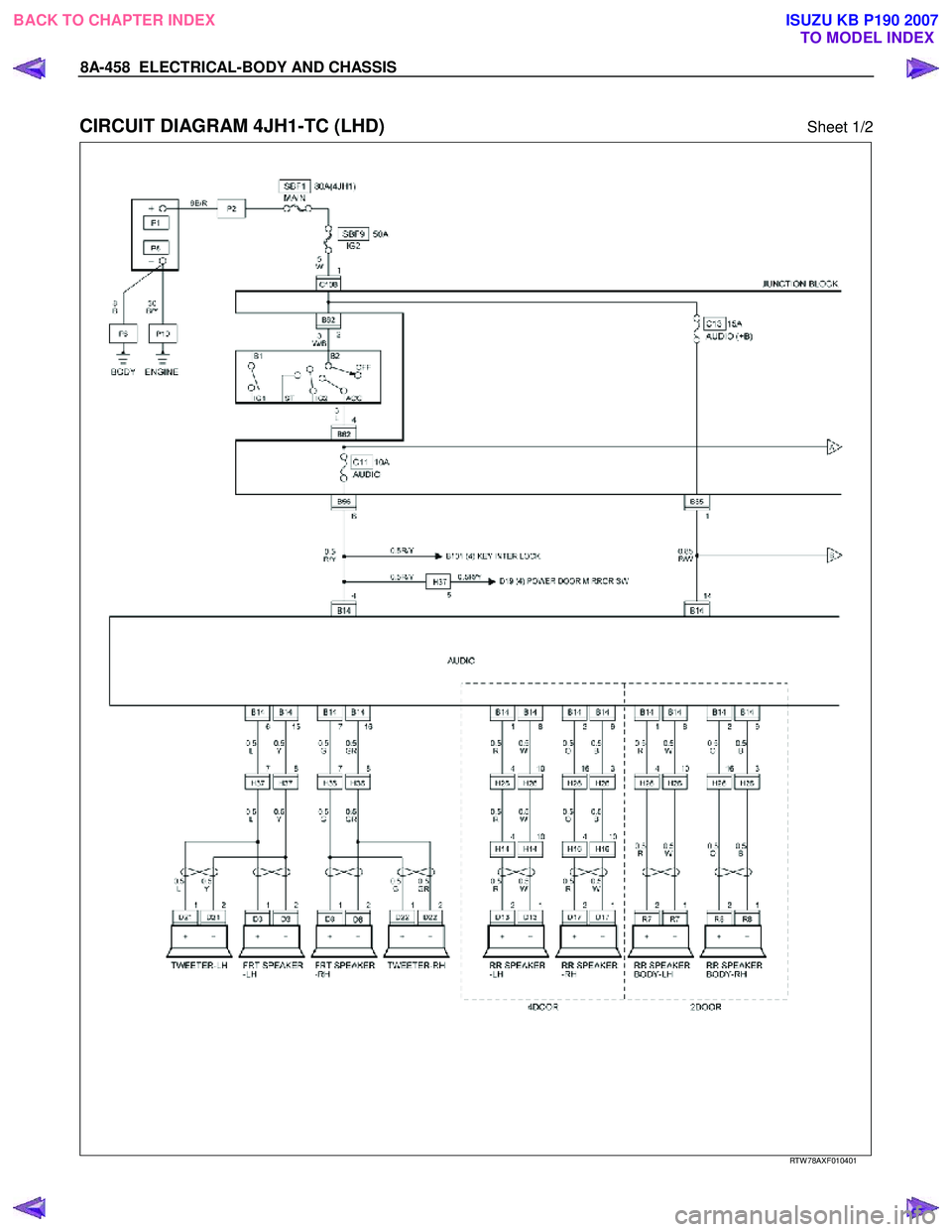

CIRCUIT DIAGRAM 4JH1-TC (LHD) Sheet 1/2
RTW 78AXF010401
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5397 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-459

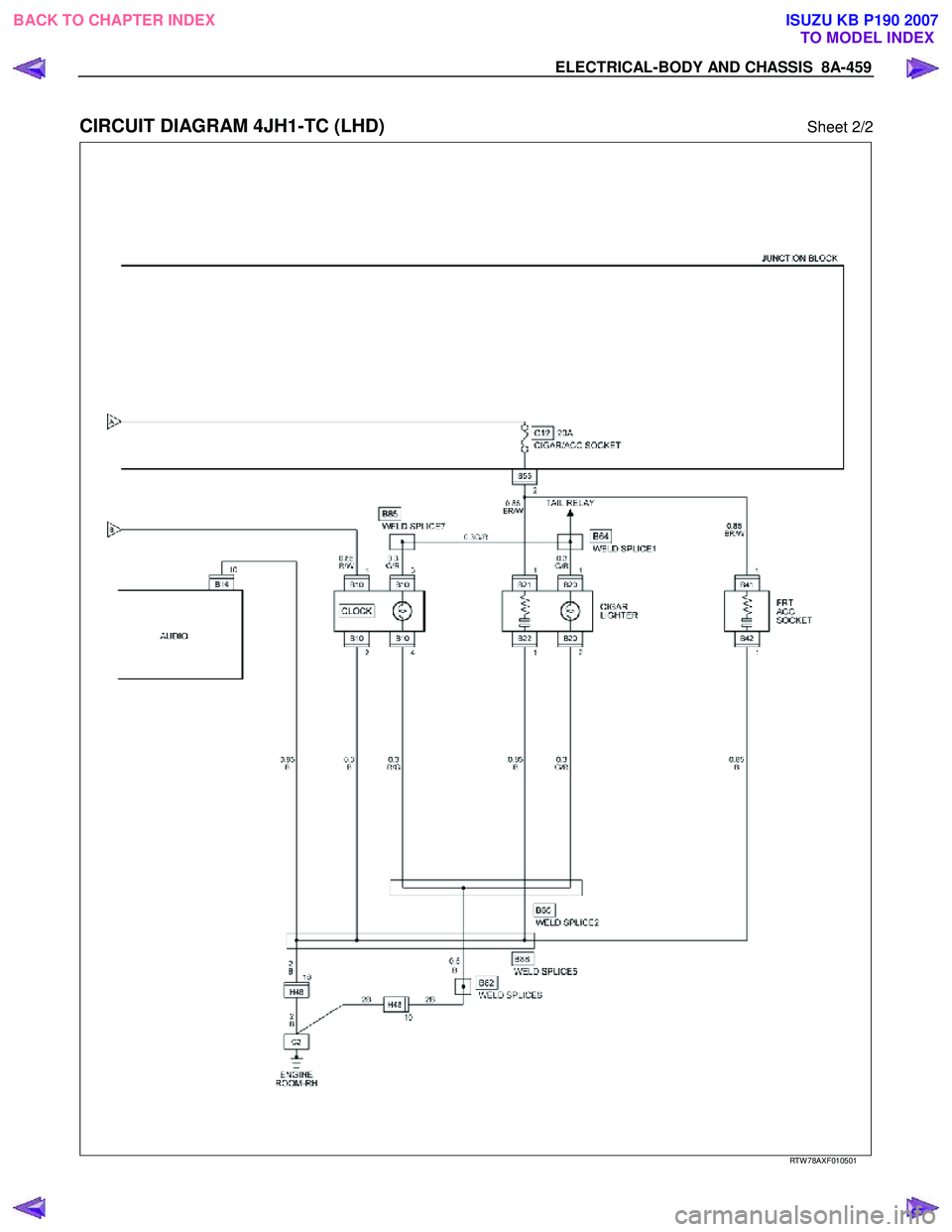

CIRCUIT DIAGRAM 4JH1-TC (LHD) Sheet 2/2
RTW 78AXF010501
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5398 of 6020
8A-460 ELECTRICAL-BODY AND CHASSIS

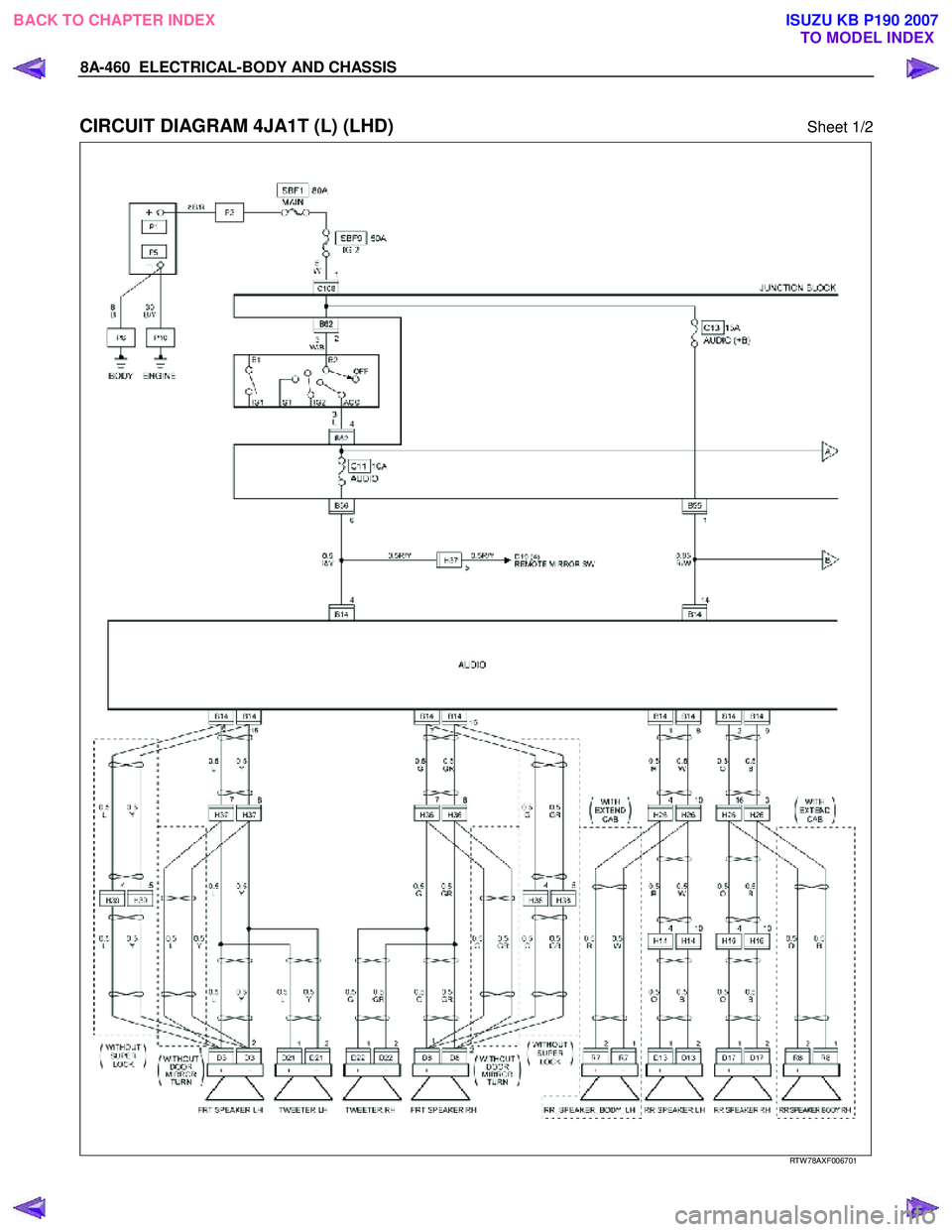

CIRCUIT DIAGRAM 4JA1T (L) (LHD) Sheet 1/2
RTW 78AXF006701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5399 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-461

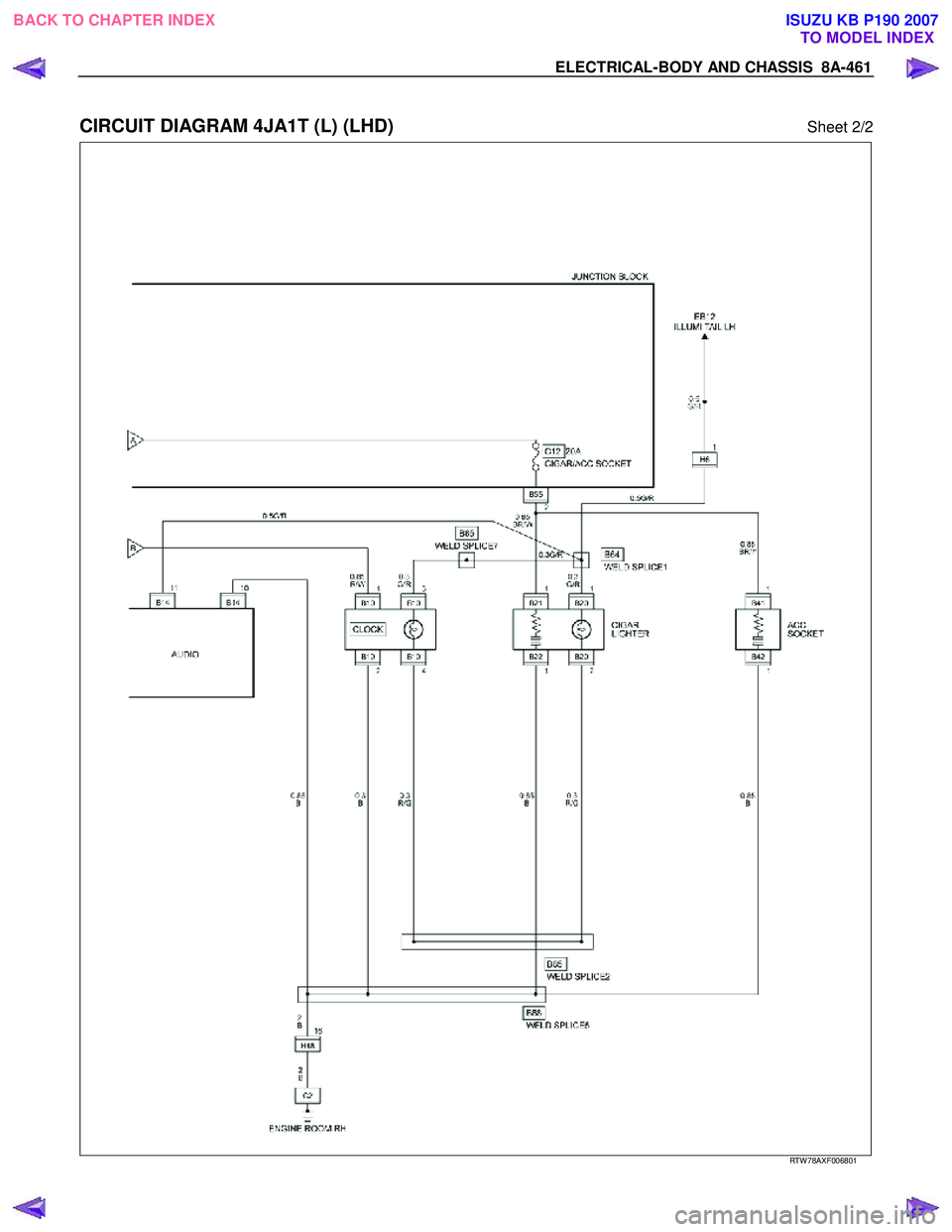

CIRCUIT DIAGRAM 4JA1T (L) (LHD) Sheet 2/2
RTW 78AXF006801
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5404 of 6020
8A-466 ELECTRICAL-BODY AND CHASSIS

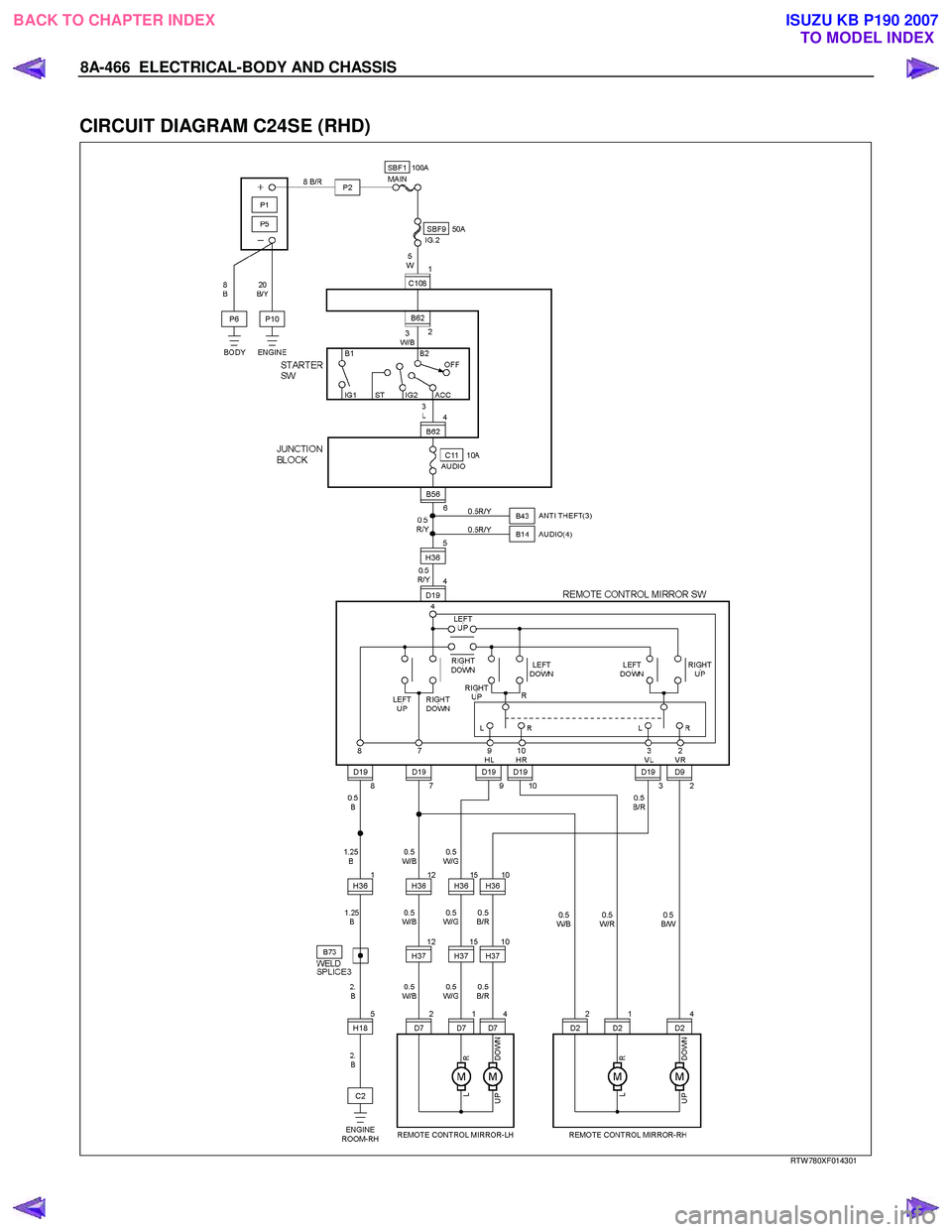

CIRCUIT DIAGRAM C24SE (RHD)
RTW 780XF014301
BACK TO CHAPTER INDEX
