8A-424 ELECTRICAL-BODY AND CHASSIS

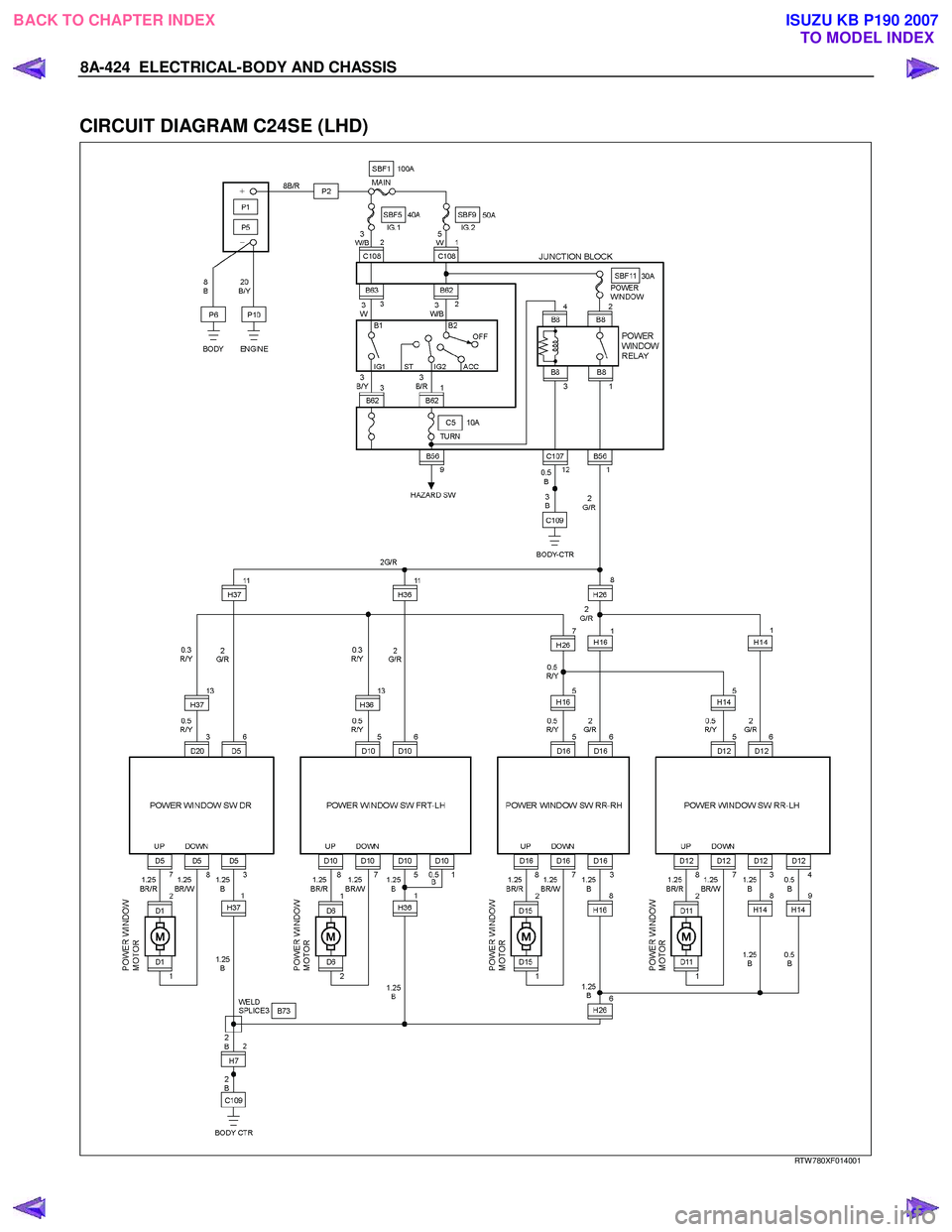

CIRCUIT DIAGRAM C24SE (LHD)
RTW 780XF014001
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5363 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-425
CIRCUIT DIAGRAM HFV6 (LHD)
RTW 78AXF015301
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5364 of 6020
8A-426 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC 4JH1-TC G.EXP
RTW 78AXF028101
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5380 of 6020
8A-442 ELECTRICAL-BODY AND CHASSIS

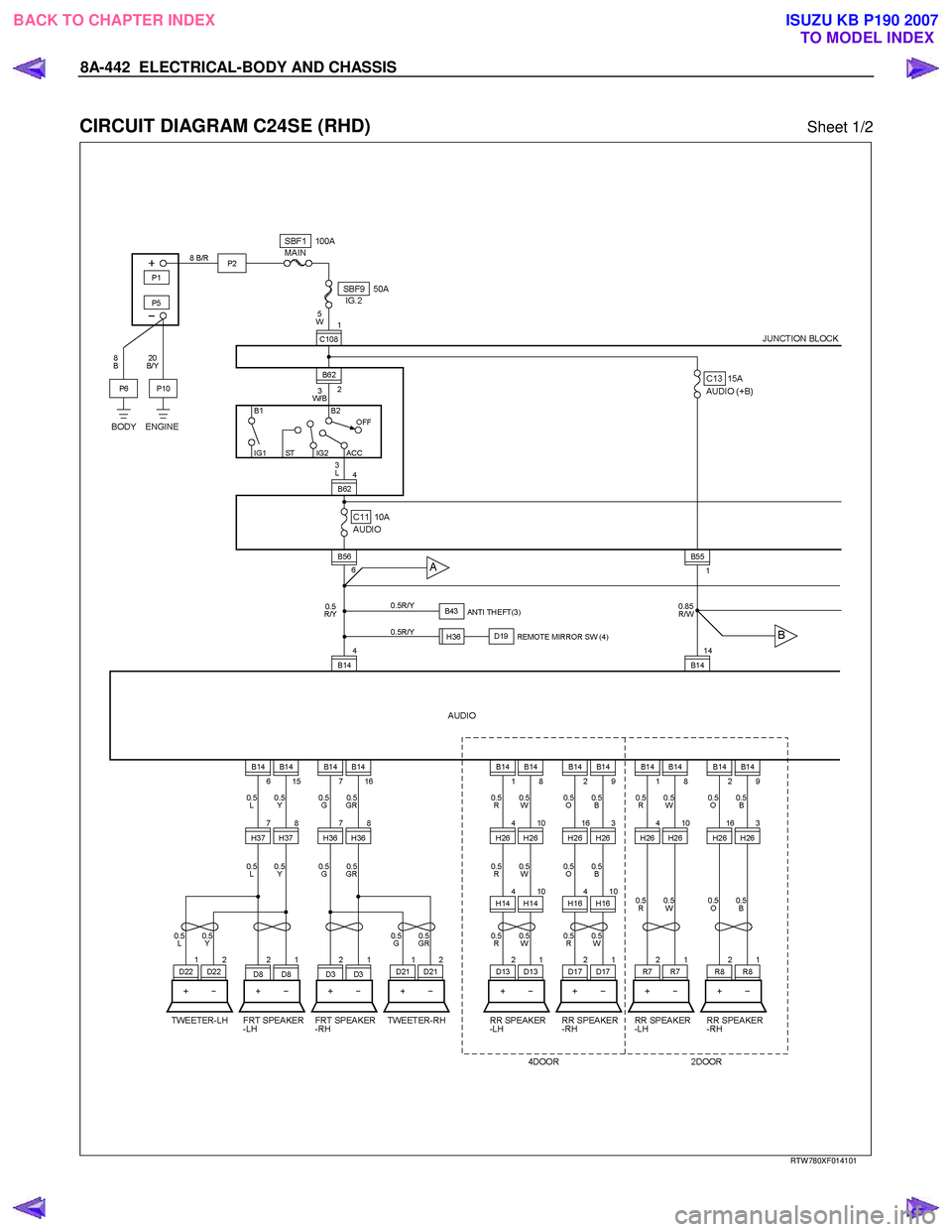

CIRCUIT DIAGRAM C24SE (RHD) Sheet 1/2
RTW 780XF014101
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5381 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-443

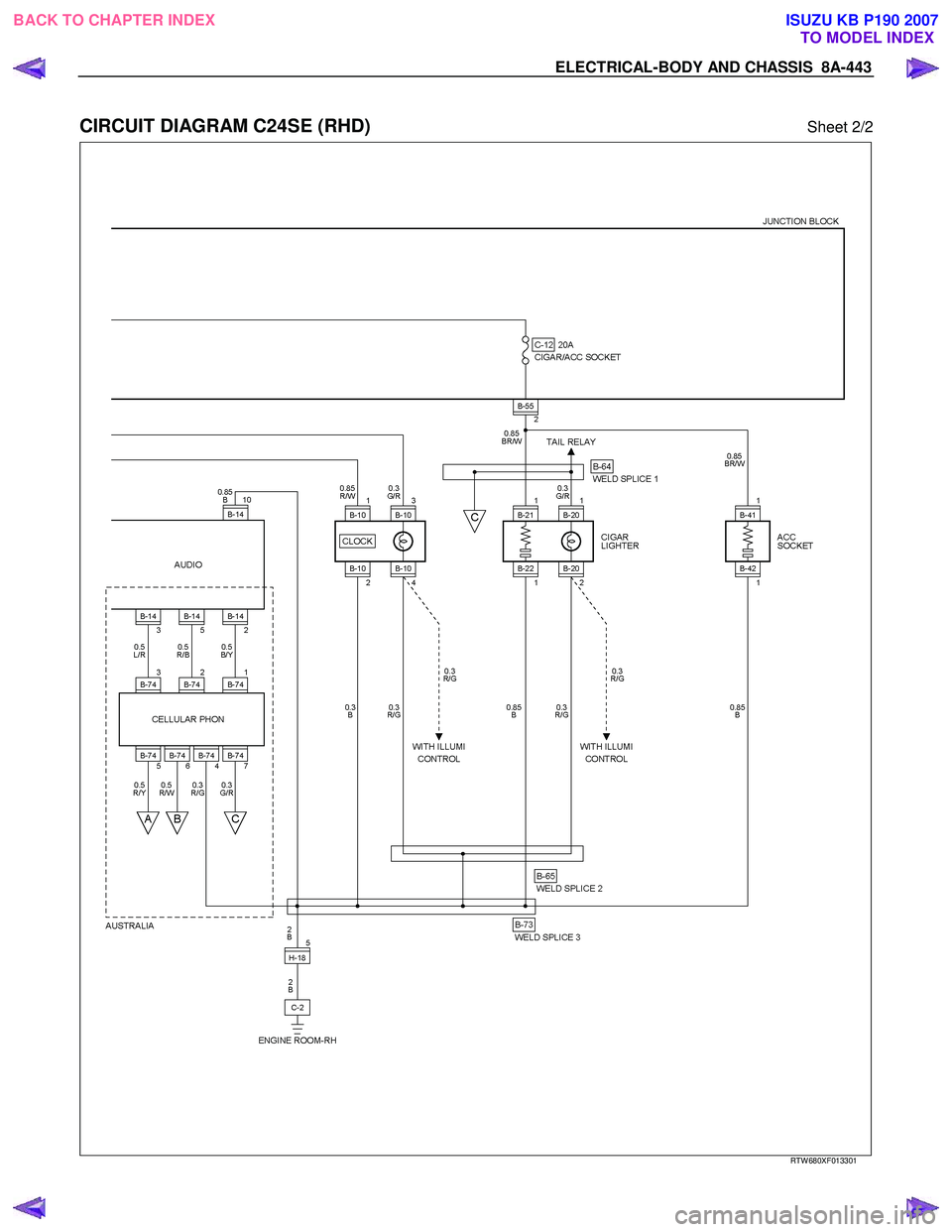

CIRCUIT DIAGRAM C24SE (RHD) Sheet 2/2
RTW 680XF013301
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5382 of 6020
8A-444 ELECTRICAL-BODY AND CHASSIS

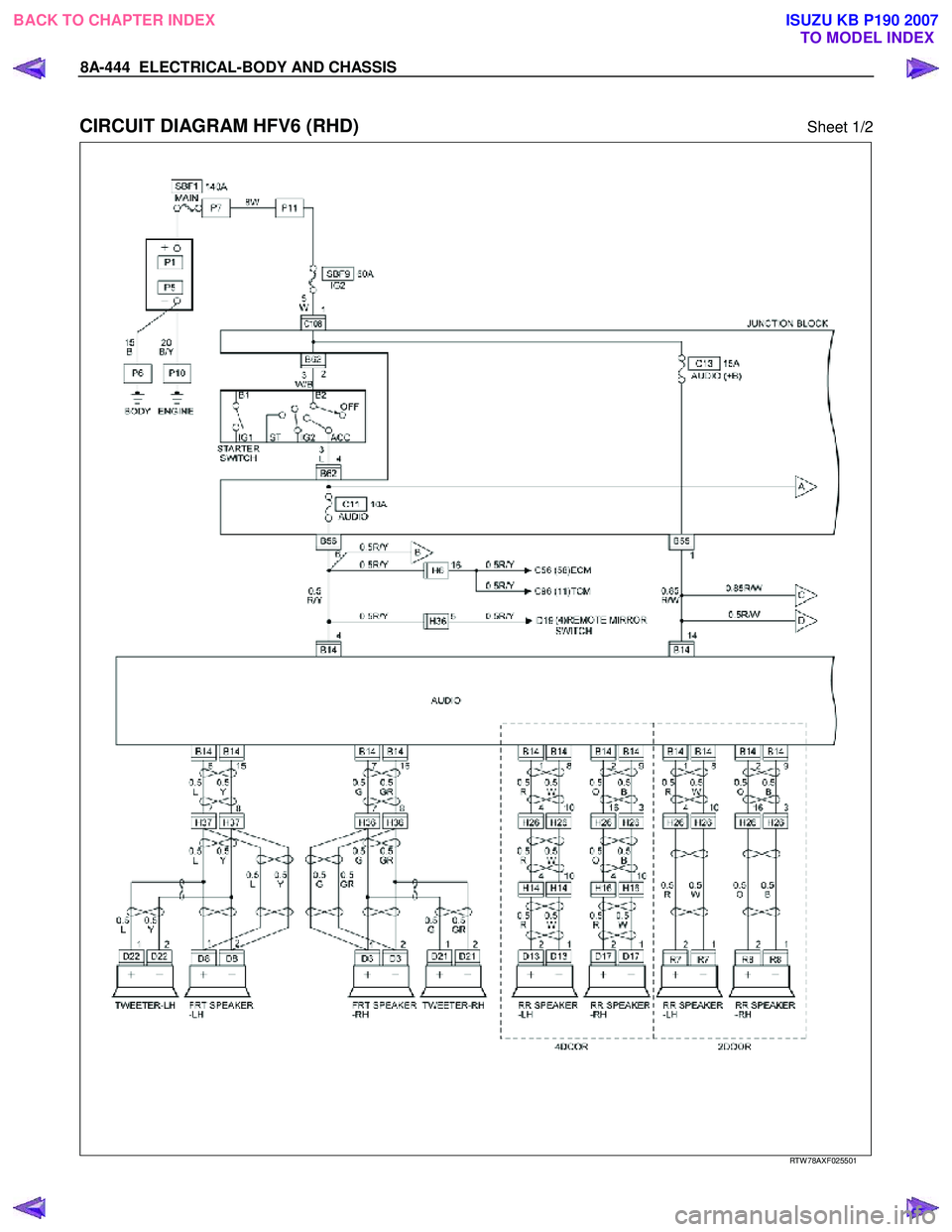

CIRCUIT DIAGRAM HFV6 (RHD) Sheet 1/2
RTW 78AXF025501
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5383 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-445

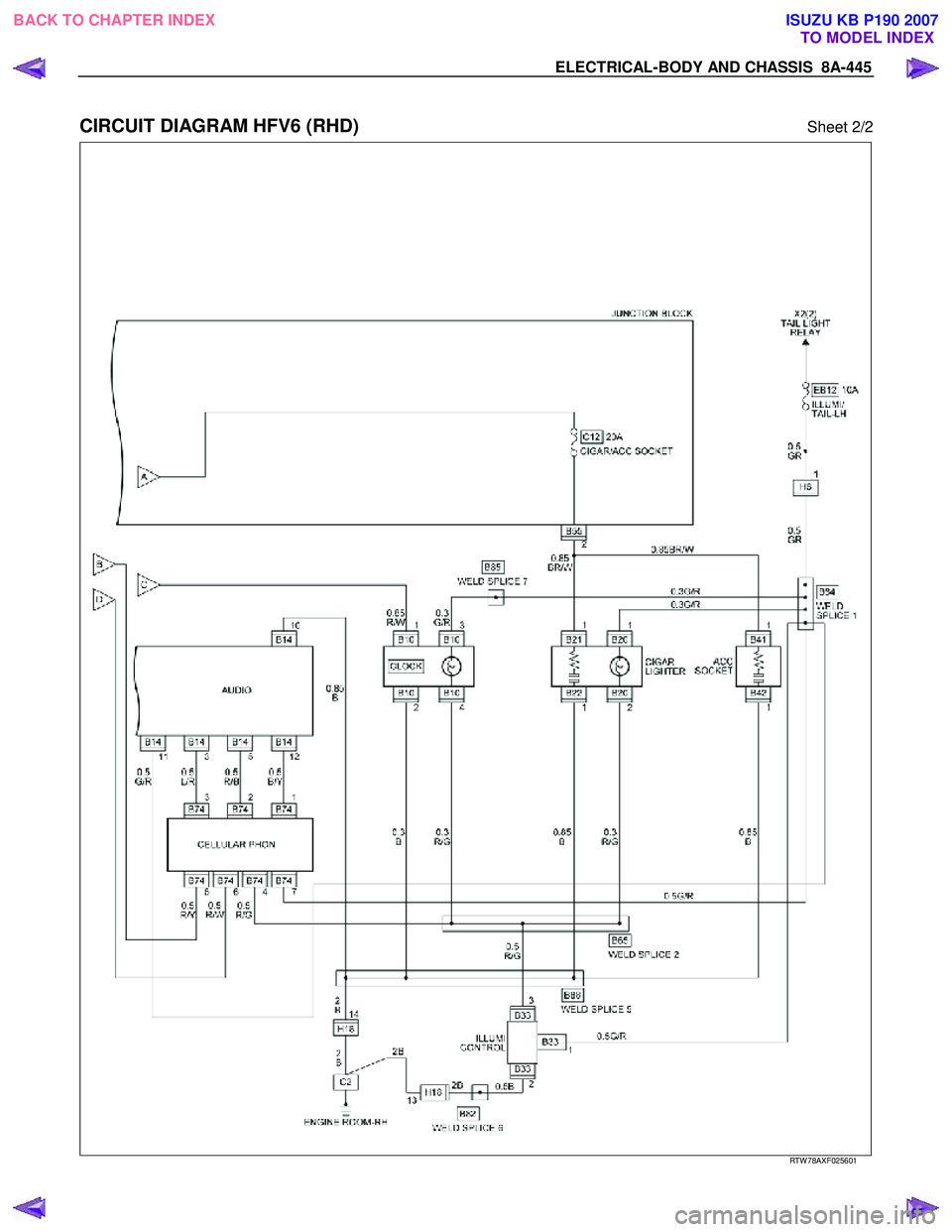

CIRCUIT DIAGRAM HFV6 (RHD) Sheet 2/2
RTW 78AXF025601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5384 of 6020
8A-446 ELECTRICAL-BODY AND CHASSIS

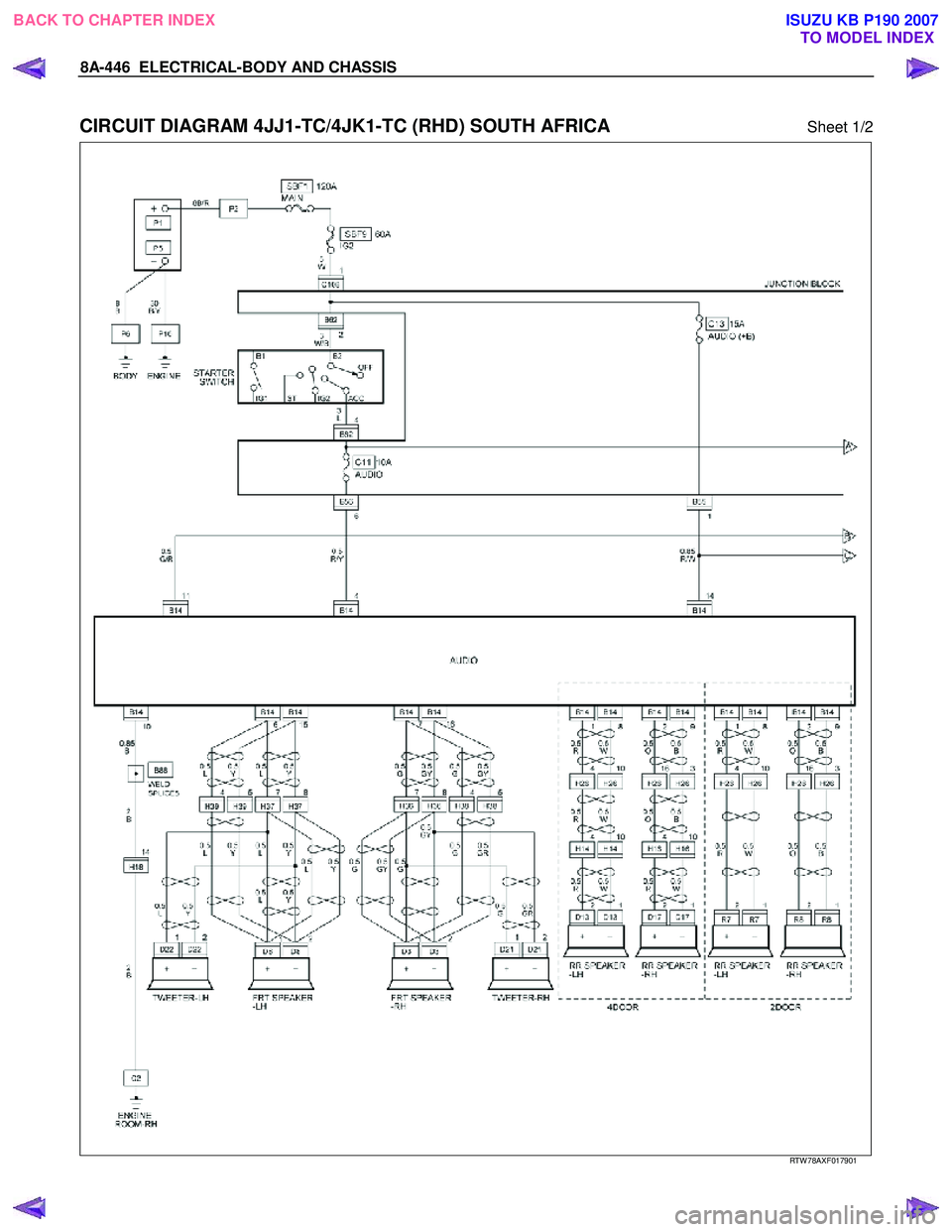

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 1/2
RTW 78AXF017901
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
