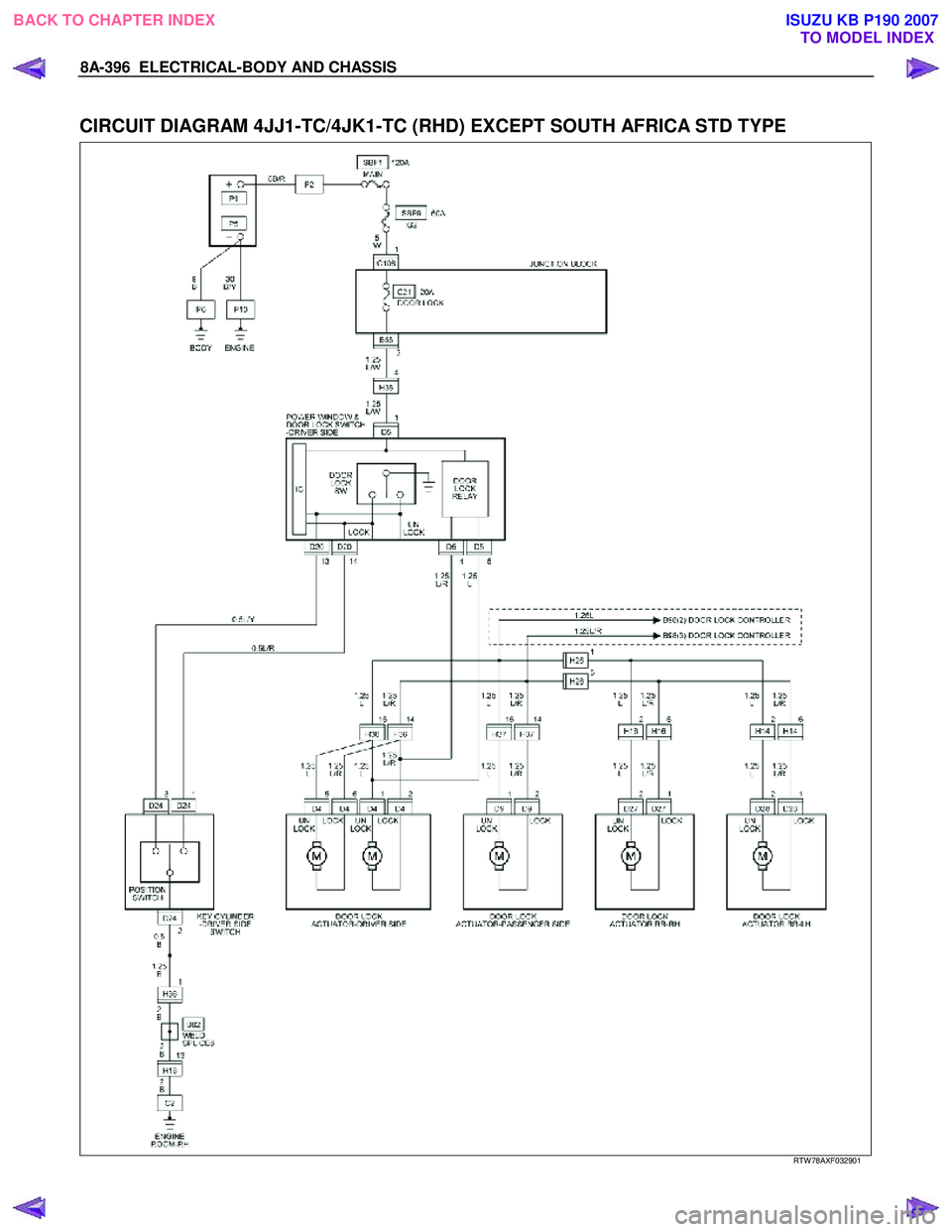

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA STD TYPE
RTW 78AXF032901
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5335 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-397

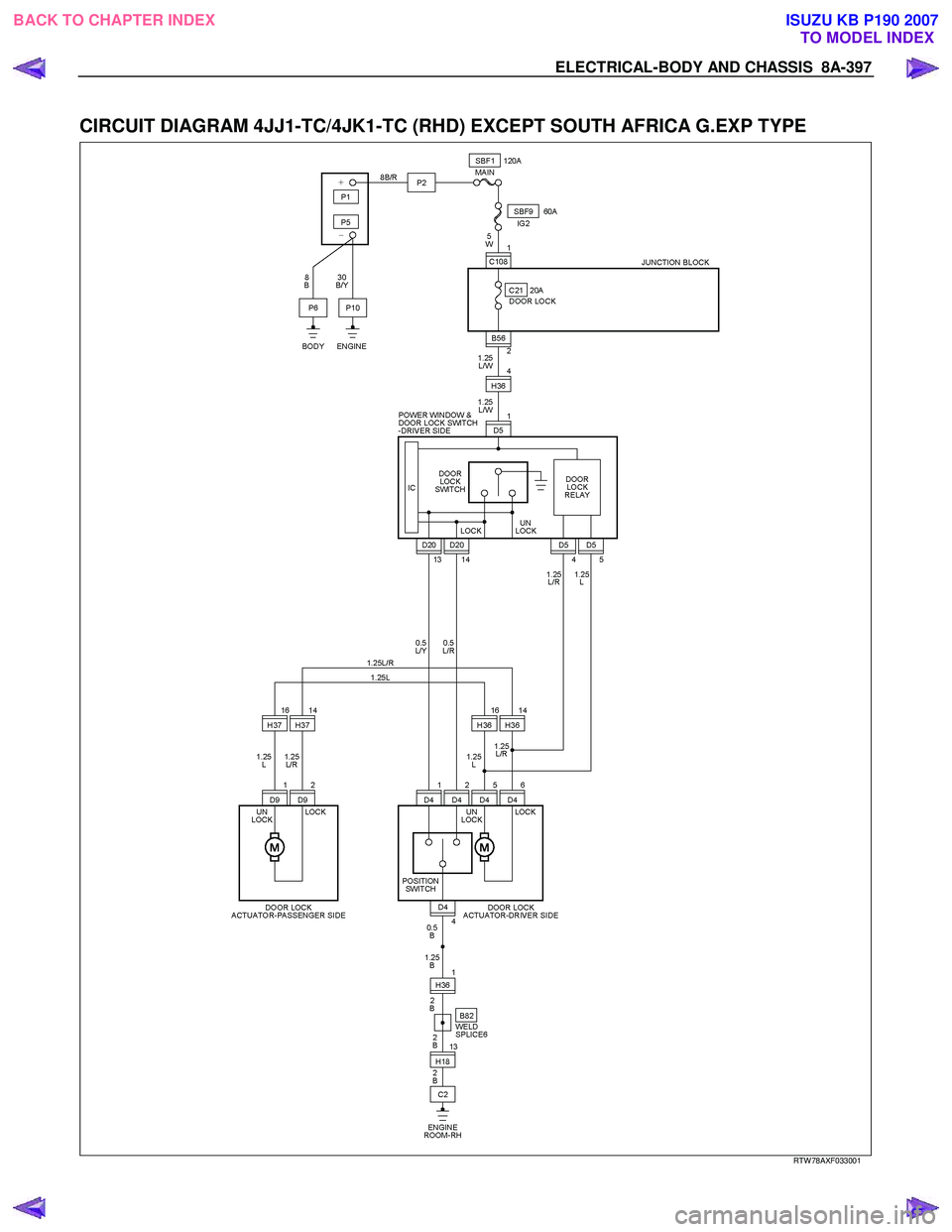

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA G.EXP TYPE
RTW 78AXF033001
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5336 of 6020
8A-398 ELECTRICAL-BODY AND CHASSIS

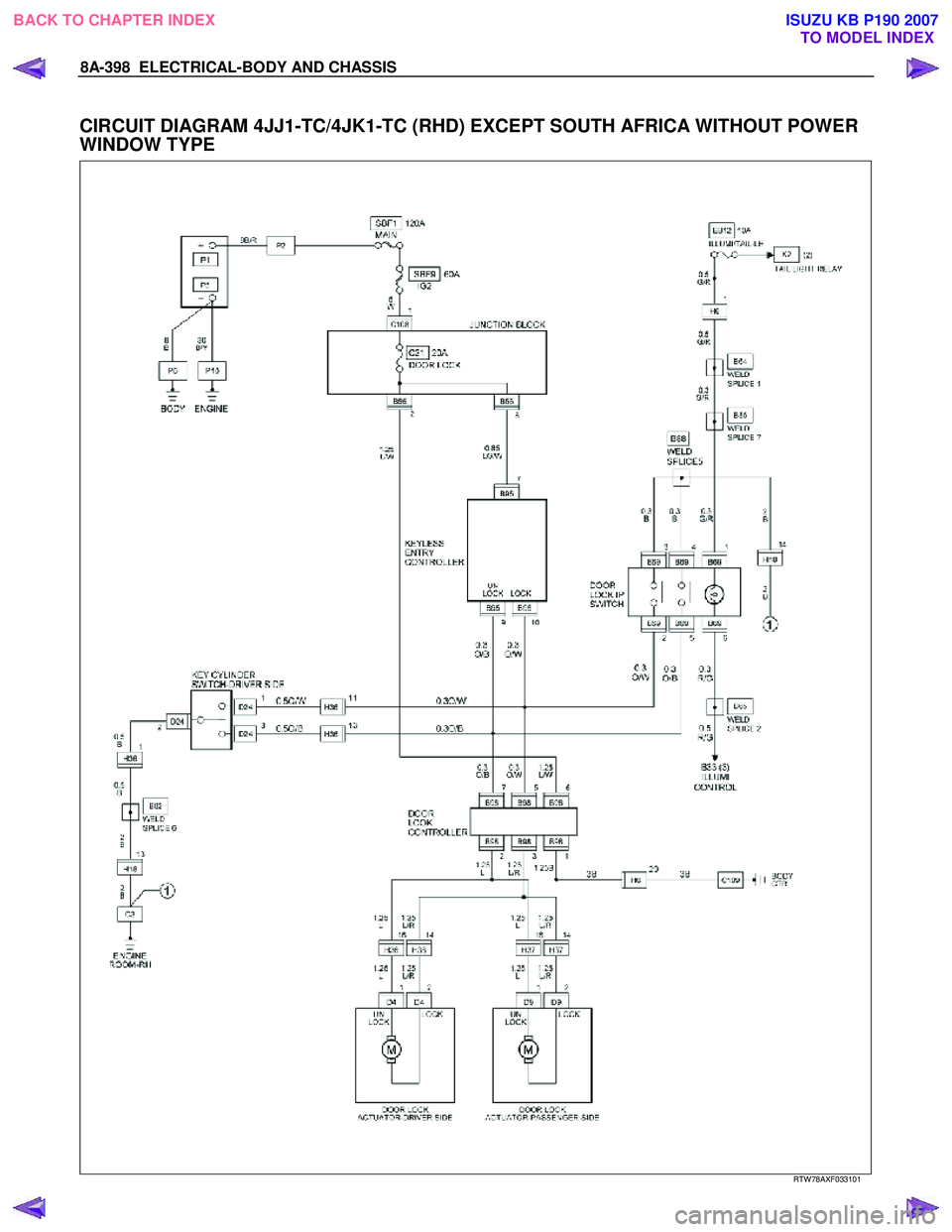

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA WITHOUT POWER
WINDOW TYPE
RTW 78AXF033101
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5337 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-399

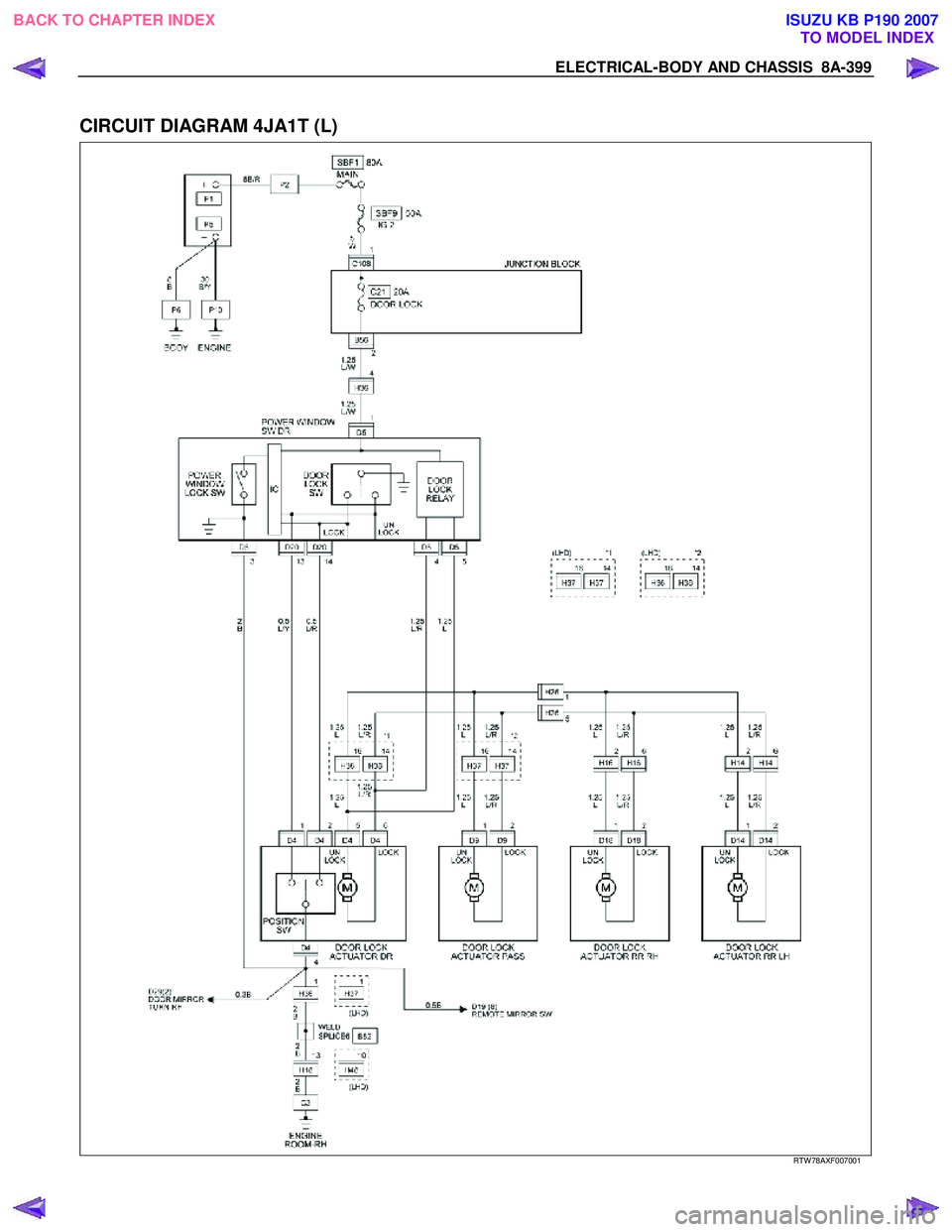

CIRCUIT DIAGRAM 4JA1T (L)
RTW 78AXF007001
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5338 of 6020
8A-400 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM C24SE (LHD) WITHOUT ANTI THEFT
RTW 680XF012801
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5339 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-401

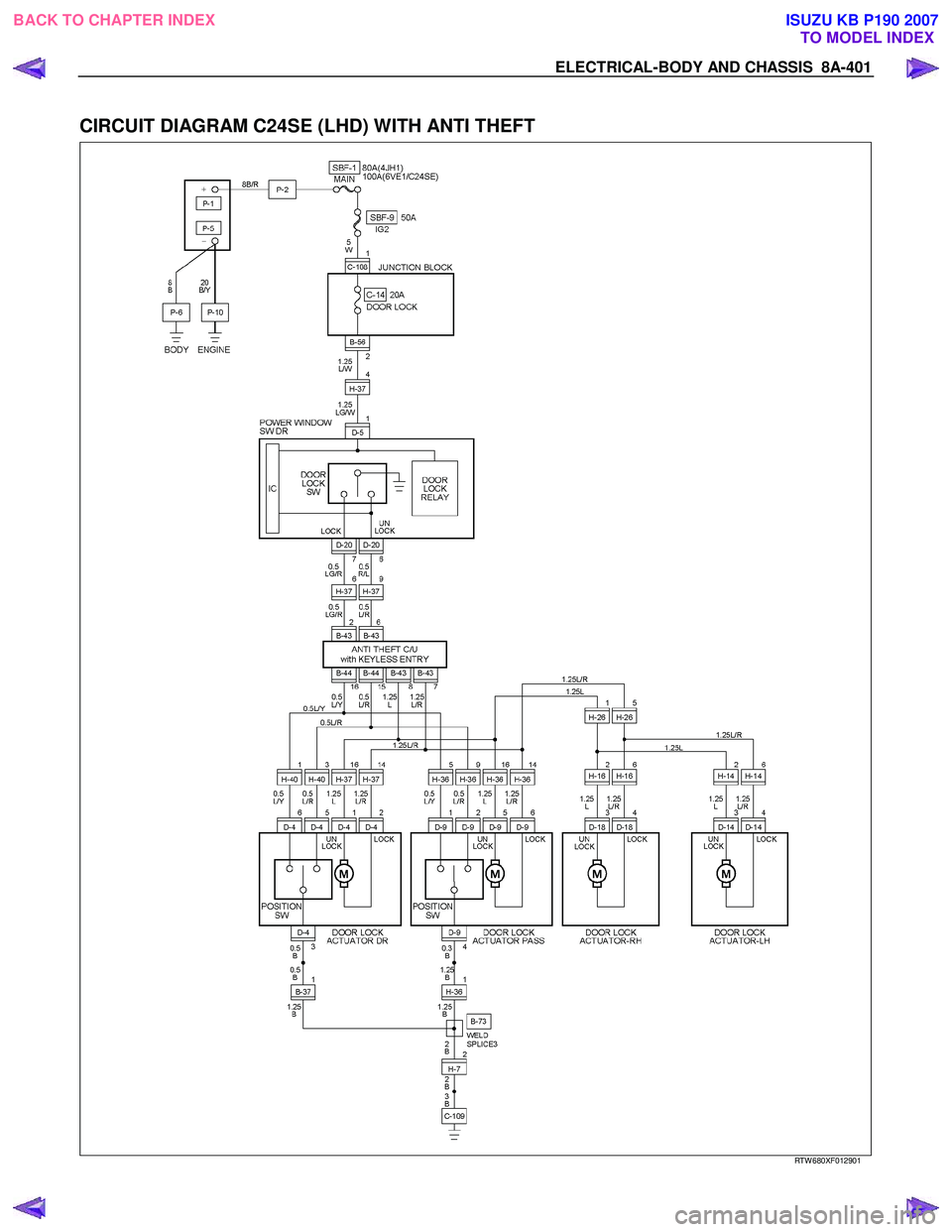

CIRCUIT DIAGRAM C24SE (LHD) WITH ANTI THEFT
RTW 680XF012901
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5340 of 6020
8A-402 ELECTRICAL-BODY AND CHASSIS

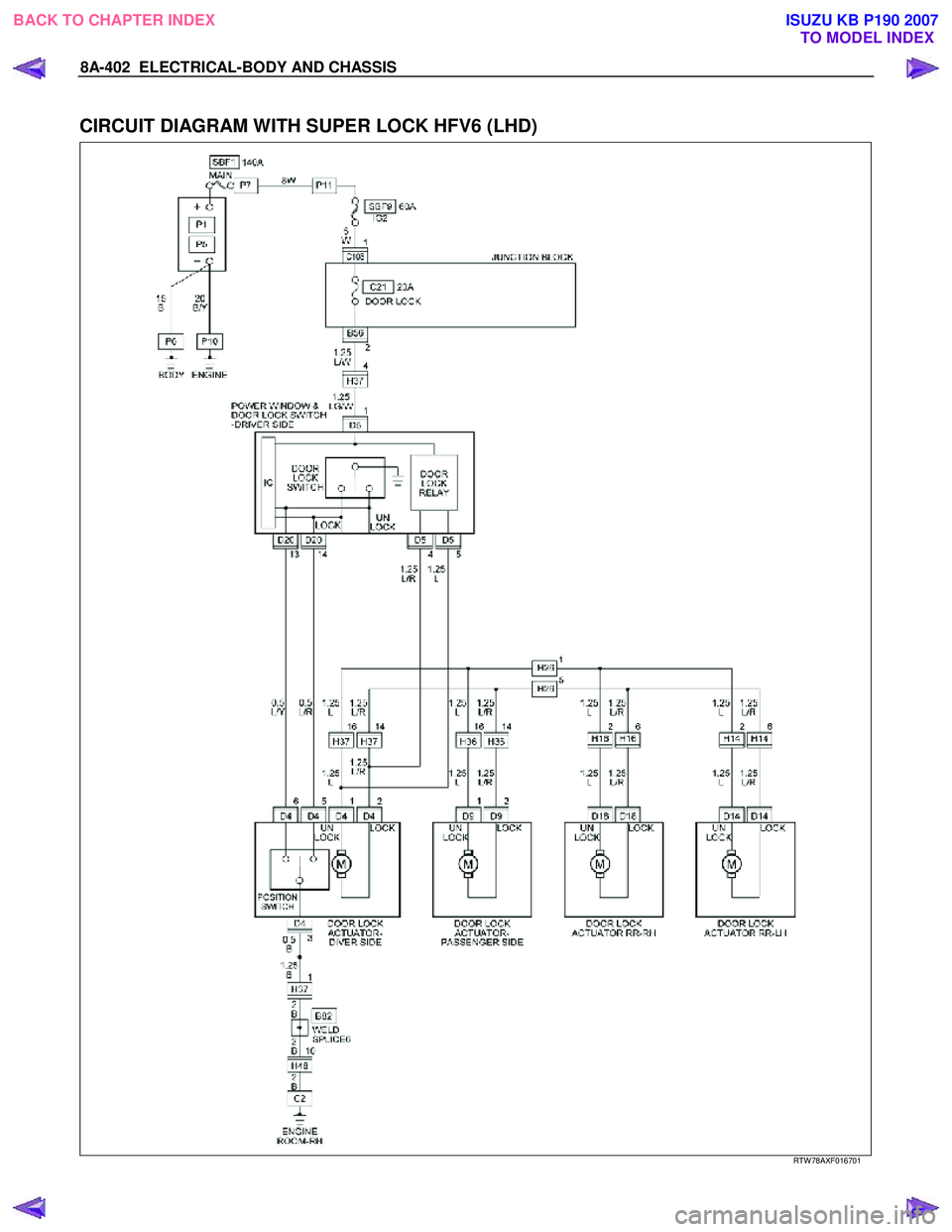

CIRCUIT DIAGRAM WITH SUPER LOCK HFV6 (LHD)
RTW 78AXF016701
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5341 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-403

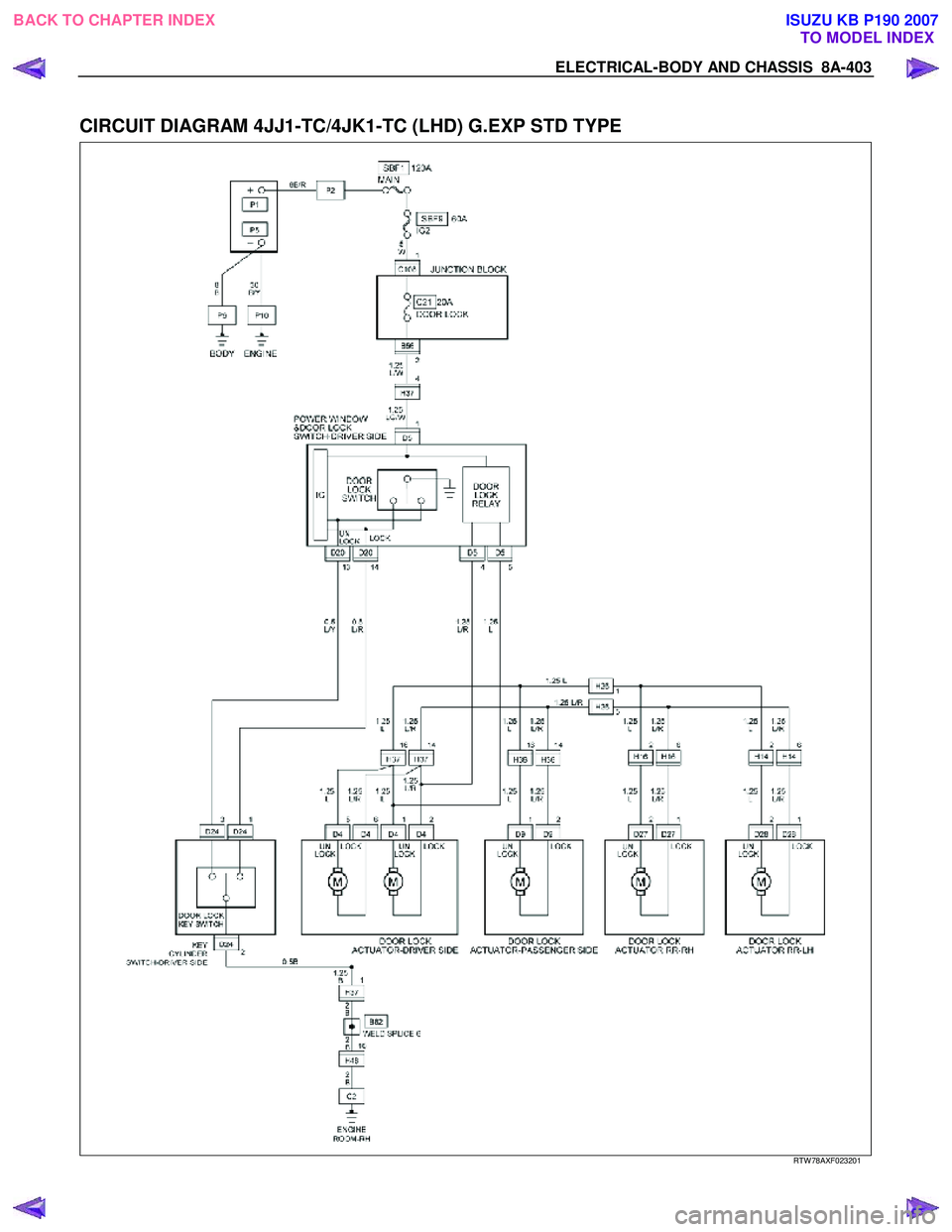

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP STD TYPE
RTW 78AXF023201
