2007 ISUZU KB P190 CIRCUIT DIAGRAM

8A-328 ELECTRICAL-BODY AND CHASSIS

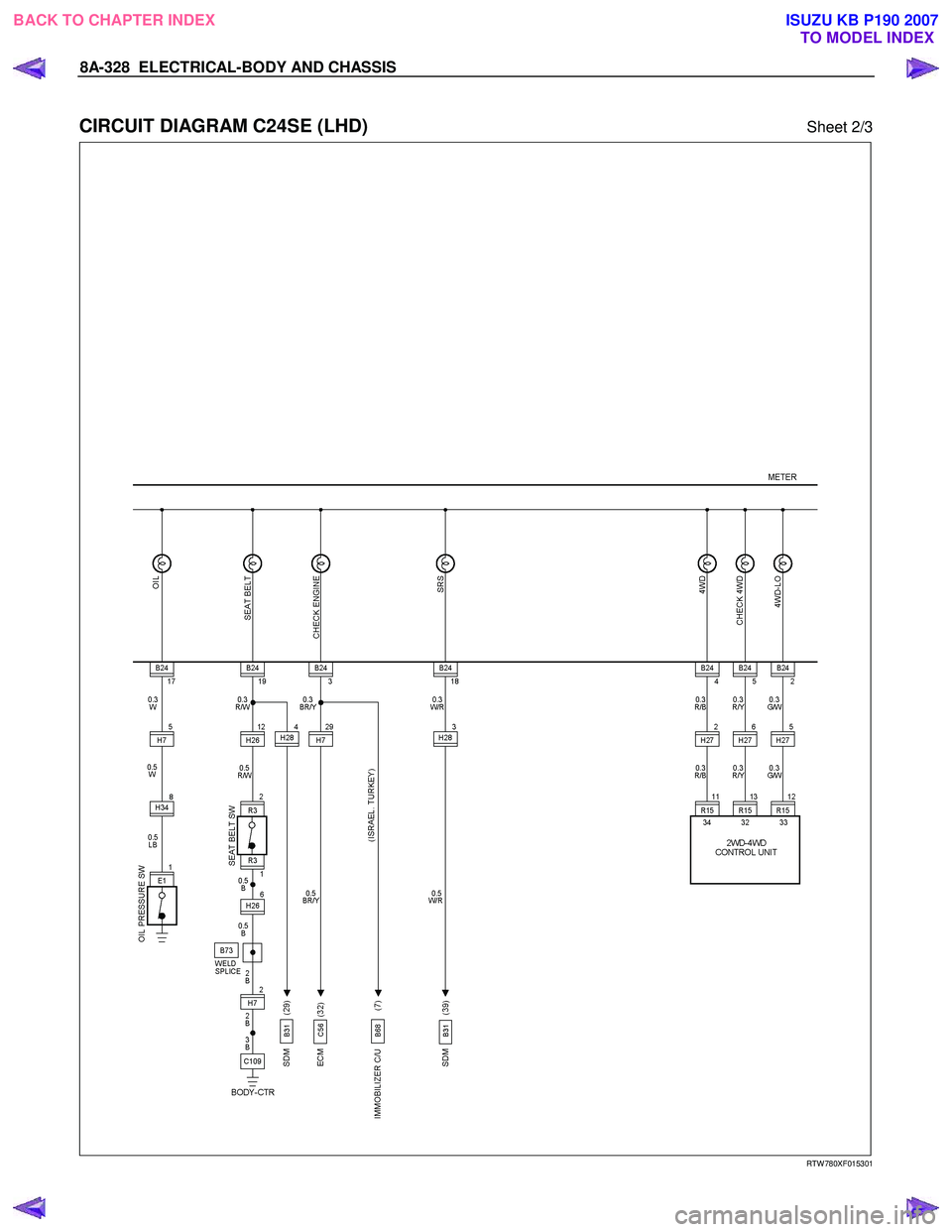

CIRCUIT DIAGRAM C24SE (LHD) Sheet 2/3




















RTW 780XF015301


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-329

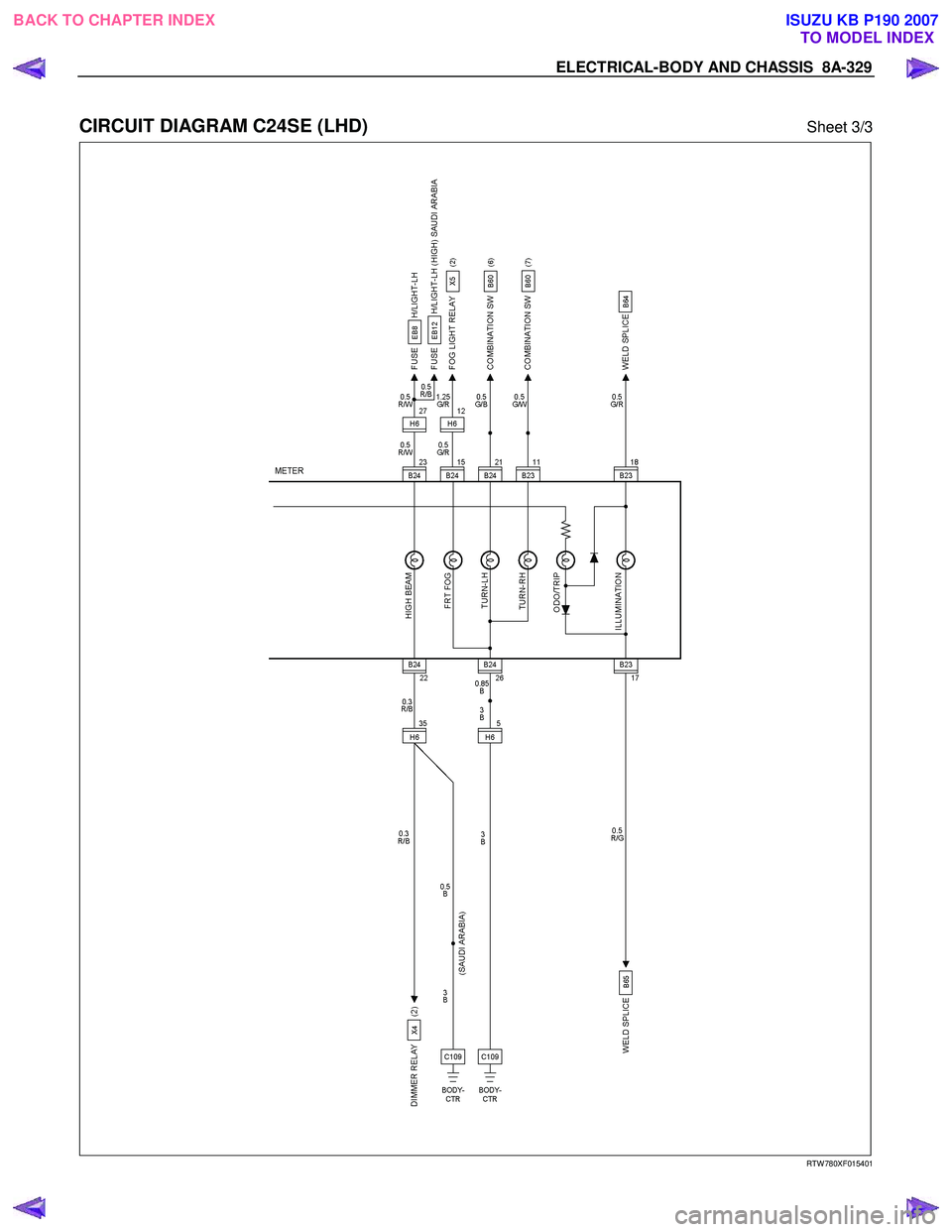

CIRCUIT DIAGRAM C24SE (LHD) Sheet 3/3





RTW 780XF015401


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-330 ELECTRICAL-BODY AND CHASSIS

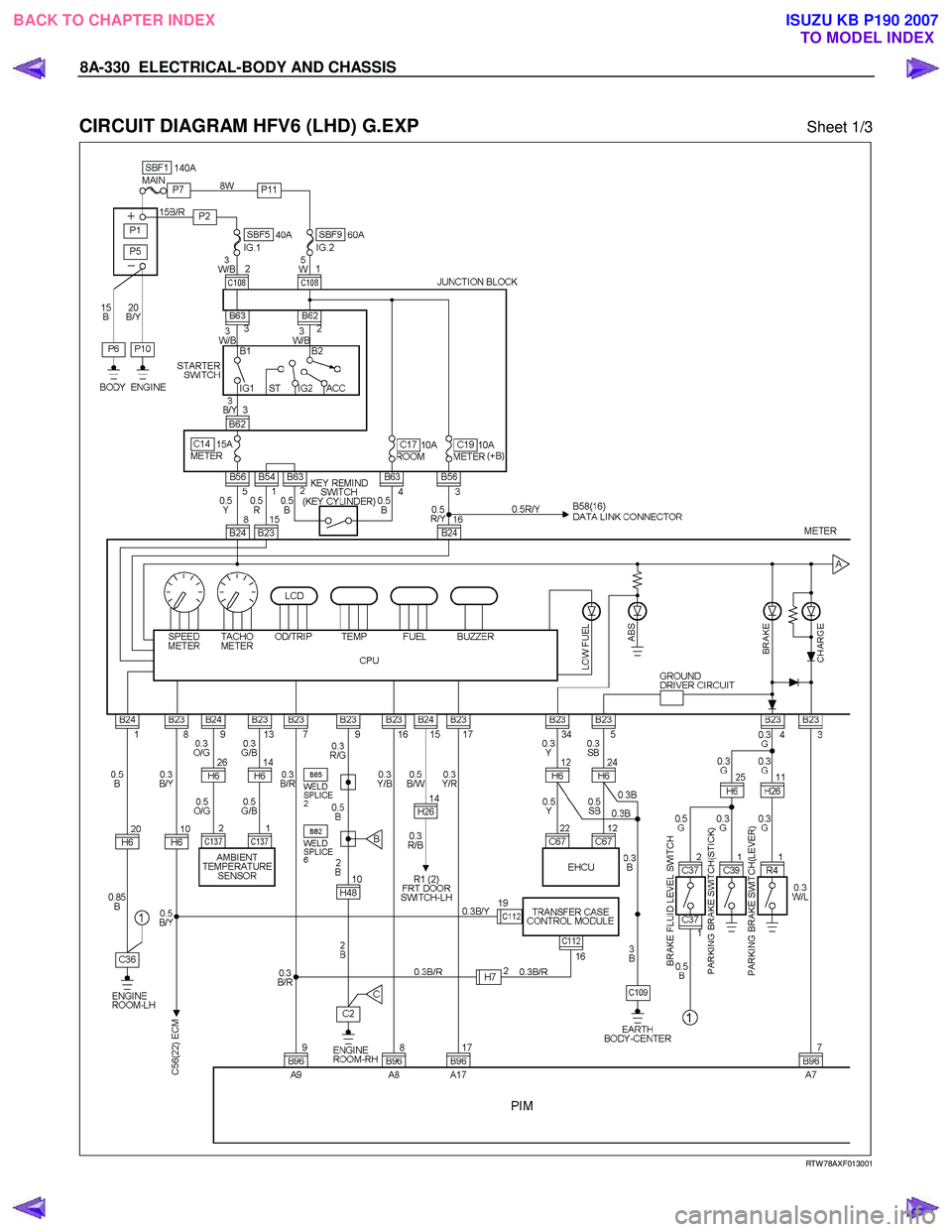

CIRCUIT DIAGRAM HFV6 (LHD) G.EXP Sheet 1/3


RTW 78AXF013001

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-331

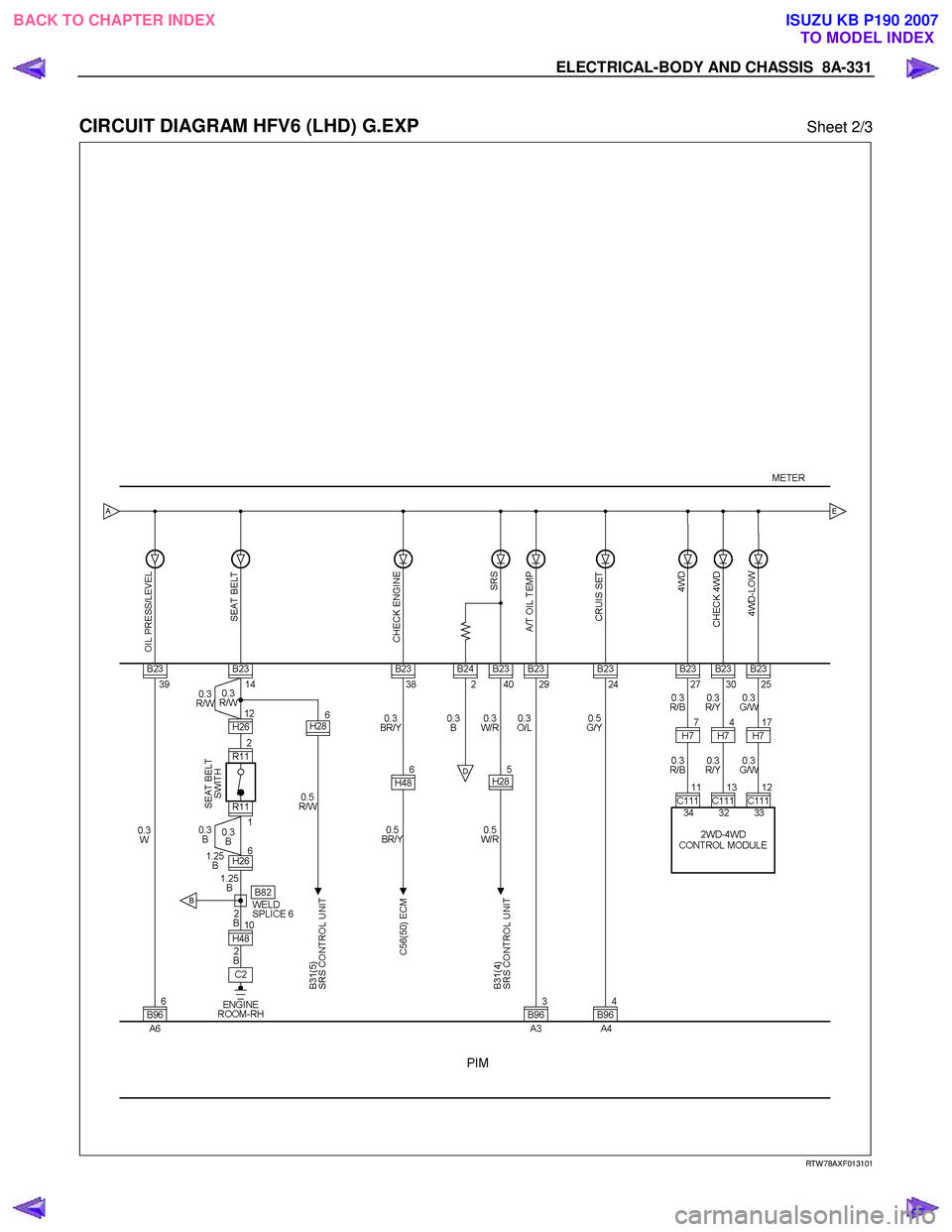

CIRCUIT DIAGRAM HFV6 (LHD) G.EXP Sheet 2/3






















RTW 78AXF013101


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-332 ELECTRICAL-BODY AND CHASSIS

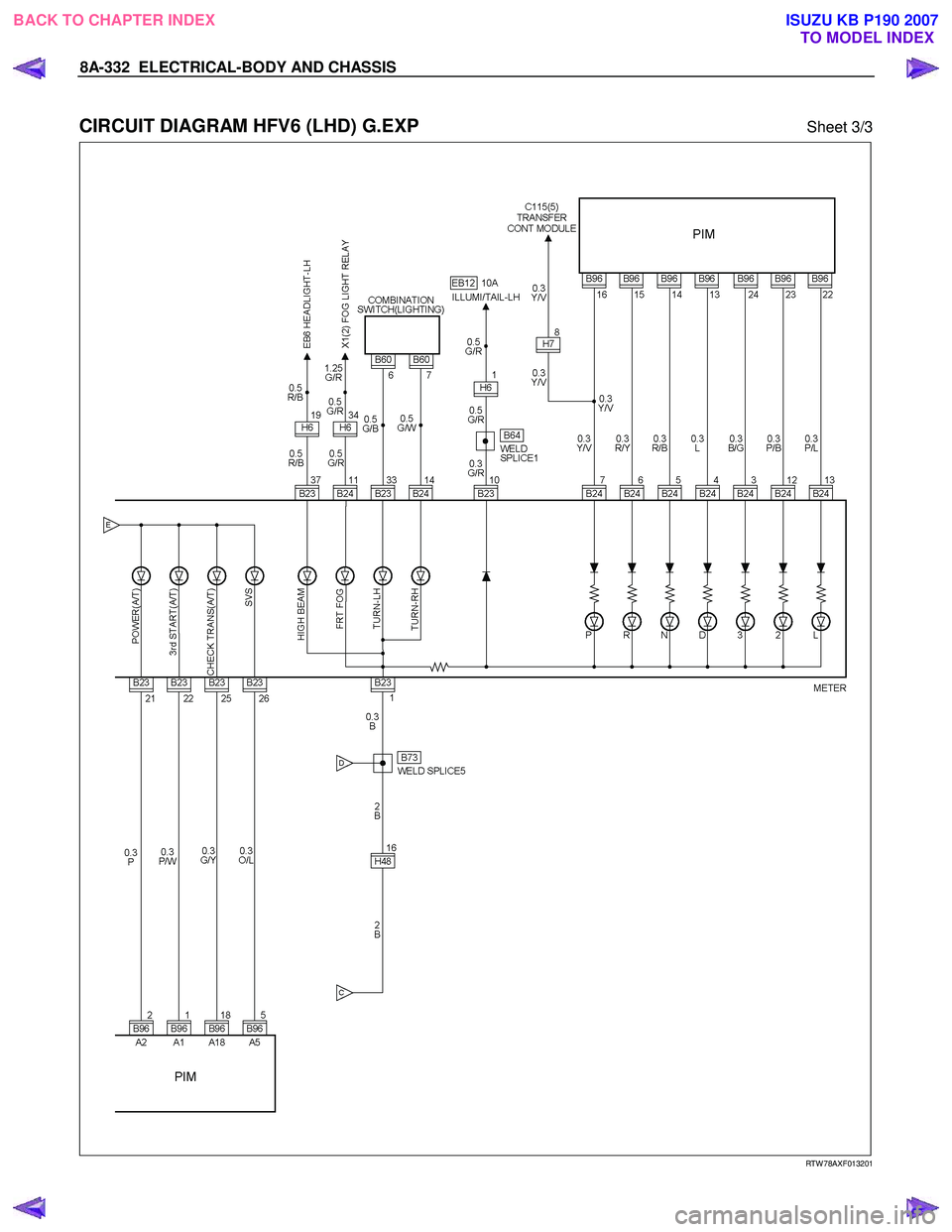

CIRCUIT DIAGRAM HFV6 (LHD) G.EXP Sheet 3/3






RTW 78AXF013201

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-333

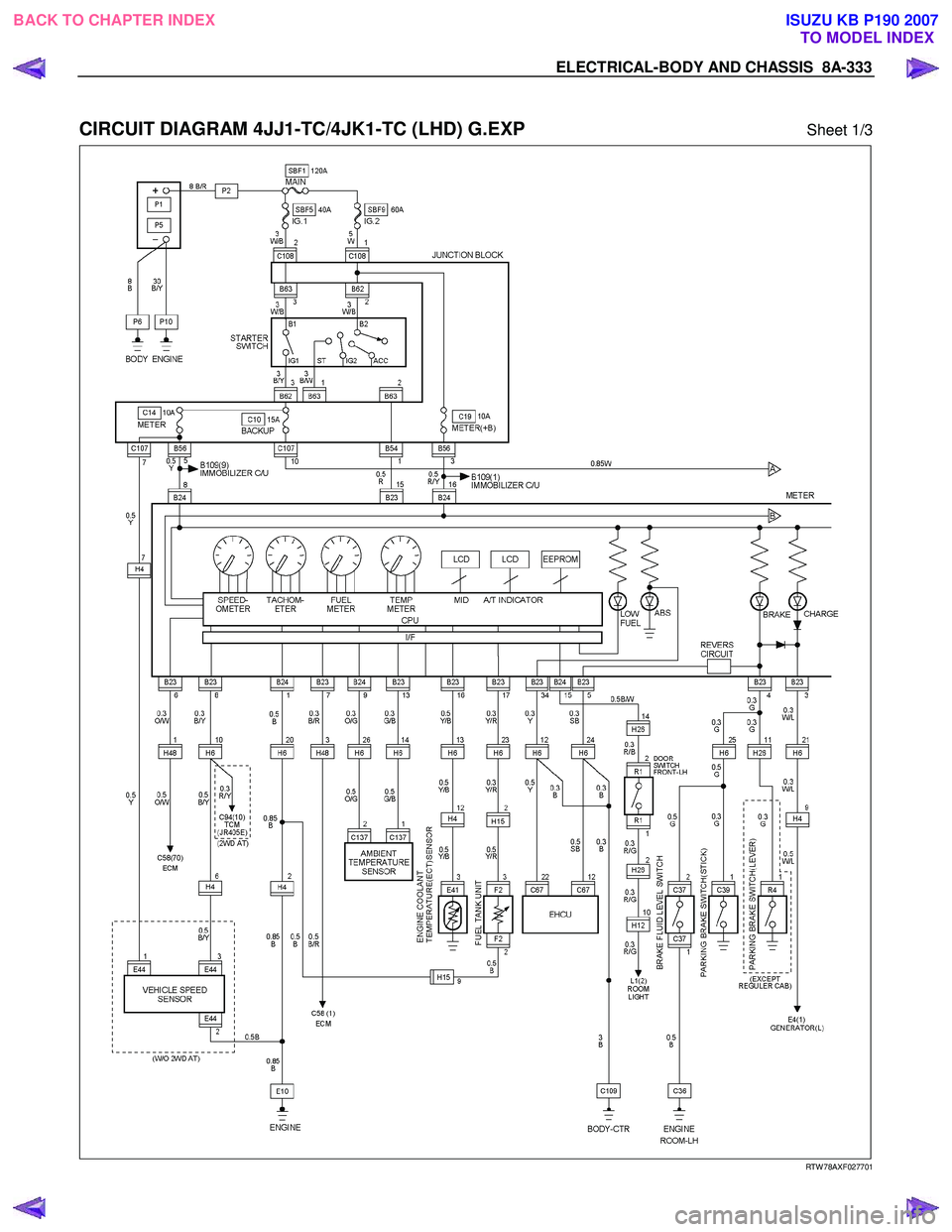

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 1/3


RTW 78AXF027701


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-334 ELECTRICAL-BODY AND CHASSIS

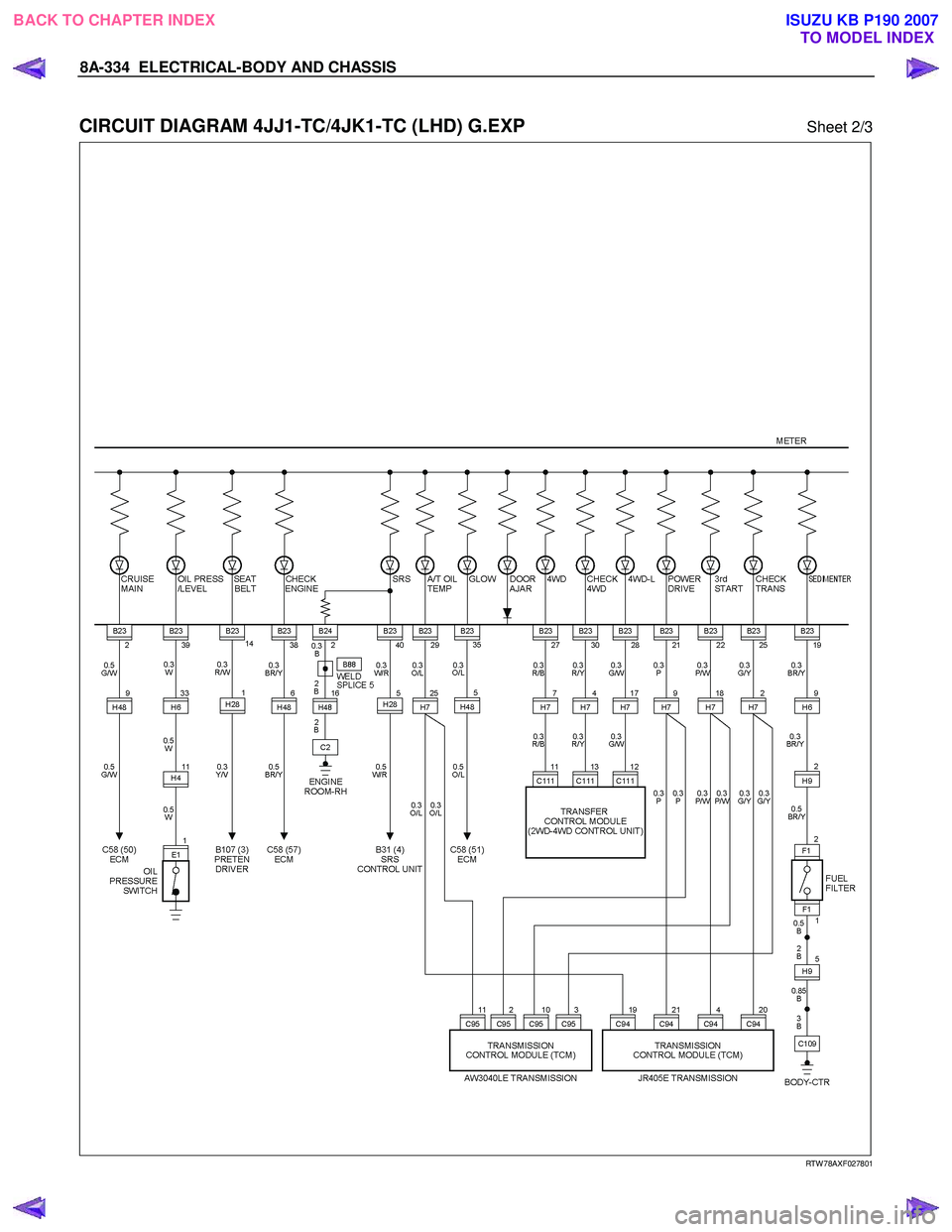

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 2/3



















RTW 78AXF027801


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-335

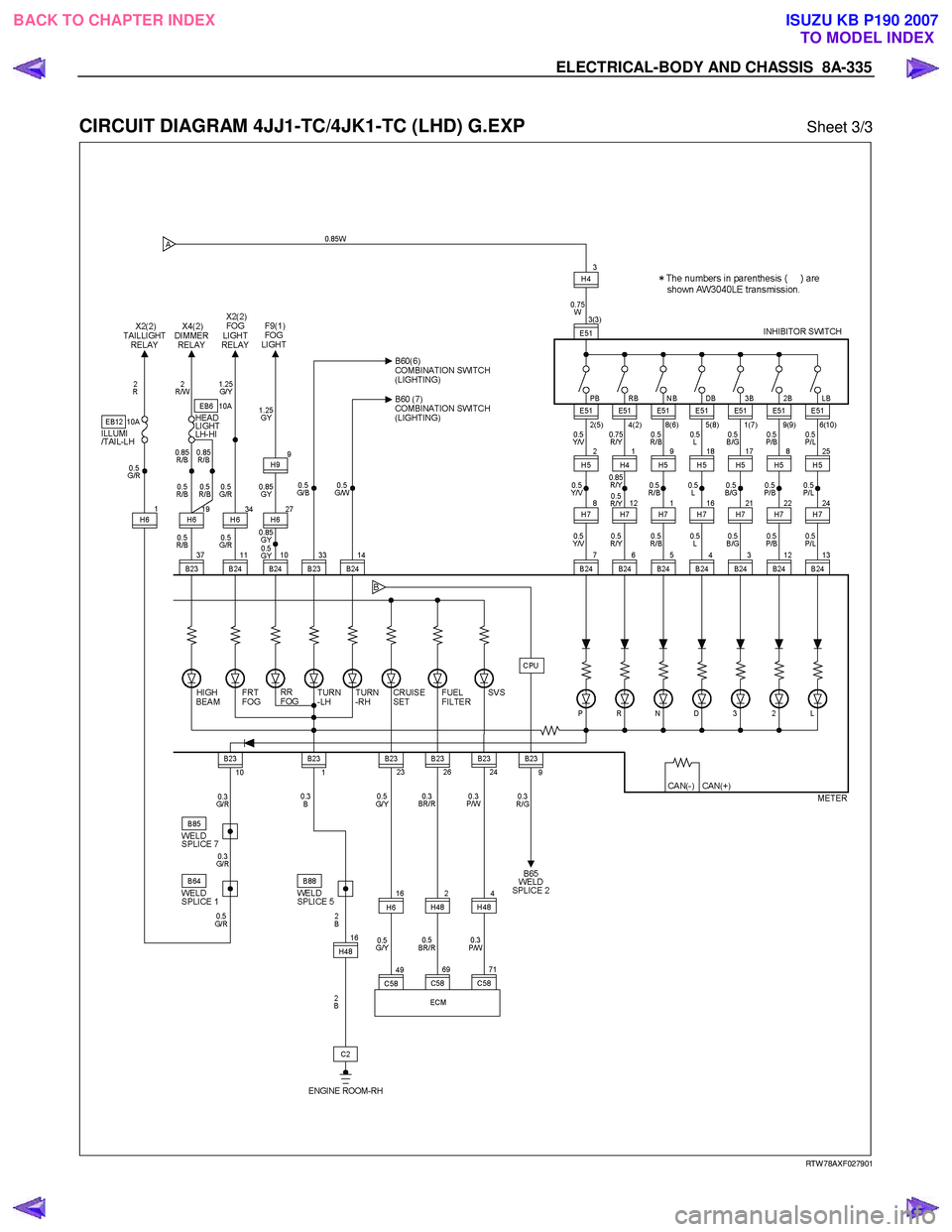

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 3/3








RTW 78AXF027901


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
