8A-388 ELECTRICAL-BODY AND CHASSIS

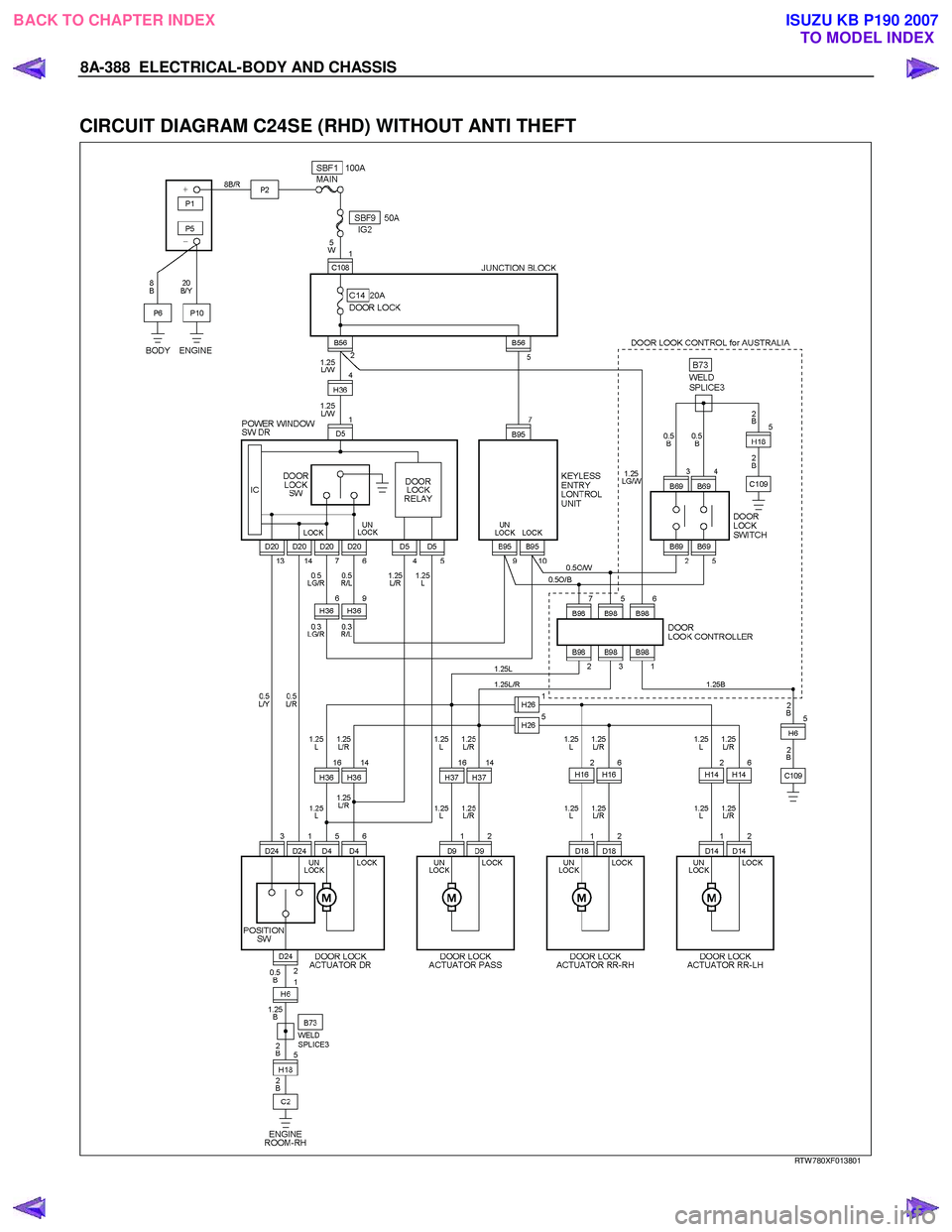

CIRCUIT DIAGRAM C24SE (RHD) WITHOUT ANTI THEFT
RTW 780XF013801
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5327 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-389

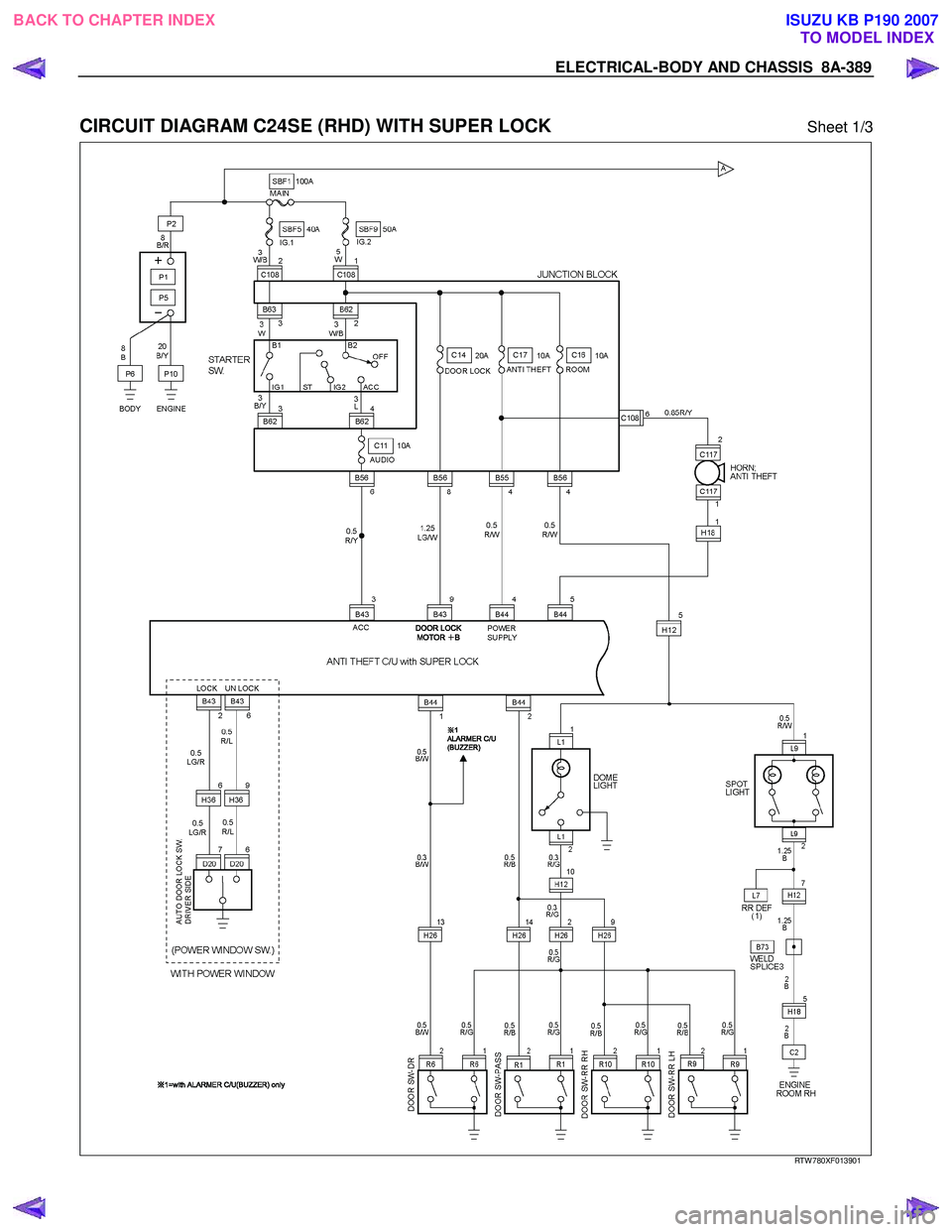

CIRCUIT DIAGRAM C24SE (RHD) WITH SUPER LOCK Sheet 1/3
RTW 780XF013901
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5328 of 6020
8A-390 ELECTRICAL-BODY AND CHASSIS

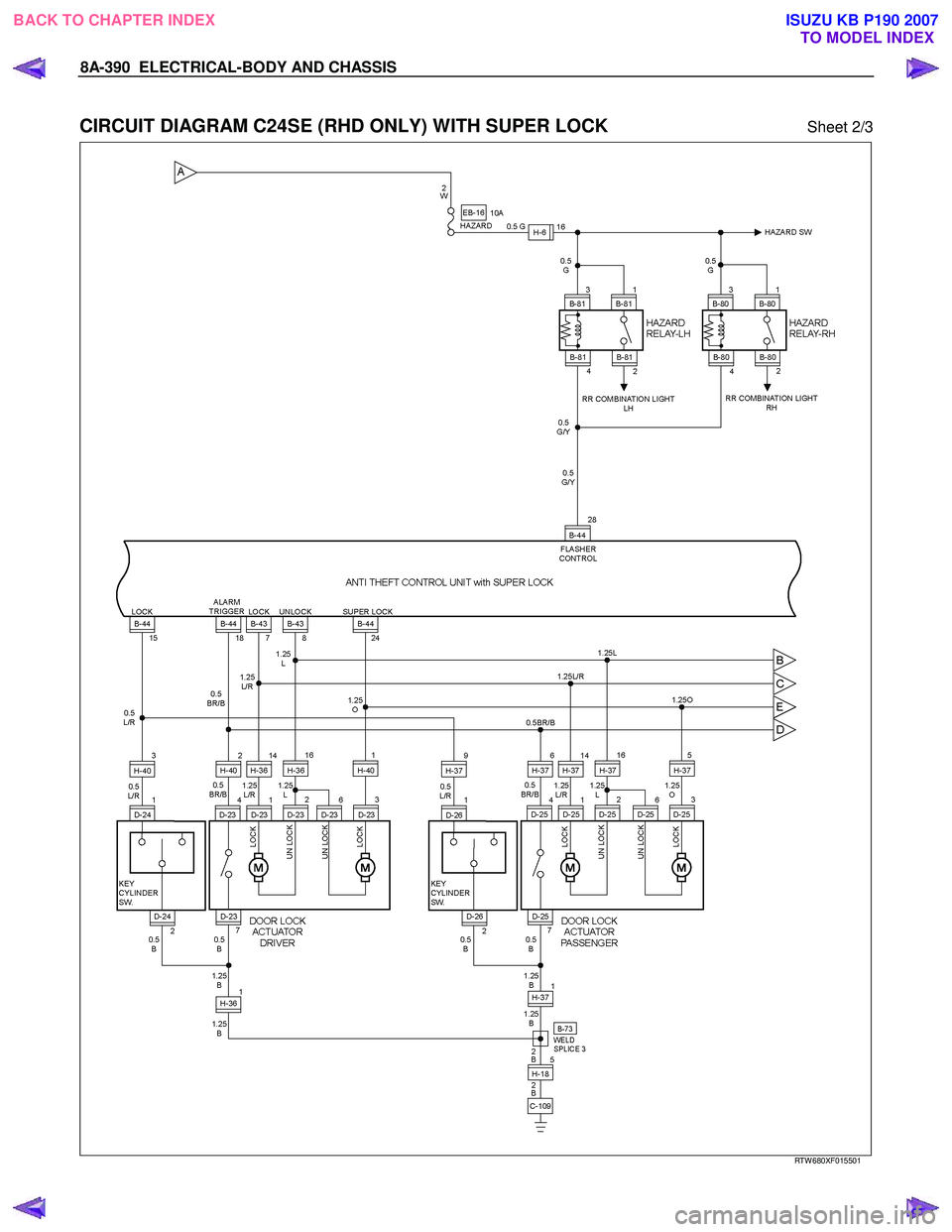

CIRCUIT DIAGRAM C24SE (RHD ONLY) WITH SUPER LOCK Sheet 2/3
RTW 680XF015501
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5329 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-391

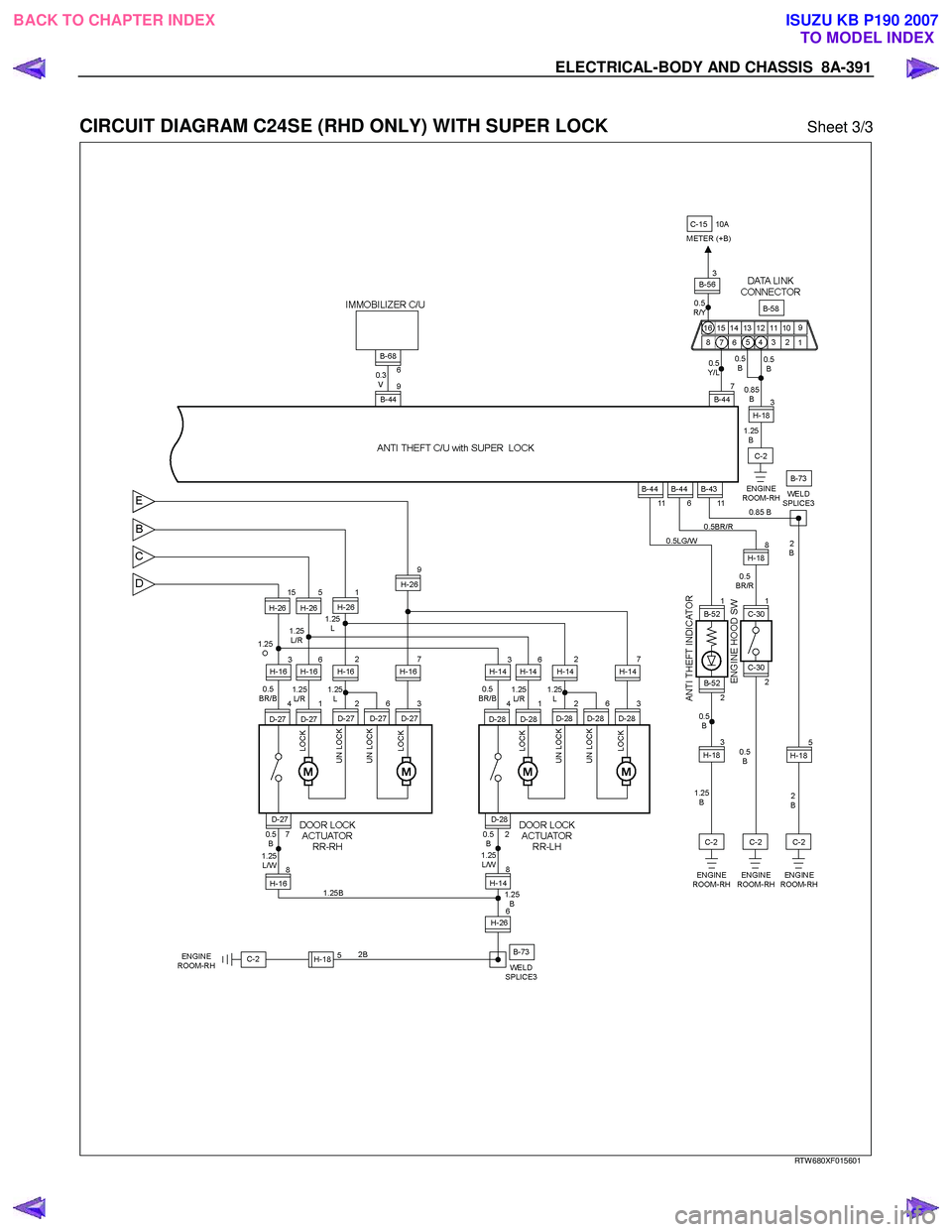

CIRCUIT DIAGRAM C24SE (RHD ONLY) WITH SUPER LOCK Sheet 3/3
RTW 680XF015601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5330 of 6020
8A-392 ELECTRICAL-BODY AND CHASSIS

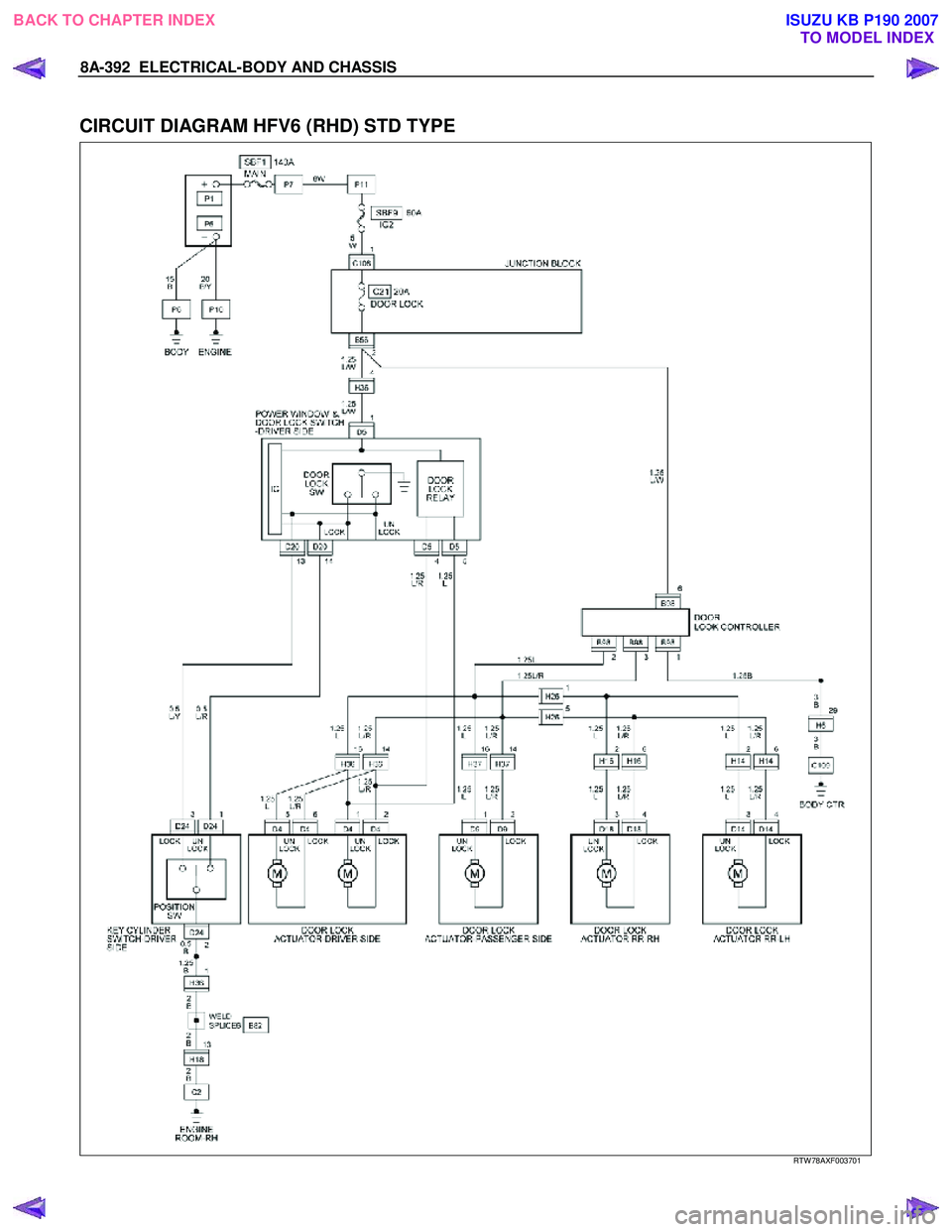

CIRCUIT DIAGRAM HFV6 (RHD) STD TYPE
RTW 78AXF003701
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5331 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-393

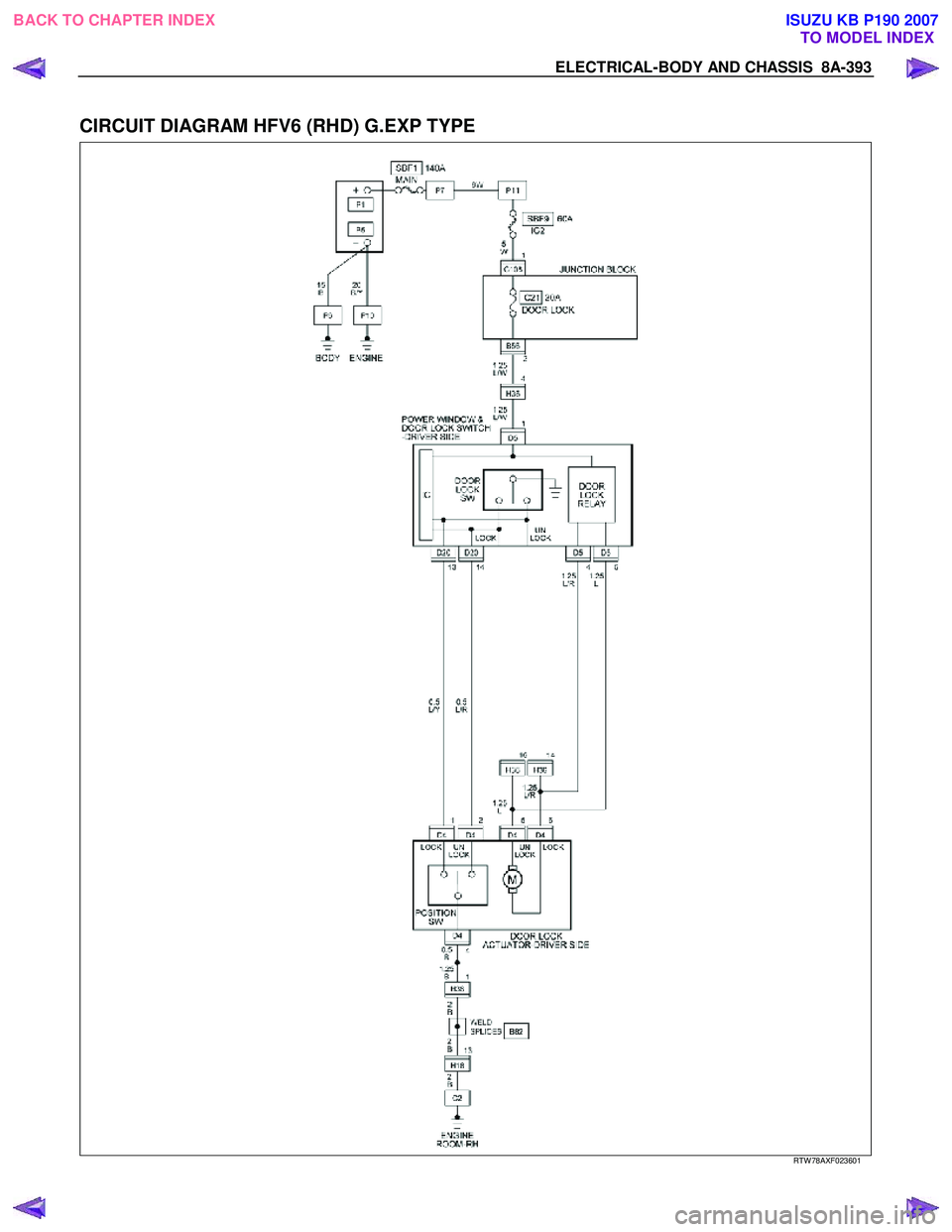

CIRCUIT DIAGRAM HFV6 (RHD) G.EXP TYPE
RTW 78AXF023601
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5332 of 6020
8A-394 ELECTRICAL-BODY AND CHASSIS

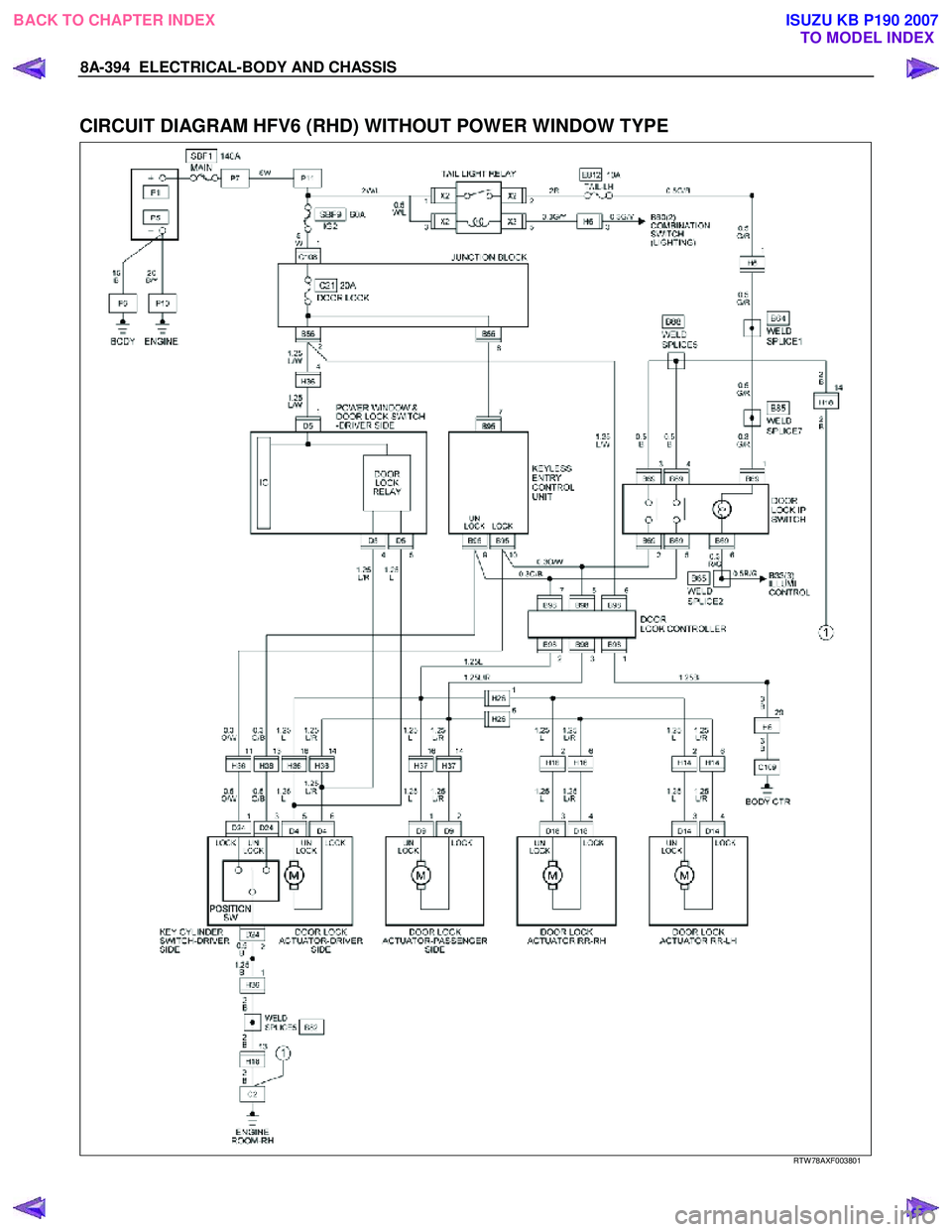

CIRCUIT DIAGRAM HFV6 (RHD) WITHOUT POWER WINDOW TYPE
RTW 78AXF003801
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5333 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-395

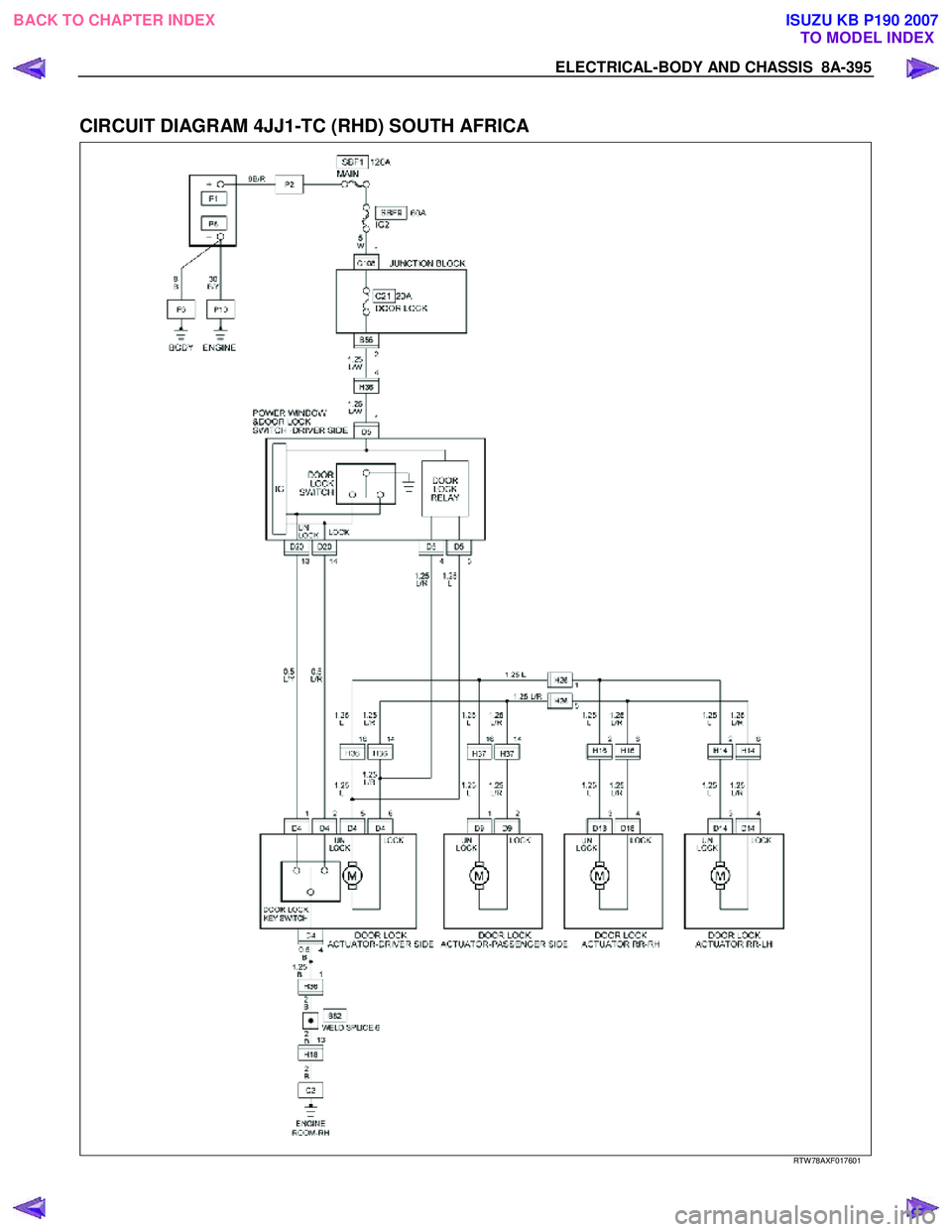

CIRCUIT DIAGRAM 4JJ1-TC (RHD) SOUTH AFRICA
RTW 78AXF017601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
