2007 ISUZU KB P190 CIRCUIT DIAGRAM

8A-404 ELECTRICAL-BODY AND CHASSIS

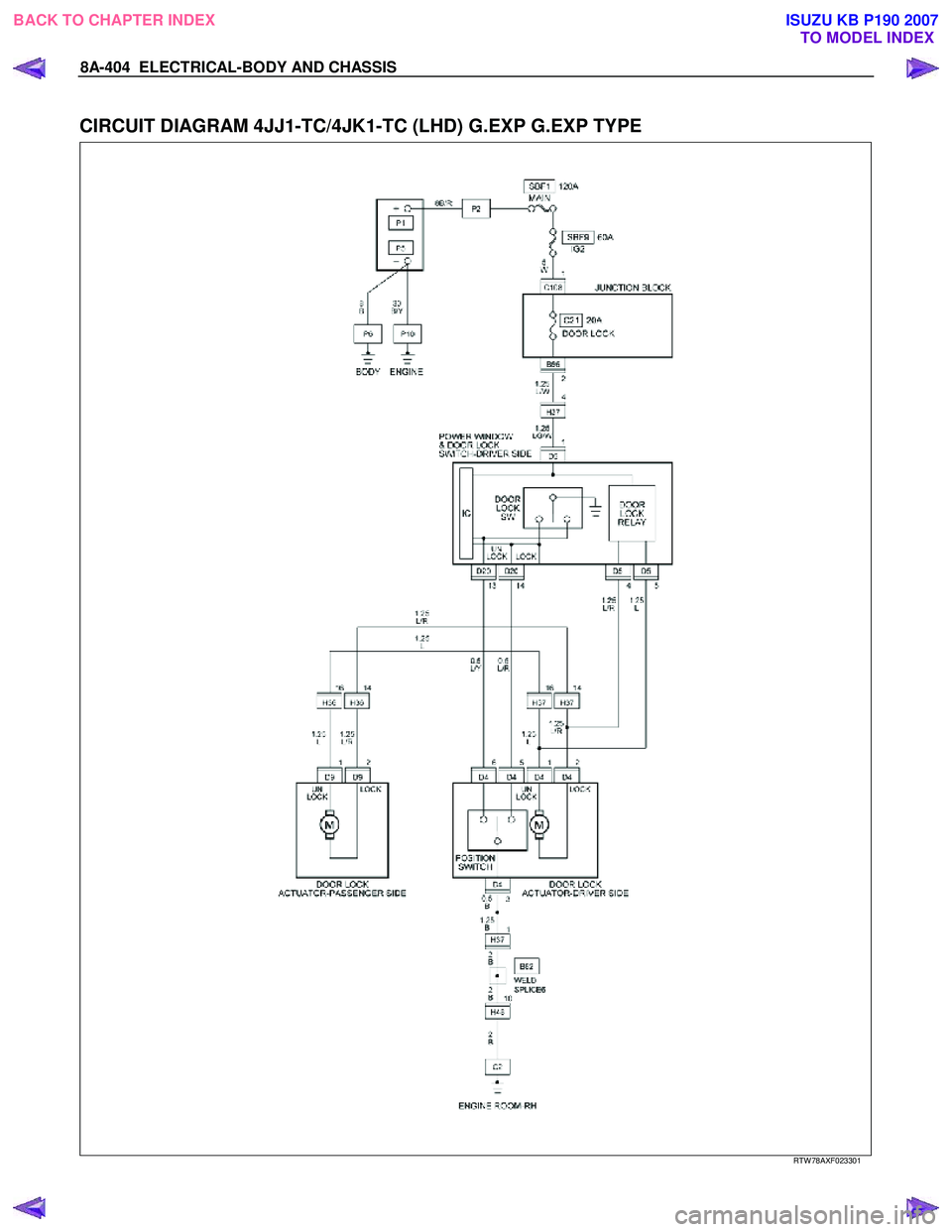

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP G.EXP TYPE




RTW 78AXF023301

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-405

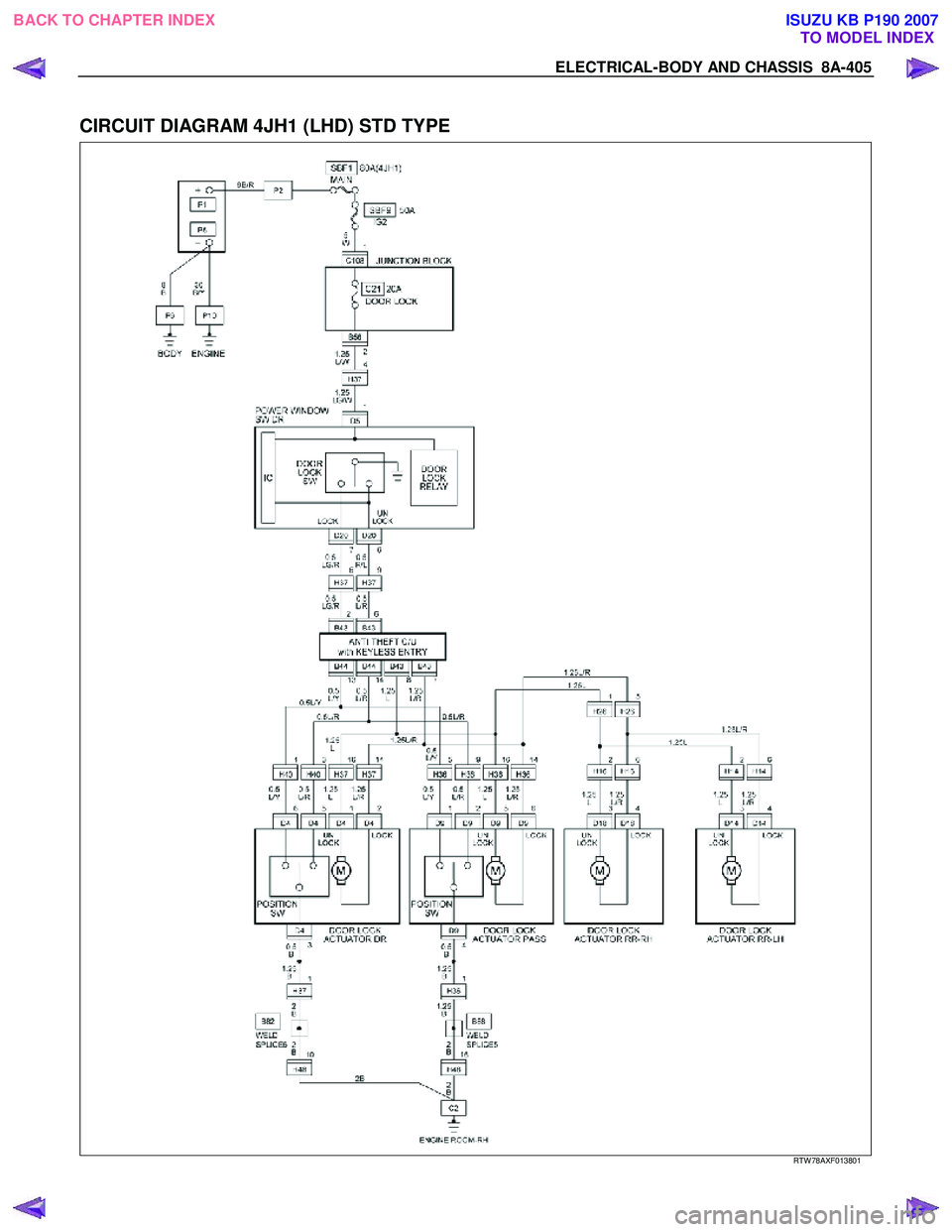

CIRCUIT DIAGRAM 4JH1 (LHD) STD TYPE


RTW 78AXF013801

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-406 ELECTRICAL-BODY AND CHASSIS

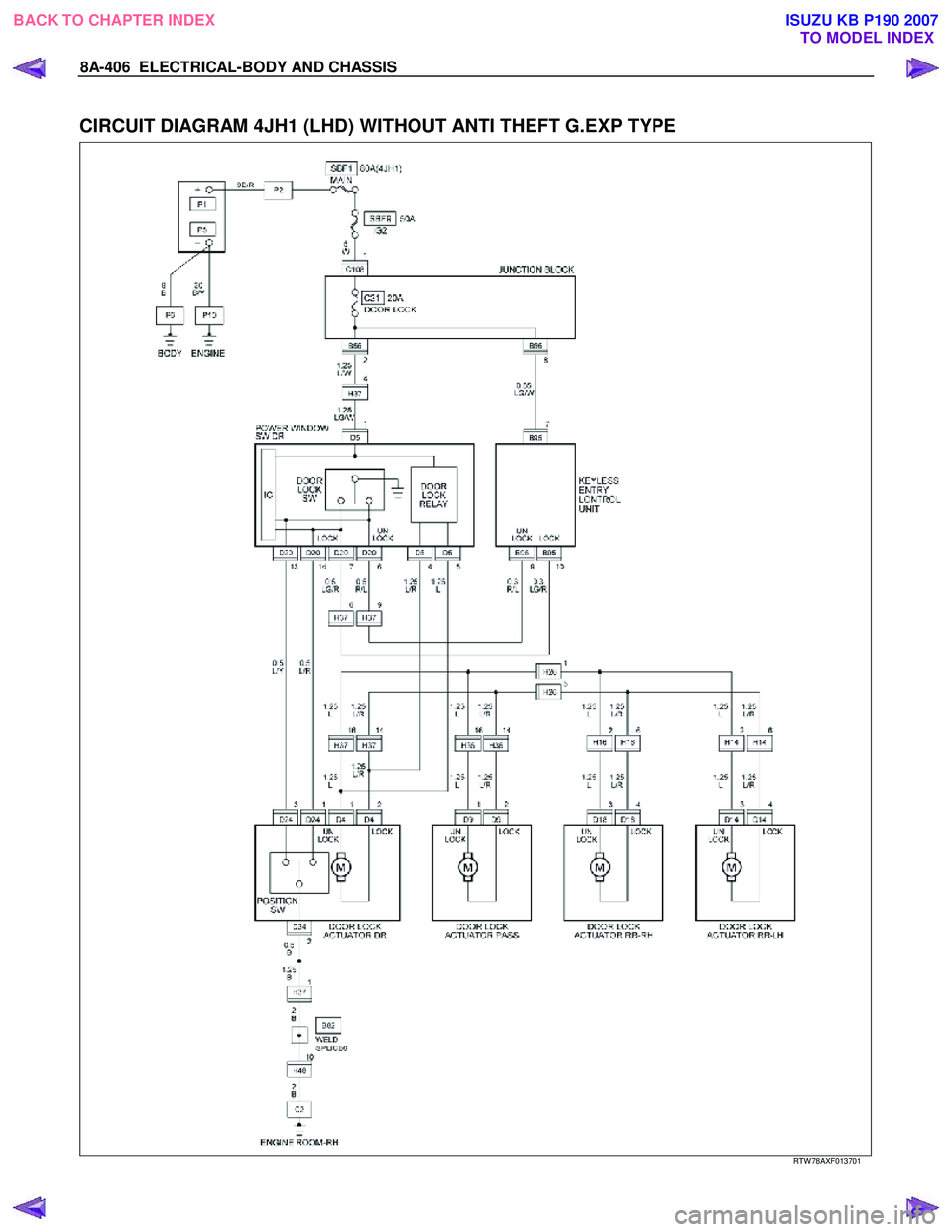

CIRCUIT DIAGRAM 4JH1 (LHD) WITHOUT ANTI THEFT G.EXP TYPE

RTW 78AXF013701

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-419

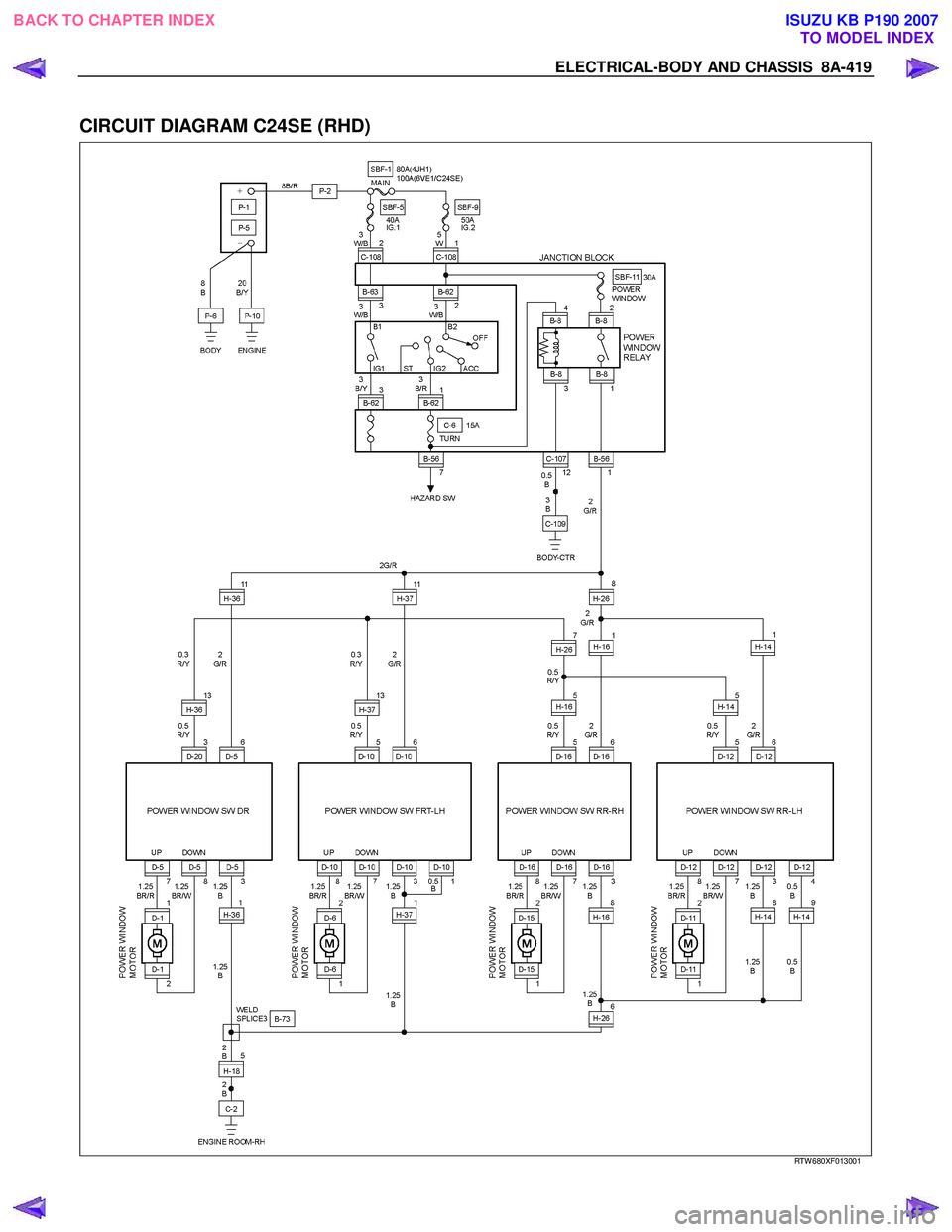

CIRCUIT DIAGRAM C24SE (RHD)


RTW 680XF013001

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-420 ELECTRICAL-BODY AND CHASSIS

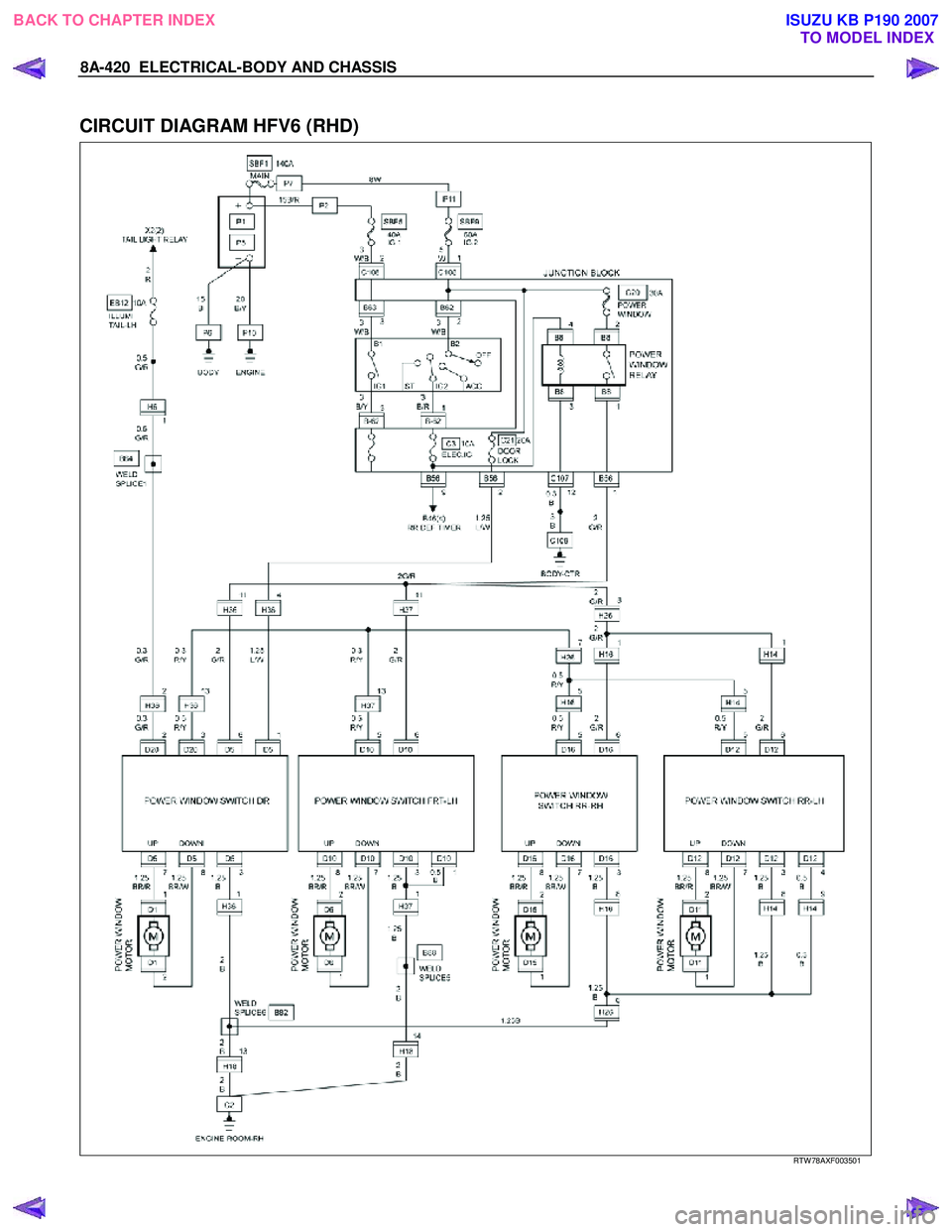

CIRCUIT DIAGRAM HFV6 (RHD)


RTW 78AXF003501

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-421

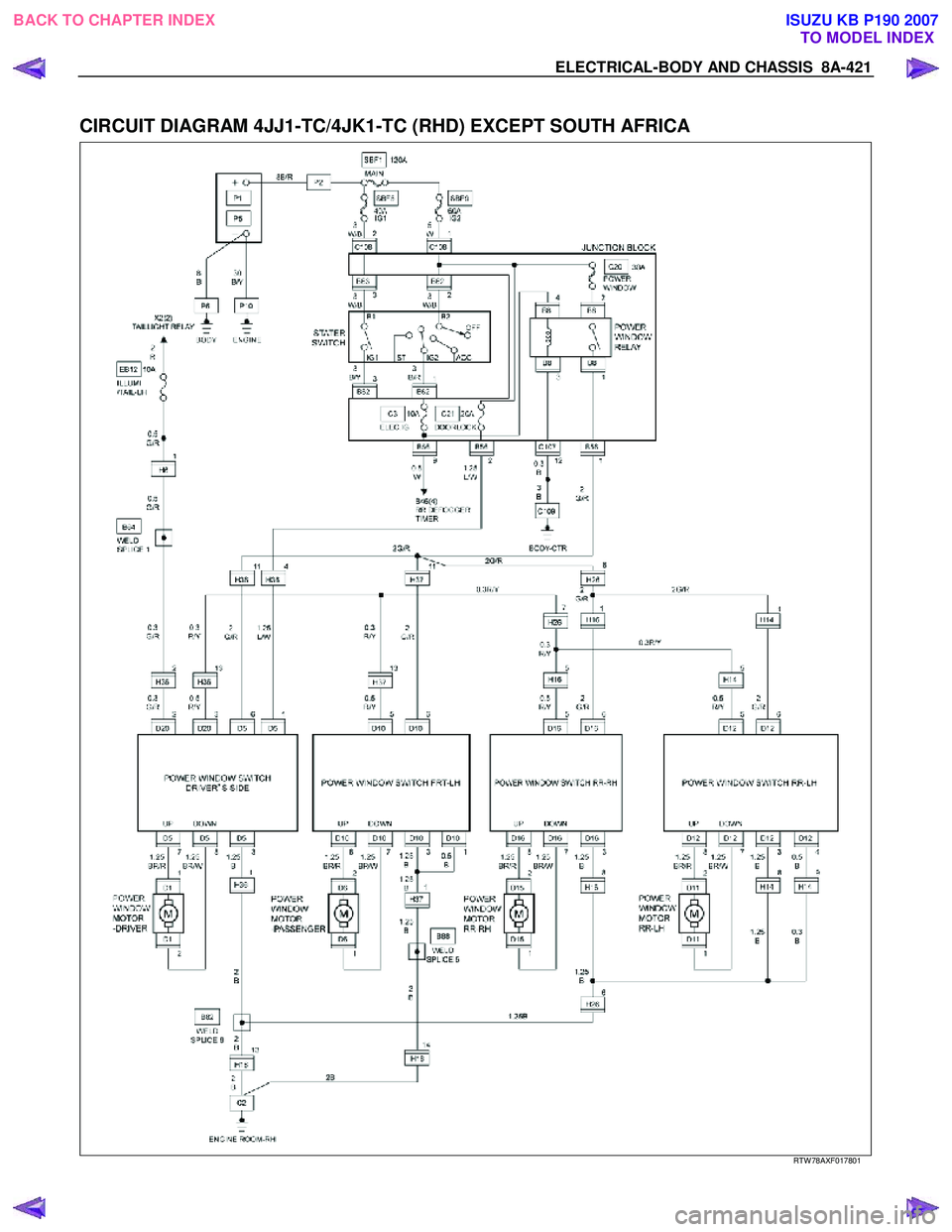

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA


RTW 78AXF017801

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-422 ELECTRICAL-BODY AND CHASSIS

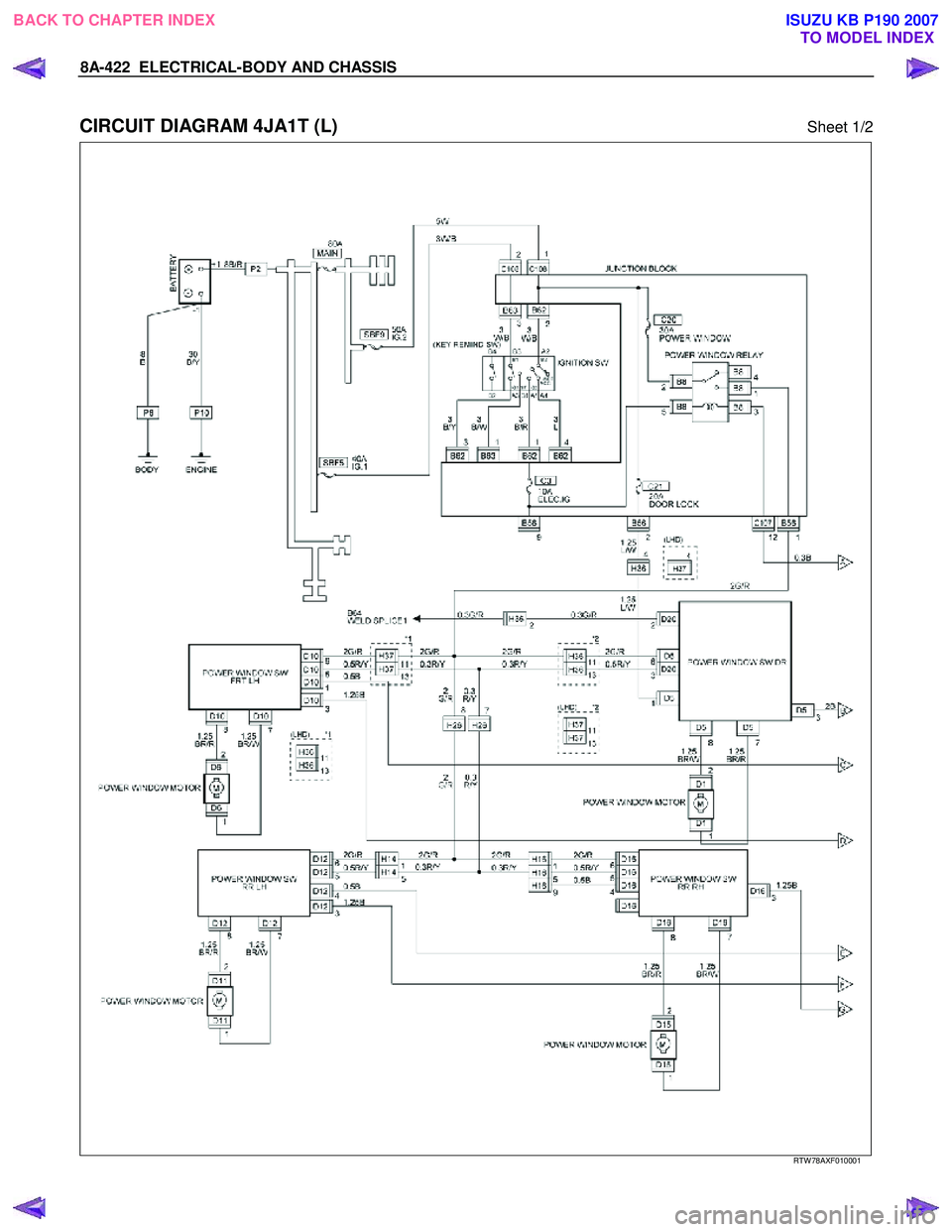

CIRCUIT DIAGRAM 4JA1T (L) Sheet 1/2







RTW 78AXF010001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-423

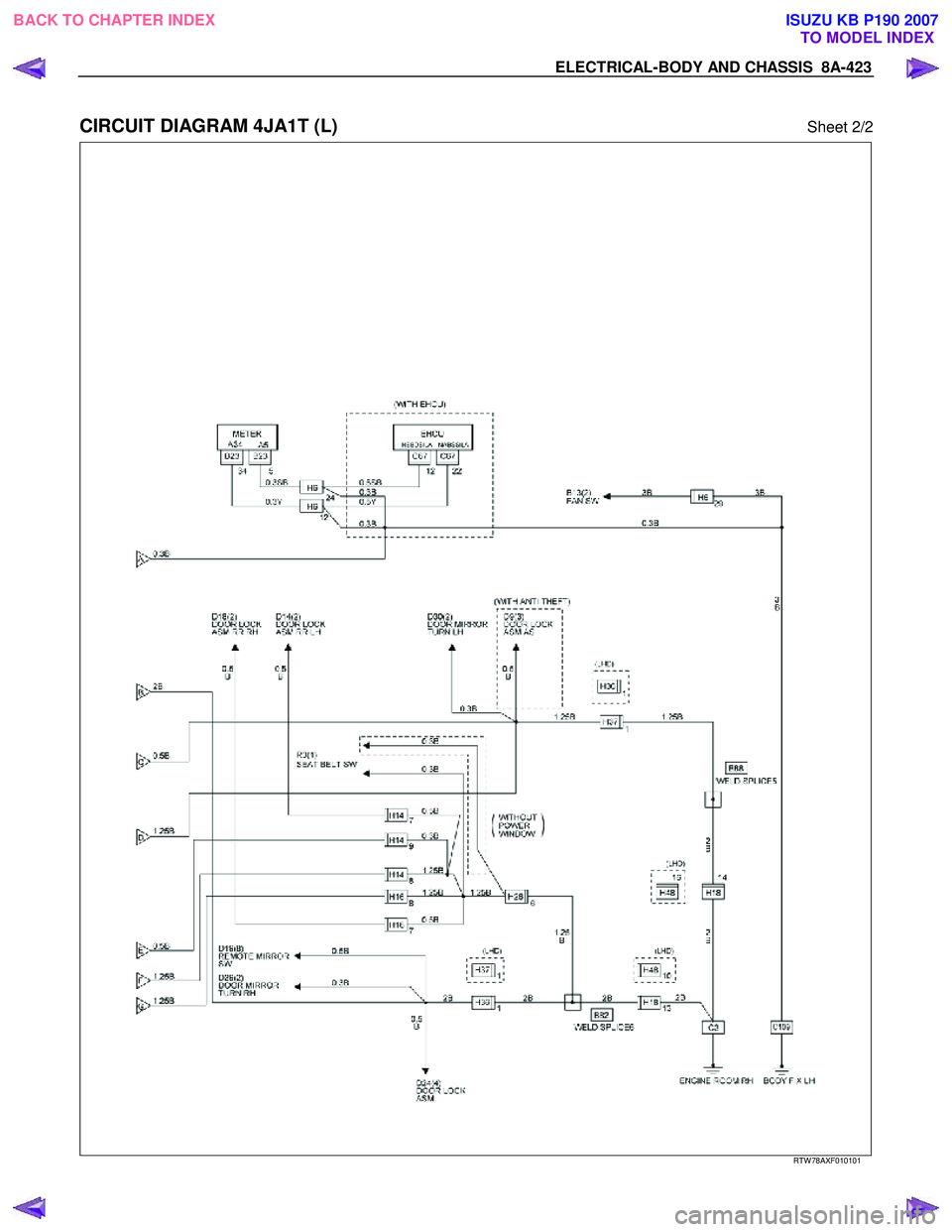

CIRCUIT DIAGRAM 4JA1T (L) Sheet 2/2

















RTW 78AXF010101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
