Page 5274 of 6020

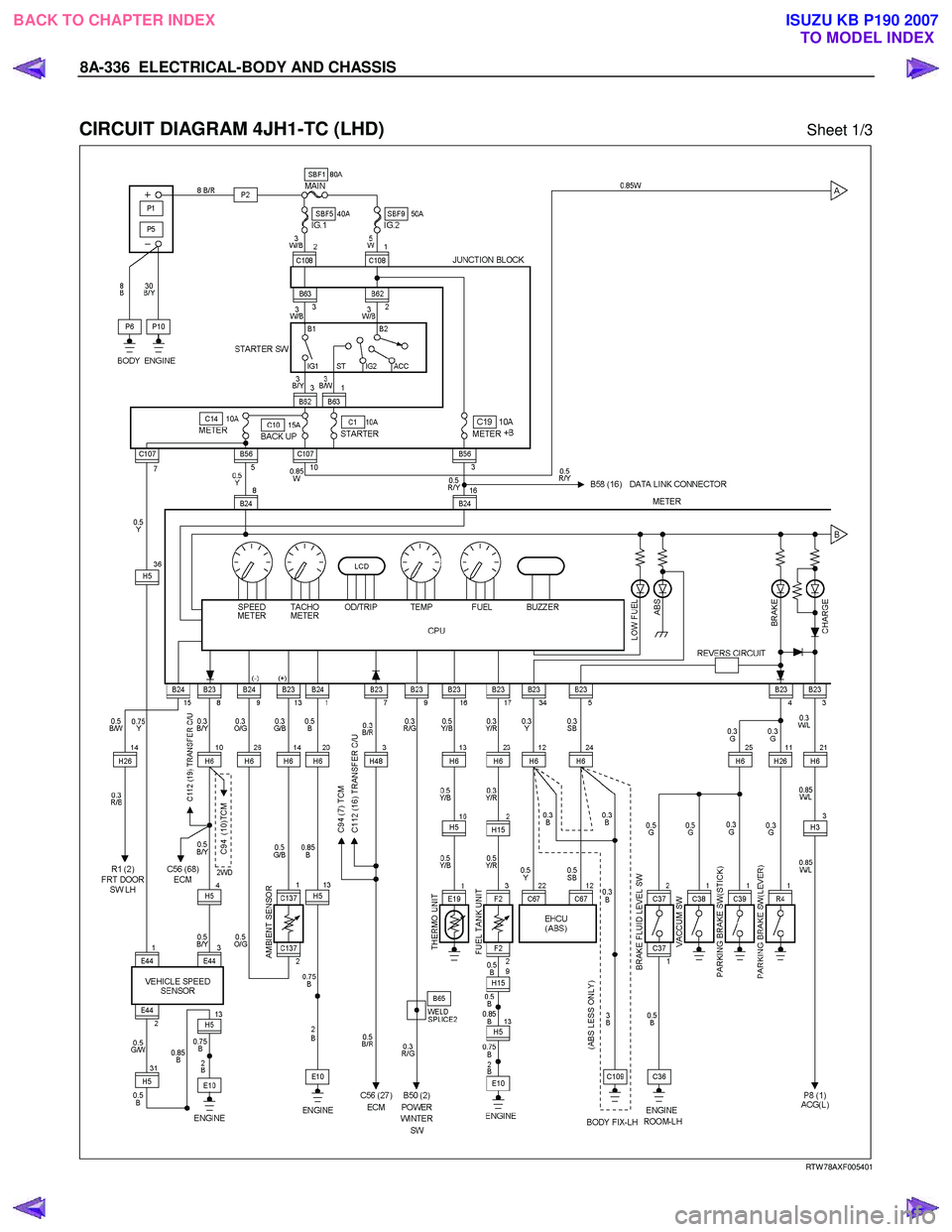

8A-336 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JH1-TC (LHD) Sheet 1/3
RTW 78AXF005401
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5275 of 6020

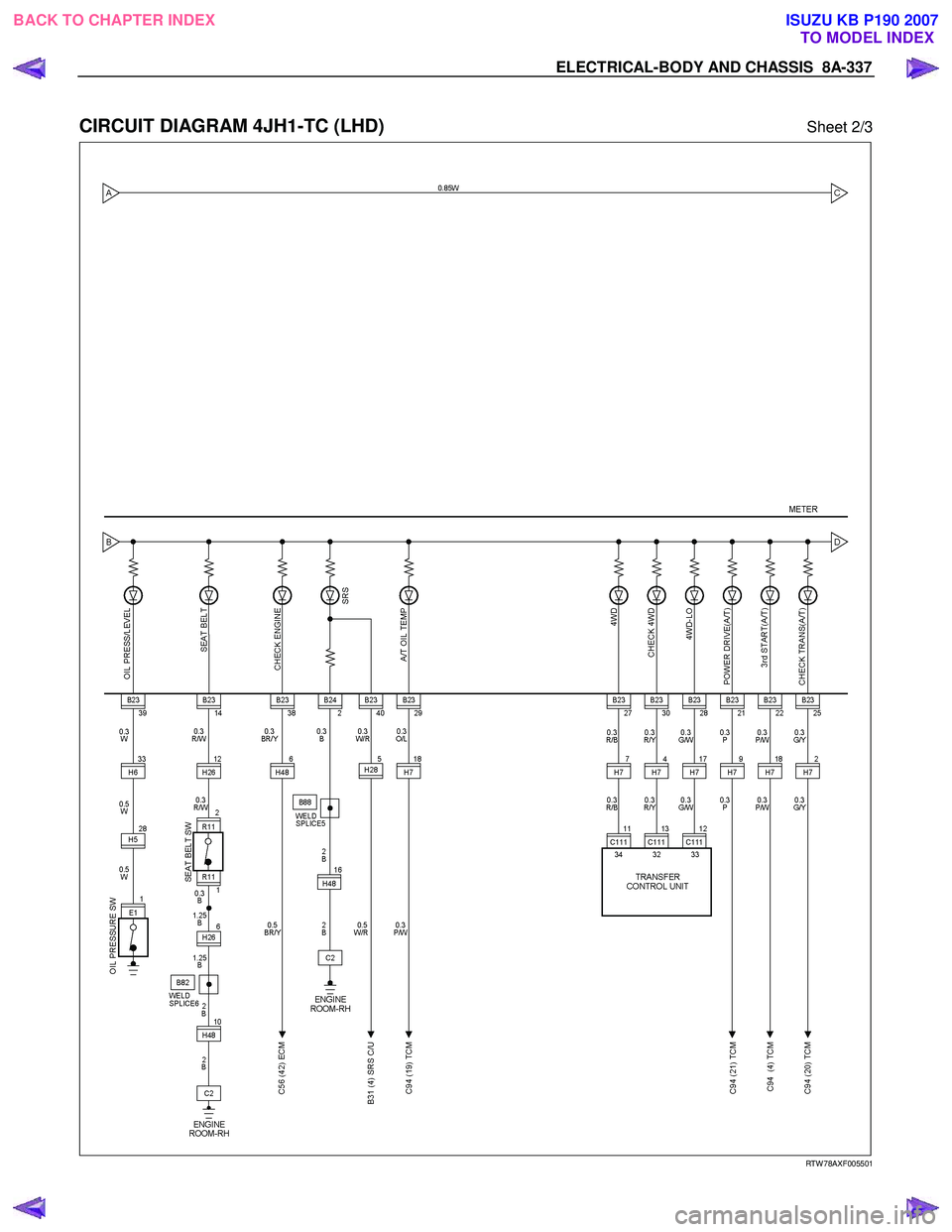

ELECTRICAL-BODY AND CHASSIS 8A-337
CIRCUIT DIAGRAM 4JH1-TC (LHD) Sheet 2/3
RTW 78AXF005501
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5276 of 6020

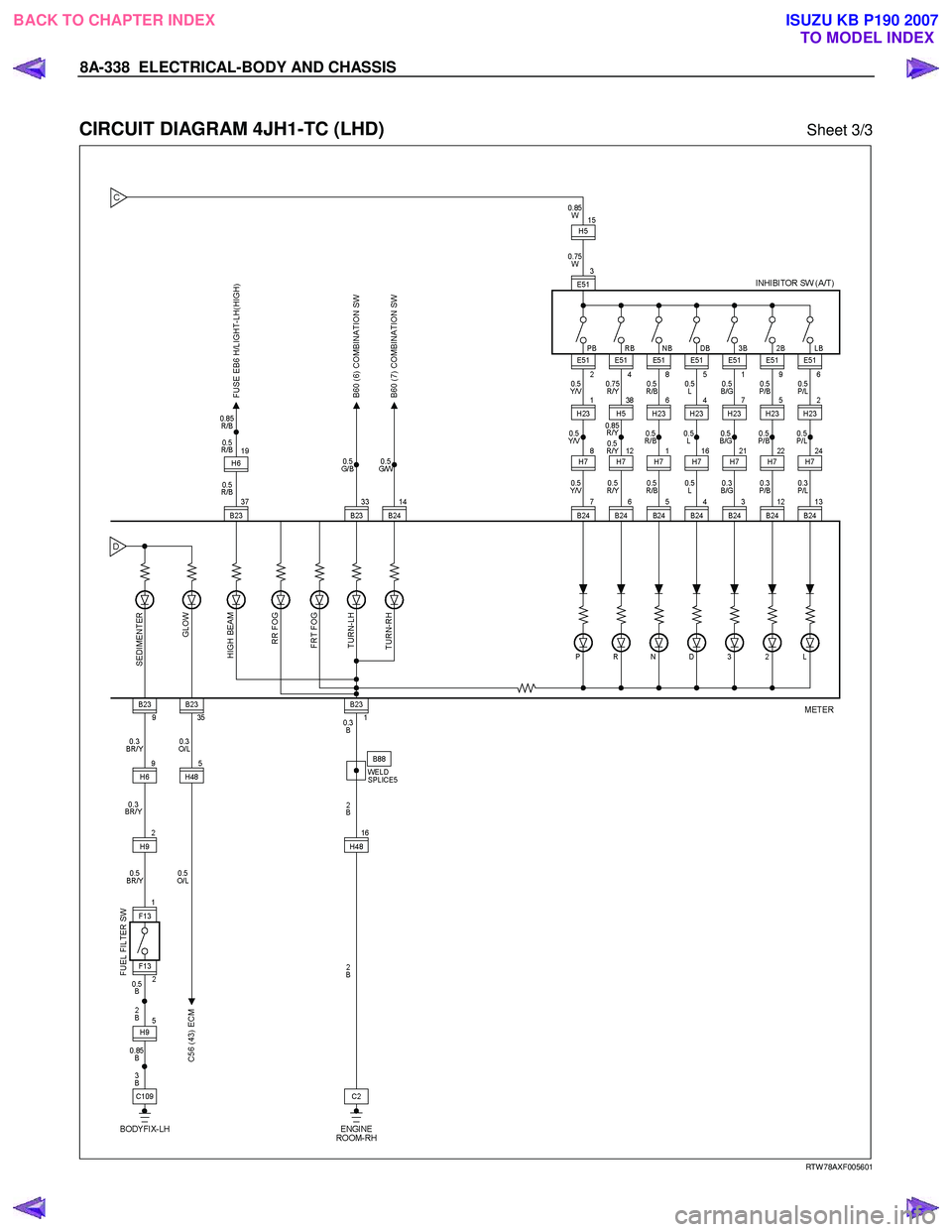

8A-338 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JH1-TC (LHD) Sheet 3/3
RTW 78AXF005601
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5277 of 6020

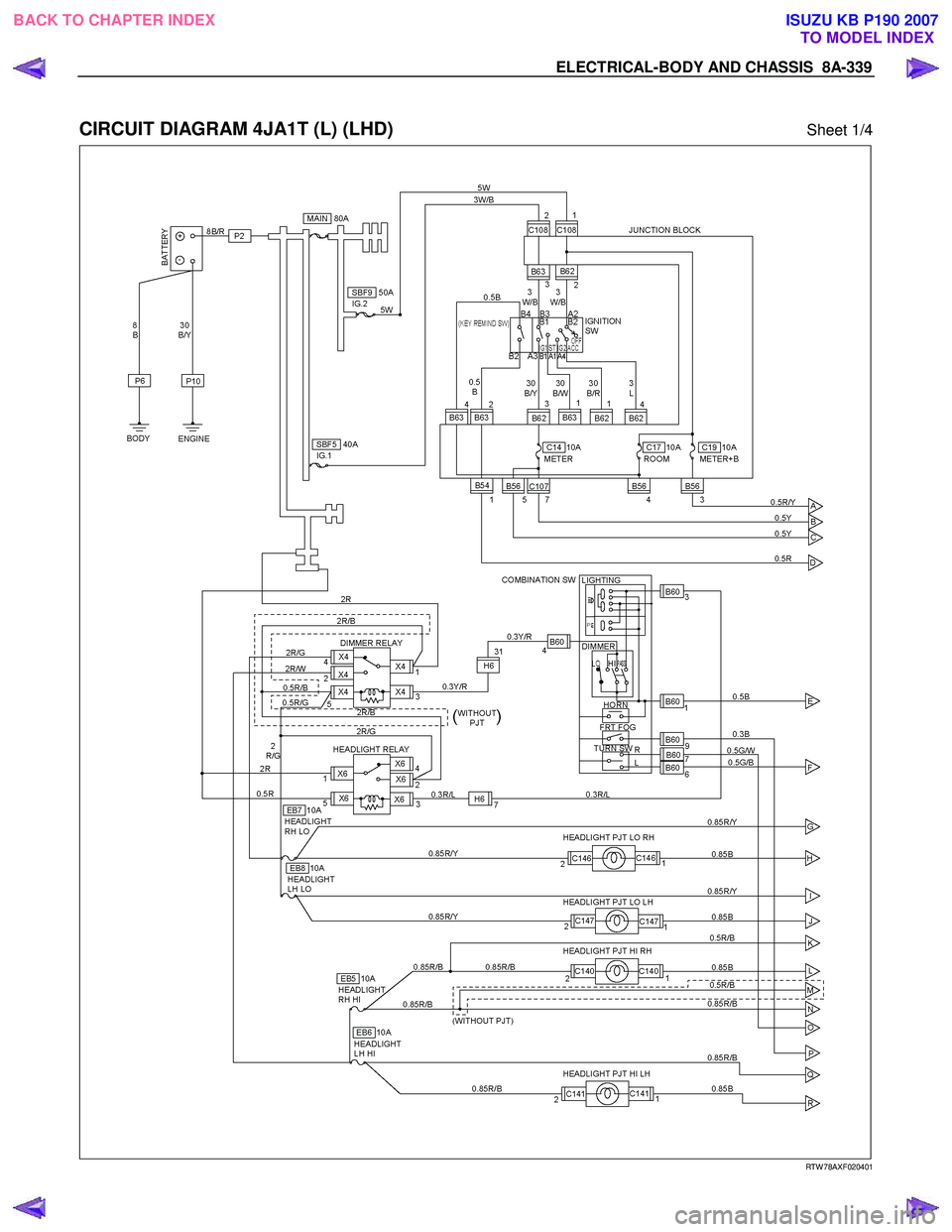

ELECTRICAL-BODY AND CHASSIS 8A-339
CIRCUIT DIAGRAM 4JA1T (L) (LHD) Sheet 1/4
RTW 78AXF020401
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5278 of 6020

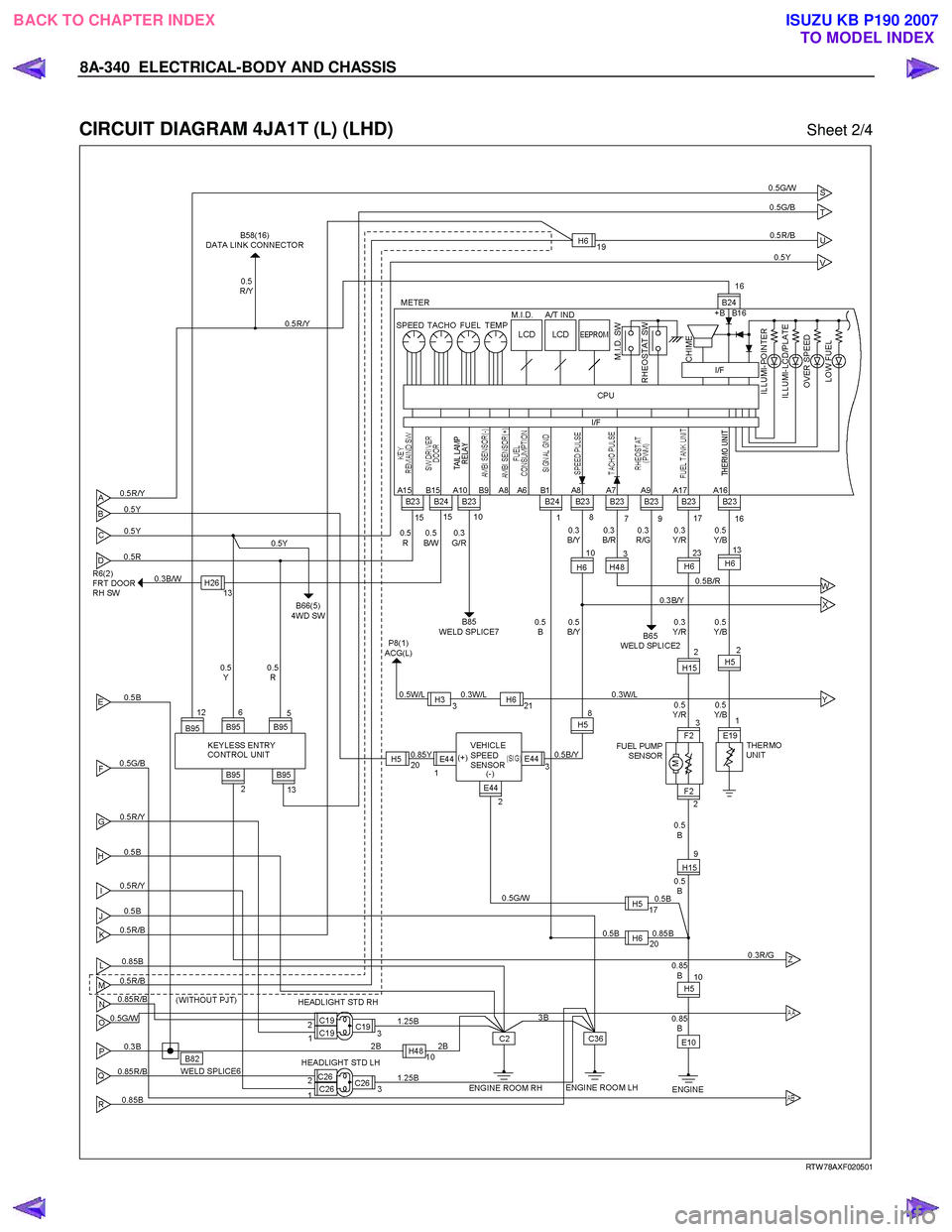

8A-340 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JA1T (L) (LHD) Sheet 2/4
RTW 78AXF020501
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5279 of 6020

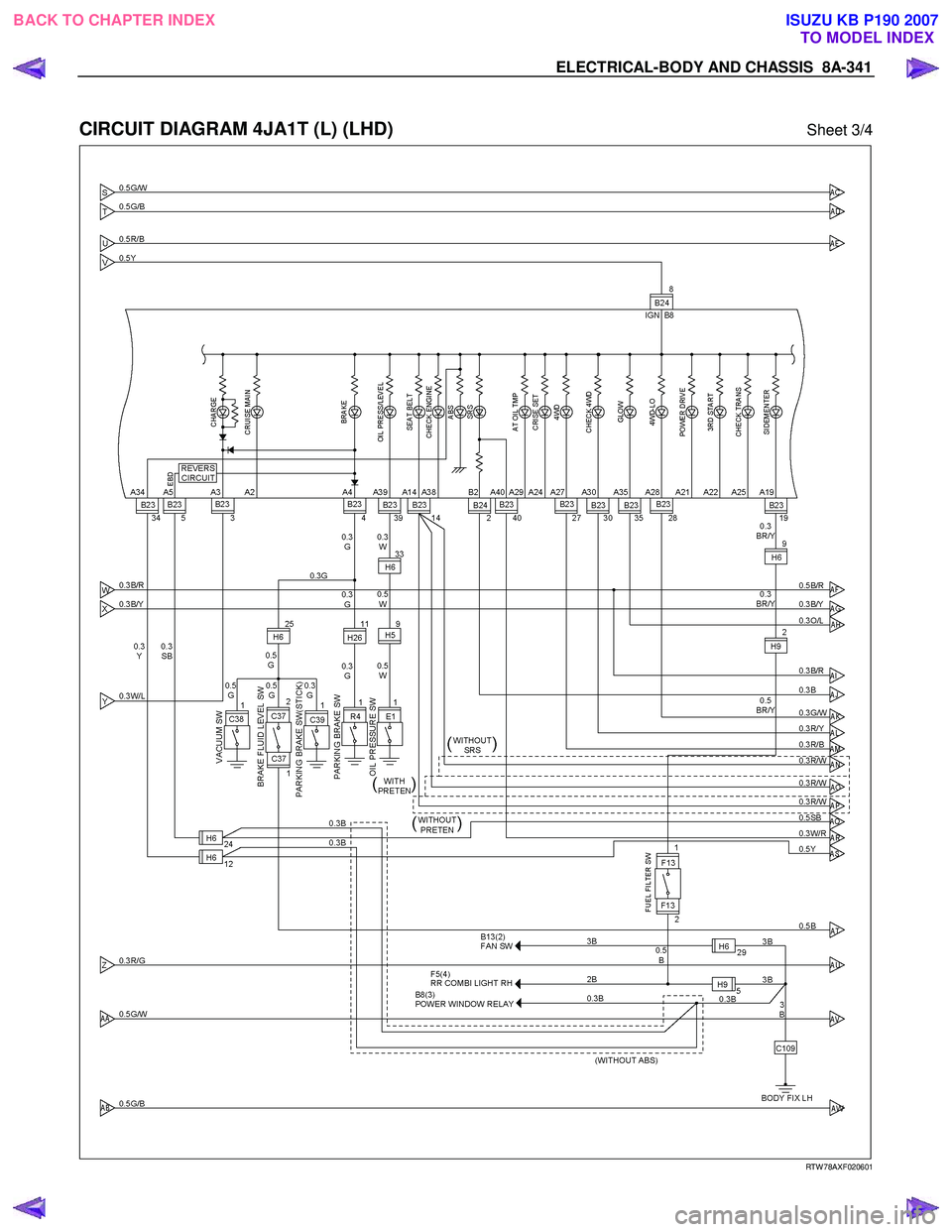

ELECTRICAL-BODY AND CHASSIS 8A-341
CIRCUIT DIAGRAM 4JA1T (L) (LHD) Sheet 3/4
RTW 78AXF020601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5280 of 6020

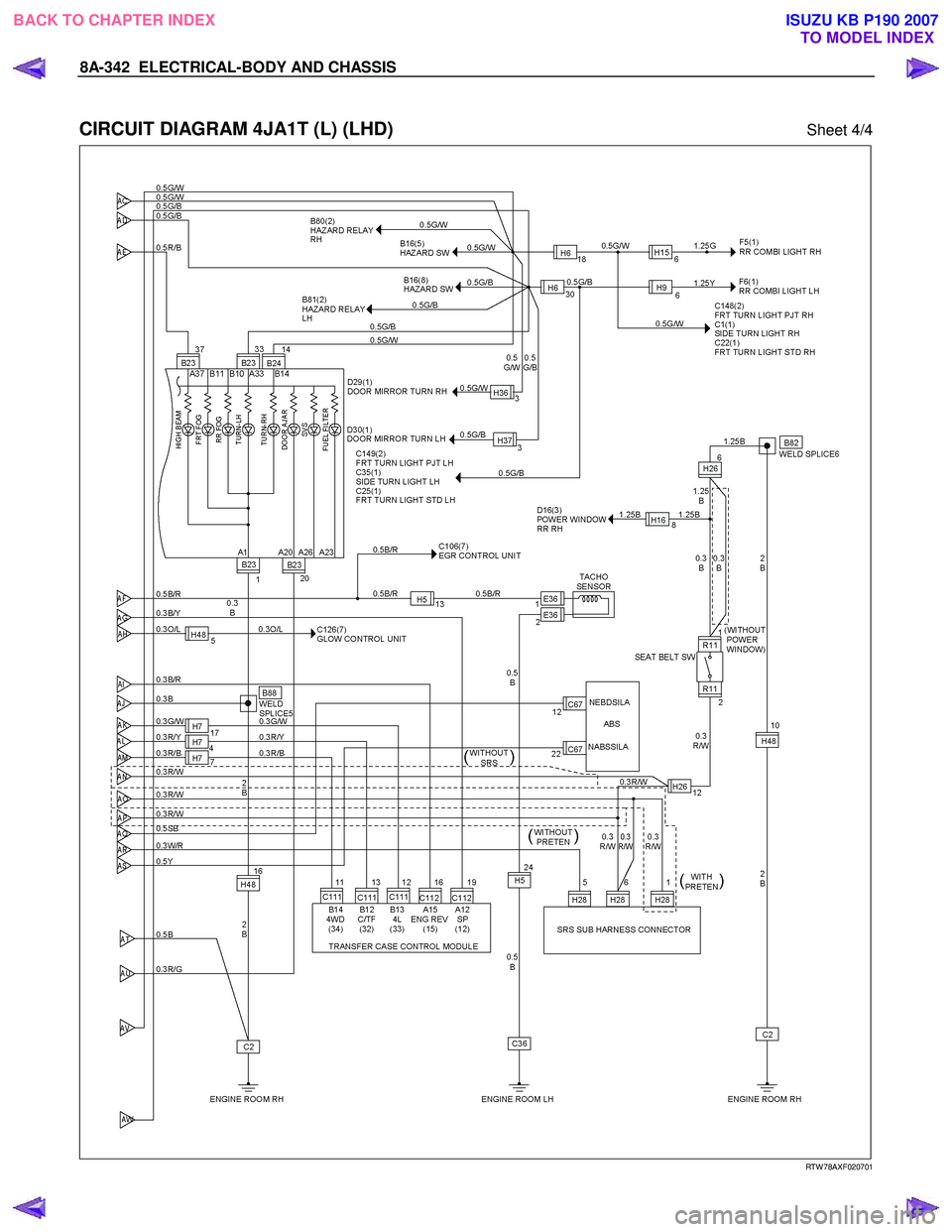

8A-342 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JA1T (L) (LHD) Sheet 4/4
RTW 78AXF020701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5315 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-377
CIRCUIT DIAGRAM C24SE COOLER WITHOUT HEATER
RTW 680XF012401
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
