2007 ISUZU KB P190 CIRCUIT DIAGRAM

8A-378 ELECTRICAL-BODY AND CHASSIS

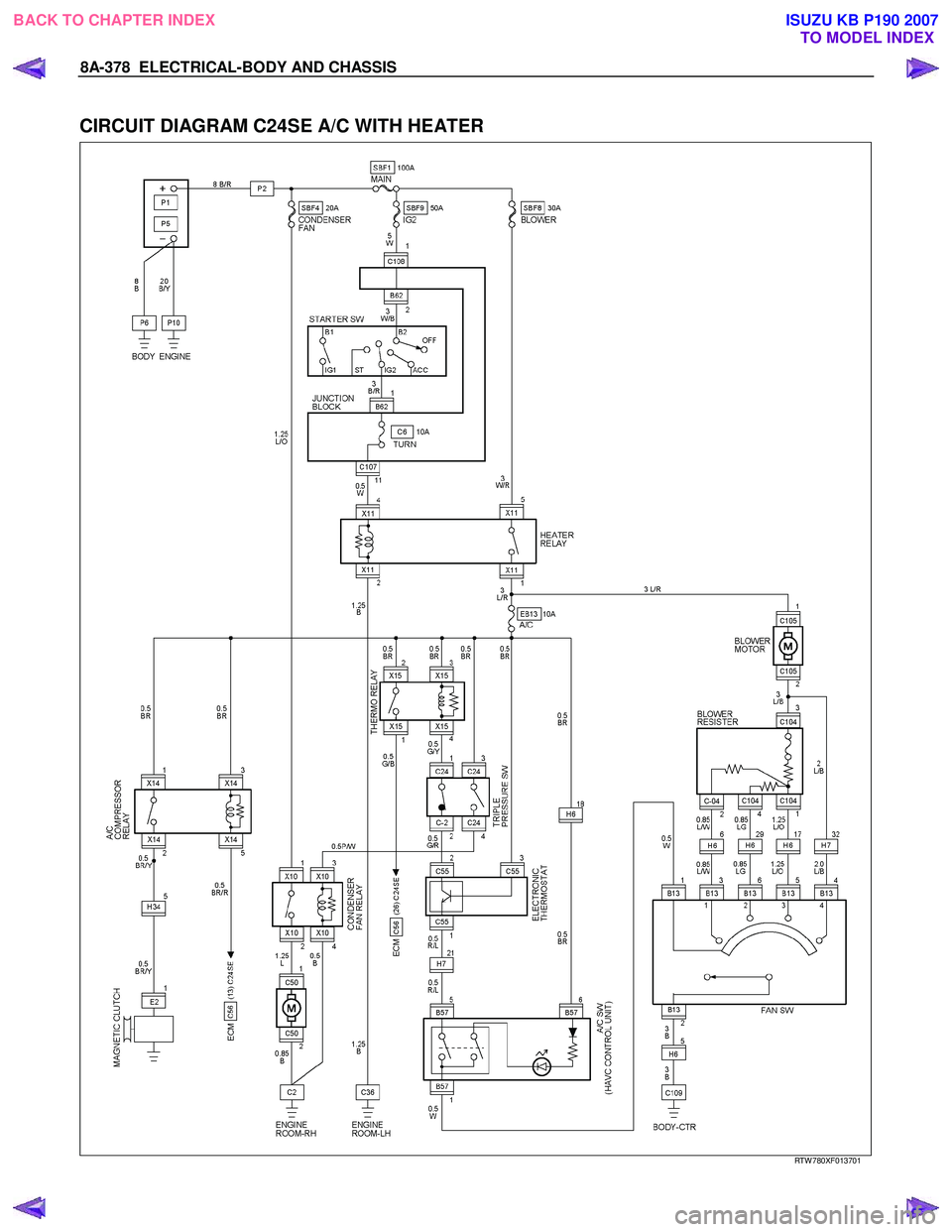

CIRCUIT DIAGRAM C24SE A/C WITH HEATER


RTW 780XF013701

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-379

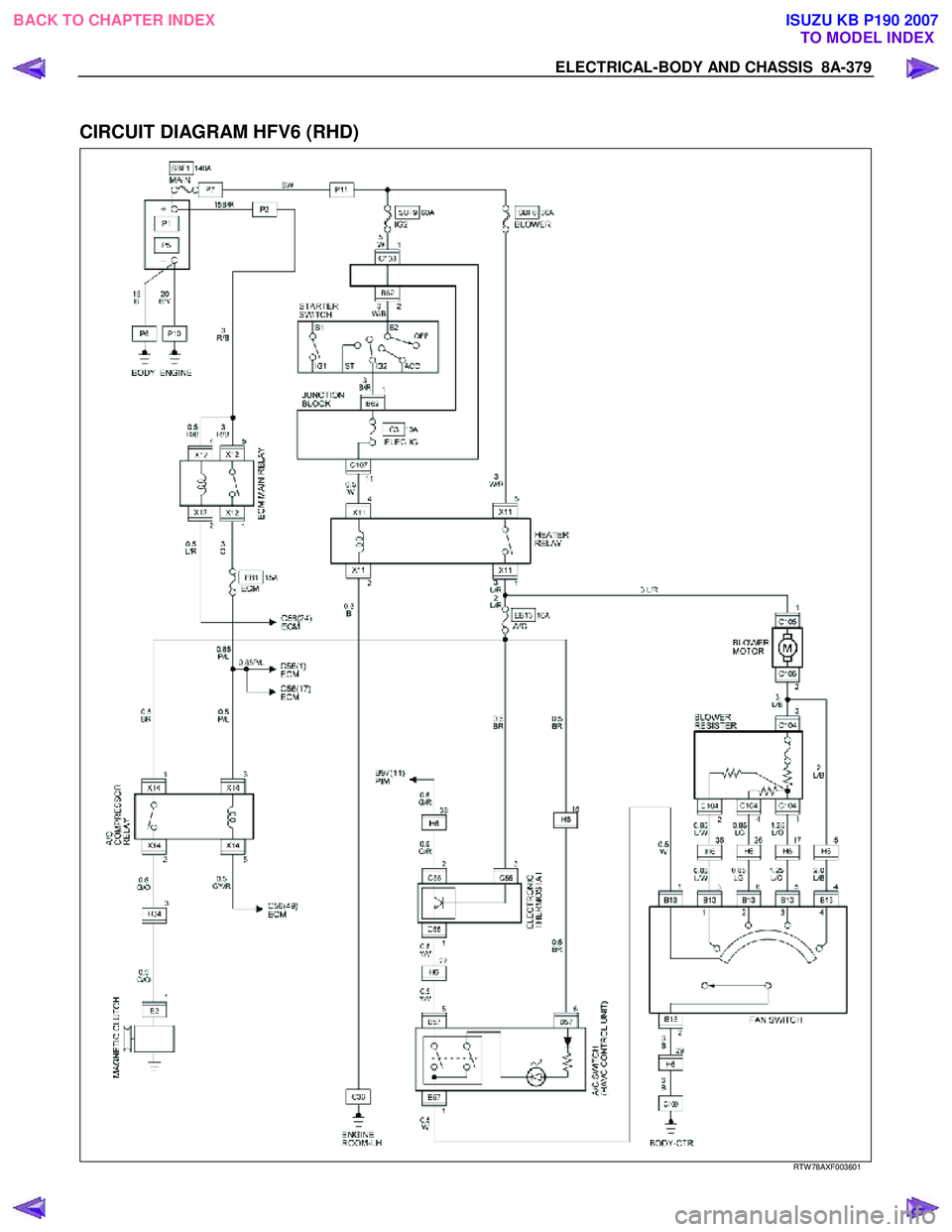

CIRCUIT DIAGRAM HFV6 (RHD)


RTW 78AXF003601

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-380 ELECTRICAL-BODY AND CHASSIS

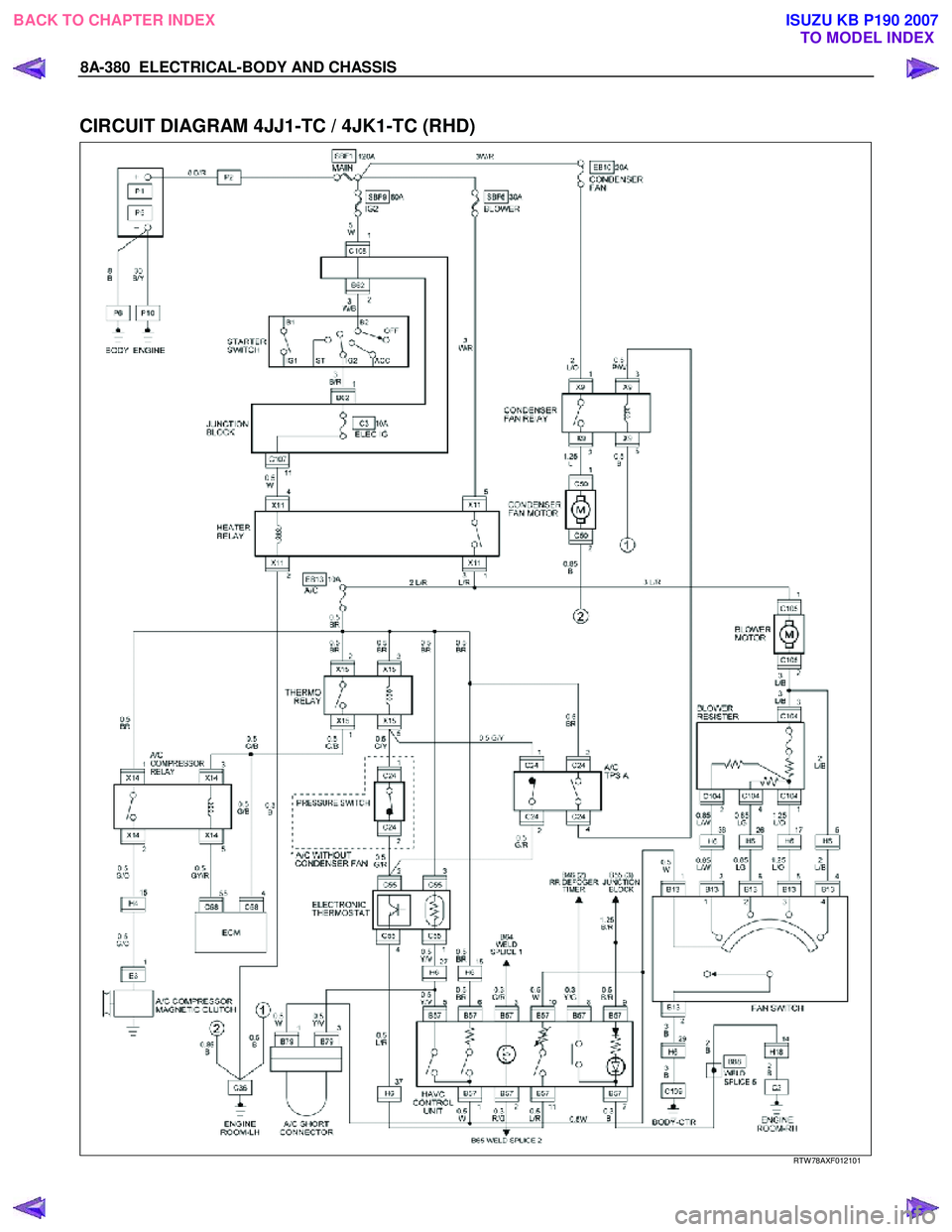

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD)


RTW 78AXF012101


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-381

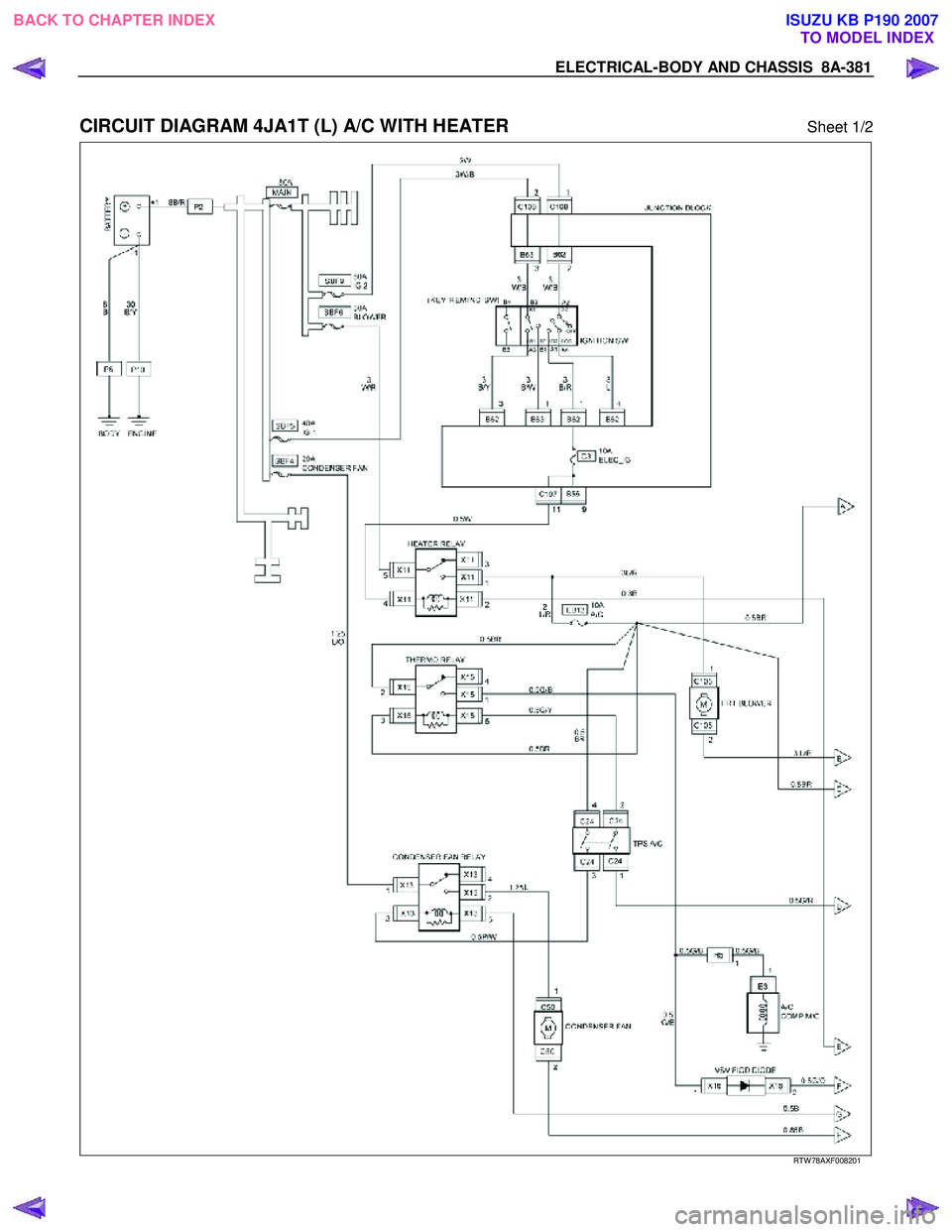

CIRCUIT DIAGRAM 4JA1T (L) A/C WITH HEATER Sheet 1/2


RTW 78AXF008201

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-382 ELECTRICAL-BODY AND CHASSIS

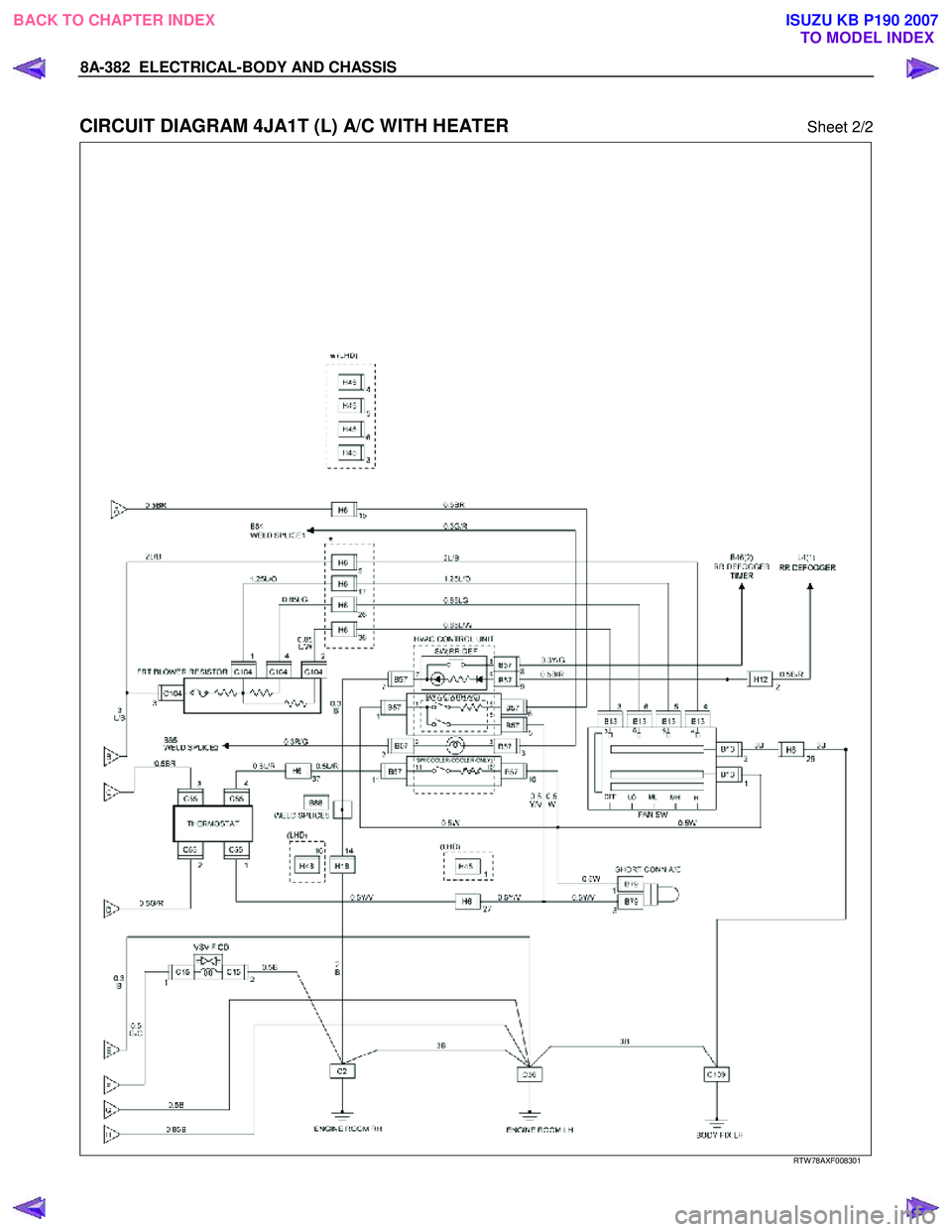

CIRCUIT DIAGRAM 4JA1T (L) A/C WITH HEATER Sheet 2/2












RTW 78AXF008301

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-383

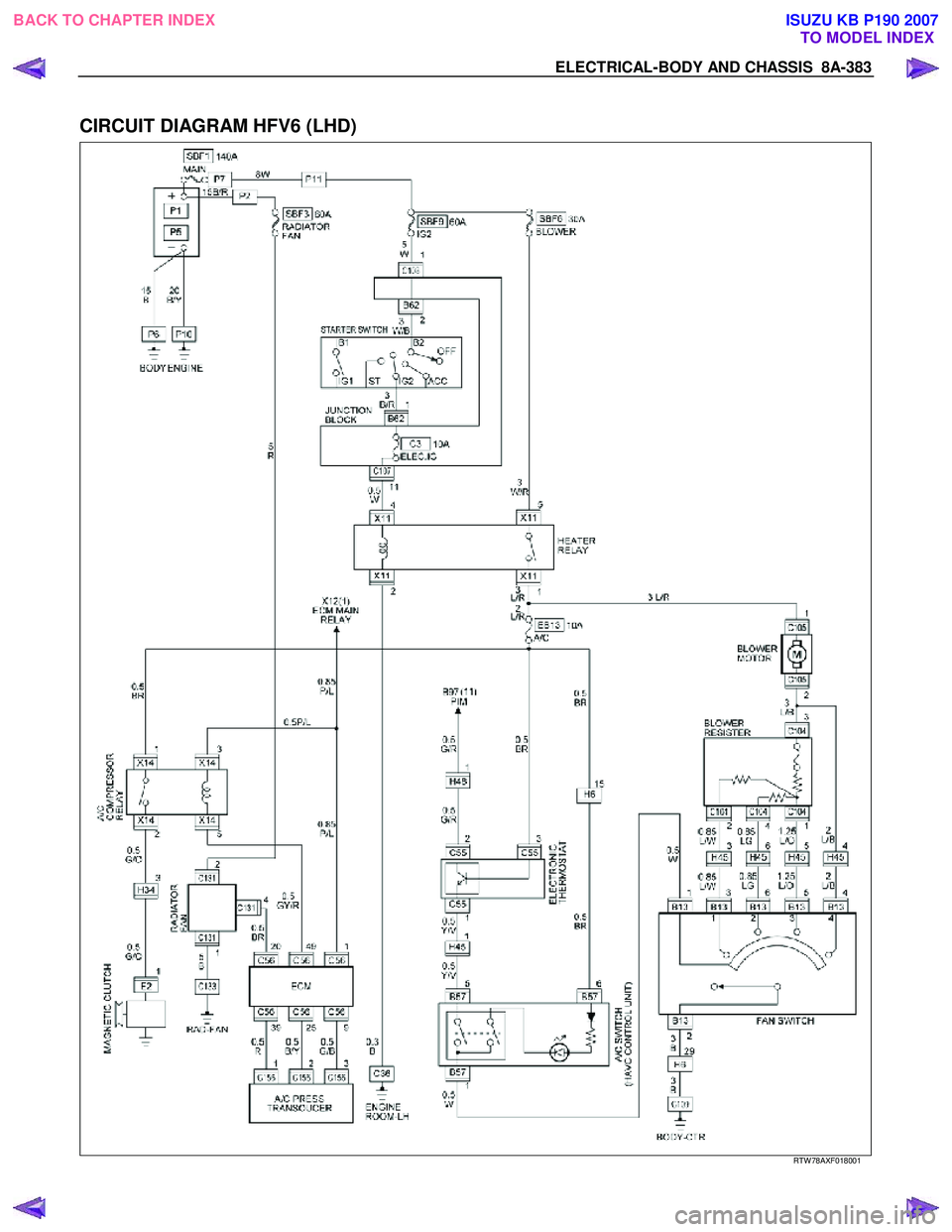

CIRCUIT DIAGRAM HFV6 (LHD)


RTW 78AXF018001

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-384 ELECTRICAL-BODY AND CHASSIS

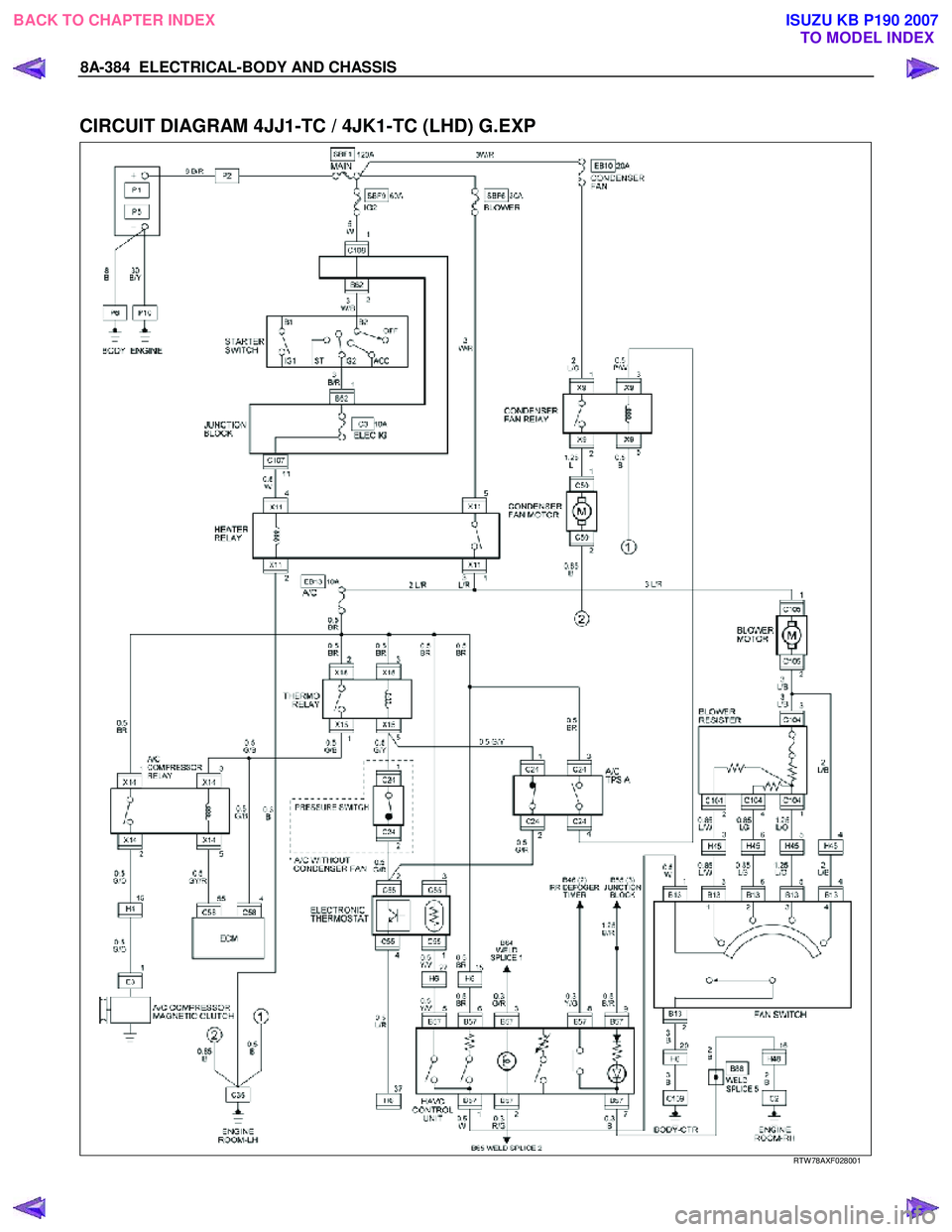

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD) G.EXP

RTW 78AXF028001


BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-385

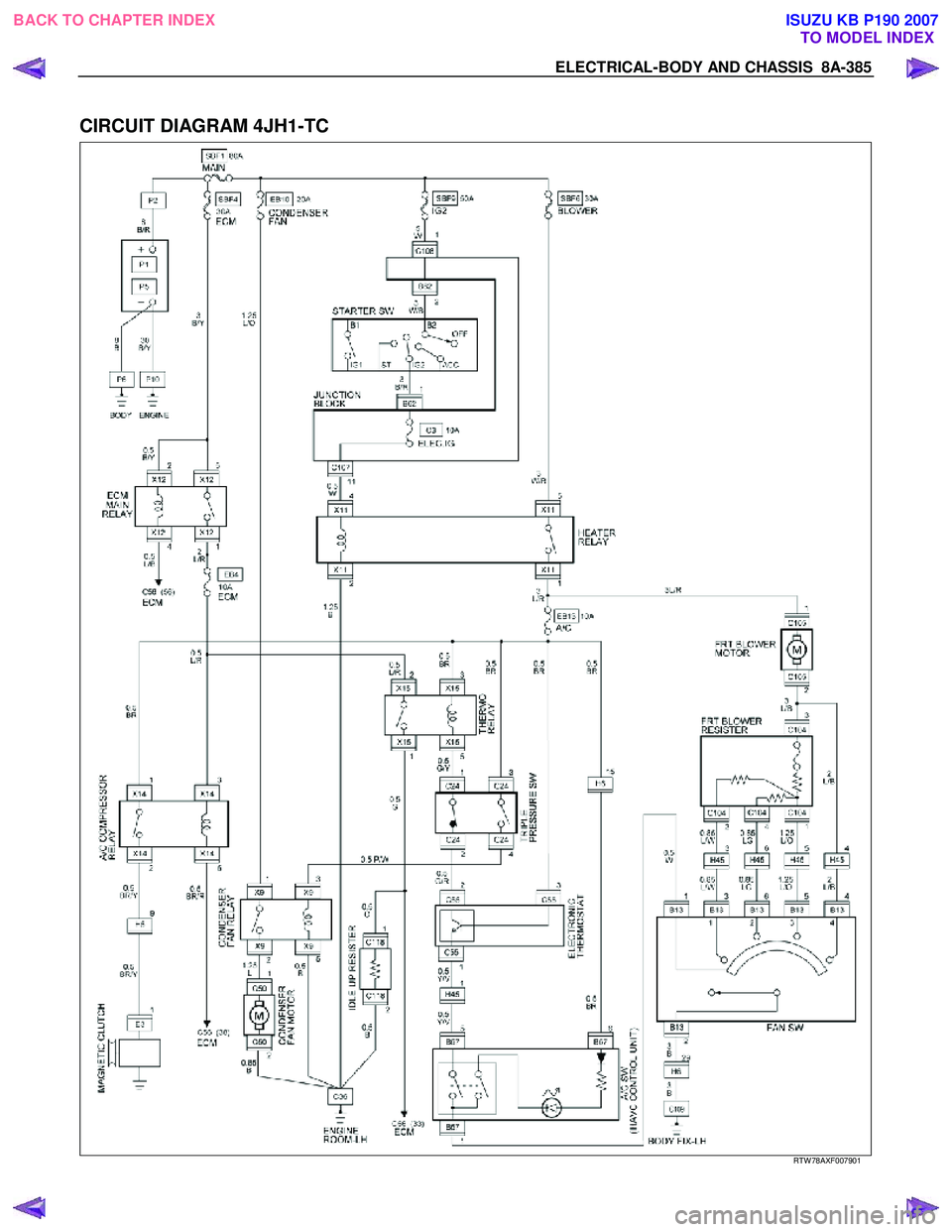

CIRCUIT DIAGRAM 4JH1-TC


RTW 78AXF007901

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
