8A-312 ELECTRICAL-BODY AND CHASSIS

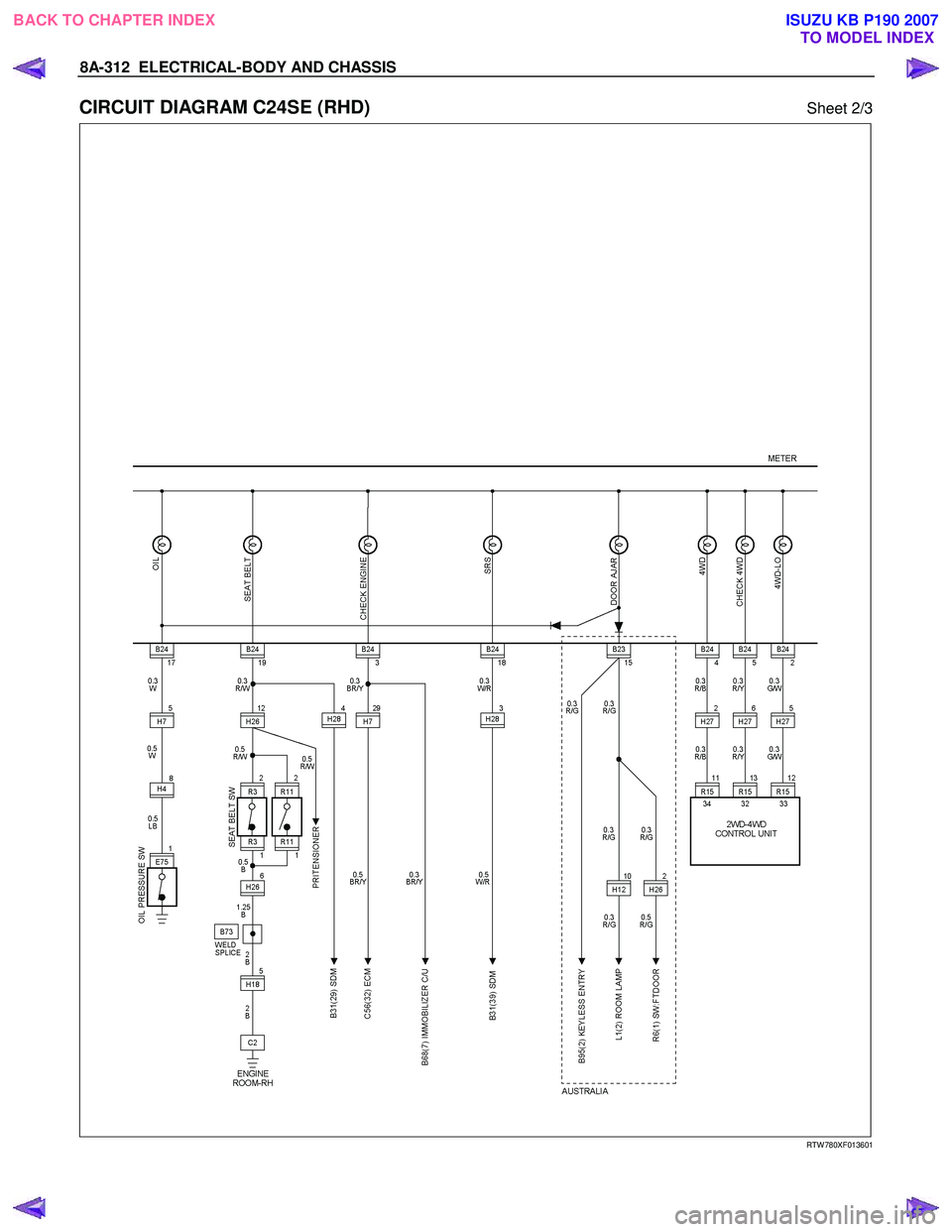

CIRCUIT DIAGRAM C24SE (RHD) Sheet 2/3
RTW 780XF013601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5251 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-313
CIRCUIT DIAGRAM C24SE (RHD) Sheet 3/3
RTW 780XF015101
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5252 of 6020
8A-314 ELECTRICAL-BODY AND CHASSIS

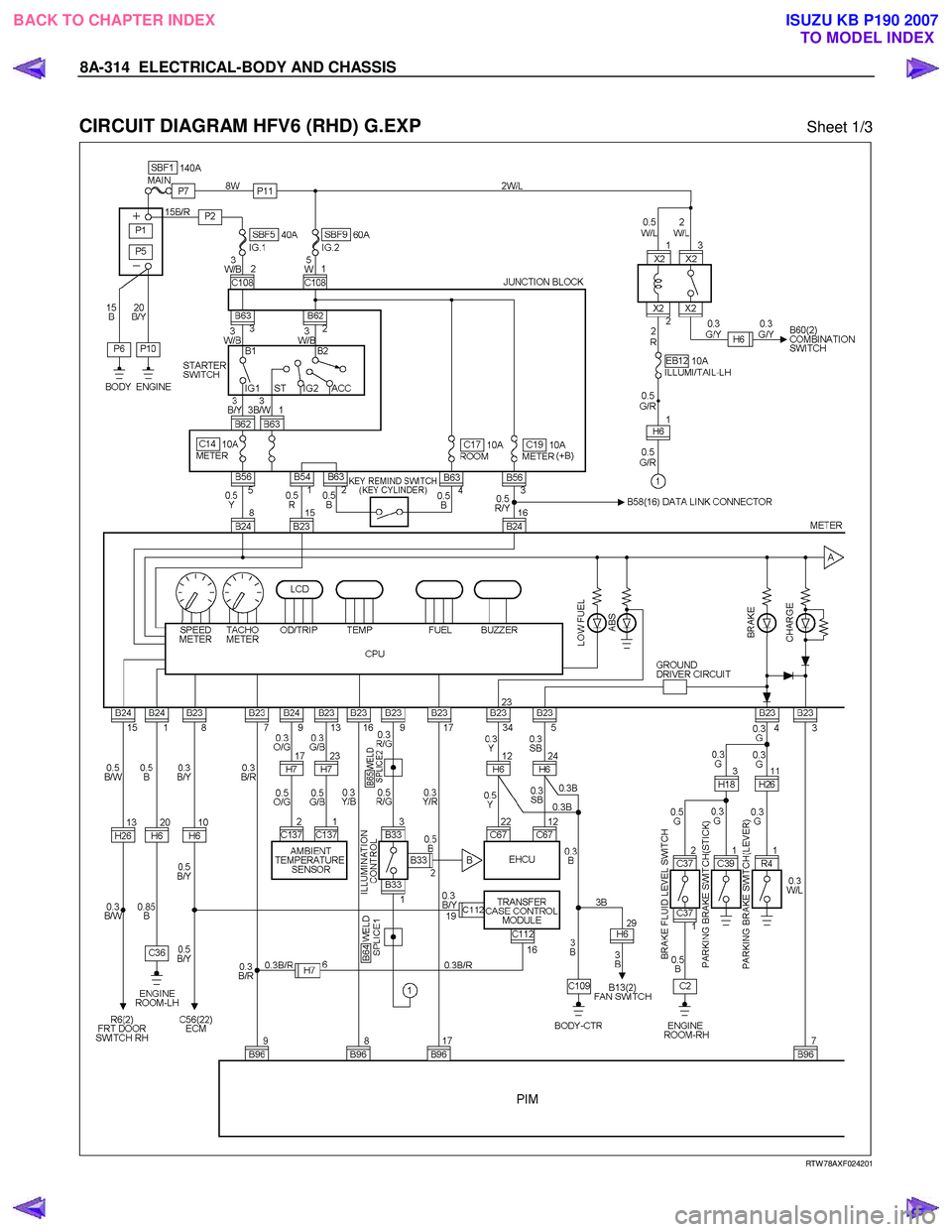

CIRCUIT DIAGRAM HFV6 (RHD) G.EXP Sheet 1/3
RTW 78AXF024201
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5253 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-315

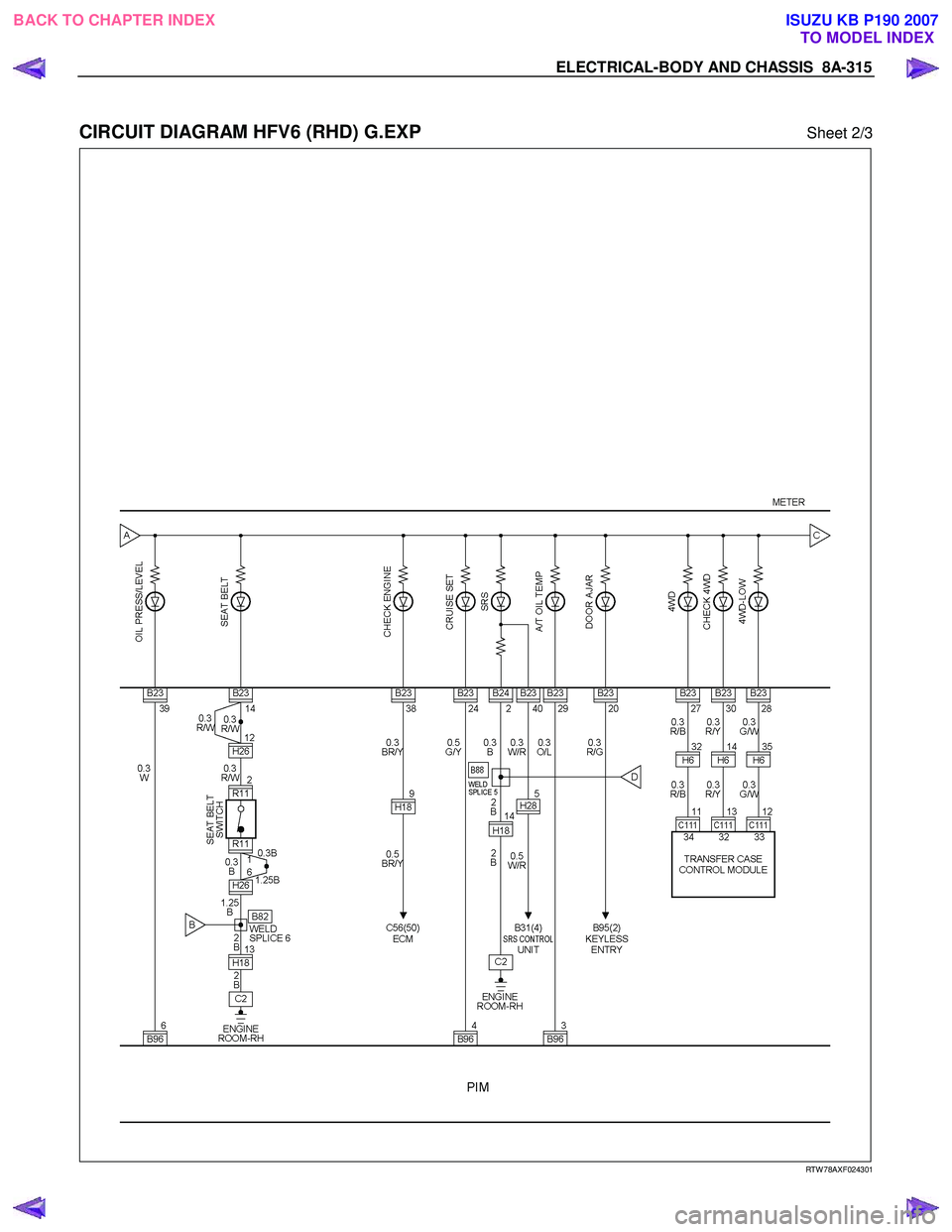

CIRCUIT DIAGRAM HFV6 (RHD) G.EXP
Sheet 2/3
RTW 78AXF024301
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5254 of 6020
8A-316 ELECTRICAL-BODY AND CHASSIS

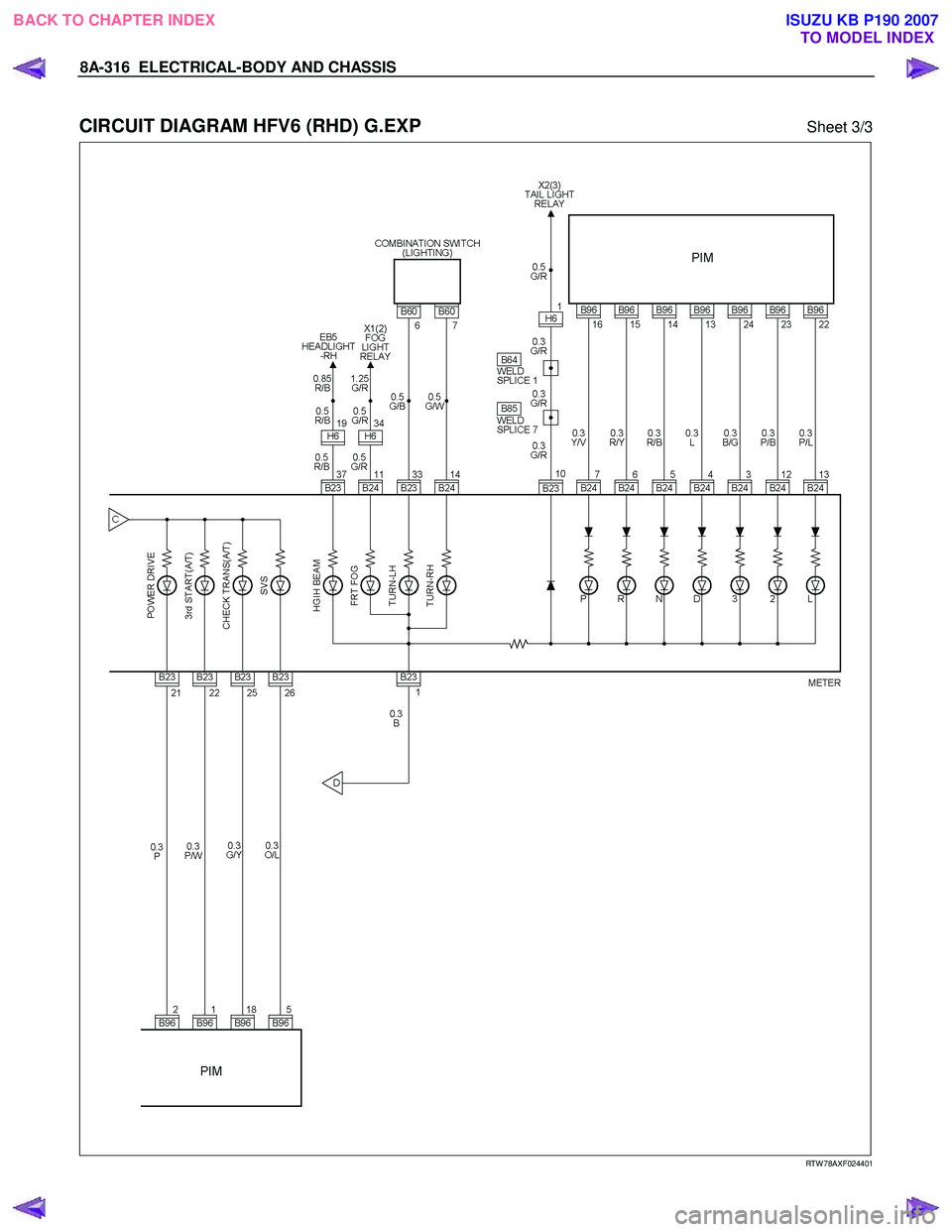

CIRCUIT DIAGRAM HFV6 (RHD) G.EXP Sheet 3/3
RTW 78AXF024401
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5255 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-317

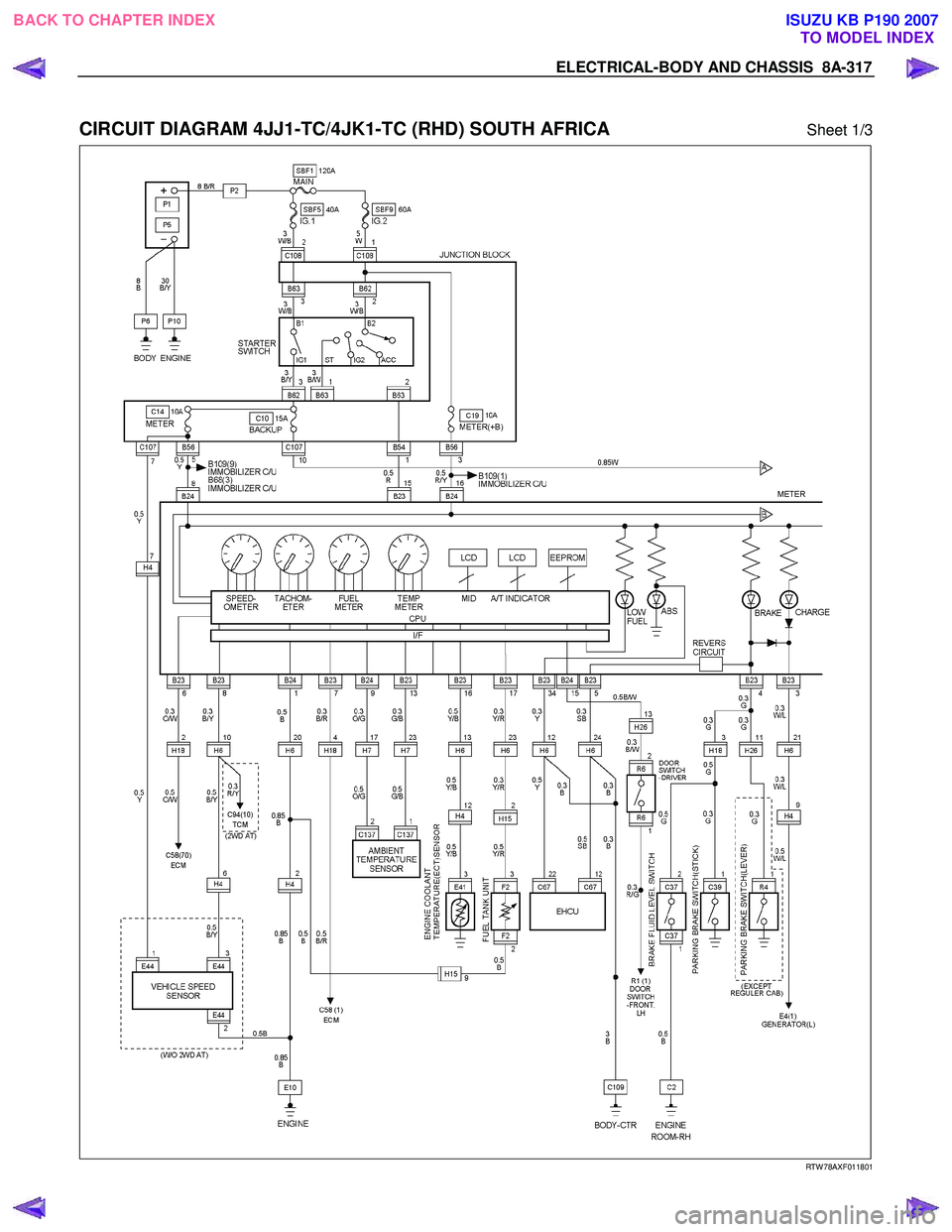

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 1/3
RTW 78AXF011801
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5256 of 6020
8A-318 ELECTRICAL-BODY AND CHASSIS

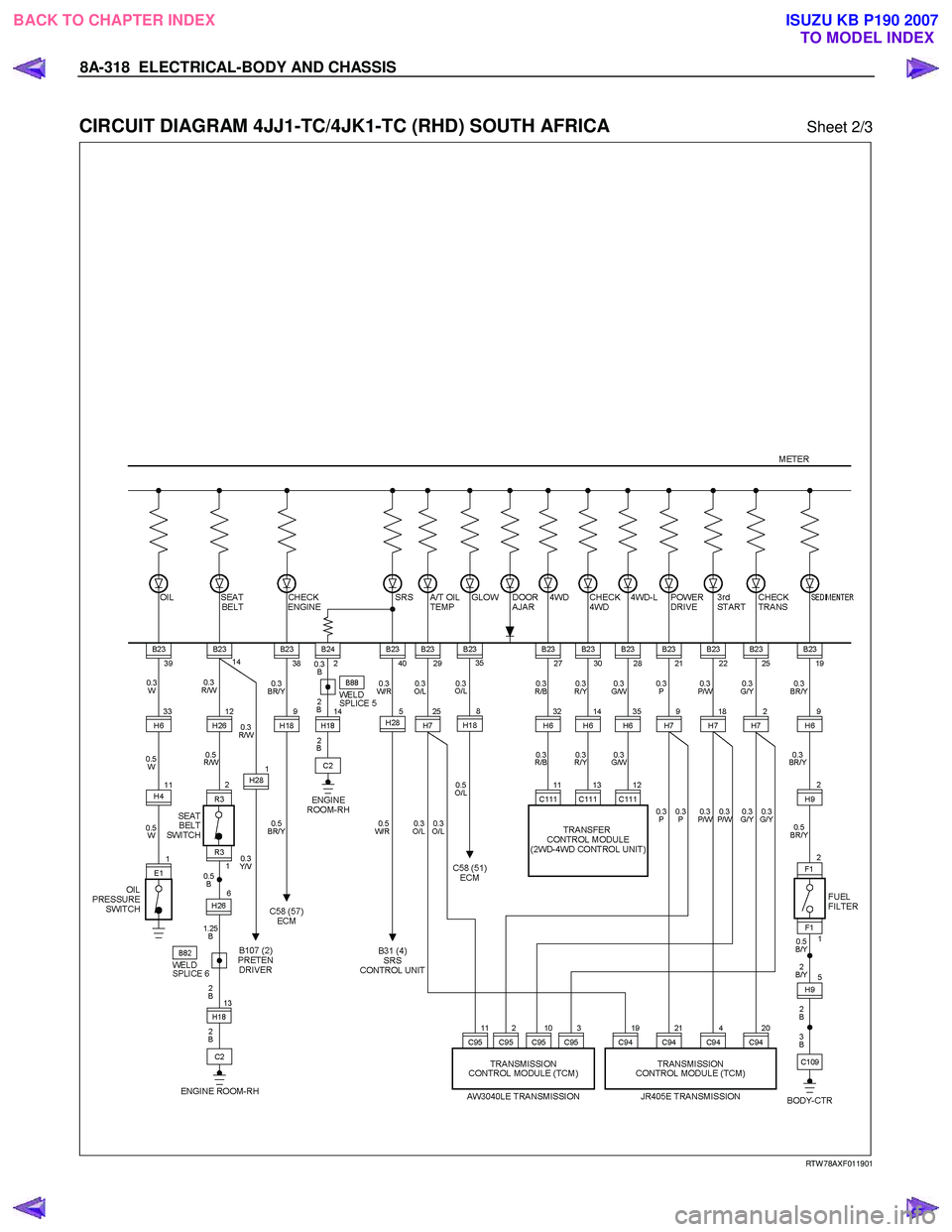

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 2/3
RTW 78AXF011901
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5257 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-319

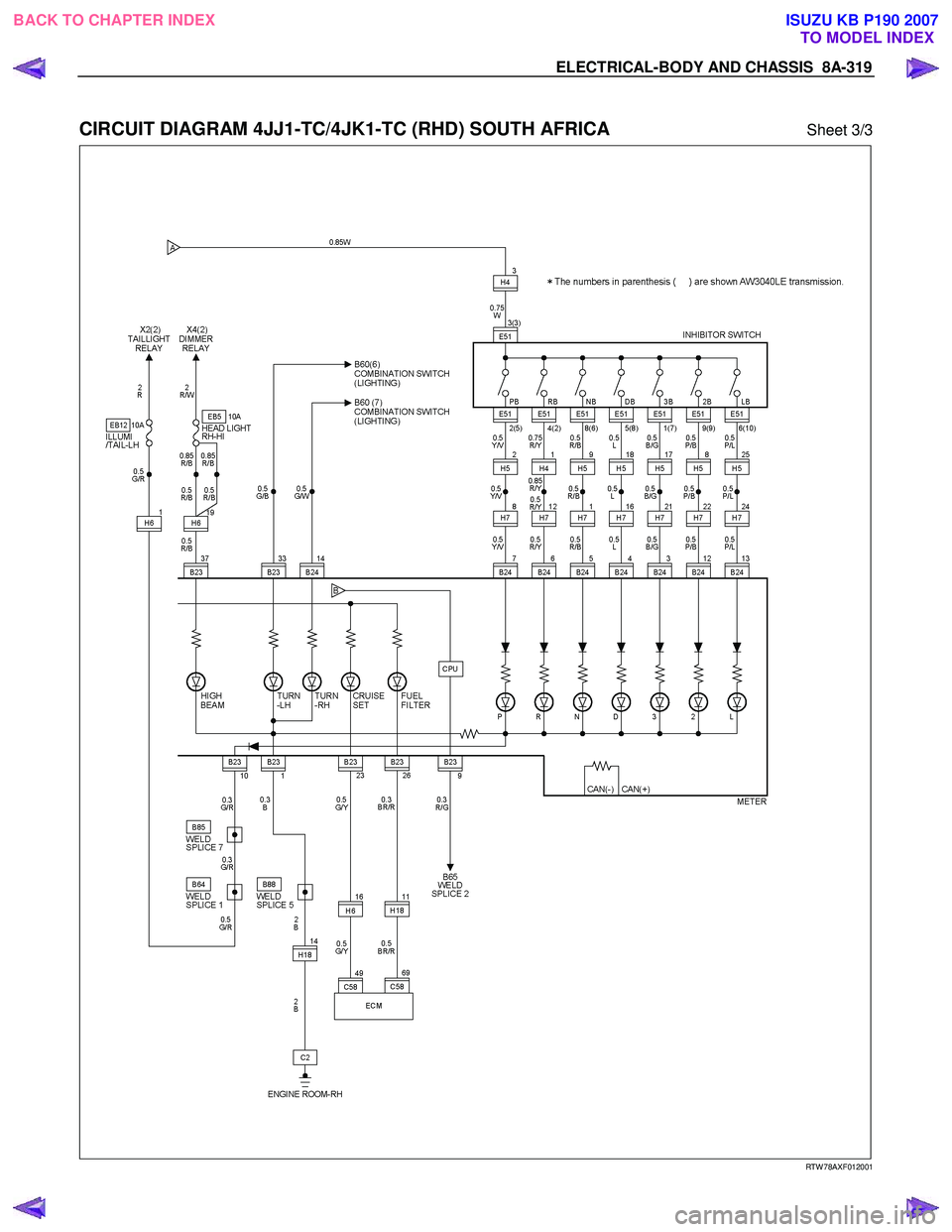

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 3/3
RTW 78AXF012001
