2007 ISUZU KB P190 CIRCUIT DIAGRAM

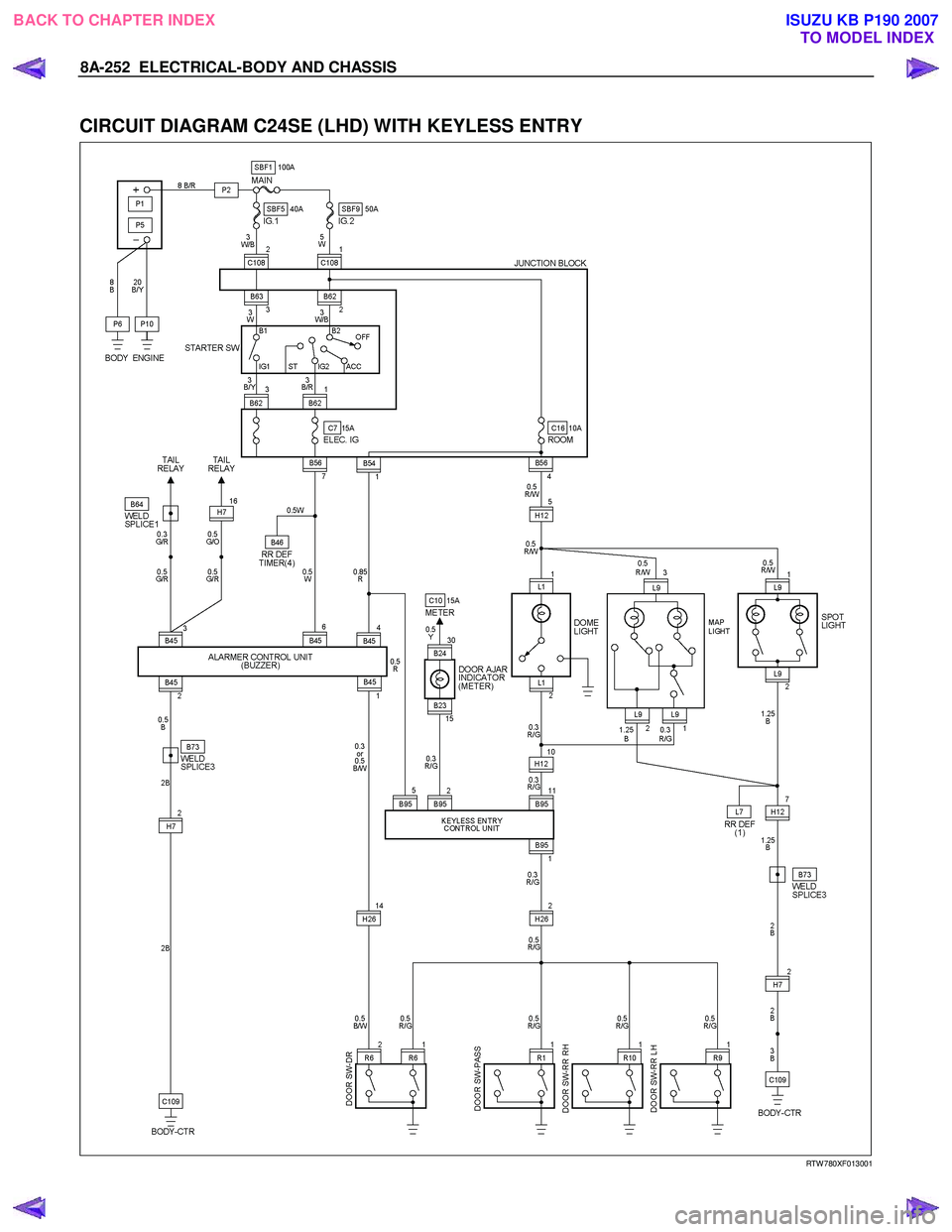

8A-252 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE (LHD) WITH KEYLESS ENTRY


RTW 780XF013001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

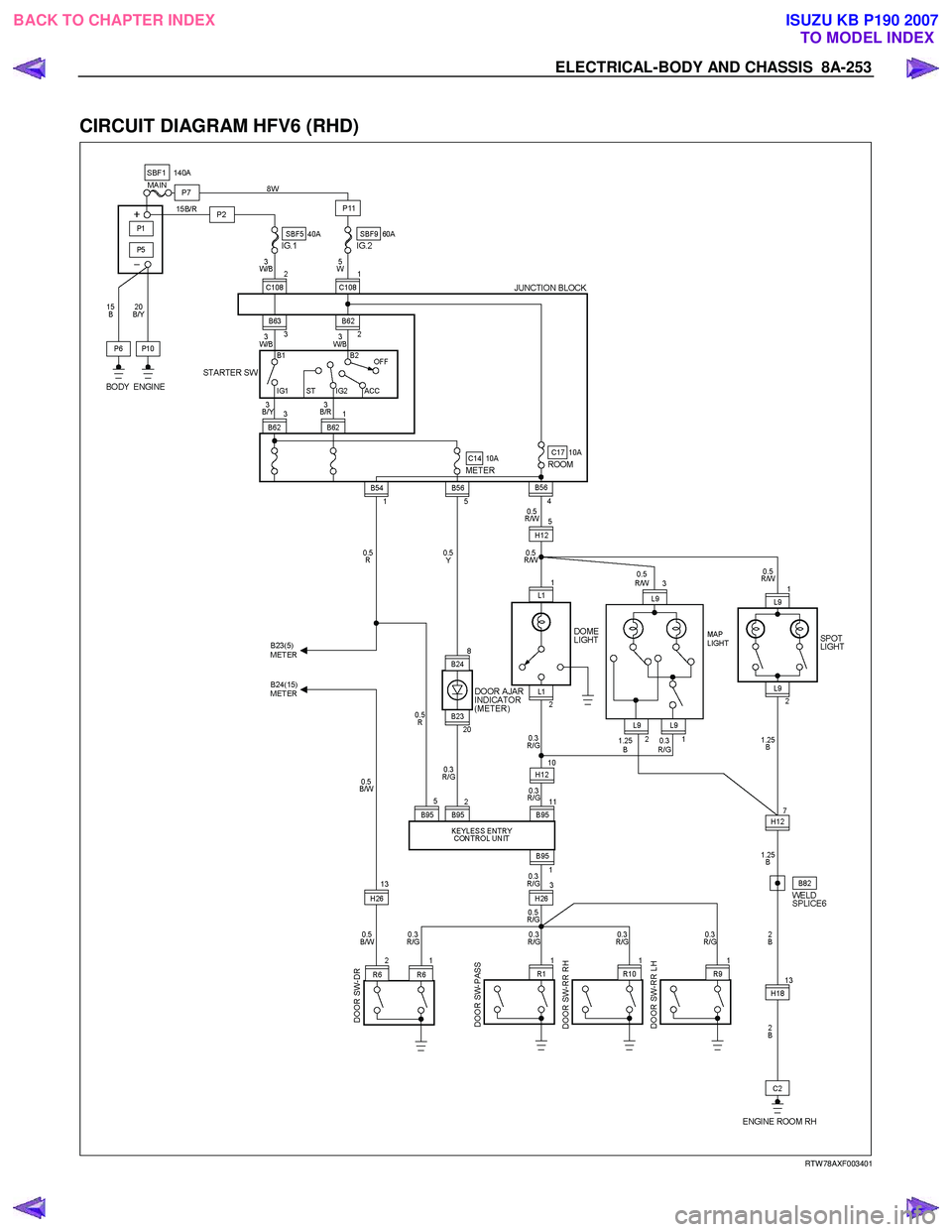

ELECTRICAL-BODY AND CHASSIS 8A-253

CIRCUIT DIAGRAM HFV6 (RHD)


RTW 78AXF003401

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

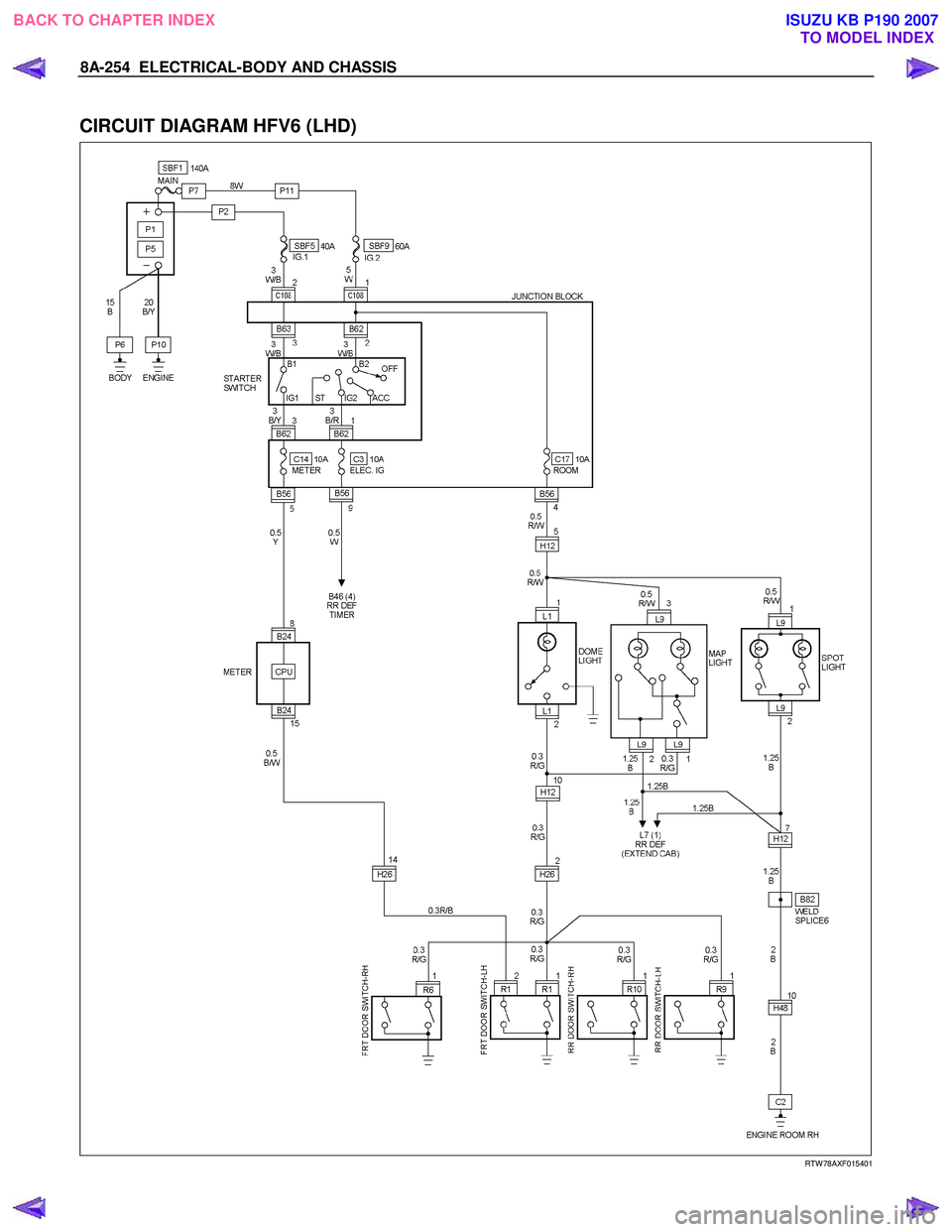

8A-254 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6 (LHD)


RTW 78AXF015401


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

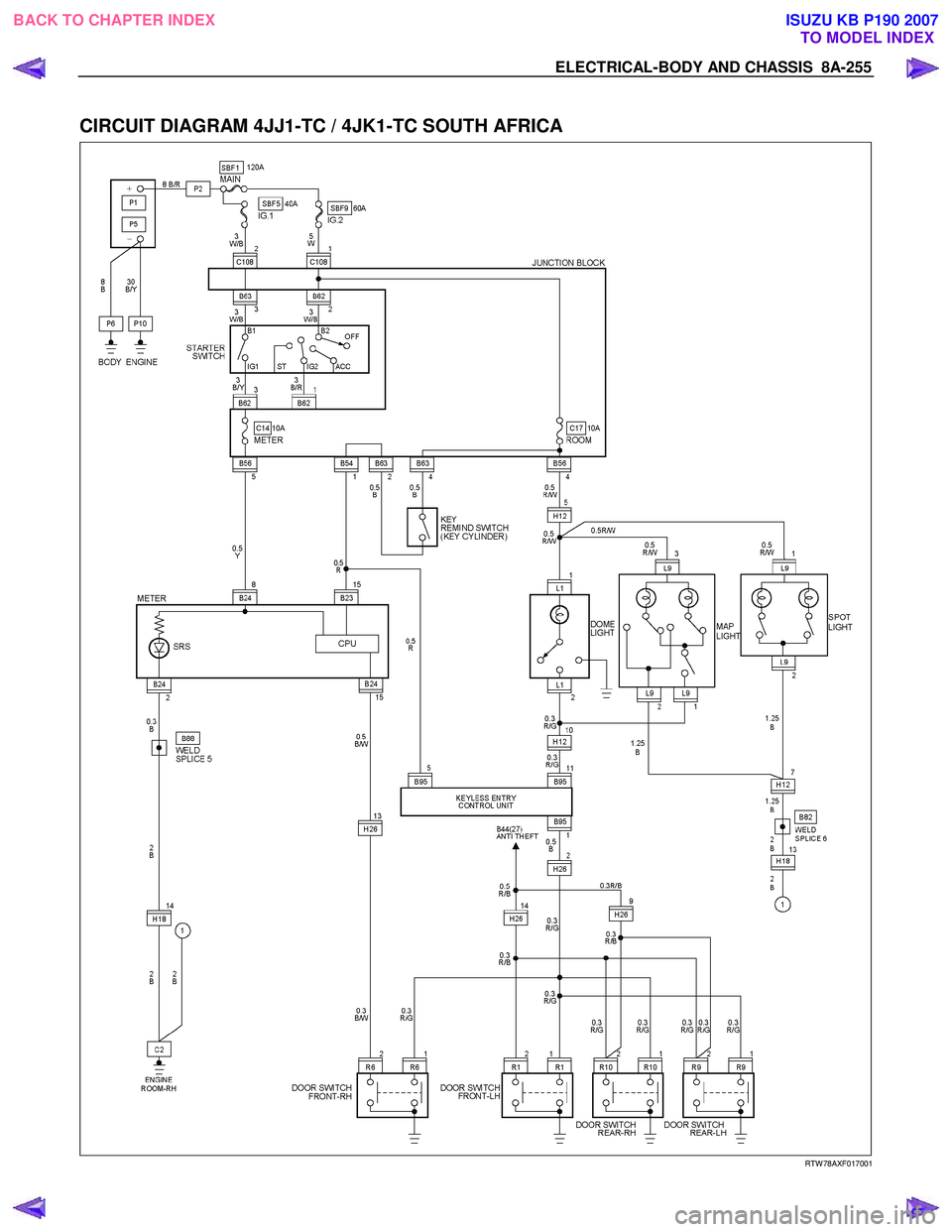

ELECTRICAL-BODY AND CHASSIS 8A-255

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC SOUTH AFRICA


RTW 78AXF017001


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

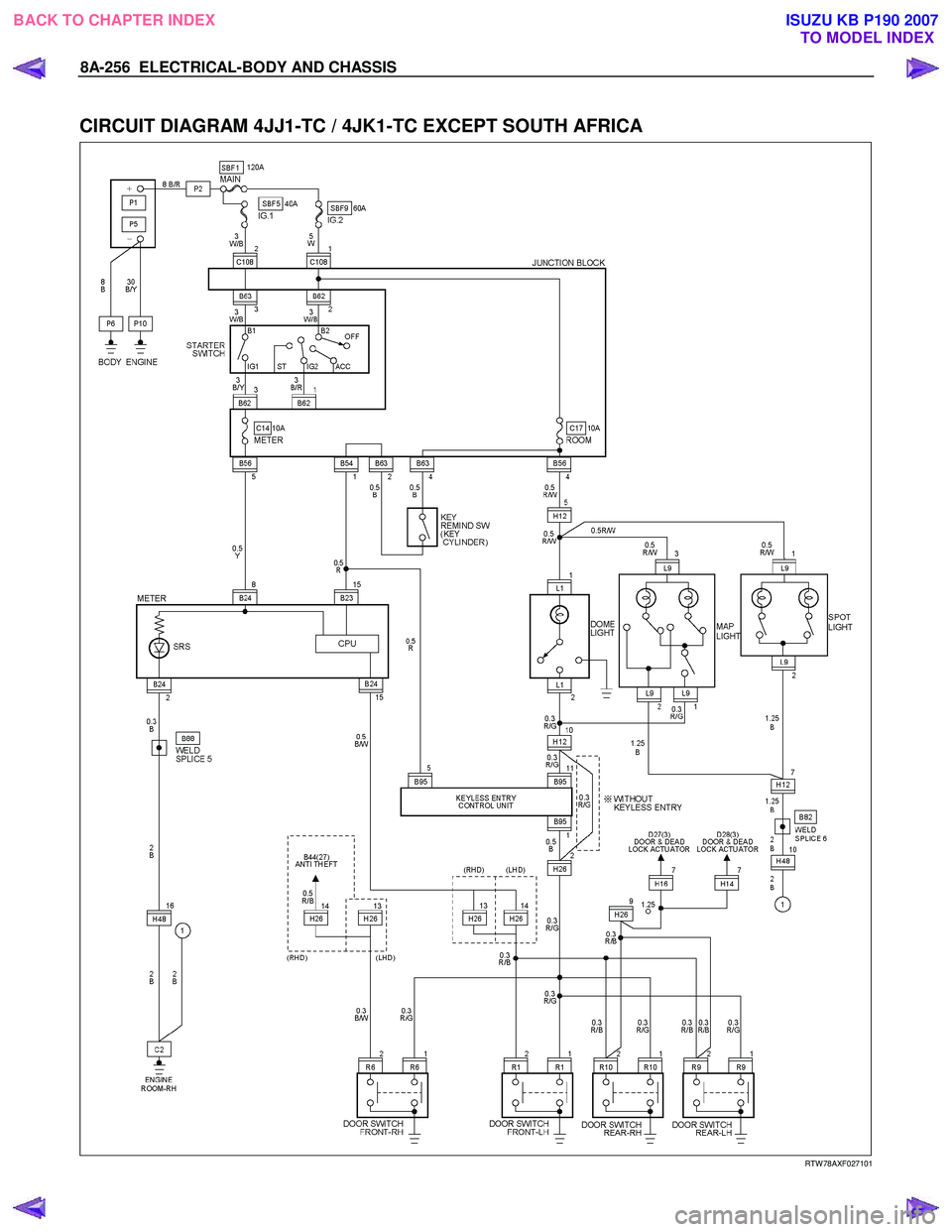

8A-256 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC EXCEPT SOUTH AFRICA


RTW 78AXF027101


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

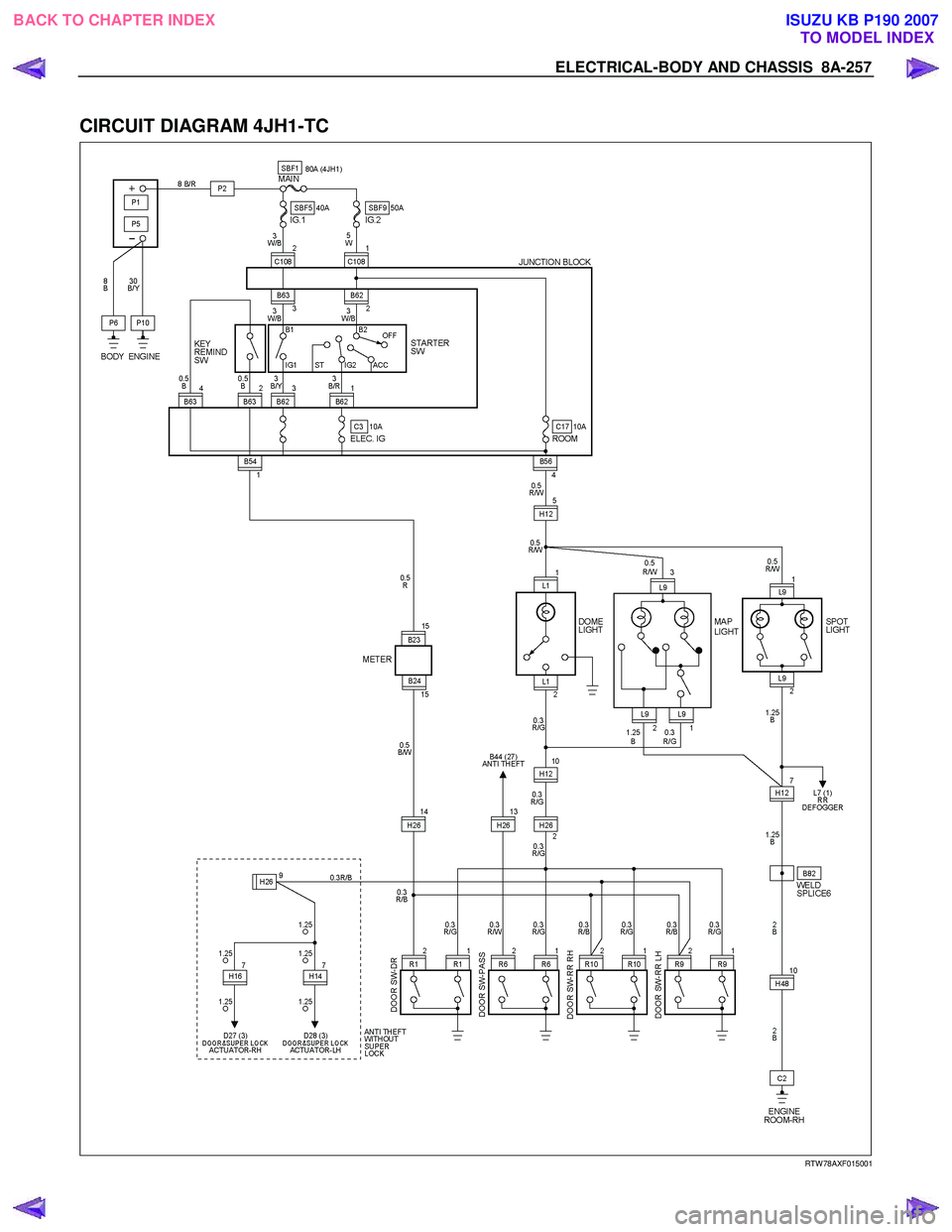

ELECTRICAL-BODY AND CHASSIS 8A-257

CIRCUIT DIAGRAM 4JH1-TC


RTW 78AXF015001


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

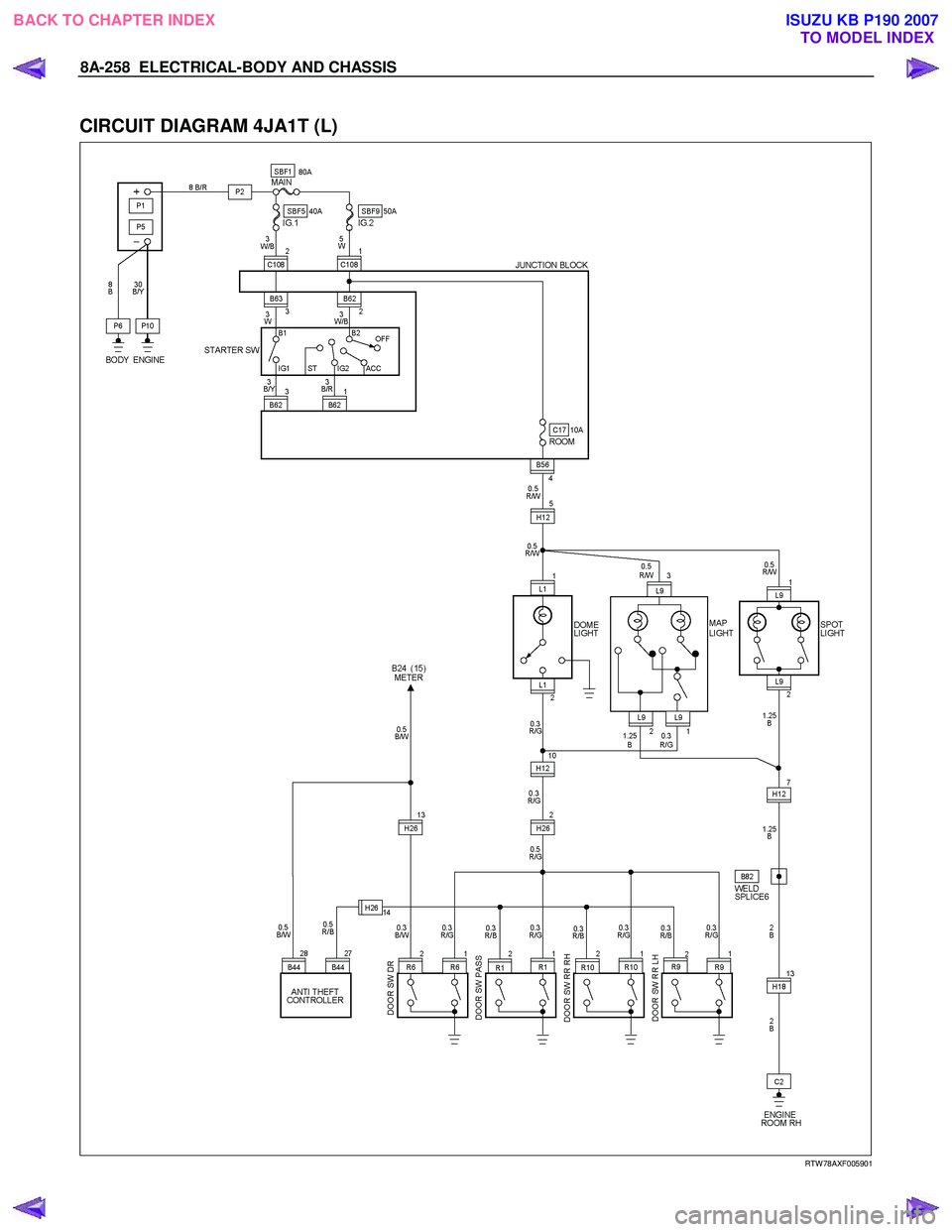

8A-258 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T (L)


RTW 78AXF005901

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-266 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE (RHD) WITHOUT INTERMITTENT RELAY


RTW 780XF013101

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
