2007 ISUZU KB P190 CIRCUIT DIAGRAM

ELECTRICAL-BODY AND CHASSIS 8A-185

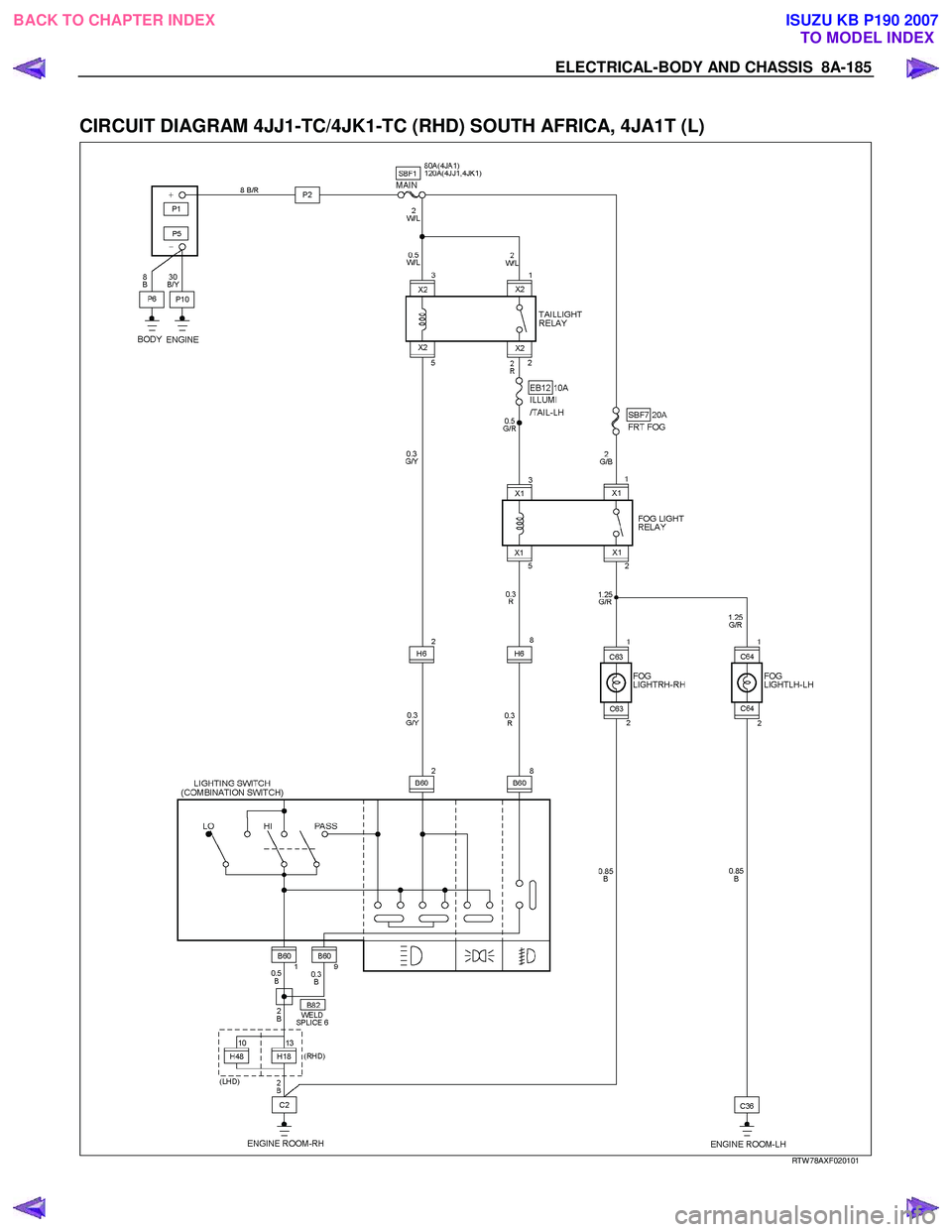

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA, 4JA1T (L)

RTW 78AXF020101

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-186 ELECTRICAL-BODY AND CHASSIS

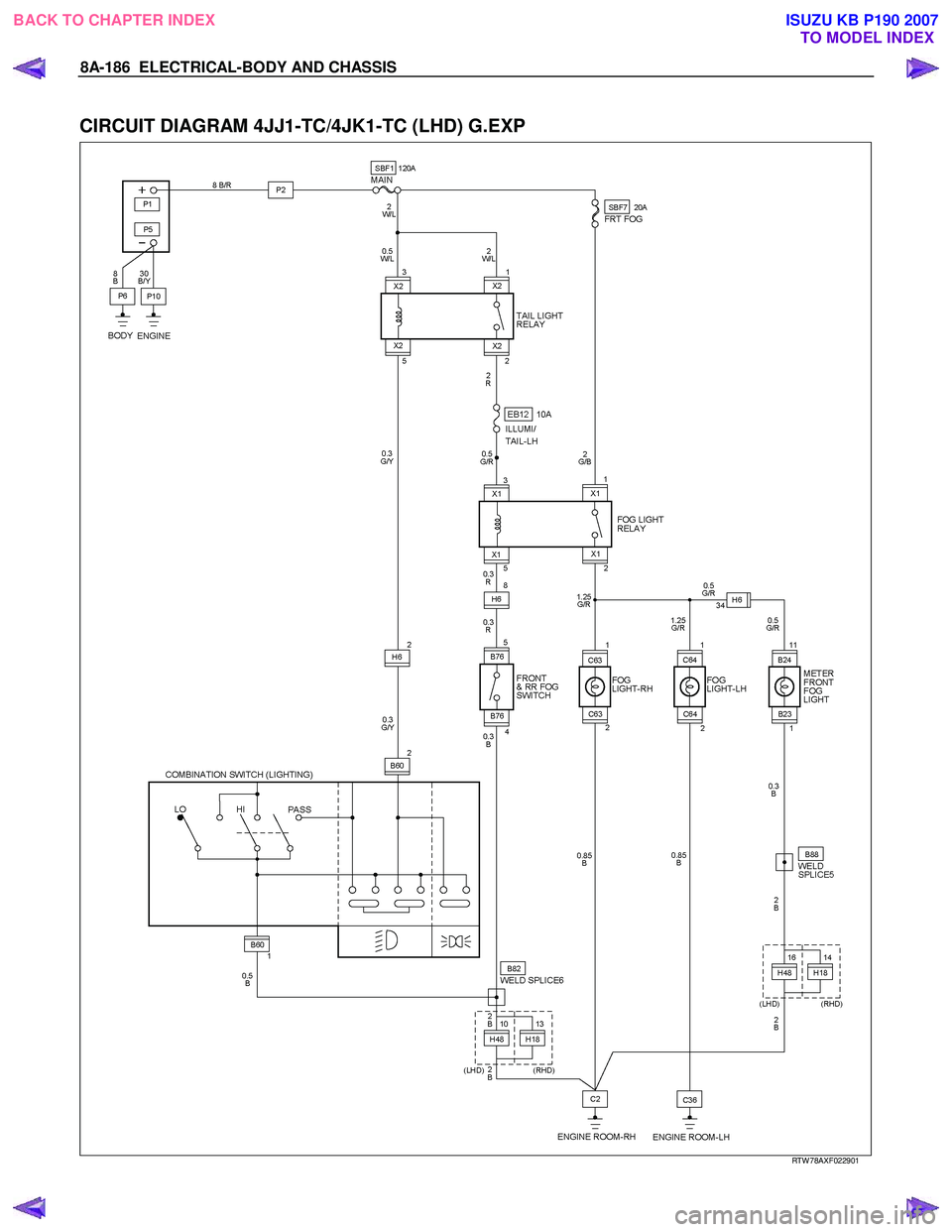

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP


RTW 78AXF022901


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-192 ELECTRICAL-BODY AND CHASSIS

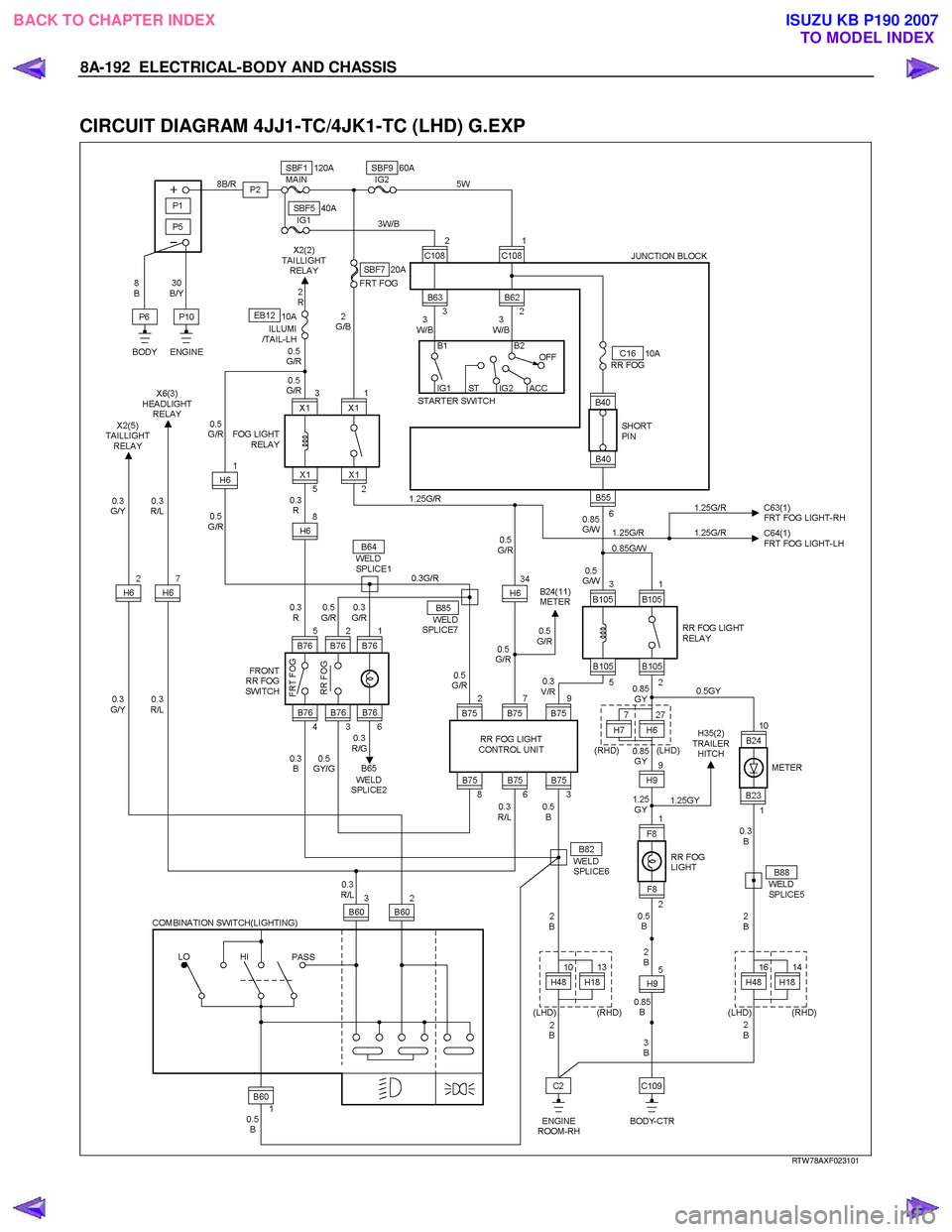

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP


RTW 78AXF023101


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-196 ELECTRICAL-BODY AND CHASSIS

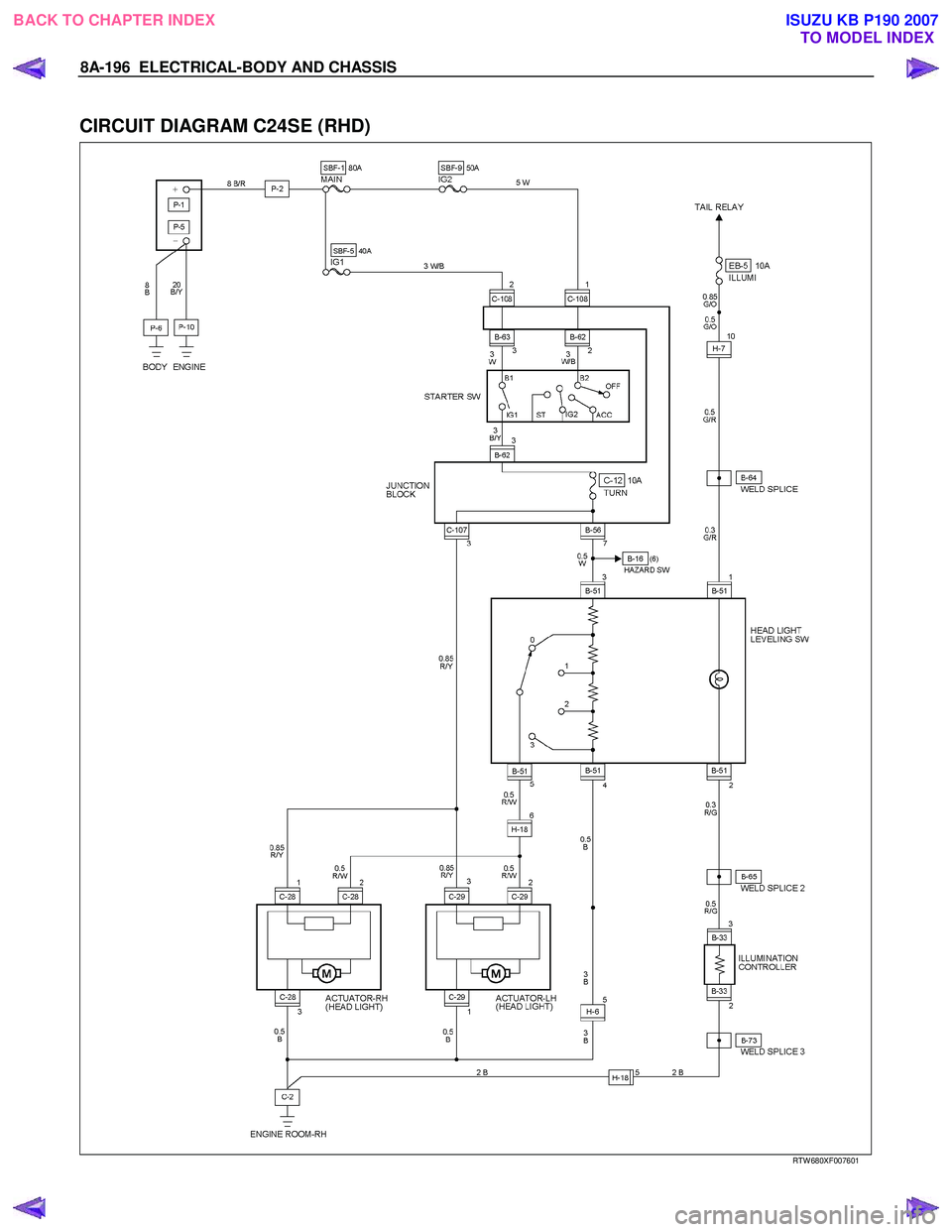

CIRCUIT DIAGRAM C24SE (RHD)


RTW 680XF007601

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-197

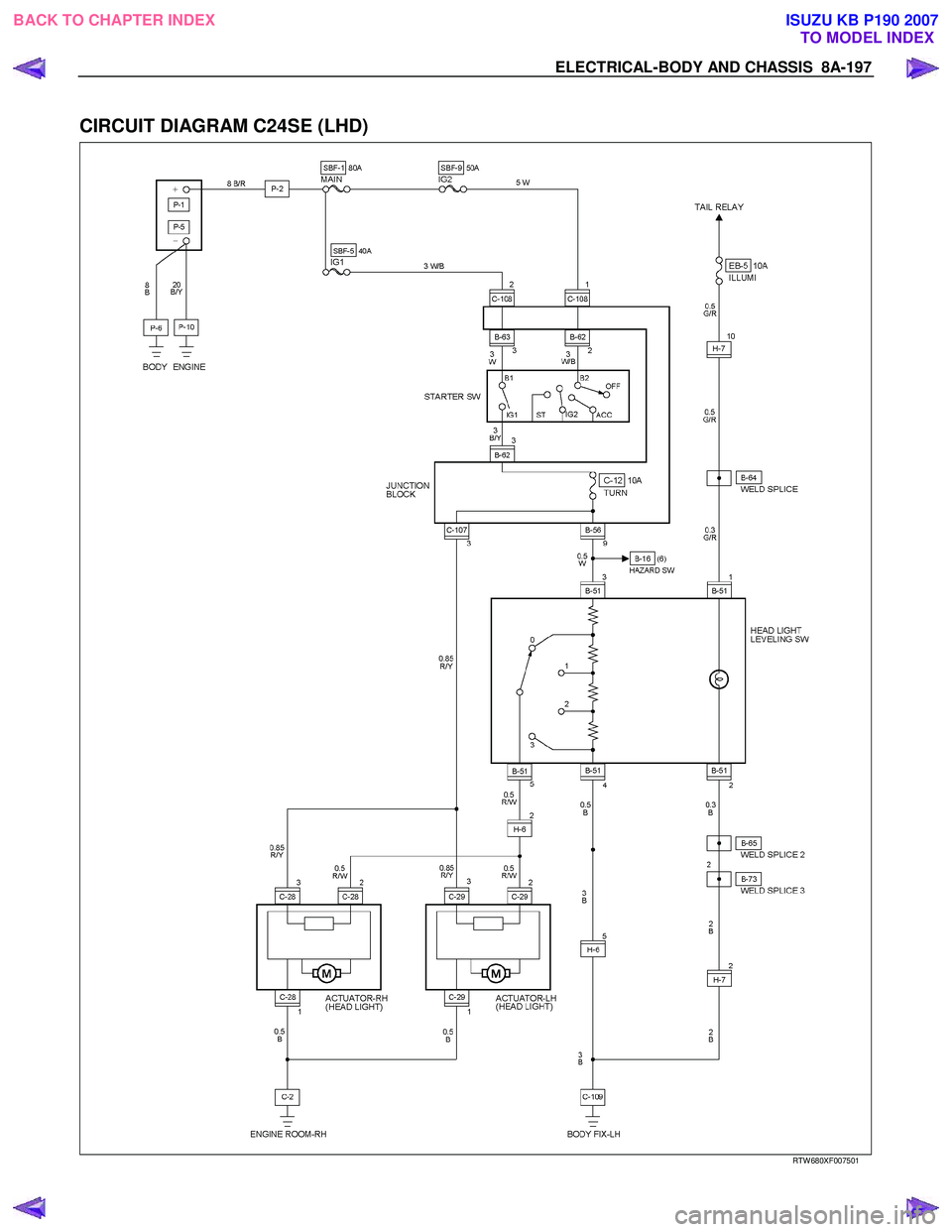

CIRCUIT DIAGRAM C24SE (LHD)


RTW 680XF007501

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-198 ELECTRICAL-BODY AND CHASSIS

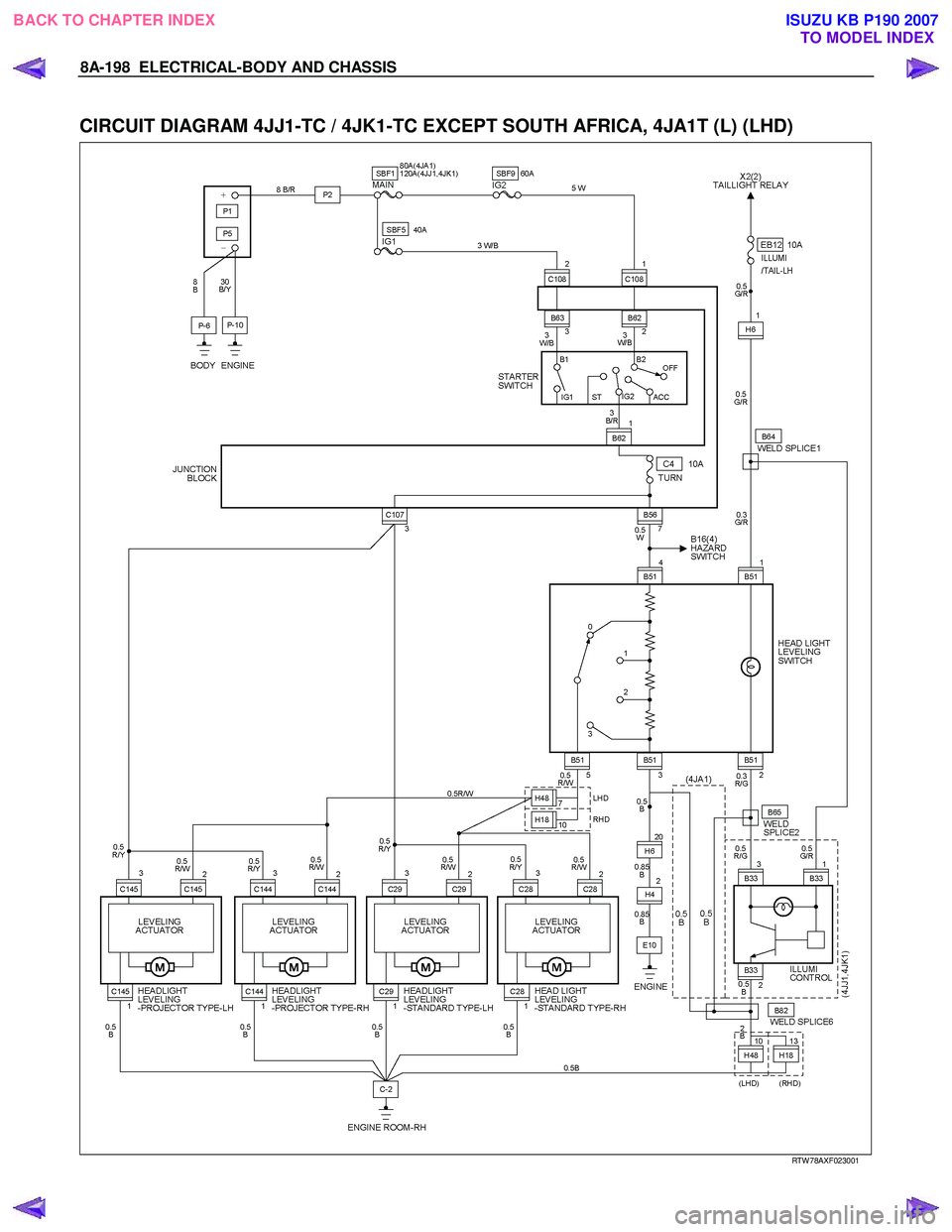

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC EXCEPT SOUTH AFRICA, 4JA1T (L) (LHD)



RTW 78AXF023001


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-202 ELECTRICAL-BODY AND CHASSIS

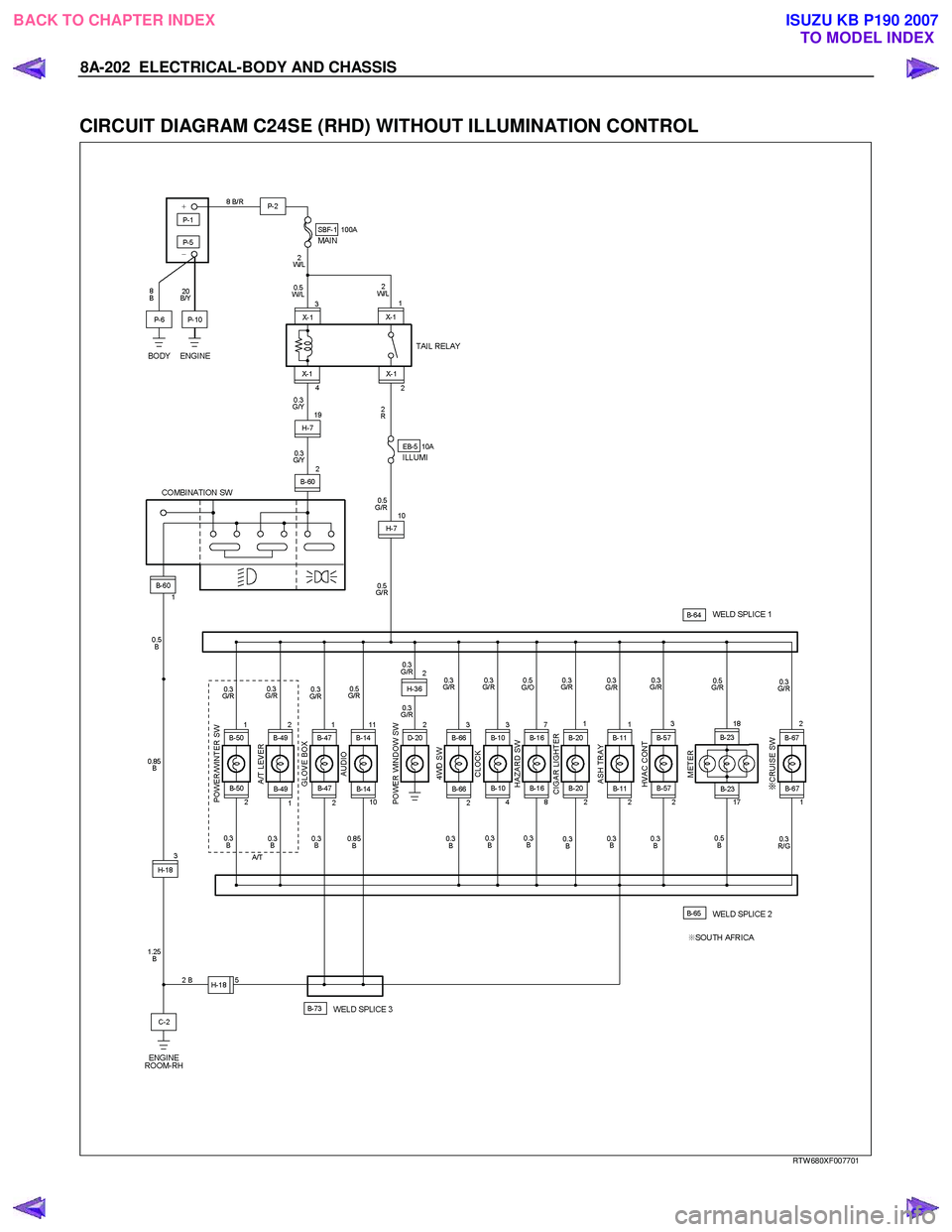

CIRCUIT DIAGRAM C24SE (RHD) WITHOUT ILLUMINATION CONTROL





RTW 680XF007701

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-203

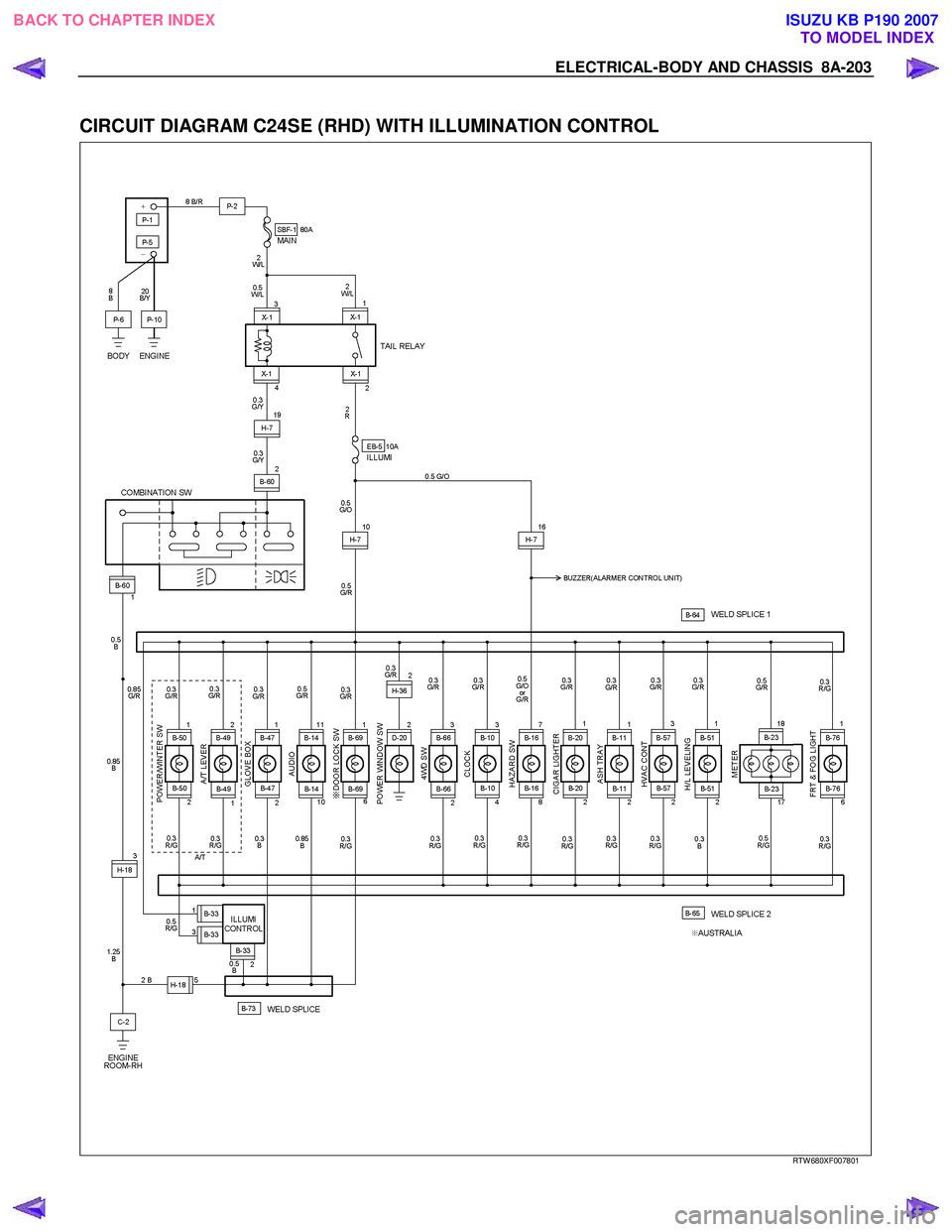

CIRCUIT DIAGRAM C24SE (RHD) WITH ILLUMINATION CONTROL







RTW 680XF007801


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
