2007 ISUZU KB P190 CIRCUIT DIAGRAM

ELECTRICAL-BODY AND CHASSIS 8A-155

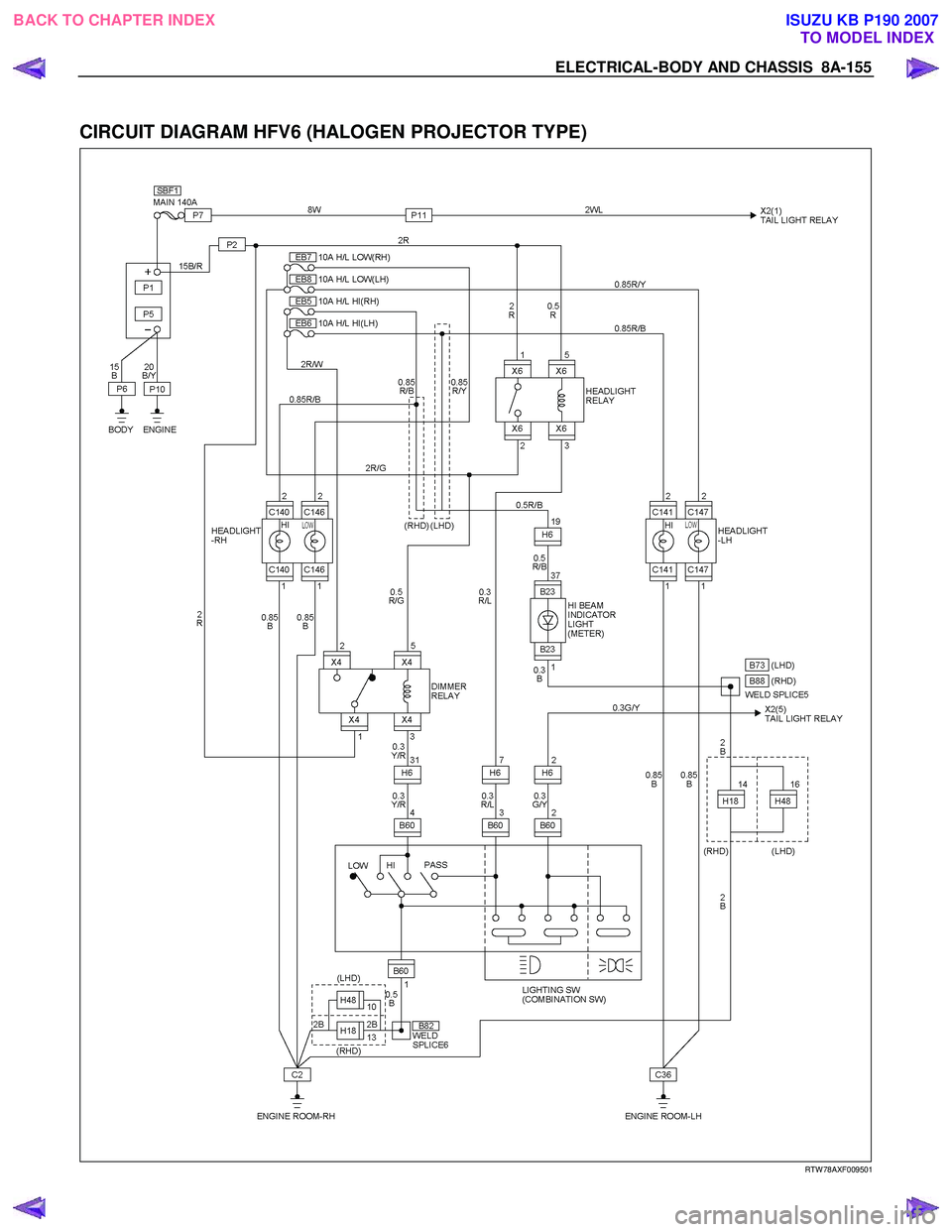

CIRCUIT DIAGRAM HFV6 (HALOGEN PROJECTOR TYPE)





RTW 78AXF009501


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-156 ELECTRICAL-BODY AND CHASSIS

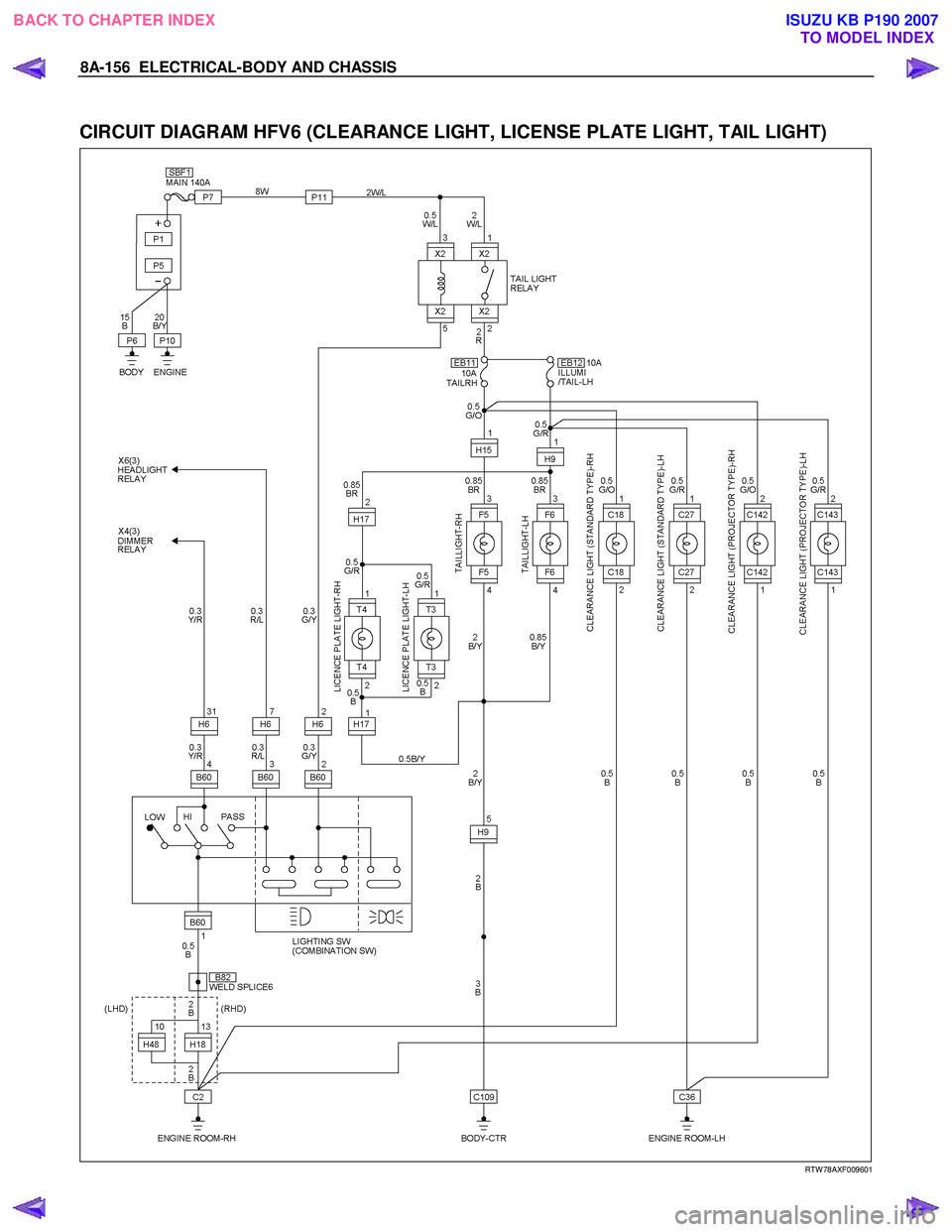

CIRCUIT DIAGRAM HFV6 (CLEARANCE LIGHT, LICENSE PLATE LIGHT, TAIL LIGHT)


RTW 78AXF009601


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-157

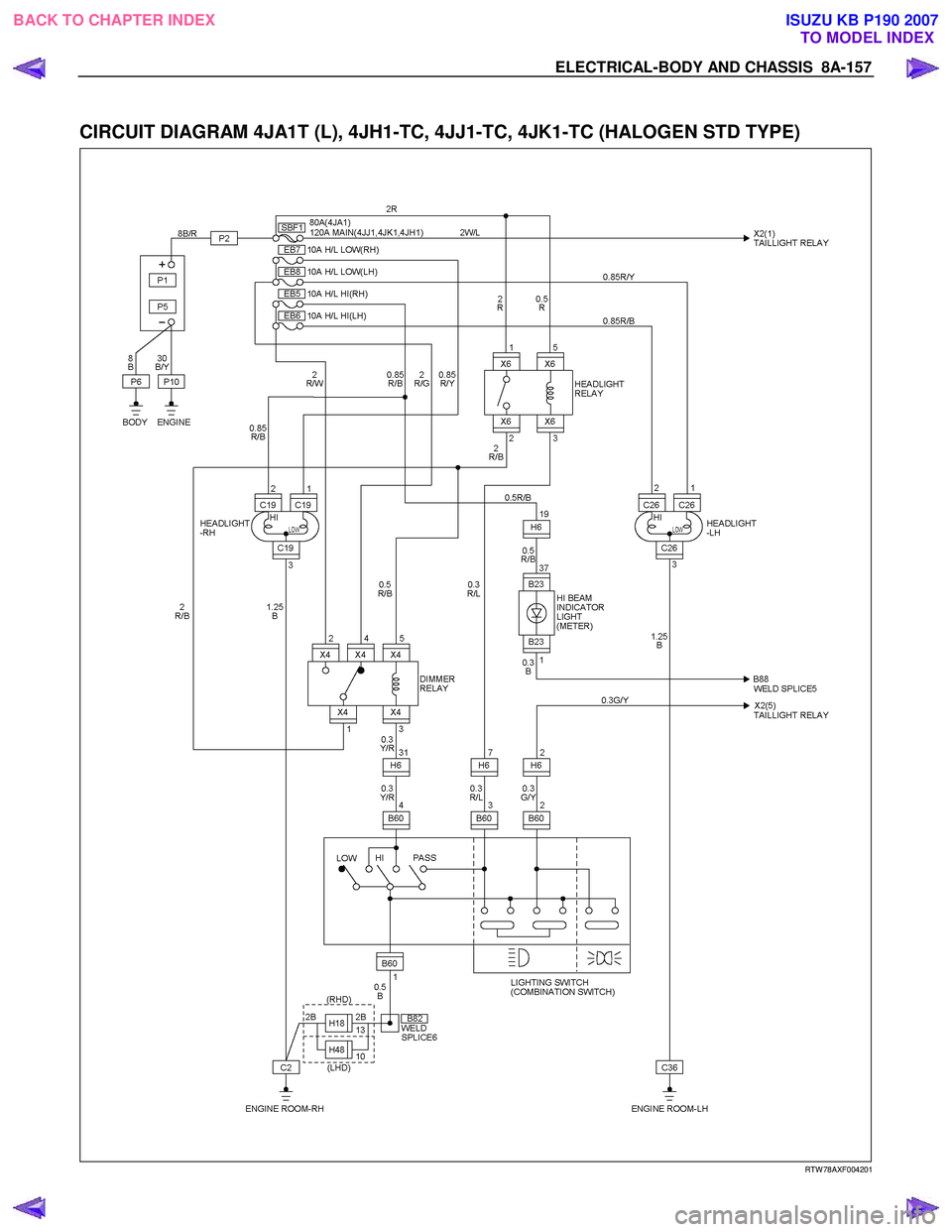

CIRCUIT DIAGRAM 4JA1T (L), 4JH1-TC, 4JJ1-TC, 4JK1-TC (HALOGEN STD TYPE)






RTW 78AXF004201


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-158 ELECTRICAL-BODY AND CHASSIS

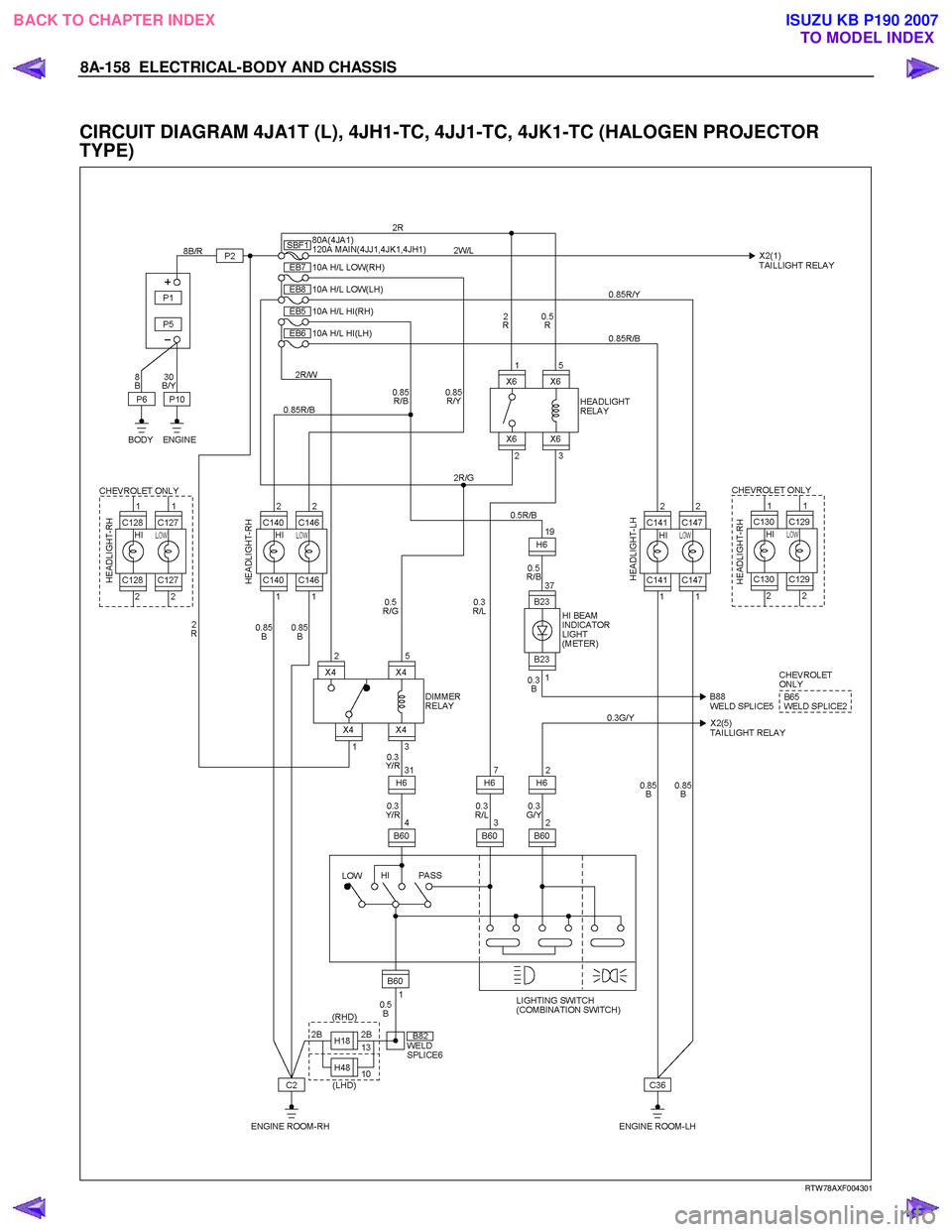

CIRCUIT DIAGRAM 4JA1T (L), 4JH1-TC, 4JJ1-TC, 4JK1-TC (HALOGEN PROJECTOR
TYPE)






RTW 78AXF004301

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-159

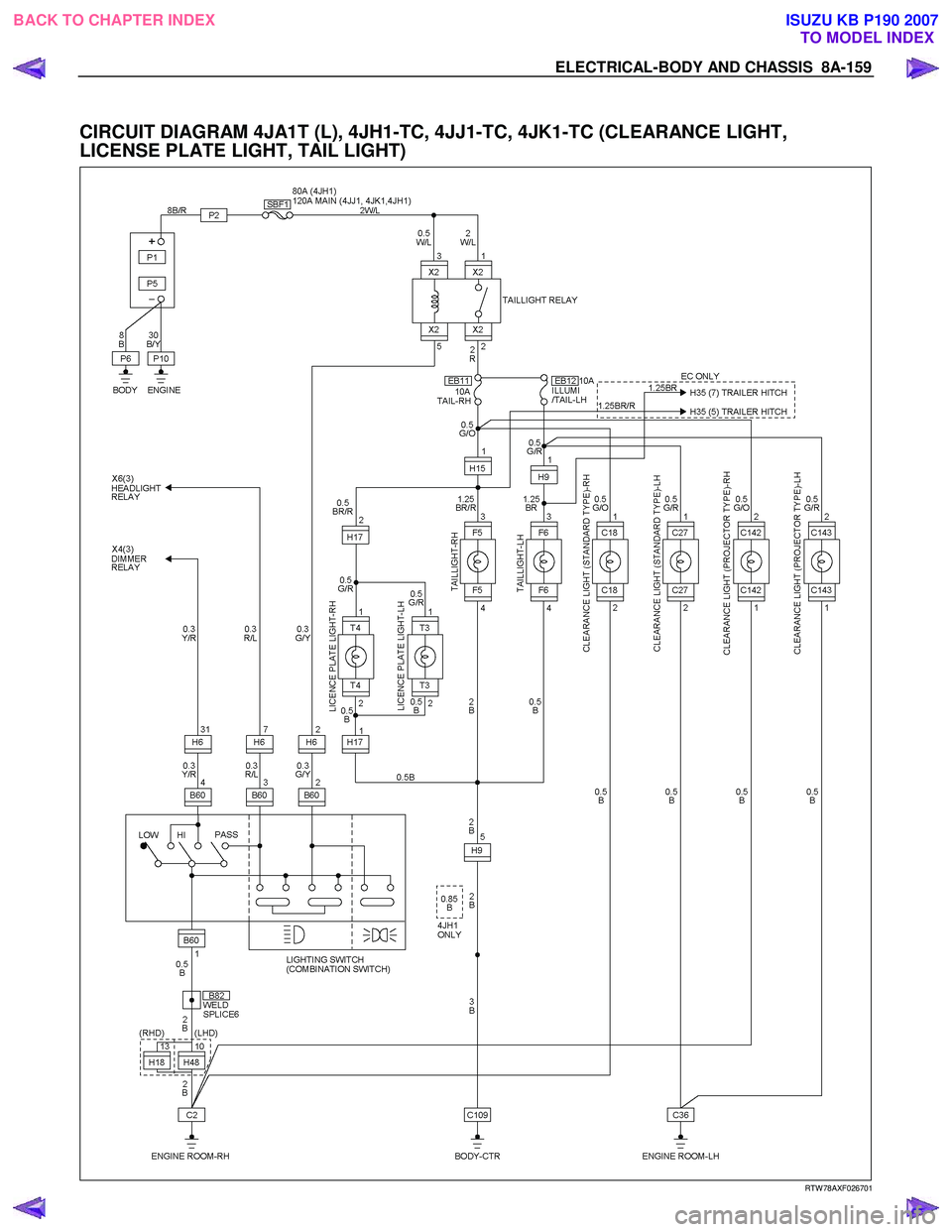

CIRCUIT DIAGRAM 4JA1T (L), 4JH1-TC, 4JJ1-TC, 4JK1-TC (CLEARANCE LIGHT,
LICENSE PLATE LIGHT, TAIL LIGHT)


RTW 78AXF026701

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-182 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE (RHD) WITHOUT REAR FOG LIGHT


RTW 780XF012301

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-183

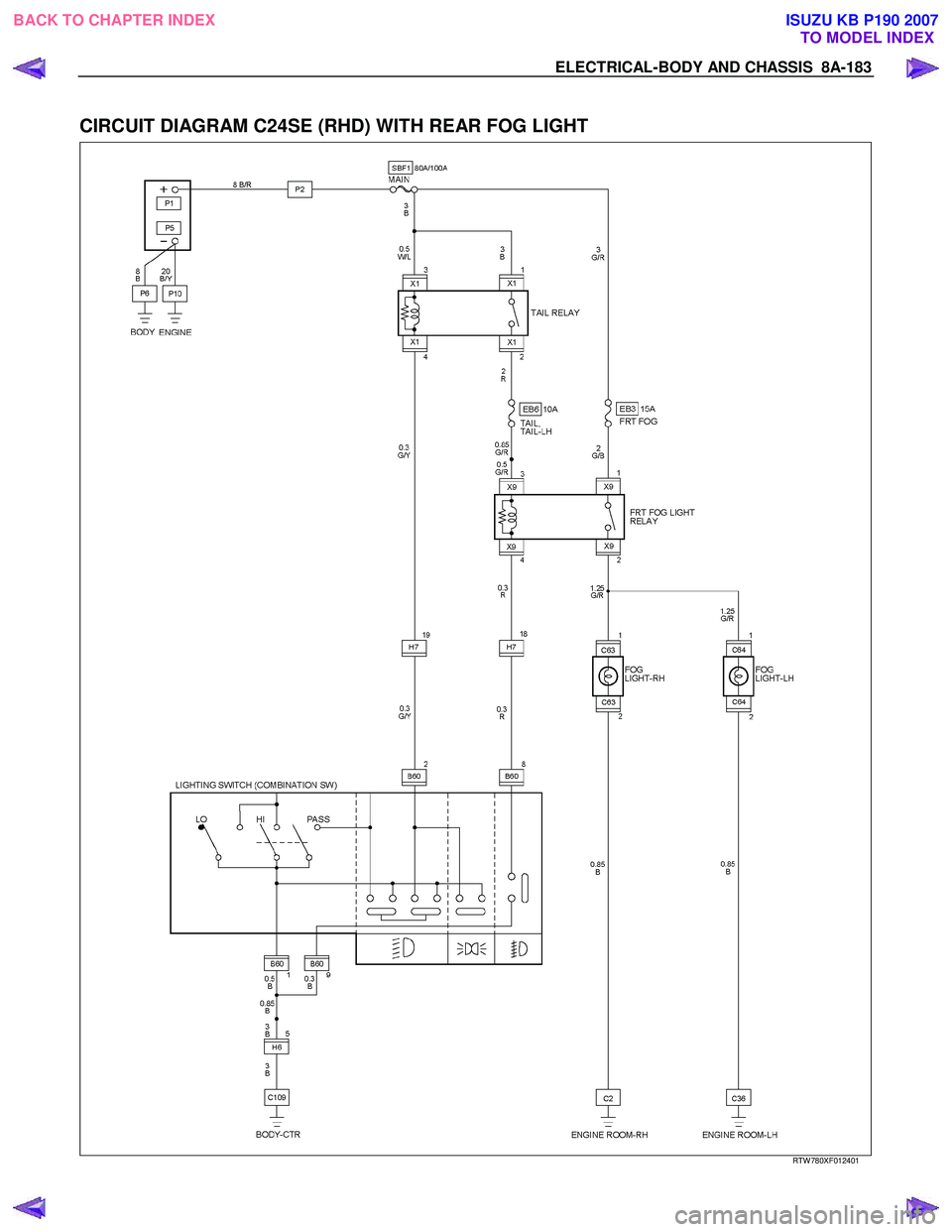

CIRCUIT DIAGRAM C24SE (RHD) WITH REAR FOG LIGHT


RTW 780XF012401

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-184 ELECTRICAL-BODY AND CHASSIS

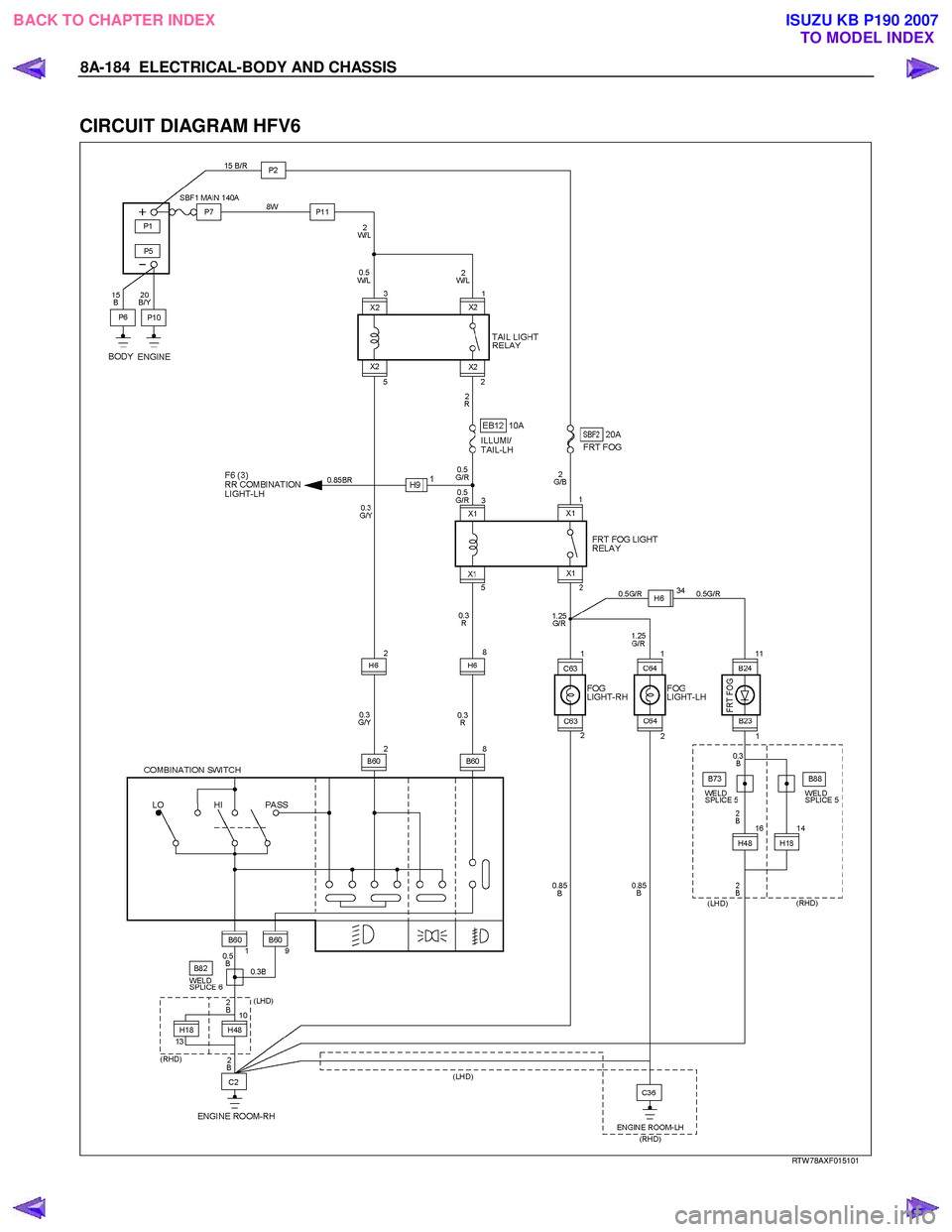

CIRCUIT DIAGRAM HFV6


RTW 78AXF015101


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
