2007 ISUZU KB P190 CIRCUIT DIAGRAM

8A-138 ELECTRICAL-BODY AND CHASSIS

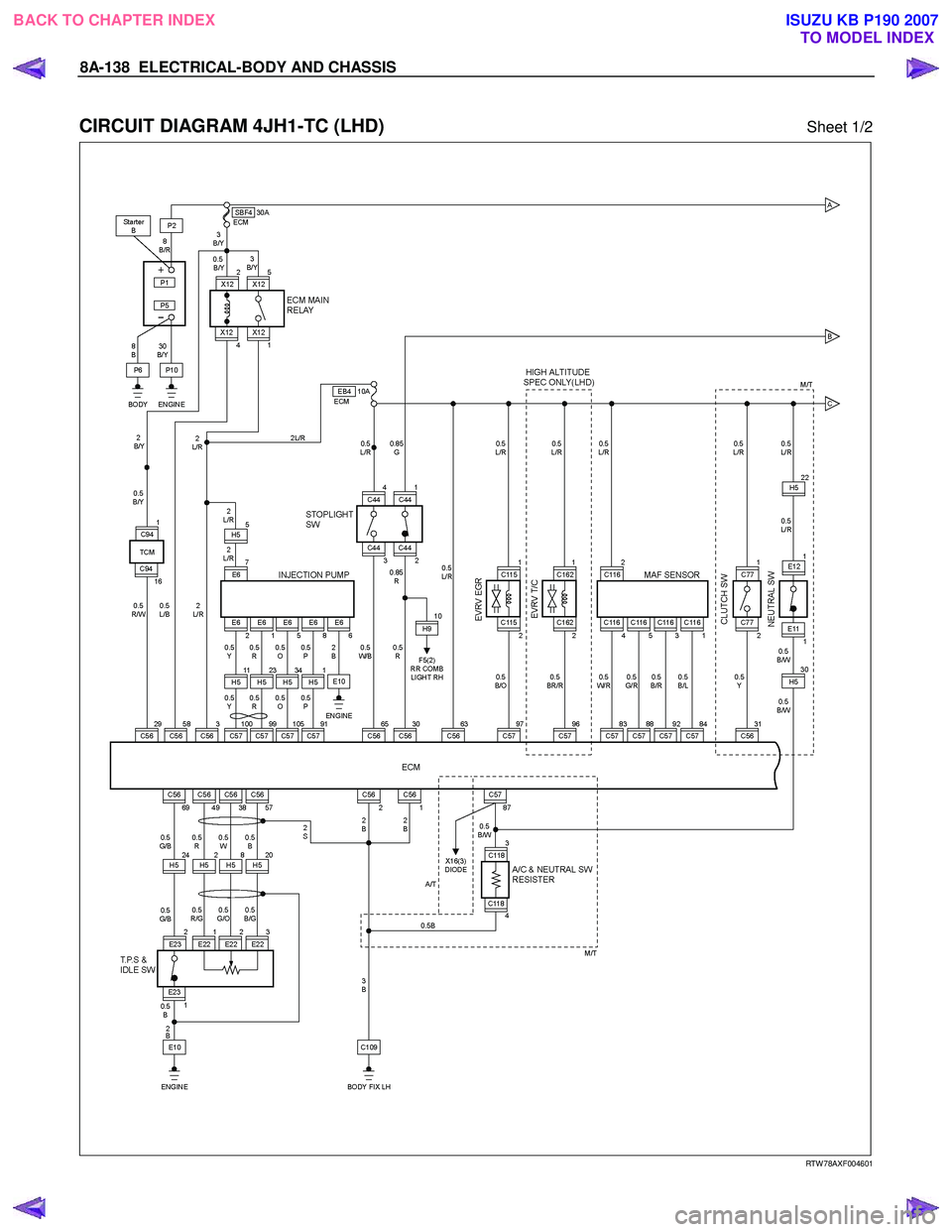

CIRCUIT DIAGRAM 4JH1-TC (LHD) Sheet 1/2





RTW 78AXF004601


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-139

CIRCUIT DIAGRAM 4JH1-TC (LHD) Sheet 2/2






RTW 78AXF004701


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-147

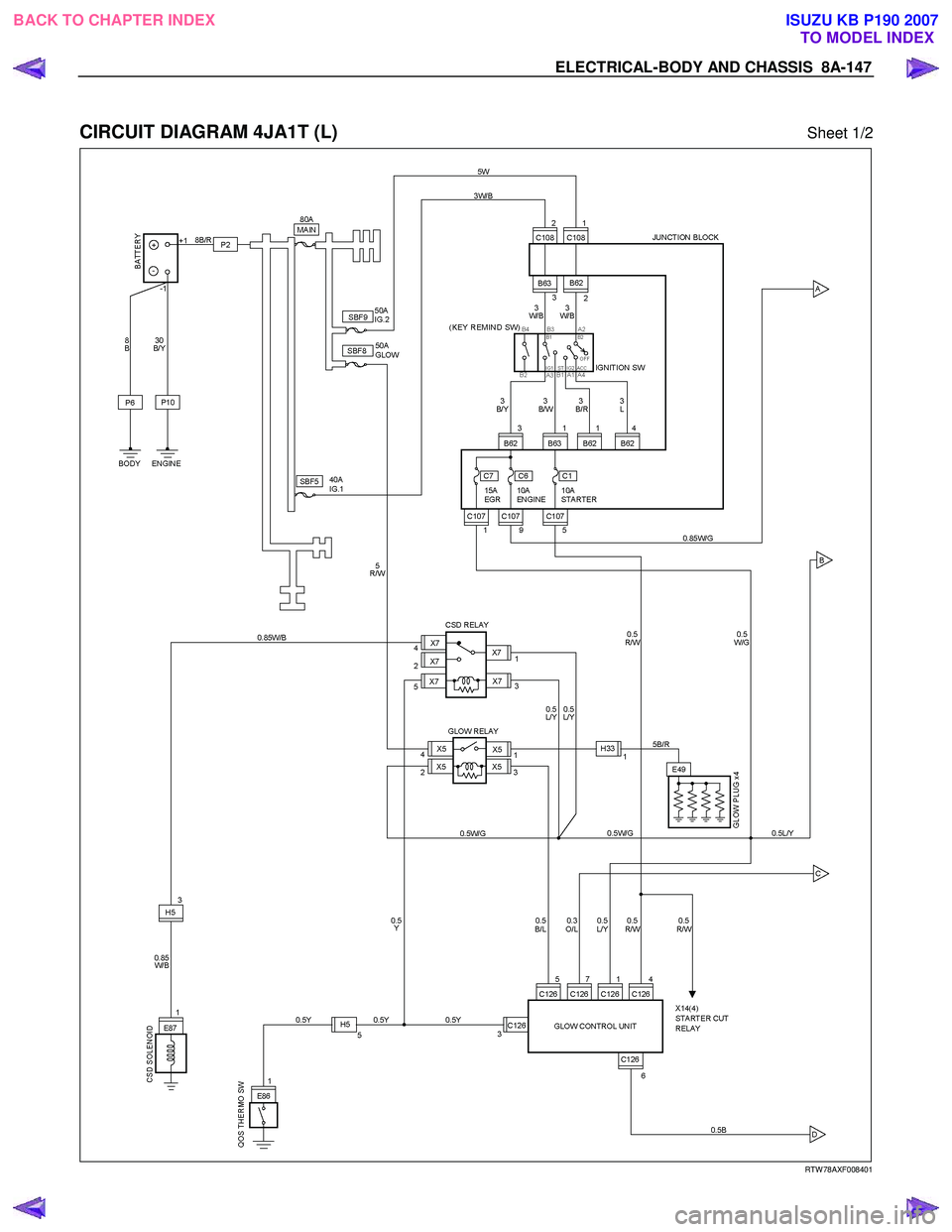

CIRCUIT DIAGRAM 4JA1T (L)
Sheet 1/2


RTW 78AXF008401

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-148 ELECTRICAL-BODY AND CHASSIS

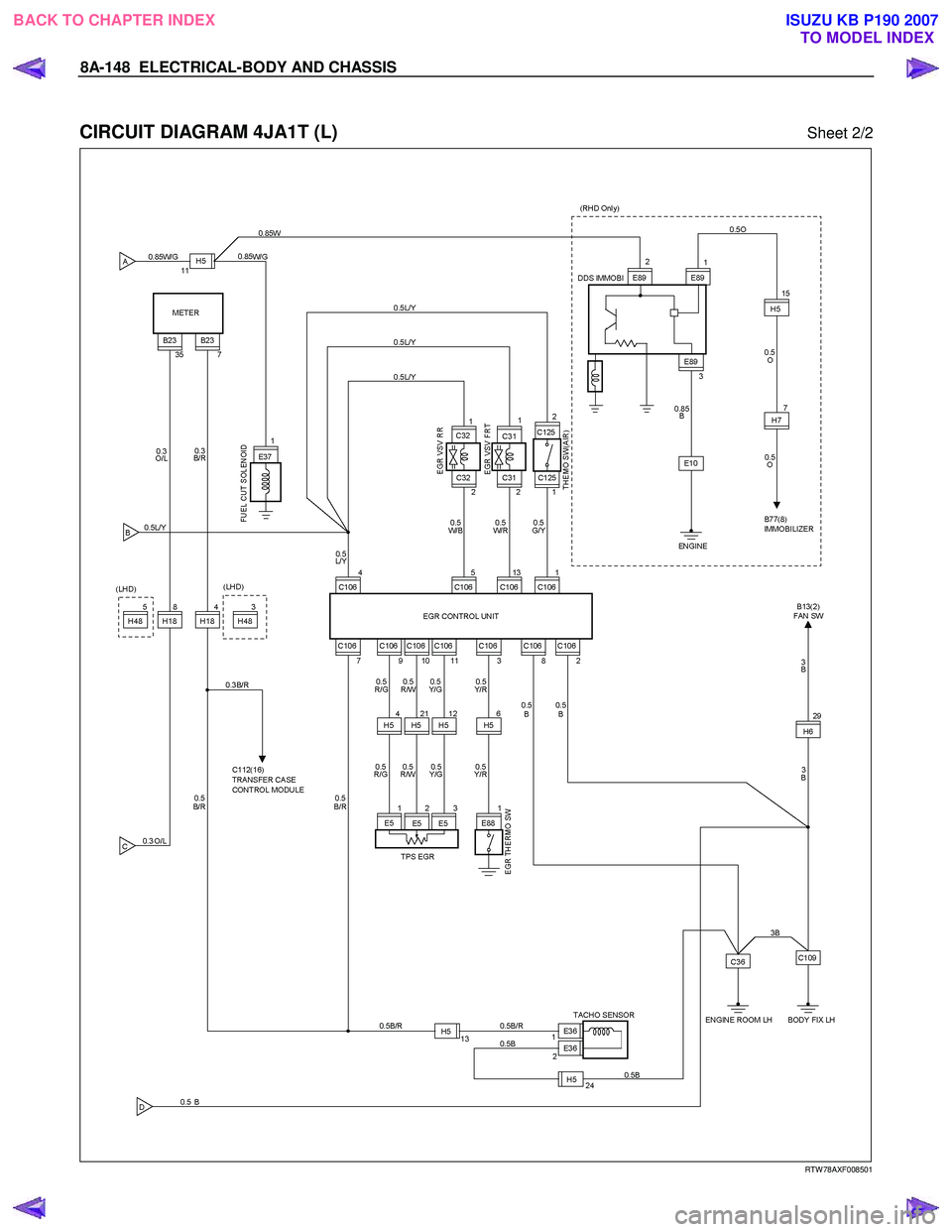

CIRCUIT DIAGRAM 4JA1T (L)
Sheet 2/2





RTW 78AXF008501

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-151

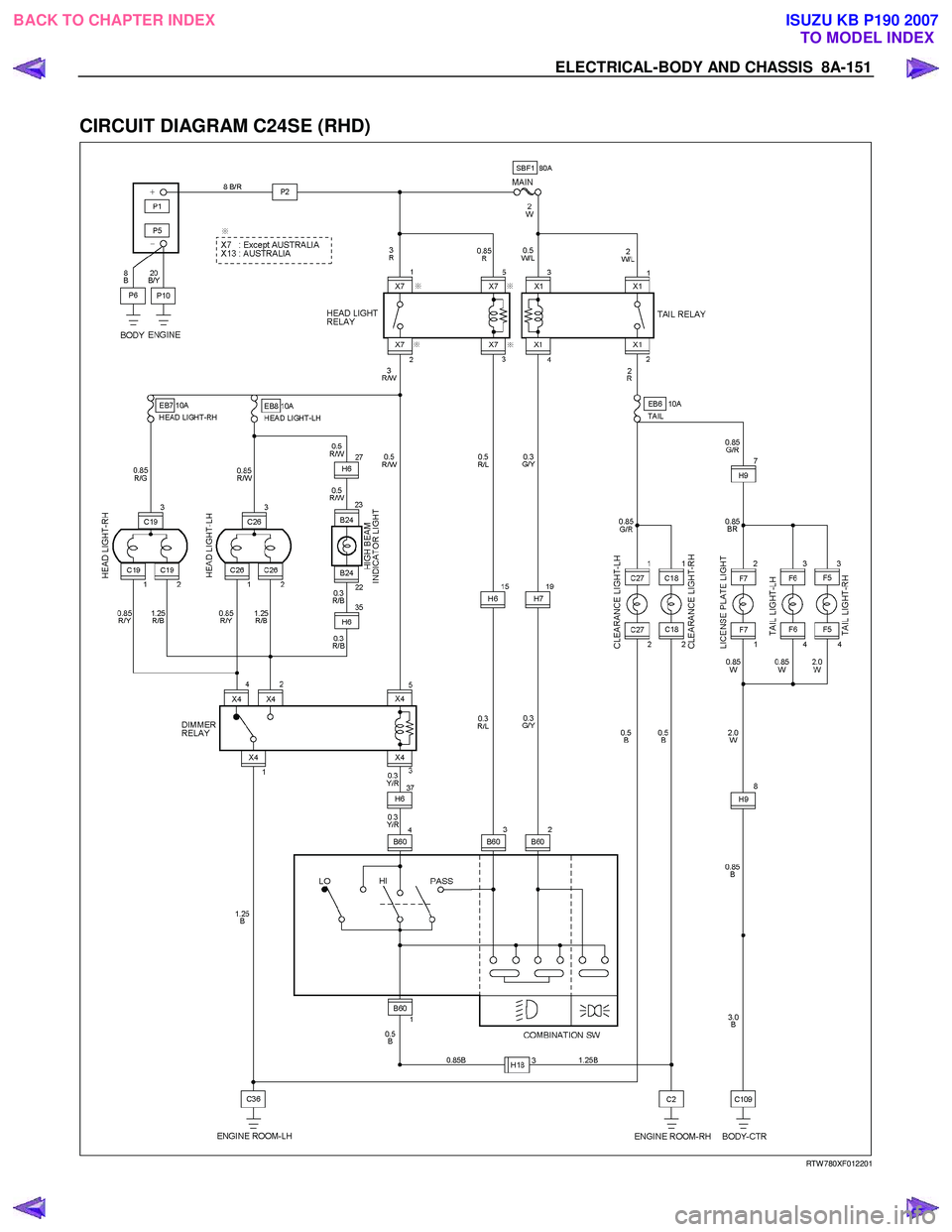

CIRCUIT DIAGRAM C24SE (RHD)



RTW 780XF012201

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-152 ELECTRICAL-BODY AND CHASSIS

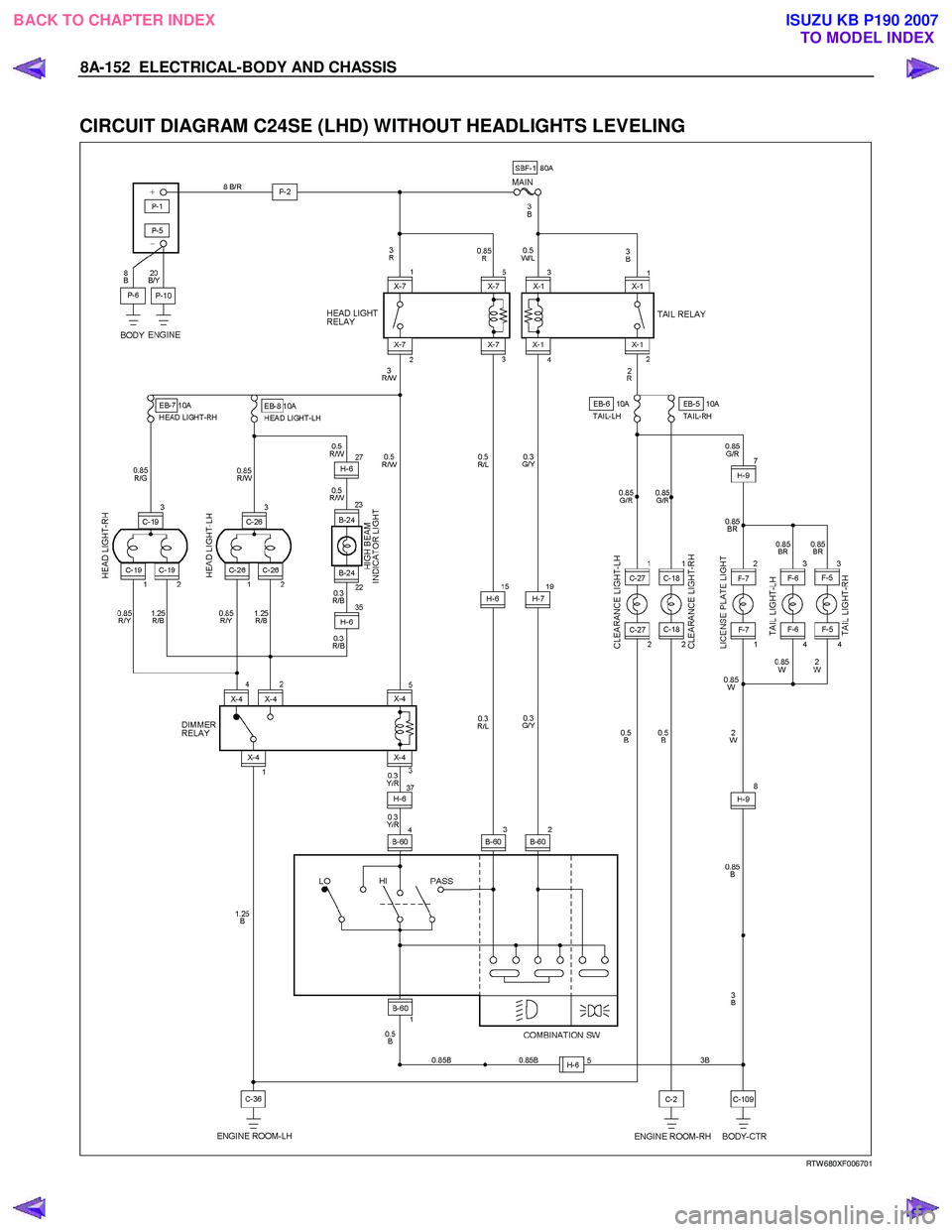

CIRCUIT DIAGRAM C24SE (LHD) WITHOUT HEADLIGHTS LEVELING


RTW 680XF006701

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-153

CIRCUIT DIAGRAM C24SE (LHD) WITH HEADLIGHTS LEVELING


RTW 680XF006801

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-154 ELECTRICAL-BODY AND CHASSIS

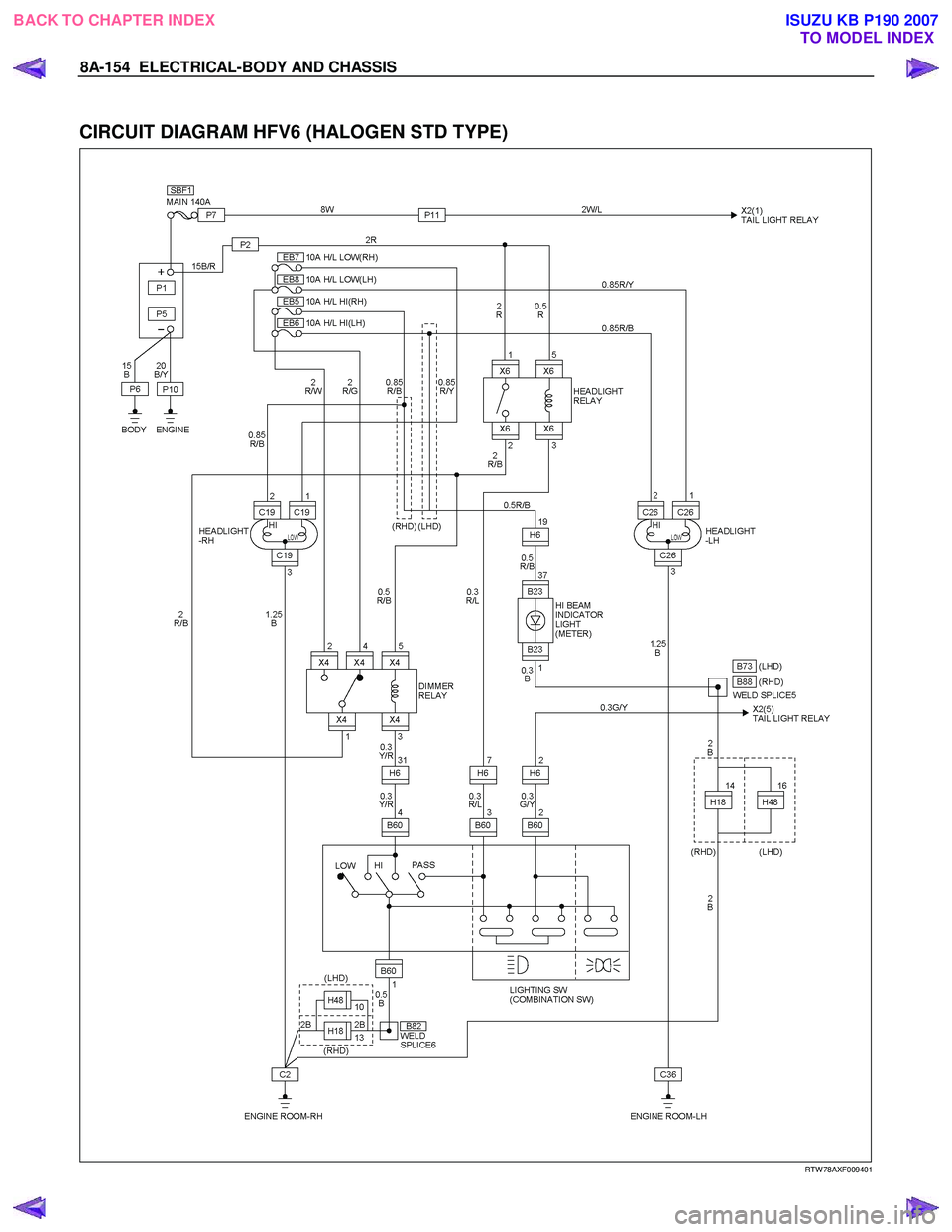

CIRCUIT DIAGRAM HFV6 (HALOGEN STD TYPE)





RTW 78AXF009401

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
