8A-122 ELECTRICAL-BODY AND CHASSIS

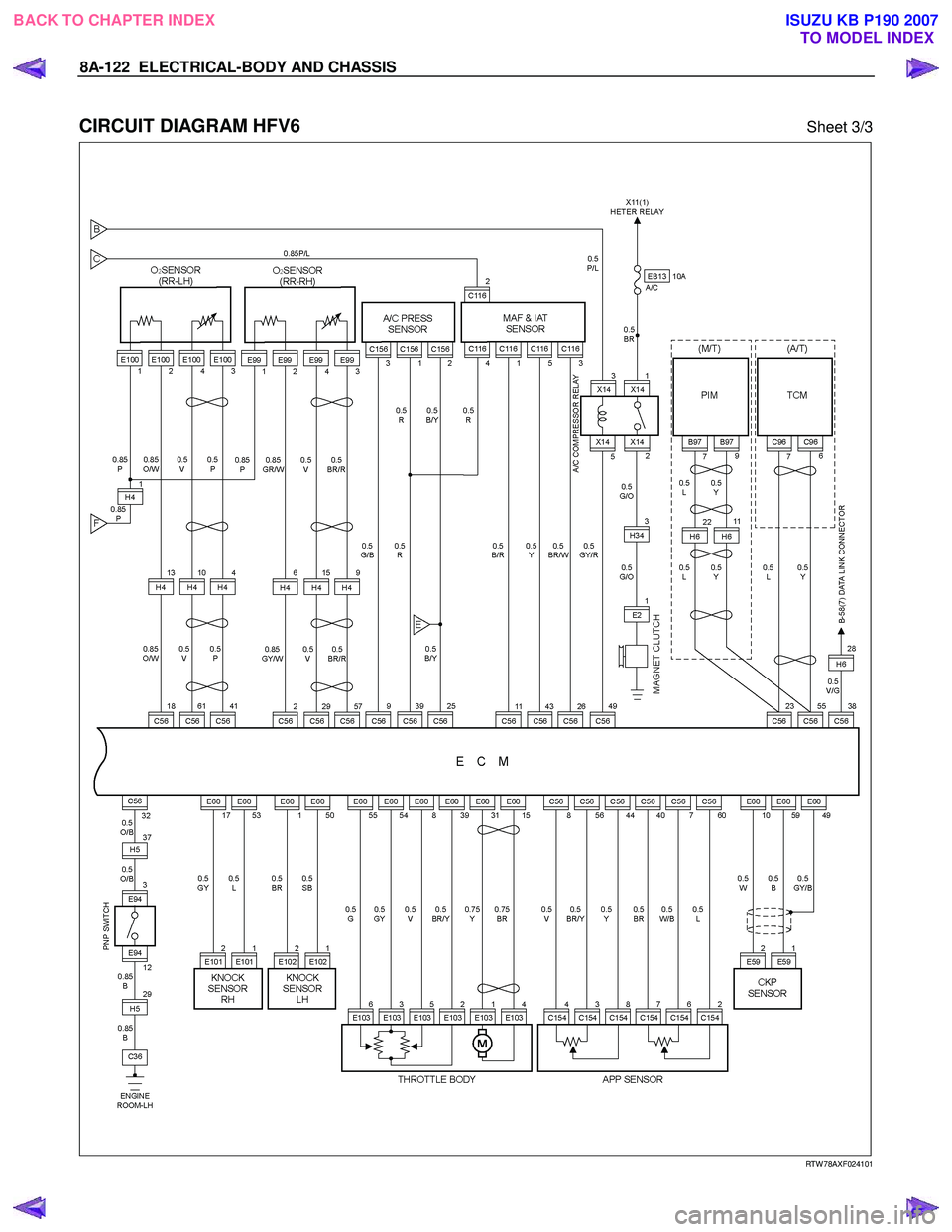

CIRCUIT DIAGRAM HFV6 Sheet 3/3
RTW 78AXF024101
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5061 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-123

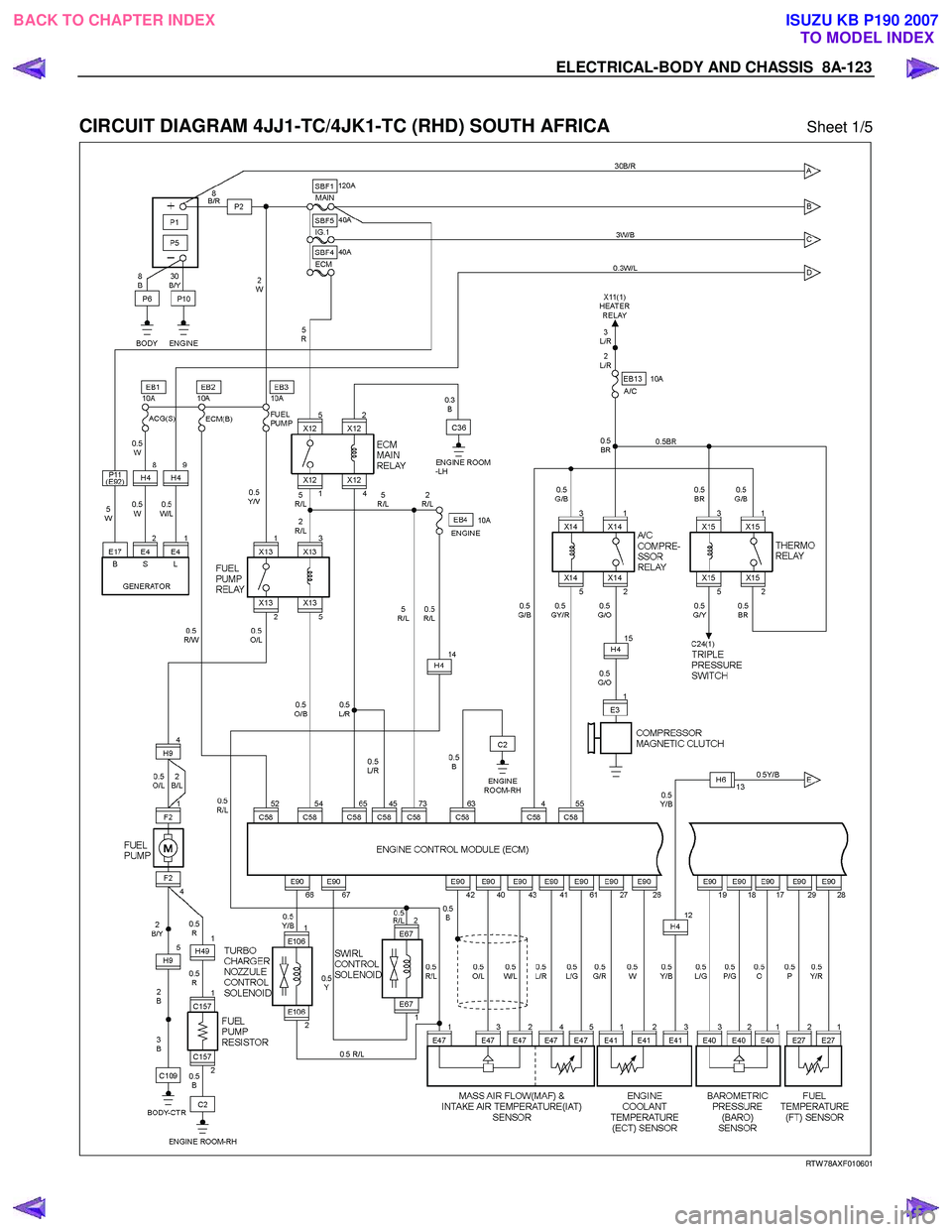

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 1/5
RTW 78AXF010601
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5062 of 6020
8A-124 ELECTRICAL-BODY AND CHASSIS

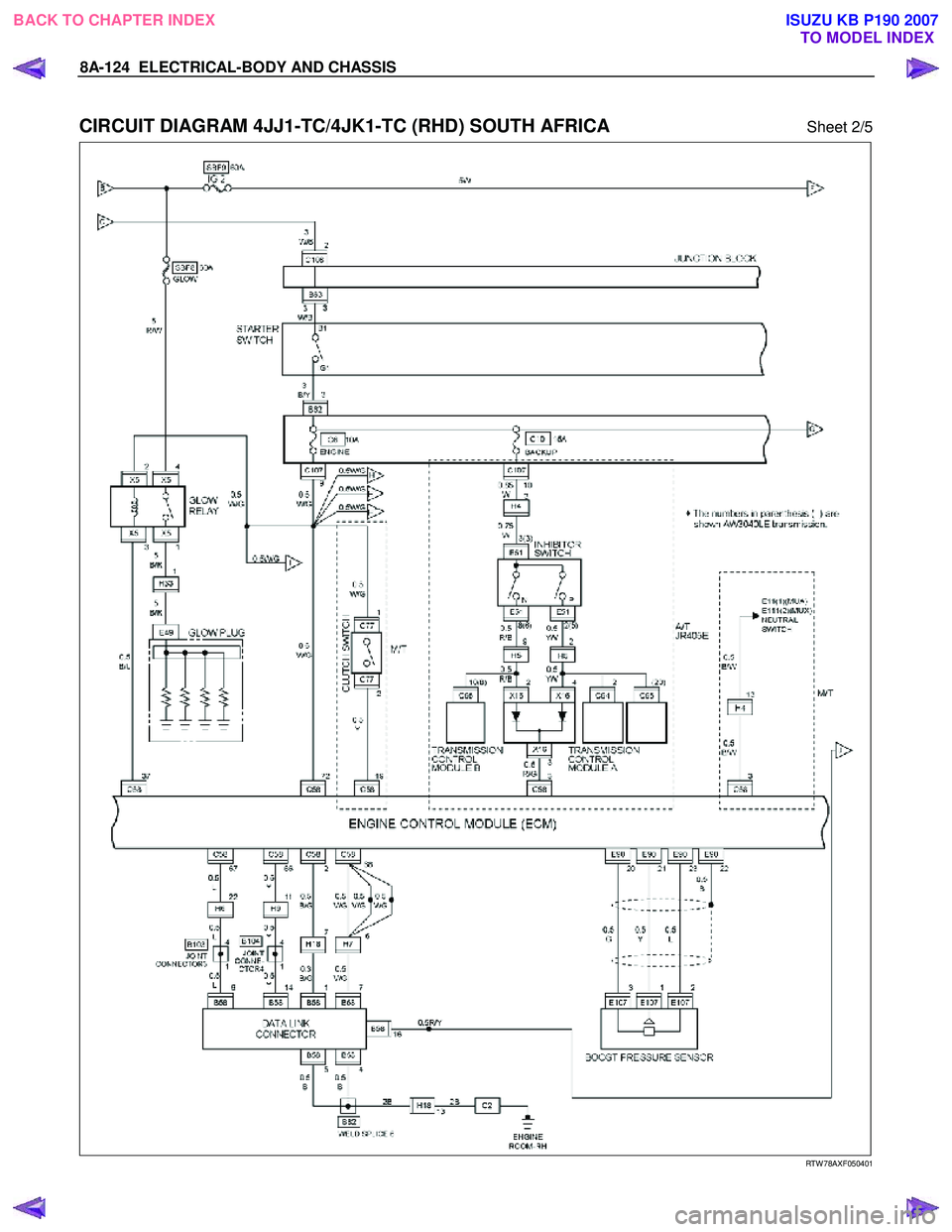

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 2/5
RTW 78AXF050401
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5063 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-125

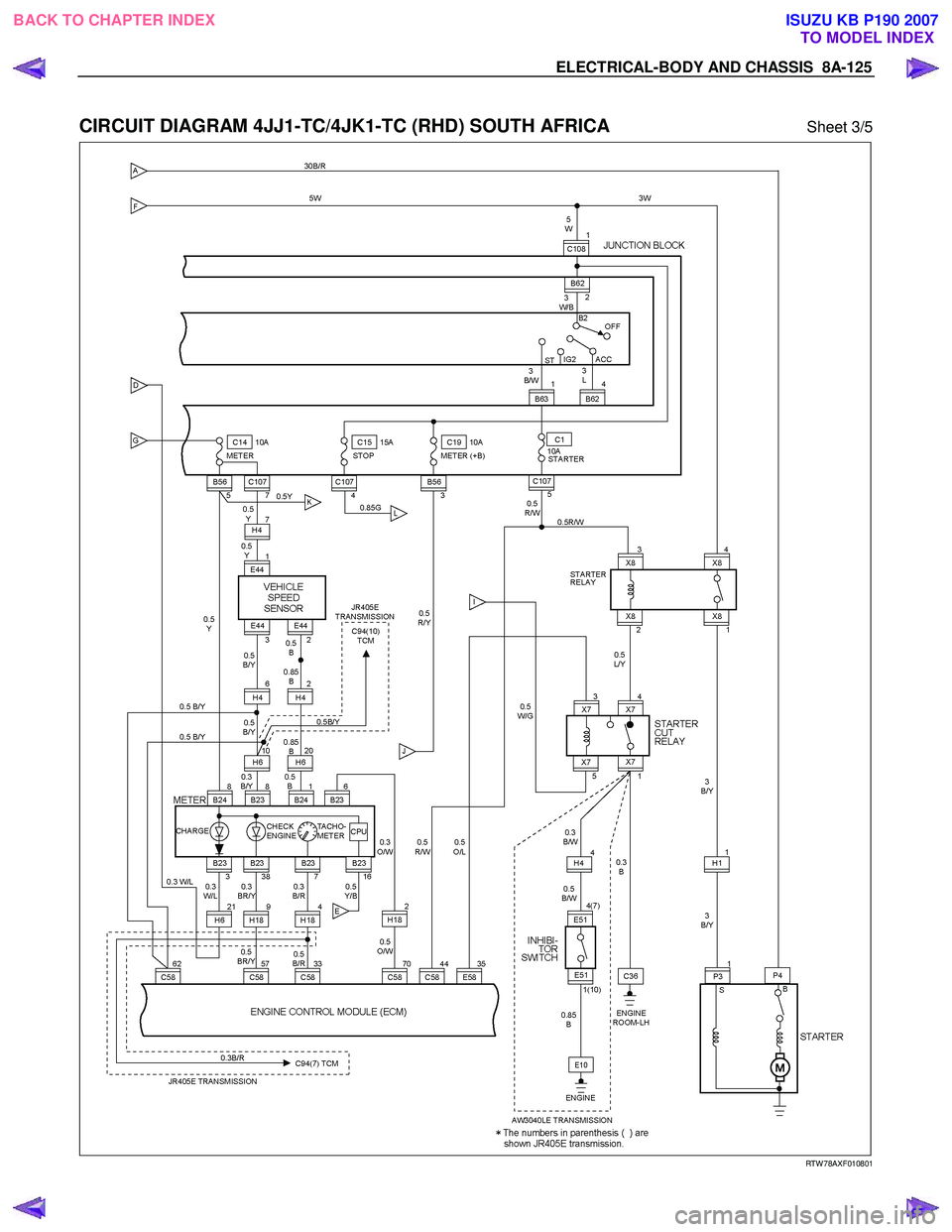

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 3/5
RTW 78AXF010801
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5064 of 6020
8A-126 ELECTRICAL-BODY AND CHASSIS

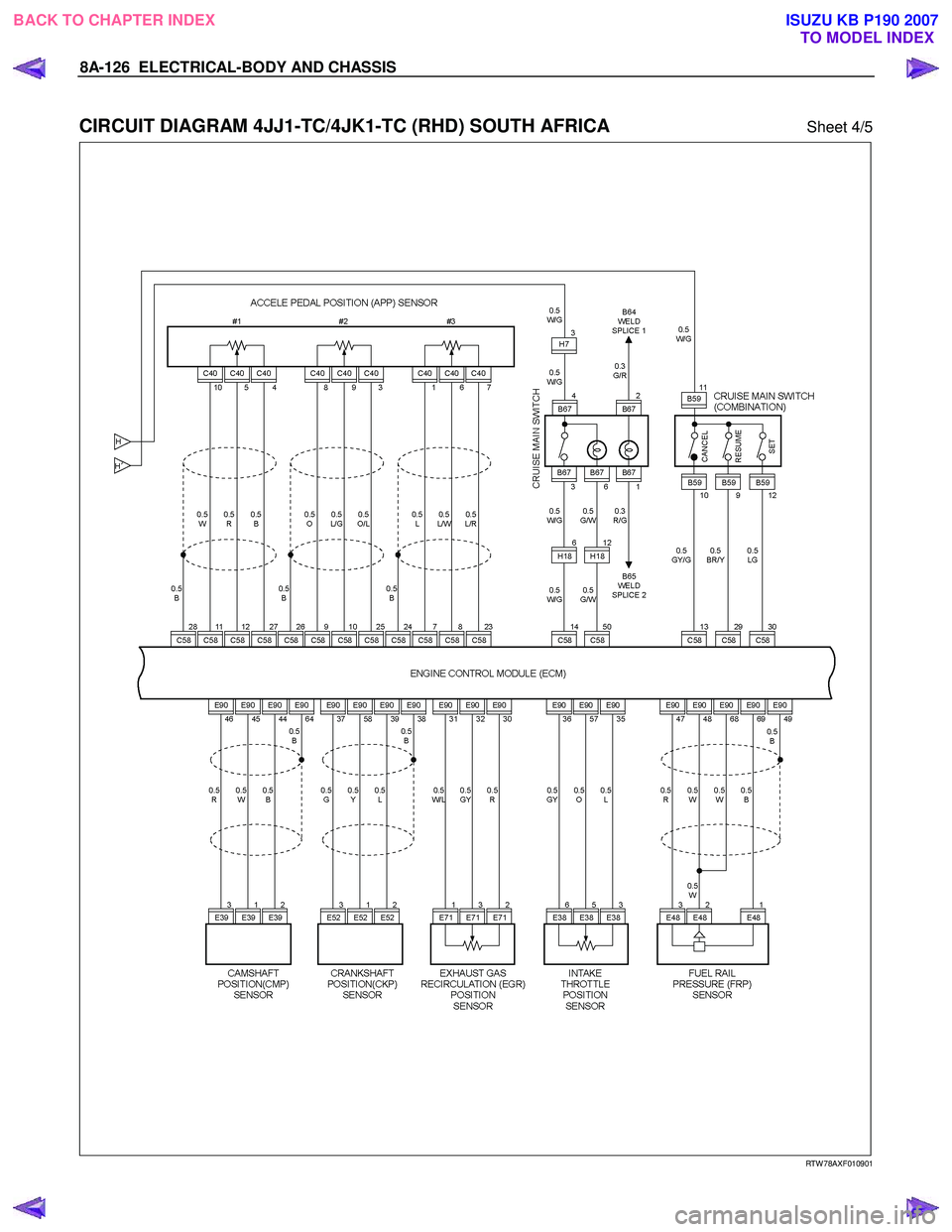

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 4/5
RTW 78AXF010901
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5065 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-127

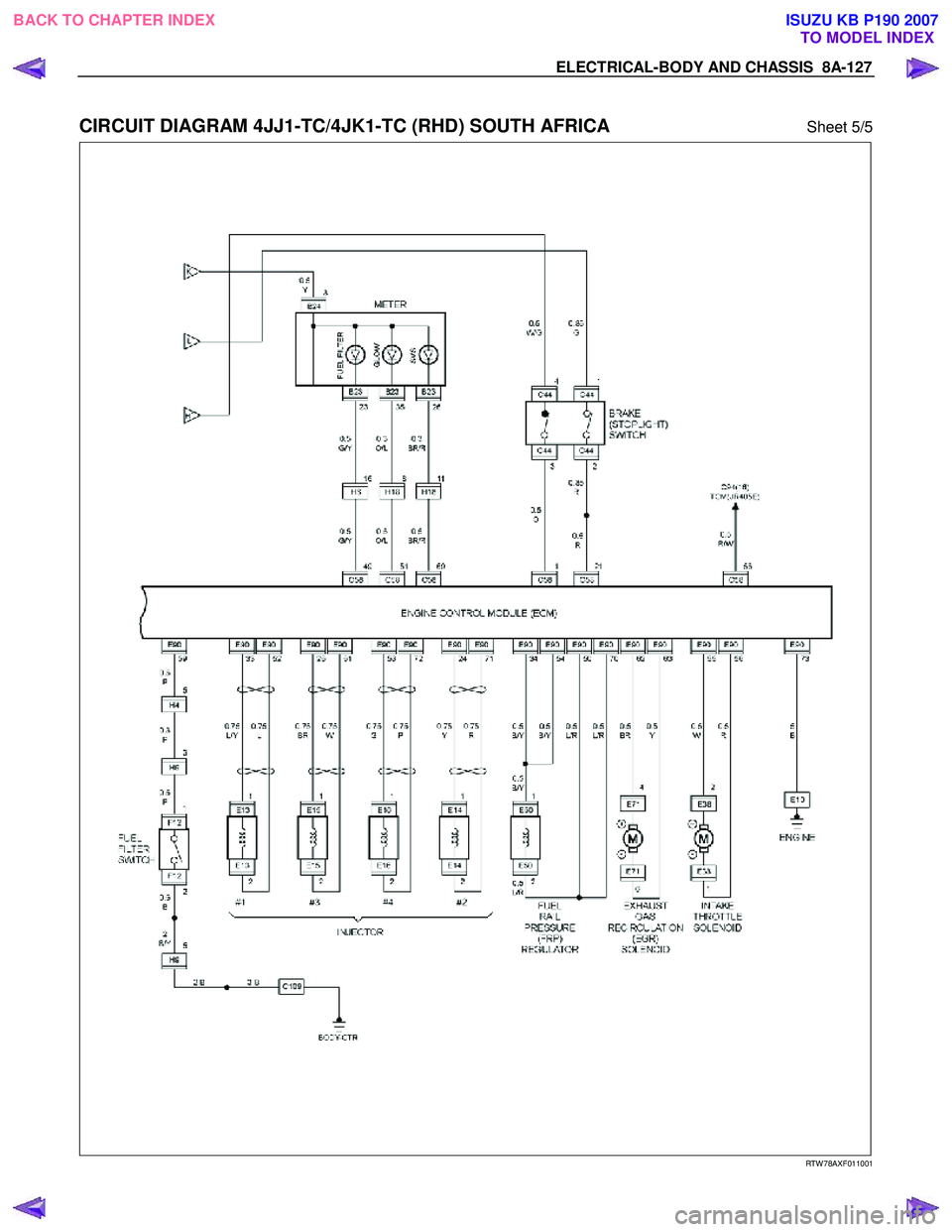

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 5/5
RTW 78AXF011001
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5066 of 6020
8A-128 ELECTRICAL-BODY AND CHASSIS

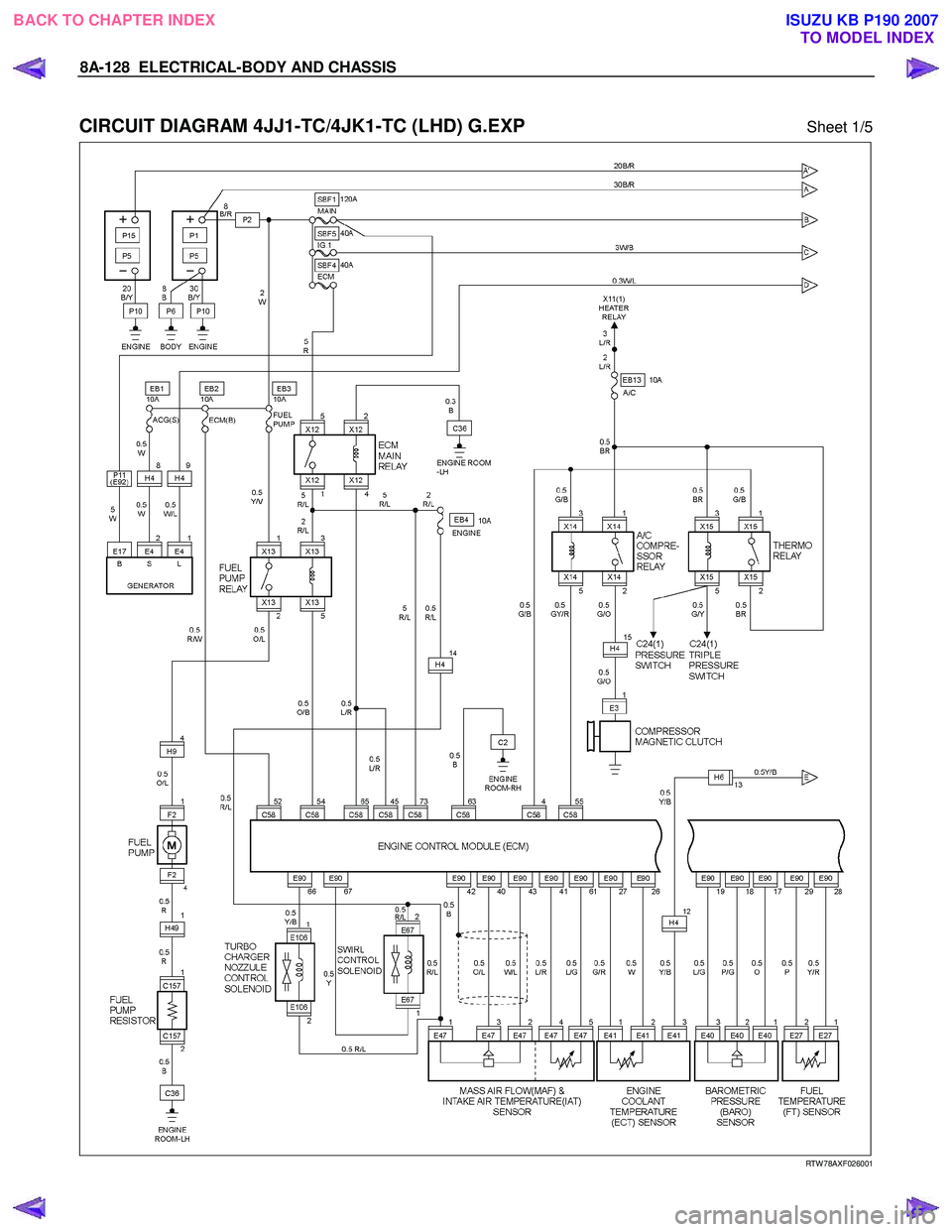

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 1/5
RTW 78AXF026001
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5067 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-129

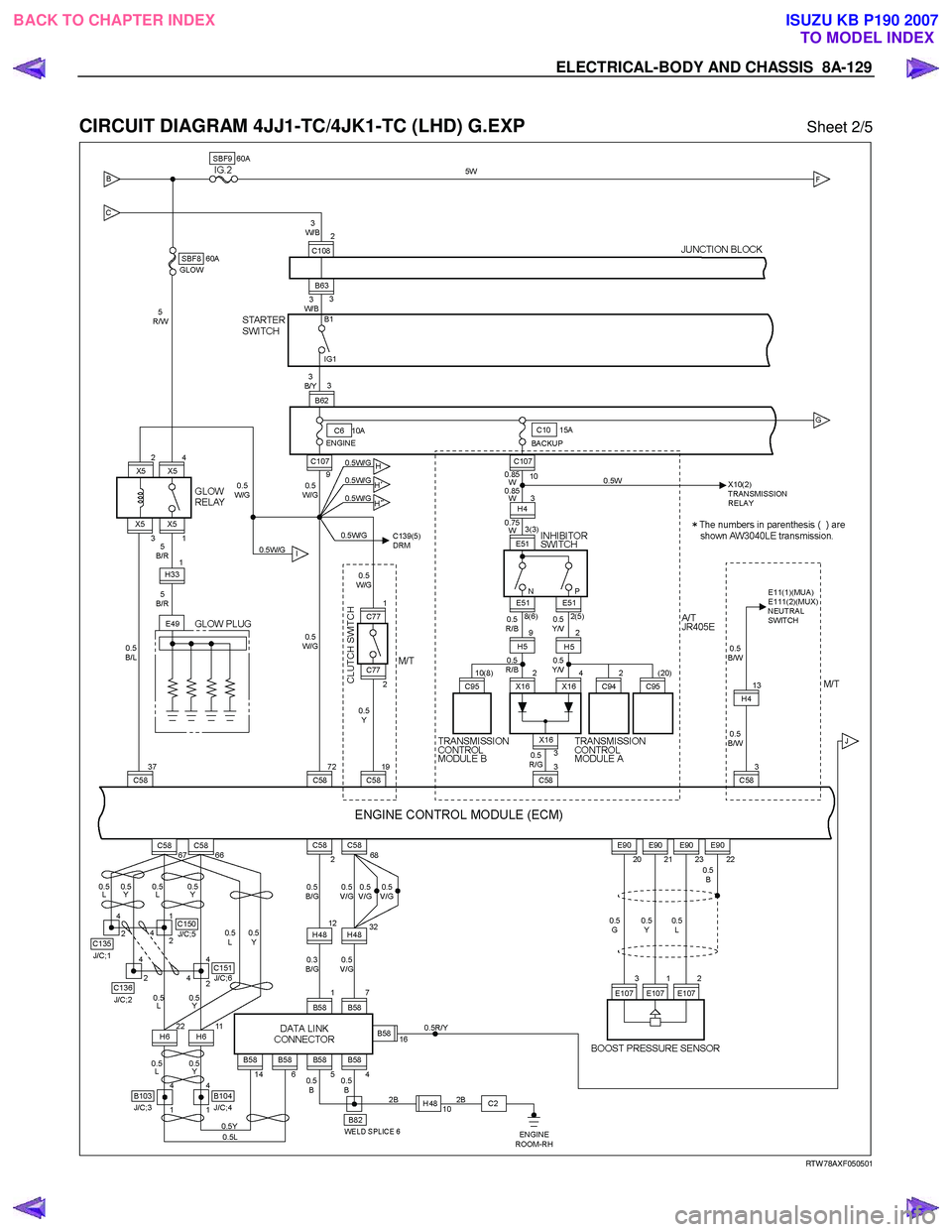

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 2/5
RTW 78AXF050501
BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007
