Page 5068 of 6020

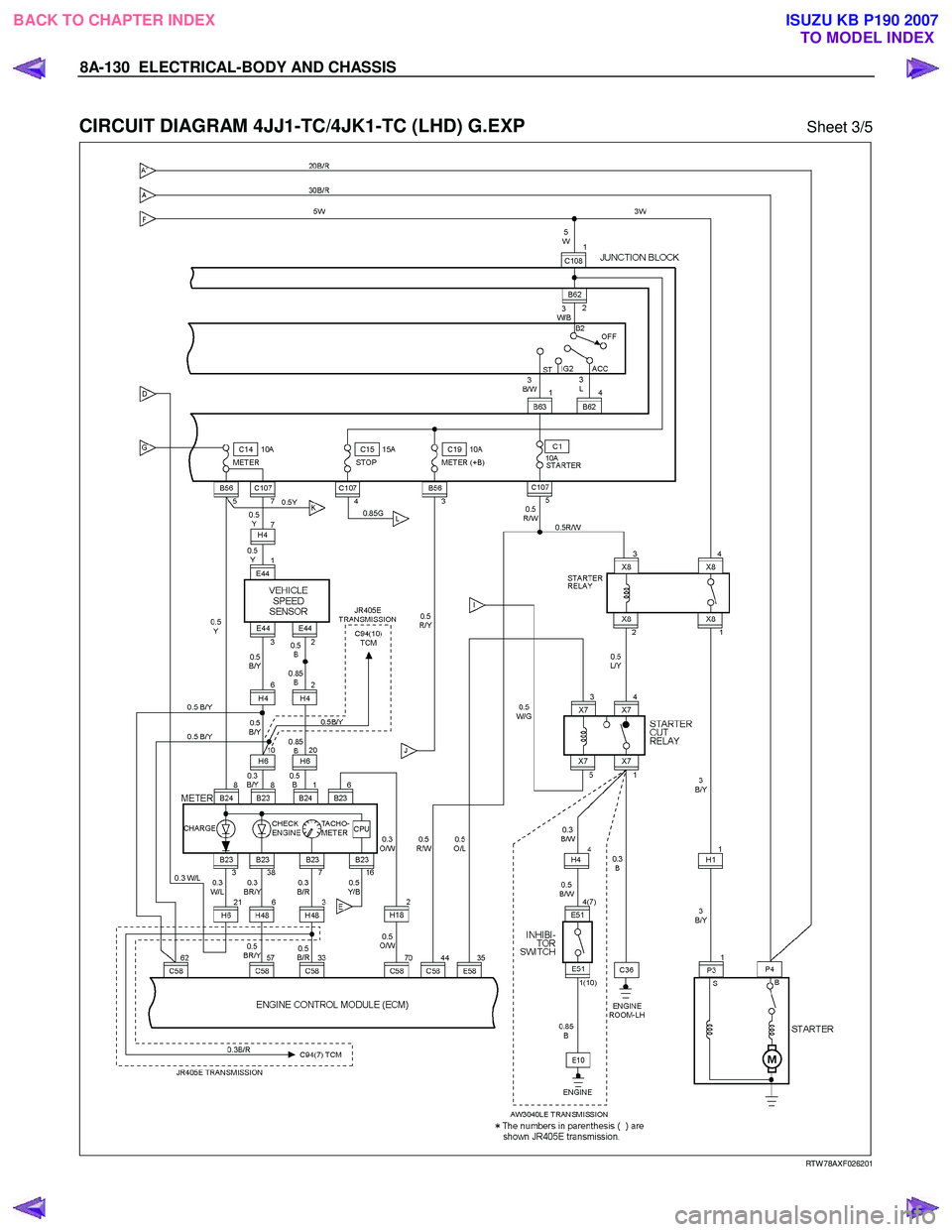

8A-130 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 3/5
RTW 78AXF026201
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5069 of 6020

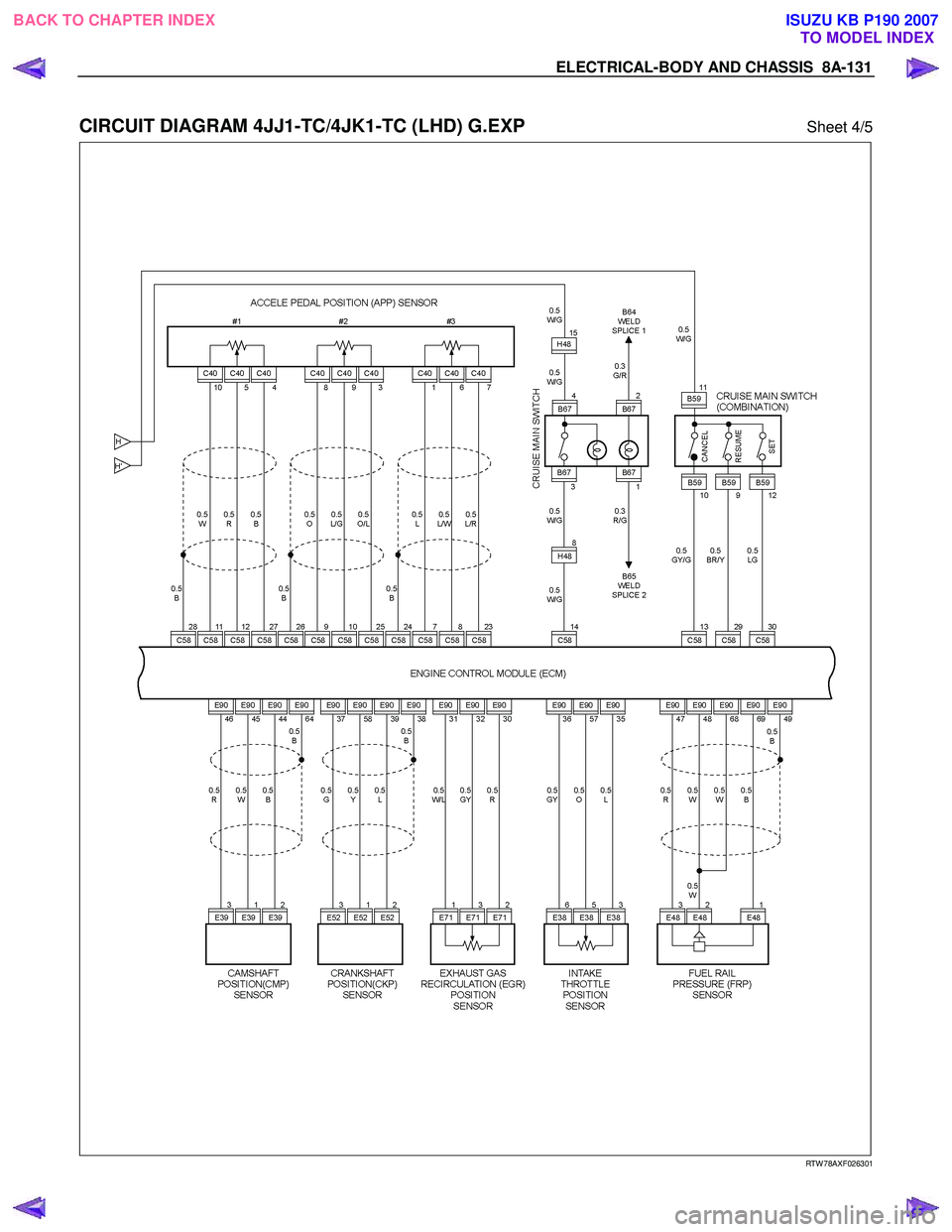

ELECTRICAL-BODY AND CHASSIS 8A-131
CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 4/5
RTW 78AXF026301
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5070 of 6020

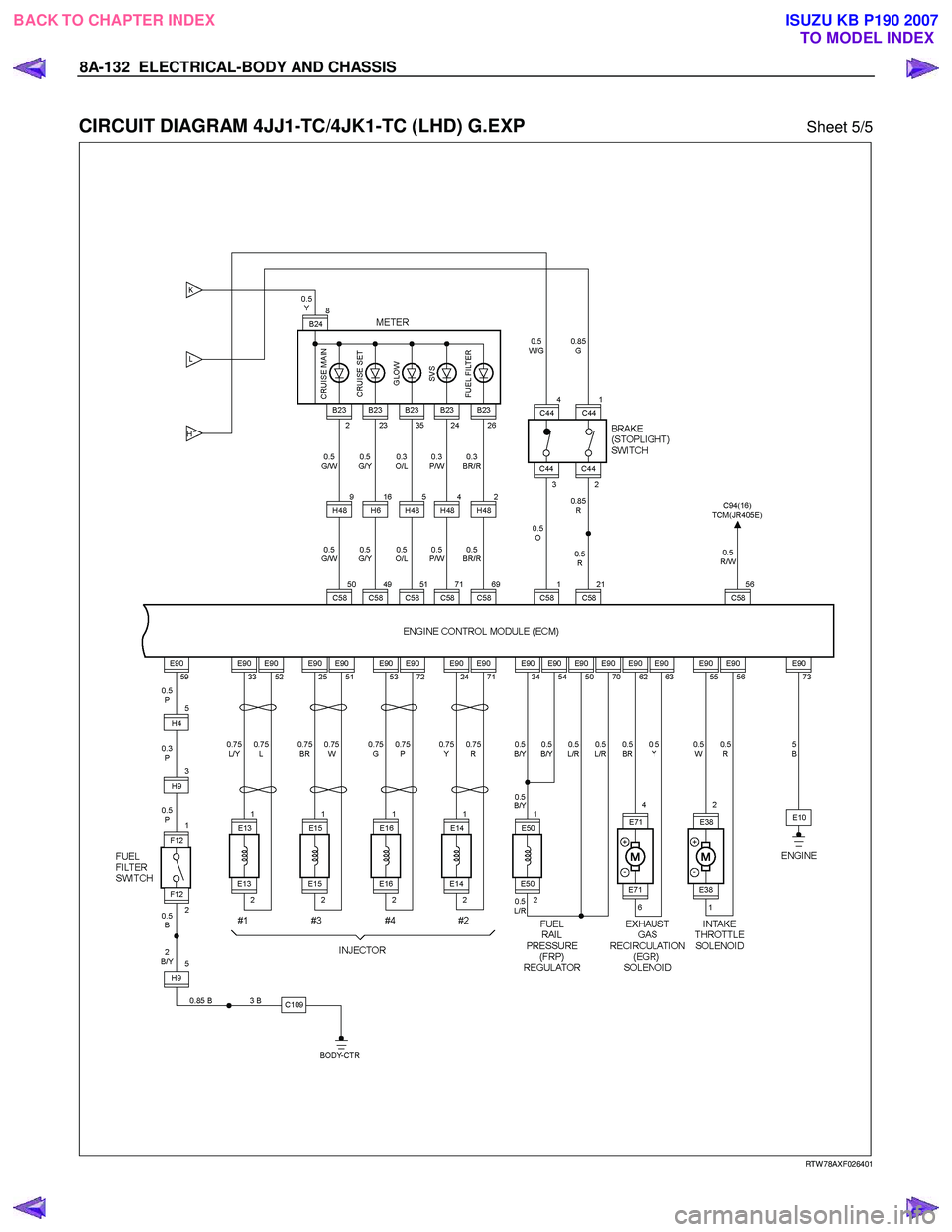

8A-132 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 5/5
RTW 78AXF026401
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5071 of 6020

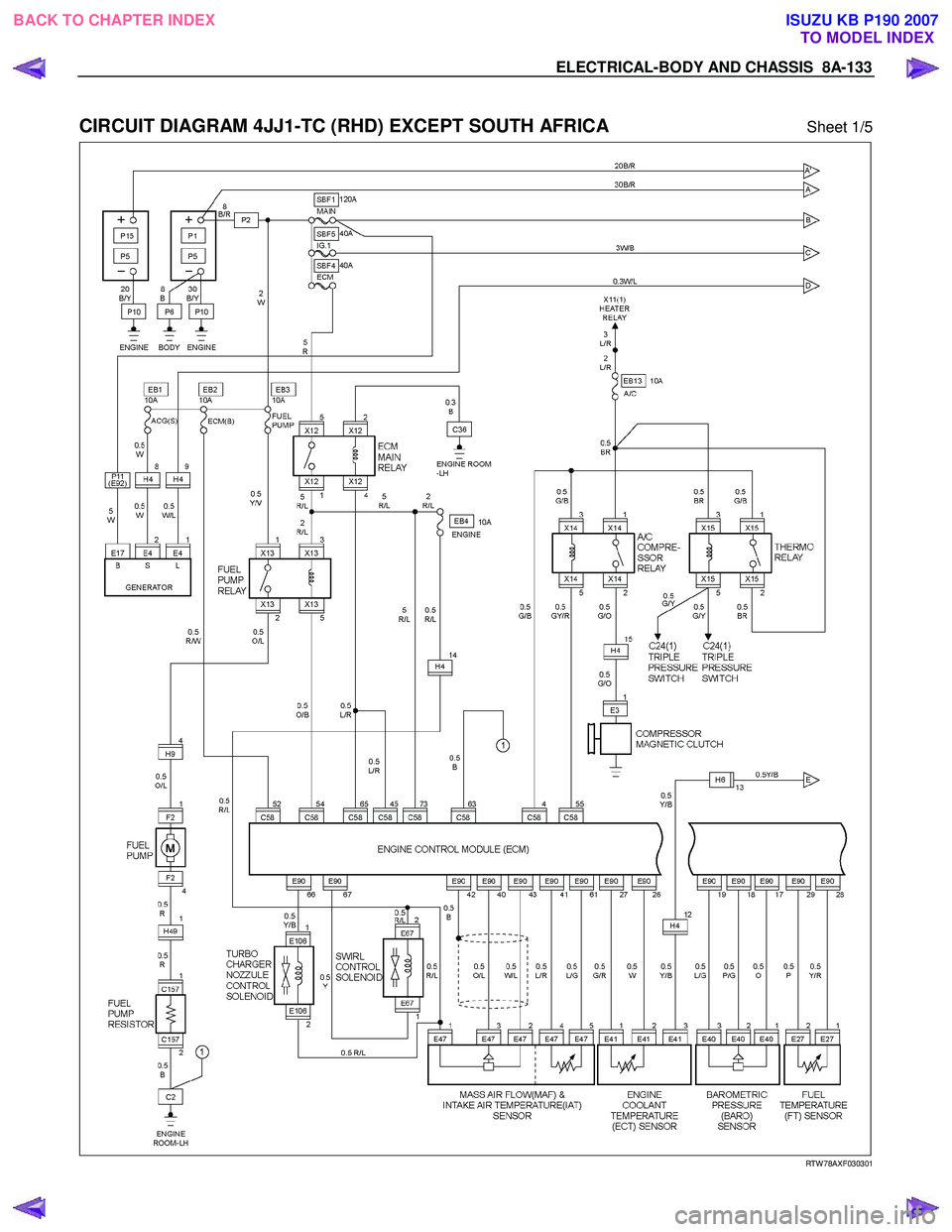

ELECTRICAL-BODY AND CHASSIS 8A-133
CIRCUIT DIAGRAM 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 1/5
RTW 78AXF030301
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5072 of 6020

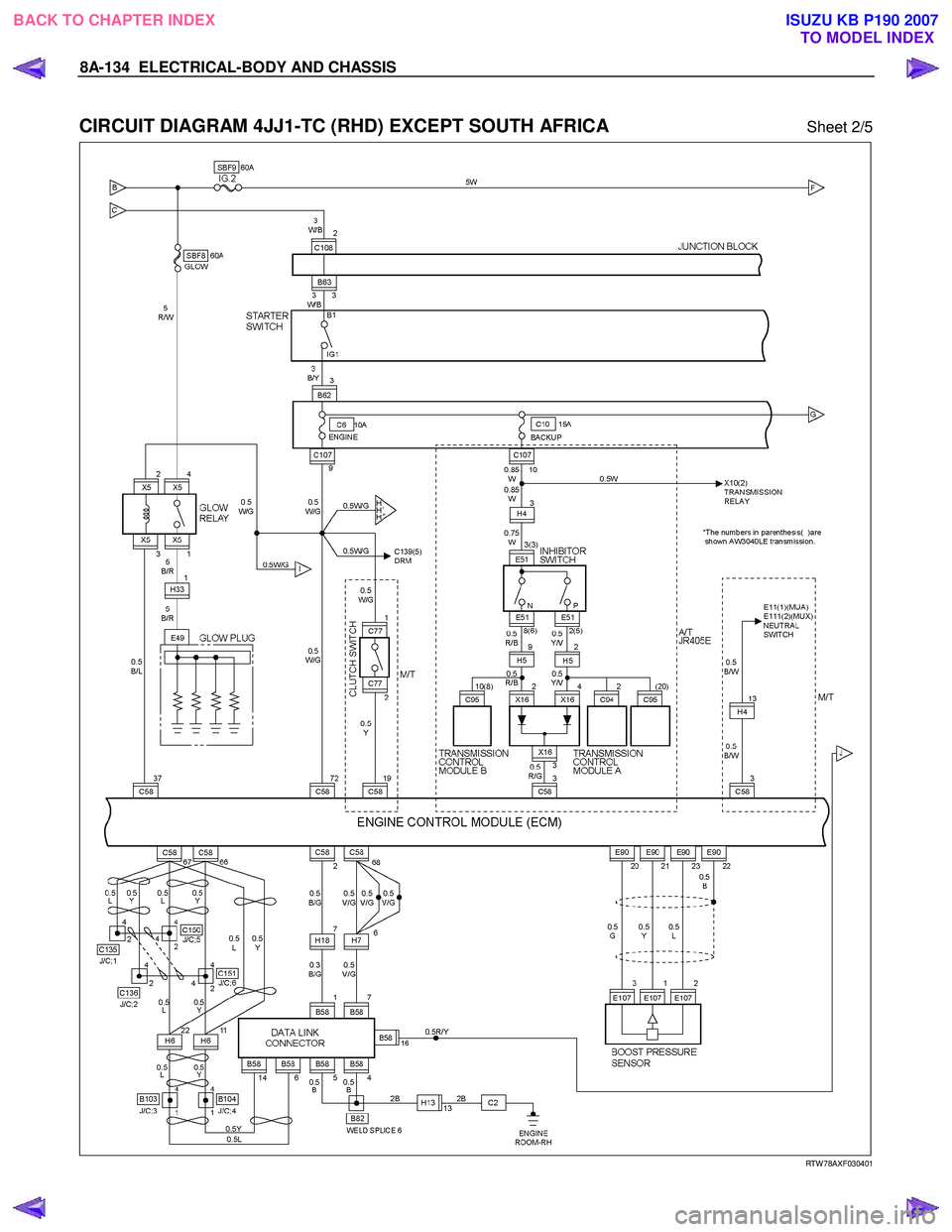

8A-134 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 2/5
RTW 78AXF030401
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5073 of 6020

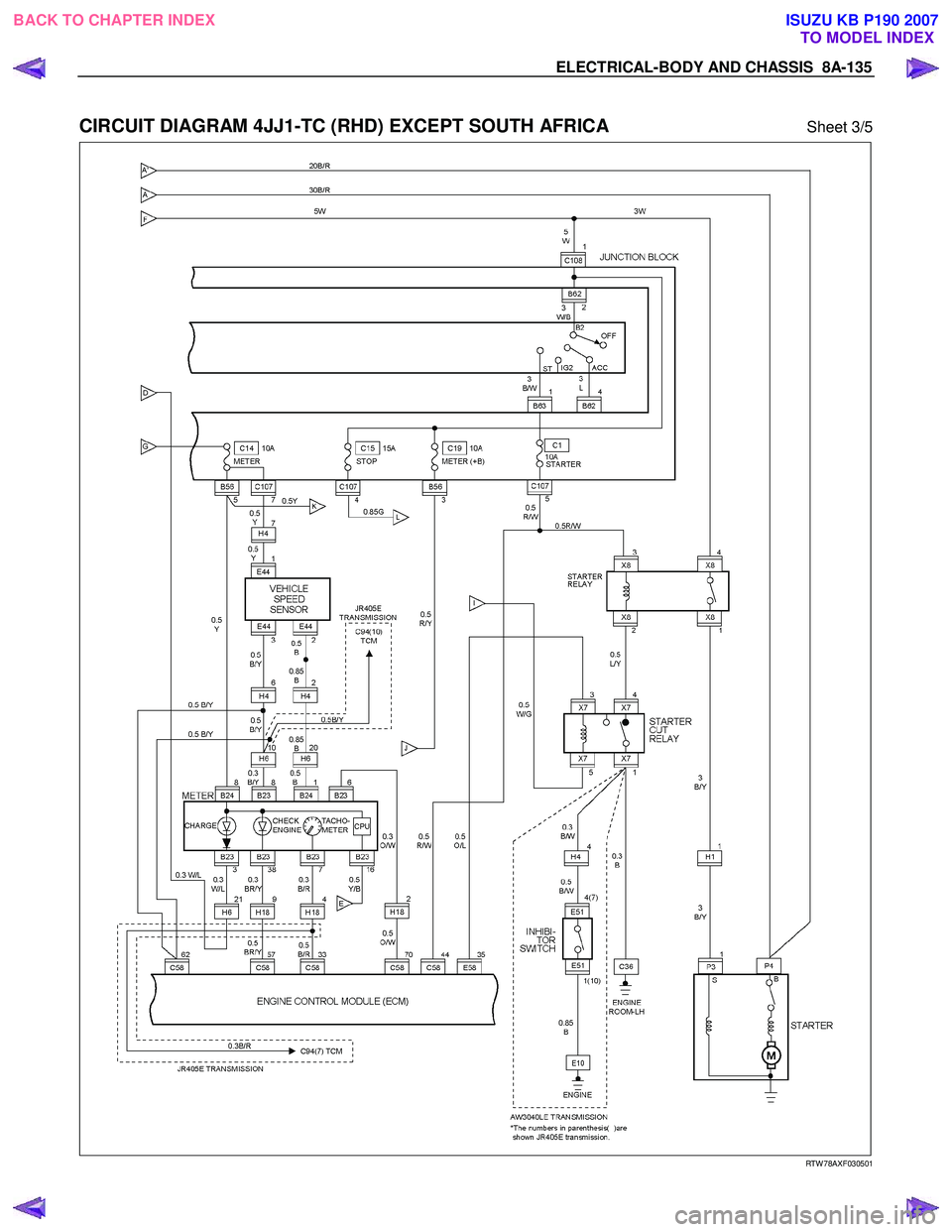

ELECTRICAL-BODY AND CHASSIS 8A-135
CIRCUIT DIAGRAM 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 3/5
RTW 78AXF030501
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5074 of 6020

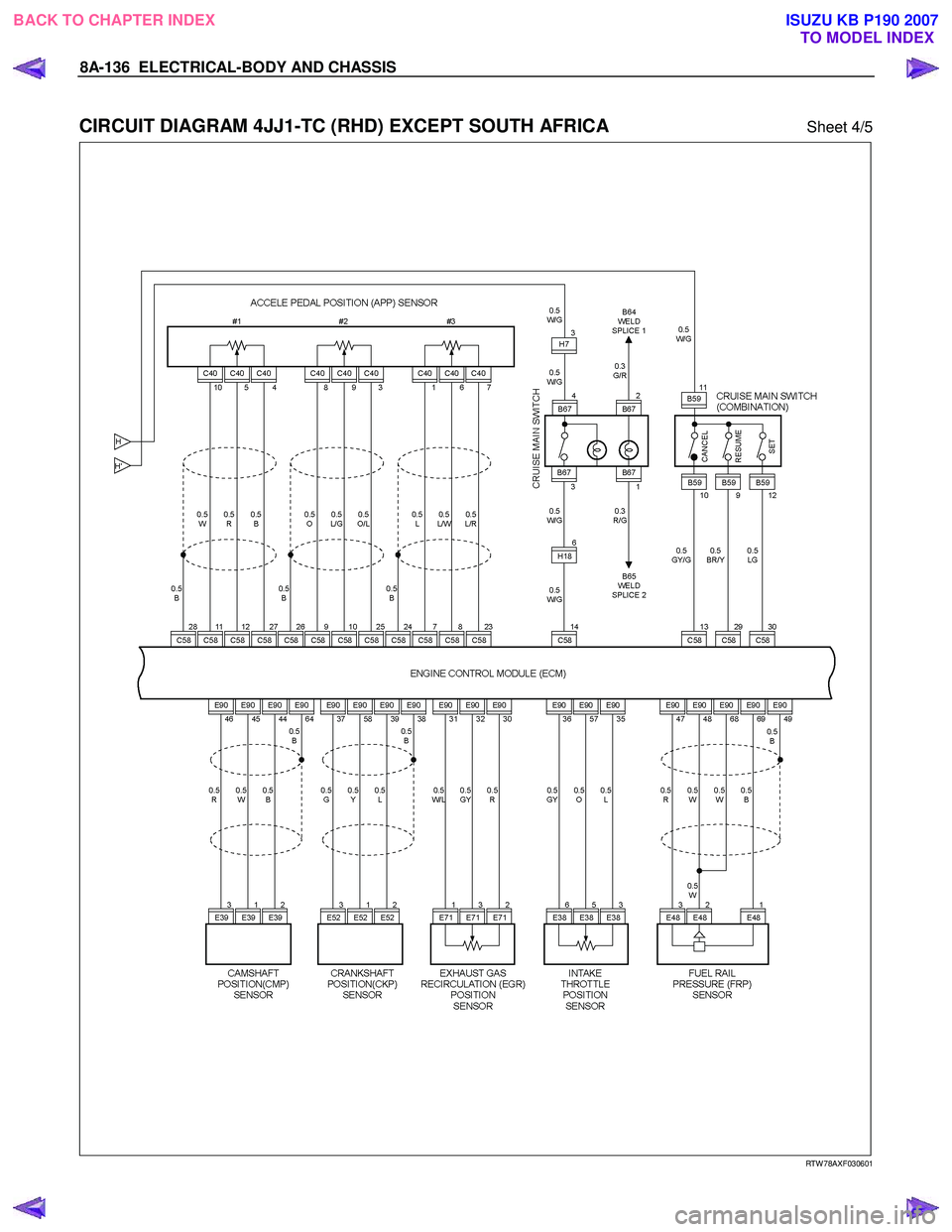

8A-136 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 4/5
RTW 78AXF030601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5075 of 6020

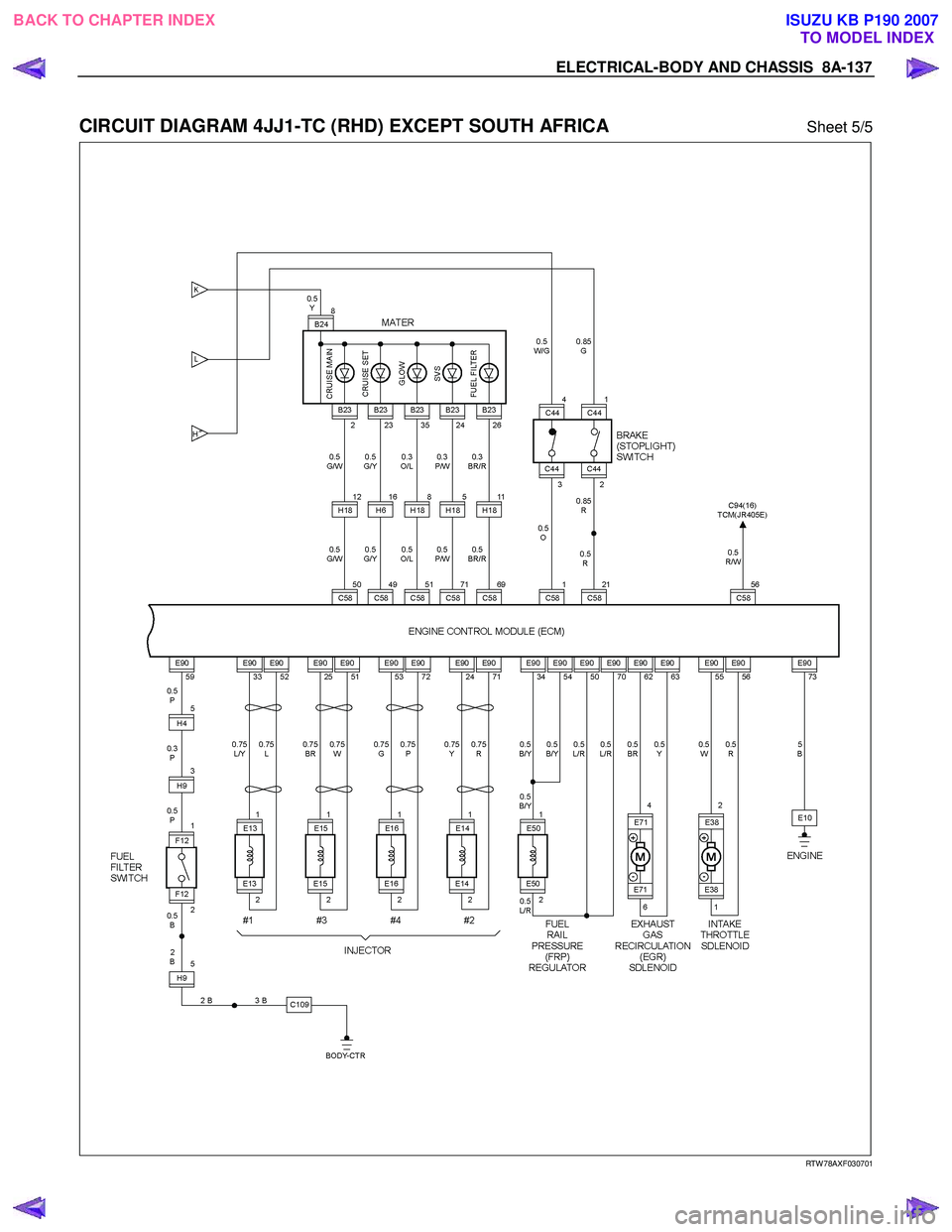

ELECTRICAL-BODY AND CHASSIS 8A-137
CIRCUIT DIAGRAM 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 5/5
RTW 78AXF030701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
