2007 ISUZU KB P190 CIRCUIT DIAGRAM

8A-106 ELECTRICAL-BODY AND CHASSIS

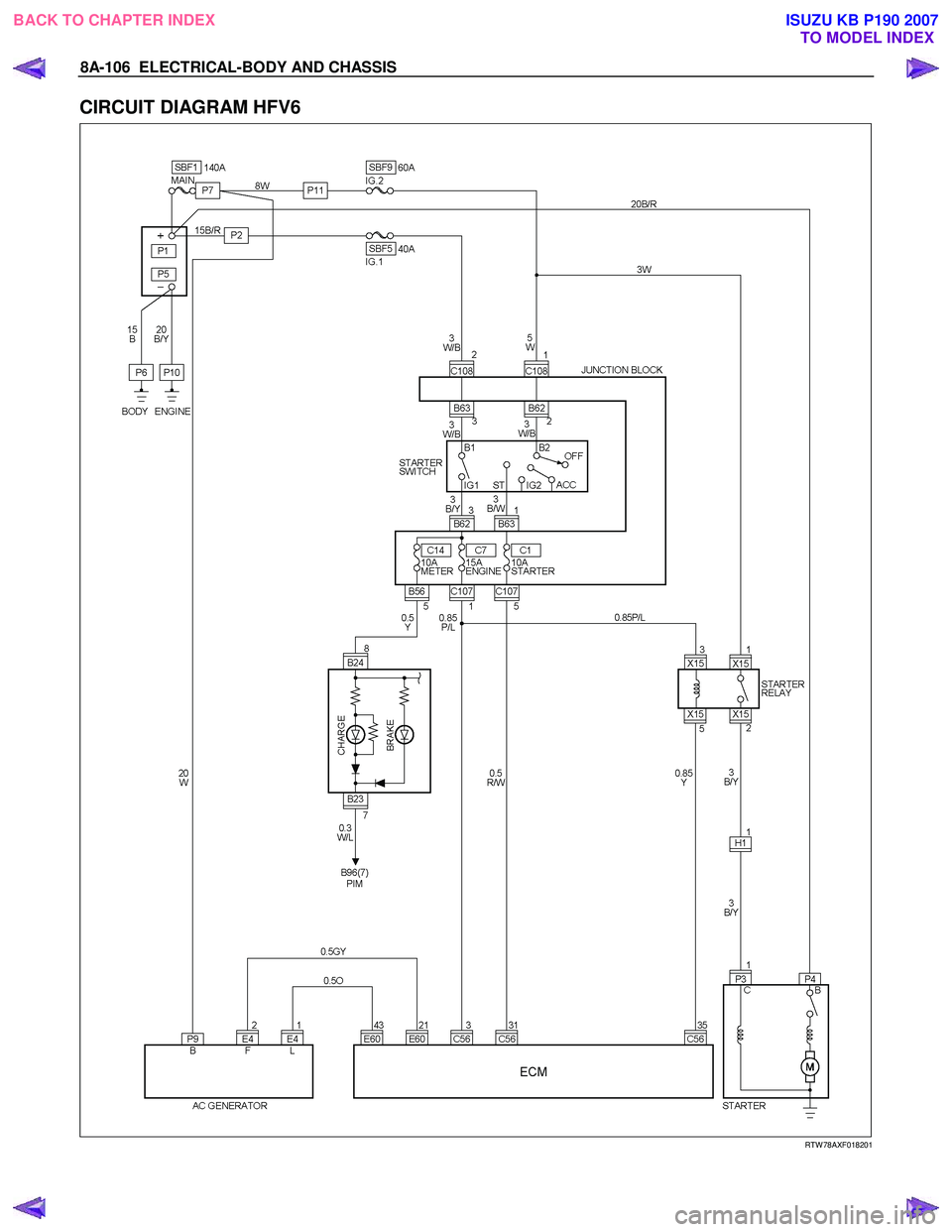

CIRCUIT DIAGRAM HFV6




RTW 78AXF018201


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-107

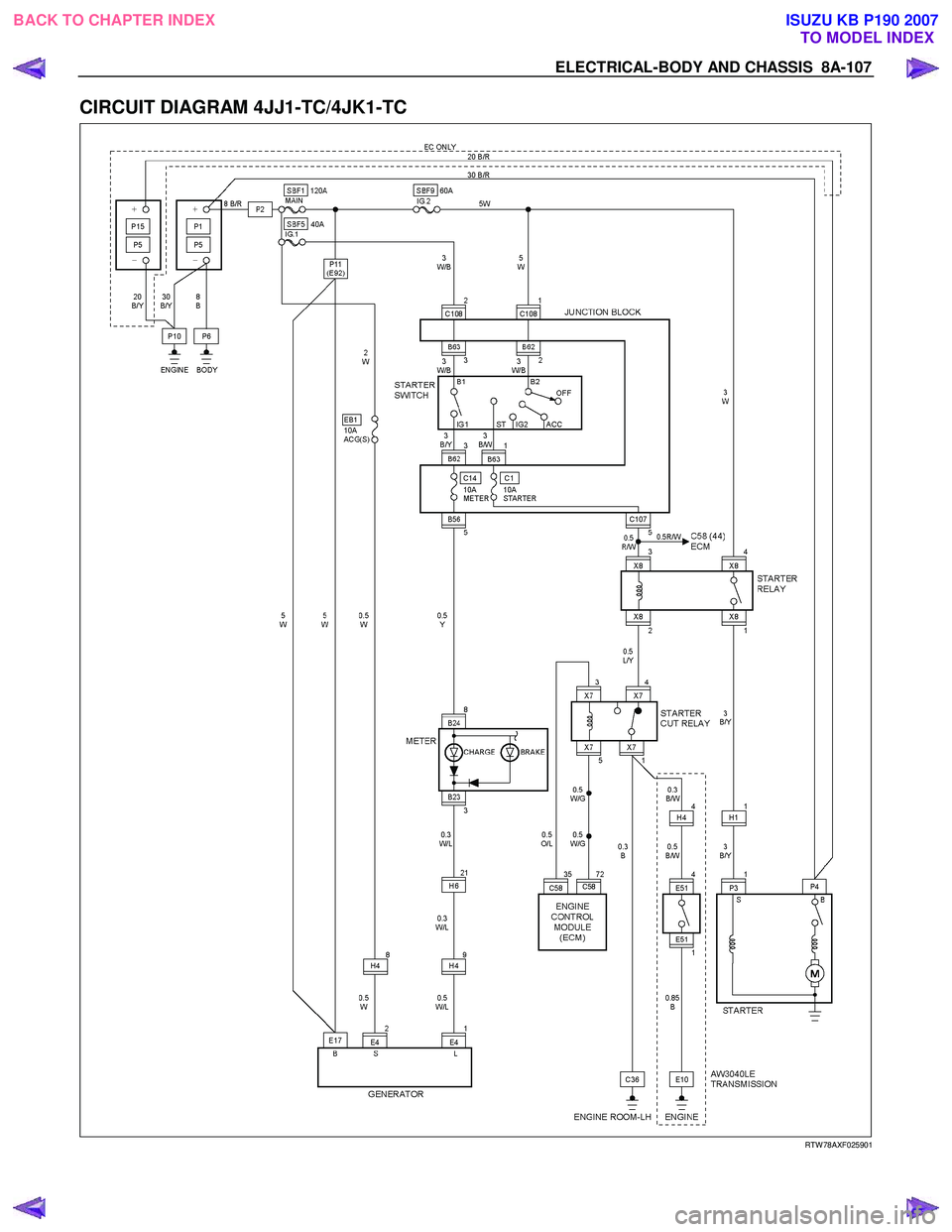

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC


RTW 78AXF025901

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-108 ELECTRICAL-BODY AND CHASSIS

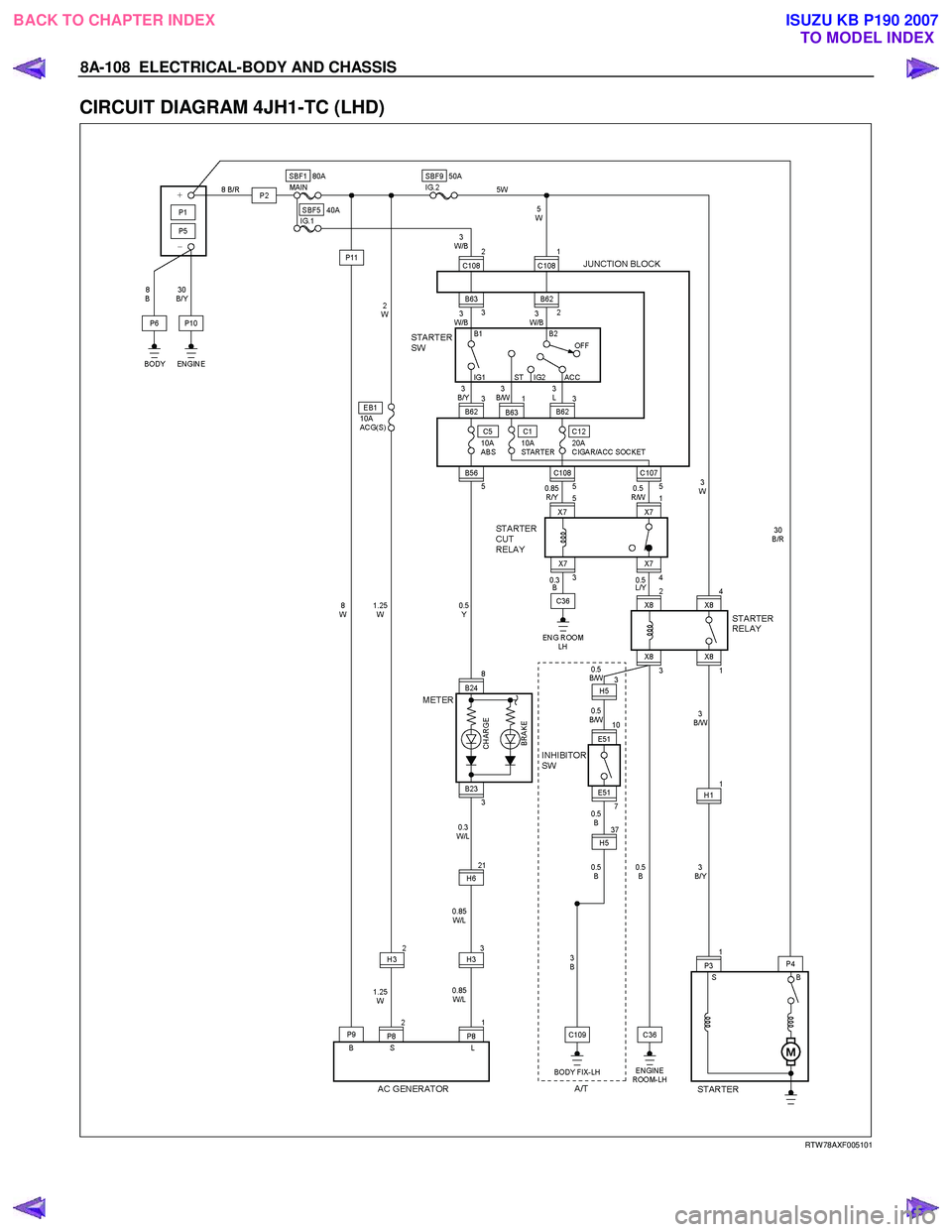

CIRCUIT DIAGRAM 4JH1-TC (LHD)




RTW 78AXF005101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-109

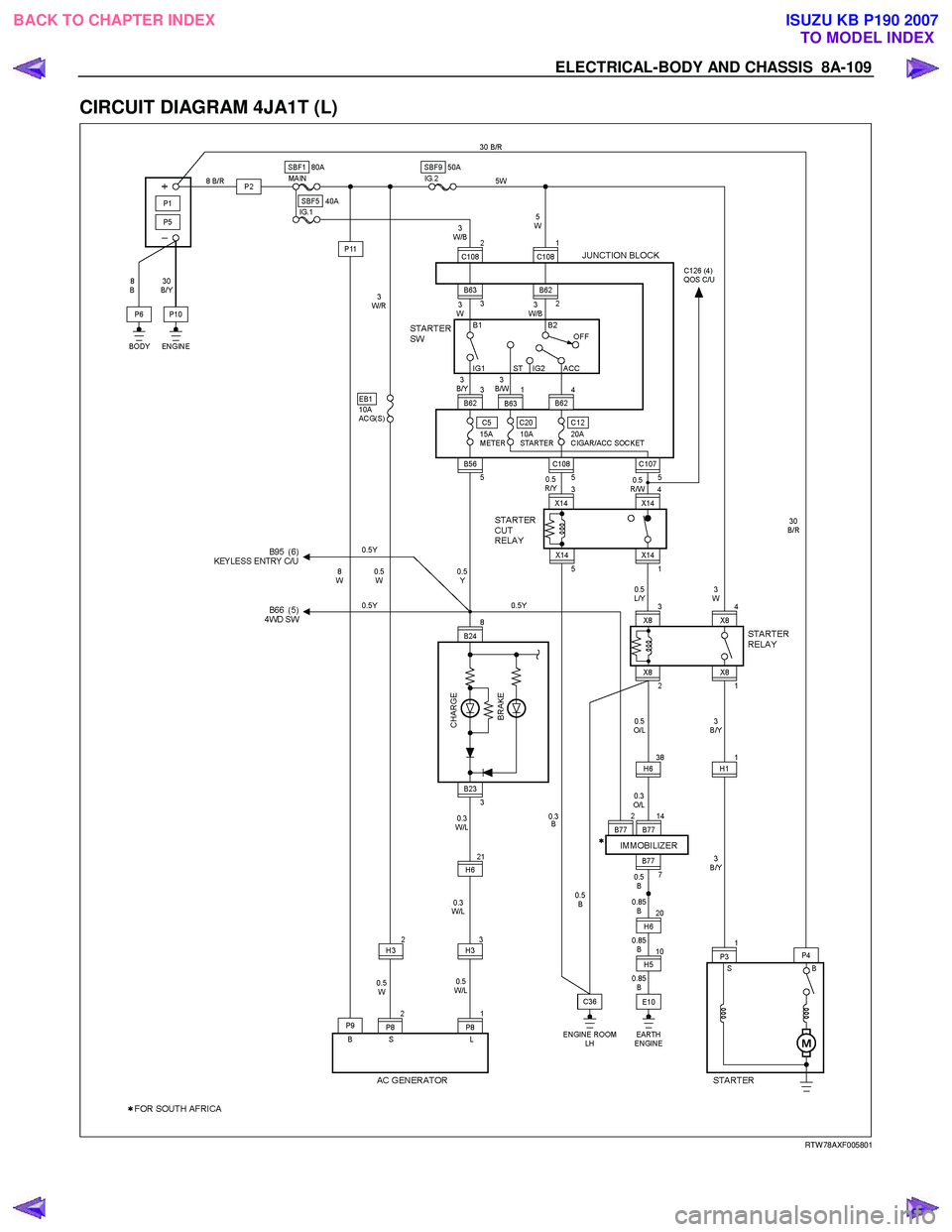

CIRCUIT DIAGRAM 4JA1T (L)


RTW 78AXF005801


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-118 ELECTRICAL-BODY AND CHASSIS

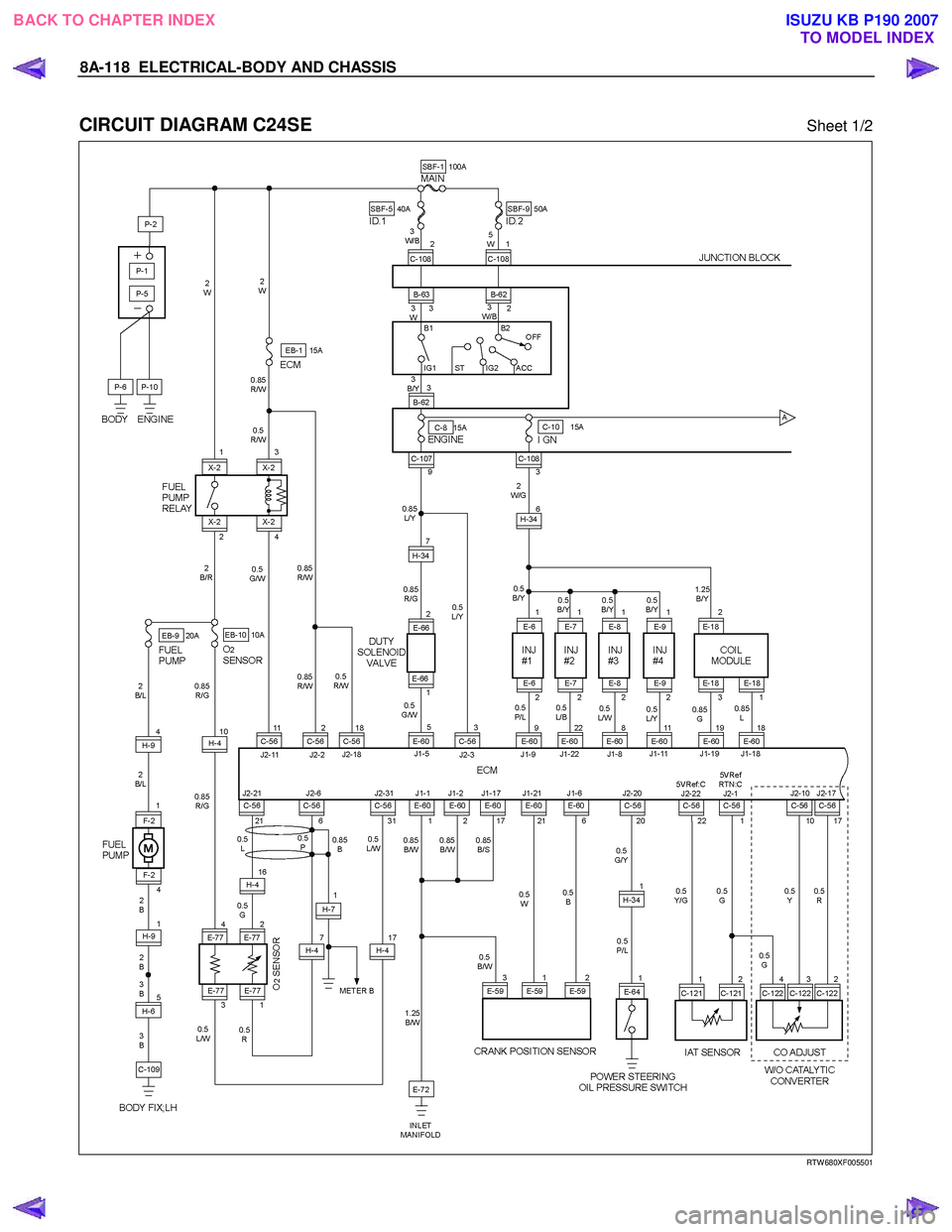

CIRCUIT DIAGRAM C24SE Sheet 1/2


RTW 680XF005501

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-119

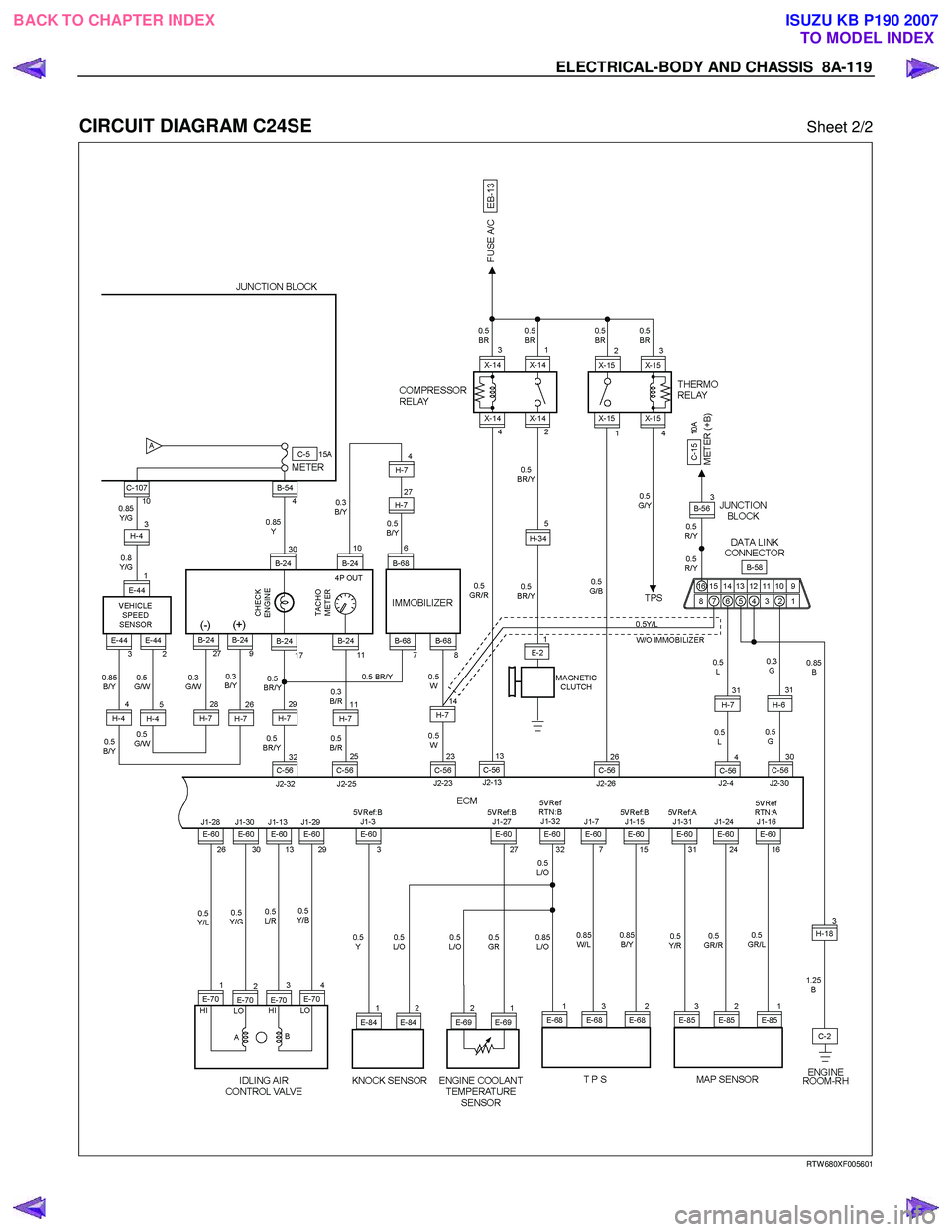

CIRCUIT DIAGRAM C24SE Sheet 2/2




RTW 680XF005601


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-120 ELECTRICAL-BODY AND CHASSIS

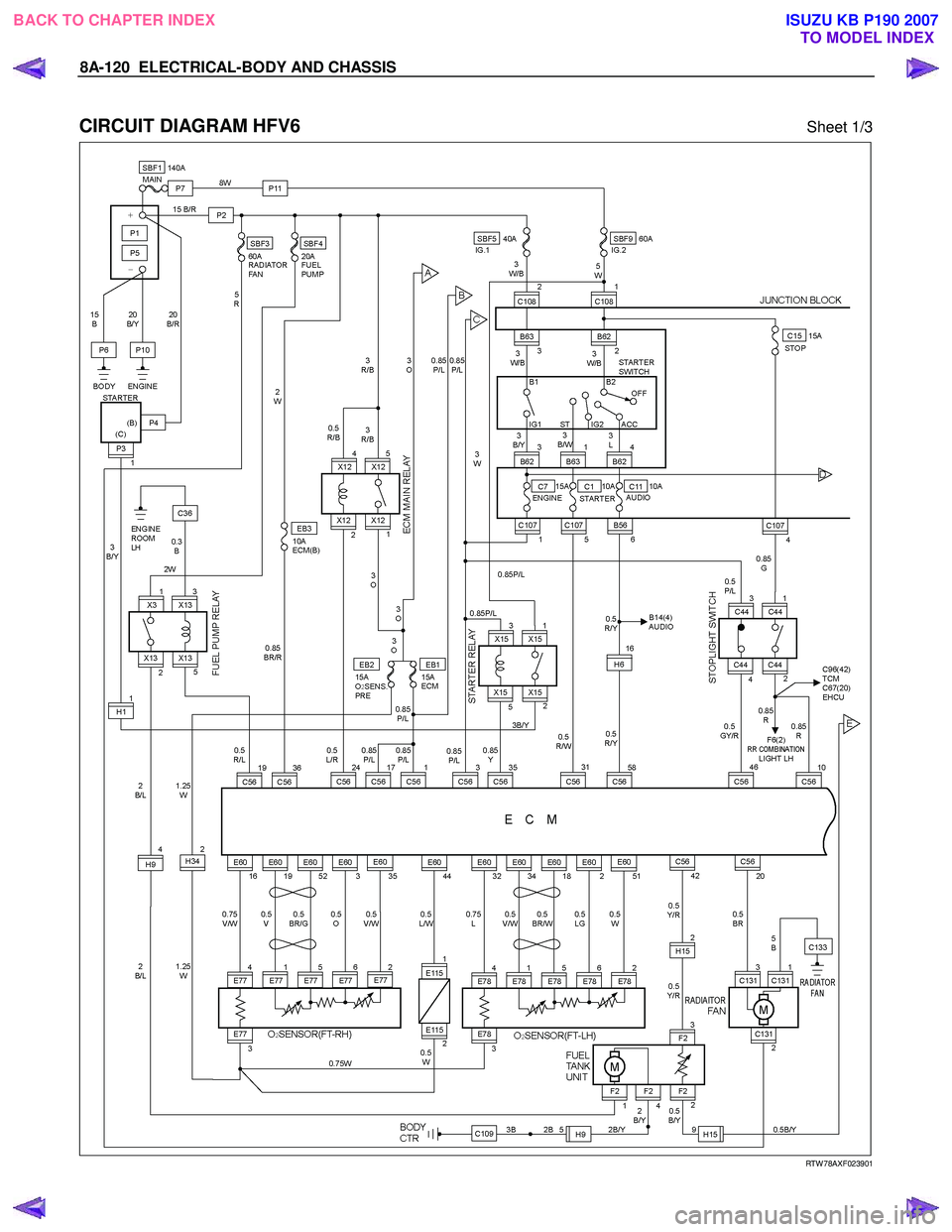

CIRCUIT DIAGRAM HFV6 Sheet 1/3

RTW 78AXF023901

BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-121

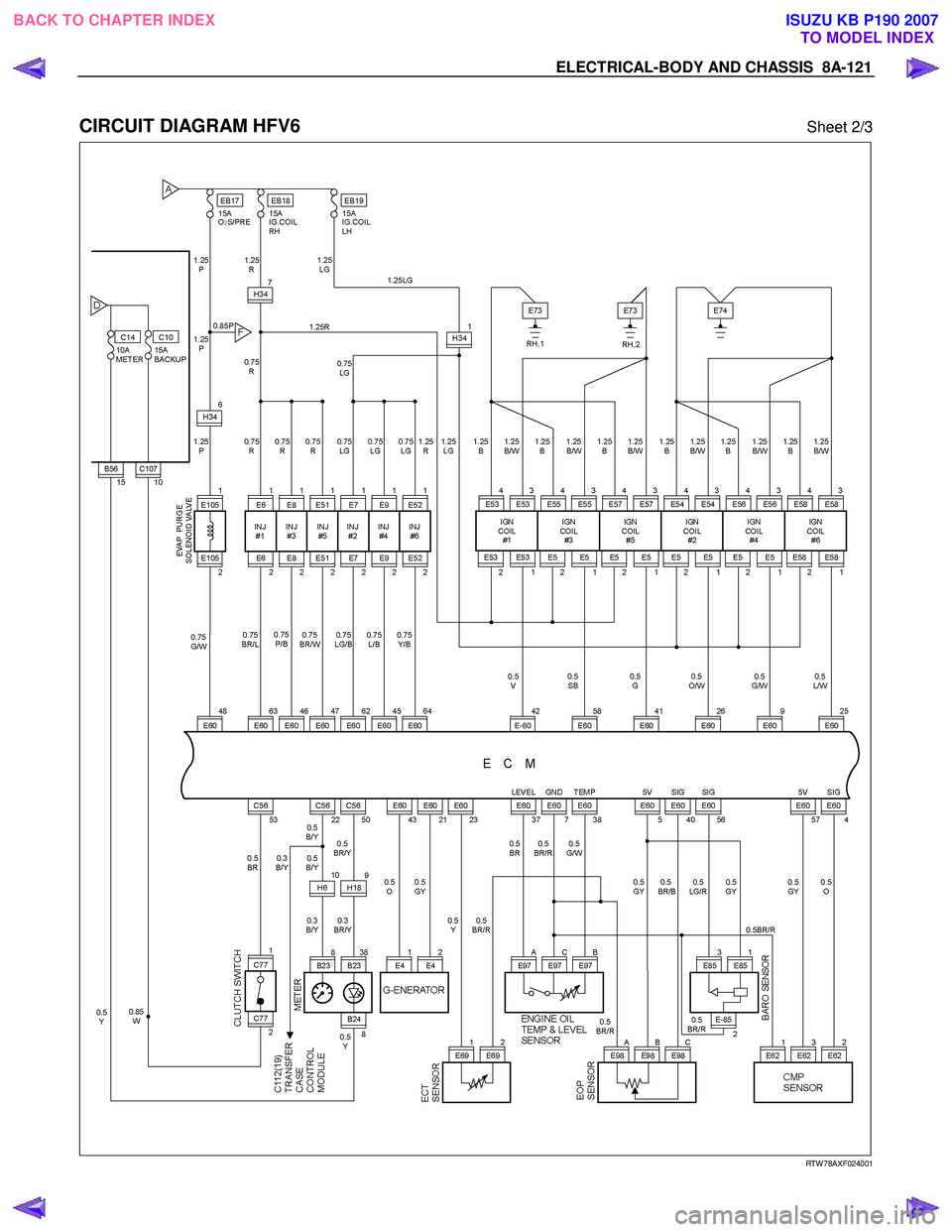

CIRCUIT DIAGRAM HFV6 Sheet 2/3


RTW 78AXF024001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
