Page 5142 of 6020
8A-204 ELECTRICAL-BODY AND CHASSIS

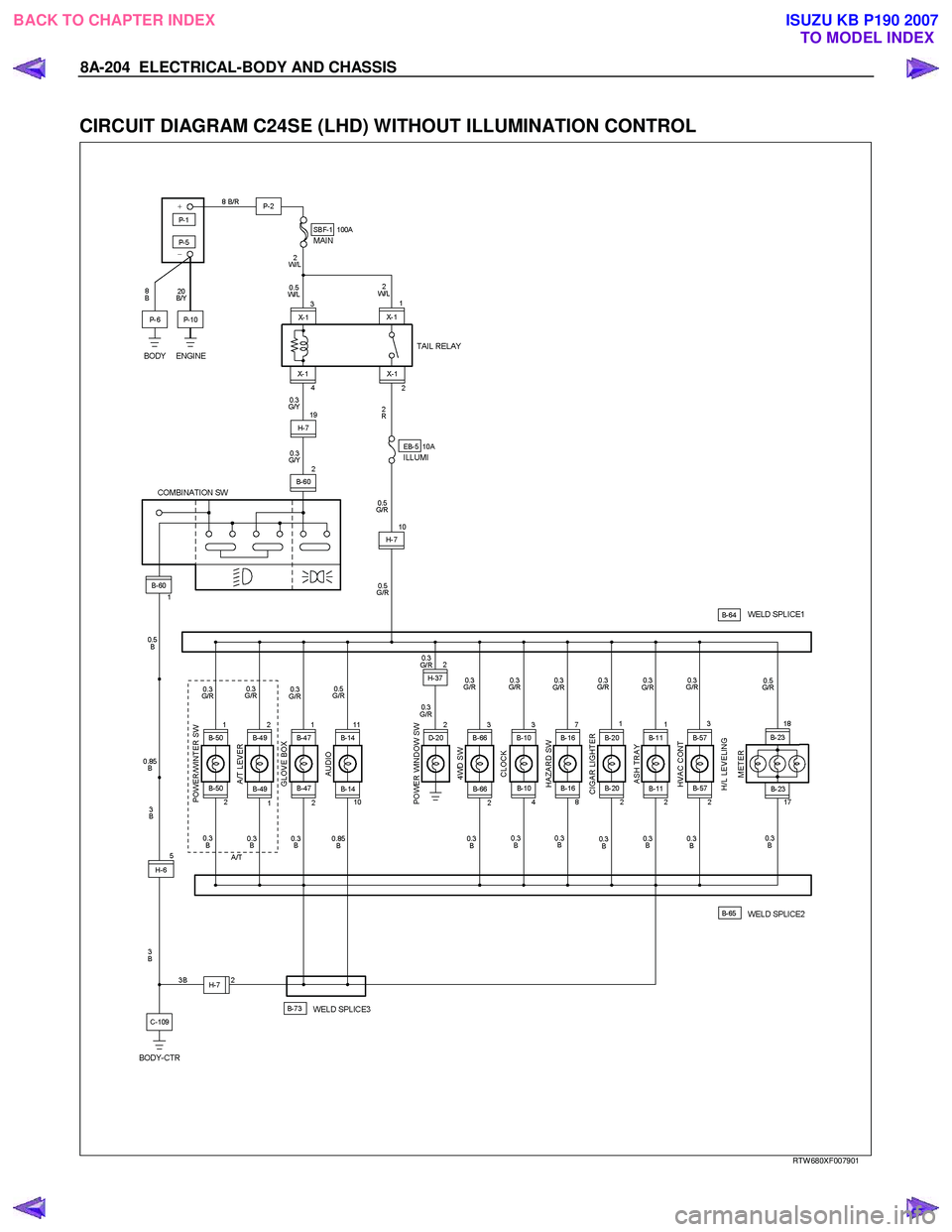

CIRCUIT DIAGRAM C24SE (LHD) WITHOUT ILLUMINATION CONTROL
RTW 680XF007901
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5143 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-205
CIRCUIT DIAGRAM C24SE (LHD) WITH ILLUMINATION CONTROL
RTW 680XF008001
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5144 of 6020
8A-206 ELECTRICAL-BODY AND CHASSIS

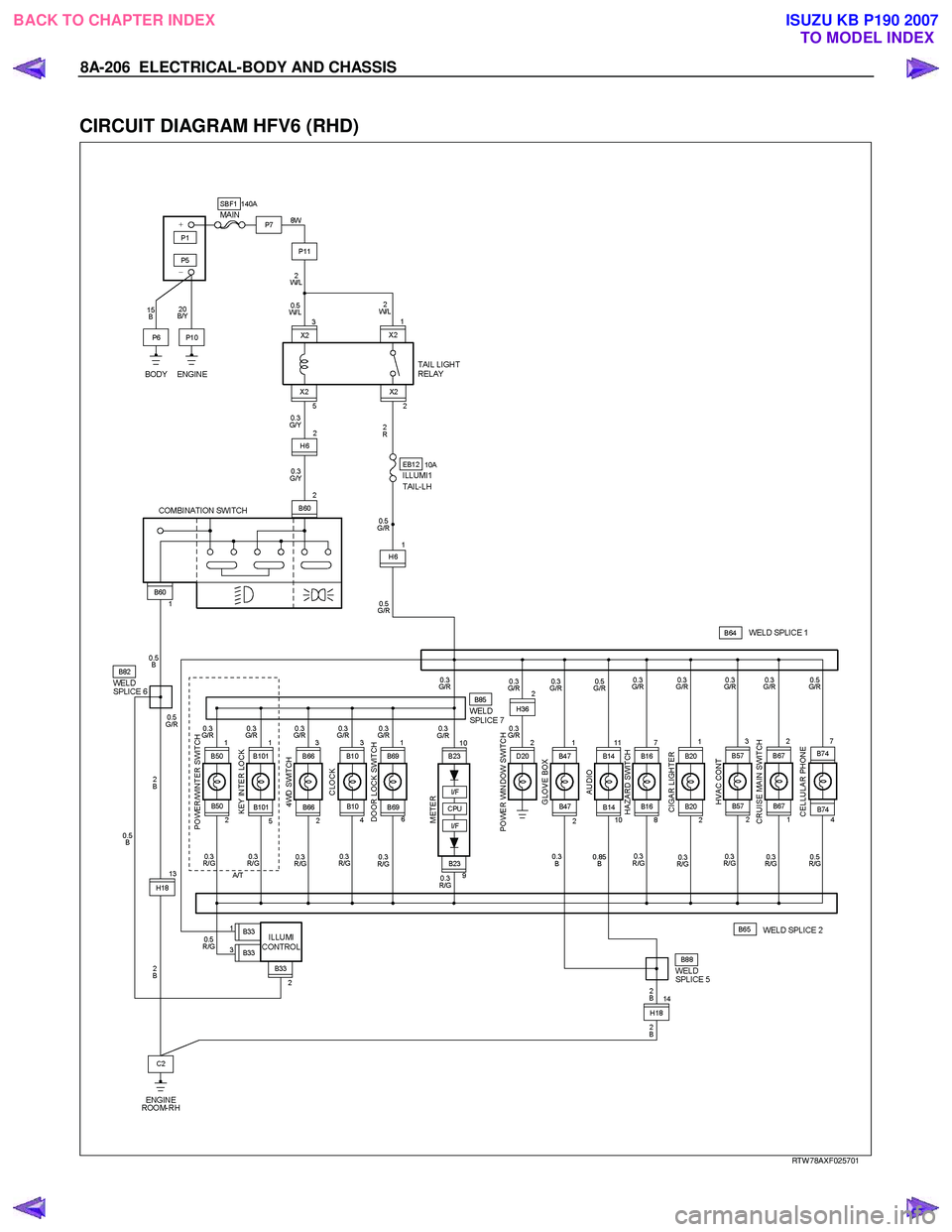

CIRCUIT DIAGRAM HFV6 (RHD)
RTW 78AXF025701
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5145 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-207

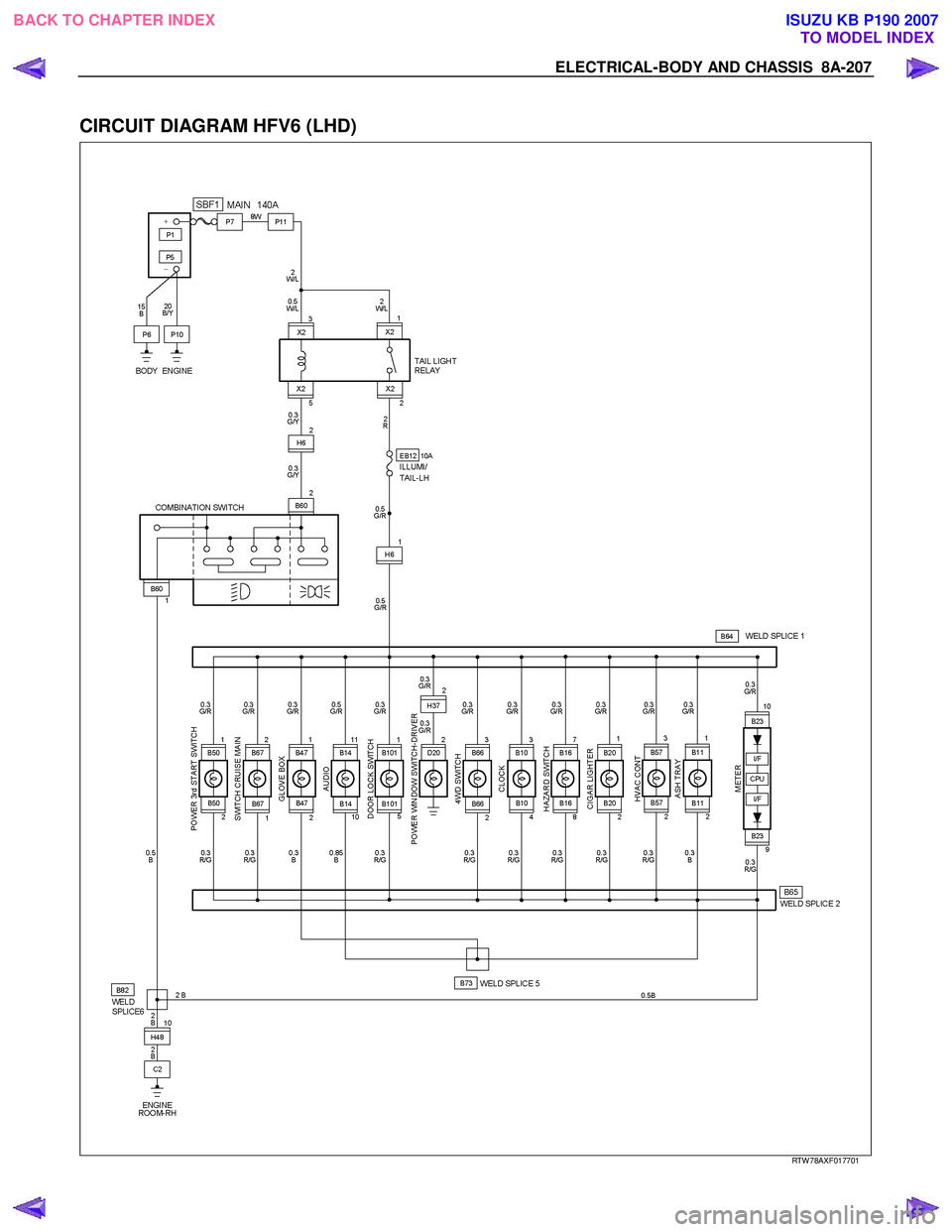

CIRCUIT DIAGRAM HFV6 (LHD)
RTW 78AXF017701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5146 of 6020
8A-208 ELECTRICAL-BODY AND CHASSIS

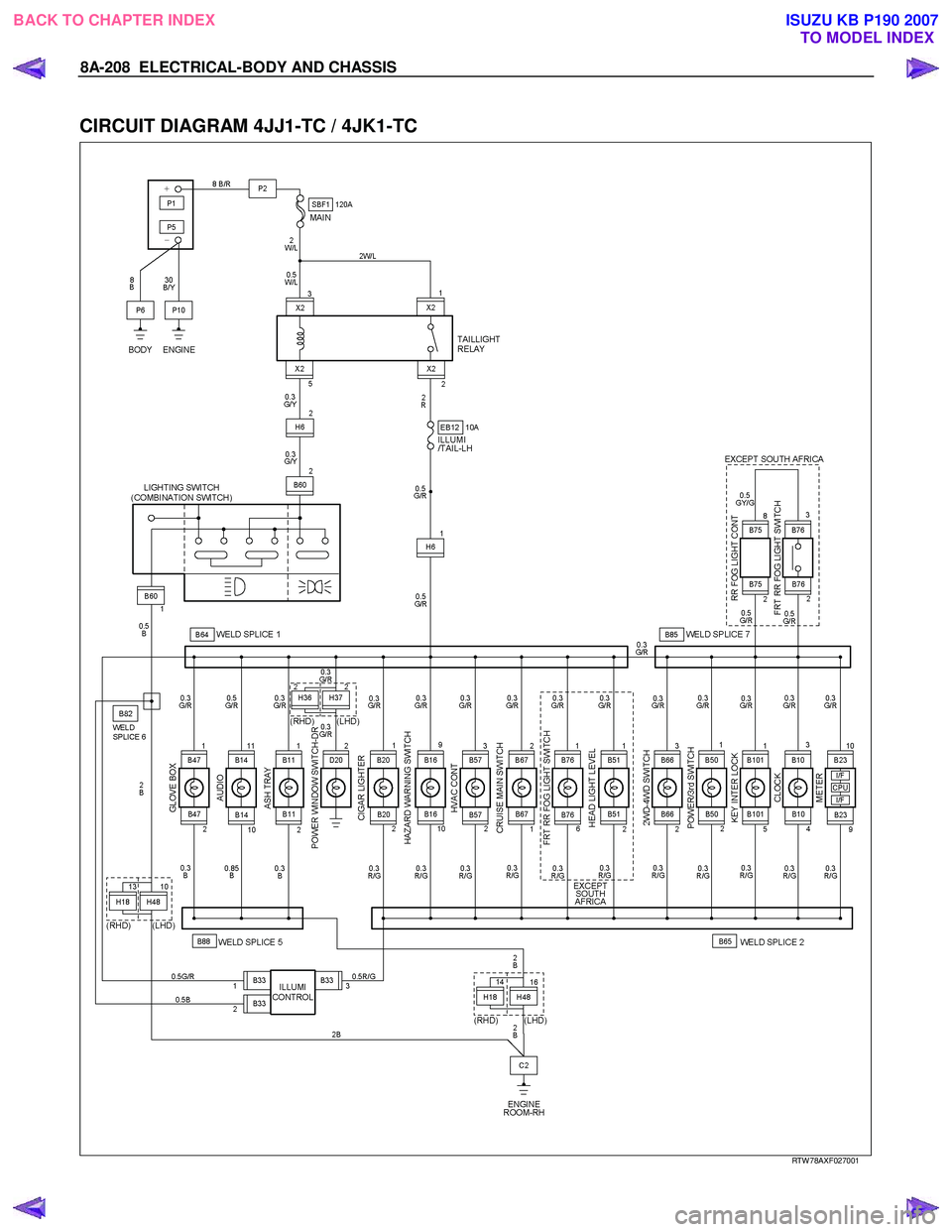

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC
RTW 78AXF027001
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5147 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-209
CIRCUIT DIAGRAM 4JH1-TC (LHD)
RTW A78XF013601
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5148 of 6020
8A-210 ELECTRICAL-BODY AND CHASSIS

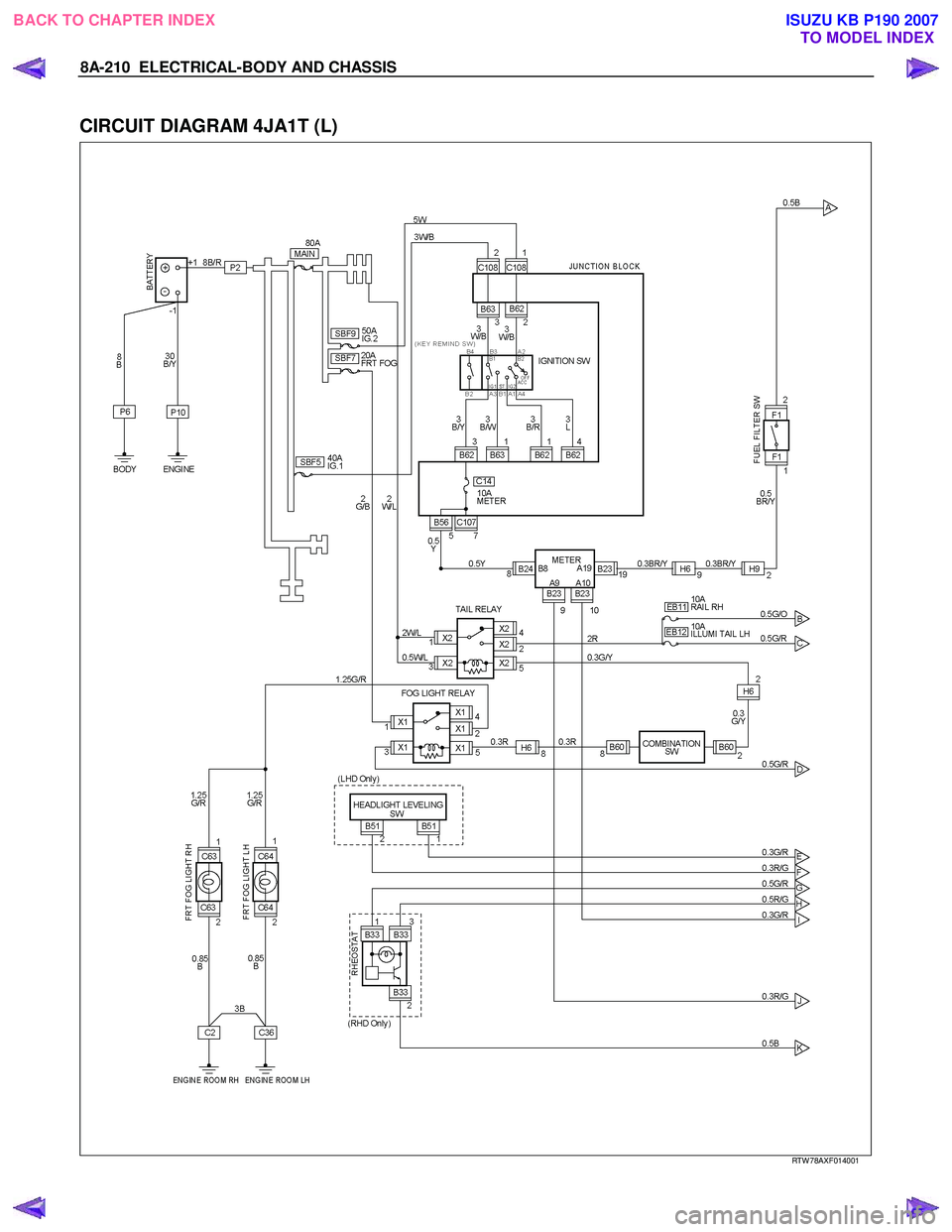

CIRCUIT DIAGRAM 4JA1T (L)
RTW 78AXF014001
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5149 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-211

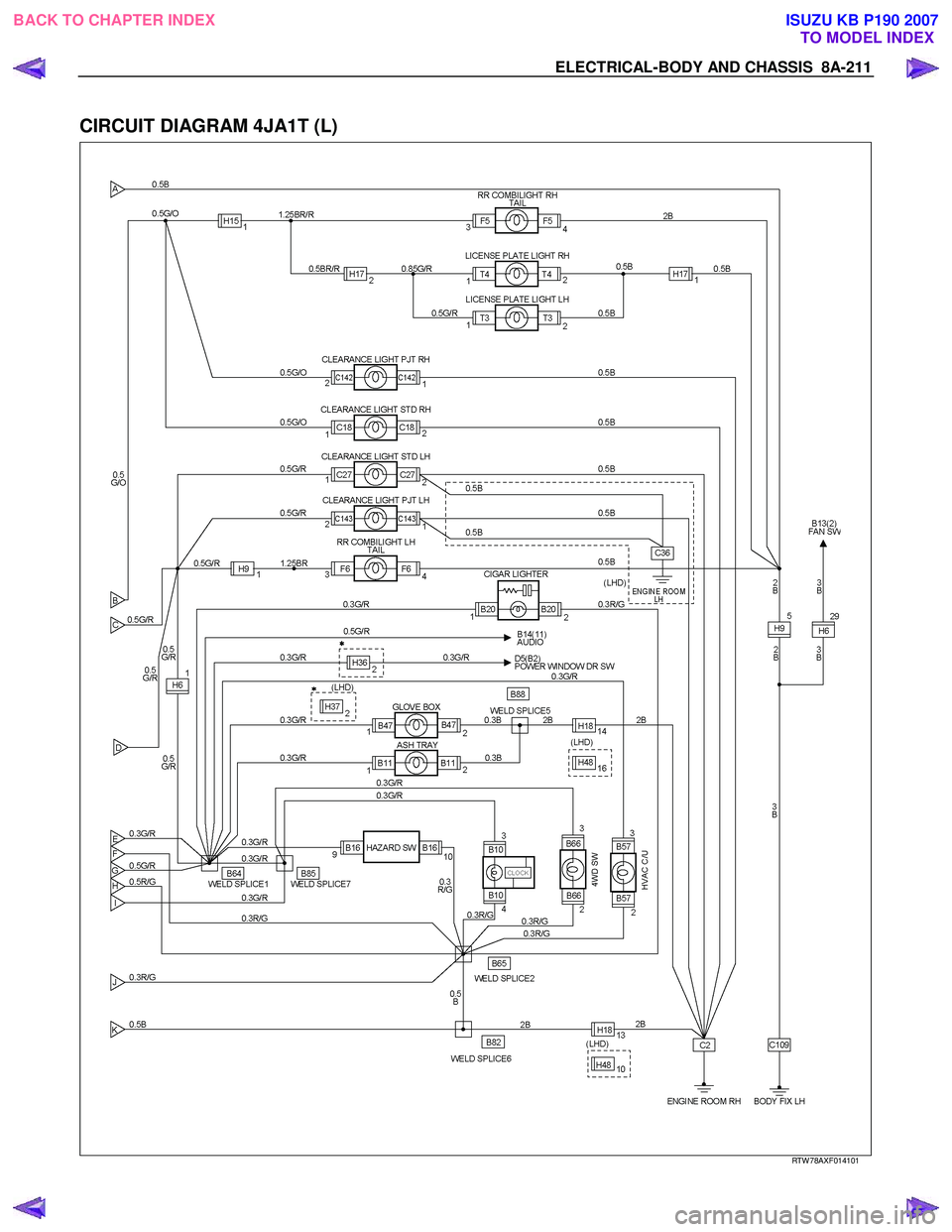

CIRCUIT DIAGRAM 4JA1T (L)
RTW 78AXF014101
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
