Page 5155 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-217

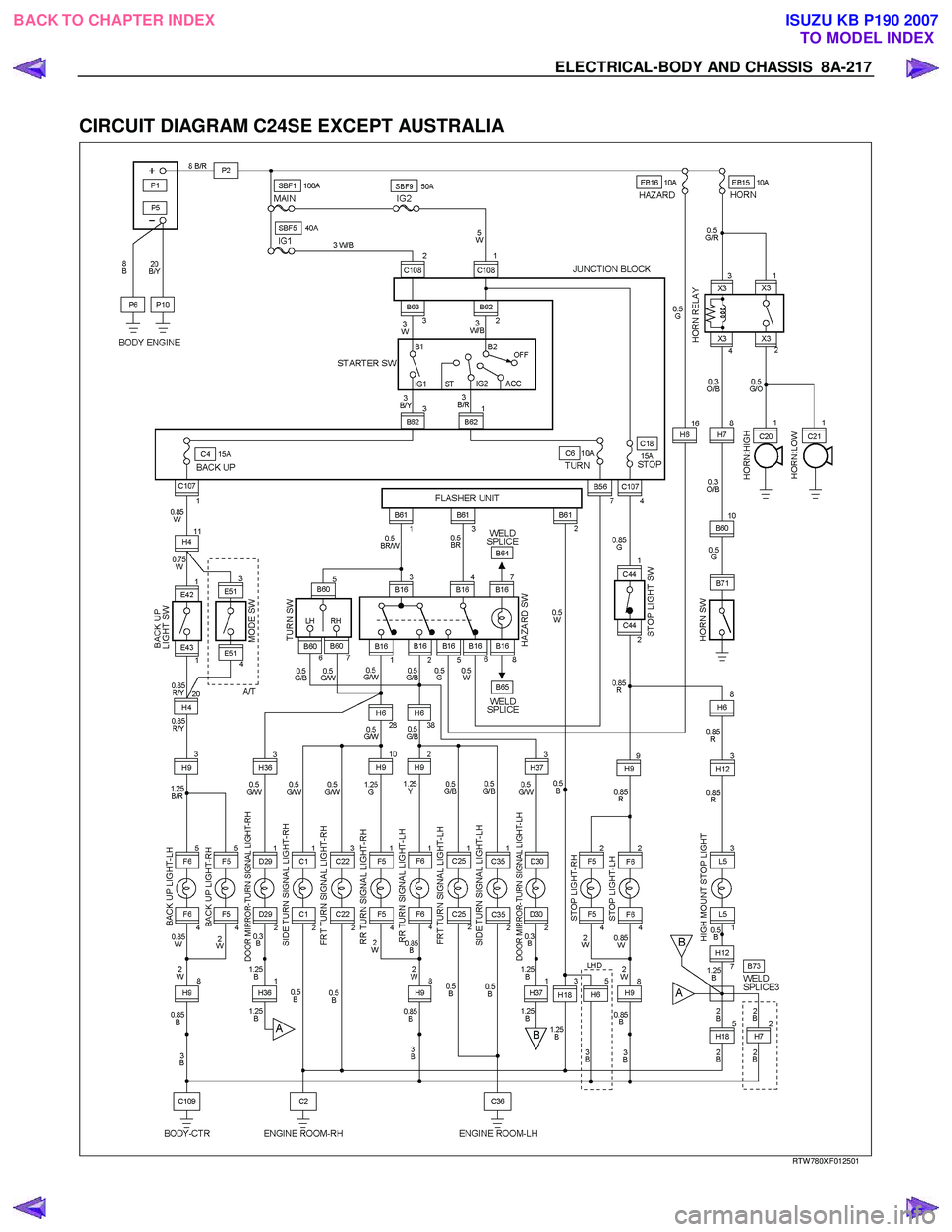

CIRCUIT DIAGRAM C24SE EXCEPT AUSTRALIA
RTW 780XF012501
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5156 of 6020
8A-218 ELECTRICAL-BODY AND CHASSIS

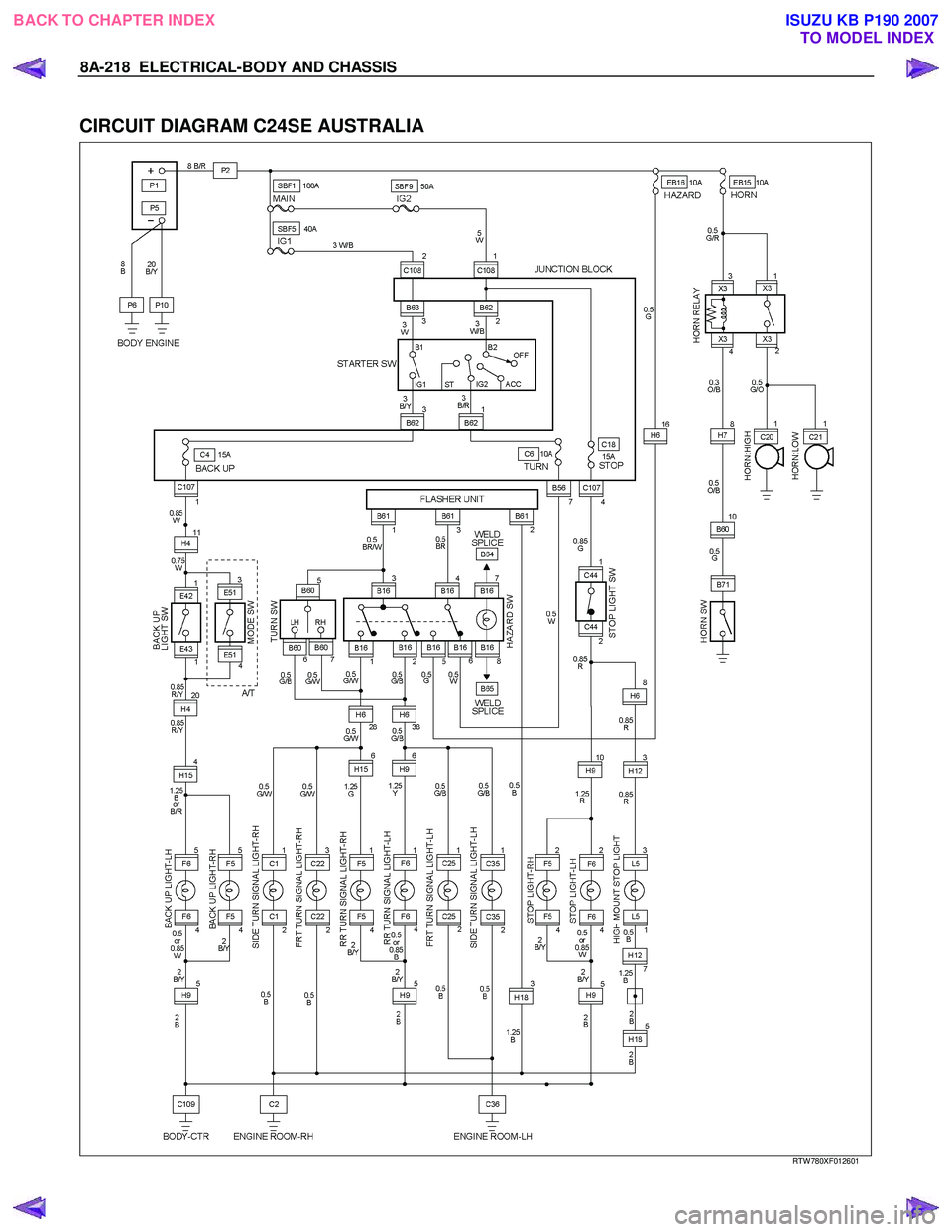

CIRCUIT DIAGRAM C24SE AUSTRALIA
RTW 780XF012601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5157 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-219

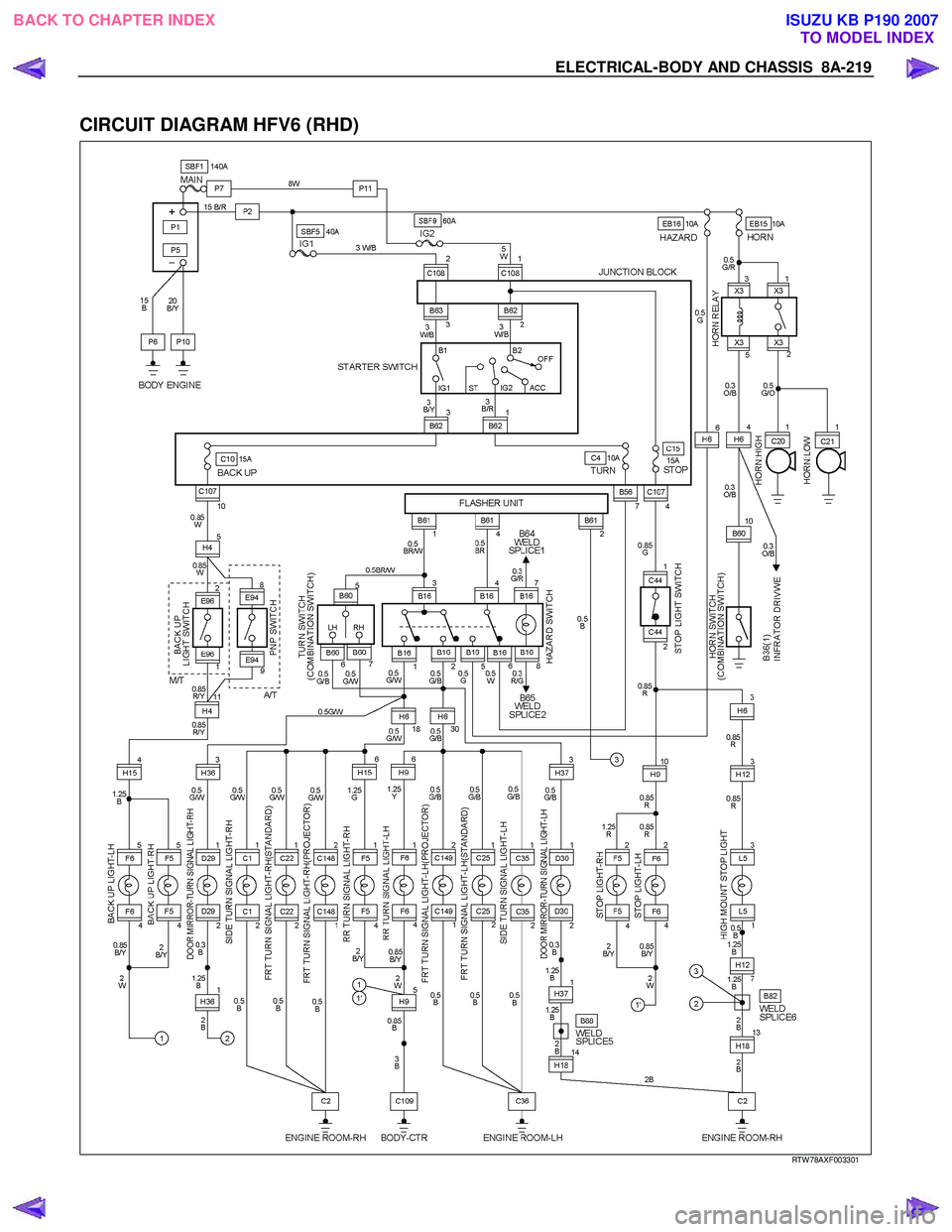

CIRCUIT DIAGRAM HFV6 (RHD)
RTW 78AXF003301
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5158 of 6020
8A-220 ELECTRICAL-BODY AND CHASSIS

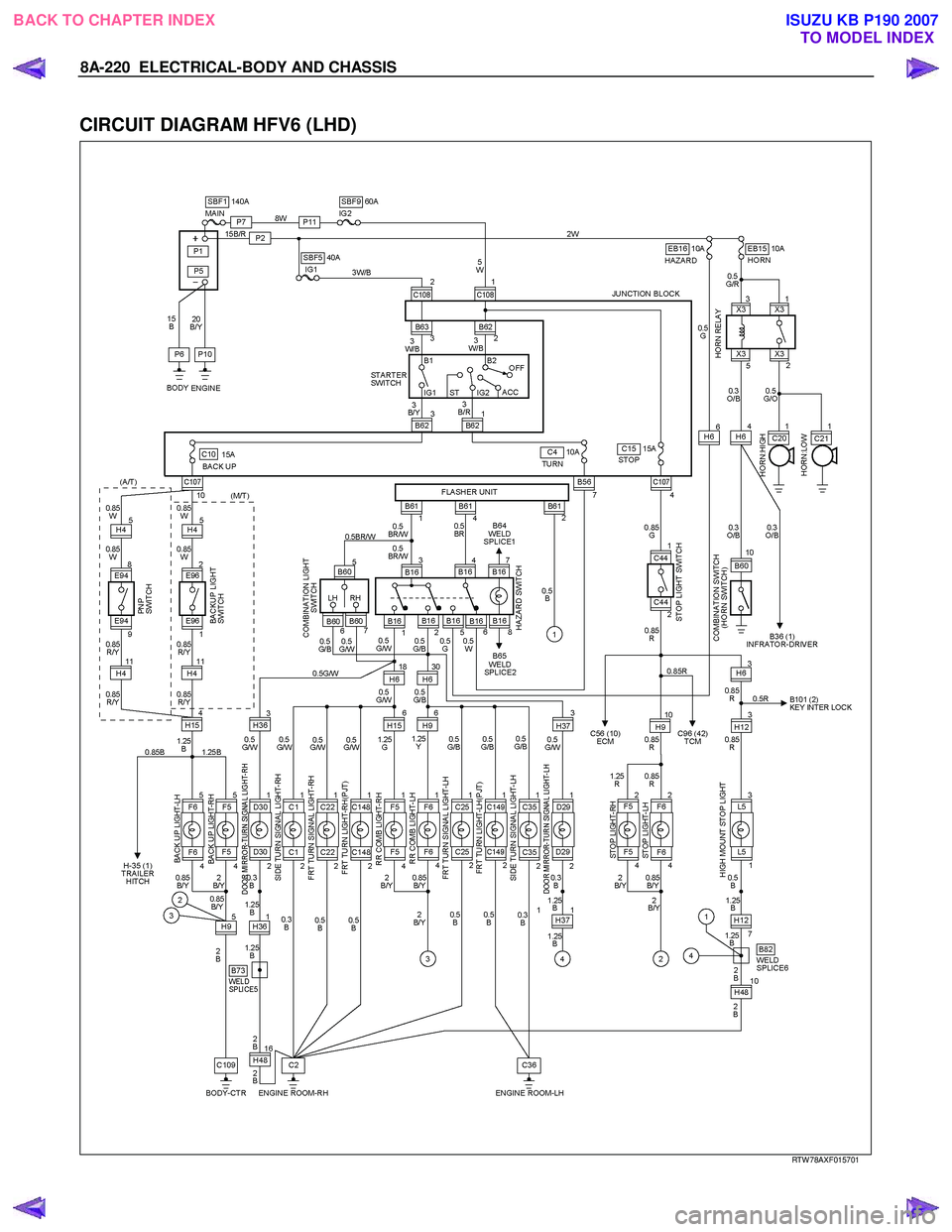

CIRCUIT DIAGRAM HFV6 (LHD)
RTW 78AXF015701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5159 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-221
CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) Sheet 1/2
RTW 78AXF011101
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5160 of 6020
8A-222 ELECTRICAL-BODY AND CHASSIS

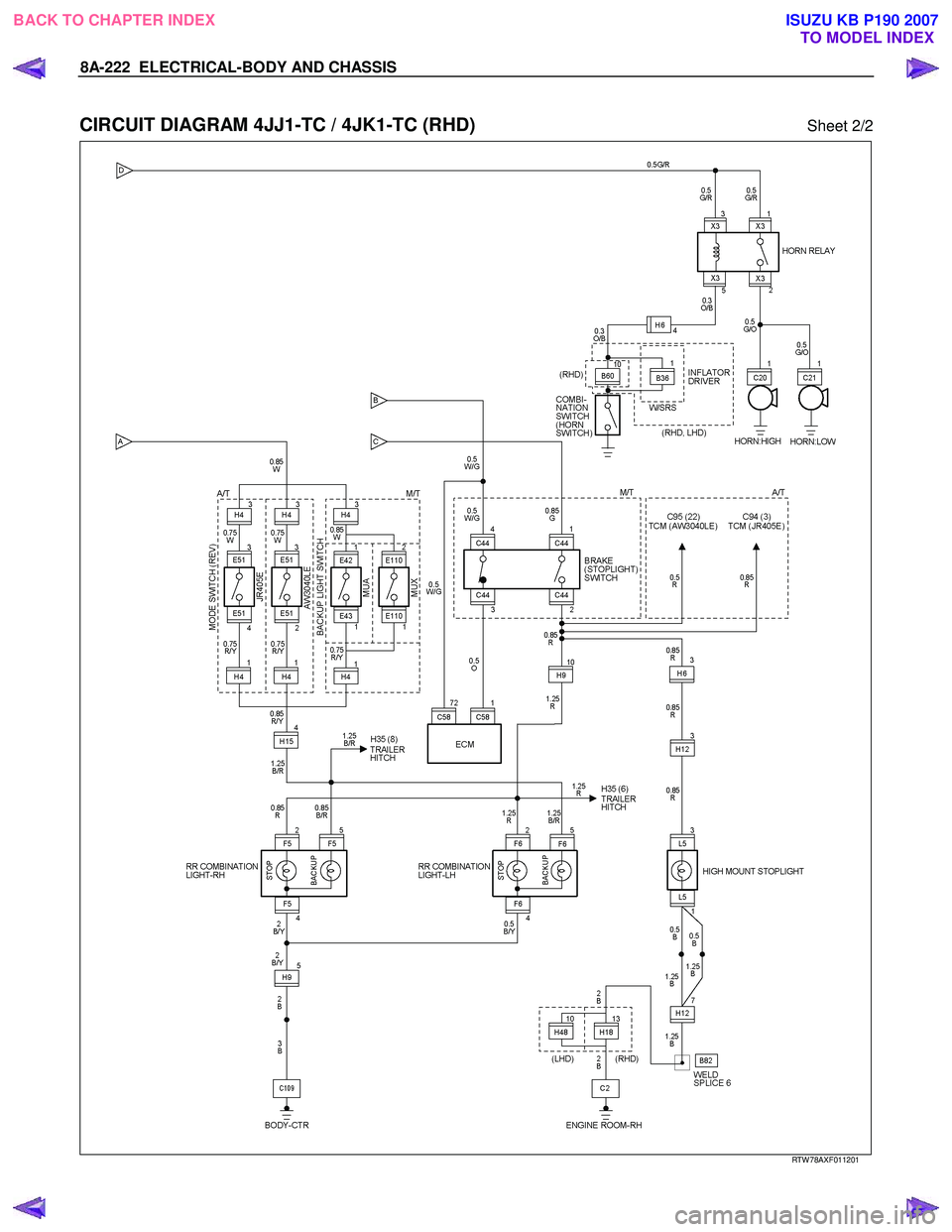

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) Sheet 2/2
RTW 78AXF011201
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5161 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-223

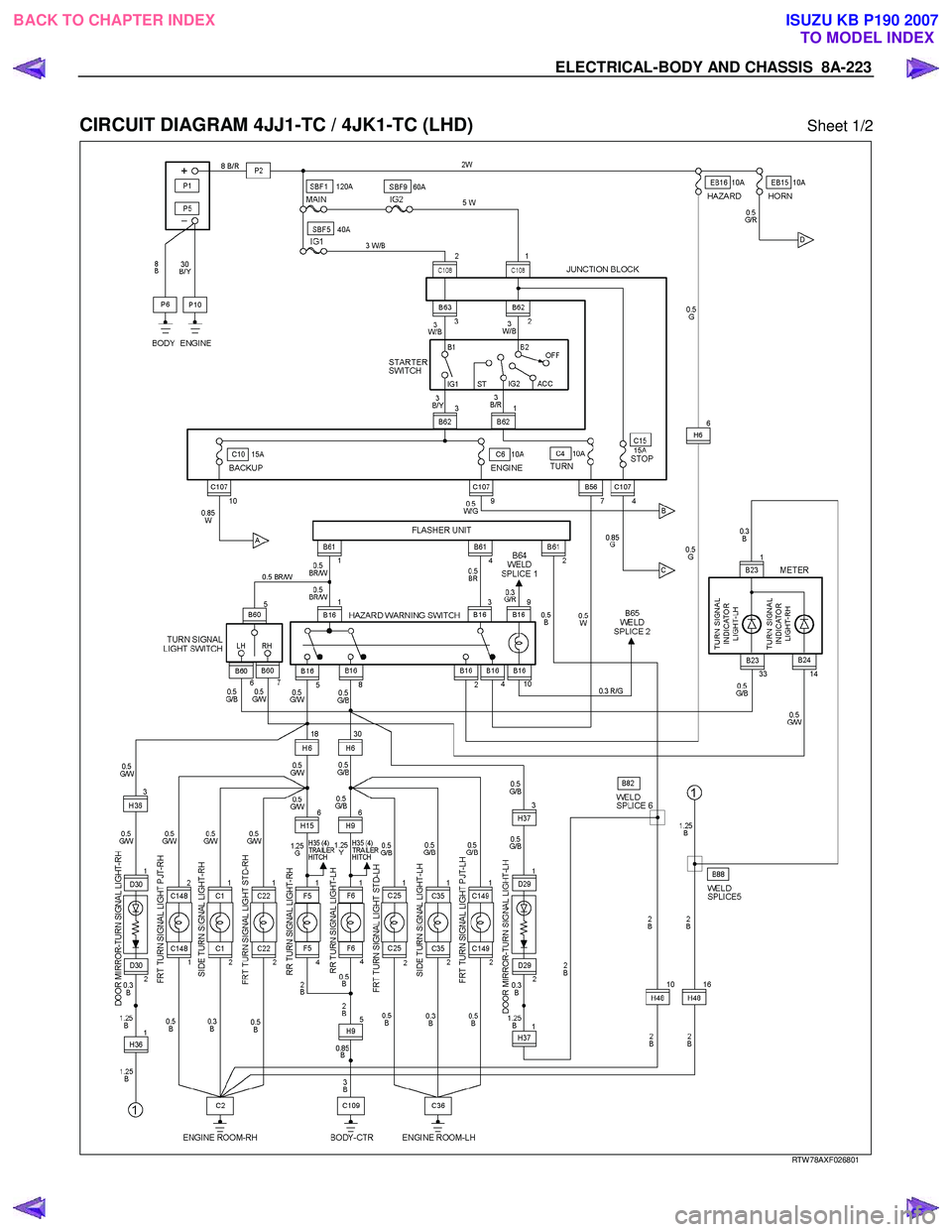

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD) Sheet 1/2
RTW 78AXF026801
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5162 of 6020
8A-224 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD) Sheet 2/2
RTW 78AXF011201
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
