2007 ISUZU KB P190 CIRCUIT DIAGRAM

ELECTRICAL-BODY AND CHASSIS 8A-267

CIRCUIT DIAGRAM C24SE (RHD) WITH INTERMITTENT RELAY



RTW 780XF013201


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-268 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE (LHD) WITHOUT INTERMITTENT RELAY


RTW 780XF013301

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-269

CIRCUIT DIAGRAM C24SE (LHD) WITH INTERMITTENT RELAY


RTW 780XF013401


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

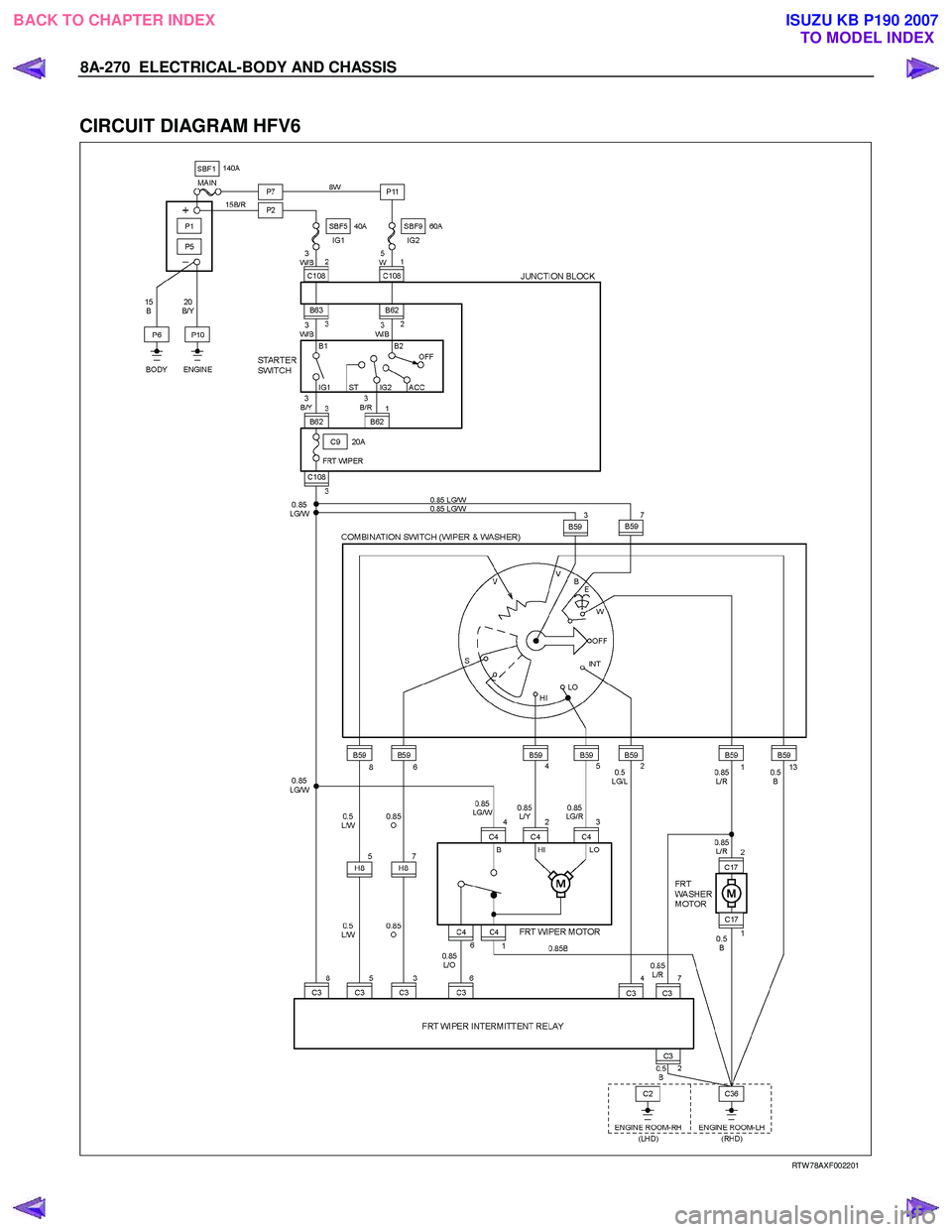

8A-270 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6


RTW 78AXF002201


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

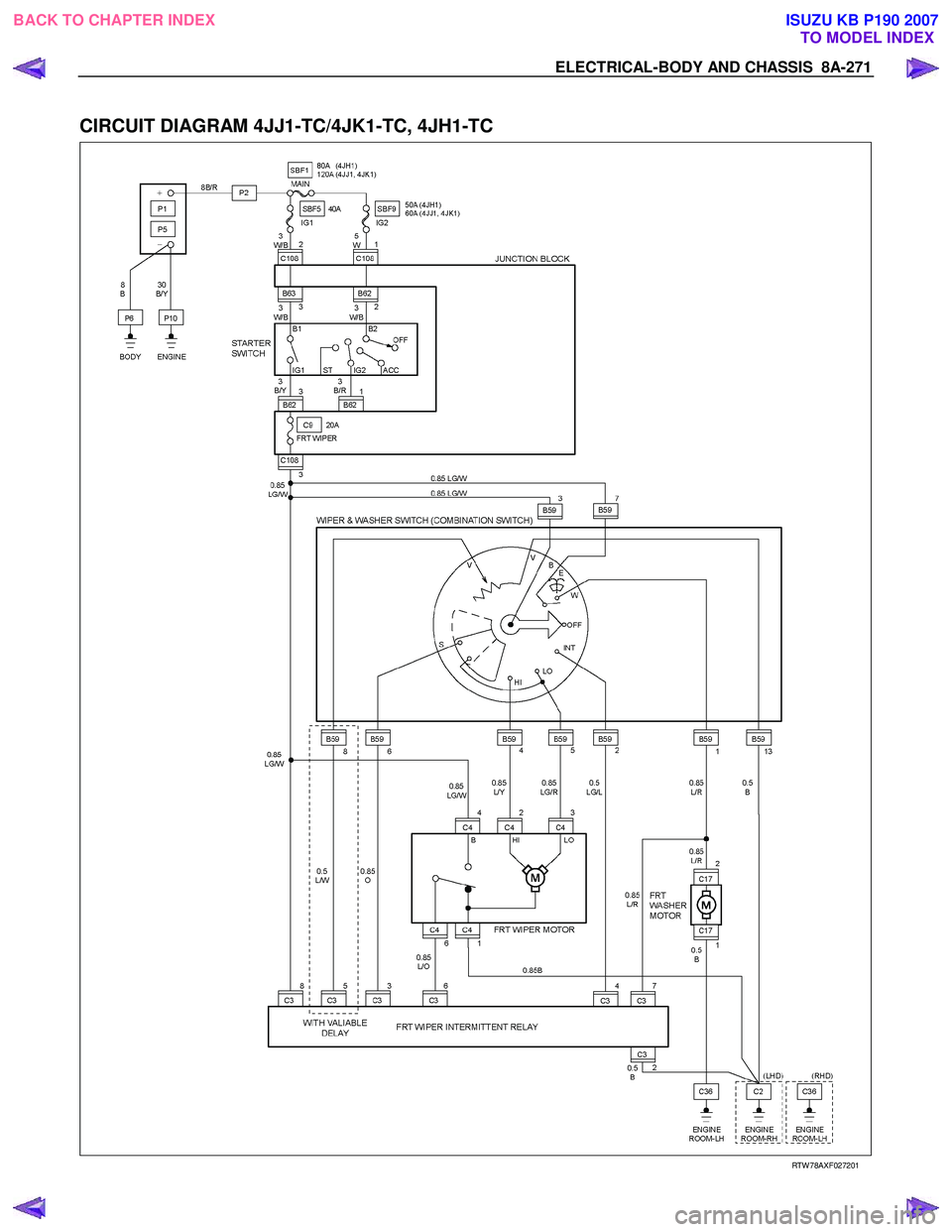

ELECTRICAL-BODY AND CHASSIS 8A-271

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC, 4JH1-TC


RTW 78AXF027201


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

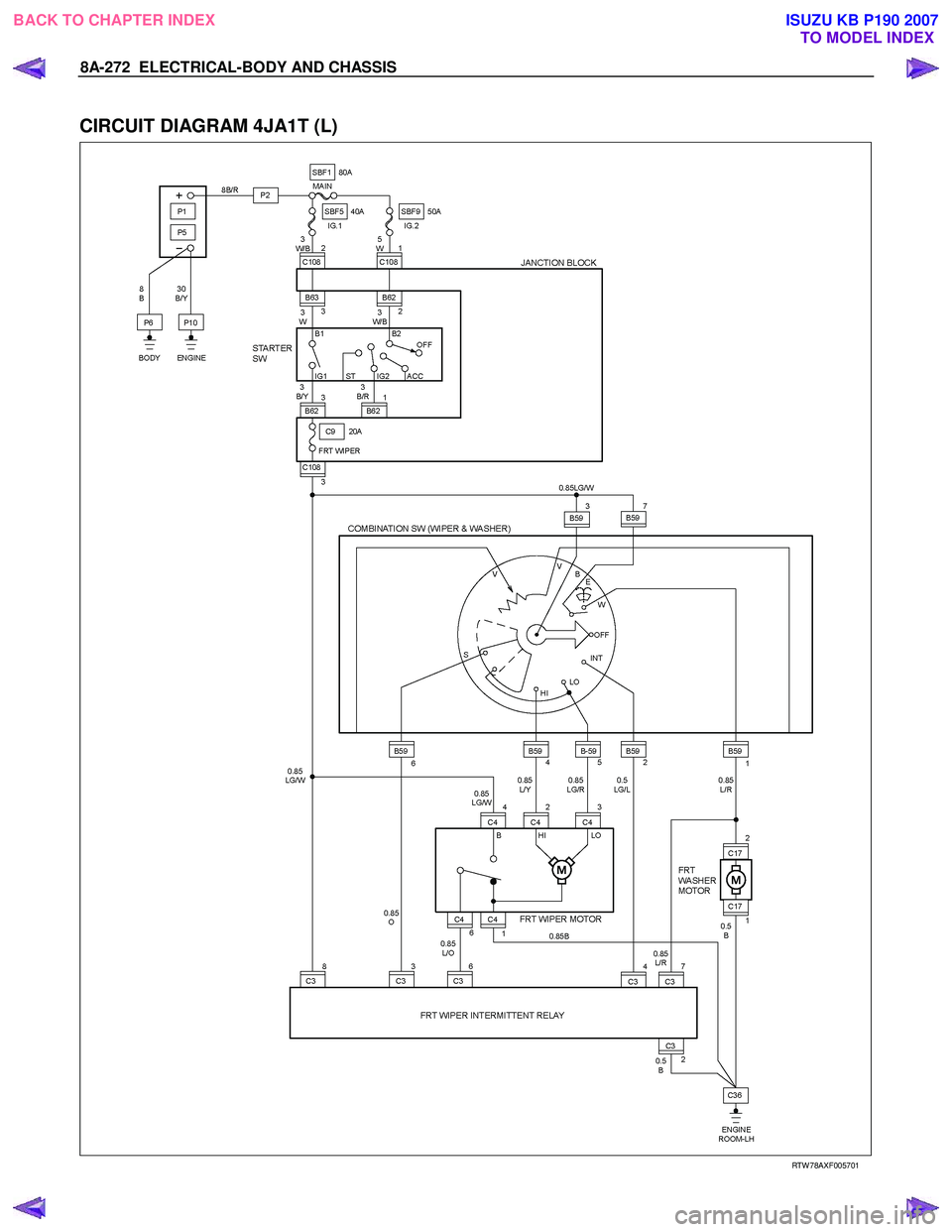

8A-272 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T (L)


RTW 78AXF005701


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

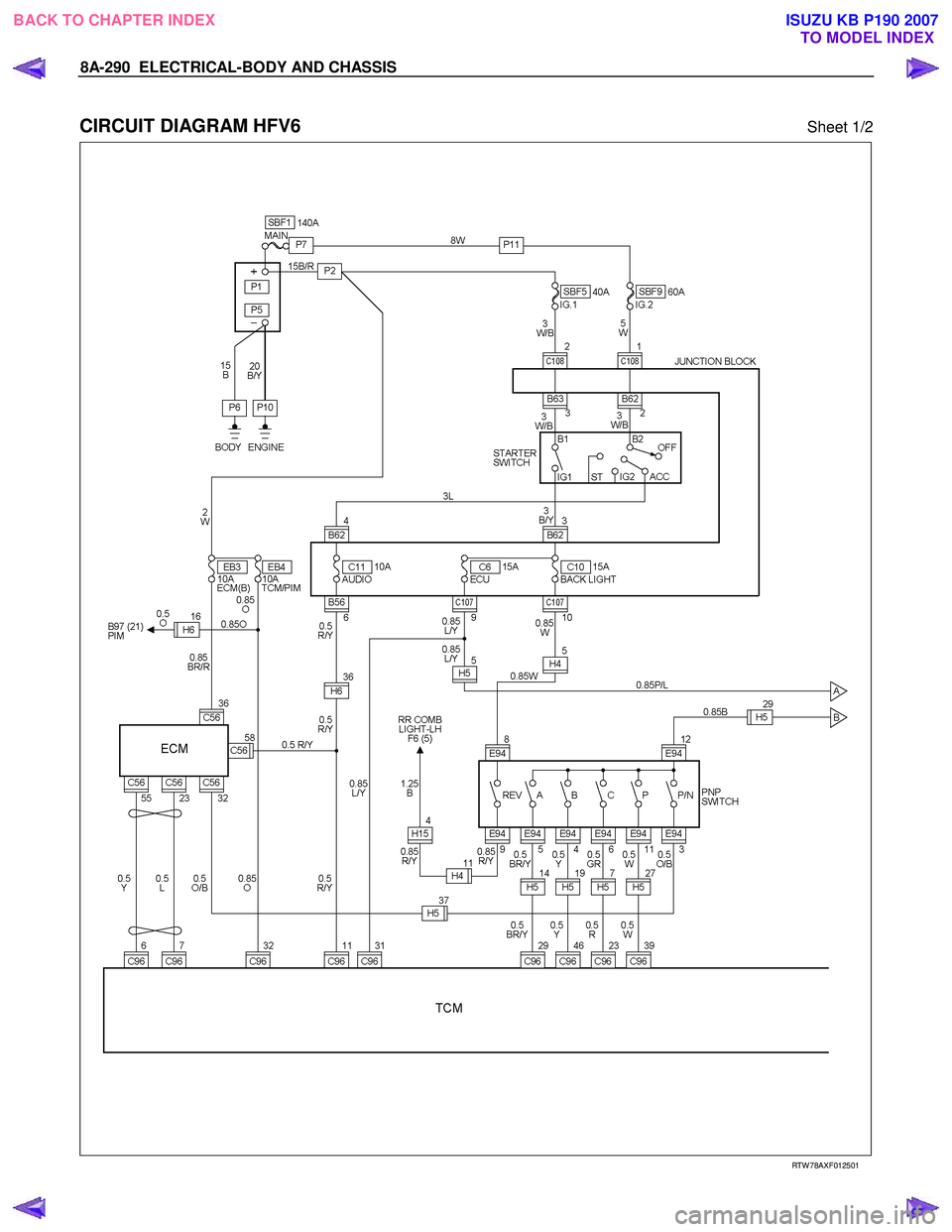

8A-290 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6 Sheet 1/2






RTW 78AXF012501

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-291

CIRCUIT DIAGRAM HFV6 Sheet 2/2




RTW 78AXF012601

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
