Page 5163 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-225

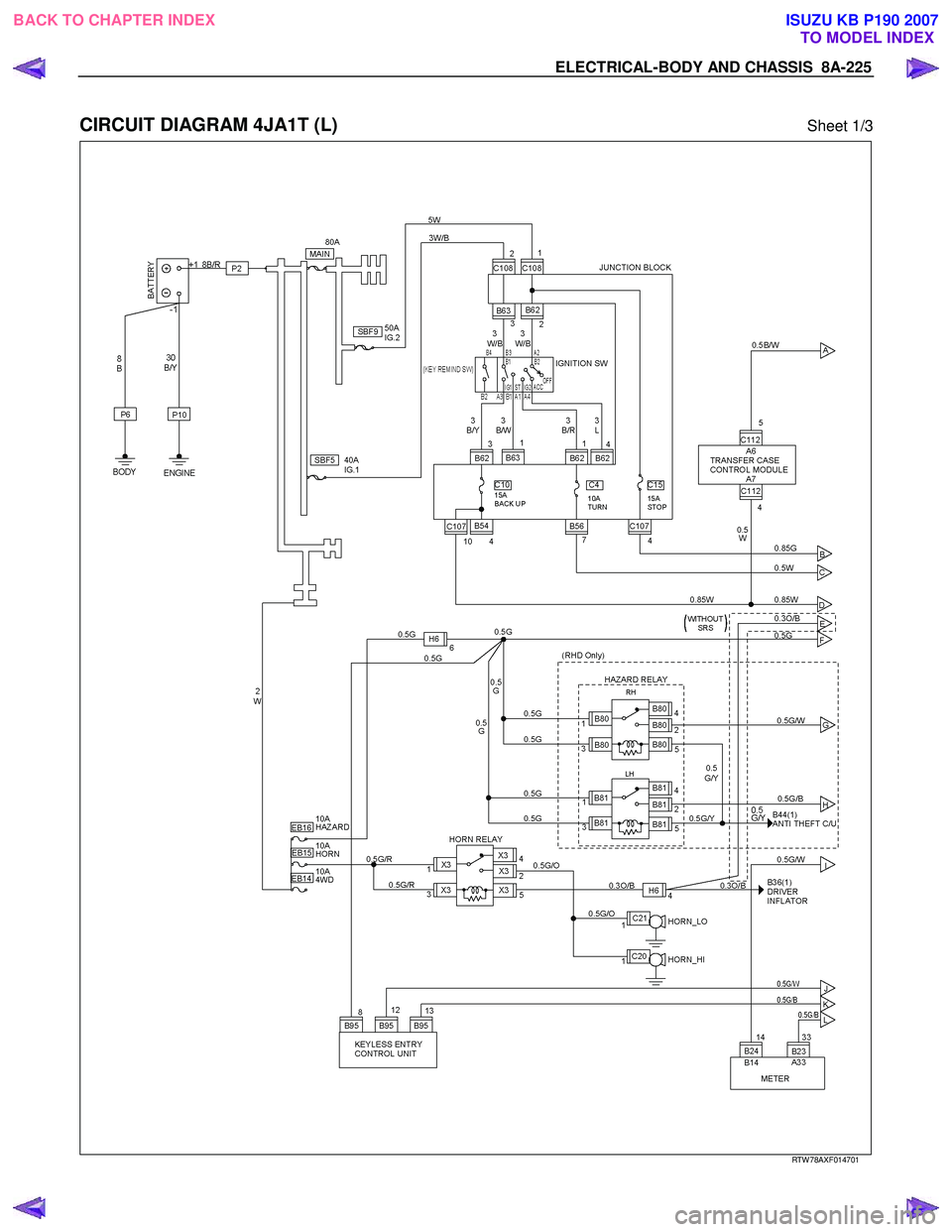

CIRCUIT DIAGRAM 4JA1T (L) Sheet 1/3
RTW 78AXF014701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5164 of 6020
8A-226 ELECTRICAL-BODY AND CHASSIS

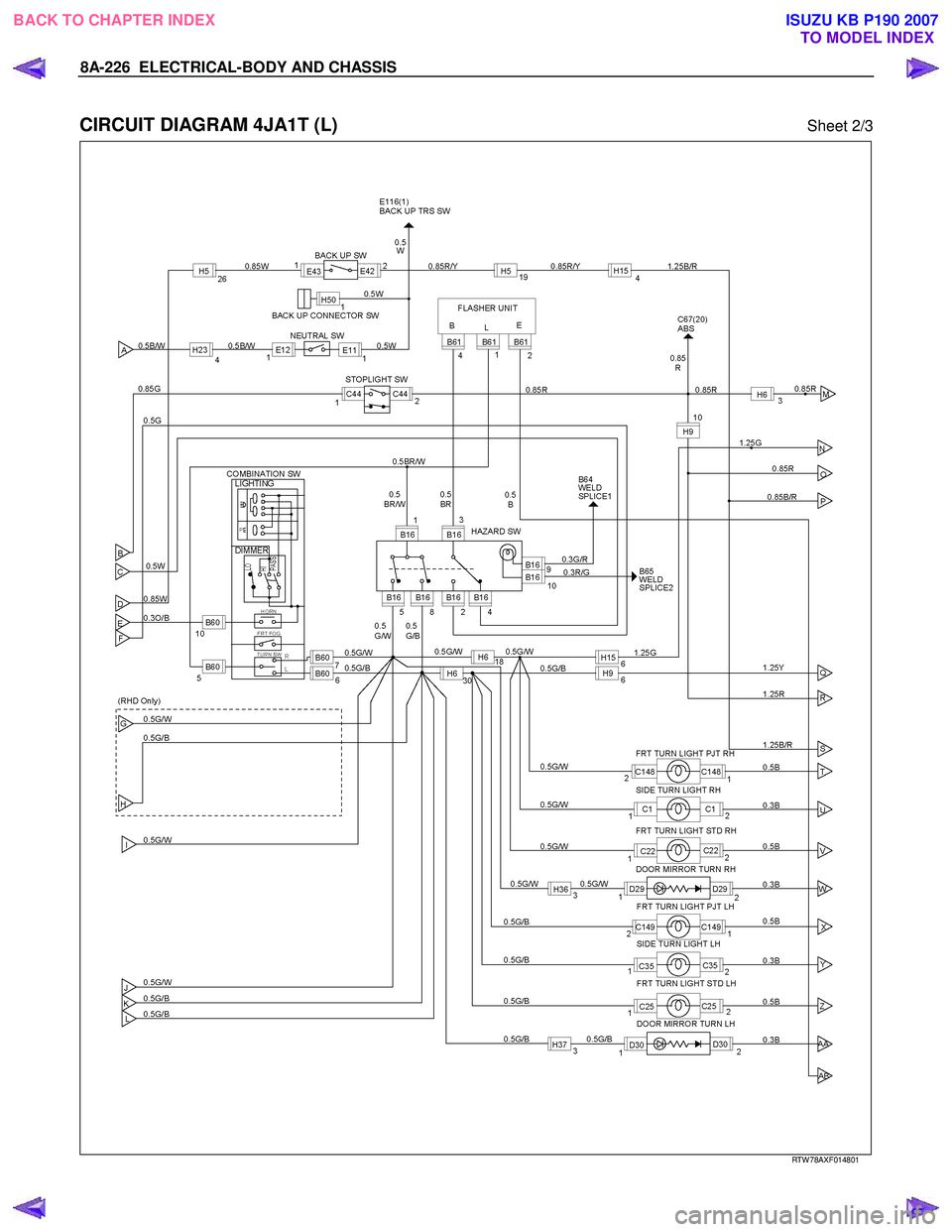

CIRCUIT DIAGRAM 4JA1T (L) Sheet 2/3
RTW 78AXF014801
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5165 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-227

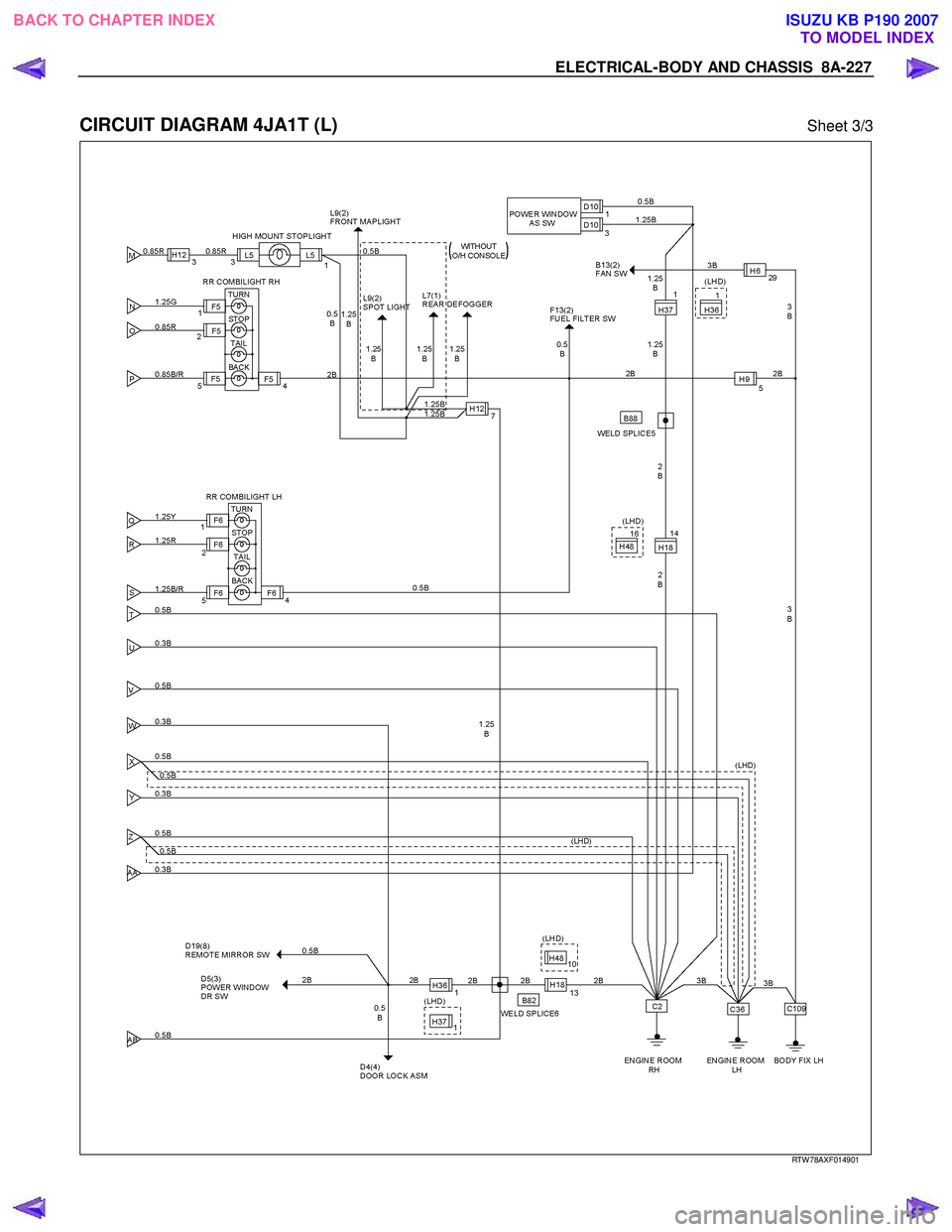

CIRCUIT DIAGRAM 4JA1T (L) Sheet 3/3
RTW 78AXF014901
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5185 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-247

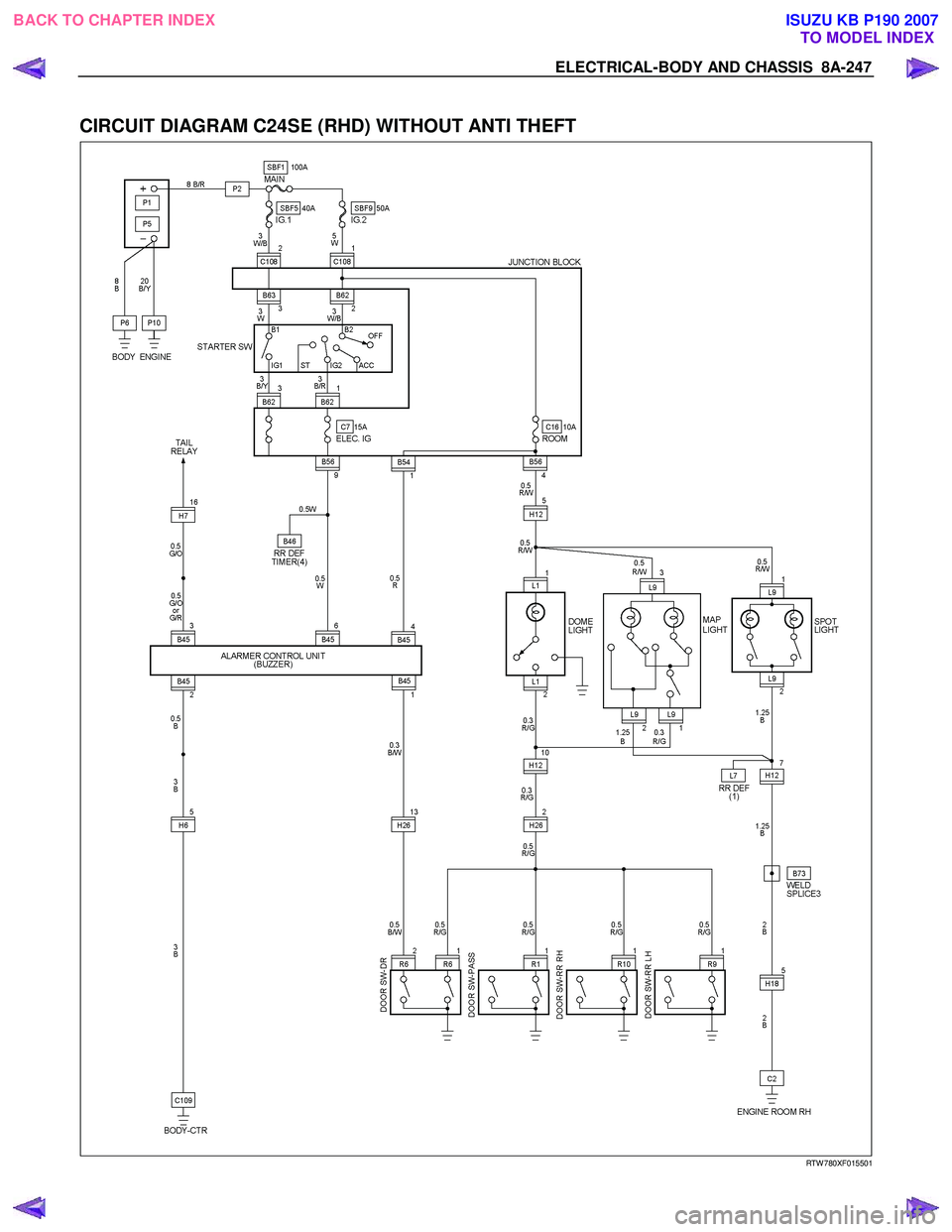

CIRCUIT DIAGRAM C24SE (RHD) WITHOUT ANTI THEFT
RTW 780XF015501
BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007
Page 5186 of 6020
8A-248 ELECTRICAL-BODY AND CHASSIS

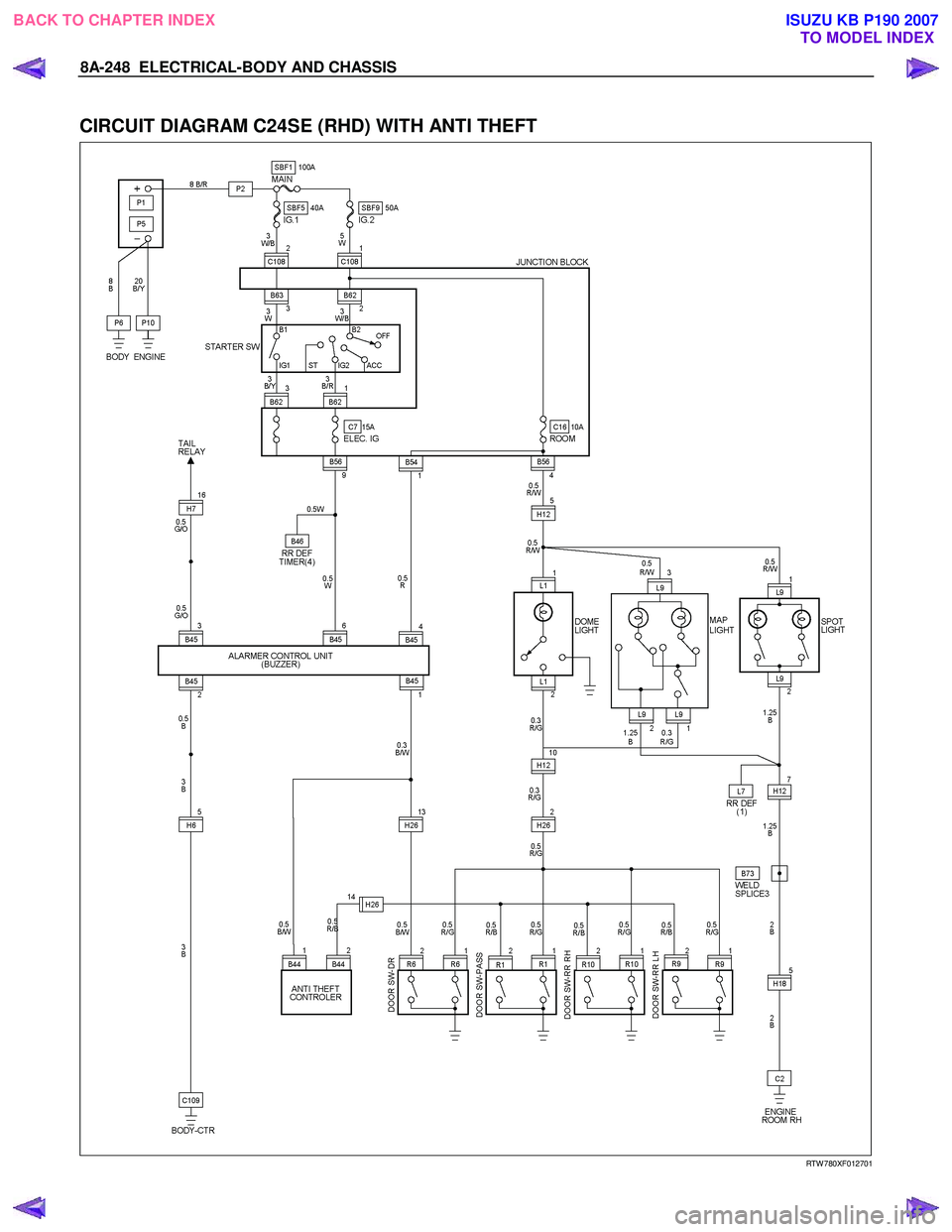

CIRCUIT DIAGRAM C24SE (RHD) WITH ANTI THEFT
RTW 780XF012701
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5187 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-249
CIRCUIT DIAGRAM C24SE (RHD) WITH KEYLESS ENTRY
RTW 780XF012801
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5188 of 6020
8A-250 ELECTRICAL-BODY AND CHASSIS

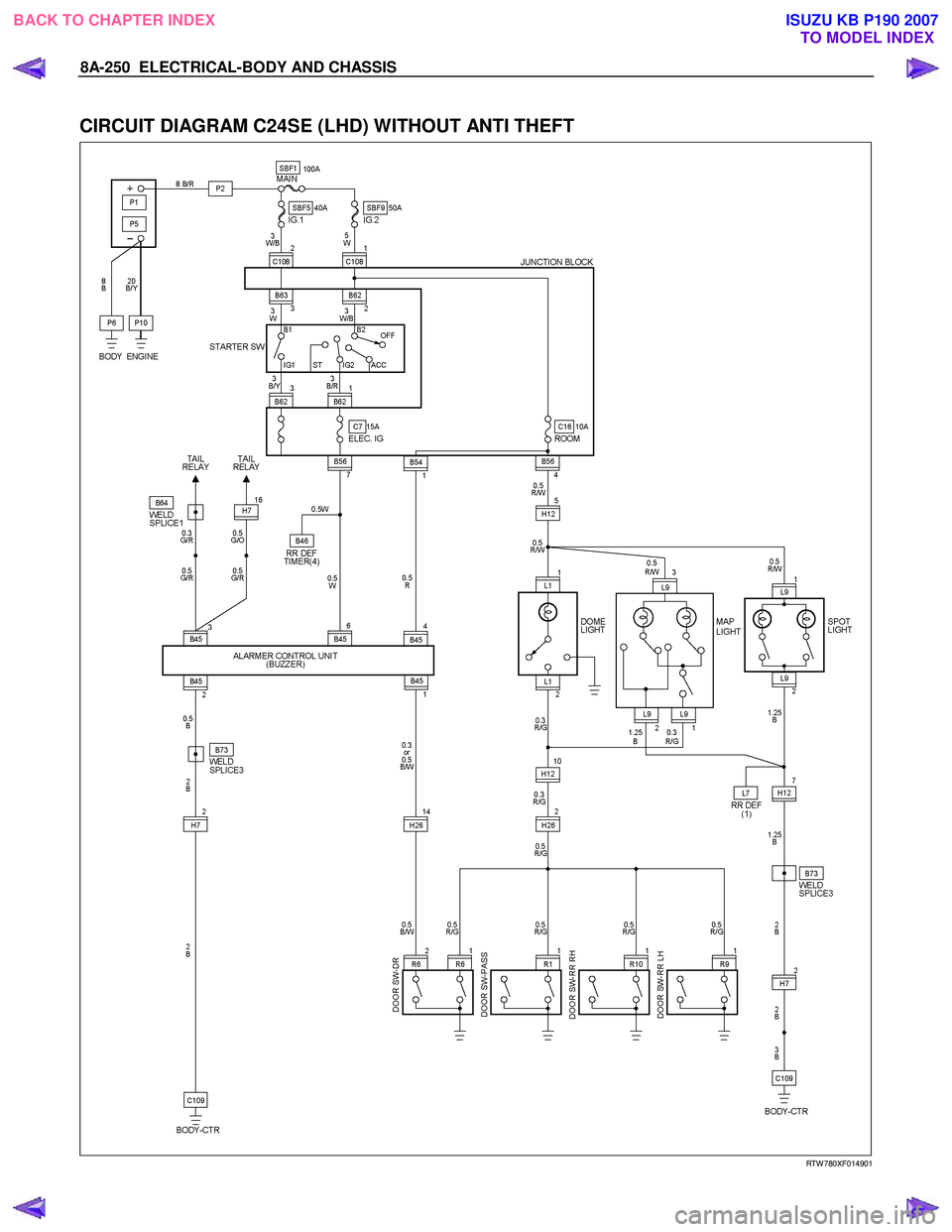

CIRCUIT DIAGRAM C24SE (LHD) WITHOUT ANTI THEFT
RTW 780XF014901
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5189 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-251
CIRCUIT DIAGRAM C24SE (LHD) WITH ANTI THEFT
RTW 780XF012901
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
