ELECTRICAL-BODY AND CHASSIS 8A-467

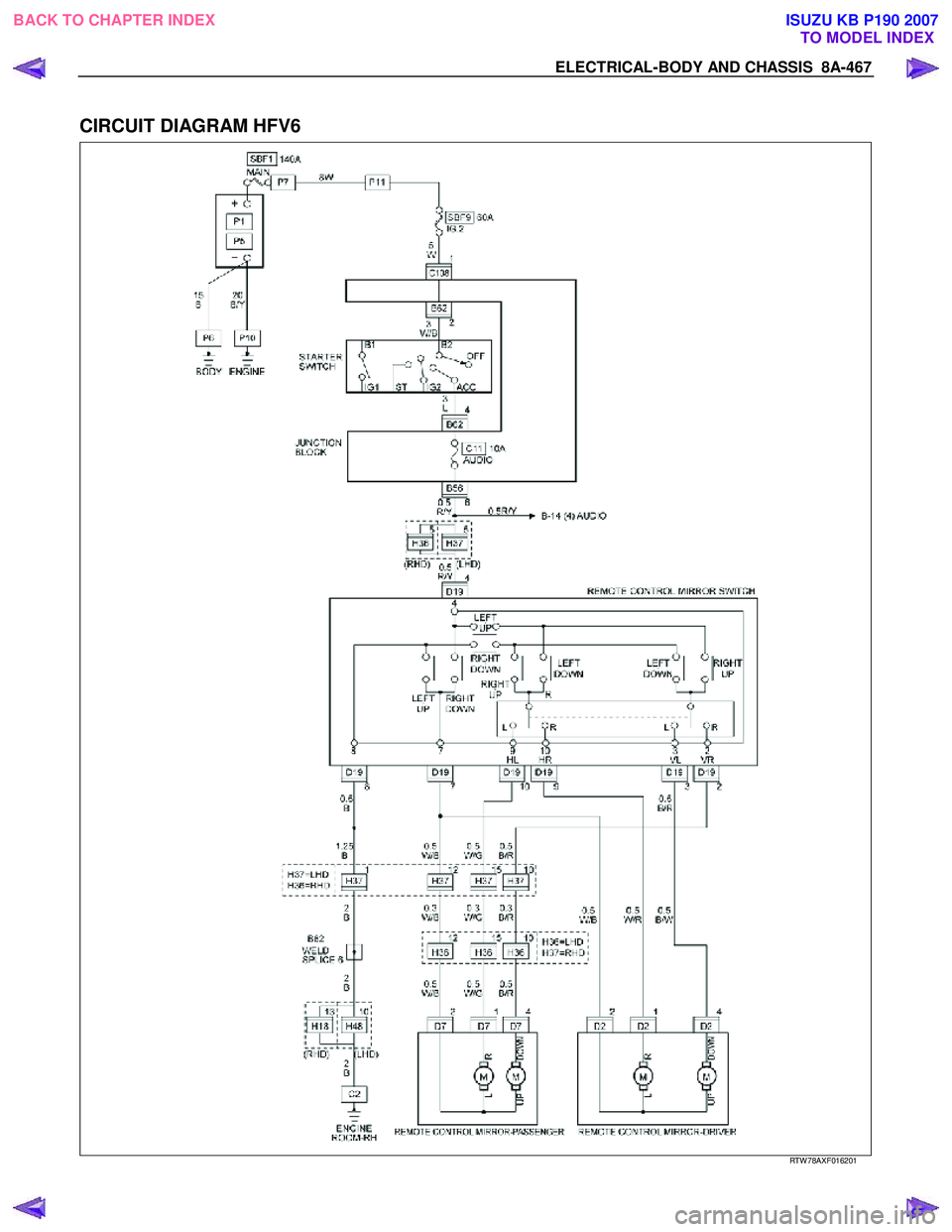

CIRCUIT DIAGRAM HFV6
RTW 78AXF016201
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5406 of 6020
8A-468 ELECTRICAL-BODY AND CHASSIS

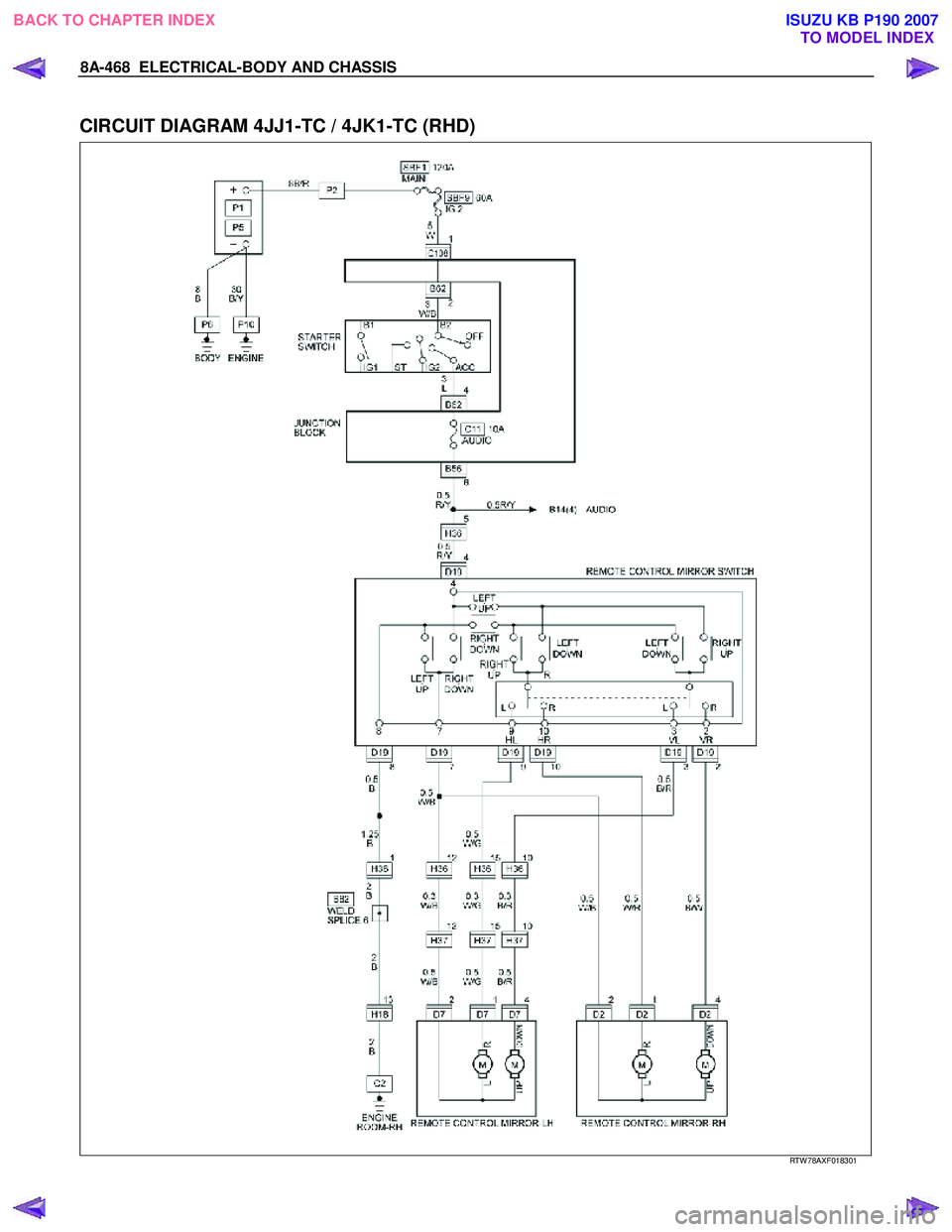

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD)
RTW 78AXF018301
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5407 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-469

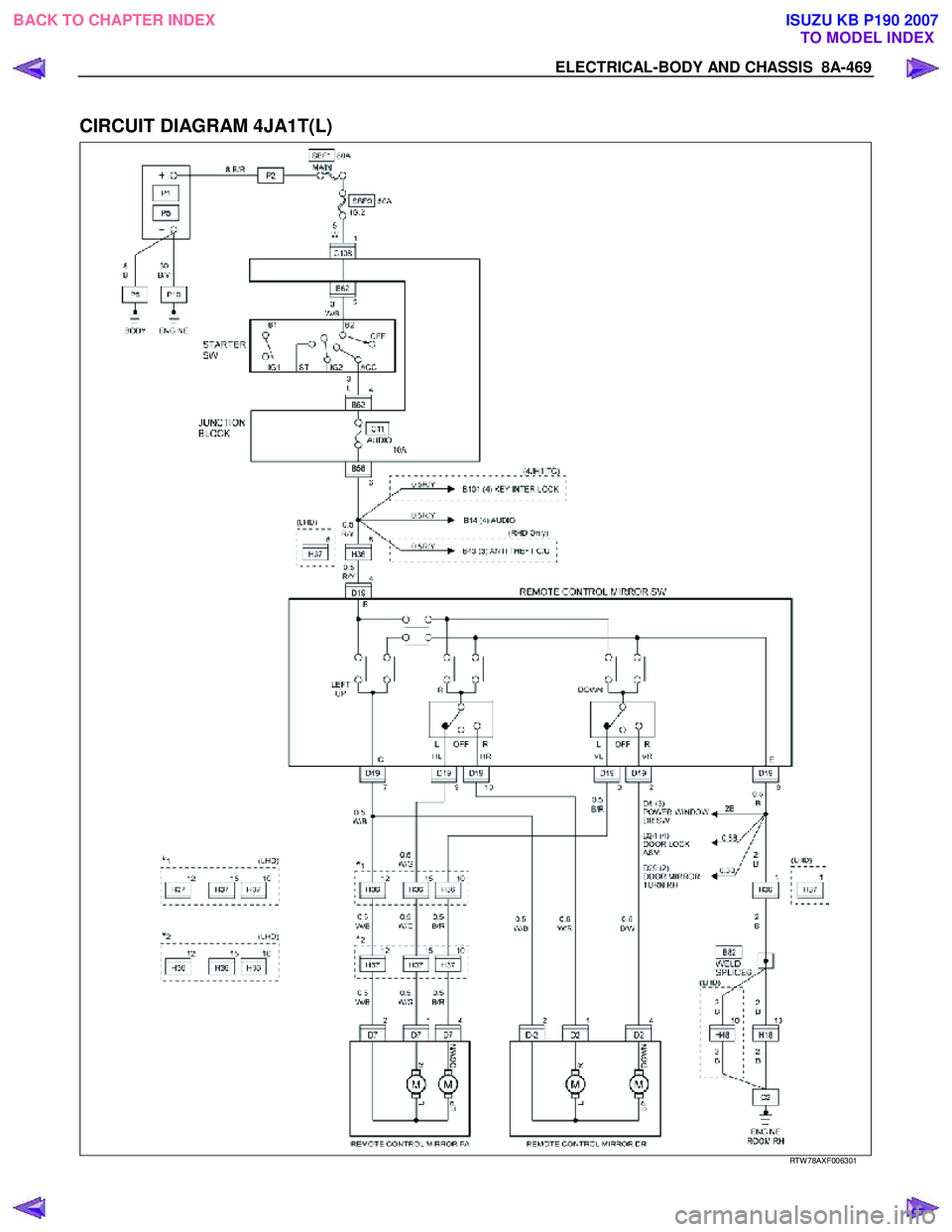

CIRCUIT DIAGRAM 4JA1T(L)
RTW 78AXF006301
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5408 of 6020
8A-470 ELECTRICAL-BODY AND CHASSIS

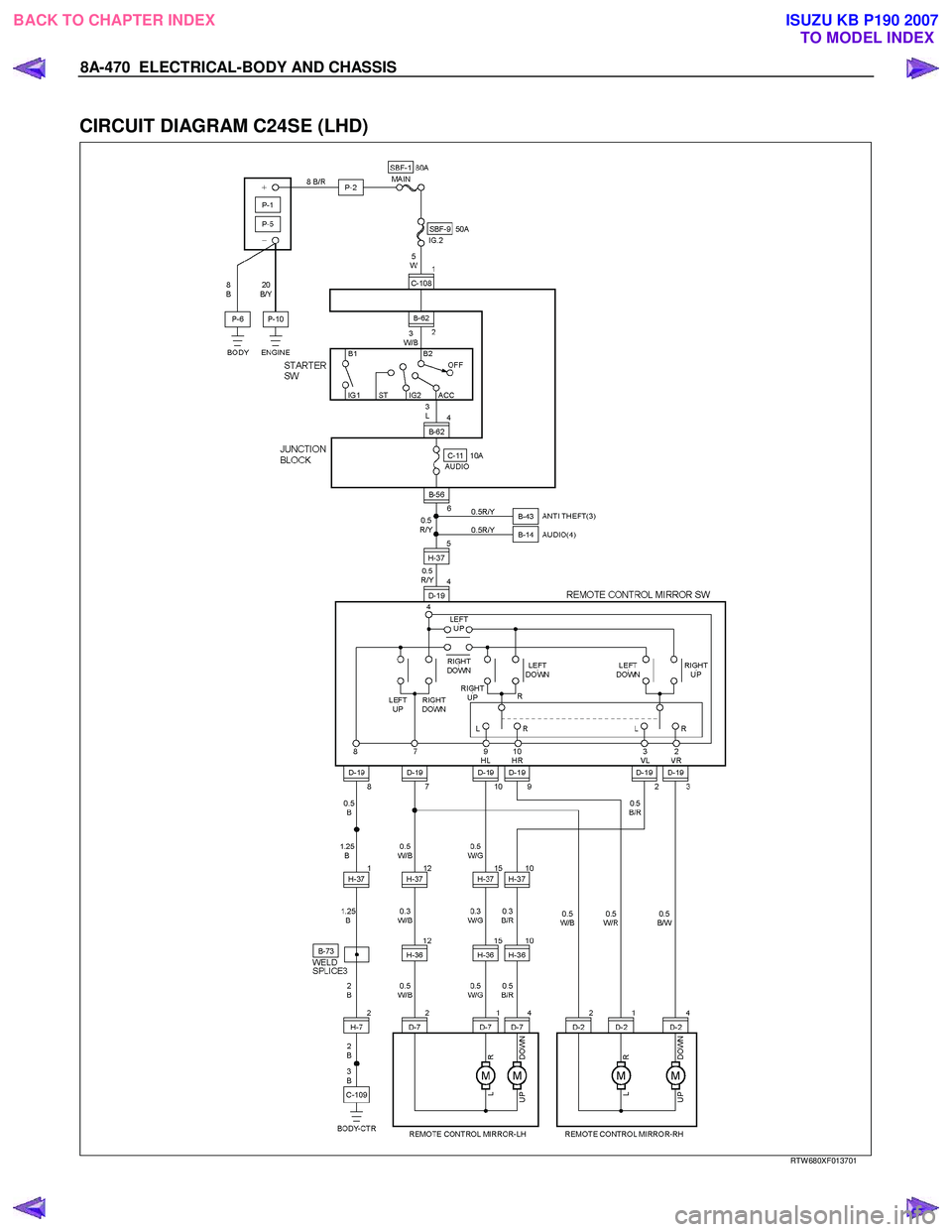

CIRCUIT DIAGRAM C24SE (LHD)
RTW 680XF013701
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5409 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-471

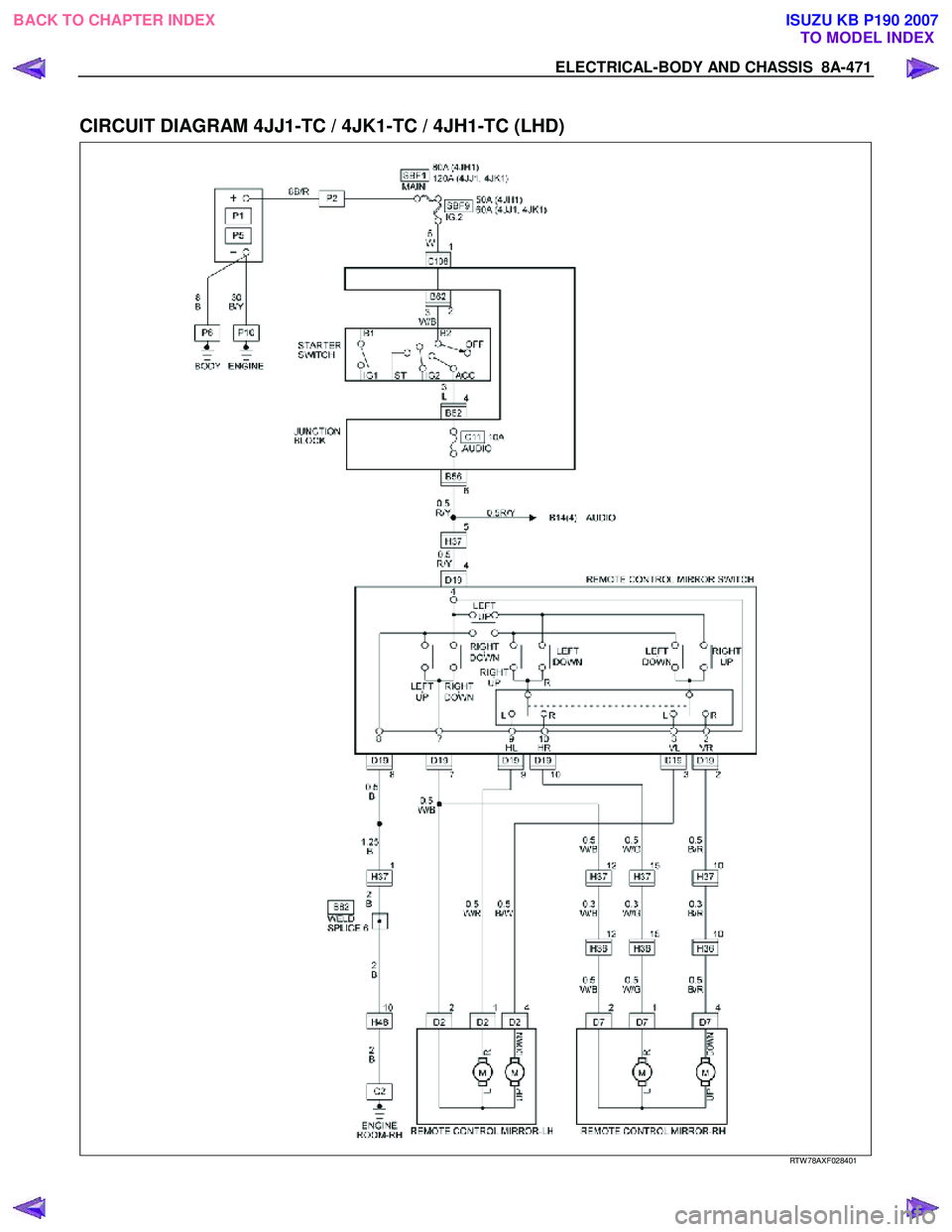

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC / 4JH1-TC (LHD)
RTW 78AXF028401
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5420 of 6020
8A-482 ELECTRICAL-BODY AND CHASSIS

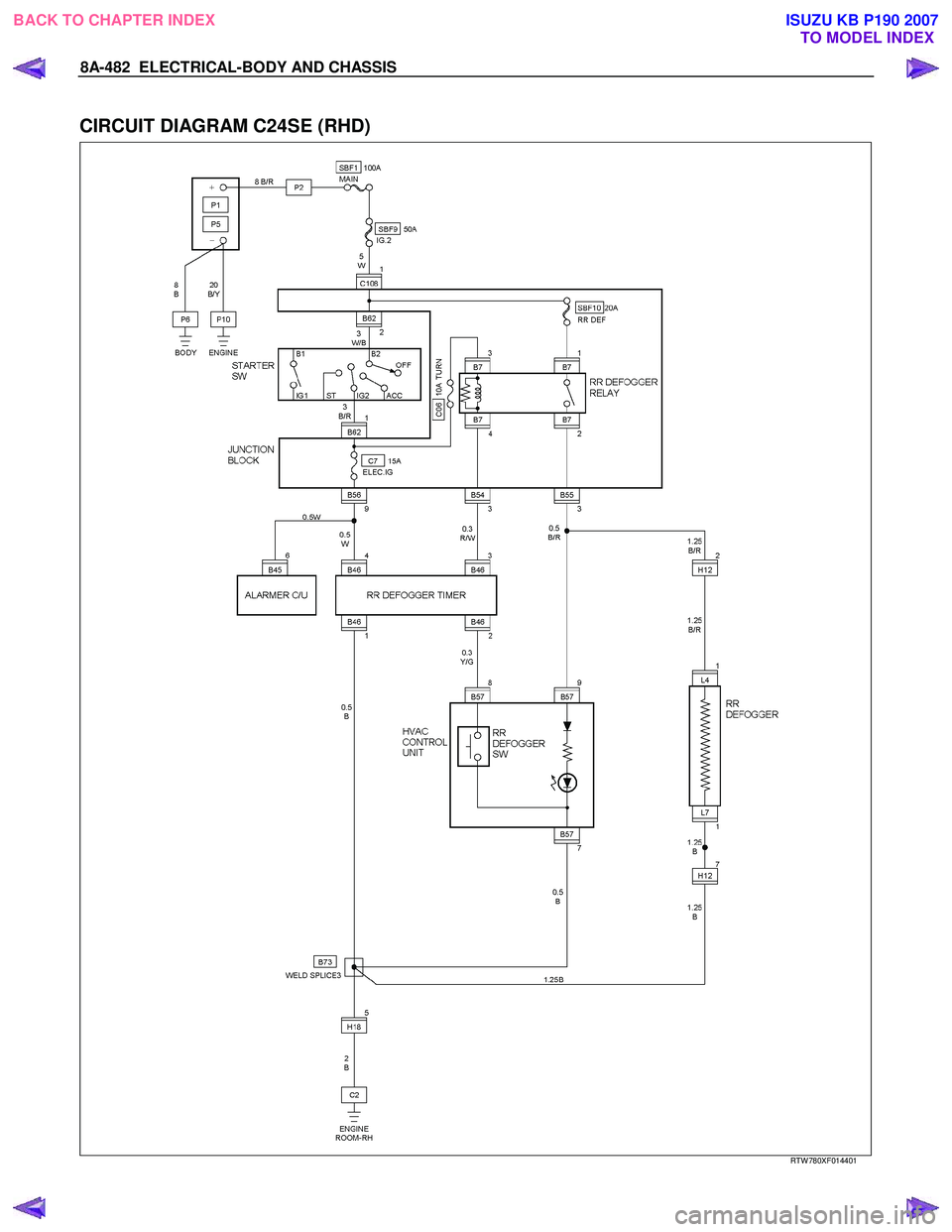

CIRCUIT DIAGRAM C24SE (RHD)
RTW 780XF014401
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5421 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-483

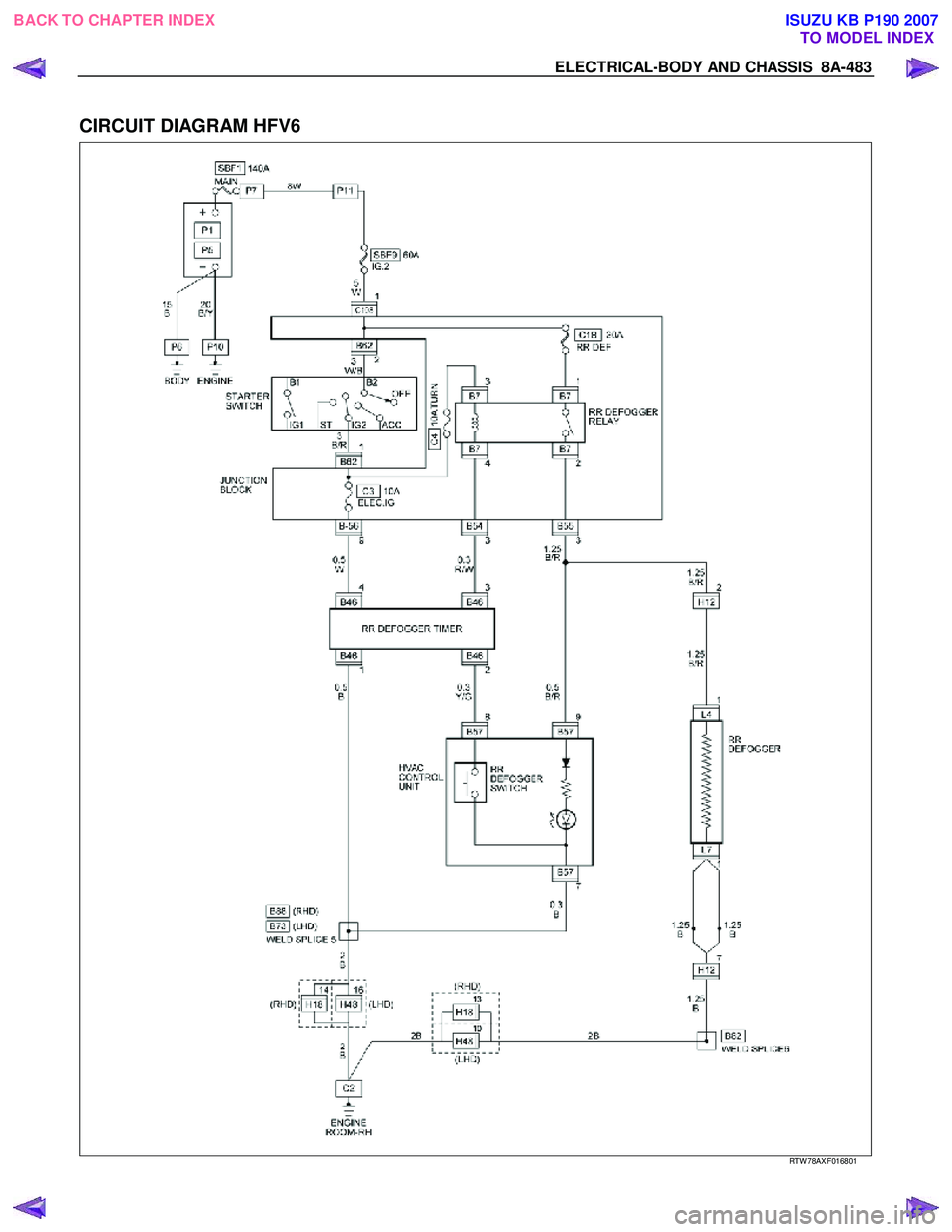

CIRCUIT DIAGRAM HFV6
RTW 78AXF016801
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5422 of 6020
8A-484 ELECTRICAL-BODY AND CHASSIS

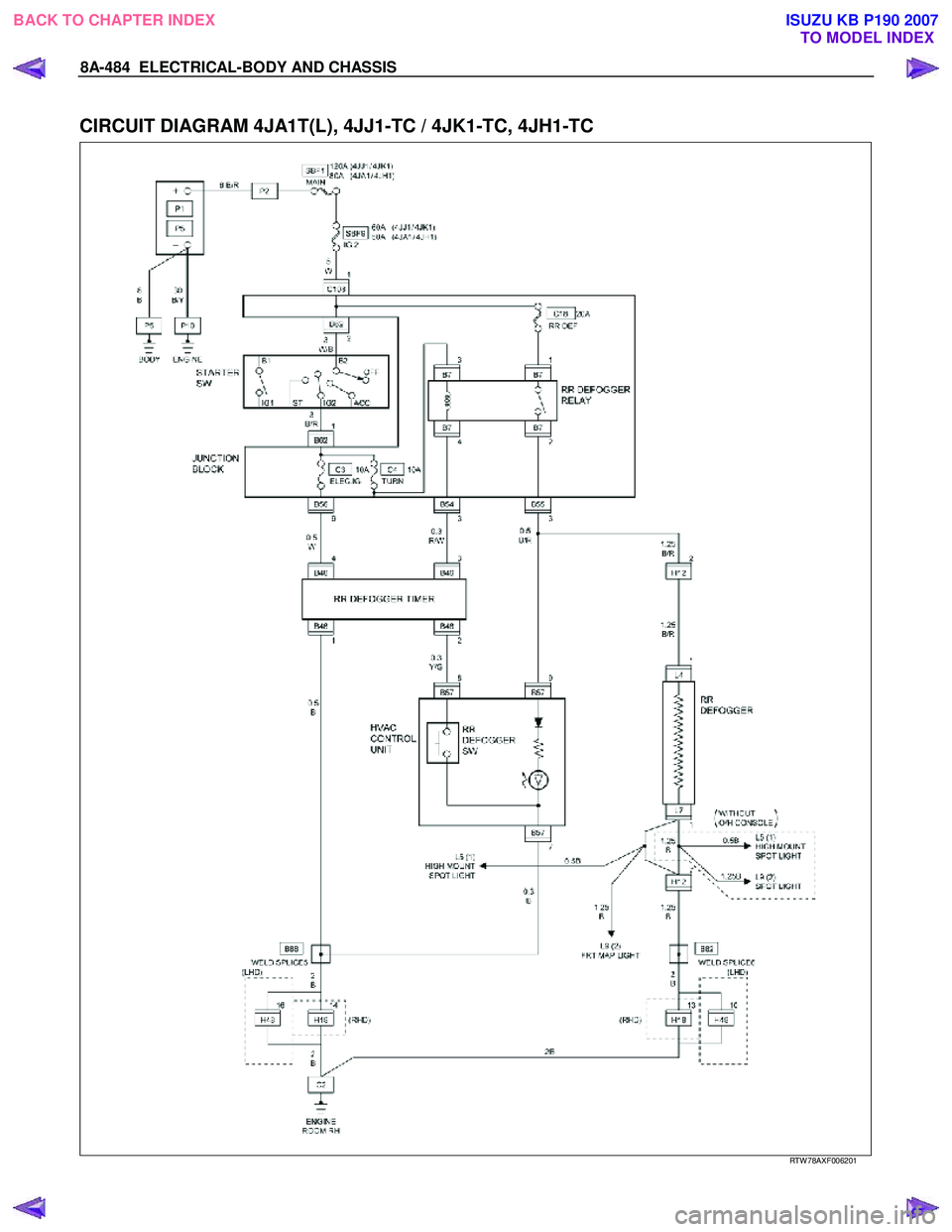

CIRCUIT DIAGRAM 4JA1T(L), 4JJ1-TC / 4JK1-TC, 4JH1-TC
RTW 78AXF006201
