ELECTRICAL-BODY AND CHASSIS 8A-533

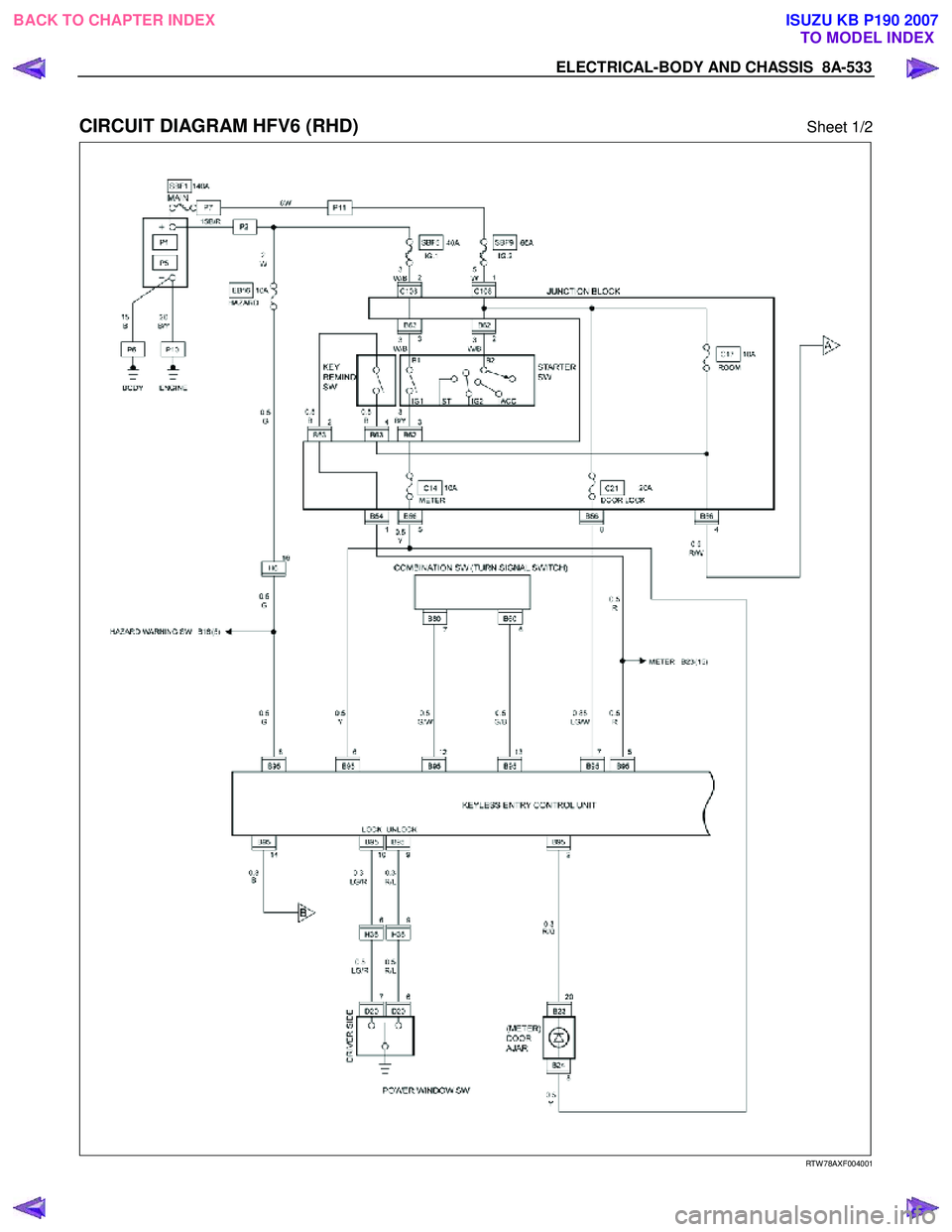

CIRCUIT DIAGRAM HFV6 (RHD) Sheet 1/2





RTW 78AXF004001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-534 ELECTRICAL-BODY AND CHASSIS

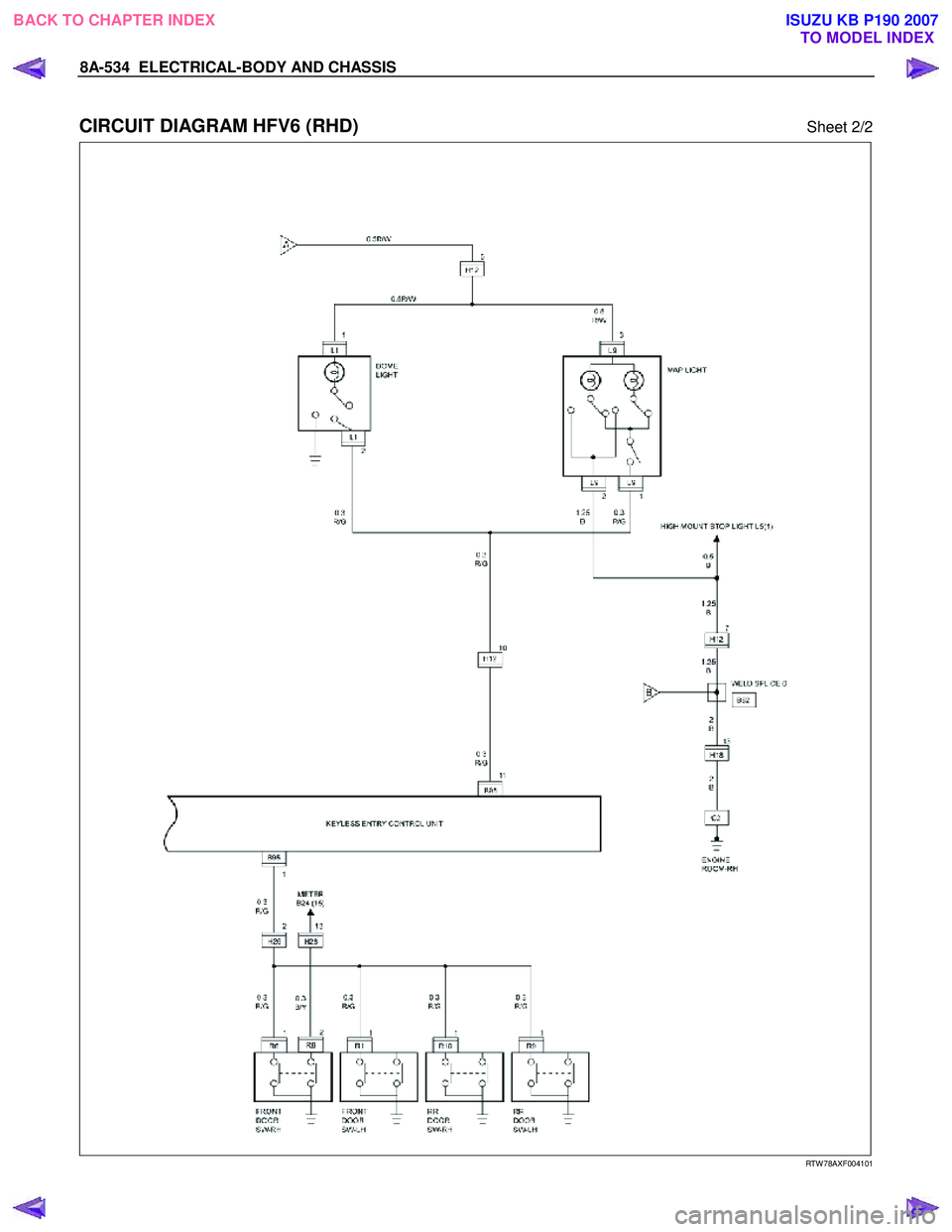

CIRCUIT DIAGRAM HFV6 (RHD) Sheet 2/2







RTW 78AXF004101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-535

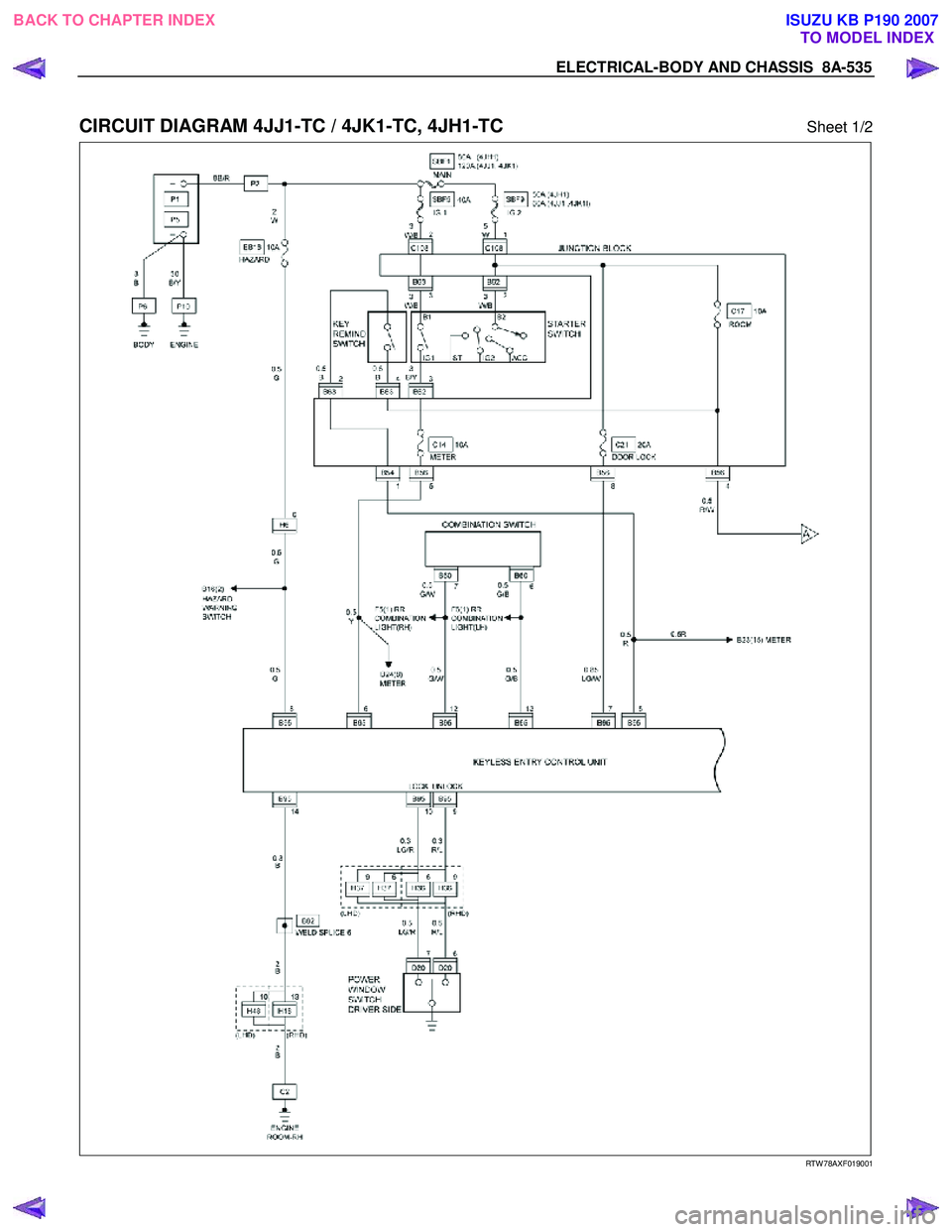

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC, 4JH1-TC Sheet 1/2


RTW 78AXF019001

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-536 ELECTRICAL-BODY AND CHASSIS

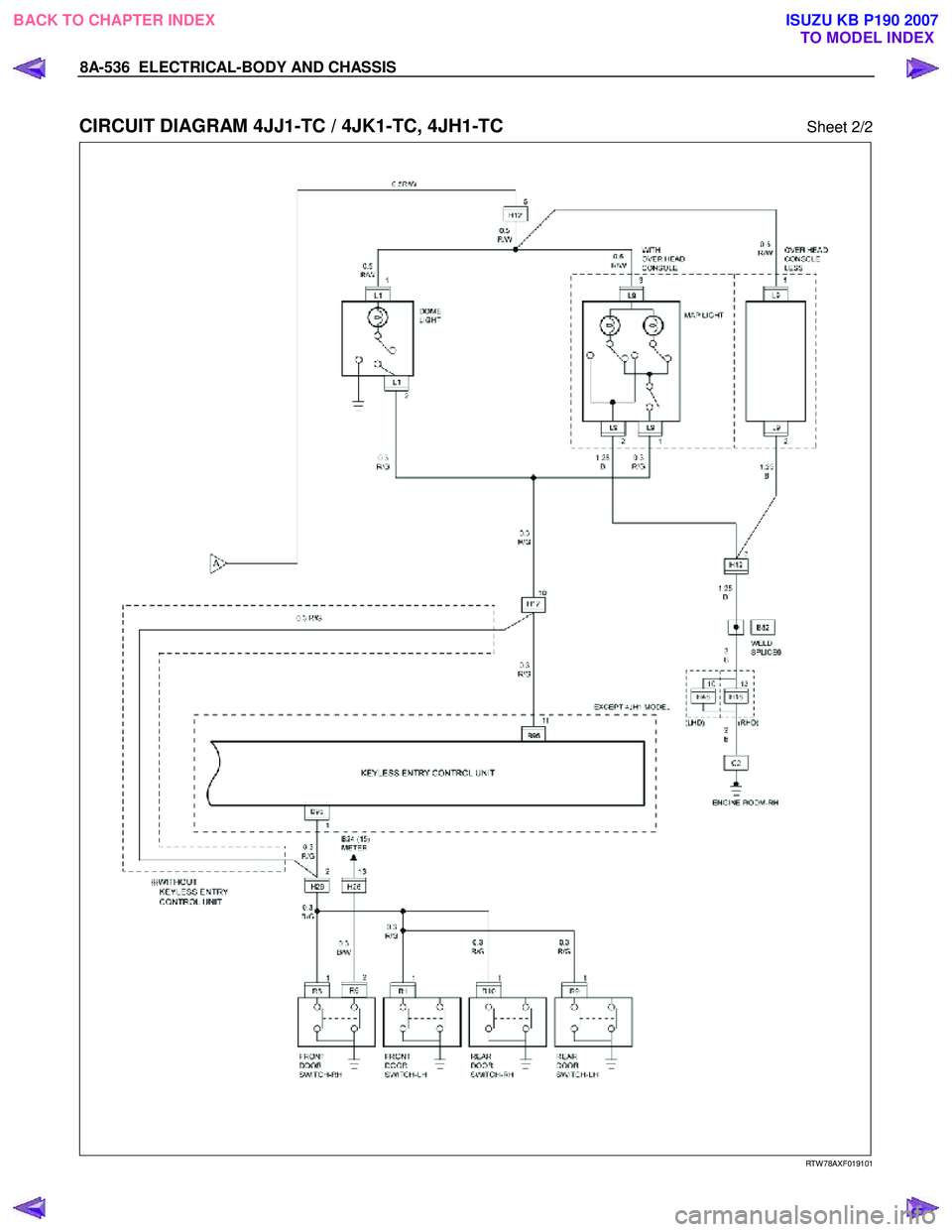

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC, 4JH1-TC Sheet 2/2




RTW 78AXF019101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-537

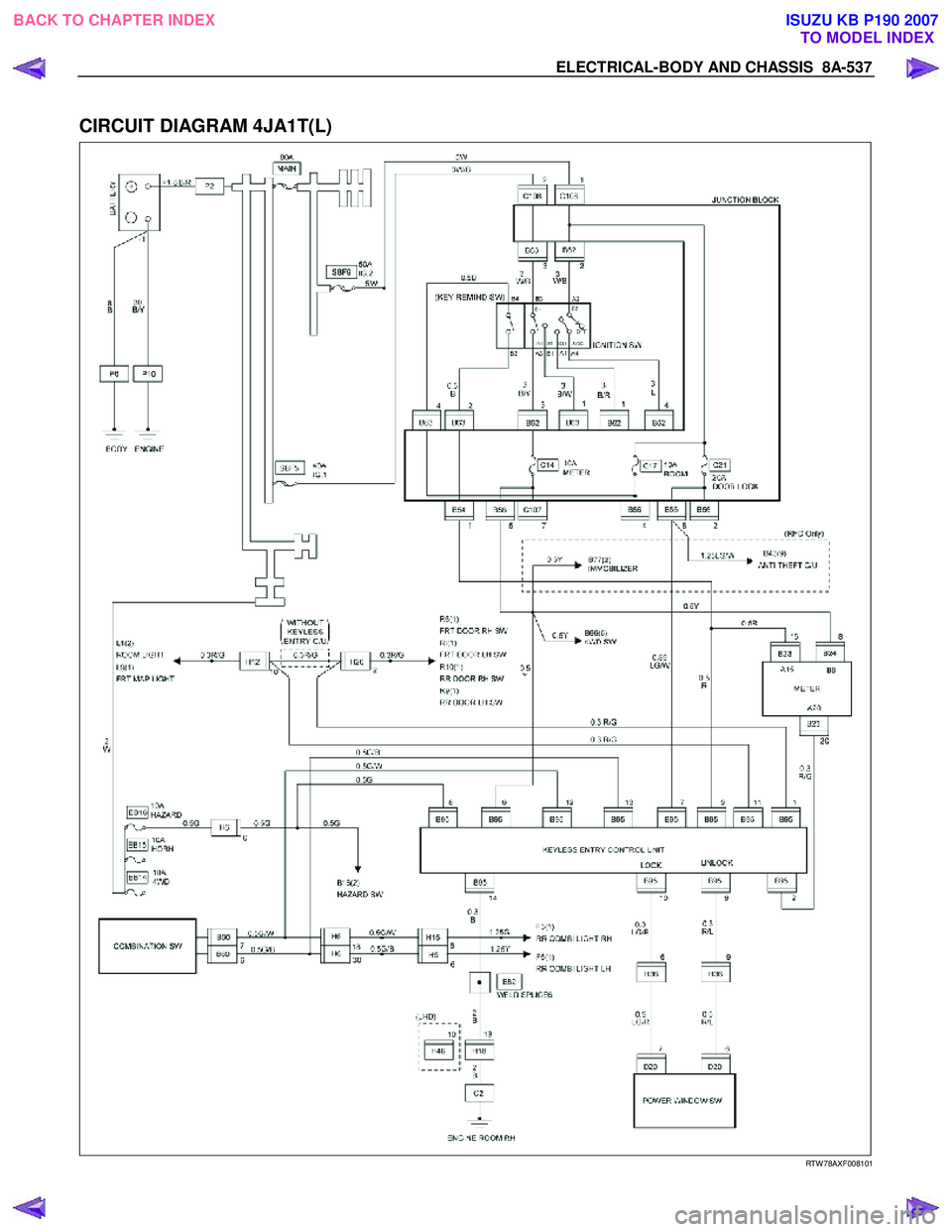

CIRCUIT DIAGRAM 4JA1T(L)


RTW 78AXF008101


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-555

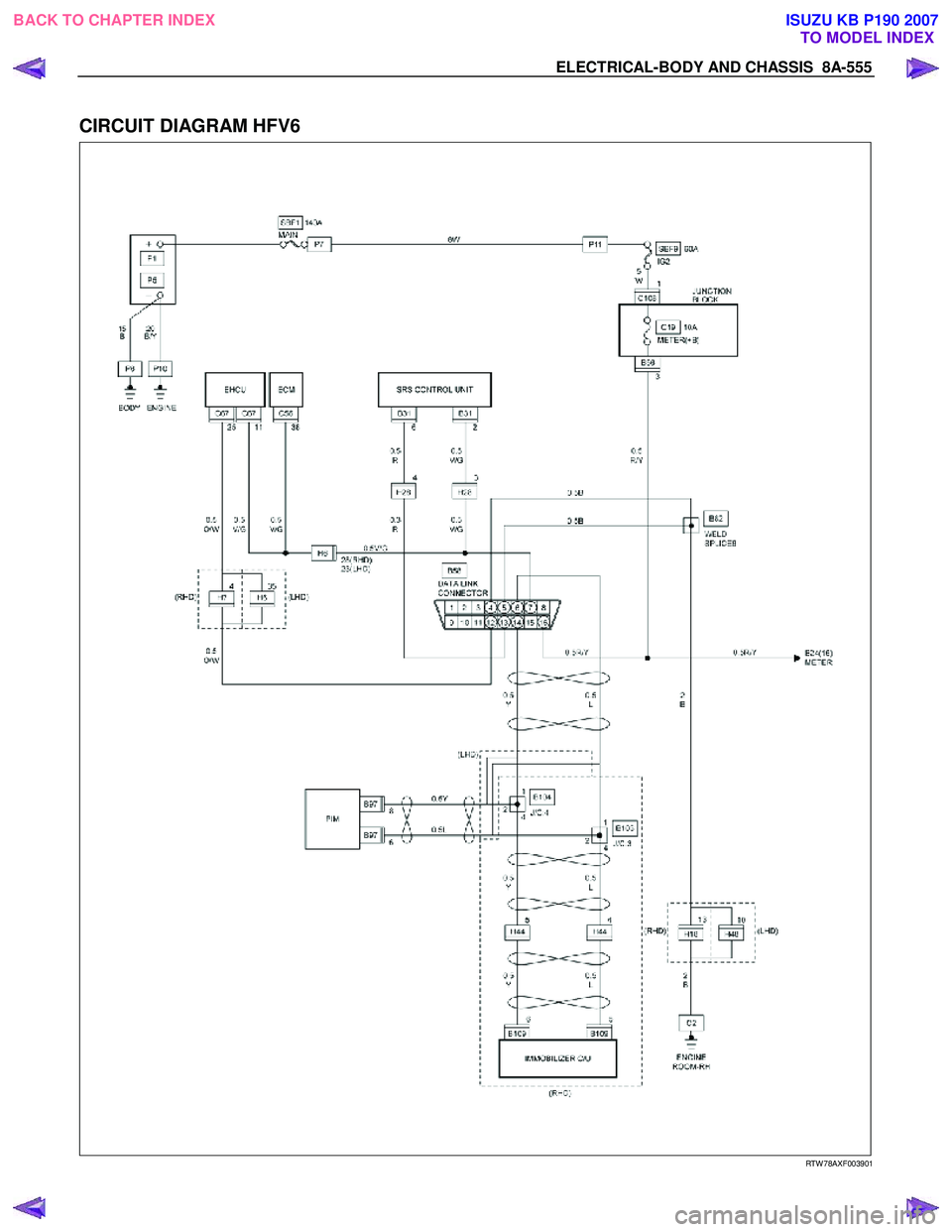

CIRCUIT DIAGRAM HFV6






RTW 78AXF003901

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-556 ELECTRICAL-BODY AND CHASSIS

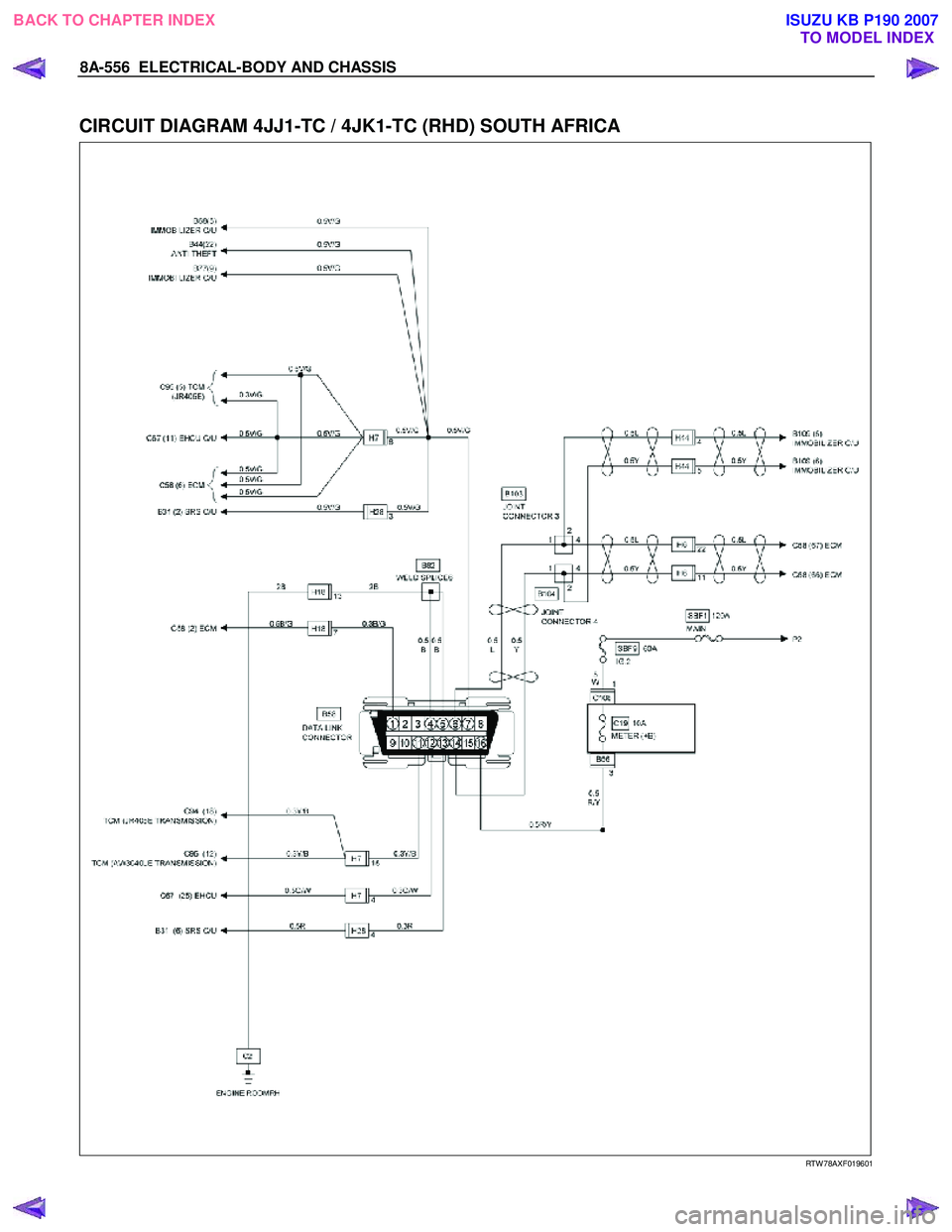

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) SOUTH AFRICA




RTW 78AXF019601

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-557

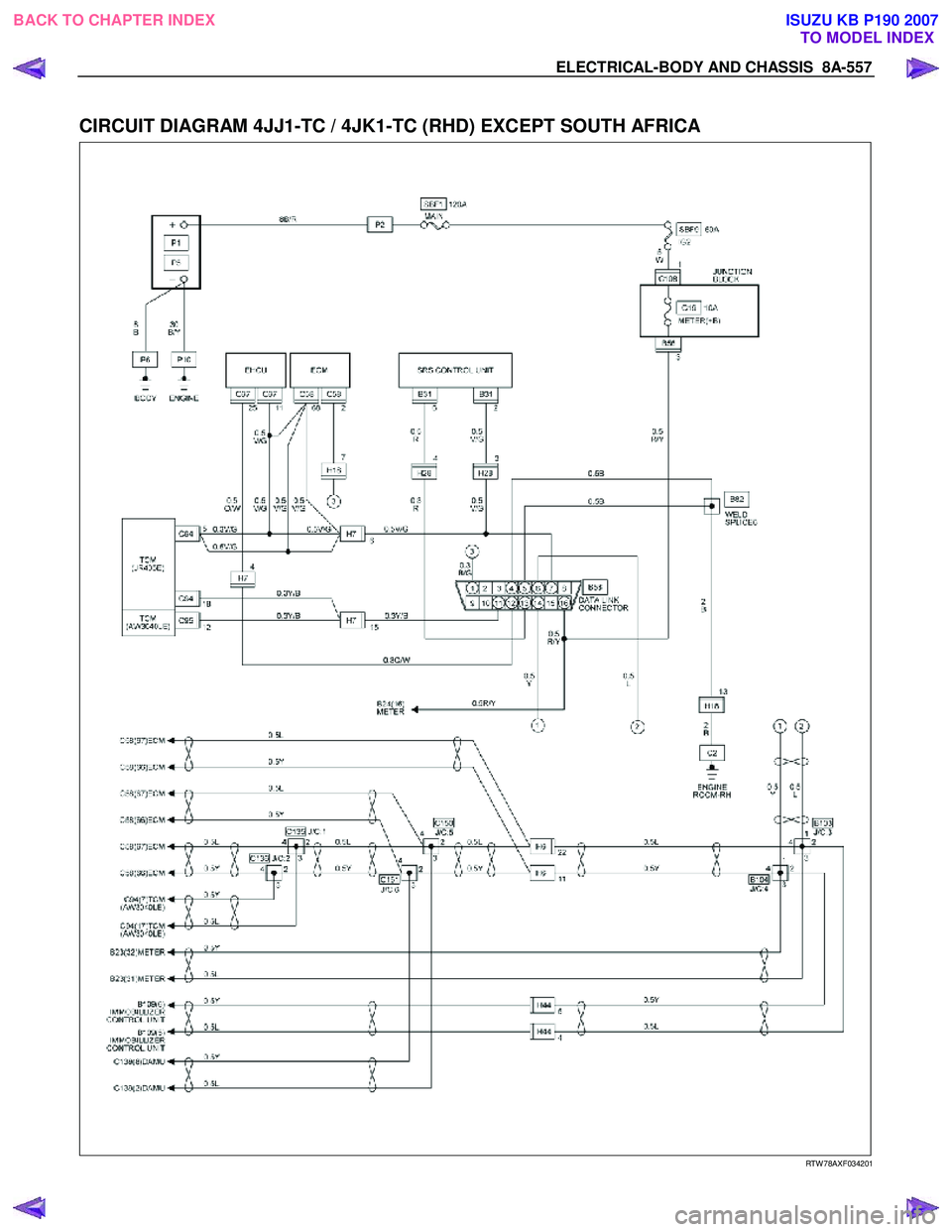

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) EXCEPT SOUTH AFRICA
