2007 ISUZU KB P190 CIRCUIT DIAGRAM

8A-568 ELECTRICAL-BODY AND CHASSIS

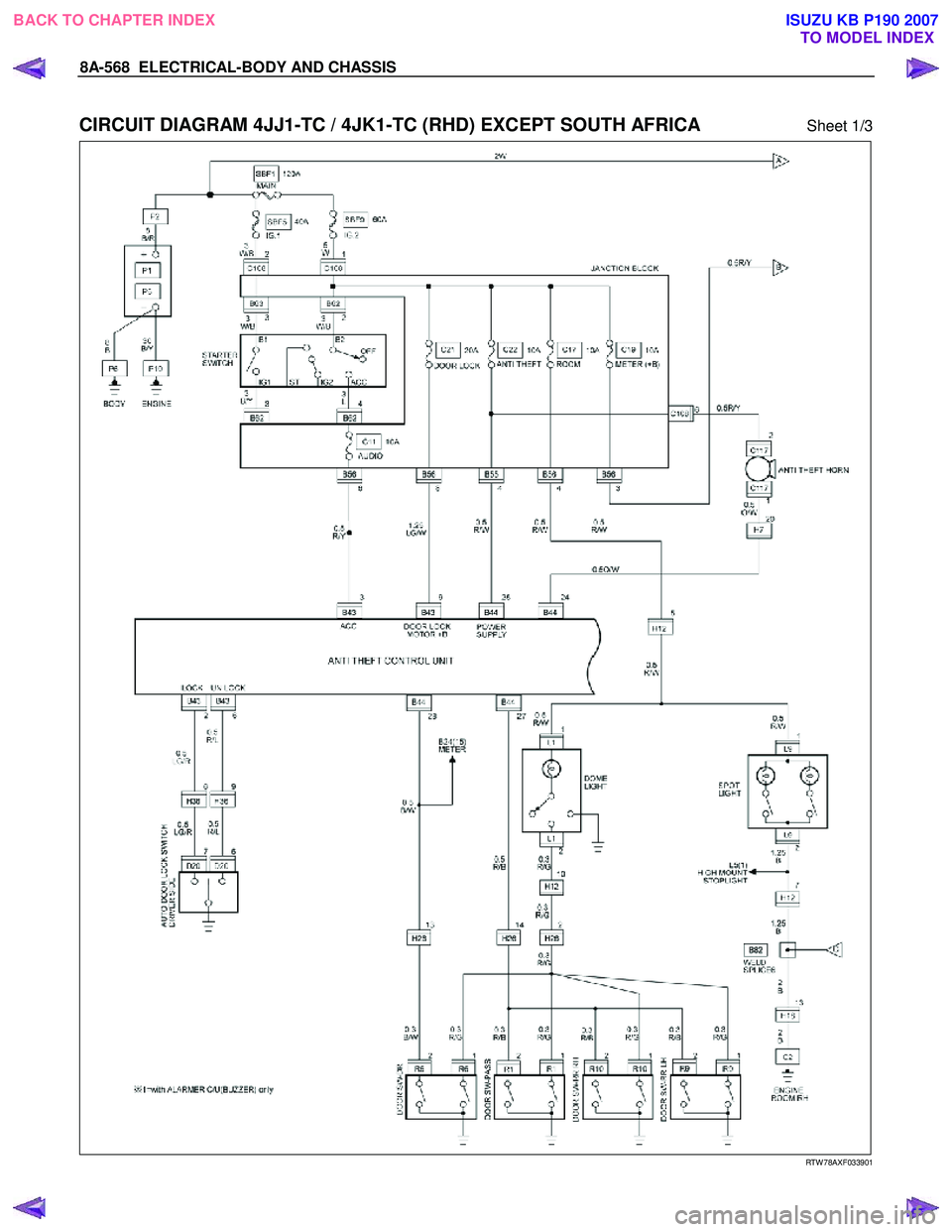

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 1/3


RTW 78AXF033901

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-569

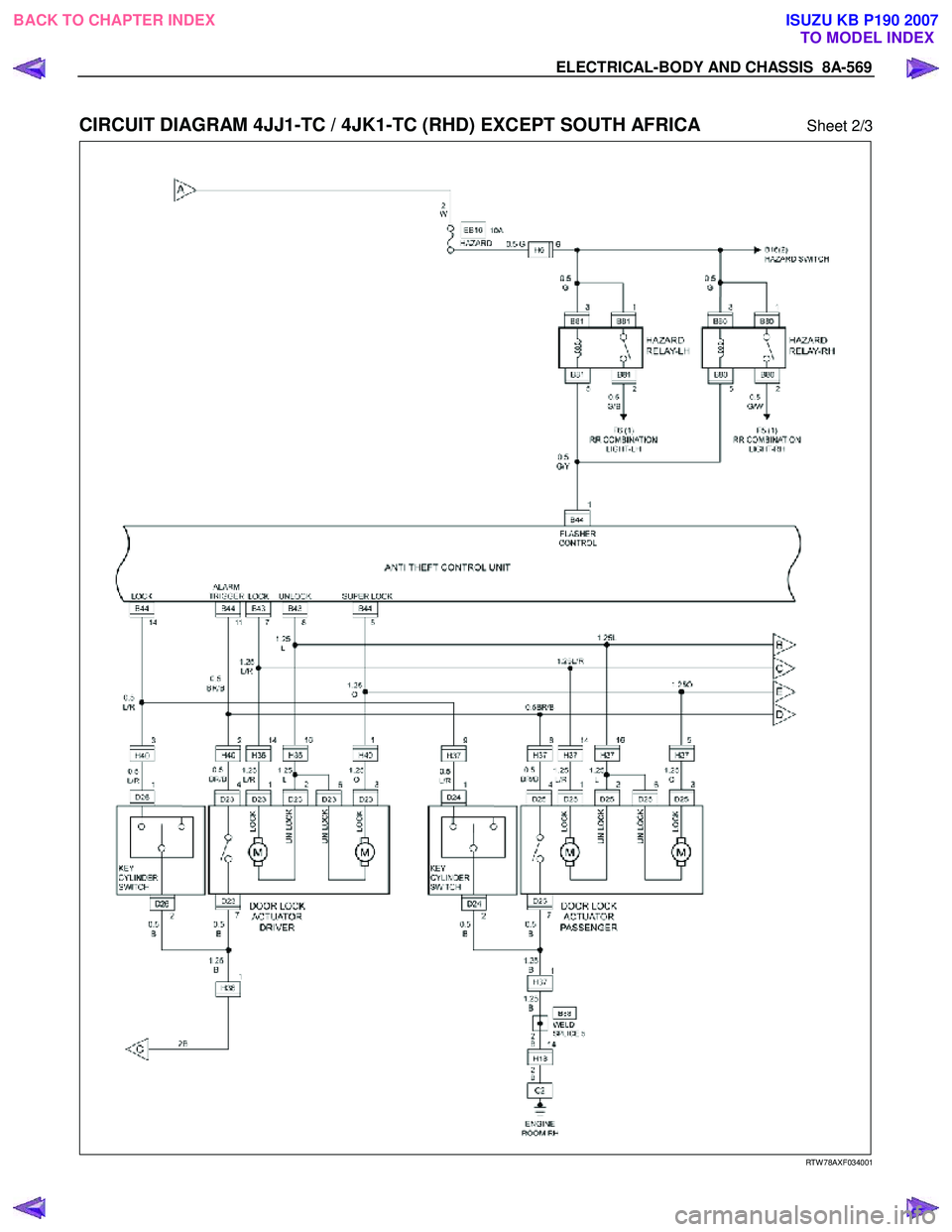

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 2/3




RTW 78AXF034001

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-570 ELECTRICAL-BODY AND CHASSIS

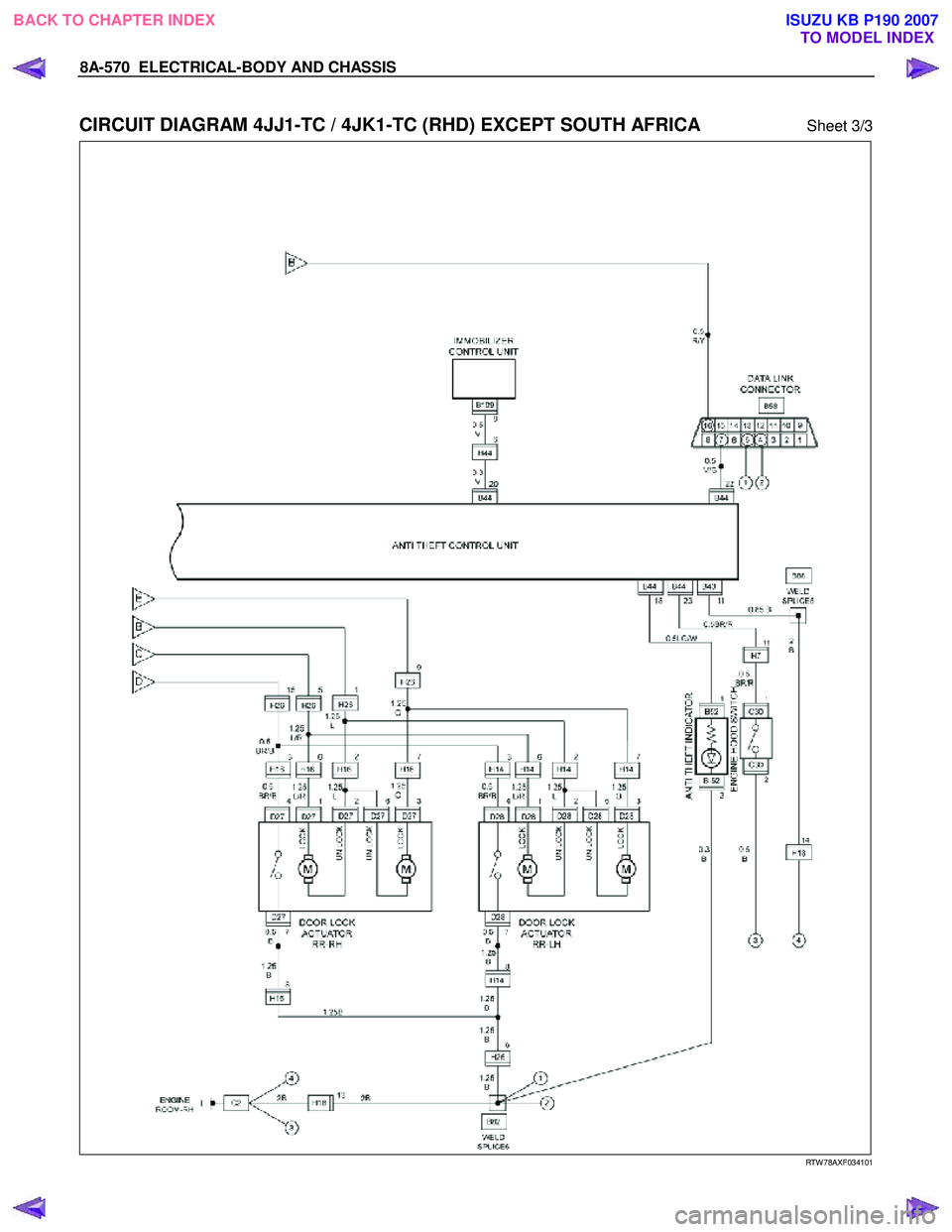

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 3/3







RTW 78AXF034101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-571

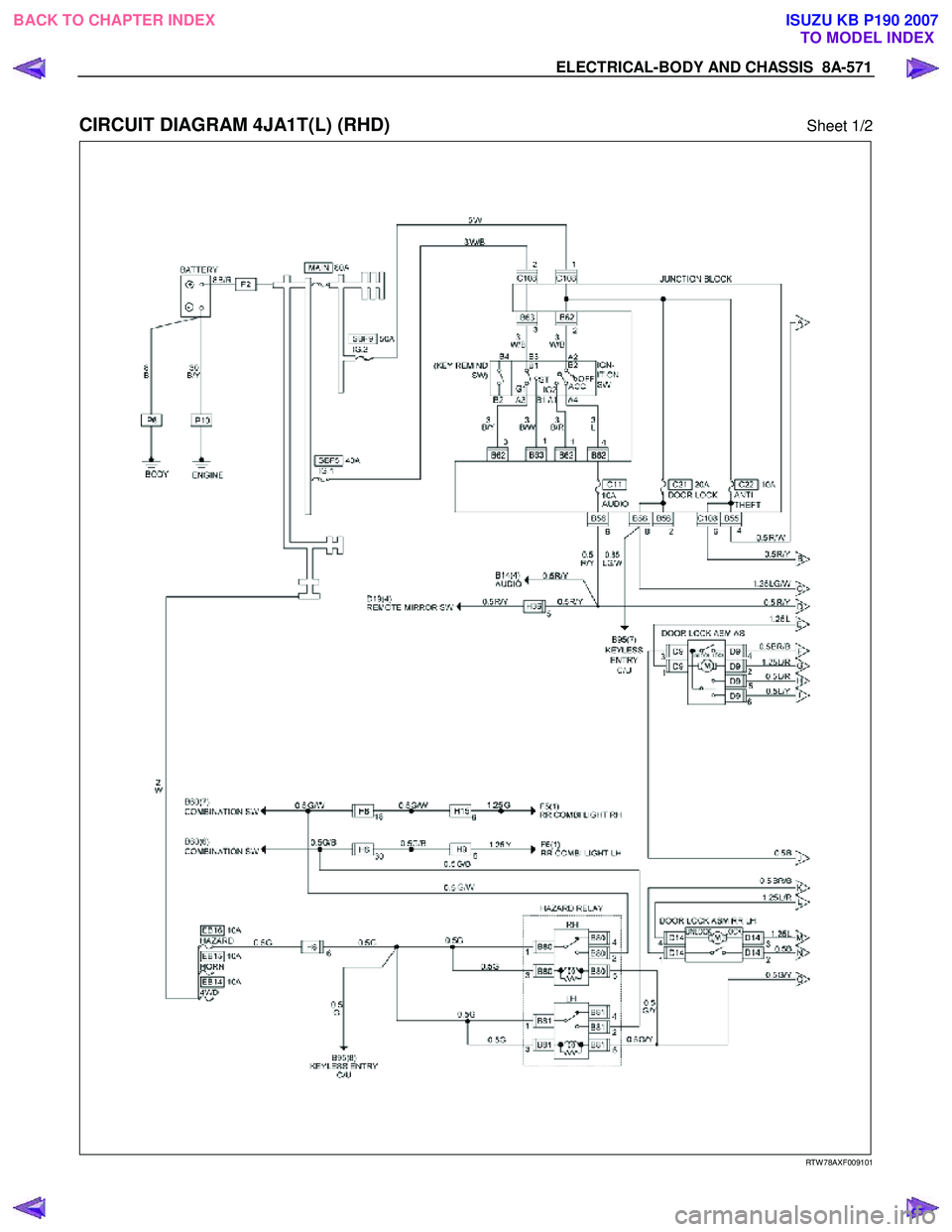

CIRCUIT DIAGRAM 4JA1T(L) (RHD) Sheet 1/2










RTW 78AXF009101

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-572 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T(L) (RHD) Sheet 2/2








RTW 78AXF009201

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-573

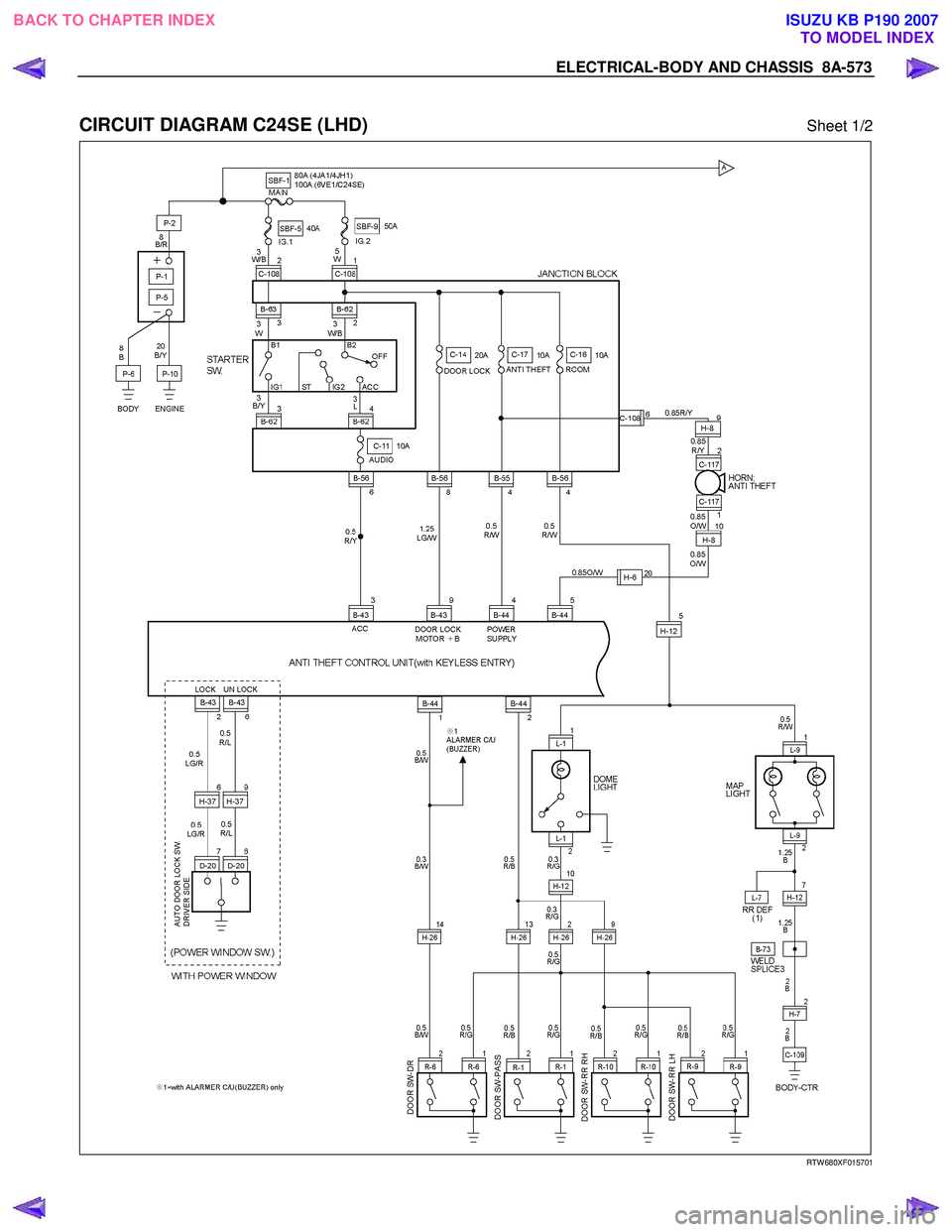

CIRCUIT DIAGRAM C24SE (LHD) Sheet 1/2



RTW 680XF015701

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-574 ELECTRICAL-BODY AND CHASSIS

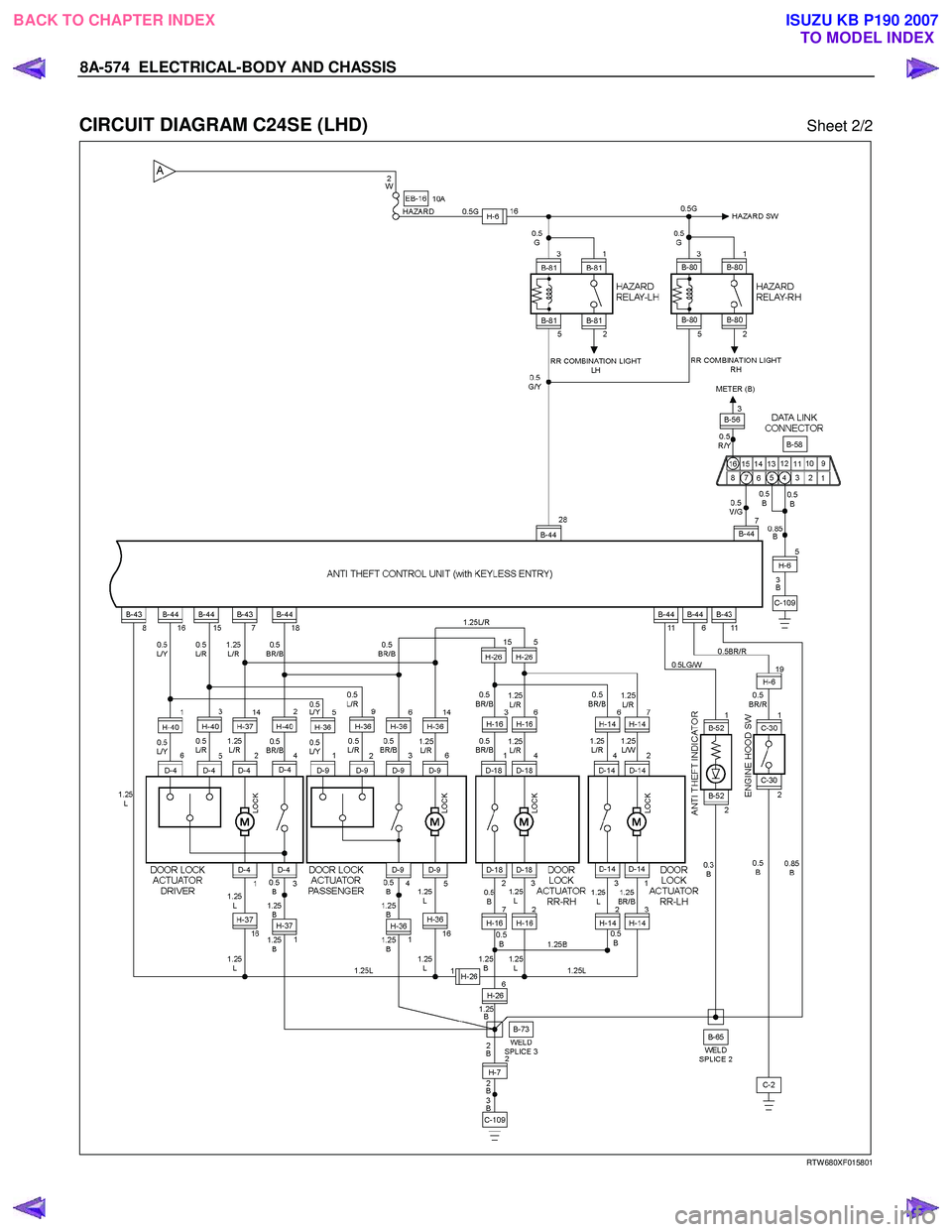

CIRCUIT DIAGRAM C24SE (LHD) Sheet 2/2



RTW 680XF015801

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-575

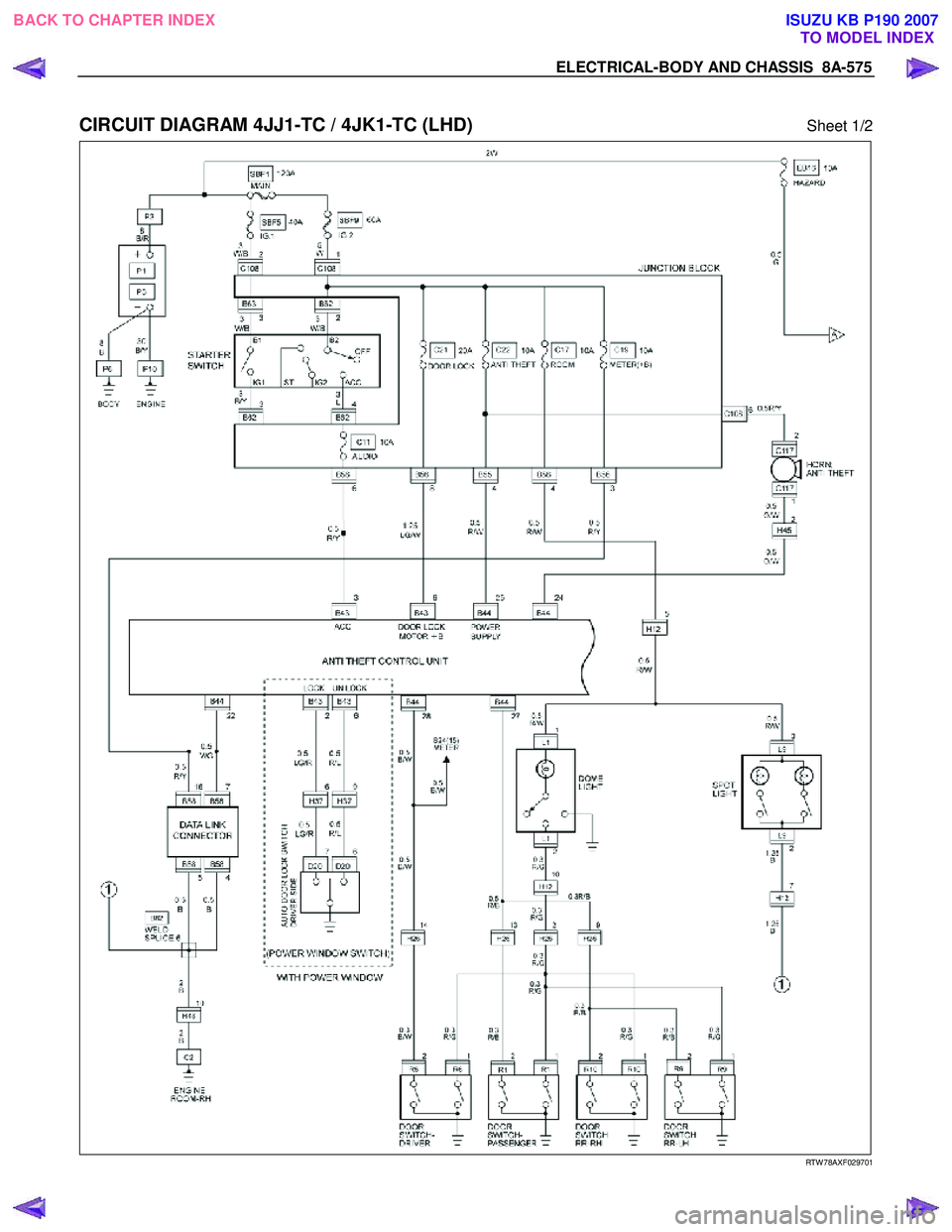

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD) Sheet 1/2



RTW 78AXF029701

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
