ELECTRICAL-BODY AND CHASSIS 8A-485

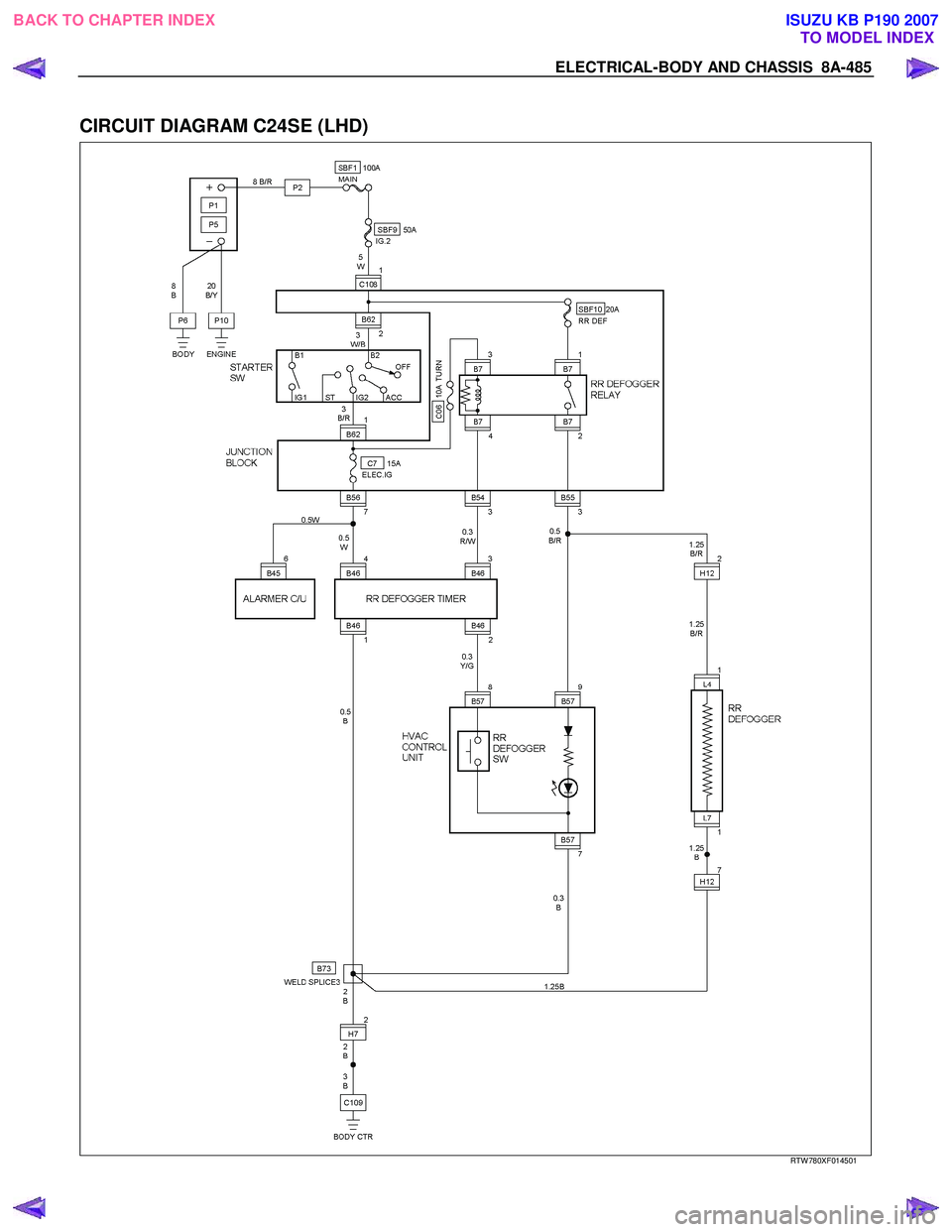

CIRCUIT DIAGRAM C24SE (LHD)
RTW 780XF014501
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5431 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-493

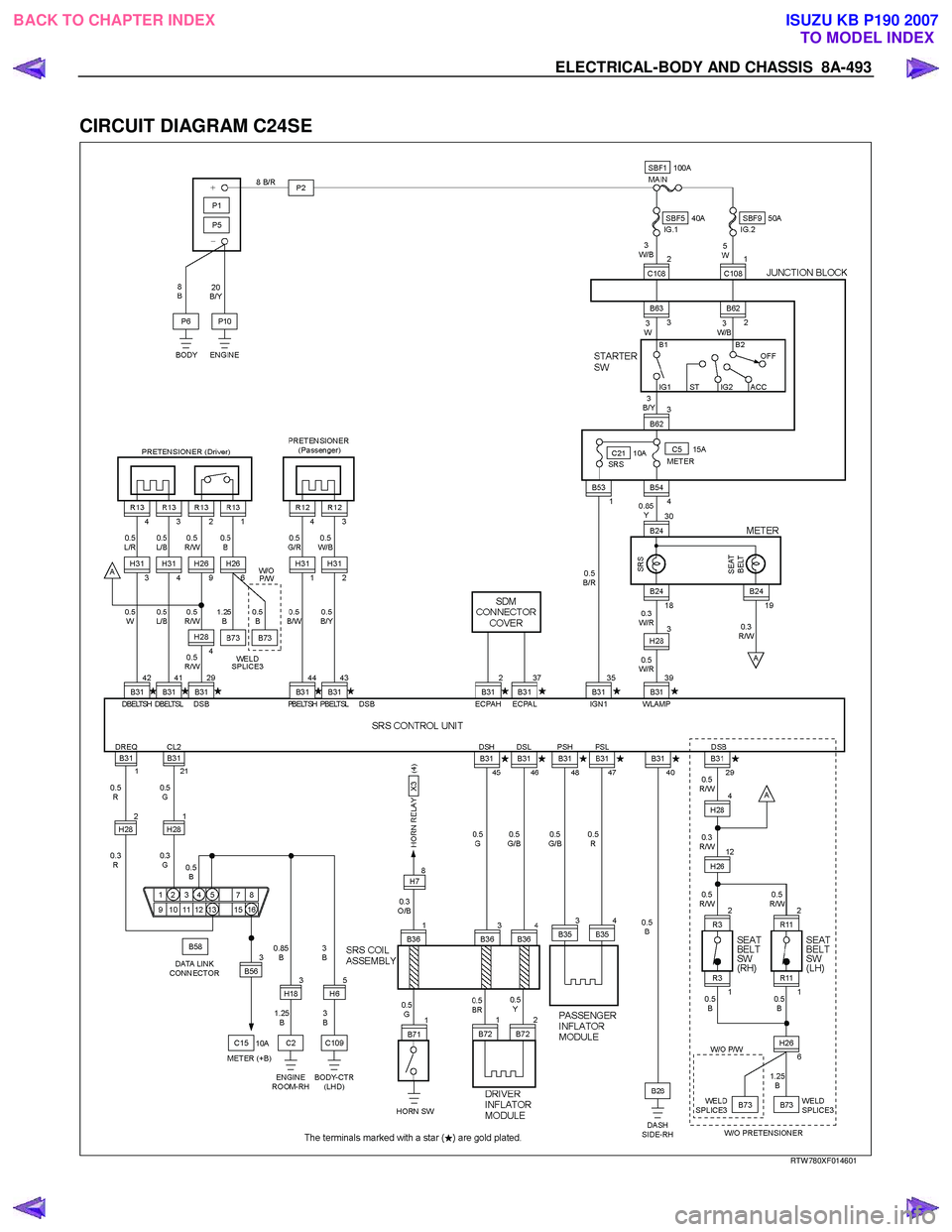

CIRCUIT DIAGRAM C24SE
RTW 780XF014601
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5432 of 6020
8A-494 ELECTRICAL-BODY AND CHASSIS

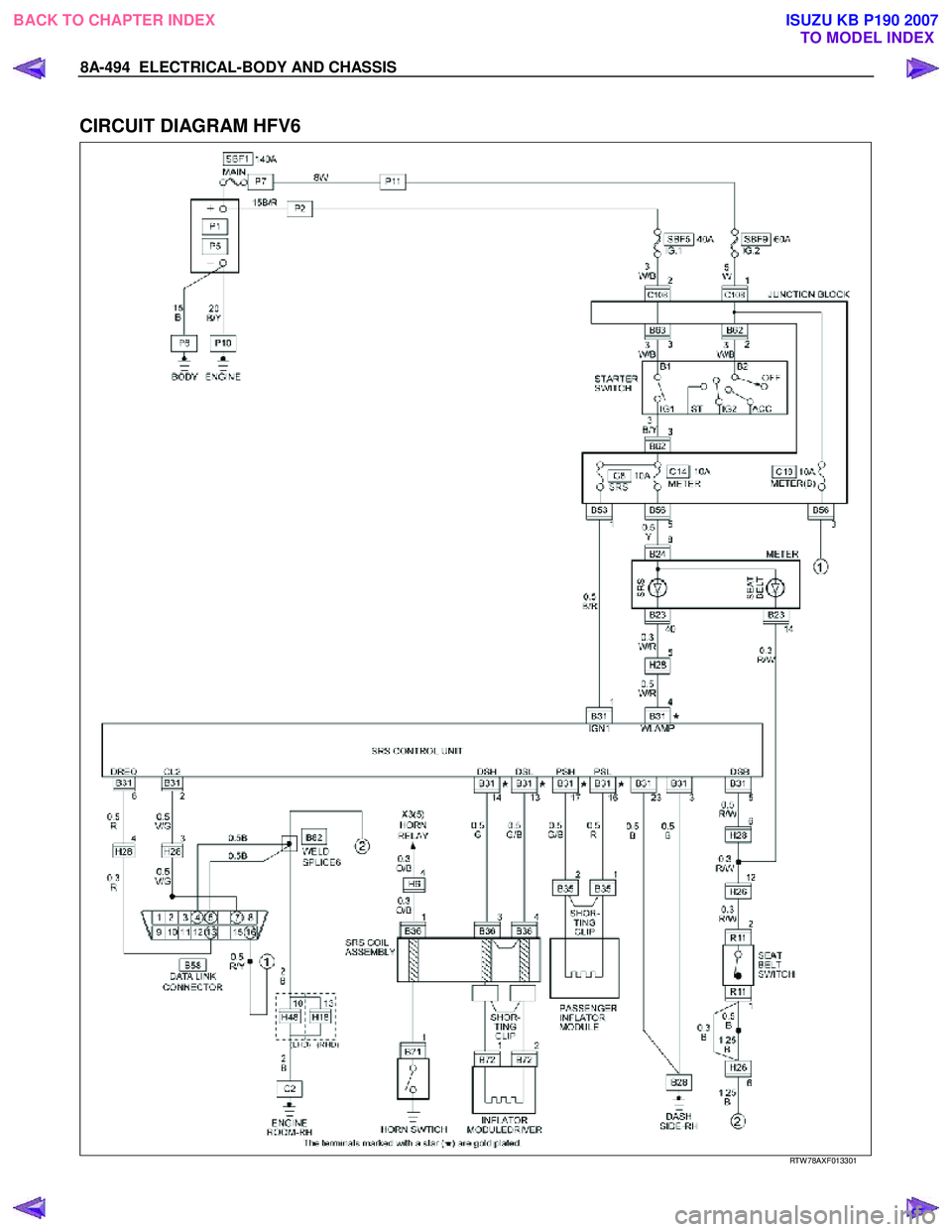

CIRCUIT DIAGRAM HFV6
RTW 78AXF013301
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5433 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-495

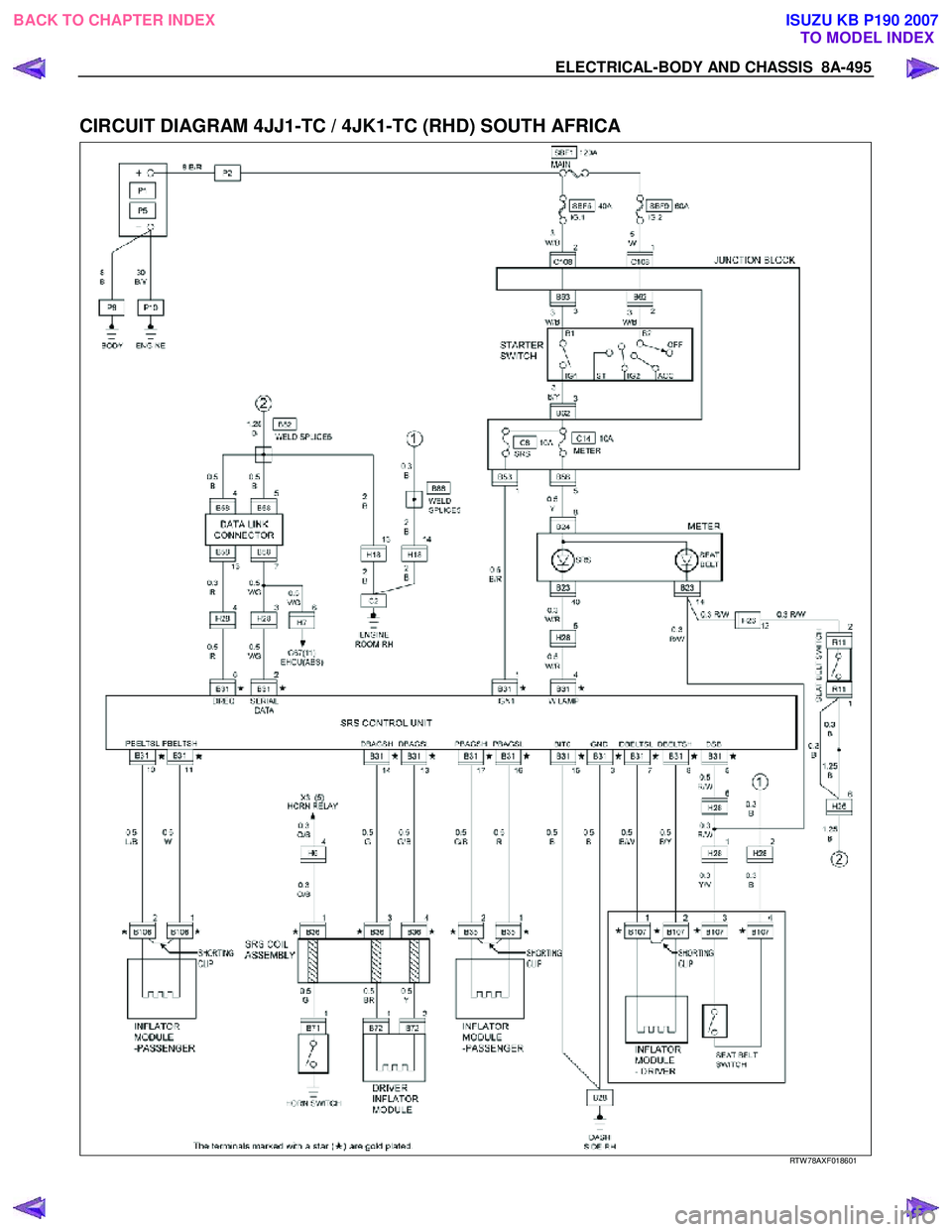

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) SOUTH AFRICA
RTW 78AXF018601
BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007
Page 5434 of 6020
8A-496 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC EXCEPT SOUTH AFRICA
RTW 78AXF028601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5435 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-497

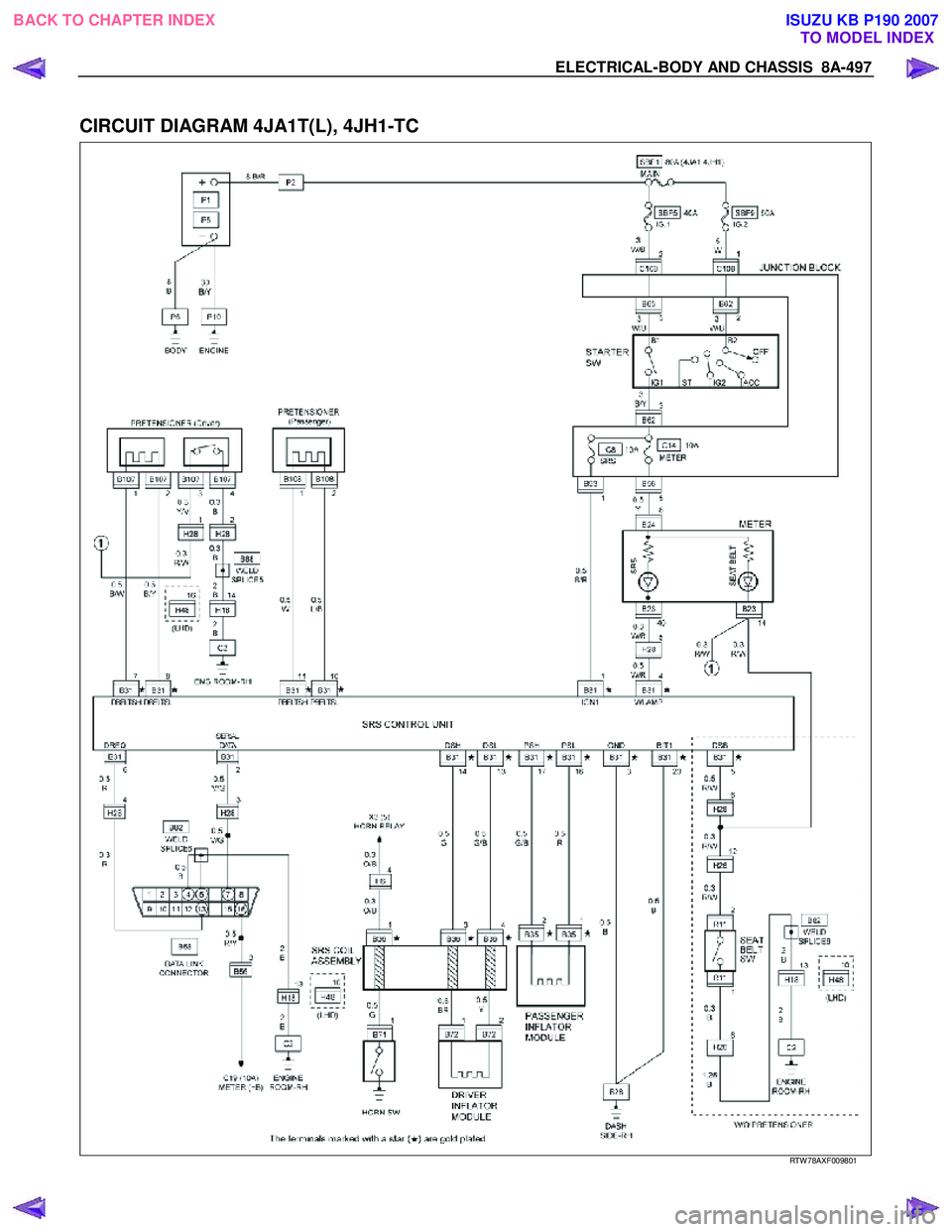

CIRCUIT DIAGRAM 4JA1T(L), 4JH1-TC
RTW 78AXF009801
BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007
Page 5443 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-505

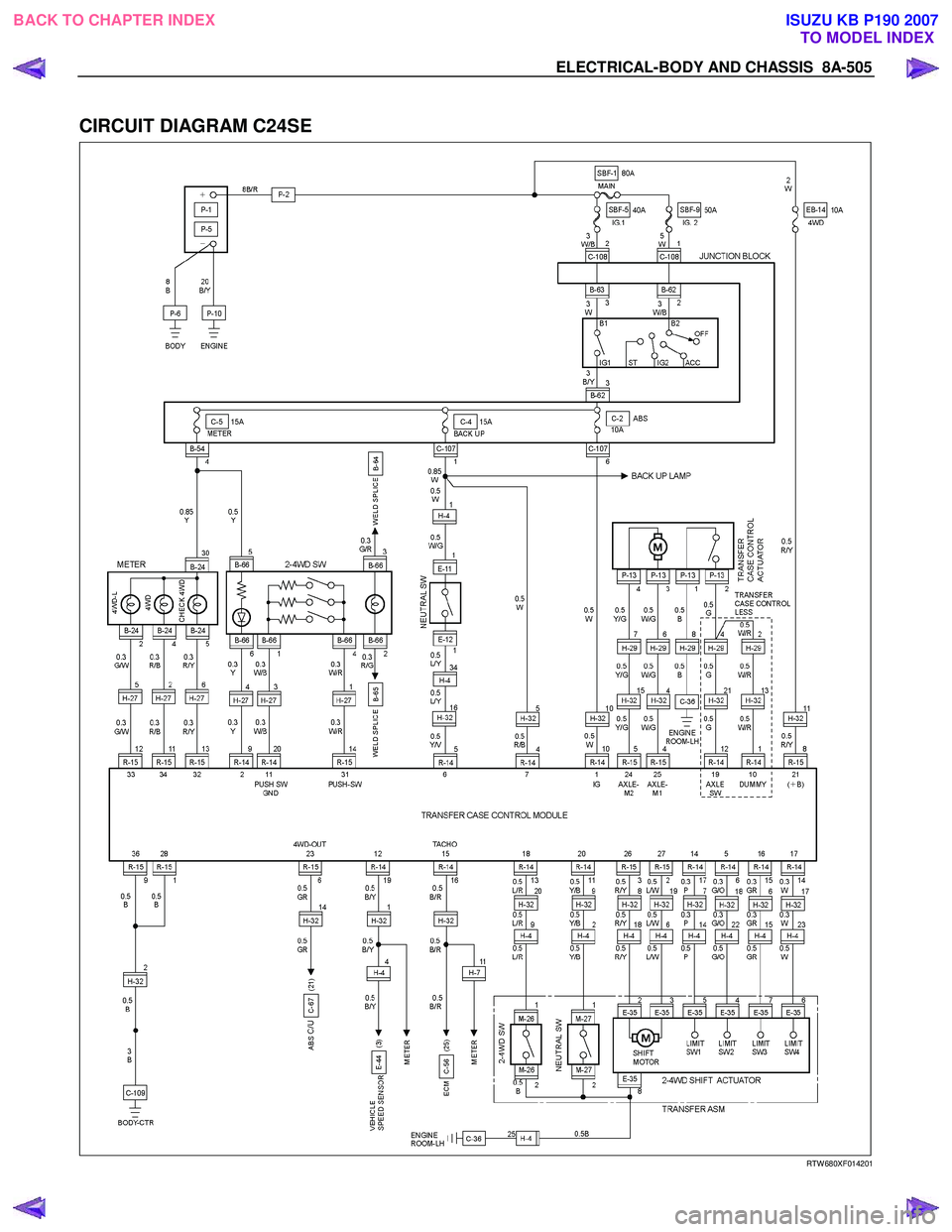

CIRCUIT DIAGRAM C24SE
RTW 680XF014201
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5444 of 6020
8A-506 ELECTRICAL-BODY AND CHASSIS

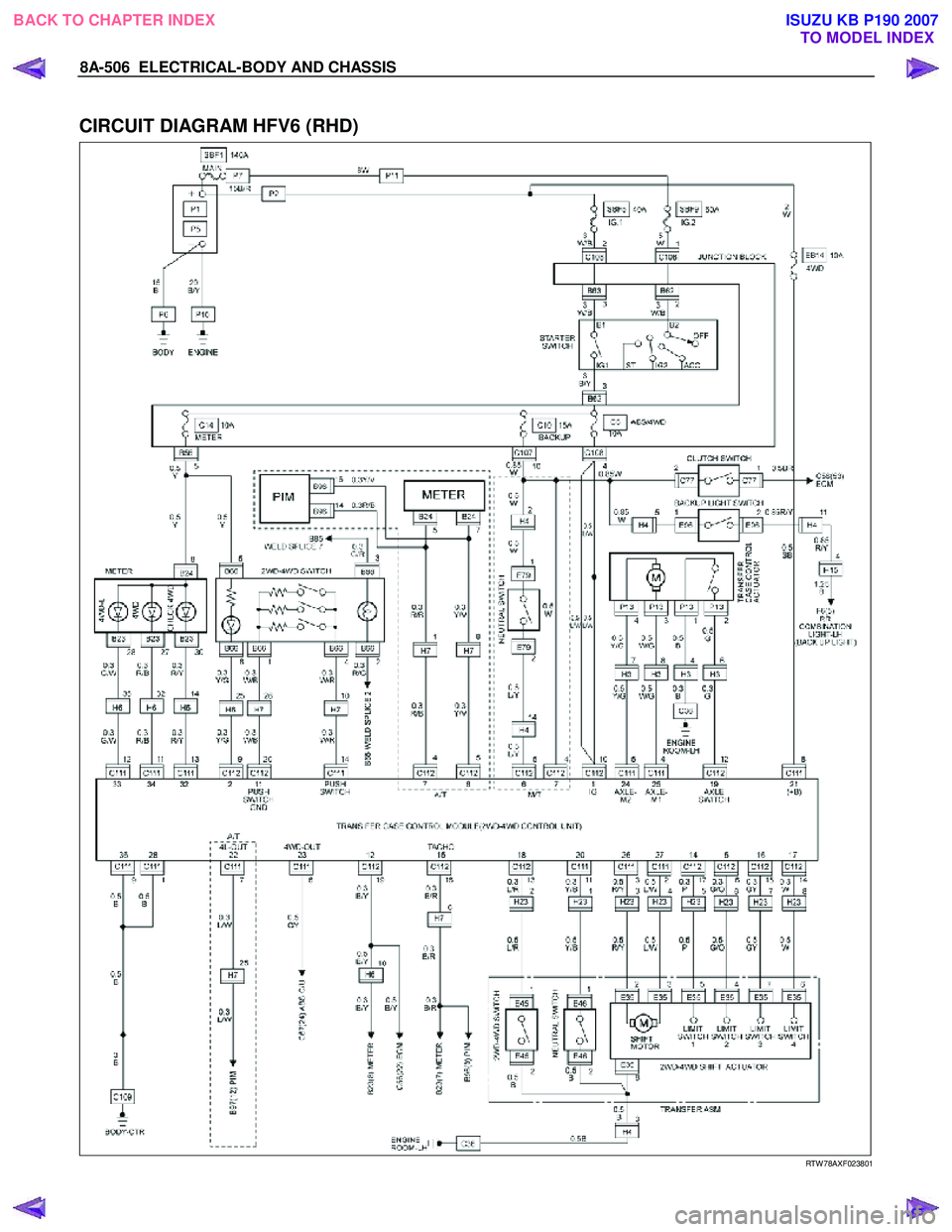

CIRCUIT DIAGRAM HFV6 (RHD)
RTW 78AXF023801
BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007
