2007 INFINITI FX35 srs

SRS-22
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Trouble Diagnosis with CONSULT-IINHS0007H
DIAGNOSTIC PROCEDURE 2
Refer to GI-38, "CONSULT-II Start Procedure" .
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

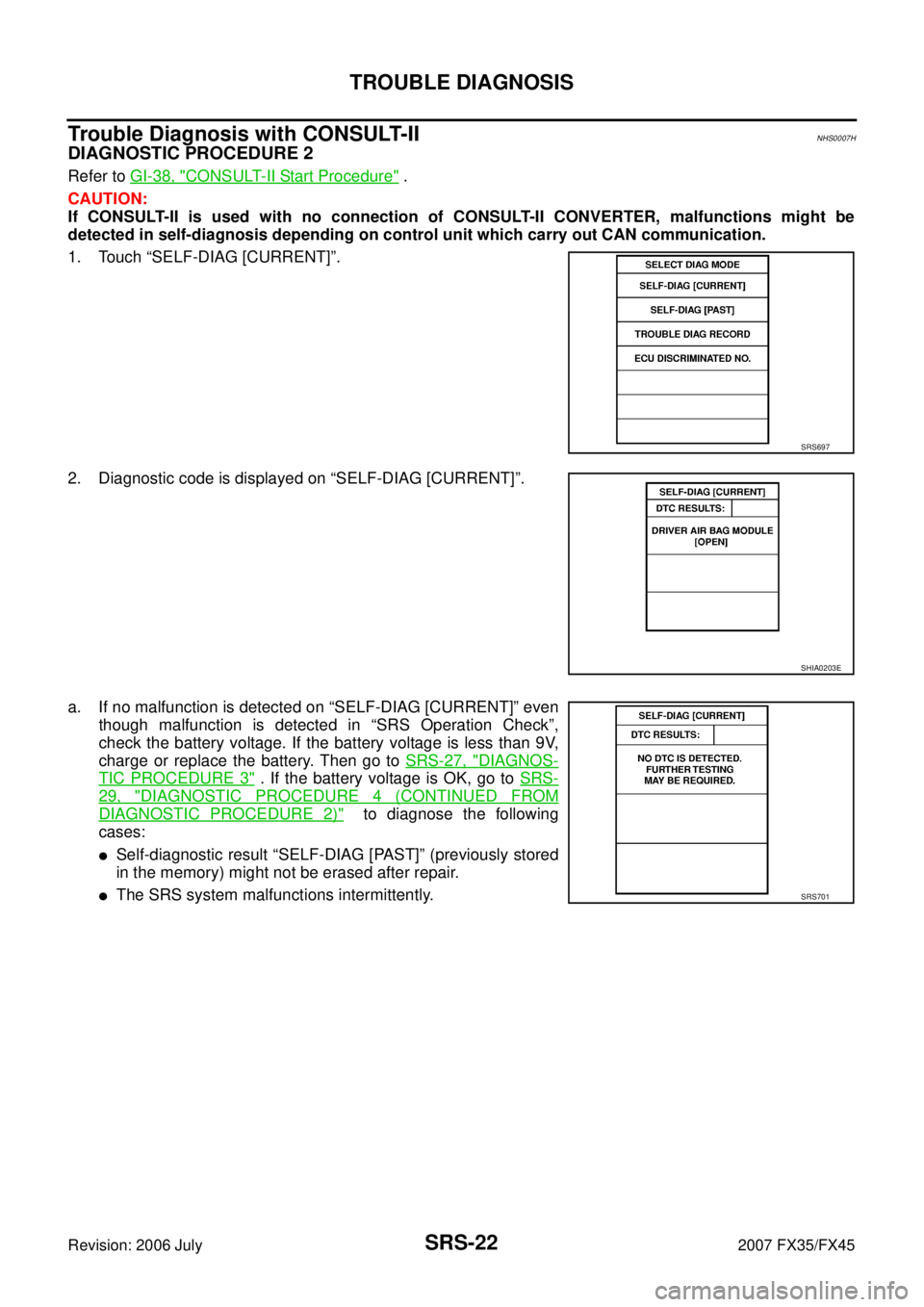

1. Touch “SELF-DIAG [CURRENT]”.
2. Diagnostic code is displayed on “SELF-DIAG [CURRENT]”.
a. If no malfunction is detected on “SELF-DIAG [CURRENT]” even though malfunction is detected in “SRS Operation Check”,
check the battery voltage. If the battery voltage is less than 9V,
charge or replace the battery. Then go to SRS-27, "
DIAGNOS-
TIC PROCEDURE 3" . If the battery voltage is OK, go to SRS-
29, "DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)" to diagnose the following
cases:

Self-diagnostic result “SELF-DIAG [PAST]” (previously stored
in the memory) might not be erased after repair.

The SRS system malfunctions intermittently.
SRS697
SHIA0203E
SRS701

TROUBLE DIAGNOSIS SRS-23
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 July 2007 FX35/FX45

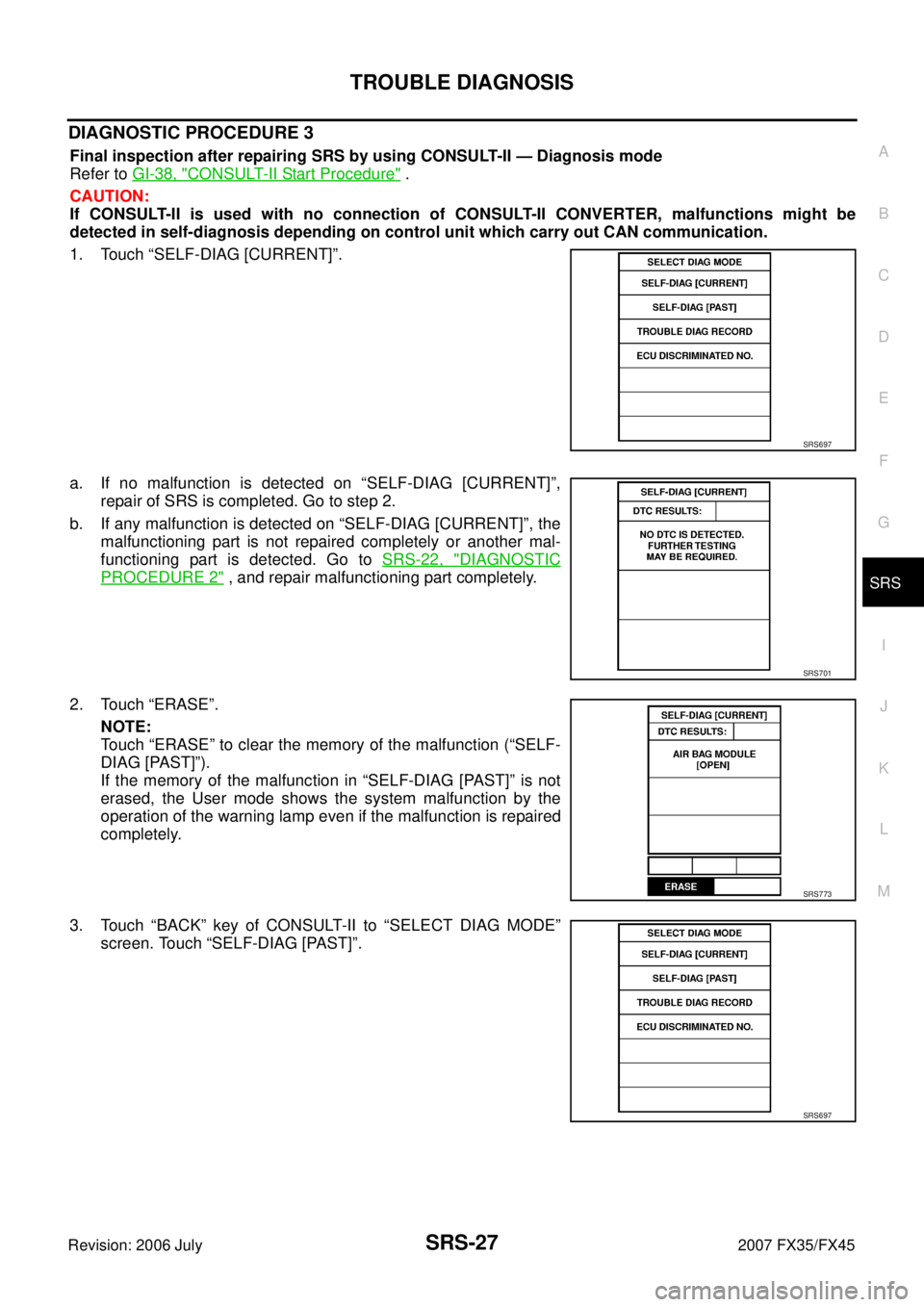

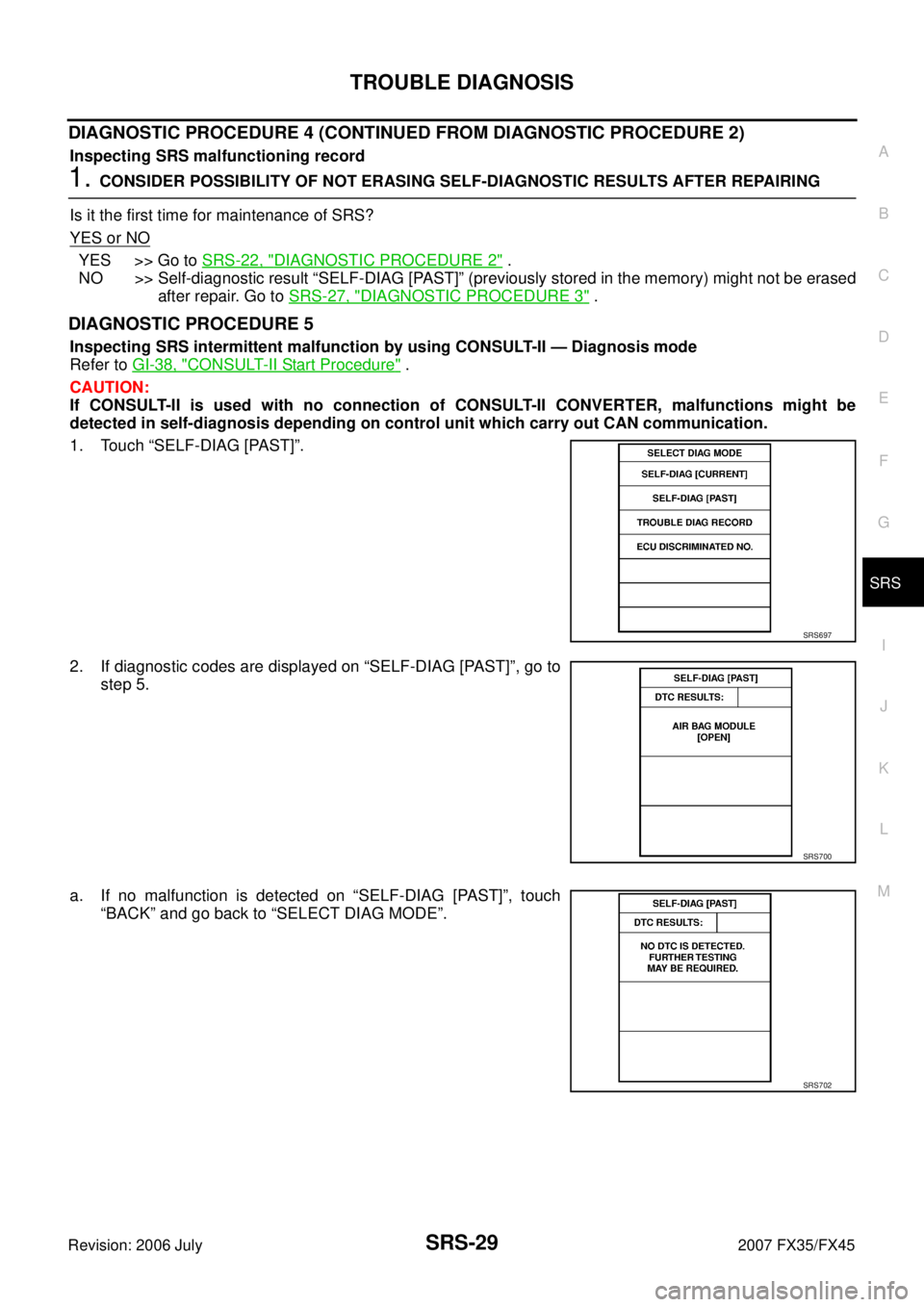

DTC No. Index (“SELF-DIAG [CURRENT]”)
Diagnostic item Explanation Repair order
“Recheck SRS at each replacement”
NO DTC IS
DETECTED. When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.

Low battery voltage (Less than 9V)
Go to SRS-27, "DIAGNOSTIC PRO-
CEDURE 3" after charging the bat-
tery.

Self-diagnostic result “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased after
repair.

Intermittent malfunction has been
detected in the past.

Go to SRS-29, "DIAGNOSTIC PRO-
CEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)" .

Go to SRS-29, "DIAGNOSTIC PRO-
CEDURE 5" .

No malfunction is detected. —
DRIVER AIR BAG
MODULE
[OPEN]
[B1054]

Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the driver air bag module.
4. Replace the spiral cable.
5. Replace the diagnosis sensor unit.
6. Replace the related harness.
DRIVER AIR BAG
MODULE
[VB-SHORT]
[B1055]

Driver air bag module circuit is shorted to a power supply circuit
(including the spiral cable).
DRIVER AIR BAG
MODULE
[GND-SHORT]
[B1056]

Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIR BAG
MODULE
[SHORT]
[B1057]

Driver air bag module circuit is shorted between lines.
ASSIST A/B MODULE
[OPEN]
[B1070]

Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the front passenger air bag module.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
ASSIST A/B MODULE
[VB-SHORT]
[B1071]

Front passenger air bag module circuit is shorted to a power
supply circuit.
ASSIST A/B MODULE
[GND-SHORT]
[B1072]

Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
[B1073]

Front passenger air bag module circuit is shorted between lines.
CRASH ZONE SEN
[UNIT FAIL]
[B1033]
[B1034]
CRASH ZONE SEN
[COMM FAIL]
[B1035]
CRASH ZONE SEN
[UNMATCH]
[B1036]

Crash zone sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the crash zone sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.

SRS-24
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
SIDE MODULE LH
[OPEN]
[B1134]
Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the front LH seatback assembly (front LH side air bag
module).
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SIDE MODULE LH
[VB-SHORT]
[B1135]

Front LH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE LH
[GND-SHORT]
[B1136]

Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
[B1137]

Front LH side air bag module circuit is shorted between lines.
SIDE MODULE RH
[OPEN]
[B1129]

Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the front RH seatback assembly (front RH side air bag
module).
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SIDE MODULE RH
[VB-SHORT]
[B1130]

Front RH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE RH
[GND-SHORT]
[B1131]

Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
[B1132]

Front RH side air bag module circuit is shorted between lines.
SATELLITE SENS LH
[UNIT FAIL]
[ B 111 8 ]
[ B 111 9 ]
SATELLITE SENS LH
[COMM FAIL]
[B1120]
SATELLITE SENS LH
[UNMATCH]
[B1121]

LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the LH side air bag (Satel- lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SATELLITE SENS RH
[UNIT FAIL]
[ B 111 3 ]
[ B 111 4 ]
SATELLITE SENS RH
[COMM FAIL]
[ B 111 5 ]
SATELLITE SENS RH
[UNMATCH]
[ B 111 6 ]

RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace the RH side air bag (Satel- lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN FRONT LH
[OPEN]
[B1086]

Front LH pre-tensioner circuit is open.
1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace the front LH seat belt.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN FRONT LH
[VB-SHORT]
[B1087]

Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
[B1088]

Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
[B1089]

Front LH pre-tensioner circuit is shorted between lines.
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”

TROUBLE DIAGNOSIS SRS-25
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 July 2007 FX35/FX45
PRE-TEN FRONT RH
[OPEN]
[B1081]
Front RH pre-tensioner circuit is open.
1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace the front RH seat belt.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN FRONT RH
[VB-SHORT]
[B1082]

Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
[B1083]

Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
[B1084]

Front RH pre-tensioner circuit is shorted between lines.
CURTAIN MODULE LH
[OPEN]
[B1150]

LH side curtain air bag module circuit is open.
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the LH side curtain air bag module.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
CURTAIN MODULE LH
[VB-SHORT]
[B1151]

LH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE LH
[GND-SHORT]
[B1152]

LH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE LH
[SHORT]
[B1153]

LH side curtain air bag module circuit is shorted between lines.
CURTAIN MODULE RH
[OPEN]
[B1145]

RH side curtain air bag module circuit is open.
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the RH side curtain air bag module.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
CURTAIN MODULE RH
[VB-SHORT]
[B1146]

RH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE RH
[GND-SHORT]
[B1147]

RH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE RH
[SHORT]
[B1148]

RH side curtain air bag module circuit is shorted between lines.
CONTROL UNIT
[B1001-B1015]
[B1026-B1031]
[B1042-B1047]
[B1058-B1063]
[B1074-B1079]
[ B 11 0 6 - B 1111 ]
[B1122-B1127]
[B1138-B1143]
[B1202-B1207]

Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness
connection.
2. Replace the diagnosis sensor unit.
PASS A/B INDCTR
CKT
[B1023]

Cutoff telltale circuit is open or shorted to grand or the circuits
are shorted each other. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace cutoff telltale.
4. Replace the diagnosis sensor unit.
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”

SRS-26
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still
observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.
OCCUPANT SENS C/U
[UNIT FAIL]
[B1017]
[B1020]
[B1021]
Trouble occurs in Occupant Classification System-CU.

Replace passenger side seat cush-
ion assembly.
OCCUPANT SENS C/U
[COMM FAIL]
[B1022]

Trouble occurs in Occupant Classification System-CU, circuit of
Occupant Classification System-CU—Diagnosis Senser Unit, or
Diagnosis Sensor Unit. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace passenger side seat cush- ion assembly.
4. Replace the diagnosis sensor unit.
OCCUPANT SENS
[UNIT FAIL]
[B1018]

Trouble occurs in Occupant Classification System-SENS.
Replace passenger side seat cush-
ion assembly.
BELT TENSION SENS
[UNIT FAIL]
[B1019]

Trouble occurs in Belt Tension sensor (BTS), circuit of BTS—
Occupant Classification System-CU, or Occupant Classification
System-CU. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. Replace passenger side seat belt assembly.
4. Replace the diagnosis sensor unit.
FRONTAL COLLISION-
DETECTION
[B1209]

Seat belt pre-tensioner and front air bag are deployed.
Go to SRS-55, "For Frontal Colli-
sion" .
SIDE COLLISION
DETECTION
[B1210]

Side and curtain air bag is deployed.
Go to SRS-57, "For Side Collision" .
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”

TROUBLE DIAGNOSIS SRS-27
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 July 2007 FX35/FX45
DIAGNOSTIC PROCEDURE 3
Final inspection after repairing SRS by using CONSULT-II — Diagnosis mode
Refer to GI-38, "
CONSULT-II Start Procedure" .
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Touch “SELF-DIAG [CURRENT]”.
a. If no malfunction is detected on “SELF-DIAG [CURRENT]”, repair of SRS is completed. Go to step 2.
b. If any malfunction is detected on “SELF-DIAG [CURRENT]”, the malfunctioning part is not repaired completely or another mal-
functioning part is detected. Go to SRS-22, "
DIAGNOSTIC
PROCEDURE 2" , and repair malfunctioning part completely.
2. Touch “ERASE”. NOTE:
Touch “ERASE” to clear the memory of the malfunction (“SELF-
DIAG [PAST]”).
If the memory of the malfunction in “SELF-DIAG [PAST]” is not
erased, the User mode shows the system malfunction by the
operation of the warning lamp even if the malfunction is repaired
completely.
3. Touch “BACK” key of CONSULT-II to “SELECT DIAG MODE” screen. Touch “SELF-DIAG [PAST]”.
SRS697
SRS701
SRS773
SRS697

SRS-28
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
4. Make sure no malfunction is detected on “SELF-DIAG [PAST]”.
5. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM” appears in order to return to User mode from Diagnosis mode.
6. Turn ignition switch OFF then turn off and disconnect CON- SULT-II. Go to SRS-20, "
DIAGNOSTIC PROCEDURE 1" .
SRS702

TROUBLE DIAGNOSIS SRS-29
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 July 2007 FX35/FX45
DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM DIAGNOSTIC PROCEDURE 2)
Inspecting SRS malfunctioning record
1. CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULTS AFTER REPAIRING
Is it the first time for maintenance of SRS?
YES or NO
YES >> Go to SRS-22, "DIAGNOSTIC PROCEDURE 2" .
NO >> Self-diagnostic result “SELF-DIAG [PAST]” (previously stored in the memory) might not be erased after repair. Go to SRS-27, "
DIAGNOSTIC PROCEDURE 3" .
DIAGNOSTIC PROCEDURE 5
Inspecting SRS intermittent malfunction by using CONSULT-II — Diagnosis mode
Refer to GI-38, "
CONSULT-II Start Procedure" .
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Touch “SELF-DIAG [PAST]”.
2. If diagnostic codes are displayed on “SELF-DIAG [PAST]”, go to step 5.
a. If no malfunction is detected on “SELF-DIAG [PAST]”, touch “BACK” and go back to “SELECT DIAG MODE”.
SRS697
SRS700
SRS702
