SRS-46
FRONT PASSENGER AIR BAG MODULE
Revision: 2006 July 2007 FX35/FX45
FRONT PASSENGER AIR BAG MODULEPFP:K8515
Removal and InstallationNHS0007N
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
Always work from the side of or under front passenger air bag module.
Do not use air tools or electric tools for servicing.

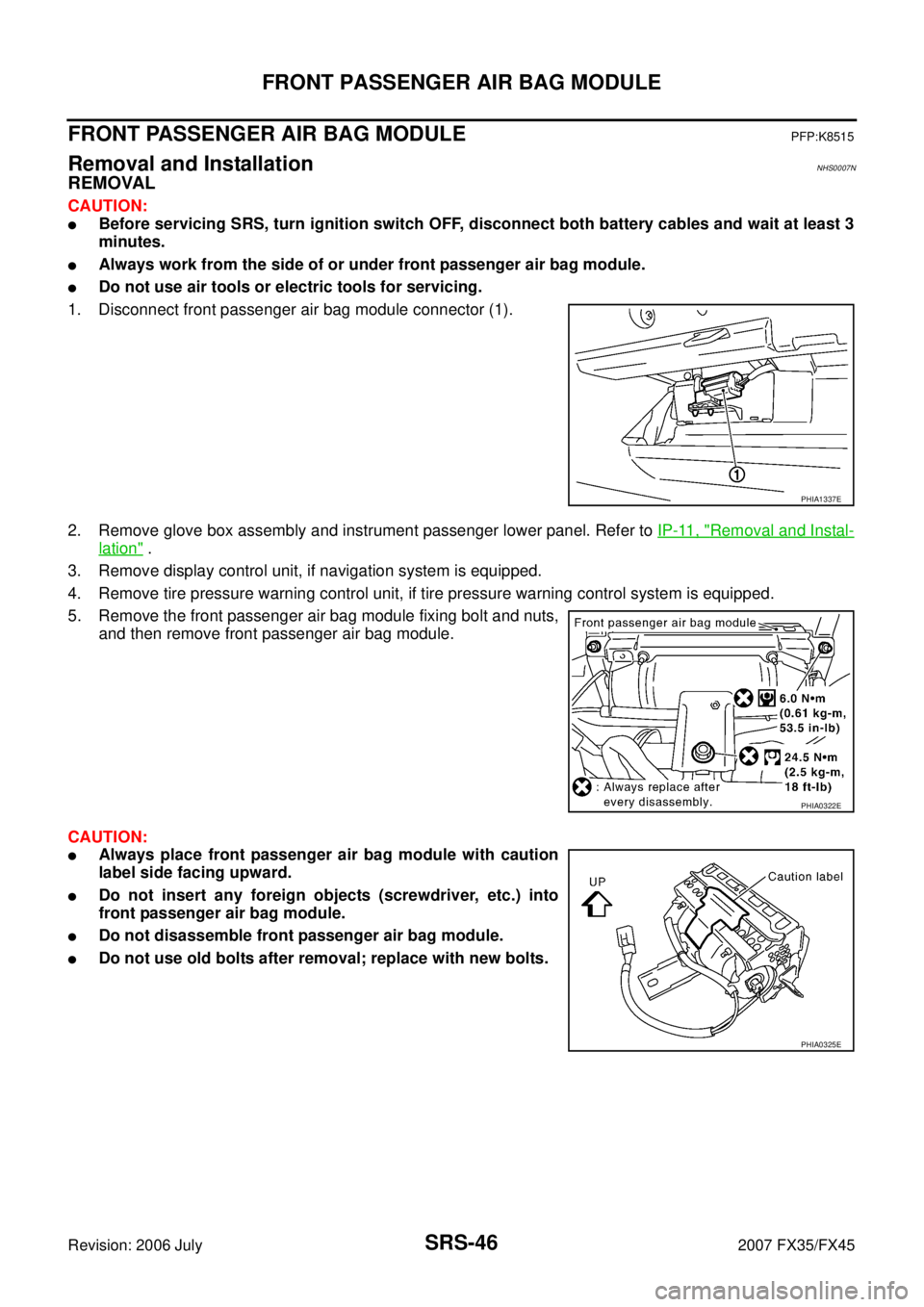

1. Disconnect front passenger air bag module connector (1).
2. Remove glove box assembly and instrument passenger lower panel. Refer to IP-11, "
Removal and Instal-
lation" .
3. Remove display control unit, if navigation system is equipped.
4. Remove tire pressure warning control unit, if tire pressure warning control system is equipped.
5. Remove the front passenger air bag module fixing bolt and nuts, and then remove front passenger air bag module.
CAUTION:
Always place front passenger air bag module with caution
label side facing upward.
Do not insert any foreign objects (screwdriver, etc.) into
front passenger air bag module.
Do not disassemble front passenger air bag module.
Do not use old bolts after removal; replace with new bolts.
PHIA1337E
PHIA0322E
PHIA0325E
Page 4193 of 4366
FRONT PASSENGER AIR BAG MODULE SRS-47
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 July 2007 FX35/FX45
Replace front passenger air bag module if it has been
dropped or sustained an impact.
Do not expose the front passenger air bag module to tem-
peratures exceeding 90 °C (194 °F).
Do not allow oil, grease or water to come in contact with the
front passenger air bag module.
After front passenger air bag module inflates, the instru-
ment panel assembly should be replaced.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be careful not to damage the harness while installing.
After the work is completed, make sure no system malfunction is detected by air bag warning
lamp.
In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis func-
tion and delete the memory by CONSULT −II.
In case that malfunction is still detected after the above operation, perform self-diagnosis to repair
malfunctions. Refer to Refer to SRS-20, "
SRS Operation Check" .
SBF814E
Page 4194 of 4366
SRS-48
SIDE CURTAIN AIR BAG MODULE
Revision: 2006 July 2007 FX35/FX45
SIDE CURTAIN AIR BAG MODULEPFP:985P0
Removal and InstallationNHS0007O
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
Always work from the side of the side curtain air bag module.
Do not use air tools or electric tools for servicing.

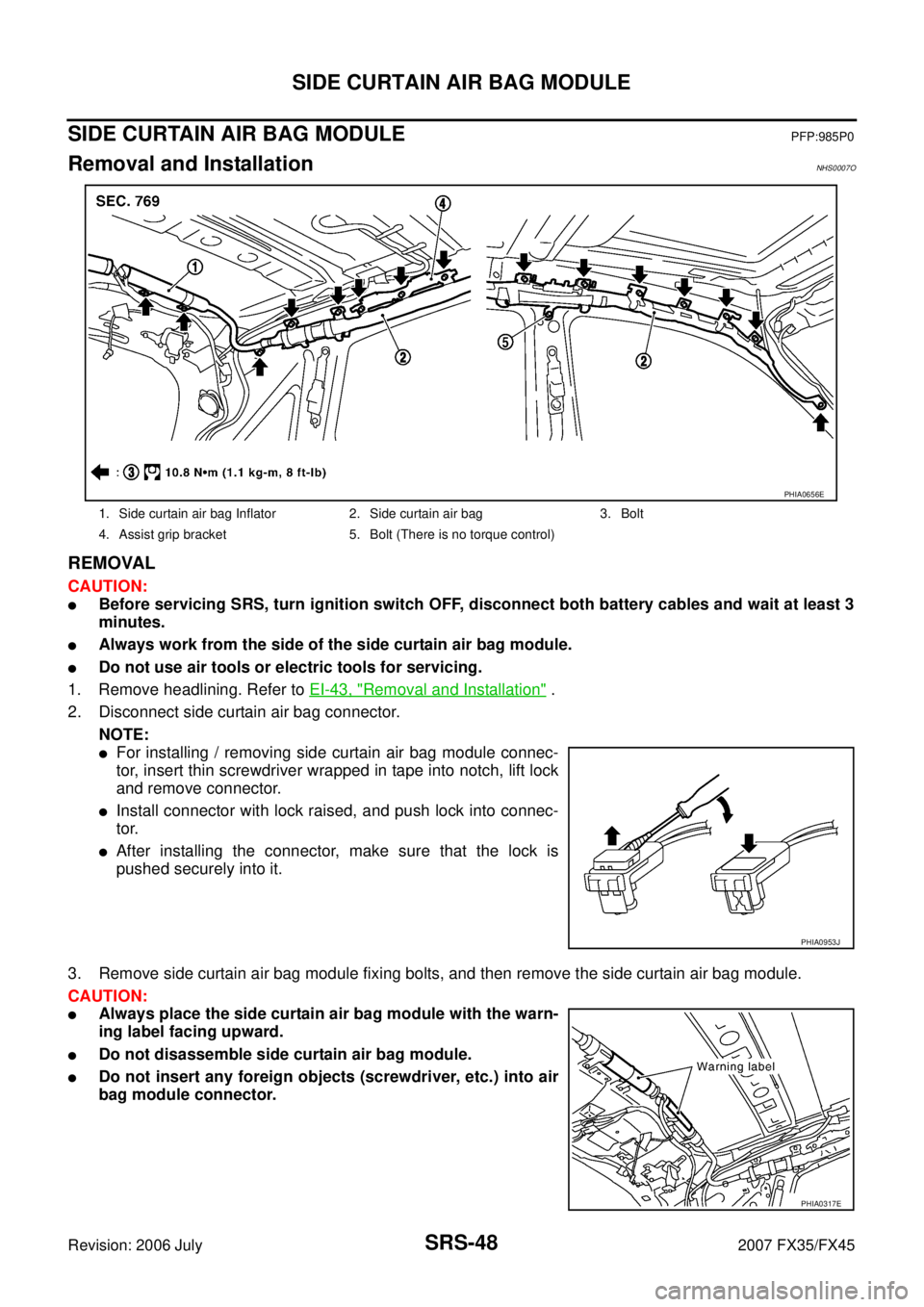

1. Remove headlining. Refer to EI-43, "
Removal and Installation" .
2. Disconnect side curtain air bag connector. NOTE:
For installing / removing side curtain air bag module connec-
tor, insert thin screwdriver wrapped in tape into notch, lift lock
and remove connector.
Install connector with lock raised, and push lock into connec-
tor.
After installing the connector, make sure that the lock is
pushed securely into it.
3. Remove side curtain air bag module fixing bolts, and then remove the side curtain air bag module.
CAUTION:
Always place the side curtain air bag module with the warn-
ing label facing upward.
Do not disassemble side curtain air bag module.
Do not insert any foreign objects (screwdriver, etc.) into air
bag module connector.
1. Side curtain air bag Inflator 2. Side curtain air bag 3. Bolt
4. Assist grip bracket 5. Bolt (There is no torque control)
PHIA0656E
PHIA0953J
PHIA0317E
Page 4195 of 4366
SIDE CURTAIN AIR BAG MODULE SRS-49
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 July 2007 FX35/FX45
Replace side curtain air bag module if it has been dropped
or sustained an impact.
Do not expose the air bag module to temperatures exceed-
ing 90 °C (194 °F).
Do not allow oil, grease or water to come in contact with the
side curtain air bag module.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be careful not to damage the air bag harness.
After the work is completed, make sure no system malfunction is detected by air bag warning
lamp.
In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis func-
tion and delete the memory by CONSULT-ll.
In case that malfunction is still detected after the avove operation, perform self-diagnosis to repair
malfunctions. Refer to Refer to SRS-20, "
SRS Operation Check" .
SBF814E
Page 4196 of 4366
SRS-50
CRASH ZONE SENSOR
Revision: 2006 July 2007 FX35/FX45
CRASH ZONE SENSORPFP:98531
Removal and InstallationNHS0007P
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
Do not use air tools or electric tools for servicing.

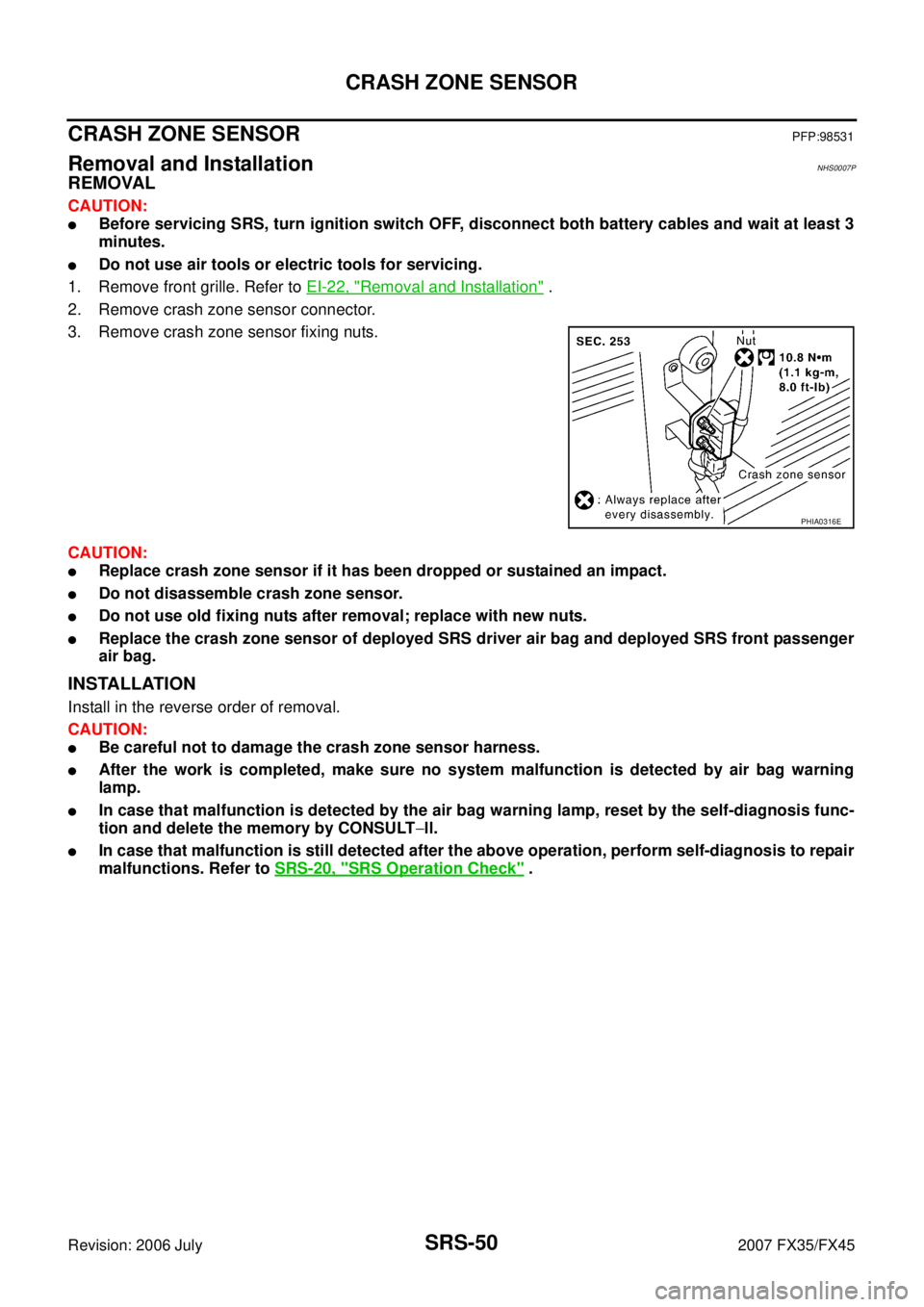

1. Remove front grille. Refer to EI-22, "
Removal and Installation" .
2. Remove crash zone sensor connector.
3. Remove crash zone sensor fixing nuts.
CAUTION:
Replace crash zone sensor if it has been dropped or sustained an impact.
Do not disassemble crash zone sensor.
Do not use old fixing nuts after removal; replace with new nuts.
Replace the crash zone sensor of deployed SRS driver air bag and deployed SRS front passenger
air bag.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be careful not to damage the crash zone sensor harness.
After the work is completed, make sure no system malfunction is detected by air bag warning
lamp.
In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis func-
tion and delete the memory by CONSULT −ll.
In case that malfunction is still detected after the above operation, perform self-diagnosis to repair
malfunctions. Refer to SRS-20, "
SRS Operation Check" .
PHIA0316E
Page 4197 of 4366
SIDE AIR BAG (SATELLITE) SENSOR SRS-51
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 July 2007 FX35/FX45
SIDE AIR BAG (SATELLITE) SENSORPFP:98830
Removal and InstallationNHS0007Q
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
Do not use air tools or electric tools for servicing.

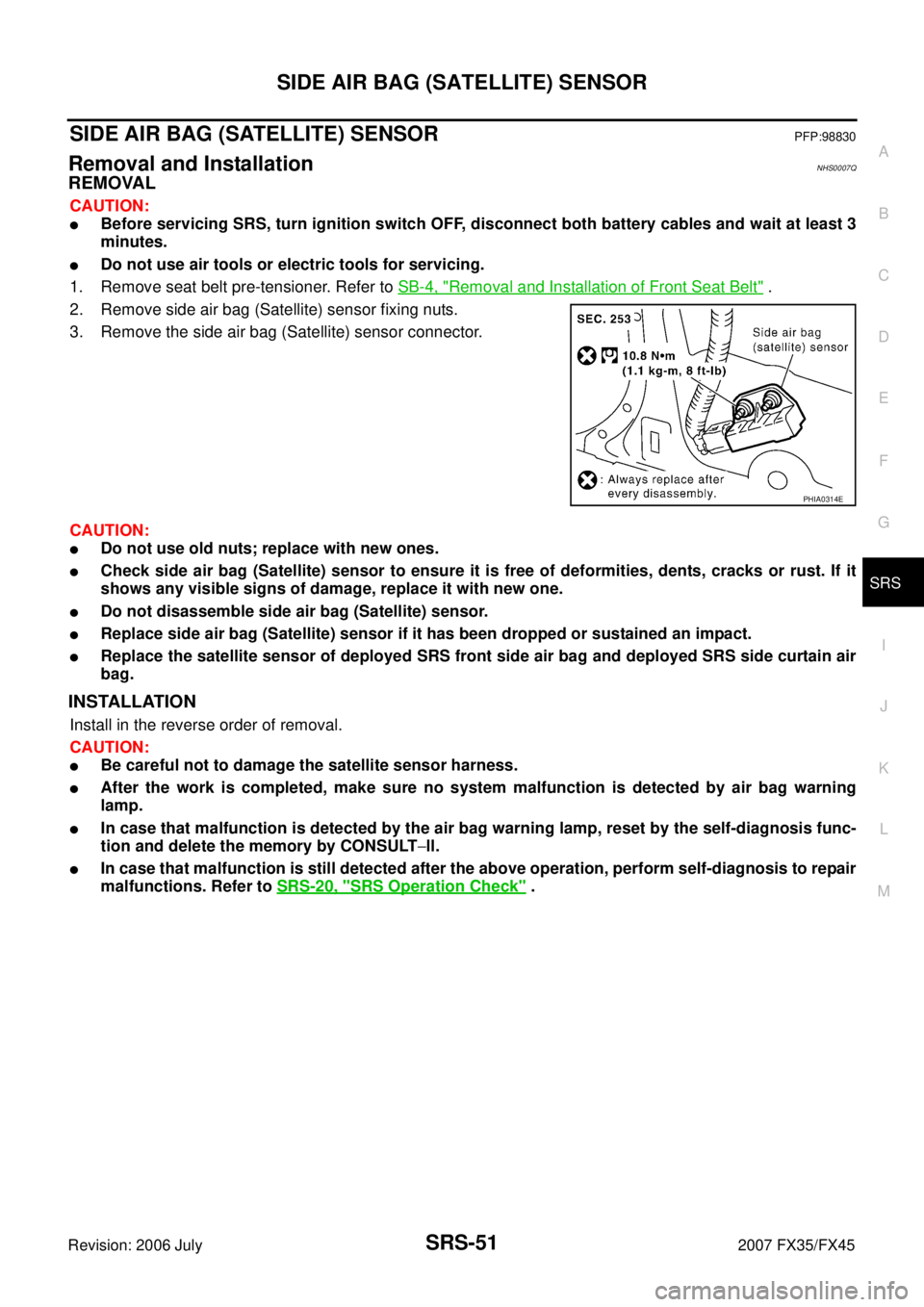

1. Remove seat belt pre-tensioner. Refer to SB-4, "
Removal and Installation of Front Seat Belt" .
2. Remove side air bag (Satellite) sensor fixing nuts.
3. Remove the side air bag (Satellite) sensor connector.
CAUTION:
Do not use old nuts; replace with new ones.
Check side air bag (Satellite) sensor to ensure it is free of deformities, dents, cracks or rust. If it
shows any visible signs of damage, replace it with new one.
Do not disassemble side air bag (Satellite) sensor.
Replace side air bag (Satellite) sensor if it has been dropped or sustained an impact.
Replace the satellite sensor of deployed SRS front side air bag and deployed SRS side curtain air
bag.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be careful not to damage the satellite sensor harness.
After the work is completed, make sure no system malfunction is detected by air bag warning
lamp.
In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis func-
tion and delete the memory by CONSULT −ll.
In case that malfunction is still detected after the above operation, perform self-diagnosis to repair
malfunctions. Refer to SRS-20, "
SRS Operation Check" .
PHIA0314E
Page 4198 of 4366
SRS-52
FRONT SEAT BELT PRE-TENSIONER
Revision: 2006 July 2007 FX35/FX45
FRONT SEAT BELT PRE-TENSIONERPFP:86884
Removal and InstallationNHS0007R
For removal and installation procedures, refer to SB-4, "Removal and Installation of Front Seat Belt" .
Page 4199 of 4366
DIAGNOSIS SENSOR UNIT SRS-53
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2006 July 2007 FX35/FX45
DIAGNOSIS SENSOR UNITPFP:28556
Removal and InstallationNHS0007S
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
Do not use air tools or electric tools for servicing.
1. Disconnect each harness connector for the air bag module and seat belt pre-tensioner.
2. Remove center console. Refer to IP-11, "
Removal and Installation" .
3. Disconnect diagnosis sensor unit connector.
4. Remove special bolts (T50) from the diagnosis sensor unit.
CAUTION:
Do not use old bolts. Replace with new ones.
Check diagnosis sensor unit bracket to ensure it is free of
deformities, dents, cracks or rust. If it shows any visible
things of damage, replace with new one.
Replace diagnosis sensor unit if it has been dropped or
sustained an impact.
Replace the diagnosis sensor unit of deployed SRS air bag
and deployed SRS front seat belt pre-tensioner.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be careful not to damage the diagnosis sensor harness.
After the work is completed, make sure no system malfunction is detected by air bag warning
lamp.
In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis func-
tion and delete the memory by CONSULT −ll.
In case that malfunction is still detected after the above operation, perform self-diagnosis to repair
malfunctions. Refer to SRS-20, "
SRS Operation Check" .

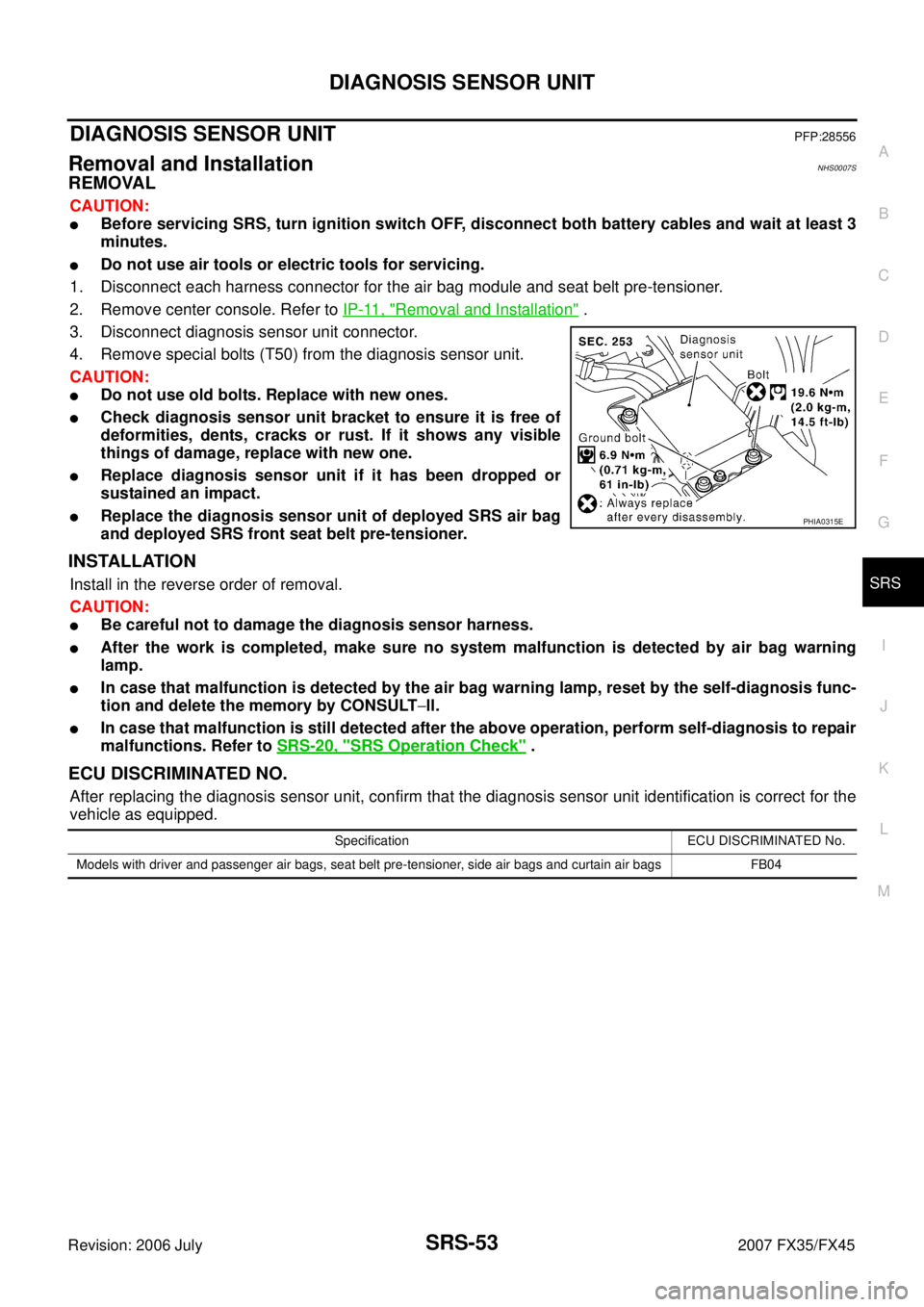

ECU DISCRIMINATED NO.
After replacing the diagnosis sensor unit, confirm that the diagnosis sensor unit identification is correct for the
vehicle as equipped.
PHIA0315E
Specification ECU DISCRIMINATED No.
Models with driver and passenger air bags, seat belt pre-tensioner, side air bags and curtain air bags FB04
