SUNROOF UNIT ASSEMBLY
Removal
CAUTION:

Always work with a helper.

When taking sunroof unit out, use clothes to protect the seats and trim from damage.

After installing the sunroof unit and glass lid, be sure to perform the leakage test and make sure
there is no malfunction.

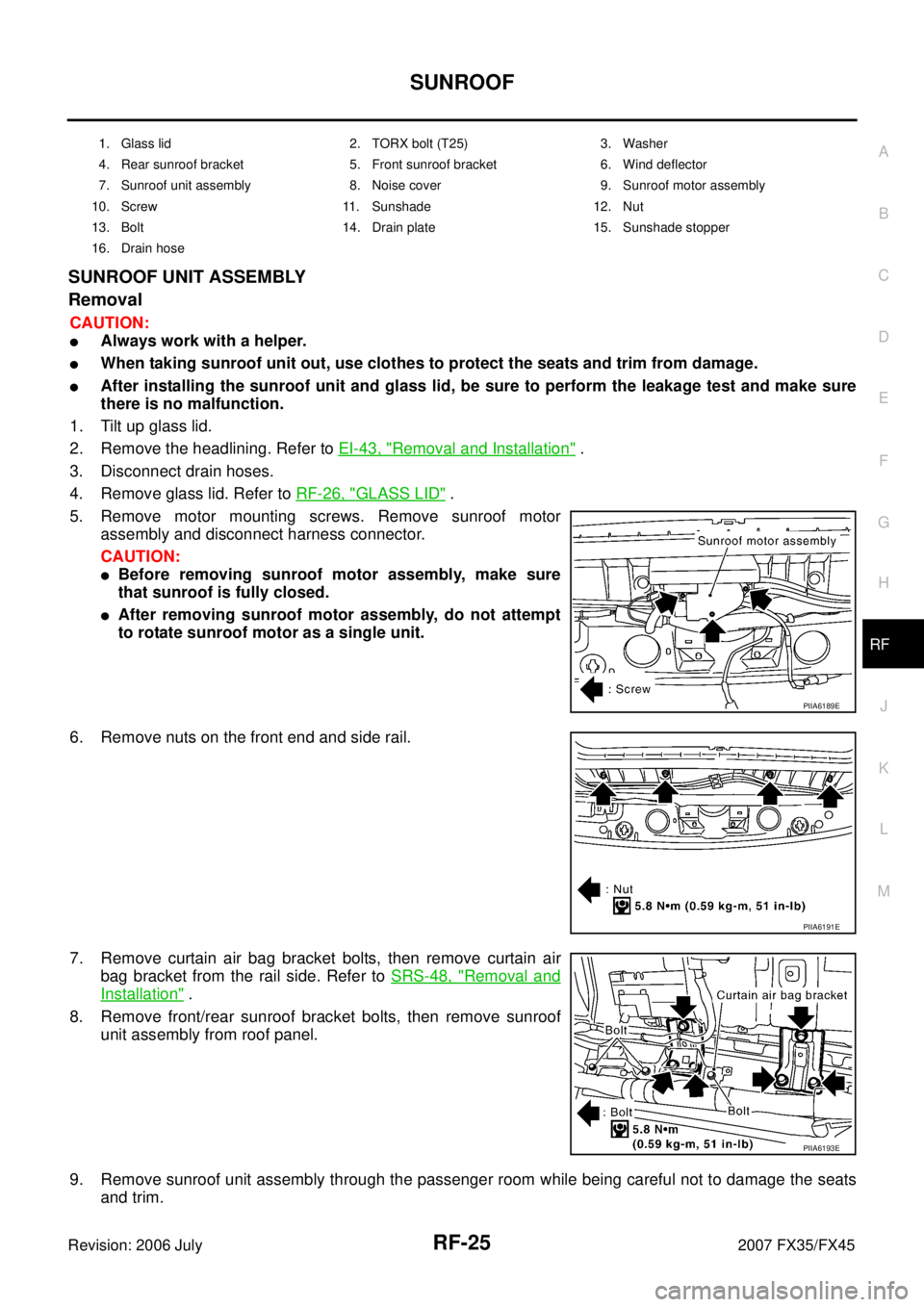

1. Tilt up glass lid.
2. Remove the headlining. Refer to EI-43, "
Removal and Installation" .
3. Disconnect drain hoses.
4. Remove glass lid. Refer to RF-26, "
GLASS LID" .
5. Remove motor mounting screws. Remove sunroof motor assembly and disconnect harness connector.
CAUTION:

Before removing sunroof motor assembly, make sure
that sunroof is fully closed.

After removing sunroof motor assembly, do not attempt
to rotate sunroof motor as a single unit.
6. Remove nuts on the front end and side rail.
7. Remove curtain air bag bracket bolts, then remove curtain air bag bracket from the rail side. Refer to SRS-48, "
Removal and
Installation" .
8. Remove front/rear sunroof bracket bolts, then remove sunroof unit assembly from roof panel.
9. Remove sunroof unit assembly through the passenger room while being careful not to damage the seats and trim.
1. Glass lid 2. TORX bolt (T25) 3. Washer
4. Rear sunroof bracket 5. Front sunroof bracket 6. Wind deflector
7. Sunroof unit assembly 8. Noise cover 9. Sunroof motor assembly
10. Screw 11. Sunshade 12. Nut
13. Bolt 14. Drain plate 15. Sunshade stopper
16. Drain hose
PIIA6189E
PIIA6191E
PIIA6193E

RF-26
SUNROOF
Revision: 2006 July 2007 FX35/FX45

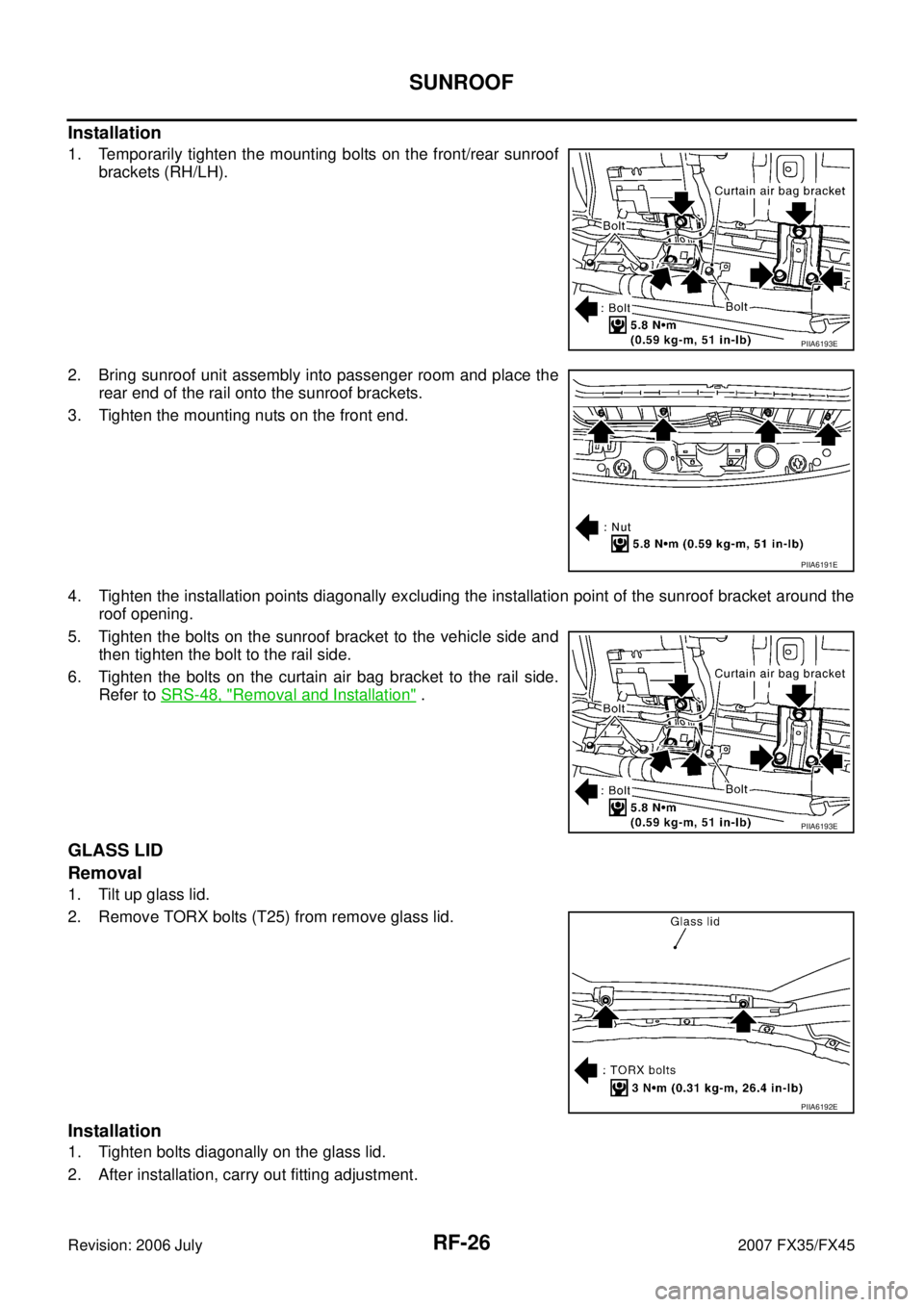

Installation
1. Temporarily tighten the mounting bolts on the front/rear sunroof
brackets (RH/LH).
2. Bring sunroof unit assembly into passenger room and place the rear end of the rail onto the sunroof brackets.
3. Tighten the mounting nuts on the front end.
4. Tighten the installation points diagonally excluding the installation point of the sunroof bracket around the roof opening.
5. Tighten the bolts on the sunroof bracket to the vehicle side and then tighten the bolt to the rail side.
6. Tighten the bolts on the curtain air bag bracket to the rail side. Refer to SRS-48, "
Removal and Installation" .
GLASS LID
Removal
1. Tilt up glass lid.
2. Remove TORX bolts (T25) from remove glass lid.
Installation
1. Tighten bolts diagonally on the glass lid.
2. After installation, carry out fitting adjustment.
PIIA6193E
PIIA6191E
PIIA6193E
PIIA6192E
