2006 MERCEDES-BENZ SPRINTER relay

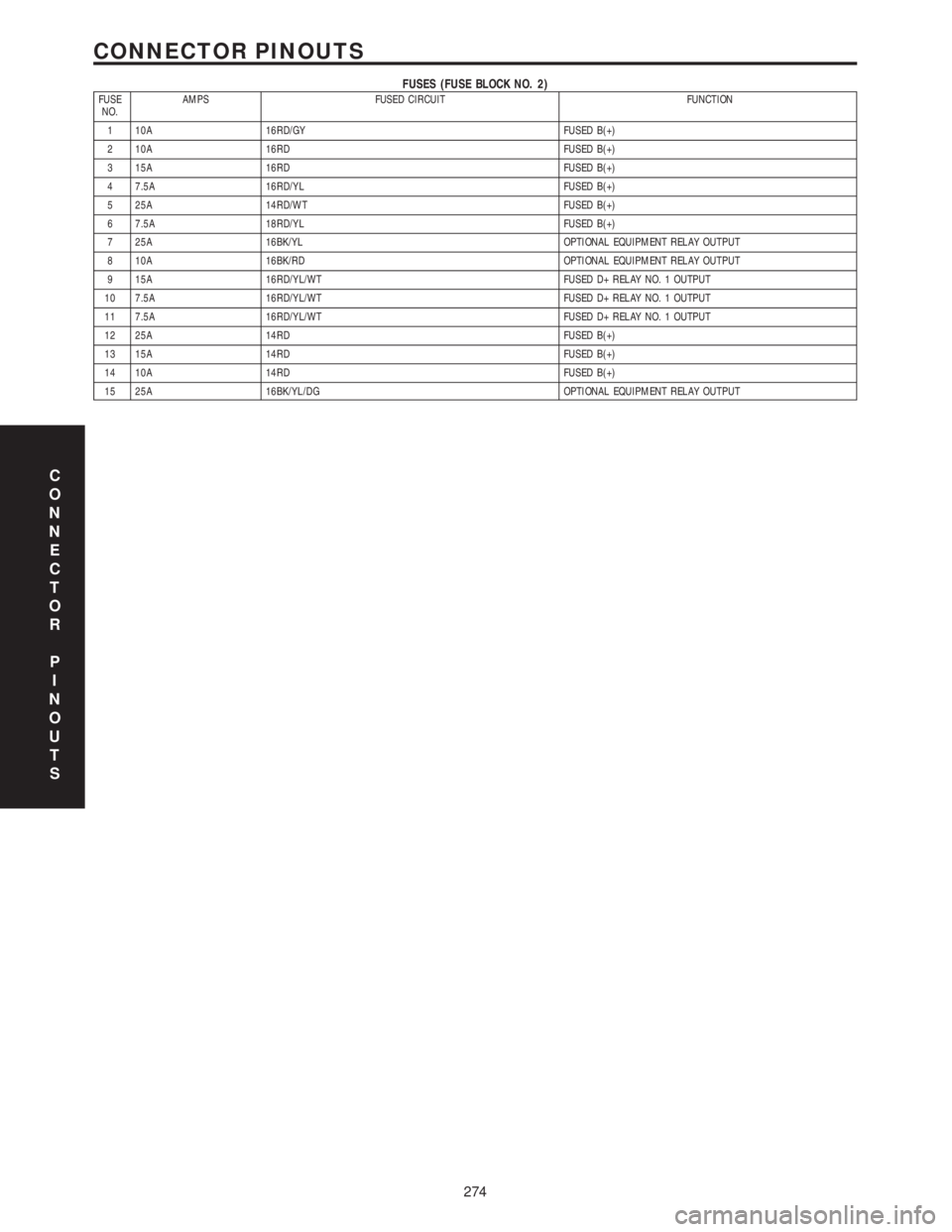

FUSES (FUSE BLOCK NO. 2)FUSE
NO.AMPS FUSED CIRCUIT FUNCTION
1 10A 16RD/GY FUSED B(+)
2 10A 16RD FUSED B(+)
3 15A 16RD FUSED B(+)
4 7.5A 16RD/YL FUSED B(+)
5 25A 14RD/WT FUSED B(+)
6 7.5A 18RD/YL FUSED B(+)
7 25A 16BK/YL OPTIONAL EQUIPMENT RELAY OUTPUT
8 10A 16BK/RD OPTIONAL EQUIPMENT RELAY OUTPUT
9 15A 16RD/YL/WT FUSED D+ RELAY NO. 1 OUTPUT
10 7.5A 16RD/YL/WT FUSED D+ RELAY NO. 1 OUTPUT
11 7.5A 16RD/YL/WT FUSED D+ RELAY NO. 1 OUTPUT
12 25A 14RD FUSED B(+)
13 15A 14RD FUSED B(+)
14 10A 14RD FUSED B(+)
15 25A 16BK/YL/DG OPTIONAL EQUIPMENT RELAY OUTPUT
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
274
CONNECTOR PINOUTS

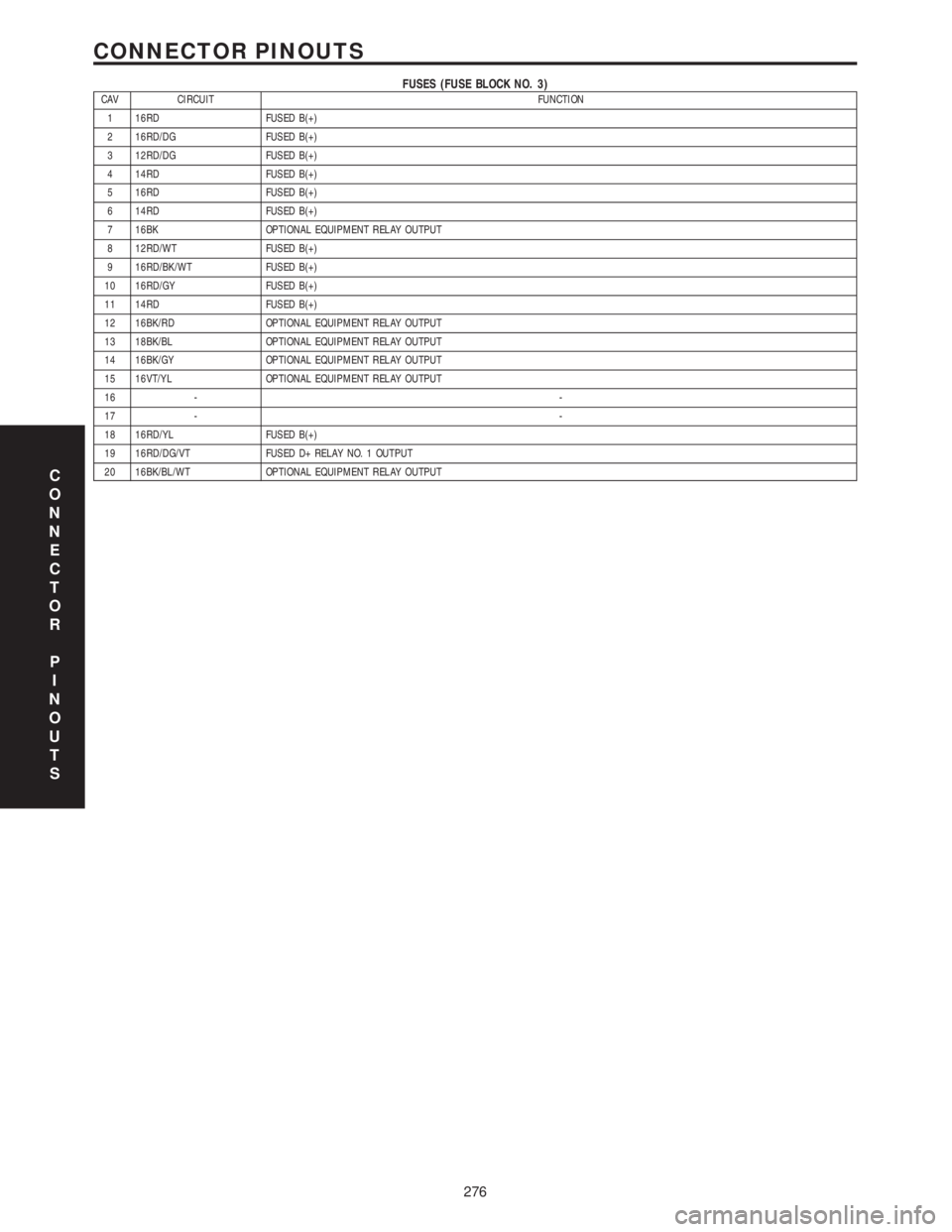

FUSES (FUSE BLOCK NO. 3)CAV CIRCUIT FUNCTION
1 16RD FUSED B(+)
2 16RD/DG FUSED B(+)
3 12RD/DG FUSED B(+)
4 14RD FUSED B(+)
5 16RD FUSED B(+)
6 14RD FUSED B(+)
7 16BK OPTIONAL EQUIPMENT RELAY OUTPUT
8 12RD/WT FUSED B(+)
9 16RD/BK/WT FUSED B(+)
10 16RD/GY FUSED B(+)
11 14RD FUSED B(+)
12 16BK/RD OPTIONAL EQUIPMENT RELAY OUTPUT
13 18BK/BL OPTIONAL EQUIPMENT RELAY OUTPUT
14 16BK/GY OPTIONAL EQUIPMENT RELAY OUTPUT
15 16VT/YL OPTIONAL EQUIPMENT RELAY OUTPUT
16 --
17 --
18 16RD/YL FUSED B(+)
19 16RD/DG/VT FUSED D+ RELAY NO. 1 OUTPUT
20 16BK/BL/WT OPTIONAL EQUIPMENT RELAY OUTPUT
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
276
CONNECTOR PINOUTS

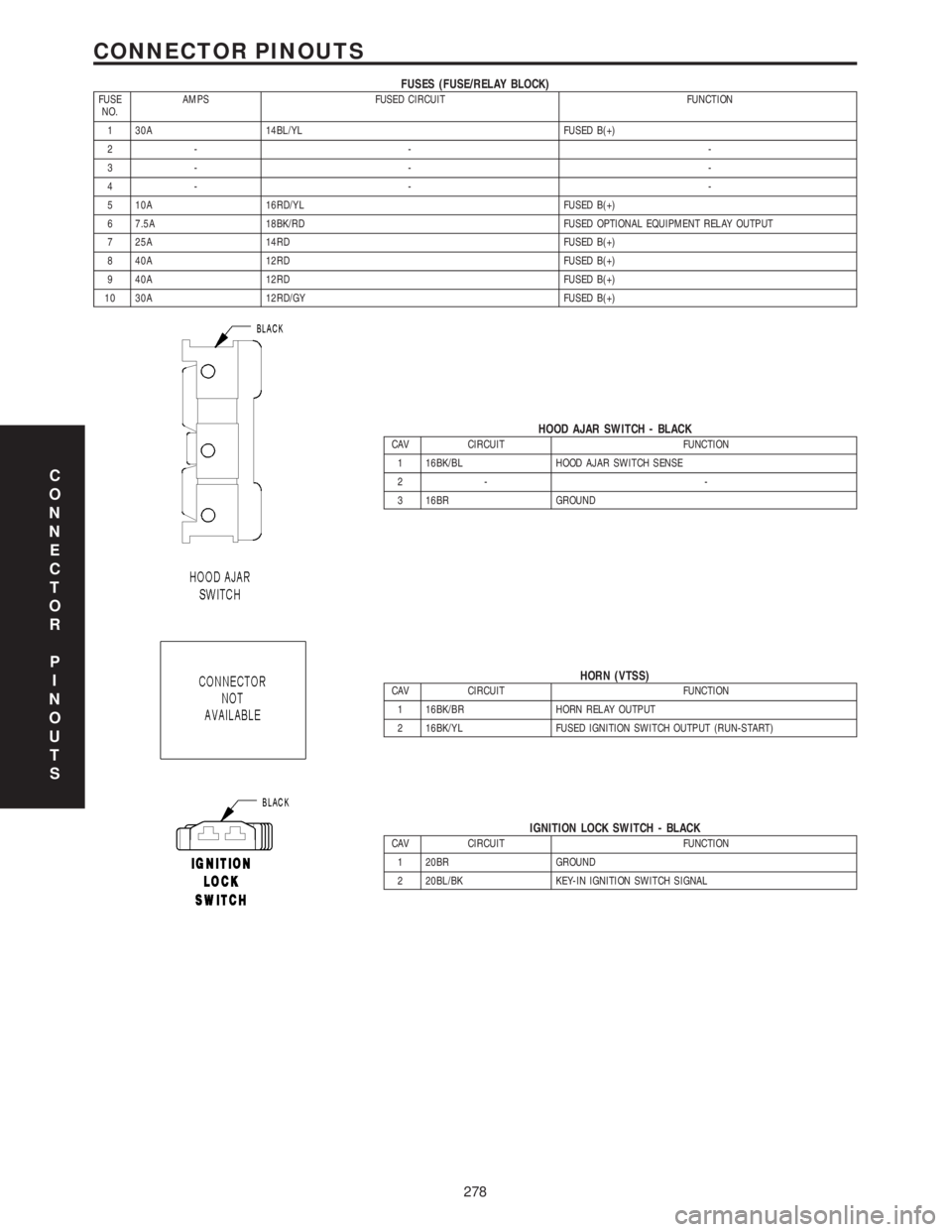

FUSES (FUSE/RELAY BLOCK)FUSE
NO.AMPS FUSED CIRCUIT FUNCTION
1 30A 14BL/YL FUSED B(+)
2- - -
3- - -
4- - -
5 10A 16RD/YL FUSED B(+)
6 7.5A 18BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
7 25A 14RD FUSED B(+)
8 40A 12RD FUSED B(+)
9 40A 12RD FUSED B(+)
10 30A 12RD/GY FUSED B(+)
HOOD AJAR SWITCH - BLACKCAV CIRCUIT FUNCTION
1 16BK/BL HOOD AJAR SWITCH SENSE
2- -
3 16BR GROUND
HORN (VTSS)CAV CIRCUIT FUNCTION
1 16BK/BR HORN RELAY OUTPUT
2 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
IGNITION LOCK SWITCH - BLACKCAV CIRCUIT FUNCTION
1 20BR GROUND
2 20BL/BK KEY-IN IGNITION SWITCH SIGNAL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
278
CONNECTOR PINOUTS

INSTRUMENT CLUSTER C1CAV CIRCUIT FUNCTION
1 20BR FUEL LEVEL SENSOR SIGNAL RETURN
2 20BR/DG AMBIENT TEMPERATURE SENSOR SIGNAL RETURN
4 20WT/GY K-IC/ATC/HBM/CHM
5 20BR/BK PARK BRAKE INDICATOR SIGNAL
7 20BK/DG RIGHT TURN SIGNAL
10 20BL/BK FUEL LEVEL SENSOR SIGNAL (+)
11 20BL/DG AMBIENT TEMPERATURE SENSOR SIGNAL (+)
14 20DG/WT/BL ENGINE COOLANT LEVEL SWITCH SIGNAL
15 20BR/WT FRONT COURTESY LAMPS CONTROL
16 20YL/RD SEAT BELT SWITCH SIGNAL
17 20DG CAN C BUS (-)
18 20DG/WT CAN C BUS (+)
INSTRUMENT CLUSTER C2 - WHITECAV CIRCUIT FUNCTION
1- -
2- -
3 20RD/YL FUSED B(+)
4 20BR/WT BRAKE WEAR SENSOR SIGNAL
5- -
6 18BR GROUND
7 20GY/DG/RD LAMP DRIVER
8 20BL/WT FUSED HIGH BEAM SWITCH OUTPUT
9 20BL/RD/WT VEHICLE SPEED SENSOR OUTPUT
10 20BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 20BL/BK KEY-IN IGNITION SWITCH SIGNAL
12 - -
13 20BK/WT LEFT TURN SIGNAL
14 20BR/YL BRAKE FLUID LEVEL INDICATOR SIGNAL
15 20BL GENERATOR FIELD DRIVER
16 20YL AIRBAG WARNING INDICATOR DRIVER
17 - -
18 20BL/VT D(+) RELAY NO. 1 CONTROL
18 20BL/VT D(+) RELAY NO. 1 CONTROL
INTRUSION SENSOR NO. 1 - BLACKCAV CIRCUIT FUNCTION
1 20BR GROUND
2 20DG/BK INTRUSION SENSOR 1 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
INTRUSION SENSOR NO. 2 - BLACKCAV CIRCUIT FUNCTION
1 20BR GROUND
2 20GY/BK INTRUSION SENSOR 2 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
279
CONNECTOR PINOUTS

A/C AUXILIARY FAN RELAY (RELAY BLOCK)CAV CIRCUIT FUNCTION
30 14BL/YL FUSED B(+)
85 18BR GROUND
86 18BK/RD A/C AUXILIARY FAN RELAY CONTROL
87 14DG/BK A/C AUXILIARY FAN RELAY OUTPUT
87A --
CIRCULATION PUMP RELAY-CABIN HEATER MODULE (RELAY BLOCK)CAV CIRCUIT FUNCTION
30 18DG/BK CIRCULATION PUMP RELAY OUTPUT
85 16BR GROUND
86 16BL/YL CIRCULATION PUMP RELAY HIGH SIDE CONTROL
87 16RD/BL FUSED B(+)
87A 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
D+ RELAY NO. 2 (RELAY BLOCK)CAV CIRCUIT FUNCTION
30 14RD FUSED B(+)
85 16RD/BK FUSED D(+) RELAY NO. 1 OUTPUT
86 16BR GROUND
87 14BL/YL D(+) RELAY NO. 2 OUTPUT
87A --
FAN STAGE 1 RELAY (RELAY BLOCK)CAV CIRCUIT FUNCTION
30 14BK/VT FAN STAGE 1 RELAY OUTPUT
85 16BR GROUND
86 16BL/YL FAN STAGE 1 RELAY HIGH SIDE CONTROL
87 16RD/WT FUSED B(+)
87A --
OPTIONAL EQUIPMENT RELAY (RELAY BLOCK)CAV CIRCUIT FUNCTION
30 10RD FUSED B(+)
85 16BR GROUND
86 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
87 10BK OPTIONAL EQUIPMENT RELAY OUTPUT
87A --
REMOTE KEYLESS ENTRY ANTENNACAV CIRCUIT FUNCTION
1 20BR RKE ANTENNA
3 - GROUND
SEAT BELT SWITCHCAV CIRCUIT FUNCTION
1 16BR GROUND
2 20YL/RD SEAT BELT SWITCH SIGNAL
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 - -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
284
CONNECTOR PINOUTS

SEAT BELT TENSIONER-DRIVER - YELLOWCAV CIRCUIT FUNCTION
1 20BL DRIVER SEAT BELT TENSIONER LINE 2
2 20BR/YL DRIVER SEAT BELT TENSIONER LINE 1
SEAT BELT TENSIONER-PASSENGER - YELLOWCAV CIRCUIT FUNCTION
1 20BL PASSENGER SEAT BELT TENSIONER LINE 2
2 20BR PASSENGER SEAT BELT TENSIONER LINE 1
SECURITY SYSTEM MODULE C1 - BROWNCAV CIRCUIT FUNCTION
1 16BK/WT LEFT TURN SIGNAL
2- -
3- -
4 16BK/DG RIGHT TURN SIGNAL
5 16BK/VT FAN STAGE 1 RELAY
6 16WT/RD WARM AIR AUXILIARY HEATER CONTROL
7 16RD/GY FUSED B(+)
8 16BK/GY FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
9 18VT/DG TOWING/INTRUSION SENSOR INDICATOR DRIVER
10 - -
11 16BR/YL FRONT COURTESY LAMPS CONTROL
12 16BR/WT DOOR AJAR SWITCH SENSE
13 16RD/DG FUSED B(+)
14 16BK/BL HOOD AJAR SWITCH SENSE
15 18GY/WT PANIC SWITCH SENSE
16 16BR GROUND
17 18GY/BR TOWING SENSOR SWITCH SENSE
18 18GY/YL INTRUSION SENSOR SWITCH SENSE
19 - -
20 16BK DRIVER CYLINDER UNLOCK SENSE
21 16RD DRIVER CYLINDER LOCK SENSEC
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
285
CONNECTOR PINOUTS

SECURITY SYSTEM MODULE C2 - LT. GREENCAV CIRCUIT FUNCTION
1 16DG/YL INTRUSION SENSOR INTERFACE
2 16GY/BL WINDOW DEFOGGER-LEFT REAR OUTPUT
3 16GY WINDOW DEFOGGER RELAY-RIGHT REAR OUTPUT
4 20DG/BK INTRUSION SENSOR 1 SIGNAL
5- -
6- -
7 20GY/BK INTRUSION SENSOR 2 SIGNAL
8 16GY/DG K-CTM/SSM
9 18BK/BL SIREN SIGNAL CONTROL
10 20DG/WT/BL INTRUSION SENSOR 3 SIGNAL
11 16WT/BL RKE INTERFACE
12 16WT/BL/RD SECURITY SYSTEM INTERFACE
SENTRY KEY REMOTE ENTRY MODULE (SKREEM)CAV CIRCUIT FUNCTION
1 18YL RKE ANTENNA
2 16BR GROUND
3 16RD/YL FUSED B(+)
4 16BK/WT LEFT TURN SIGNAL
5 20DG/WT CAN C BUS (+)
6 20DG CAN C BUS (-)
7 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
8 20WT/DG K-SKREEM
9 16WT/BL/RD (EXCEPT
VTSS)RKE INTERFACE
9 16WT/BL/RD (VTSS) SECURITY SYSTEM INTERFACE
10 18DG/YL TURN SIGNAL/ANTI-THEFT ALARM RELAY-LEFT/RIGHT CONTROL
11 20BR TRANSPONDER COIL (+)
12 - TRANSPONDER COIL (-)
SHIFTER ASSEMBLY - BLACKCAV CIRCUIT FUNCTION
1- -
2 20GY/DG/RD LAMP DRIVER
3 20BL/DG K-ABS/SHIFTER ASSEMBLY
4 18BR GROUND
5 20BK/BL/RD BRAKE LAMP SWITCH
6 20DG/WT CAN C BUS (+)
7 20DG CAN C BUS (-)
8 18BK/DG TRANSMISSION RELAY OUTPUT
9 16WT/BL/RD FUSED IGNITION SWITCH OUTPUT (RUN-START)
10 16WT/RD BACK-UP LAMP
SIREN - BLACKCAV CIRCUIT FUNCTION
1 18RD/DG FUSED B(+)
2 18BR GROUND
3 18BK/BL SIREN SIGNAL CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
286
CONNECTOR PINOUTS

STEERING ANGLE SENSORCAV CIRCUIT FUNCTION
1 20DG/WT CAN C BUS (-)
2- -
3 20DG CAN C BUS (+)
4- -
5 20BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
6 20BR GROUND
TOWING/INTRUSION SENSOR ON/OFF SWITCHCAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
2- -
3 18GY/YL INTRUSION SENSOR SWITCH SENSE
4 18BR GROUND
5- -
6- -
7- -
8 18GY/BR TOWING SENSOR SWITCH SENSE
9 18VT/DG TOWING/INTRUSION SENSOR INDICATOR DRIVER
10 18BR GROUND
TRANSMISSION CONTROL MODULE C1 - BLACKCAV CIRCUIT FUNCTION
1 20BL K-TCM/RADIO
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 - -
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 16BK/DG TRANSMISSION RELAY OUTPUT
30 18BR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
287
