2006 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine In order to avoid damagingfull-diameter wheel covers, theyshould be removed while driving withsnow chains.
Vehicles with stabilitycontrol (ESP)
Vehicles with stability control (ESP)may exhibit some unusual drivingcharacteristics which can be avoidedby switching the system off. SeeUsing stability control (page 120).
TECHNICAL SPECIFICATIONS
Tyre pressures (cold tyres)
Up to 160 km/h (100 mph)
Tyre pressures
Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
4.24.24.24.2T125/85 R 16All - temporary sparetyre - 80 km/h (50 mph)MAX
2.82.52.12.3205/50 R 161.8 l Duratec-HE
2.82.42.12.1205/55 R 161.8 l Duratec-HE
2.82.52.12.1205/50 R 171.8 l Duratec-HE
2.82.42.12.2225/40 R 181.8 l Duratec-HE, Saloon
2.92.42.12.2225/40 R 181.8 l Duratec-HE, Estate
2.82.52.12.3205/50 R 161.8 l Duratec-SCi
2.82.42.12.1205/55 R 161.8 l Duratec-SCi
2.82.52.12.1205/50 R 171.8 l Duratec-SCi
2.82.42.12.2225/40 R 181.8 l Duratec-SCi,Saloon
2.92.42.12.2225/40 R 181.8 l Duratec-SCi, Estate
2.82.52.12.3205/50 R 162.0 l Duratec-HE
2.82.42.12.1205/55 R 162.0 l Duratec-HE
2.82.52.12.1205/50 R 172.0 l Duratec-HE
167
Wheels and tyres

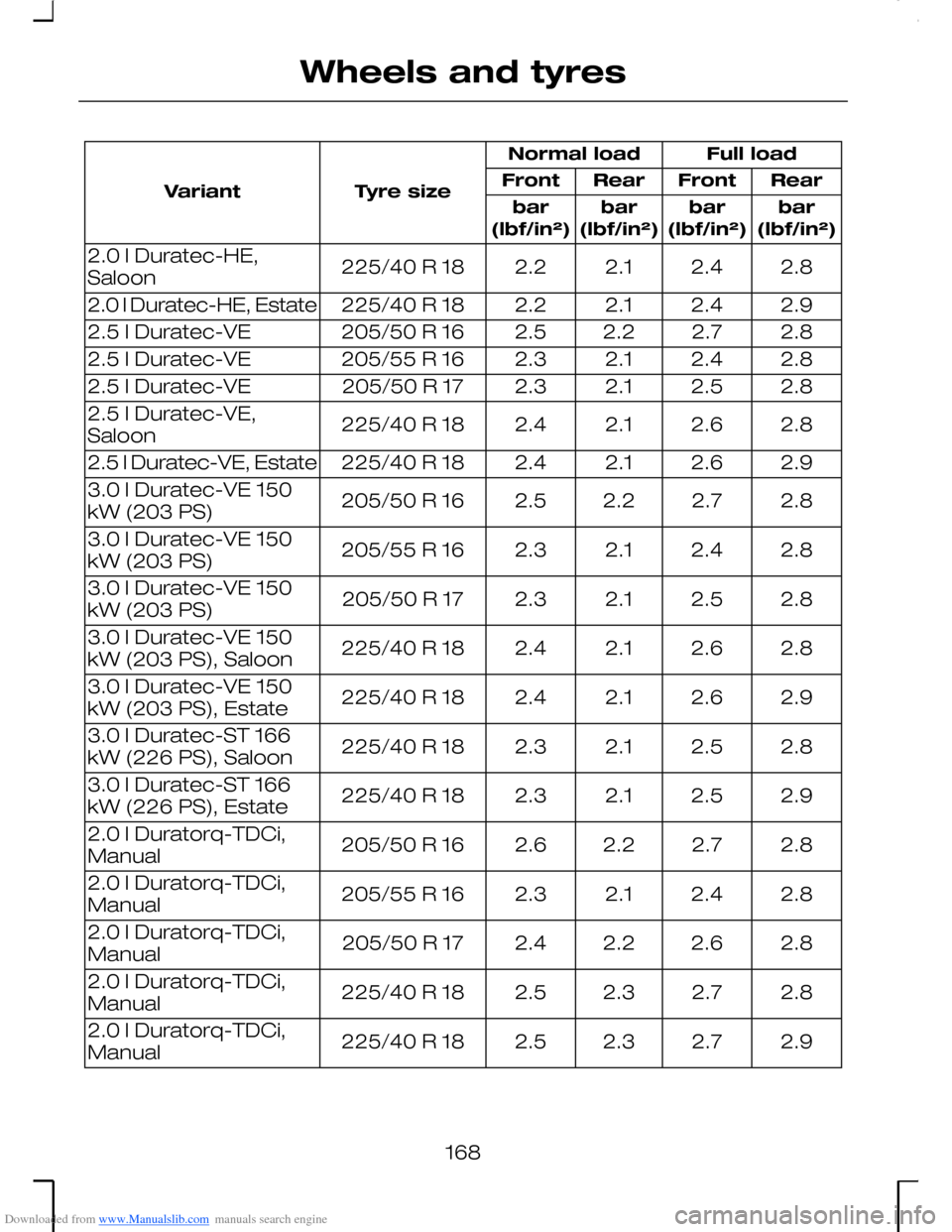

Downloaded from www.Manualslib.com manuals search engine Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
2.82.42.12.2225/40 R 182.0 l Duratec-HE,Saloon
2.92.42.12.2225/40 R 182.0 l Duratec-HE, Estate
2.82.72.22.5205/50 R 162.5 l Duratec-VE
2.82.42.12.3205/55 R 162.5 l Duratec-VE
2.82.52.12.3205/50 R 172.5 l Duratec-VE
2.82.62.12.4225/40 R 182.5 l Duratec-VE,Saloon
2.92.62.12.4225/40 R 182.5 l Duratec-VE, Estate
2.82.72.22.5205/50 R 163.0 l Duratec-VE 150kW (203 PS)
2.82.42.12.3205/55 R 163.0 l Duratec-VE 150kW (203 PS)
2.82.52.12.3205/50 R 173.0 l Duratec-VE 150kW (203 PS)
2.82.62.12.4225/40 R 183.0 l Duratec-VE 150kW (203 PS), Saloon
2.92.62.12.4225/40 R 183.0 l Duratec-VE 150kW (203 PS), Estate
2.82.52.12.3225/40 R 183.0 l Duratec-ST 166kW (226 PS), Saloon
2.92.52.12.3225/40 R 183.0 l Duratec-ST 166kW (226 PS), Estate
2.82.72.22.6205/50 R 162.0 l Duratorq-TDCi,Manual
2.82.42.12.3205/55 R 162.0 l Duratorq-TDCi,Manual
2.82.62.22.4205/50 R 172.0 l Duratorq-TDCi,Manual
2.82.72.32.5225/40 R 182.0 l Duratorq-TDCi,Manual
2.92.72.32.5225/40 R 182.0 l Duratorq-TDCi,Manual
168
Wheels and tyres

Downloaded from www.Manualslib.com manuals search engine Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
2.82.72.22.5205/50 R 162.0 l Duratorq-TDCi,Automatic
2.82.62.12.3205/55 R 162.0 l Duratorq-TDCi,Automatic
2.82.72.32.5205/50 R 172.0 l Duratorq-TDCi,Automatic
2.82.82.32.6225/40 R 182.0 l Duratorq-TDCi,Automatic
2.92.82.32.6225/40 R 182.0 l Duratorq-TDCi,Automatic
2.82.72.22.6205/50 R 162.2 l Duratorq-TDCi
2.82.42.12.3205/55 R 162.2 l Duratorq-TDCi
2.82.62.22.4205/50 R 172.2 l Duratorq-TDCi
2.82.72.32.5225/40 R 182.2 l Duratorq-TDCi
2.92.72.32.5225/40 R 182.2 l Duratorq-TDCi
2.82.72.22.6205/50 R 162.0 l Duratorq-TDDi
2.82.42.12.3205/55 R 162.0 l Duratorq-TDDi
2.82.62.22.4205/50 R 172.0 l Duratorq-TDDi
2.82.72.32.5225/40 R 182.0 l Duratorq-TDDi
2.92.72.32.5225/40 R 182.0 l Duratorq-TDDi
Continuous speed in excess of 160 km/h (100 mph)
Tyre pressures
Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
3.12.72.42.5205/50 R 161.8 l Duratec-HE
3.02.72.42.4205/55 R 161.8 l Duratec-HE
3.12.72.42.4205/50 R 171.8 l Duratec-HE
3.02.72.22.2225/40 R 181.8 l Duratec-HE
3.12.72.42.5205/50 R 161.8 l Duratec-SCi
169
Wheels and tyres

Downloaded from www.Manualslib.com manuals search engine Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
3.02.72.42.4205/55 R 161.8 l Duratec-SCi
3.12.72.42.4205/50 R 171.8 l Duratec-SCi
3.02.72.22.2225/40 R 181.8 l Duratec-SCi
3.12.72.42.5205/50 R 162.0 l Duratec-HE
3.02.72.42.4205/55 R 162.0 l Duratec-HE
3.12.72.42.4205/50 R 172.0 l Duratec-HE
3.02.72.22.2225/40 R 182.0 l Duratec-HE
3.23.02.52.8205/50 R 162.5 l Duratec-VE
3.12.72.42.5205/55 R 162.5 l Duratec-VE
3.12.92.52.7205/50 R 172.5 l Duratec-VE
3.02.72.32.5225/40 R 182.5 l Duratec-VE
3.23.02.52.8205/50 R 163.0 l Duratec-VE 150kW (203 PS)
3.12.72.42.5205/55 R 163.0 l Duratec-VE 150kW (203 PS)
3.12.92.52.7205/50 R 173.0 l Duratec-VE 150kW (203 PS)
3.02.72.32.5225/40 R 183.0 l Duratec-VE 150kW (203 PS)
3.02.92.52.8205/50 R 162.0 l Duratorq-TDCi,Manual
3.02.72.42.5205/55 R 162.0 l Duratorq-TDCi,Manual
3.12.92.52.8205/50 R 172.0 l Duratorq-TDCi,Manual
3.02.72.32.6225/40 R 182.0 l Duratorq-TDCi,Manual
3.02.92.52.8205/50 R 162.0 l Duratorq-TDCi,Automatic
3.02.82.42.6205/55 R 162.0 l Duratorq-TDCi,Automatic
3.02.92.42.7205/50 R 172.0 l Duratorq-TDCi,Automatic
170
Wheels and tyres

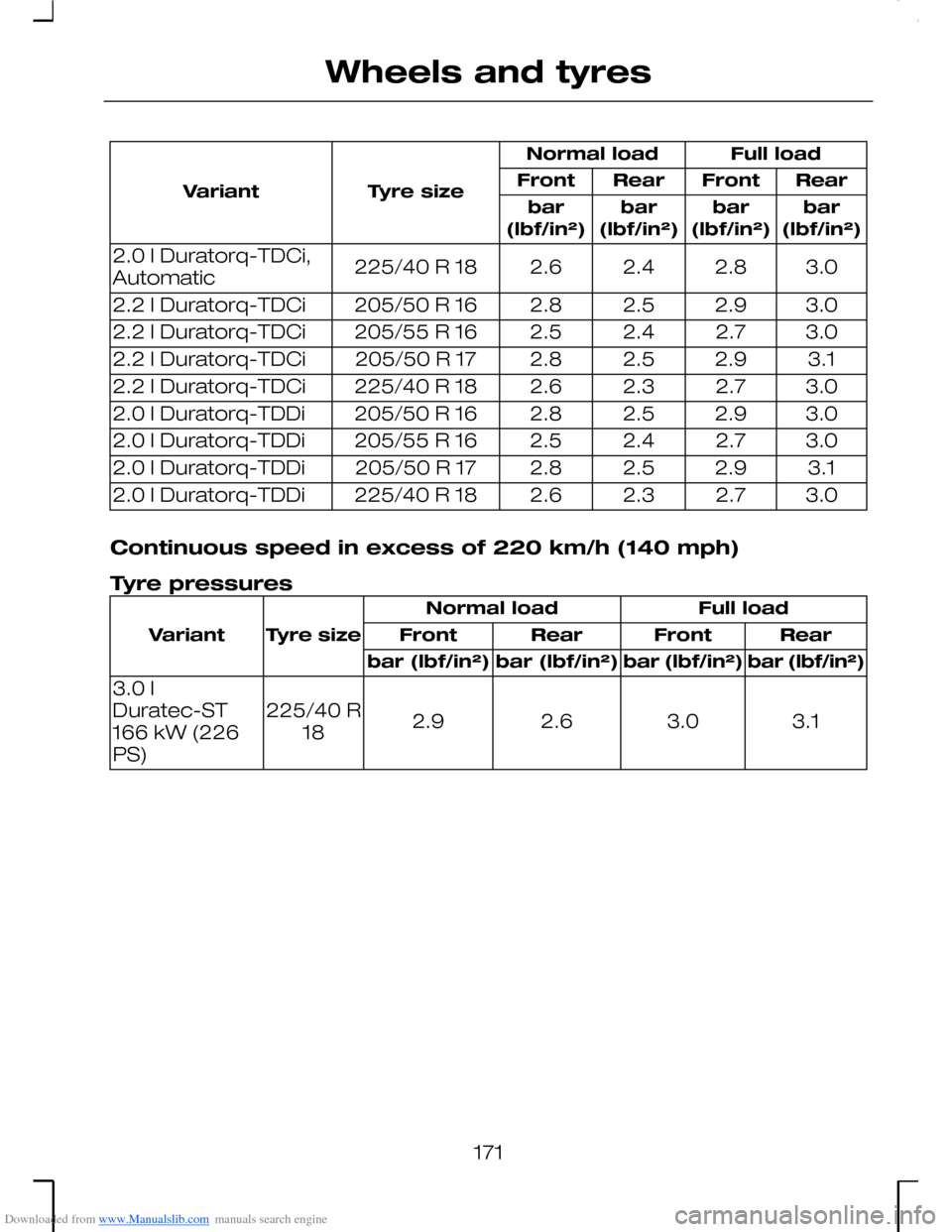

Downloaded from www.Manualslib.com manuals search engine Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
3.02.82.42.6225/40 R 182.0 l Duratorq-TDCi,Automatic
3.02.92.52.8205/50 R 162.2 l Duratorq-TDCi
3.02.72.42.5205/55 R 162.2 l Duratorq-TDCi
3.12.92.52.8205/50 R 172.2 l Duratorq-TDCi
3.02.72.32.6225/40 R 182.2 l Duratorq-TDCi
3.02.92.52.8205/50 R 162.0 l Duratorq-TDDi
3.02.72.42.5205/55 R 162.0 l Duratorq-TDDi
3.12.92.52.8205/50 R 172.0 l Duratorq-TDDi
3.02.72.32.6225/40 R 182.0 l Duratorq-TDDi
Continuous speed in excess of 220 km/h (140 mph)
Tyre pressures
Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar (lbf/in²)bar (lbf/in²)bar (lbf/in²)bar (lbf/in²)
3.13.02.62.9225/40 R18
3.0 lDuratec-ST166 kW (226PS)
171
Wheels and tyres

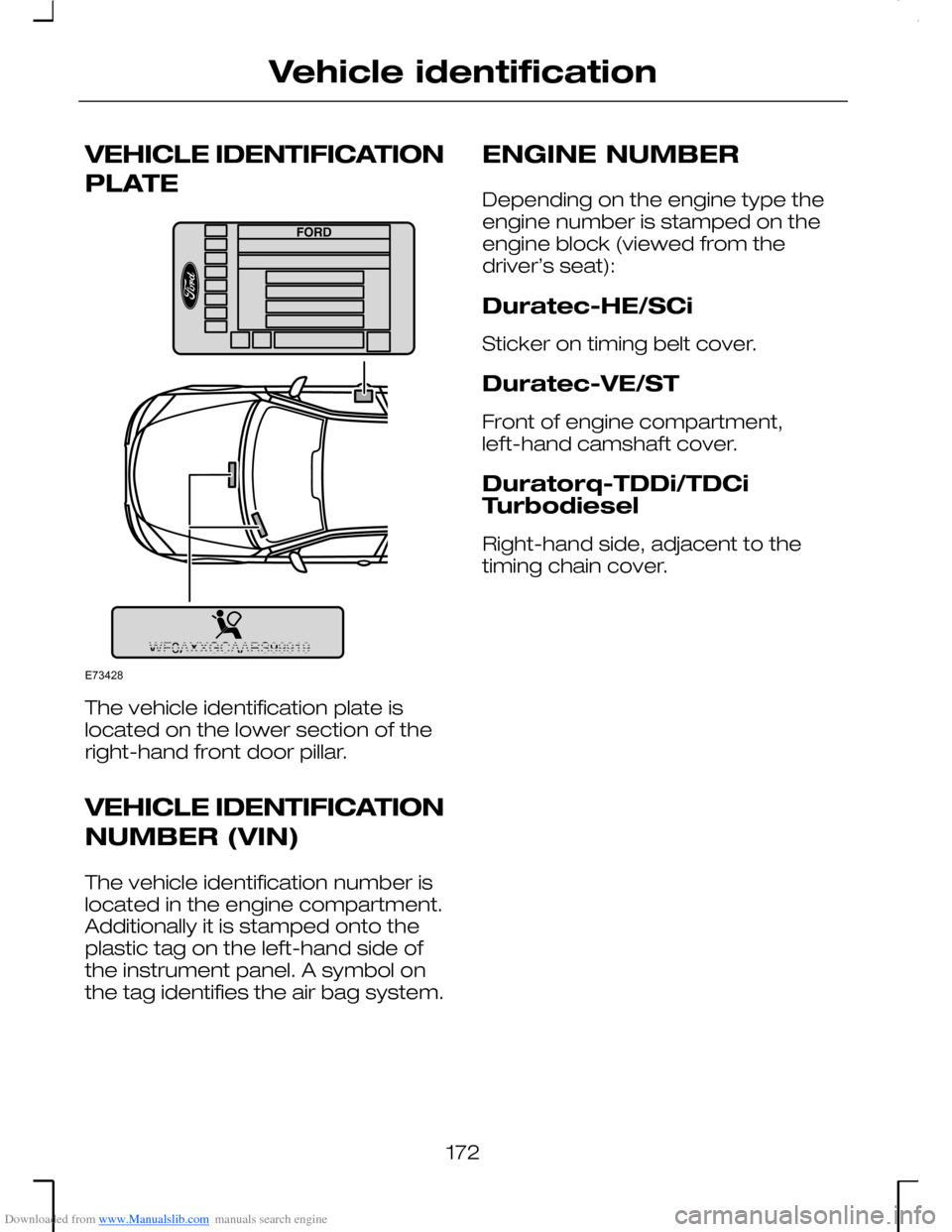

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION
PLATE
The vehicle identification plate islocated on the lower section of theright-hand front door pillar.
VEHICLE IDENTIFICATION
NUMBER (VIN)
The vehicle identification number islocated in the engine compartment.Additionally it is stamped onto theplastic tag on the left-hand side ofthe instrument panel. A symbol onthe tag identifies the air bag system.
ENGINE NUMBER
Depending on the engine type theengine number is stamped on theengine block (viewed from thedriver’s seat):
Duratec-HE/SCi
Sticker on timing belt cover.
Duratec-VE/ST
Front of engine compartment,left-hand camshaft cover.
Duratorq-TDDi/TDCiTurbodiesel
Right-hand side, adjacent to thetiming chain cover.
172
Vehicle identificationE73428

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Vehicle dimensions - Saloon
173
Technical specificationsE73444

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
4731 mmMaximum length - without body styling kitA
4753 mmMaximum length - with body styling kitA
4756 mmMaximum length - ST modelsA
1958 mmOverall width - incl. exterior mirrorsB
1415 - 1459 mmOverall height - EC kerb weightC
2754 mmWheelbaseD
1522 mmTrack - FrontE
1537 mmTrack - RearE
Vehicle dimensions - Estate
174
Technical specificationsE73445
