2006 FORD MONDEO Owners Manual

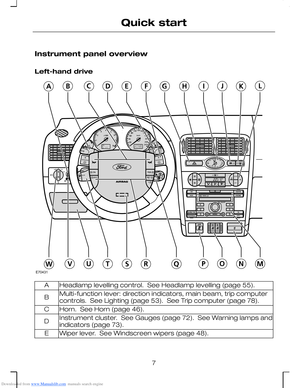

Downloaded from www.Manualslib.com manuals search engine Instrument panel overview
Left-hand drive
Headlamp levelling control. See Headlamp levelling (page 55).A
Multi-function lever: direction indicators, main beam, trip computercontrols. See Lighting (page 53). See Trip computer (page 78).B
Horn. See Horn (page 46).C

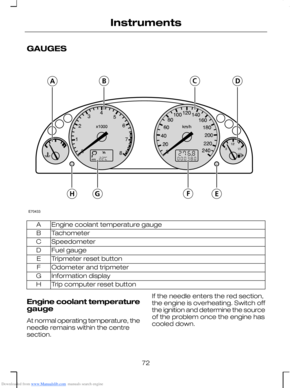

Instrument cluster. See Gauges (page 72). See Warning lamps andindicators (page 73).D
Wiper lever. See Windscreen wipers (page 48).E
7
Quick startE70431

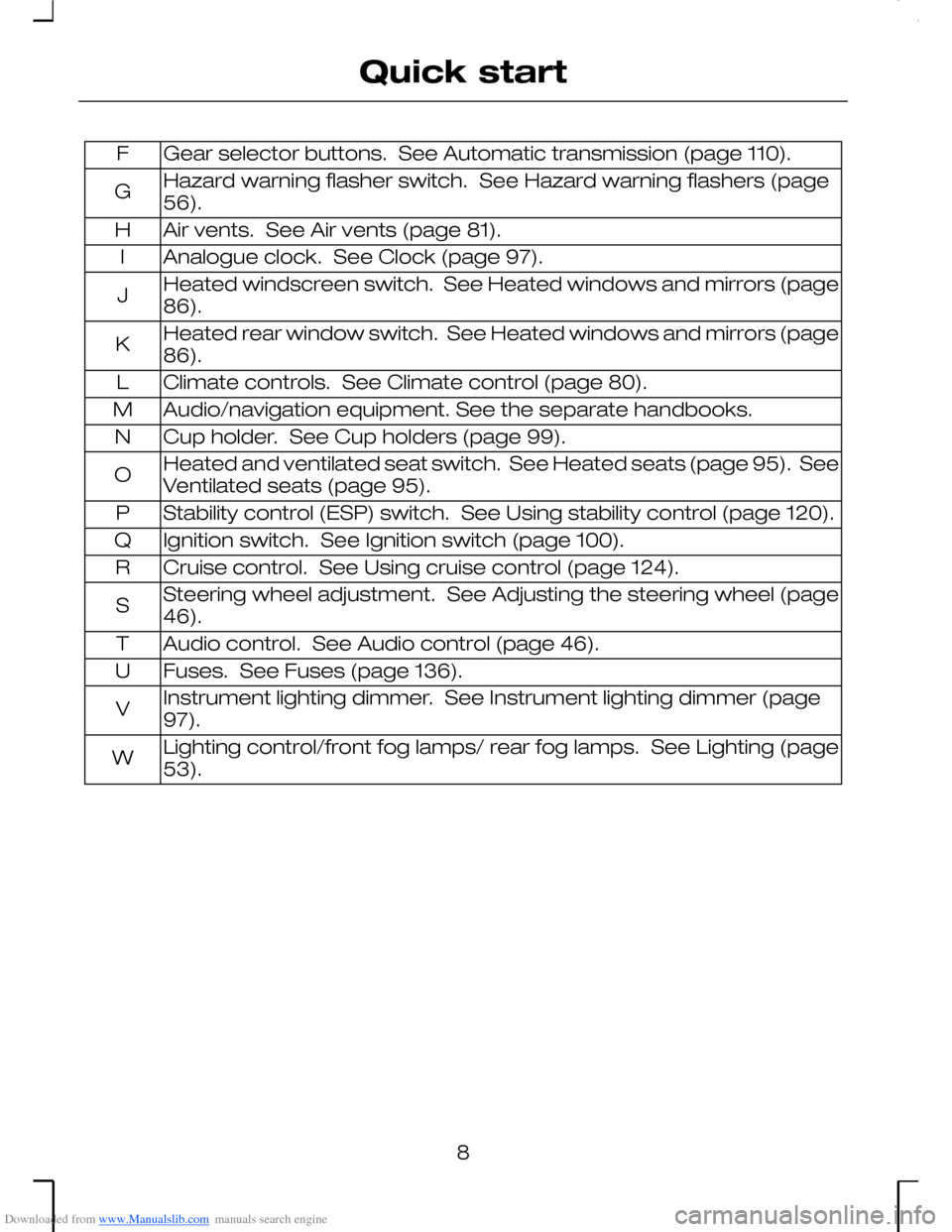

Downloaded from www.Manualslib.com manuals search engine Gear selector buttons. See Automatic transmission (page 110).F
Hazard warning flasher switch. See Hazard warning flashers (page56).G
Air vents. See Air vents (page 81).H

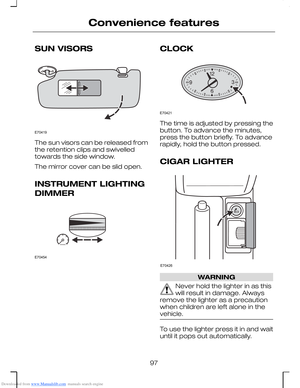

Analogue clock. See Clock (page 97).I

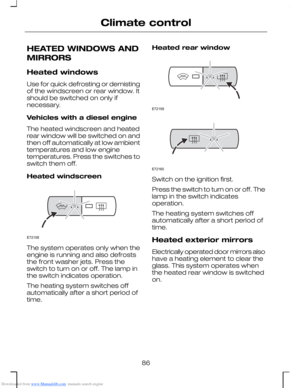

Heated windscreen switch. See Heated windows and mirrors (page86).J
Heated rear window switch. See Heated windows and mirrors (page86).K
Climate controls. See Climate control (page 80).L
Audio/navigation equipment. See the separate handbooks.M

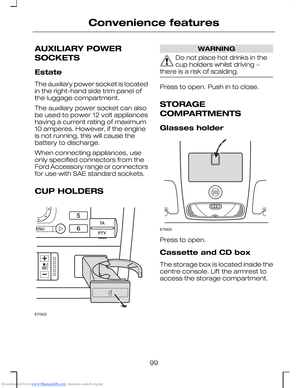

Cup holder. See Cup holders (page 99).N
Heated and ventilated seat switch. See Heated seats (page 95). SeeVentilated seats (page 95).O

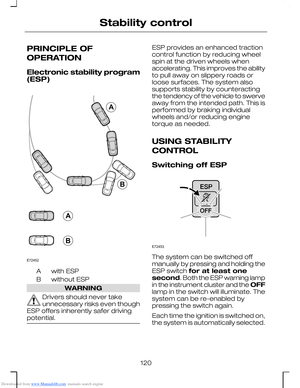

Stability control (ESP) switch. See Using stability control (page 120).P

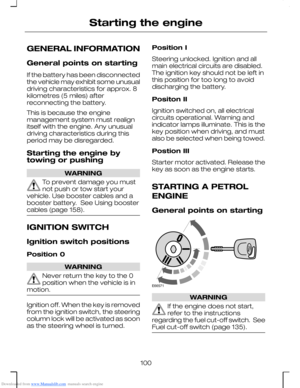

Ignition switch. See Ignition switch (page 100).Q

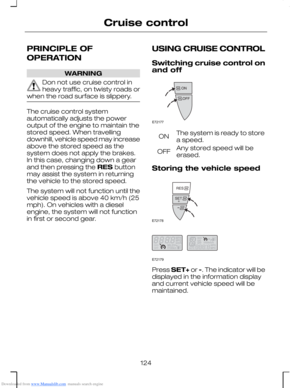

Cruise control. See Using cruise control (page 124).R
Steering wheel adjustment. See Adjusting the steering wheel (page46).S
Audio control. See Audio control (page 46).T
Fuses. See Fuses (page 136).U
Instrument lighting dimmer. See Instrument lighting dimmer (page97).V
Lighting control/front fog lamps/ rear fog lamps. See Lighting (page53).W
8
Quick start

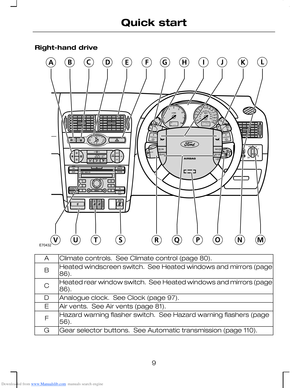

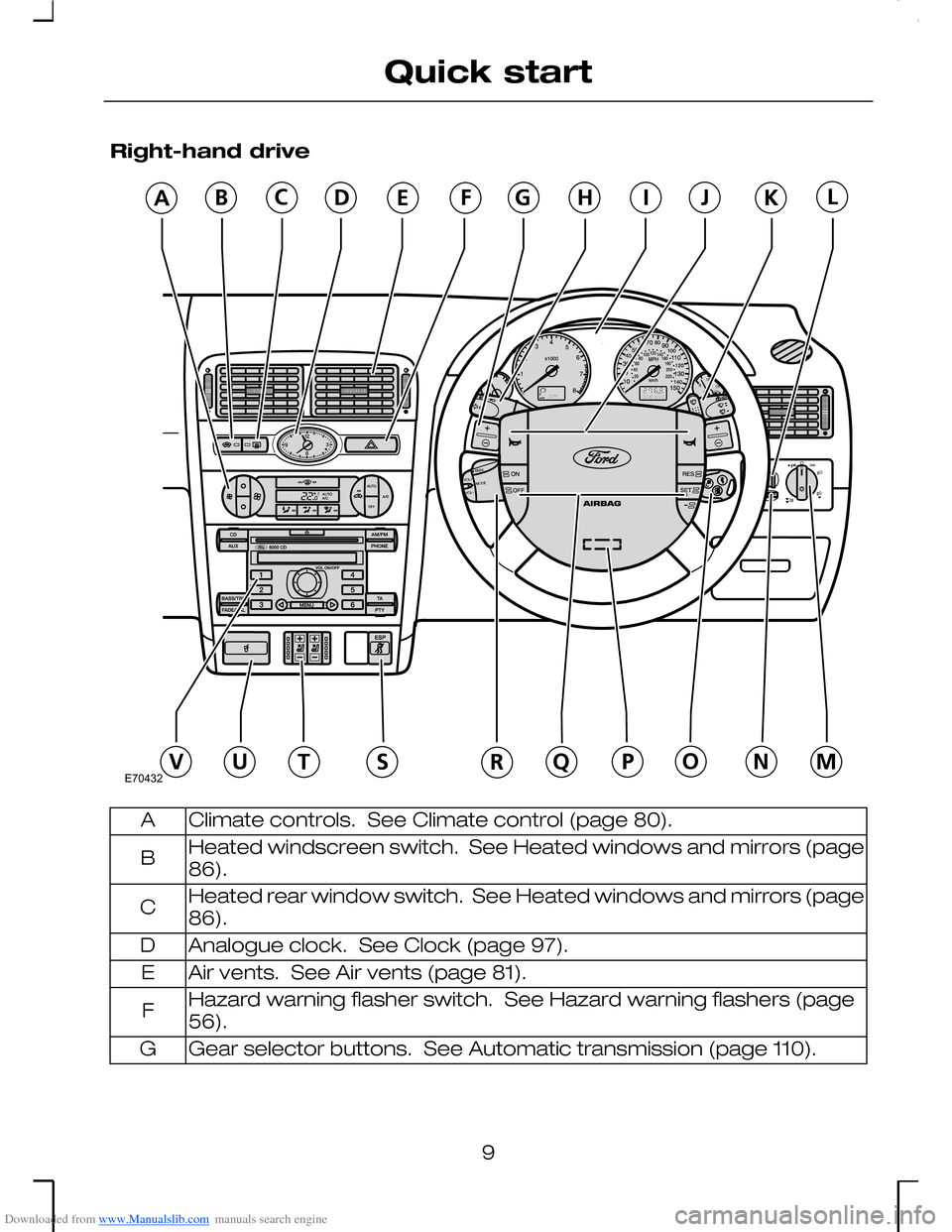

Downloaded from www.Manualslib.com manuals search engine Right-hand drive
Climate controls. See Climate control (page 80).A
Heated windscreen switch. See Heated windows and mirrors (page86).B
Heated rear window switch. See Heated windows and mirrors (page86).C
Analogue clock. See Clock (page 97).D
Air vents. See Air vents (page 81).E
Hazard warning flasher switch. See Hazard warning flashers (page56).F
Gear selector buttons. See Automatic transmission (page 110).G
9
Quick startE70432

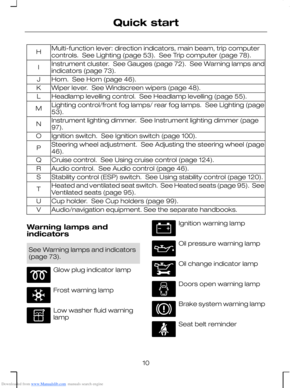

Downloaded from www.Manualslib.com manuals search engine Multi-function lever: direction indicators, main beam, trip computercontrols. See Lighting (page 53). See Trip computer (page 78).H
Instrument cluster. See Gauges (page 72). See Warning lamps andindicators (page 73).I
Horn. See Horn (page 46).J
Wiper lever. See Windscreen wipers (page 48).K
Headlamp levelling control. See Headlamp levelling (page 55).L
Lighting control/front fog lamps/ rear fog lamps. See Lighting (page53).M
Instrument lighting dimmer. See Instrument lighting dimmer (page97).N
Ignition switch. See Ignition switch (page 100).O
Steering wheel adjustment. See Adjusting the steering wheel (page46).P
Cruise control. See Using cruise control (page 124).Q
Audio control. See Audio control (page 46).R
Stability control (ESP) switch. See Using stability control (page 120).S
Heated and ventilated seat switch. See Heated seats (page 95). SeeVentilated seats (page 95).T
Cup holder. See Cup holders (page 99).U
Audio/navigation equipment. See the separate handbooks.V
Warning lamps andindicators
See Warning lamps and indicators(page 73).
Glow plug indicator lamp
Frost warning lamp
Low washer fluid warninglamp
Ignition warning lamp
Oil pressure warning lamp
Oil change indicator lamp
Doors open warning lamp
Brake system warning lamp
Seat belt reminder
10
Quick start

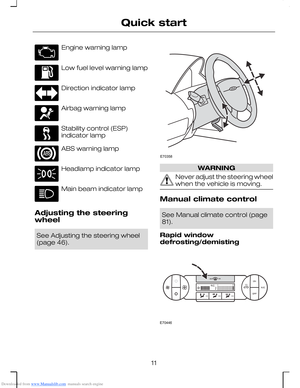

Downloaded from www.Manualslib.com manuals search engine Engine warning lamp
Low fuel level warning lamp
Direction indicator lamp
Airbag warning lamp
Stability control (ESP)indicator lamp
ABS warning lamp
Headlamp indicator lamp
Main beam indicator lamp
Adjusting the steeringwheel
See Adjusting the steering wheel(page 46).
WARNING
Never adjust the steering wheelwhen the vehicle is moving.
Manual climate control
See Manual climate control (page81).
Rapid windowdefrosting/demisting
11
Quick start E70358 E70446

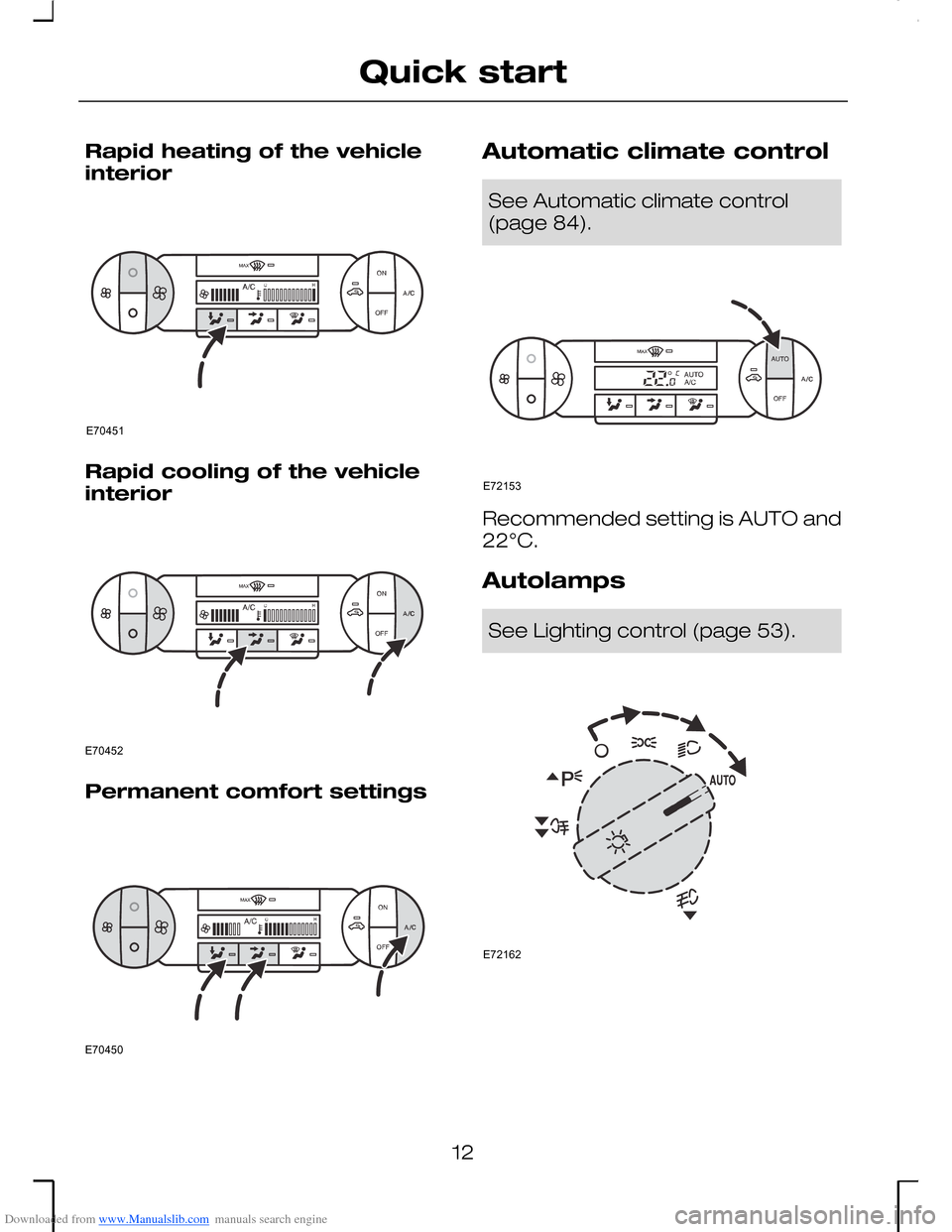

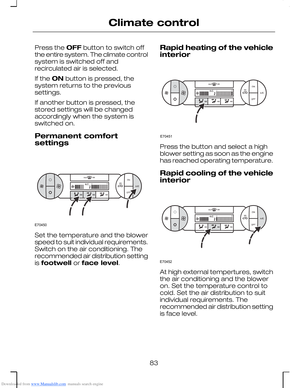

Downloaded from www.Manualslib.com manuals search engine Rapid heating of the vehicleinterior
Rapid cooling of the vehicleinterior
Permanent comfort settings
Automatic climate control
See Automatic climate control(page 84).
Recommended setting is AUTO and22°C.
Autolamps
See Lighting control (page 53).
12
Quick startE70451 E70452 E70450 E72153 E72162

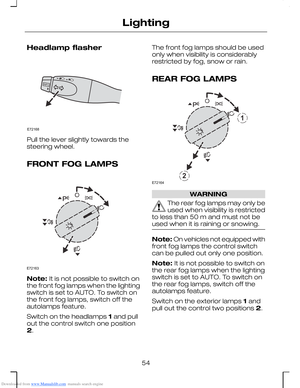

Downloaded from www.Manualslib.com manuals search engine Note: It is not possible to switch onthe fog lamps when the lightingswitch is set to AUTO. To switch onthe fog lamps, switch off theautolamps feature.
When the switch is set to AUTO, thedipped beam headlamps will switchon and off automatically dependingon the ambient light.
Direction indicators
See Direction indicators (page 56).
Briefly tap the lever up or down andthe direction indicators will flash threetimes.

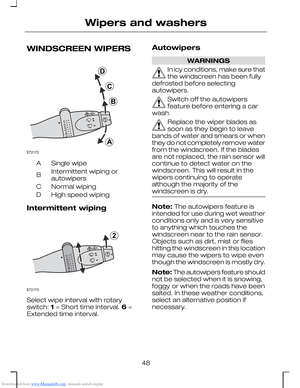

Windscreen wipers
See Windscreen wipers (page 48).
Single wipeA
Intermittent wiping orautowipersB
Normal wipingC
High speed wipingD

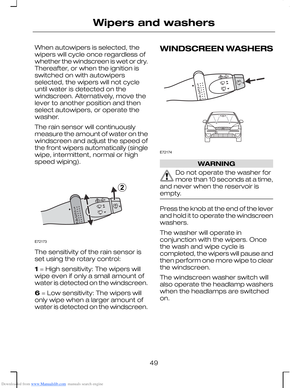

Autowipers
When autowipers is selected, thewipers will cycle once regardless ofwhether the windscreen is wet or dry.Thereafter, or when the ignition isswitched on with autowipersselected, the wipers will not cycleuntil water is detected on thewindscreen. Alternatively, move thelever to another position and thenselect autowipers, or operate thewasher.
The rain sensor will continuouslymeasure the amount of water on thewindscreen and adjust the speed ofthe front wipers automatically (singlewipe, intermittent, normal or highspeed wiping).
13
Quick startE72167 ABCDE72172

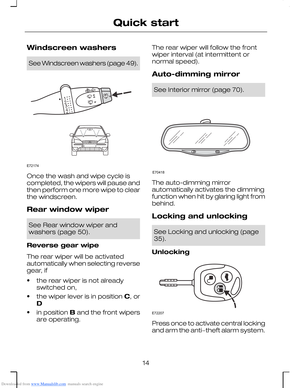

Downloaded from www.Manualslib.com manuals search engine Windscreen washers
See Windscreen washers (page 49).
Once the wash and wipe cycle iscompleted, the wipers will pause andthen perform one more wipe to clearthe windscreen.

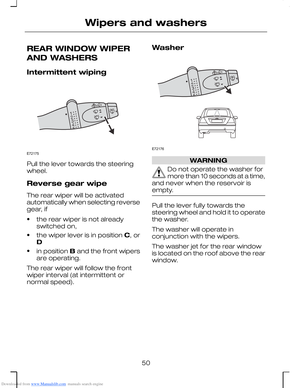

Rear window wiper
See Rear window wiper andwashers (page 50).
Reverse gear wipe
The rear wiper will be activatedautomatically when selecting reversegear, if
•the rear wiper is not alreadyswitched on,
•the wiper lever is in position C, orD
•in position B and the front wipersare operating.
The rear wiper will follow the frontwiper interval (at intermittent ornormal speed).

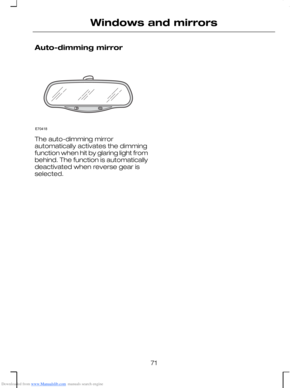

Auto-dimming mirror
See Interior mirror (page 70).
The auto-dimming mirrorautomatically activates the dimmingfunction when hit by glaring light frombehind.

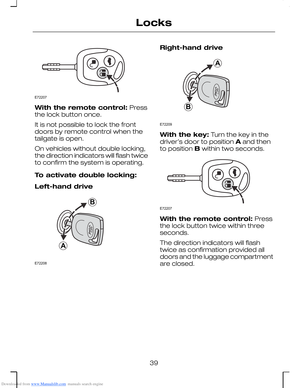

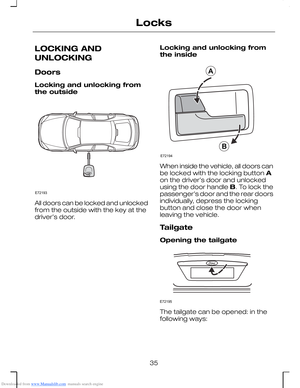

Locking and unlocking
See Locking and unlocking (page35).
Unlocking
Press once to activate central lockingand arm the anti−theft alarm system.
14
Quick startE72174 E70418 E72207
