Downloaded from www.Manualslib.com manuals search engine Turn the bulb anticlockwise underslight pressure, and remove it.
Brake lamp 21 wattA
Direction indicator 21 watt,orangeB
Reversing lamp 21 watt,halogen bulbC
Rear fog lamp/tail lamp 21/4wattD
Replace the bulb.
Install in the reverse order. Afterinstallation, check that the lightsoperate correctly.
Central brake lamp (4-door)
5 watt wedge base bulbs (5x)
Pull the cover off.
•Disconnect the wiring connector,and take out the lamp assembly.
•Press the catches and pull off thecover.
•Pull the bulb out and replace it.
Install in the reverse order.
Central brake lamp (5-doorand Estate)
5 watt wedge base bulbs (5x)
63
LightingE72551 E72552 E72553 E72555 E72554

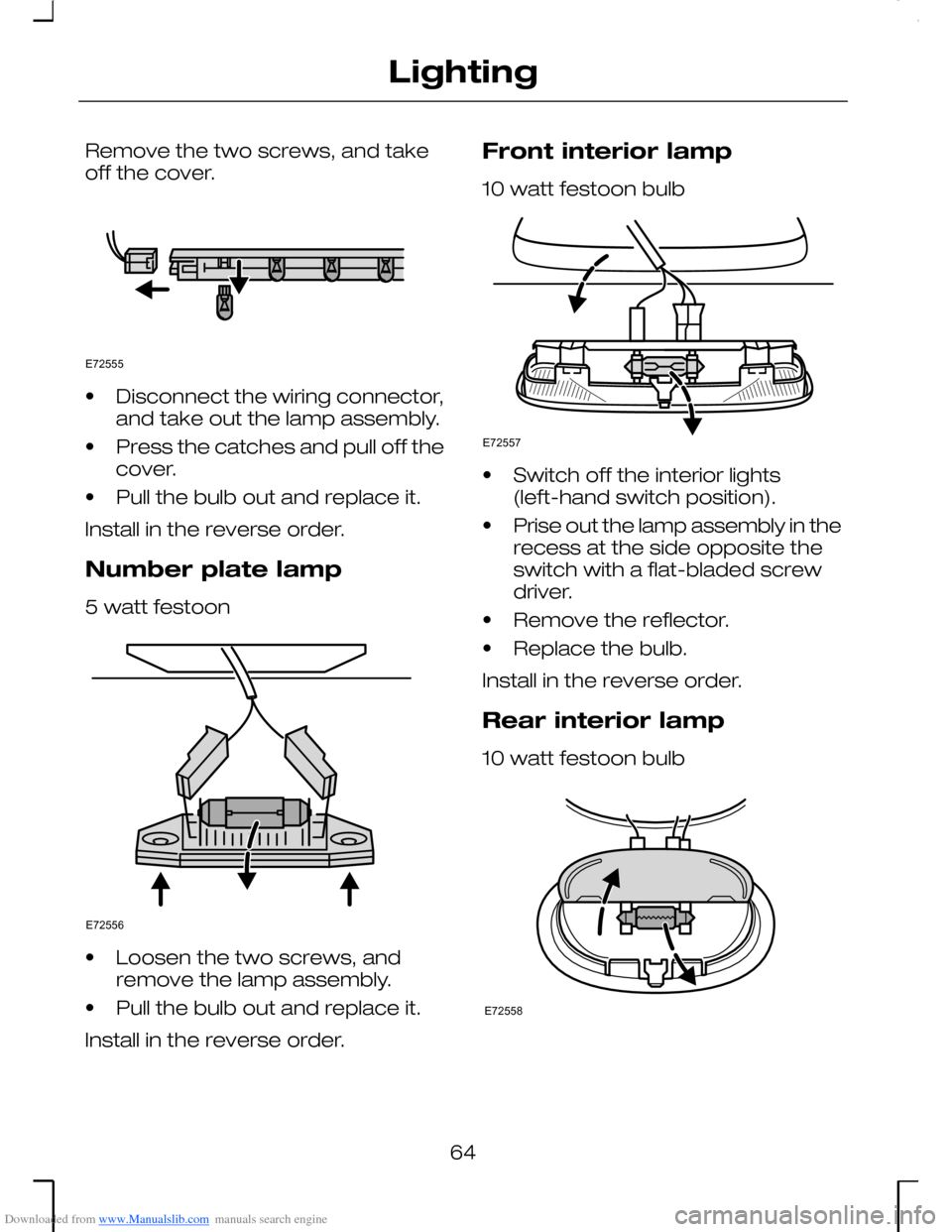

Downloaded from www.Manualslib.com manuals search engine Remove the two screws, and takeoff the cover.
•Disconnect the wiring connector,and take out the lamp assembly.
•Press the catches and pull off thecover.
•Pull the bulb out and replace it.
Install in the reverse order.
Number plate lamp
5 watt festoon
•Loosen the two screws, andremove the lamp assembly.
•Pull the bulb out and replace it.
Install in the reverse order.
Front interior lamp
10 watt festoon bulb
•Switch off the interior lights(left-hand switch position).
•Prise out the lamp assembly in therecess at the side opposite theswitch with a flat-bladed screwdriver.
•Remove the reflector.
•Replace the bulb.
Install in the reverse order.
Rear interior lamp
10 watt festoon bulb
64
LightingE72555 E72556 E72557 E72558

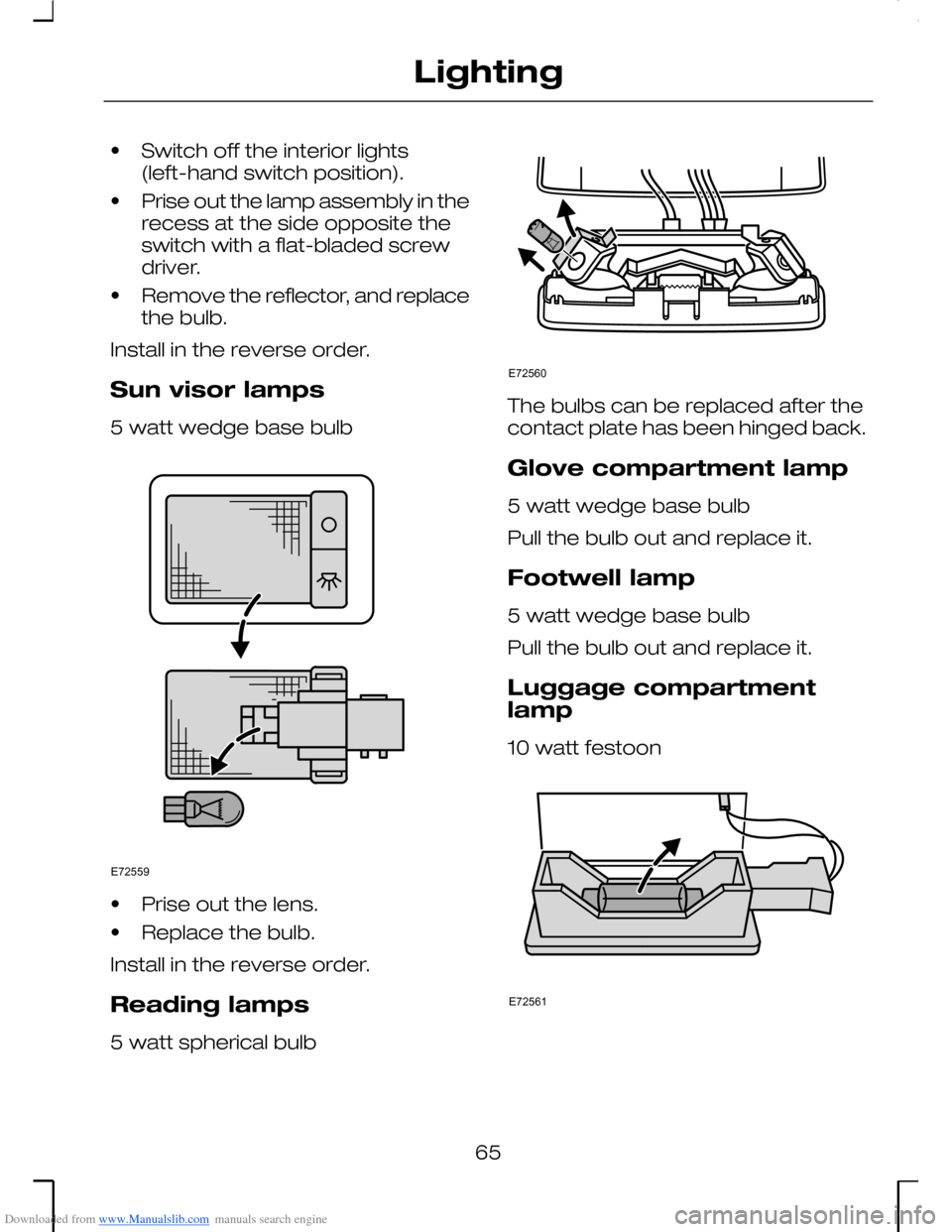

Downloaded from www.Manualslib.com manuals search engine •Switch off the interior lights(left-hand switch position).
•Prise out the lamp assembly in therecess at the side opposite theswitch with a flat-bladed screwdriver.
•Remove the reflector, and replacethe bulb.
Install in the reverse order.
Sun visor lamps
5 watt wedge base bulb
•Prise out the lens.
•Replace the bulb.
Install in the reverse order.
Reading lamps
5 watt spherical bulb
The bulbs can be replaced after thecontact plate has been hinged back.
Glove compartment lamp
5 watt wedge base bulb
Pull the bulb out and replace it.
Footwell lamp
5 watt wedge base bulb
Pull the bulb out and replace it.
Luggage compartmentlamp
10 watt festoon
65
LightingE72559 E72560 E72561

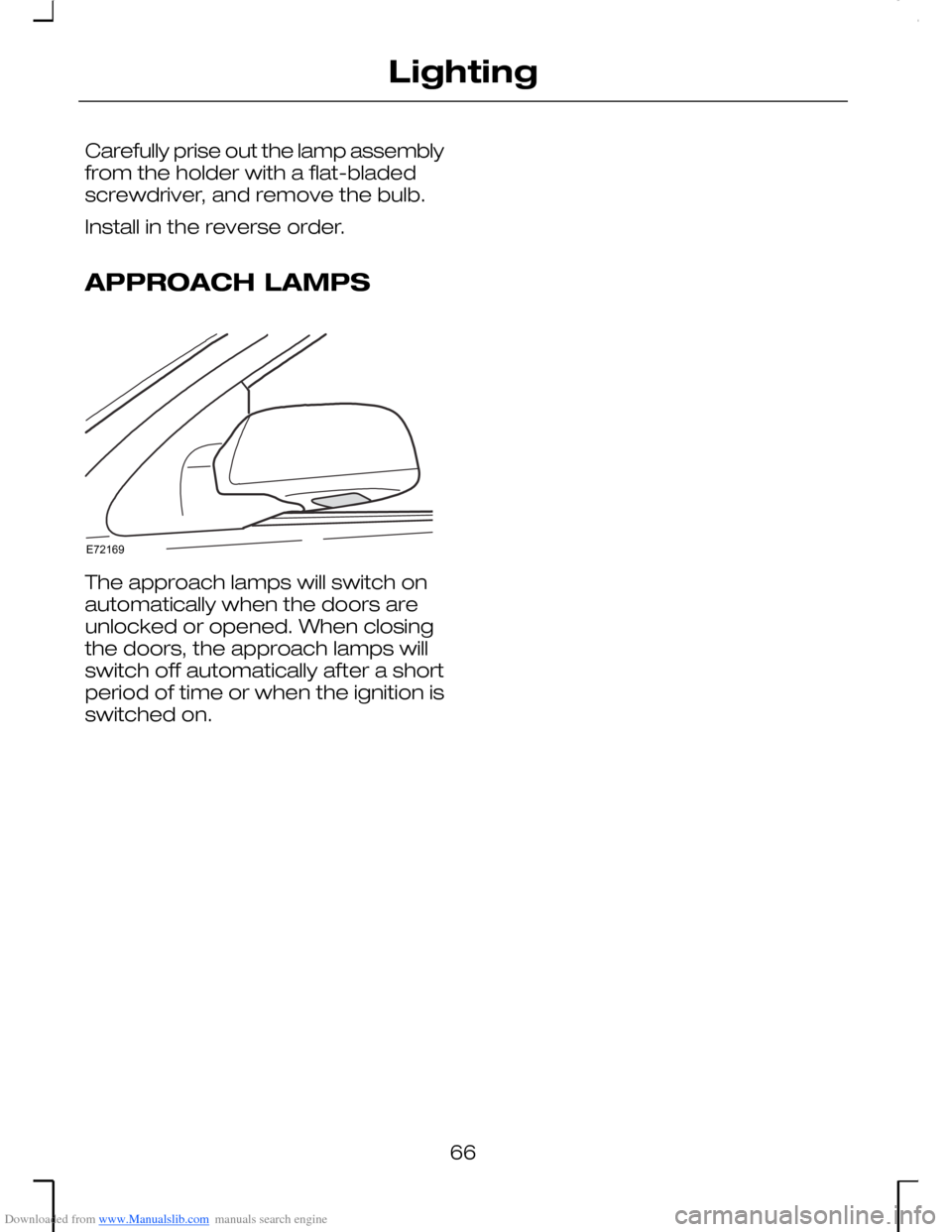

Downloaded from www.Manualslib.com manuals search engine Carefully prise out the lamp assemblyfrom the holder with a flat-bladedscrewdriver, and remove the bulb.
Install in the reverse order.
APPROACH LAMPS
The approach lamps will switch onautomatically when the doors areunlocked or opened. When closingthe doors, the approach lamps willswitch off automatically after a shortperiod of time or when the ignition isswitched on.
66
LightingE72169

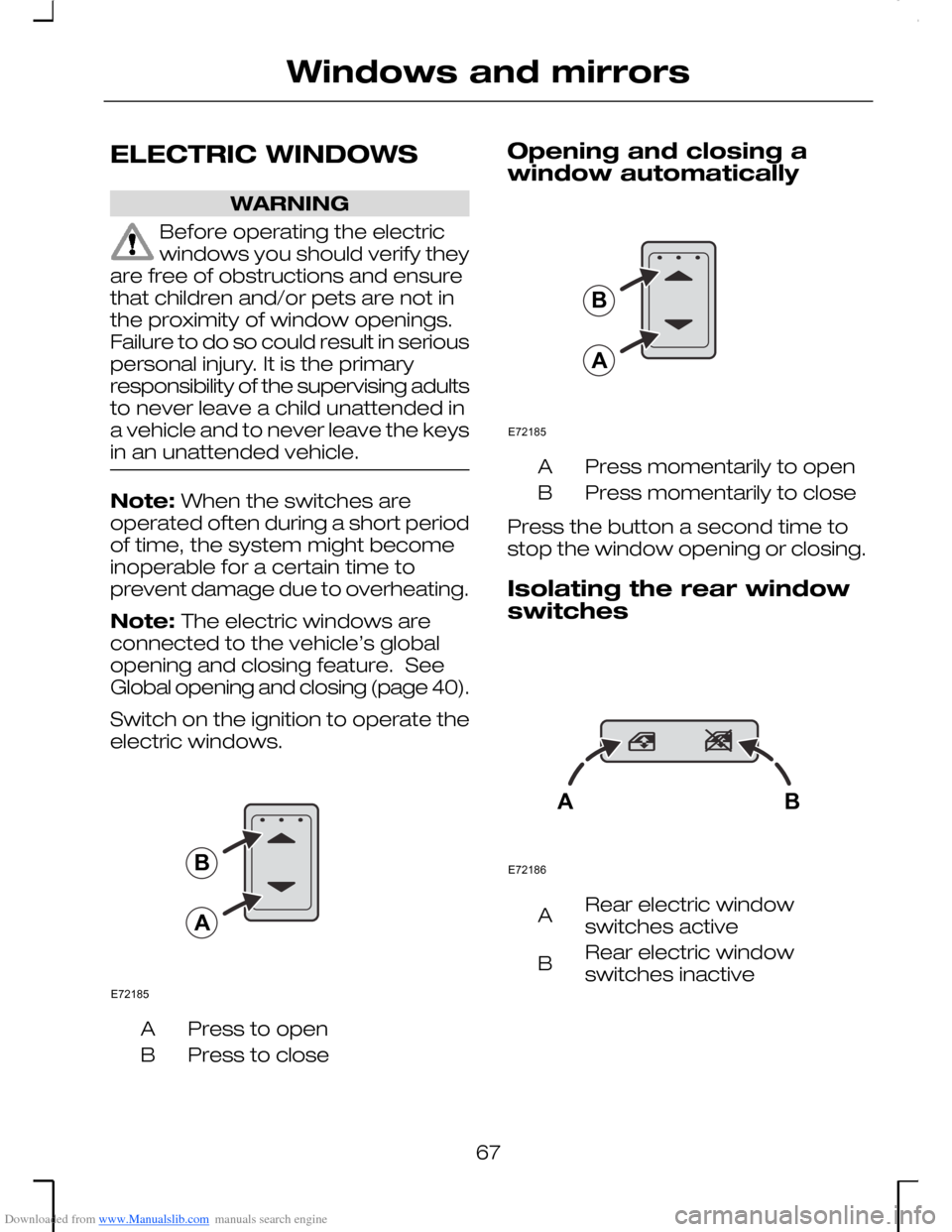

Downloaded from www.Manualslib.com manuals search engine ELECTRIC WINDOWS
WARNING
Before operating the electricwindows you should verify theyare free of obstructions and ensurethat children and/or pets are not inthe proximity of window openings.Failure to do so could result in seriouspersonal injury. It is the primaryresponsibility of the supervising adultsto never leave a child unattended ina vehicle and to never leave the keysin an unattended vehicle.
Note: When the switches areoperated often during a short periodof time, the system might becomeinoperable for a certain time toprevent damage due to overheating.
Note: The electric windows areconnected to the vehicle’s globalopening and closing feature. SeeGlobal opening and closing (page 40).
Switch on the ignition to operate theelectric windows.
Press to openA
Press to closeB
Opening and closing awindow automatically
Press momentarily to openA
Press momentarily to closeB
Press the button a second time tostop the window opening or closing.
Isolating the rear window
switches
Rear electric windowswitches activeA
Rear electric windowswitches inactiveB
67
Windows and mirrorsE72185BA E72185BA E72186AB

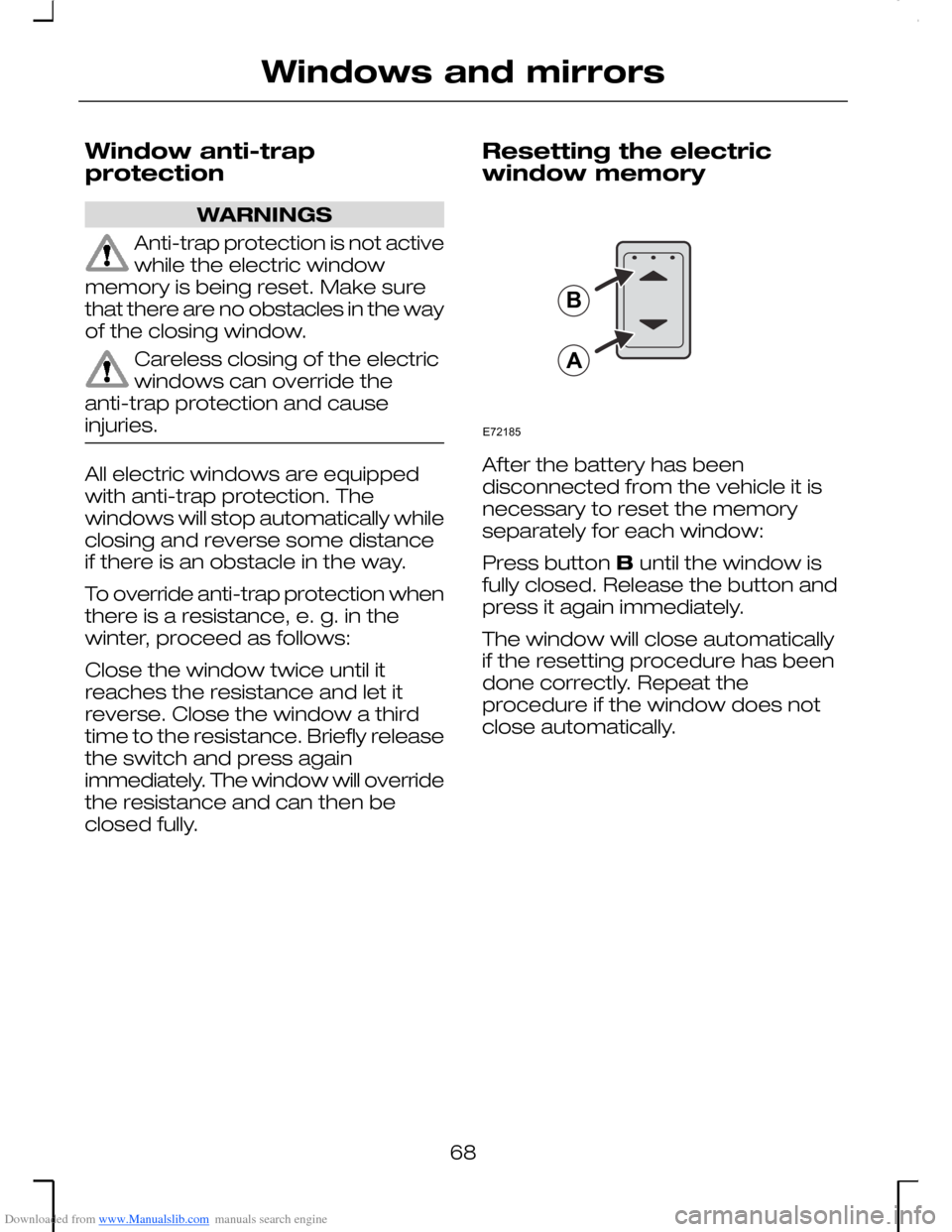

Downloaded from www.Manualslib.com manuals search engine Window anti-trapprotection
WARNINGS
Anti-trap protection is not activewhile the electric windowmemory is being reset. Make surethat there are no obstacles in the wayof the closing window.
Careless closing of the electricwindows can override theanti-trap protection and causeinjuries.
All electric windows are equippedwith anti-trap protection. Thewindows will stop automatically whileclosing and reverse some distanceif there is an obstacle in the way.
To override anti-trap protection whenthere is a resistance, e. g. in thewinter, proceed as follows:
Close the window twice until itreaches the resistance and let itreverse. Close the window a thirdtime to the resistance. Briefly releasethe switch and press againimmediately. The window will overridethe resistance and can then beclosed fully.
Resetting the electricwindow memory
After the battery has beendisconnected from the vehicle it isnecessary to reset the memoryseparately for each window:
Press button B until the window isfully closed. Release the button andpress it again immediately.
The window will close automaticallyif the resetting procedure has beendone correctly. Repeat theprocedure if the window does notclose automatically.
68
Windows and mirrorsE72185BA

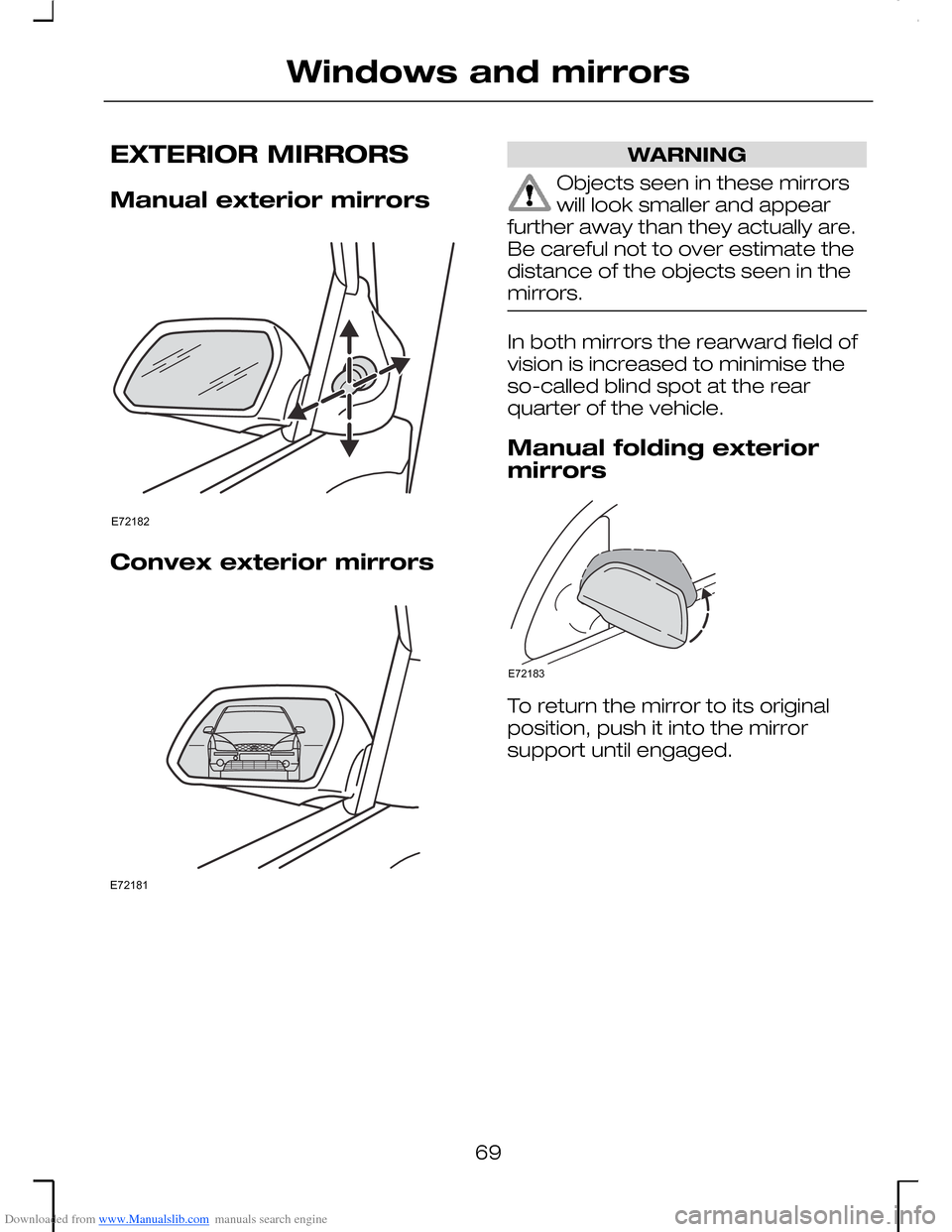

Downloaded from www.Manualslib.com manuals search engine EXTERIOR MIRRORS
Manual exterior mirrors
Convex exterior mirrors
WARNING
Objects seen in these mirrorswill look smaller and appearfurther away than they actually are.Be careful not to over estimate thedistance of the objects seen in themirrors.
In both mirrors the rearward field ofvision is increased to minimise theso-called blind spot at the rearquarter of the vehicle.
Manual folding exteriormirrors
To return the mirror to its originalposition, push it into the mirrorsupport until engaged.
69
Windows and mirrorsE72182 E72181 E72183

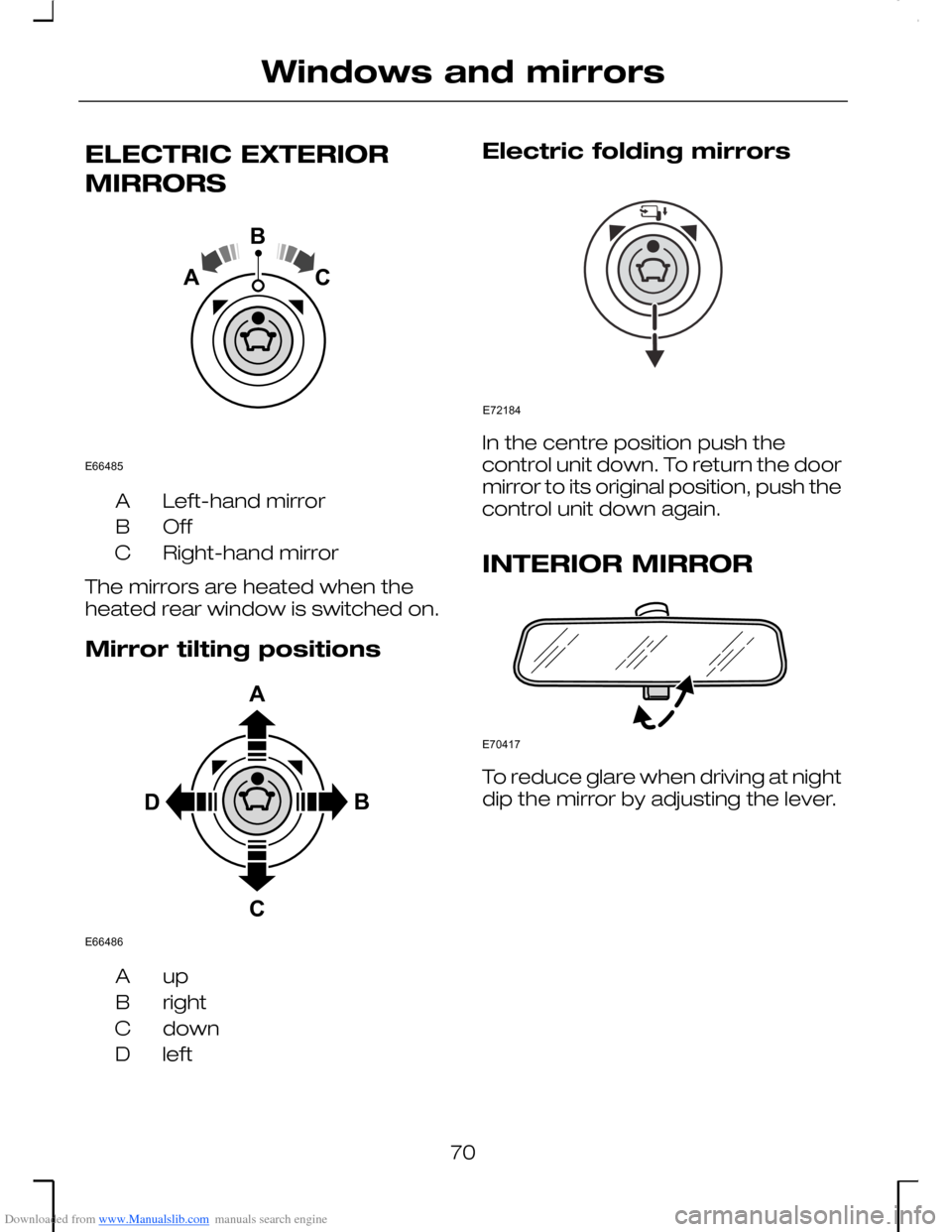

Downloaded from www.Manualslib.com manuals search engine ELECTRIC EXTERIOR
MIRRORS
Left-hand mirrorA
OffB
Right-hand mirrorC
The mirrors are heated when theheated rear window is switched on.
Mirror tilting positions
upA
rightB
downC
leftD
Electric folding mirrors
In the centre position push thecontrol unit down. To return the doormirror to its original position, push thecontrol unit down again.
INTERIOR MIRROR
To reduce glare when driving at nightdip the mirror by adjusting the lever.
70
