2006 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Engine oil filler cap
To open, turn anti-clockwise and pullup. Do not open the cap while theengine is running.
To close, turn the cap clockwise untilit clicks.
Engine oil change
Use Ford/Motorcraft Formula ESAE 5W-30 engine oil. Alternativeengine oils with the viscosity SAE5W-30 meeting the requirementsof Ford SpecificationWSS-M2C913-B may also beused.
Engine oil top-up
If you are unable to find an oil thatmeets any of these specifications,you must use an oil of the viscositySAE 5W-30, SAE 10W-40 or SAE5W-40, according to outsidetemperatures, meeting therequirements of either ACEA A1/B1or ACEA A3/B3 specifications. Useof these oils may result in longercranking periods, reduced engineperformance, reduced fuel economy,and increased emission levels.
ENGINE COOLANT
CHECK
151
MaintenanceE73413 E73415

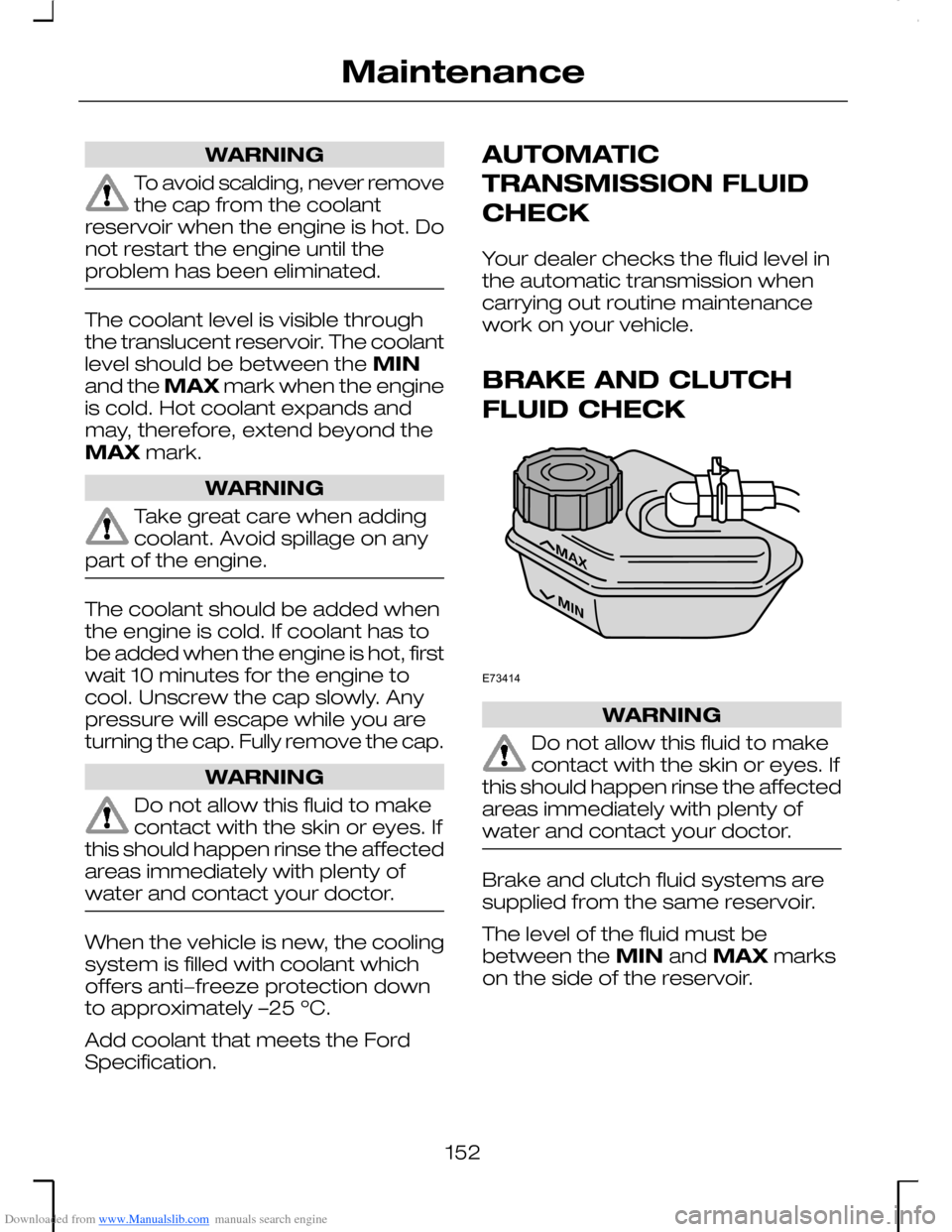

Downloaded from www.Manualslib.com manuals search engine WARNING
To avoid scalding, never removethe cap from the coolantreservoir when the engine is hot. Donot restart the engine until theproblem has been eliminated.
The coolant level is visible throughthe translucent reservoir. The coolantlevel should be between the MINand the MAX mark when the engineis cold. Hot coolant expands andmay, therefore, extend beyond theMAX mark.
WARNING
Take great care when addingcoolant. Avoid spillage on anypart of the engine.
The coolant should be added whenthe engine is cold. If coolant has tobe added when the engine is hot, firstwait 10 minutes for the engine tocool. Unscrew the cap slowly. Anypressure will escape while you areturning the cap. Fully remove the cap.
WARNING
Do not allow this fluid to makecontact with the skin or eyes. Ifthis should happen rinse the affectedareas immediately with plenty ofwater and contact your doctor.
When the vehicle is new, the coolingsystem is filled with coolant whichoffers anti−freeze protection downto approximately –25 ºC.
Add coolant that meets the FordSpecification.
AUTOMATIC
TRANSMISSION FLUID
CHECK
Your dealer checks the fluid level inthe automatic transmission whencarrying out routine maintenancework on your vehicle.
BRAKE AND CLUTCH
FLUID CHECK
WARNING
Do not allow this fluid to makecontact with the skin or eyes. Ifthis should happen rinse the affectedareas immediately with plenty ofwater and contact your doctor.
Brake and clutch fluid systems aresupplied from the same reservoir.
The level of the fluid must bebetween the MIN and MAX markson the side of the reservoir.
152
MaintenanceE73414

Downloaded from www.Manualslib.com manuals search engine POWER STEERING FLUID
CHECK
The fluid level should come up to theMAX mark when the engine is cold.
If it drops below the MIN mark, topup with the specified fluid.
WASHER FLUID CHECK
Front and rear washer systems aresupplied from the same reservoir.The reservoir is located behind theright-hand headlamp.
Replace the cap securely aftertopping up.
Washer jets
To ensure the system functionsproperly, keep the washer jets freeof snow and ice.
Switching on the heated windscreendefrosts both the windscreen andthe front washer jets.
153
MaintenanceE73416 E73422

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Vehicle fluids
SpecificationRecommended fluidPart
WSS-M2C204-AFord Power Steering FluidPower assisted steering
WSS-M97B44-DMotorcraft SuperPlusAntifreezeCoolant
Capacities
Vehicles with a petrol engine
Capacities
Capacity inlitres (gallons)ItemVariant
Max-markPower assisted steering fluidAll
58.5 litresFuel tankAll
4.3 litresEngine oil - with filter1.8 l Duratec-HE
3.9 litresEngine oil - without filter1.8 l Duratec-HE
8.3 litresCooling system including heating1.8 l Duratec-HE
6.6 litresWindscreen washer system - withheadlamp washer1.8 l Duratec-HE
2.6 litresWindscreen washer system -without headlamp washer1.8 l Duratec-HE
4.3 litresEngine oil - with filter1.8 l Duratec-SCi
3.9 litresEngine oil - without filter1.8 l Duratec-SCi
8.3 litresCooling system including heating1.8 l Duratec-SCi
5.0 litresWindscreen washer system - withheadlamp washer1.8 l Duratec-SCi
2.5 litresWindscreen washer system -without headlamp washer1.8 l Duratec-SCi
4.3 litresEngine oil - with filter2.0 l Duratec-HE
3.9 litresEngine oil - without filter2.0 l Duratec-HE
8.1 litresCooling system including heating2.0 l Duratec-HE
6.5 litresWindscreen washer system - withheadlamp washer2.0 l Duratec-HE
154
Maintenance

Downloaded from www.Manualslib.com manuals search engine Capacity inlitres (gallons)ItemVariant
2.6 litresWindscreen washer system -without headlamp washer2.0 l Duratec-HE
5.7 litresEngine oil - with filter2.5 l Duratec-VE
5.2 litresEngine oil - without filter2.5 l Duratec-VE
9.5 litresCooling system including heating2.5 l Duratec-VE
6.5 litresWindscreen washer system - withheadlamp washer2.5 l Duratec-VE
2.6 litresWindscreen washer system -without headlamp washer2.5 l Duratec-VE
5.7 litresEngine oil - with filter3.0 l Duratec-VE/ST
5.2 litresEngine oil - without filter3.0 l Duratec-VE/ST
9.5 litresCooling system including heating3.0 l Duratec-VE/ST
6.5 litresWindscreen washer system - withheadlamp washer3.0 l Duratec-VE/ST
2.6 litresWindscreen washer system -without headlamp washer3.0 l Duratec-VE/ST
Vehicles with a diesel engine
Capacities
Capacity in litres(gallons)ItemVariant
Max-markPower assisted steering fluidAll
58.5 litresFuel tankAll
6.0 litresEngine oil - with filterAll
5.8 litresEngine oil - without filterAll
10.6 litresCooling system including heating - withauxiliary heaterAll
10.4 litresCooling system including heating - withoutauxiliary heaterAll
6.5 litresWindscreen washer system - withheadlamp washerAll
2.6 litresWindscreen washer system - withoutheadlamp washerAll
155
Maintenance

Downloaded from www.Manualslib.com manuals search engine CLEANING THE
EXTERIOR
WARNINGS
In installations operating withhigh water pressure, watermight be forced into the vehicle’sinterior or parts may get damaged.
Unscrew and remove the radioaerial before entering anautomatic car wash. Switch off theheater blower to preventcontamination of the fresh air filter.
The best procedure is brushlesswashing in a good car washinstallation.
If a waxing cycle is selected, pleaseensure that the wax is removed fromthe windscreen afterwards.
Cleaning the headlamps
To avoid damaging the clear plasticheadlamp lens do not use aggressiveabrasives or chemical solvents. Donot wipe the headlamps when theyare dry or use sharp objects to cleanthe lenses.
Cleaning the rear window
To avoid damaging the heatingelements when cleaning the insideof the rear window use only a softcloth or a damp chamois leather. Donot use solvent or sharp objects toclean the glass.
Body paintworkpreservation
WARNING
When polishing your vehicleensure that polish does notcome into contact with the plasticsurfaces as it may prove difficult toremove. Do not polish the vehicle instrong sunshine.
Wax the body paintwork of yourvehicle once or twice a year. This willhelp retain the glossy paintwork finishand water droplets will run off moreeasily.
Do not apply polish to windscreen orrear window, as this may result inpoor or noisy wiper action.
CLEANING THE INTERIOR
Seat belts
156
Vehicle careE66547

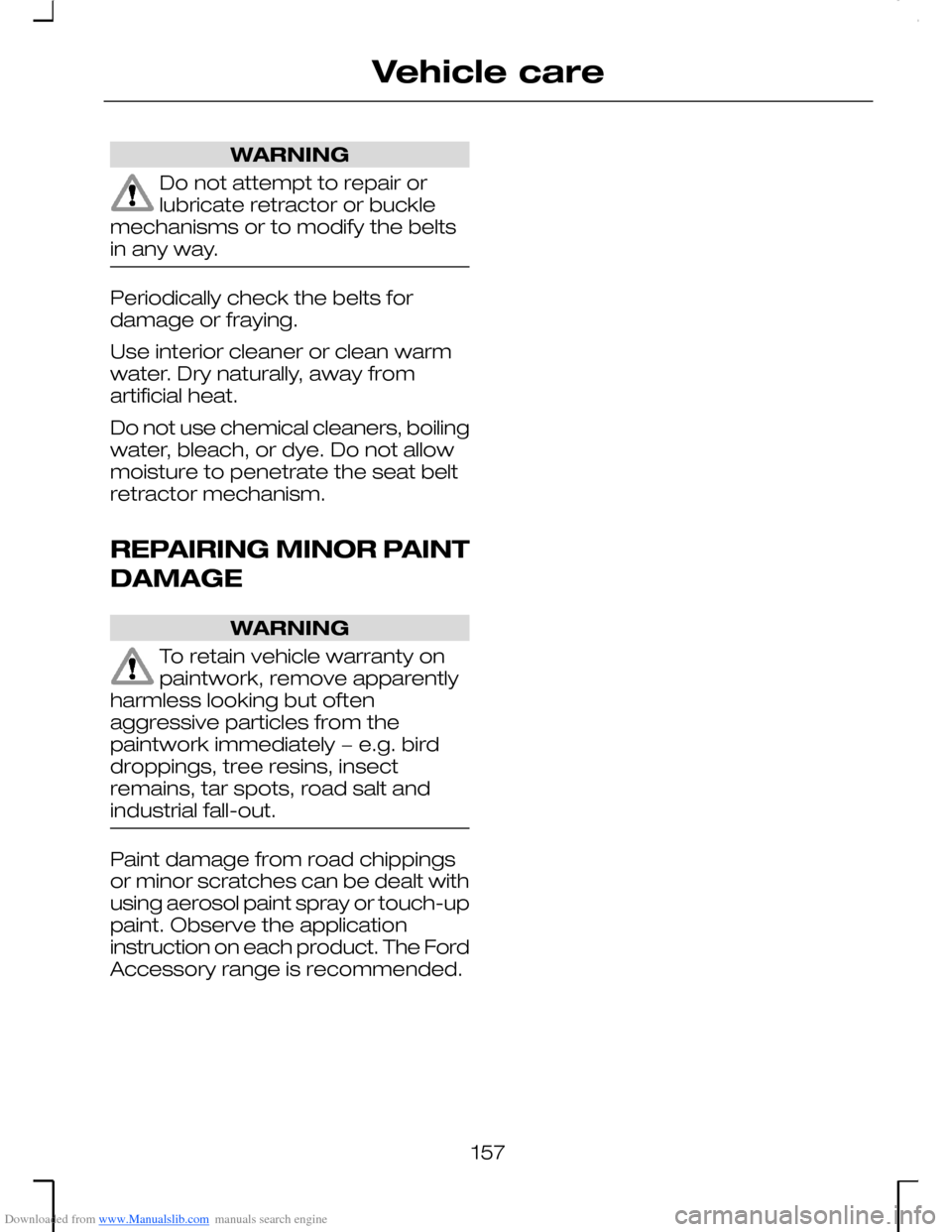

Downloaded from www.Manualslib.com manuals search engine WARNING
Do not attempt to repair orlubricate retractor or bucklemechanisms or to modify the beltsin any way.
Periodically check the belts fordamage or fraying.
Use interior cleaner or clean warmwater. Dry naturally, away fromartificial heat.
Do not use chemical cleaners, boilingwater, bleach, or dye. Do not allowmoisture to penetrate the seat beltretractor mechanism.
REPAIRING MINOR PAINT
DAMAGE
WARNING
To retain vehicle warranty onpaintwork, remove apparentlyharmless looking but oftenaggressive particles from thepaintwork immediately − e.g. birddroppings, tree resins, insectremains, tar spots, road salt andindustrial fall-out.
Paint damage from road chippingsor minor scratches can be dealt withusing aerosol paint spray or touch-uppaint. Observe the applicationinstruction on each product. The FordAccessory range is recommended.
157
Vehicle care

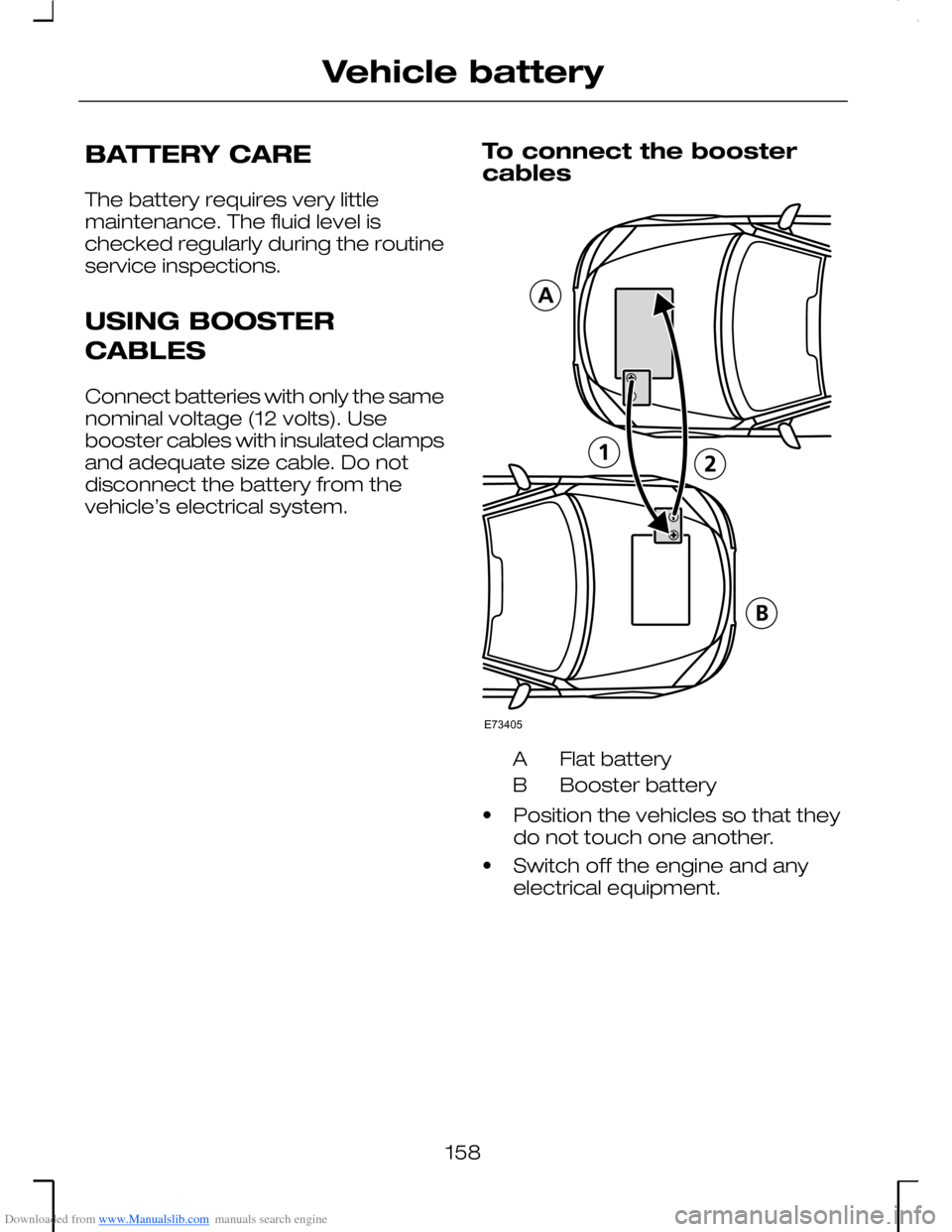

Downloaded from www.Manualslib.com manuals search engine BATTERY CARE
The battery requires very littlemaintenance. The fluid level ischecked regularly during the routineservice inspections.
USING BOOSTER
CABLES
Connect batteries with only the samenominal voltage (12 volts). Usebooster cables with insulated clampsand adequate size cable. Do notdisconnect the battery from thevehicle’s electrical system.
To connect the boostercables
Flat batteryA
Booster batteryB
•Position the vehicles so that theydo not touch one another.
•Switch off the engine and anyelectrical equipment.
158
Vehicle batteryE73405
