2006 FORD MONDEO Owners Manual

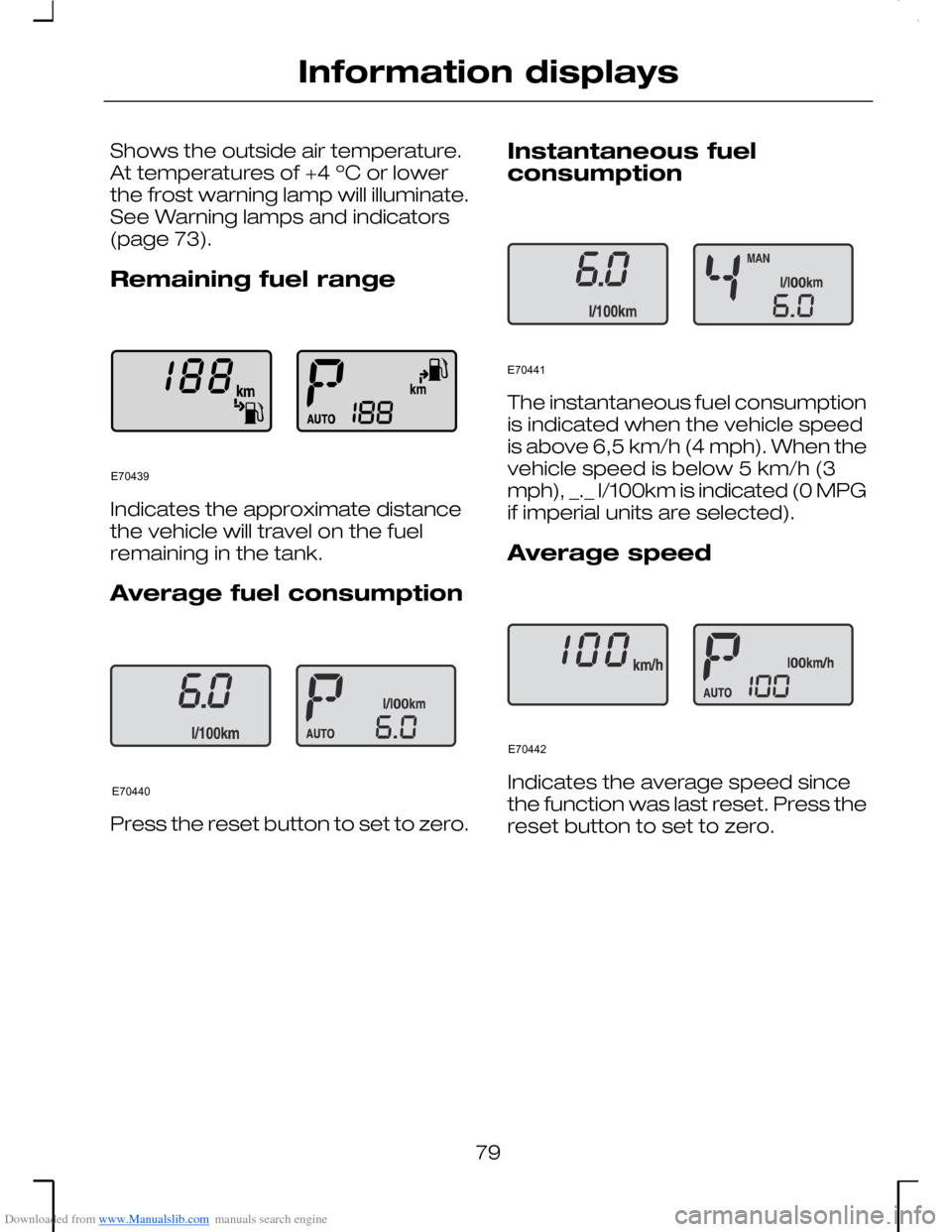

Downloaded from www.Manualslib.com manuals search engine Shows the outside air temperature.At temperatures of +4 ºC or lowerthe frost warning lamp will illuminate.See Warning lamps and indicators(page 73).
Remaining fuel range
Indicates the approximate distancethe vehicle will travel on the fuelremaining in the tank.
Average fuel consumption
Press the reset button to set to zero.
Instantaneous fuelconsumption
The instantaneous fuel consumptionis indicated when the vehicle speedis above 6,5 km/h (4 mph). When thevehicle speed is below 5 km/h (3mph), _._ l/100km is indicated (0 MPGif imperial units are selected).
Average speed
Indicates the average speed sincethe function was last reset. Press thereset button to set to zero.
79
Information displaysE70439 E70440 E70441 E70442

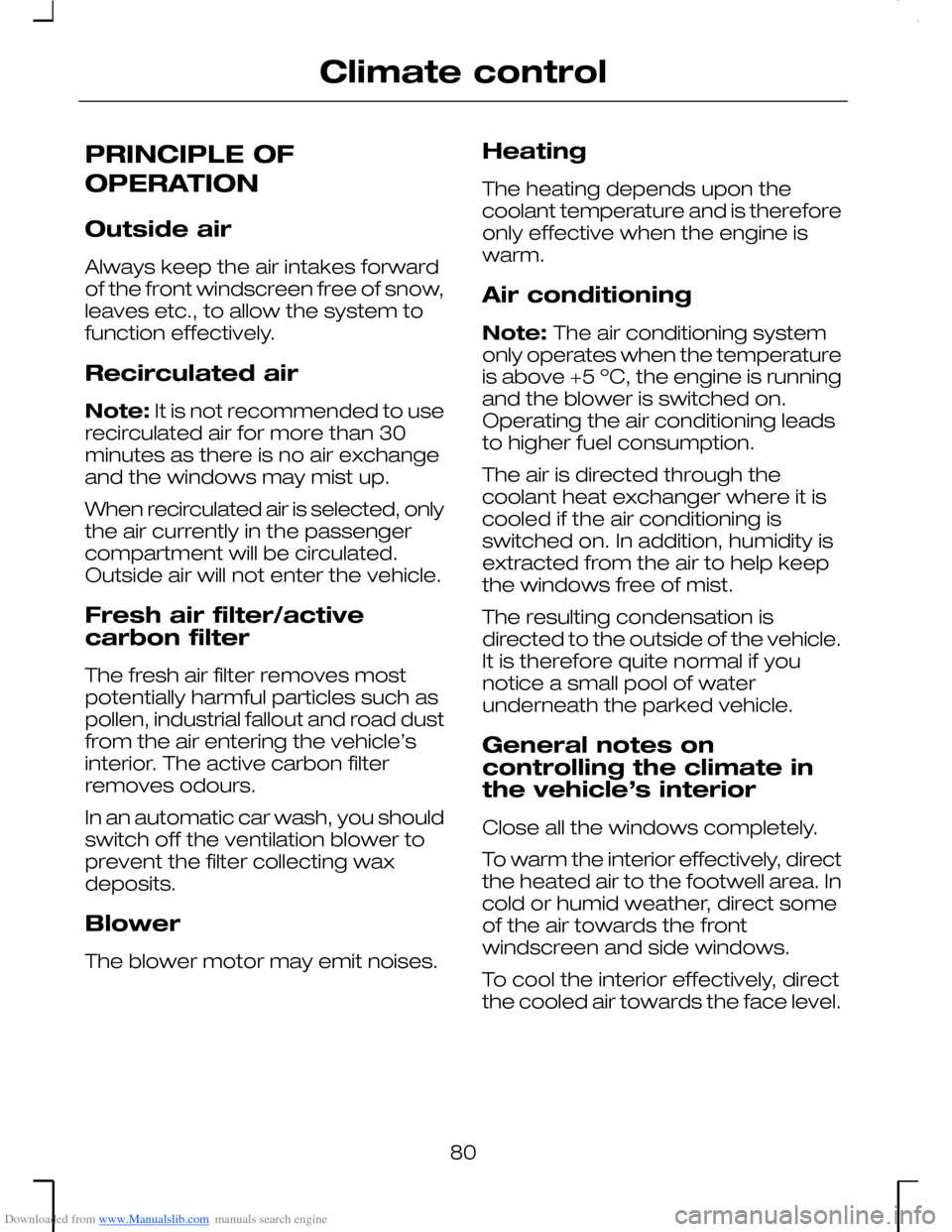

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF
OPERATION
Outside air
Always keep the air intakes forwardof the front windscreen free of snow,leaves etc., to allow the system tofunction effectively.
Recirculated air
Note: It is not recommended to userecirculated air for more than 30minutes as there is no air exchangeand the windows may mist up.
When recirculated air is selected, onlythe air currently in the passengercompartment will be circulated.Outside air will not enter the vehicle.
Fresh air filter/activecarbon filter
The fresh air filter removes mostpotentially harmful particles such aspollen, industrial fallout and road dustfrom the air entering the vehicle’sinterior. The active carbon filterremoves odours.
In an automatic car wash, you shouldswitch off the ventilation blower toprevent the filter collecting waxdeposits.
Blower
The blower motor may emit noises.
Heating
The heating depends upon thecoolant temperature and is thereforeonly effective when the engine iswarm.
Air conditioning
Note: The air conditioning systemonly operates when the temperatureis above +5 ºC, the engine is runningand the blower is switched on.Operating the air conditioning leadsto higher fuel consumption.
The air is directed through thecoolant heat exchanger where it iscooled if the air conditioning isswitched on. In addition, humidity isextracted from the air to help keepthe windows free of mist.
The resulting condensation isdirected to the outside of the vehicle.It is therefore quite normal if younotice a small pool of waterunderneath the parked vehicle.
General notes oncontrolling the climate inthe vehicle’s interior
Close all the windows completely.
To warm the interior effectively, directthe heated air to the footwell area. Incold or humid weather, direct someof the air towards the frontwindscreen and side windows.
To cool the interior effectively, directthe cooled air towards the face level.
80
Climate control

Downloaded from www.Manualslib.com manuals search engine AIR VENTS
OpenA
ClosedB
MANUAL CLIMATE
CONTROL
Temperature control
ColdBlue
WarmRed
Blower
Press the left−hand button to reducethe blower speed and thus theamount of air.
Press the right−hand button toincrease the blower speed and thusthe amount of air.
The blower setting is indicated in thedisplay.
Air distribution control
FootwellA
Face levelB
WindscreenC
Any combination can be selectedsimultaneously.
81
Climate controlABABE70416 E70443 E70444 ABCE70445

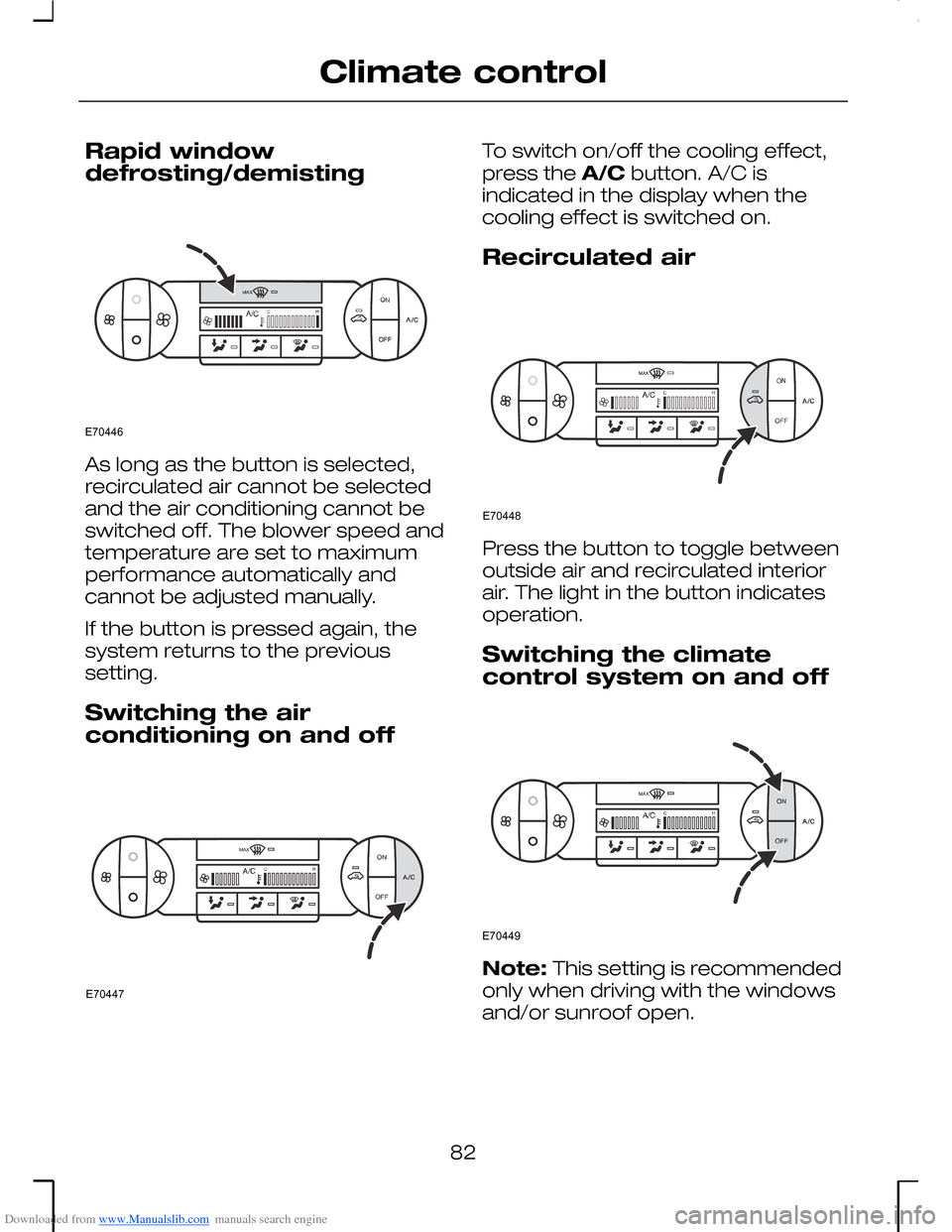

Downloaded from www.Manualslib.com manuals search engine Rapid windowdefrosting/demisting
As long as the button is selected,recirculated air cannot be selectedand the air conditioning cannot beswitched off. The blower speed andtemperature are set to maximumperformance automatically andcannot be adjusted manually.
If the button is pressed again, thesystem returns to the previoussetting.
Switching the airconditioning on and off
To switch on/off the cooling effect,press the A/C button. A/C isindicated in the display when thecooling effect is switched on.
Recirculated air
Press the button to toggle betweenoutside air and recirculated interiorair. The light in the button indicatesoperation.
Switching the climatecontrol system on and off
Note: This setting is recommendedonly when driving with the windowsand/or sunroof open.
82
Climate controlE70446 E70447 E70448 E70449

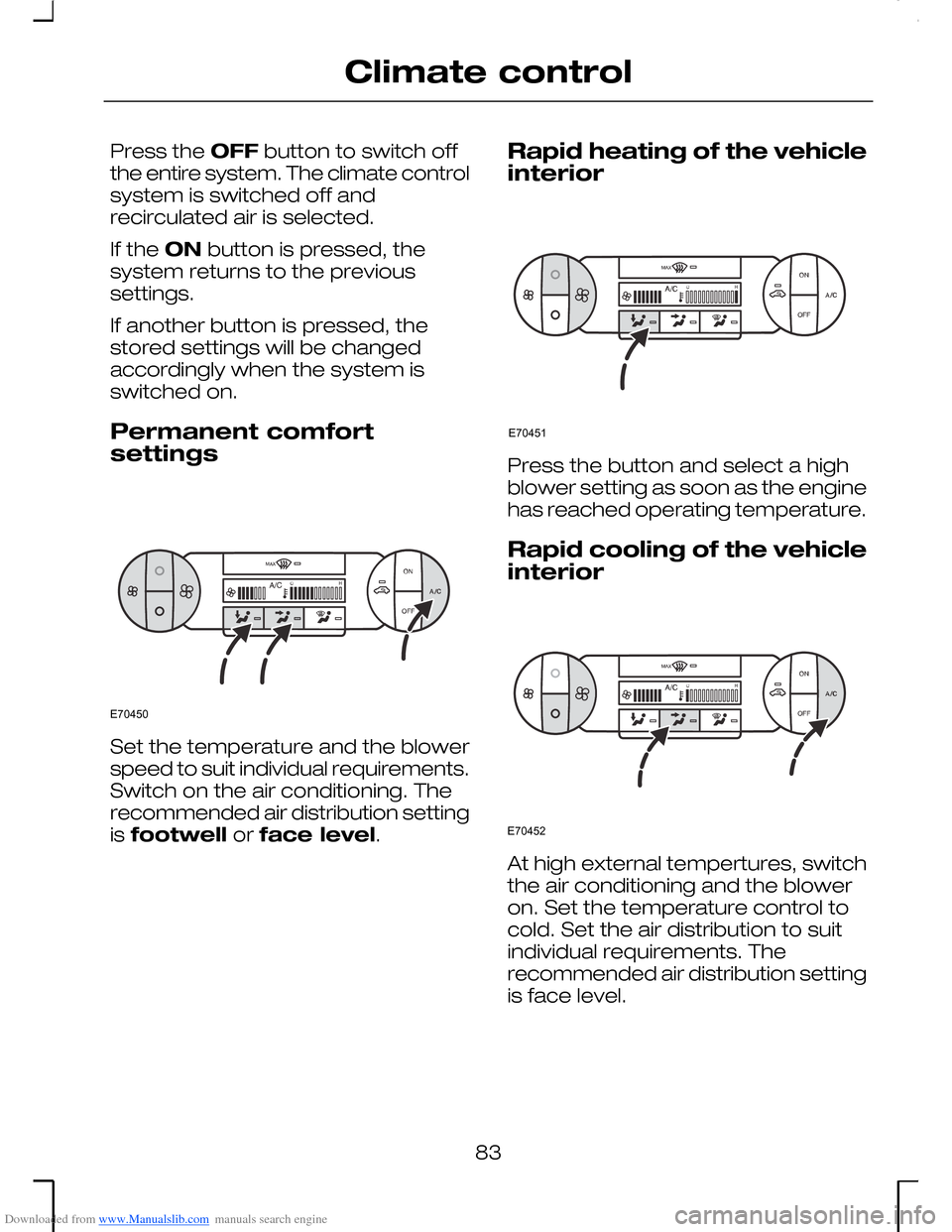

Downloaded from www.Manualslib.com manuals search engine Press the OFF button to switch offthe entire system. The climate controlsystem is switched off andrecirculated air is selected.
If the ON button is pressed, thesystem returns to the previoussettings.
If another button is pressed, thestored settings will be changedaccordingly when the system isswitched on.
Permanent comfortsettings
Set the temperature and the blowerspeed to suit individual requirements.Switch on the air conditioning. Therecommended air distribution settingis footwell or face level.
Rapid heating of the vehicleinterior
Press the button and select a highblower setting as soon as the enginehas reached operating temperature.
Rapid cooling of the vehicleinterior
At high external tempertures, switchthe air conditioning and the bloweron. Set the temperature control tocold. Set the air distribution to suitindividual requirements. Therecommended air distribution settingis face level.
83
Climate controlE70450 E70451 E70452

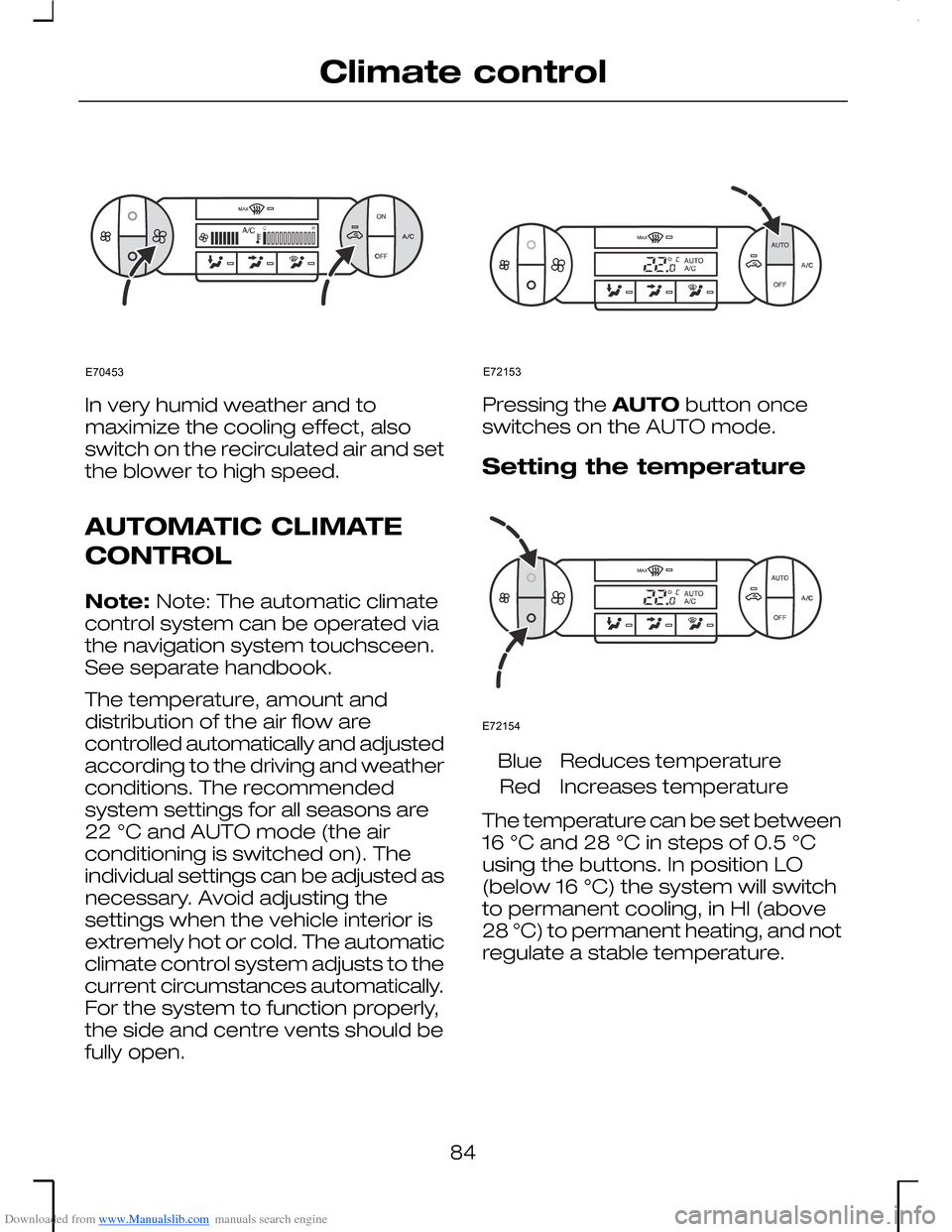

Downloaded from www.Manualslib.com manuals search engine In very humid weather and tomaximize the cooling effect, alsoswitch on the recirculated air and setthe blower to high speed.
AUTOMATIC CLIMATE
CONTROL
Note: Note: The automatic climatecontrol system can be operated viathe navigation system touchsceen.See separate handbook.
The temperature, amount anddistribution of the air flow arecontrolled automatically and adjustedaccording to the driving and weatherconditions. The recommendedsystem settings for all seasons are22 °C and AUTO mode (the airconditioning is switched on). Theindividual settings can be adjusted asnecessary. Avoid adjusting thesettings when the vehicle interior isextremely hot or cold. The automaticclimate control system adjusts to thecurrent circumstances automatically.For the system to function properly,the side and centre vents should befully open.
Pressing the AUTO button onceswitches on the AUTO mode.
Setting the temperature
Reduces temperatureBlue
Increases temperatureRed
The temperature can be set between16 °C and 28 °C in steps of 0.5 °Cusing the buttons. In position LO(below 16 °C) the system will switchto permanent cooling, in HI (above28 °C) to permanent heating, and notregulate a stable temperature.
84
Climate controlE70453 E72153 E72154

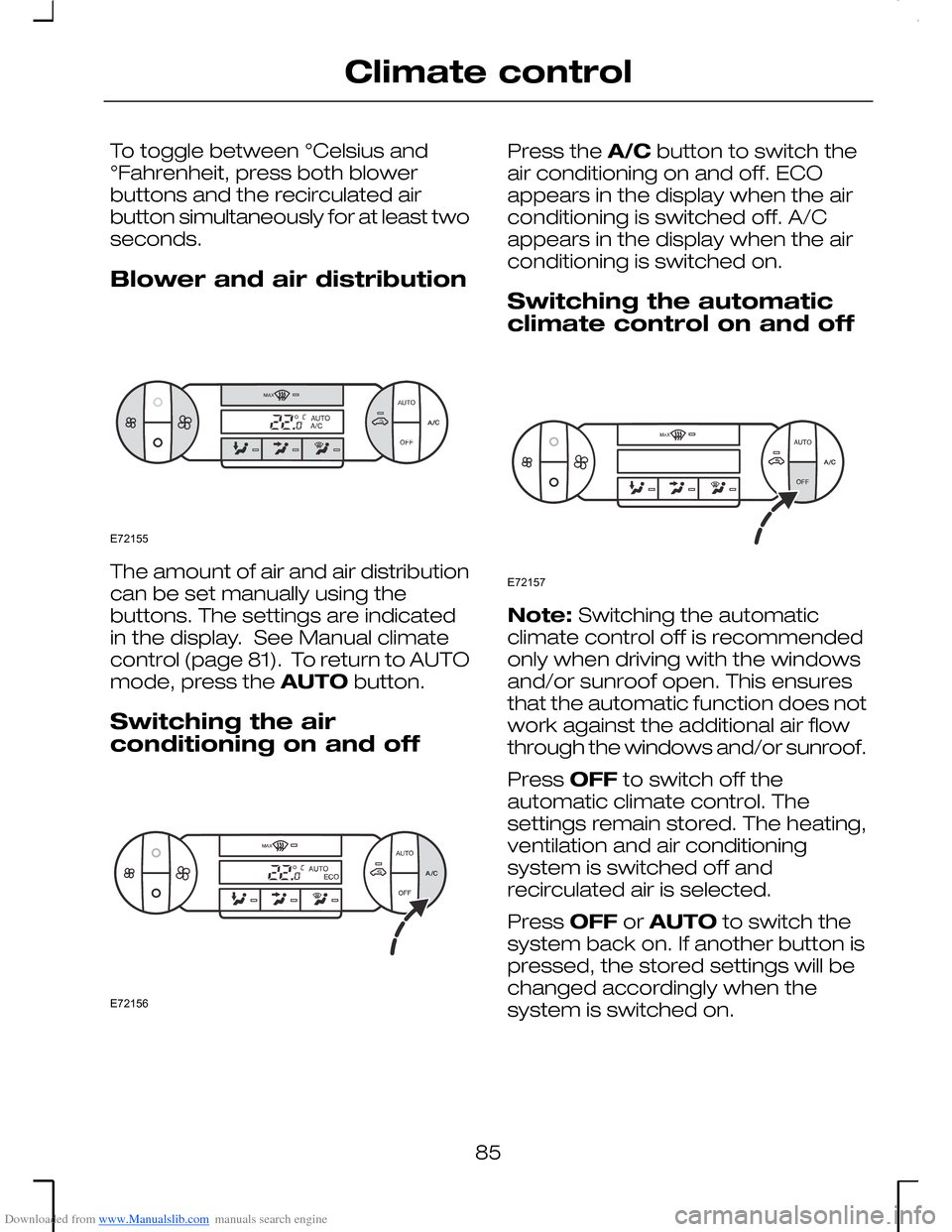

Downloaded from www.Manualslib.com manuals search engine To toggle between °Celsius and°Fahrenheit, press both blowerbuttons and the recirculated airbutton simultaneously for at least twoseconds.
Blower and air distribution
The amount of air and air distributioncan be set manually using thebuttons. The settings are indicatedin the display. See Manual climatecontrol (page 81). To return to AUTOmode, press the AUTO button.
Switching the airconditioning on and off
Press the A/C button to switch theair conditioning on and off. ECOappears in the display when the airconditioning is switched off. A/Cappears in the display when the airconditioning is switched on.
Switching the automaticclimate control on and off
Note: Switching the automaticclimate control off is recommendedonly when driving with the windowsand/or sunroof open. This ensuresthat the automatic function does notwork against the additional air flowthrough the windows and/or sunroof.
Press OFF to switch off theautomatic climate control. Thesettings remain stored. The heating,ventilation and air conditioningsystem is switched off andrecirculated air is selected.
Press OFF or AUTO to switch thesystem back on. If another button ispressed, the stored settings will bechanged accordingly when thesystem is switched on.
85
Climate controlE72155 E72156 E72157

Downloaded from www.Manualslib.com manuals search engine HEATED WINDOWS AND
MIRRORS
Heated windows
Use for quick defrosting or demistingof the windscreen or rear window. Itshould be switched on only ifnecessary.
Vehicles with a diesel engine
The heated windscreen and heatedrear window will be switched on andthen off automatically at low ambienttemperatures and low enginetemperatures. Press the switches toswitch them off.
Heated windscreen
The system operates only when theengine is running and also defroststhe front washer jets. Press theswitch to turn on or off. The lamp inthe switch indicates operation.
The heating system switches offautomatically after a short period oftime.
Heated rear window
Switch on the ignition first.
Press the switch to turn on or off. Thelamp in the switch indicatesoperation.
The heating system switches offautomatically after a short period oftime.
Heated exterior mirrors
Electrically operated door mirrors alsohave a heating element to clear theglass. This system operates whenthe heated rear window is switchedon.
86
Climate controlE72158 E72159 E72160
