2006 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine FUEL CUT-OFF SWITCH
Vehicles with a Duratecengine
The fuel supply may be cut off as aresult of an accident or suddenvibrations (e.g. collision whenparking).
The switch is located in the side panelin front of the left-hand door. Thebutton will be raised when the switchis activated.
Resetting the switch
WARNING
Do not reset the fuel cut-offswitch if you see or smell leakingfuel.
•Turn the ignition switch to position0.
•Check fuel system for leaks.
•If no fuel leak is apparent, resetthe switch by pushing in thebutton (see illustration).
•Turn the ignition switch to positionII. After a few seconds return thekey to position I.
•Make a further check for leaks inthe fuel system.
INSPECTING SAFETY
SYSTEM COMPONENTS
Seat belts
Belts subjected to strain − as a resultof an accident − should be renewedand the anchorages checked by anexpert.
135
Status after a collisionE72531

Downloaded from www.Manualslib.com manuals search engine FUSE BOX LOCATIONS
WARNING
Any improper alterations to theelectrical or fuel system canendanger the safety of the vehicle asthey could constitute a fire hazard orcause engine damage. Have anywork involving these systems or thereplacement of relays or high currentcarrying fuses carried out by anexpert.
Auxiliary fuse boxA
Central fuse boxB
Auxiliary fuse box
To check or replace a fuse, first pulloff the battery cover 1. Then removethe cover of the fuse box 2 byreleasing the catch and lifting up.
You will find the fuse chart inside thefuse box cover.
Central fuse box
Left-hand drive
136
FusesE72532 E72534 E72535

Downloaded from www.Manualslib.com manuals search engine The central fuse box is locatedbehind the storage compartmentunderneath the instrument panel. Toremove the storage compartment,open it and pull it outwards.
To reinstall the storage compartment,fit it into the opening and push untilyou feel it engage.
The fuse chart label located on theoutside of the removed storagecompartment will help you identifythe fuses.
Right-hand drive
The central fuse box is locatedbehind the glove compartment. Toremove the glove compartment,open it and push the lever at theback to the left. Press the sidesinwards and pull out the glovecompartment.
To reinstall the glove compartment,fit it into the opening and push thelever to the right until you feel itengage.
The fuse chart label located on theoutside of the removed glovecompartment will help you identifythe fuses.
CHANGING A FUSE
WARNING
Switch off the ignition and all theelectrical equipment beforechanging a fuse.
Always replace a faulty fuse with anew one of the same rating.
FUSE SPECIFICATION
CHART
The following fuses and relays areidentified by the See Owner’shandbook symbol in the fuse chartsin your vehicle.
137
FusesE73402

Downloaded from www.Manualslib.com manuals search engine Auxiliary fuse box
Circuits protectedFuse
Conventional headlamps: 7.5 A; Xenon headlamps: 20 A16/18
Automatic transmission: 10 A17
Auxiliary heater (Diesel): 20 A; Battery Backed−up Sounder (ST):7.5 A23
Diode electronic module34
Diode air conditioning35
Diode engine cooling fan36
HO2S sensor37
Engine Control Valves/Vehicle Speed Sensor40
Engine management Duratec engines: 10 A; Duratorq engines:15 A42
Central fuse box
Circuits protectedFuse
Audio system or audio system and instrument cluster69
Trailer – max. 20 A fuse74
Instrument cluster78
Reversing lamps80
Sensors for passenger airbag and automatic climate control81
Daytime running lamps88
Trailer – max. 20 A fuse92
Brake lamps93
License plate lamps97
Symbols in the fuse box
See Owner’s handbook
Airbag
ABS
Dipped beam
Main beam or headlamps
138
Fuses

Downloaded from www.Manualslib.com manuals search engine Front fog lamps
Rear fog lamps
Reversing lamp
Dipped beam or parkinglamp switch
Parking lamps
Interior lamps
Headlamp washers
Windscreen wipers,windscreen wiper switch
Rear window wiper
Heated windscreen, heatedwindscreen switch
Heated rear window
Heated exterior mirrors
Electric exterior mirrors,clock
Electric rear windows
Electric front windows
Sunroof
Electric seats
Heated and ventilated seats
Heated seats
Heater blower motor
Air conditioning, heaterblower motor
Air conditioning
Cigar lighter
Hazard warning flashers
Horn
Central locking
Engine management,electronic module
Starter motor
139
Fuses

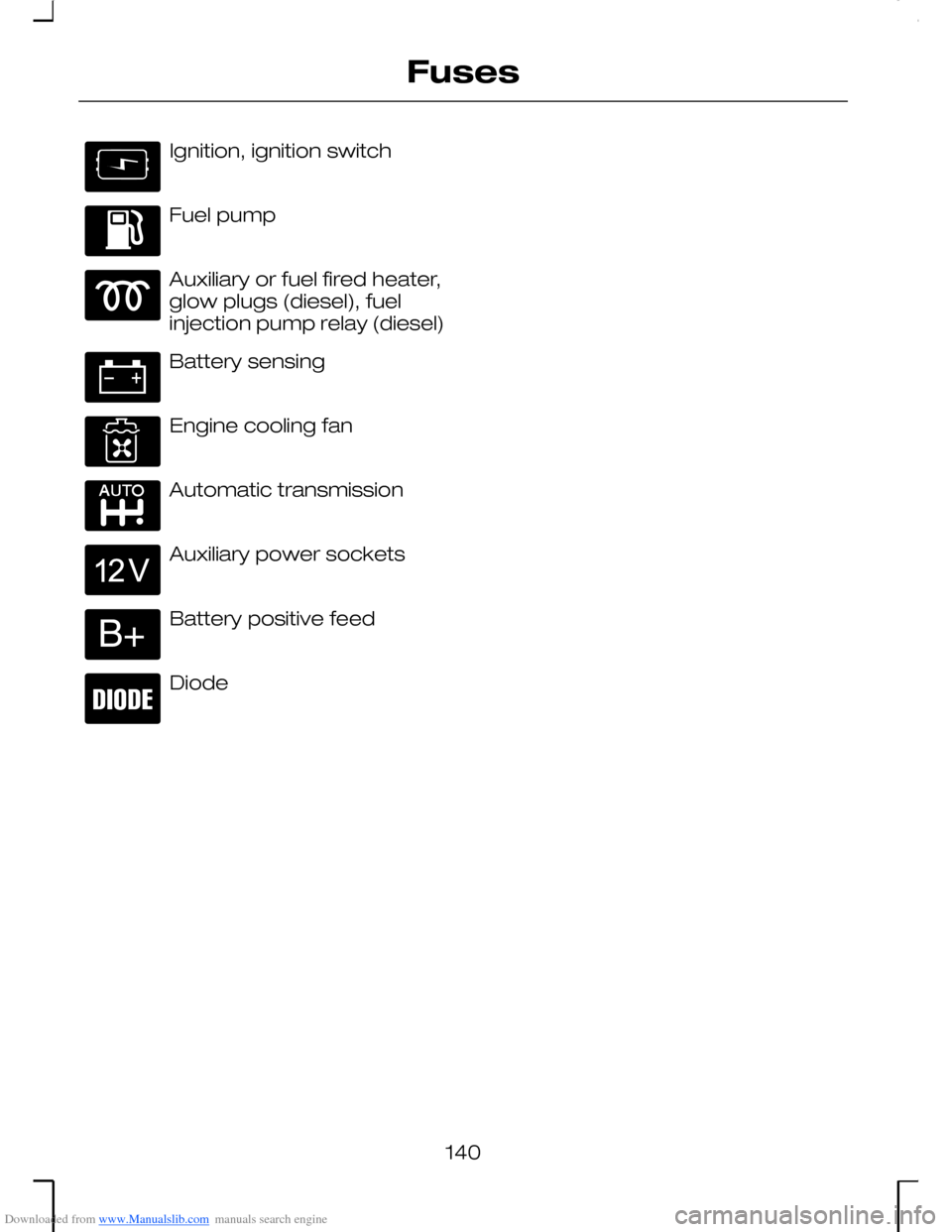

Downloaded from www.Manualslib.com manuals search engine Ignition, ignition switch
Fuel pump
Auxiliary or fuel fired heater,glow plugs (diesel), fuelinjection pump relay (diesel)
Battery sensing
Engine cooling fan
Automatic transmission
Auxiliary power sockets
Battery positive feed
Diode
140
Fuses

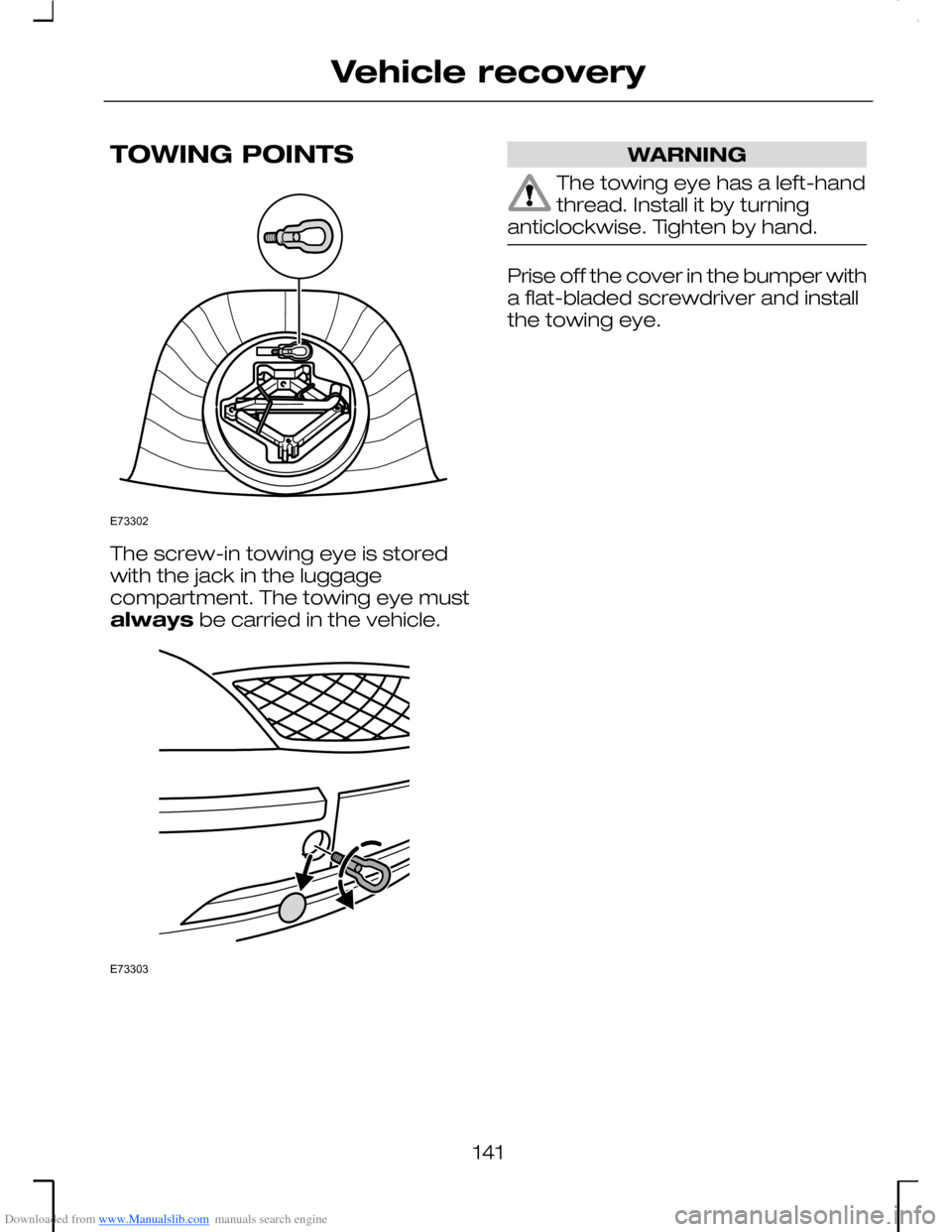

Downloaded from www.Manualslib.com manuals search engine TOWING POINTS
The screw-in towing eye is storedwith the jack in the luggagecompartment. The towing eye mustalways be carried in the vehicle.
WARNING
The towing eye has a left-handthread. Install it by turninganticlockwise. Tighten by hand.
Prise off the cover in the bumper witha flat-bladed screwdriver and installthe towing eye.
141
Vehicle recoveryE73302 E73303

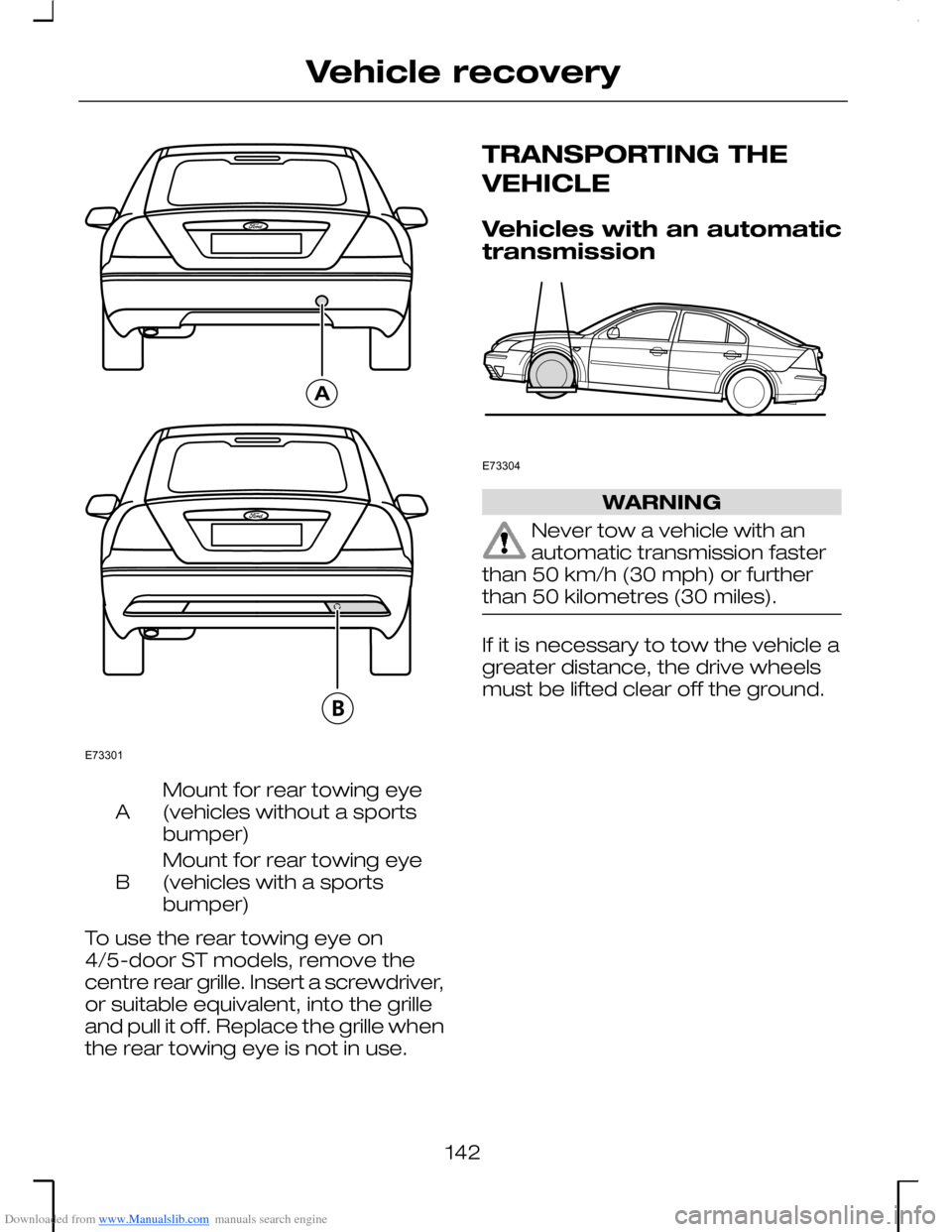

Downloaded from www.Manualslib.com manuals search engine Mount for rear towing eye(vehicles without a sportsbumper)A
Mount for rear towing eye(vehicles with a sportsbumper)B
To use the rear towing eye on4/5-door ST models, remove thecentre rear grille. Insert a screwdriver,or suitable equivalent, into the grilleand pull it off. Replace the grille whenthe rear towing eye is not in use.
TRANSPORTING THE
VEHICLE
Vehicles with an automatictransmission
WARNING
Never tow a vehicle with anautomatic transmission fasterthan 50 km/h (30 mph) or furtherthan 50 kilometres (30 miles).
If it is necessary to tow the vehicle agreater distance, the drive wheelsmust be lifted clear off the ground.
142
Vehicle recoveryE73301 E73304
