2006 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine A luggage net can be attached to thefour retaining points on the load areafloor. It can prevent objects slidingaround.
LUGGAGE COVERS
WARNING
Do not place objects on theluggage cover.
5-door
Removal
Detach the two lifting straps on thetailgate. Release the cover at its sidesand pull it out horizontally withouttilting it.
Refitting
Insert the cover horizontally, align itand push in as far as the stop. Attachthe lifting straps to the tailgate.
Estate
Pull out the roller cover and securein the retaining points. The cover canbe removed completely by pressingboth ends of the support inwards.
ROOF RACKS AND LOAD
CARRIERS
Roof rack
127
Load carryingE72512 E72513 E72514

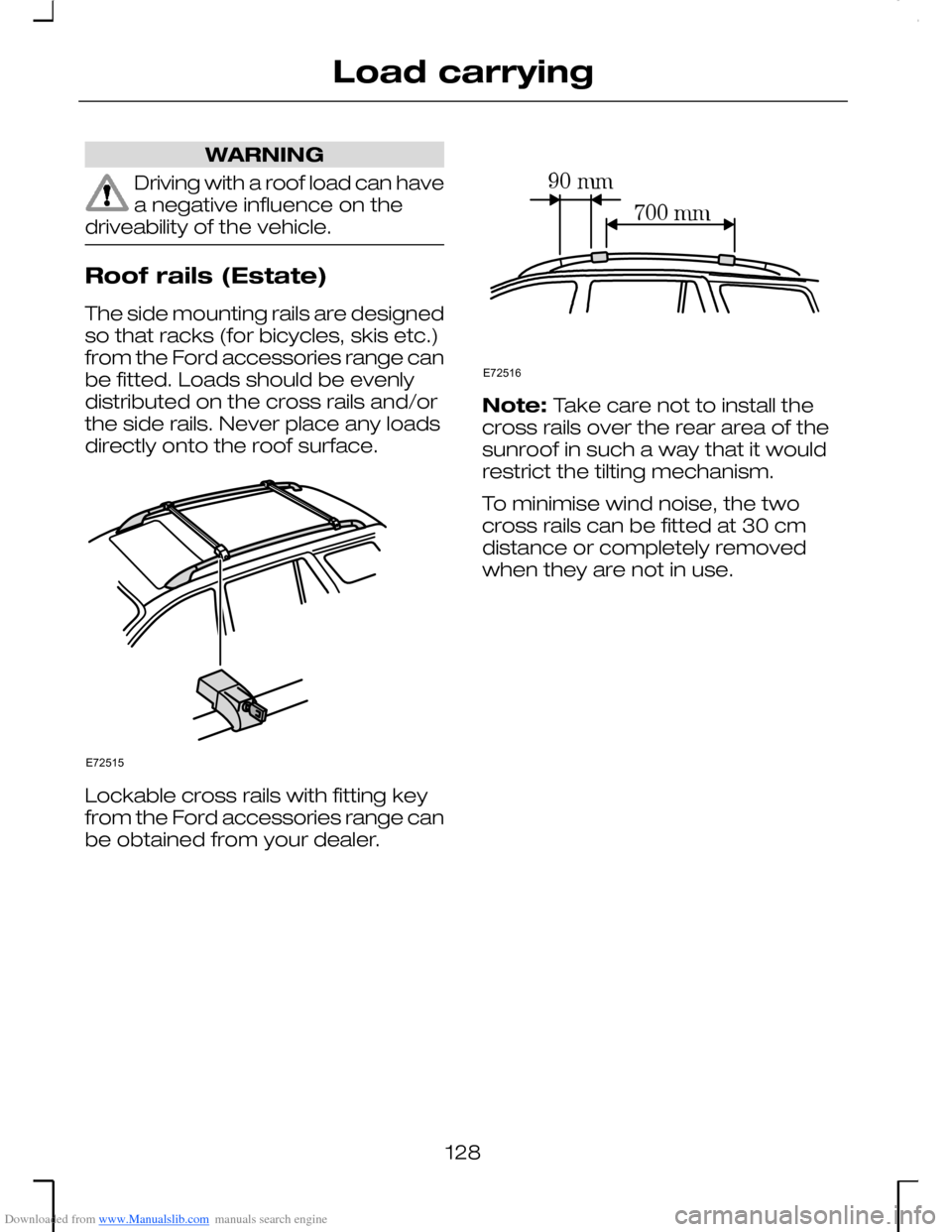

Downloaded from www.Manualslib.com manuals search engine WARNING
Driving with a roof load can havea negative influence on thedriveability of the vehicle.
Roof rails (Estate)
The side mounting rails are designedso that racks (for bicycles, skis etc.)from the Ford accessories range canbe fitted. Loads should be evenlydistributed on the cross rails and/orthe side rails. Never place any loadsdirectly onto the roof surface.
Lockable cross rails with fitting keyfrom the Ford accessories range canbe obtained from your dealer.
Note: Take care not to install thecross rails over the rear area of thesunroof in such a way that it wouldrestrict the tilting mechanism.
To minimise wind noise, the twocross rails can be fitted at 30 cmdistance or completely removedwhen they are not in use.
128
Load carryingE72515 E72516

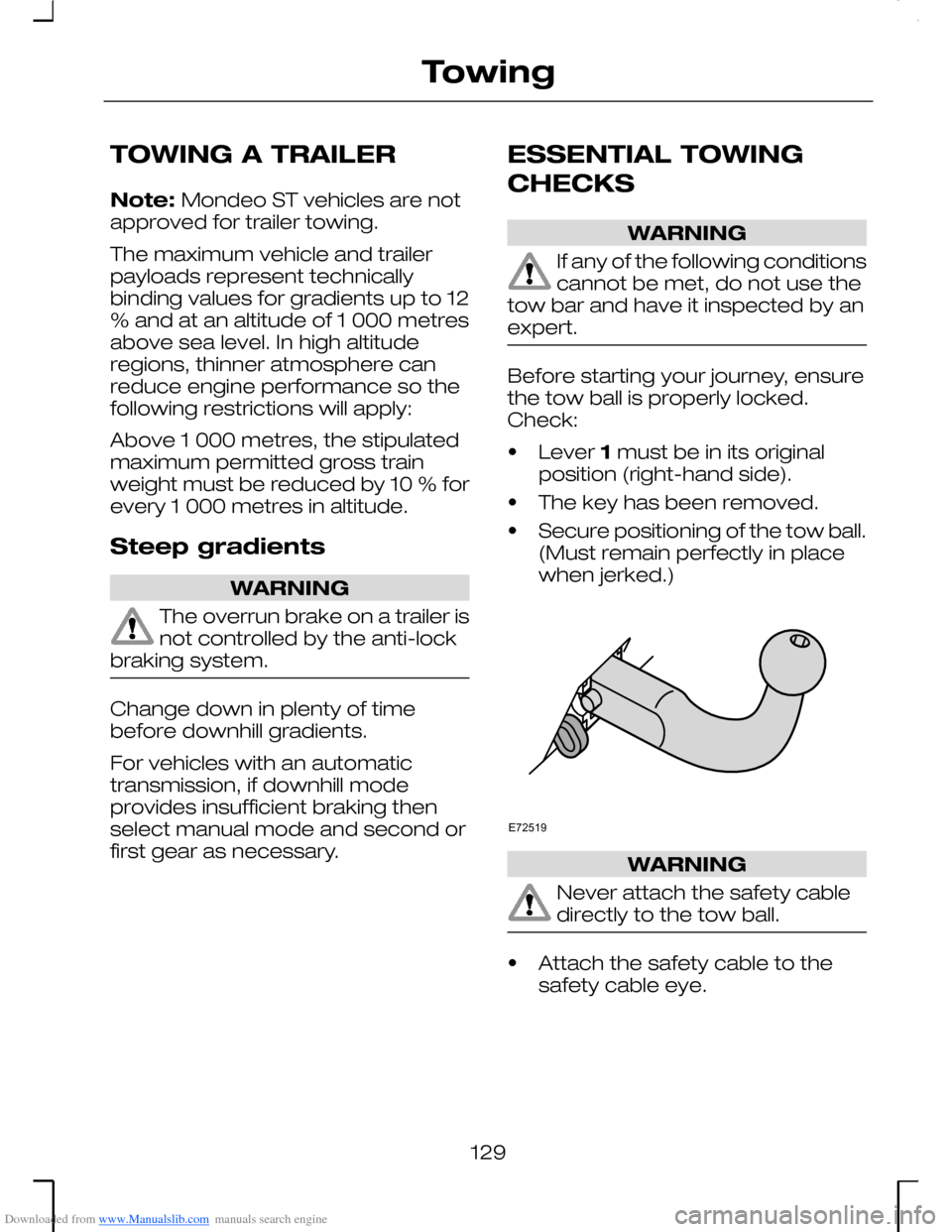

Downloaded from www.Manualslib.com manuals search engine TOWING A TRAILER
Note: Mondeo ST vehicles are notapproved for trailer towing.
The maximum vehicle and trailerpayloads represent technicallybinding values for gradients up to 12% and at an altitude of 1 000 metresabove sea level. In high altituderegions, thinner atmosphere canreduce engine performance so thefollowing restrictions will apply:
Above 1 000 metres, the stipulatedmaximum permitted gross trainweight must be reduced by 10 % forevery 1 000 metres in altitude.
Steep gradients
WARNING
The overrun brake on a trailer isnot controlled by the anti-lockbraking system.
Change down in plenty of timebefore downhill gradients.
For vehicles with an automatictransmission, if downhill modeprovides insufficient braking thenselect manual mode and second orfirst gear as necessary.
ESSENTIAL TOWING
CHECKS
WARNING
If any of the following conditionscannot be met, do not use thetow bar and have it inspected by anexpert.
Before starting your journey, ensurethe tow ball is properly locked.Check:
•Lever 1 must be in its originalposition (right-hand side).
•The key has been removed.
•Secure positioning of the tow ball.(Must remain perfectly in placewhen jerked.)
WARNING
Never attach the safety cabledirectly to the tow ball.
•Attach the safety cable to thesafety cable eye.
129
TowingE72519

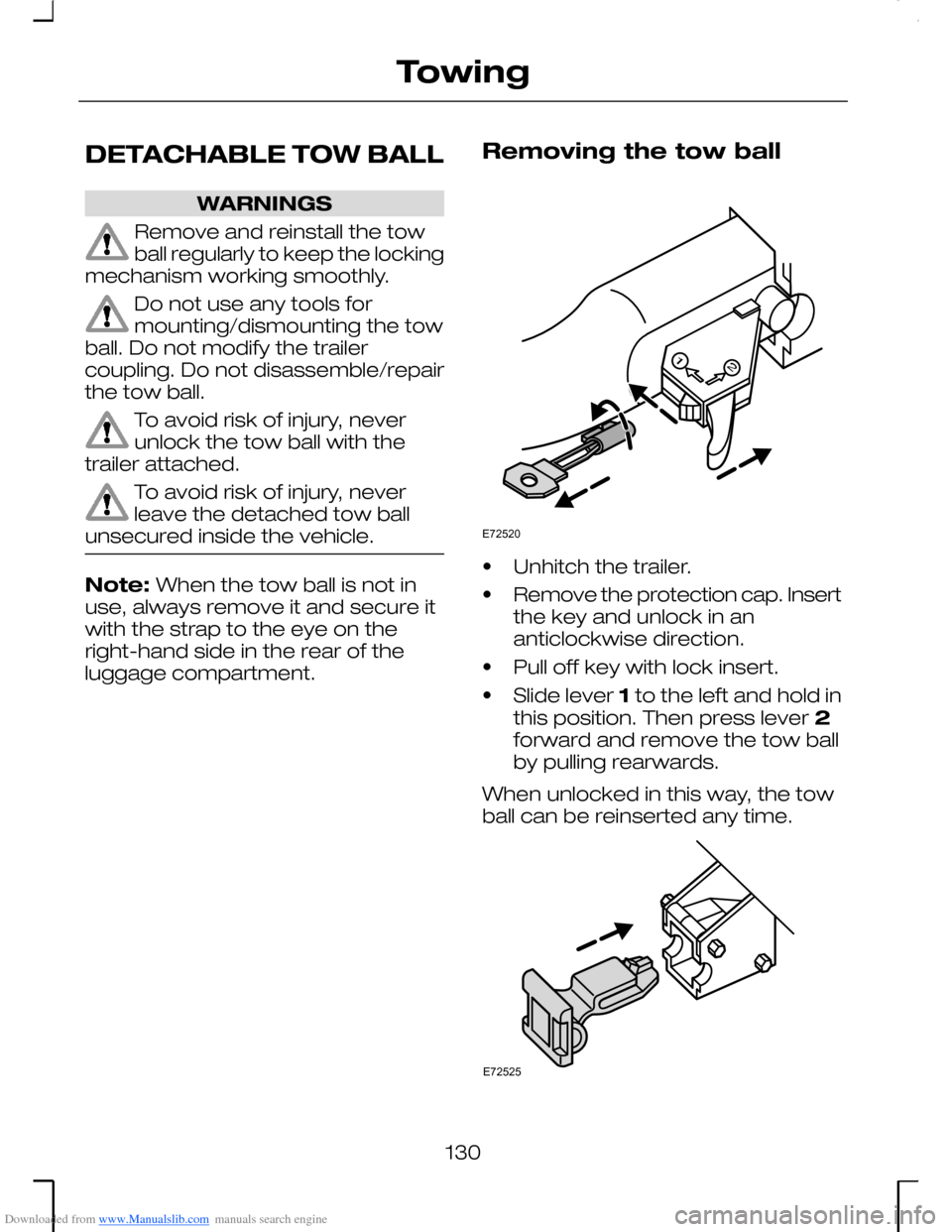

Downloaded from www.Manualslib.com manuals search engine DETACHABLE TOW BALL
WARNINGS
Remove and reinstall the towball regularly to keep the lockingmechanism working smoothly.
Do not use any tools formounting/dismounting the towball. Do not modify the trailercoupling. Do not disassemble/repairthe tow ball.
To avoid risk of injury, neverunlock the tow ball with thetrailer attached.
To avoid risk of injury, neverleave the detached tow ballunsecured inside the vehicle.
Note: When the tow ball is not inuse, always remove it and secure itwith the strap to the eye on theright-hand side in the rear of theluggage compartment.
Removing the tow ball
•Unhitch the trailer.
•Remove the protection cap. Insertthe key and unlock in ananticlockwise direction.
•Pull off key with lock insert.
•Slide lever 1 to the left and hold inthis position. Then press lever 2forward and remove the tow ballby pulling rearwards.
When unlocked in this way, the towball can be reinserted any time.
130
TowingE72520 E72525

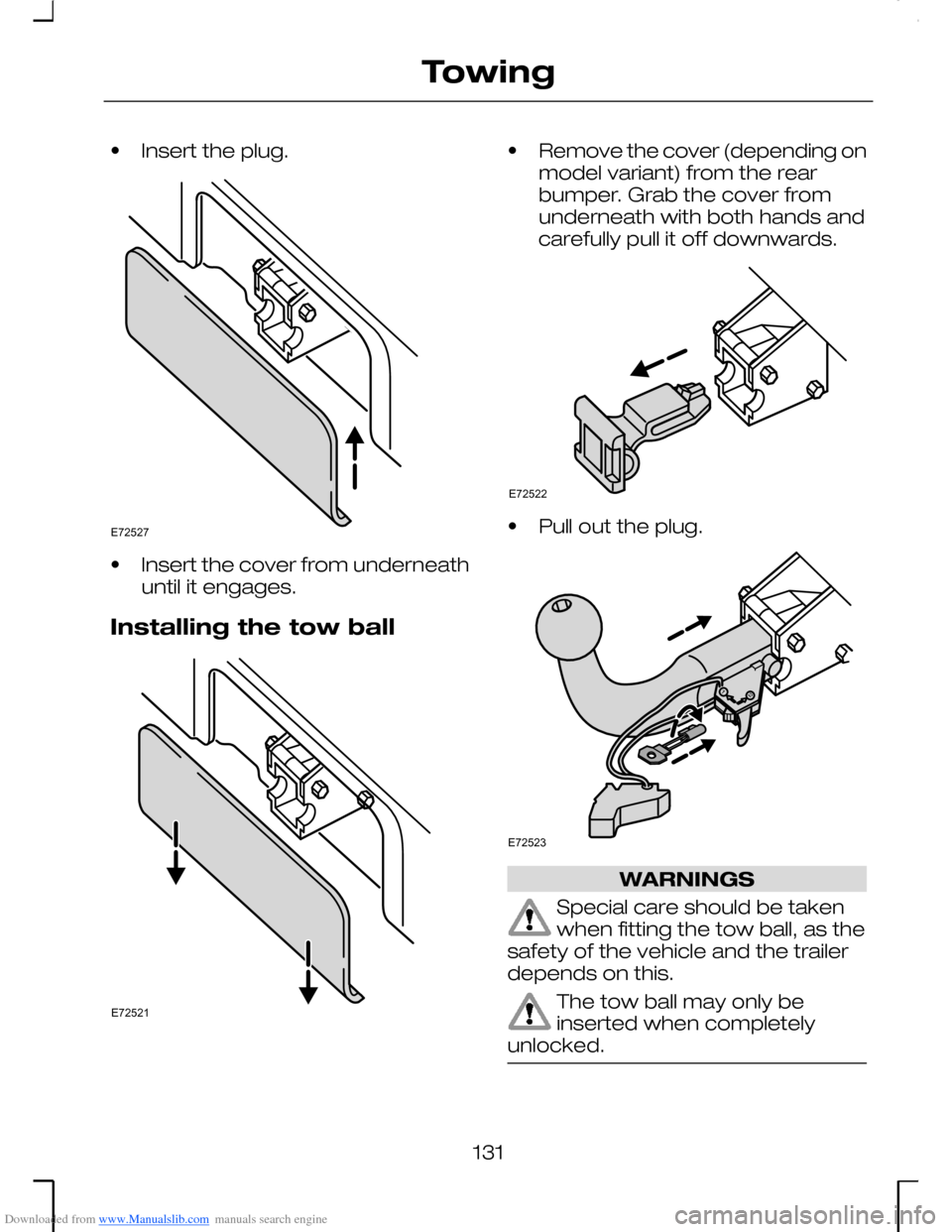

Downloaded from www.Manualslib.com manuals search engine •Insert the plug.
•Insert the cover from underneathuntil it engages.
Installing the tow ball
•Remove the cover (depending onmodel variant) from the rearbumper. Grab the cover fromunderneath with both hands andcarefully pull it off downwards.
•Pull out the plug.
WARNINGS
Special care should be takenwhen fitting the tow ball, as thesafety of the vehicle and the trailerdepends on this.
The tow ball may only beinserted when completelyunlocked.
131
TowingE72527 E72521 E72522 E72523

Downloaded from www.Manualslib.com manuals search engine •Insert the tow ball horizontally andpush forward until the lockingmechanism engages. (Do nothold your hand near the lockingmechanism.)
•The tow ball locks automatically.Lever 1 must be in its originalposition (right-hand side).
•To lock: Insert key with lock insertand turn clockwise. Pull off key.
•Cover the locking mechanismwith the protection cap.
Maintenance
WARNING
Remove the tow ball andprotect the seat with the plugbefore steam cleaning your vehicle.
Keep the system clean. Periodicallylubricate the lock with graphite.
132
TowingE72524

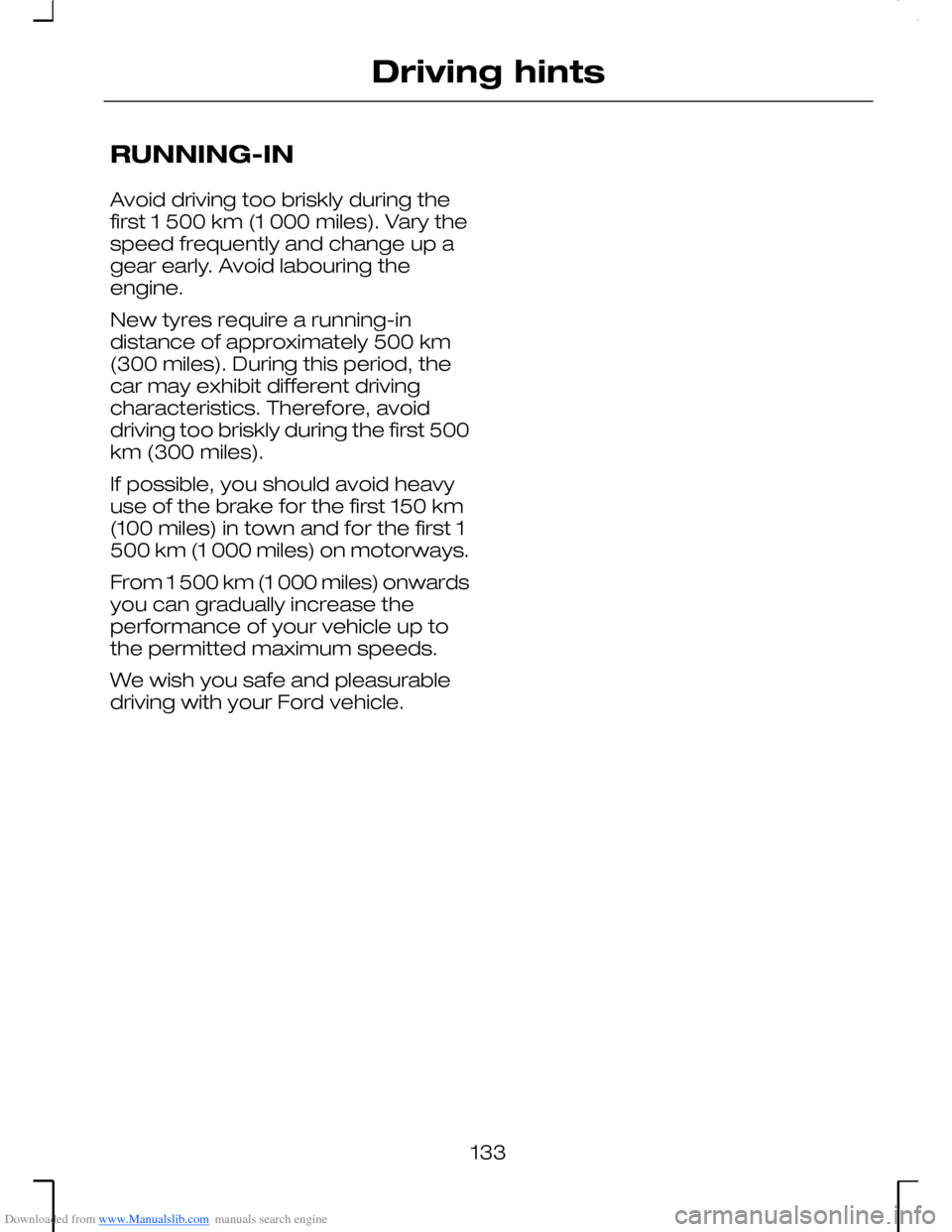

Downloaded from www.Manualslib.com manuals search engine RUNNING-IN
Avoid driving too briskly during thefirst 1 500 km (1 000 miles). Vary thespeed frequently and change up agear early. Avoid labouring theengine.
New tyres require a running-indistance of approximately 500 km(300 miles). During this period, thecar may exhibit different drivingcharacteristics. Therefore, avoiddriving too briskly during the first 500km (300 miles).
If possible, you should avoid heavyuse of the brake for the first 150 km(100 miles) in town and for the first 1500 km (1 000 miles) on motorways.
From 1 500 km (1 000 miles) onwardsyou can gradually increase theperformance of your vehicle up tothe permitted maximum speeds.
We wish you safe and pleasurabledriving with your Ford vehicle.
133
Driving hints

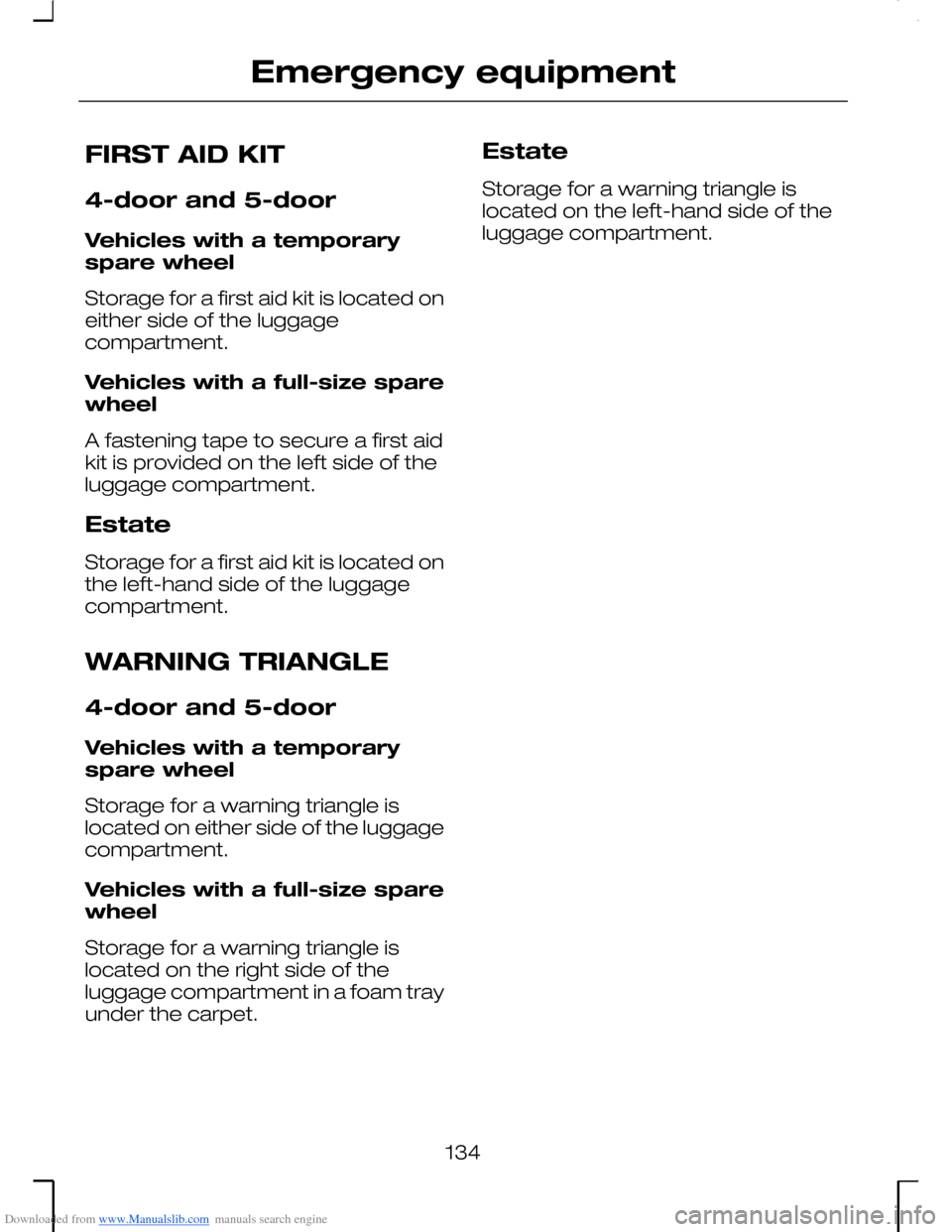

Downloaded from www.Manualslib.com manuals search engine FIRST AID KIT
4-door and 5-door
Vehicles with a temporaryspare wheel
Storage for a first aid kit is located oneither side of the luggagecompartment.
Vehicles with a full-size sparewheel
A fastening tape to secure a first aidkit is provided on the left side of theluggage compartment.
Estate
Storage for a first aid kit is located onthe left-hand side of the luggagecompartment.
WARNING TRIANGLE
4-door and 5-door
Vehicles with a temporaryspare wheel
Storage for a warning triangle islocated on either side of the luggagecompartment.
Vehicles with a full-size sparewheel
Storage for a warning triangle islocated on the right side of theluggage compartment in a foam trayunder the carpet.
Estate
Storage for a warning triangle islocated on the left-hand side of theluggage compartment.
134
Emergency equipment
